The Ultimate Guide of Expansion Joint at Flexpert Bellows

1. The Ultimate Guide of Expansion Joint at Flexpert Bellows

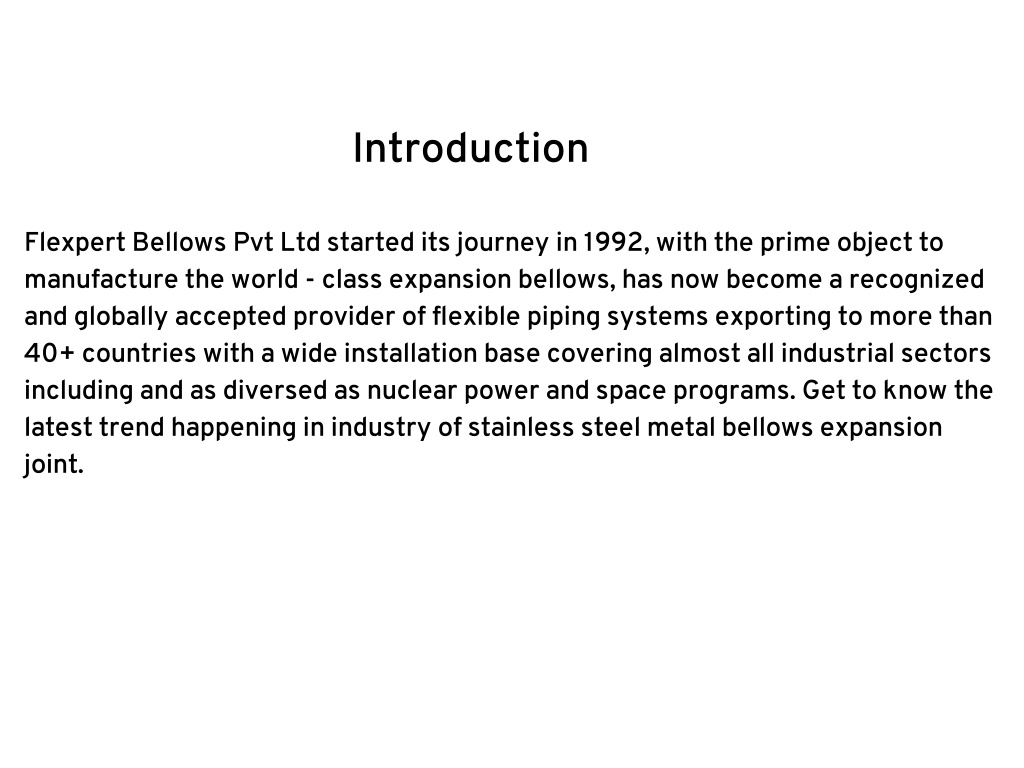

2. Introduction Flexpert Bellows Pvt Ltd started its journey in 1992, with the prime object to manufacture the world - class expansion bellows, has now become a recognized and globally accepted provider of flexible piping systems exporting to more than 40+ countries with a wide installation base covering almost all industrial sectors including and as diversed as nuclear power and space programs. Get to know the latest trend happening in industry of stainless steel metal bellows expansion joint.

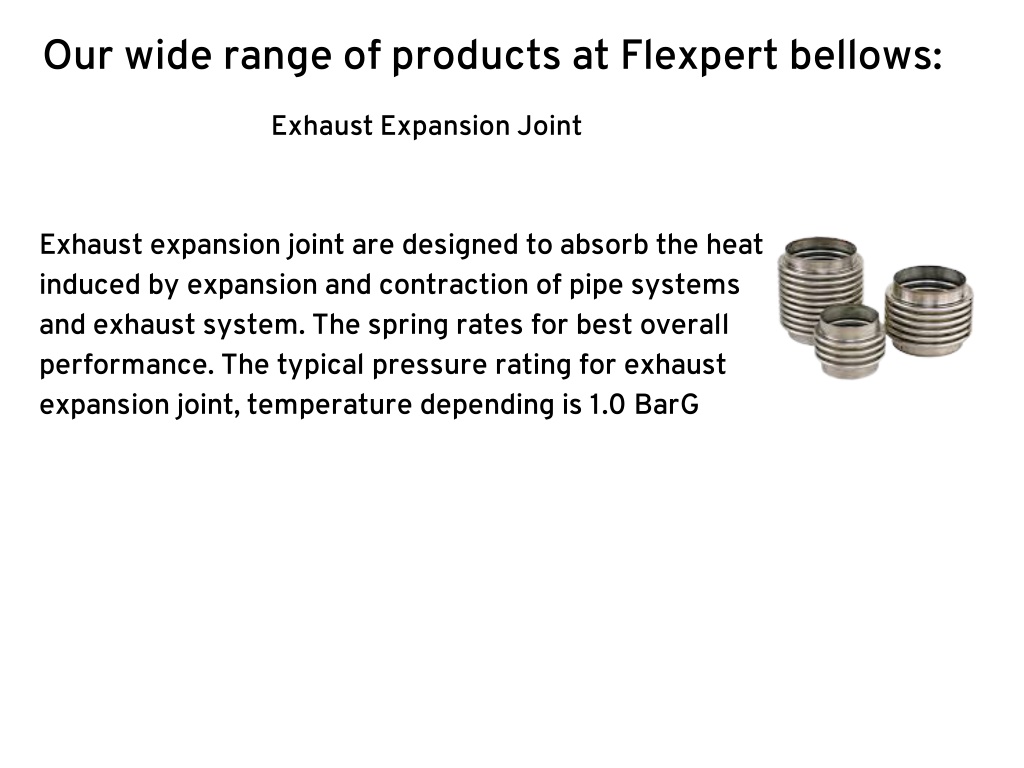

3. Our wide range of products at Flexpert bellows: Exhaust Expansion Joint Exhaust expansion joint are designed to absorb the heat induced by expansion and contraction of pipe systems and exhaust system. The spring rates for best overall performance. The typical pressure rating for exhaust expansion joint, temperature depending is 1.0 BarG

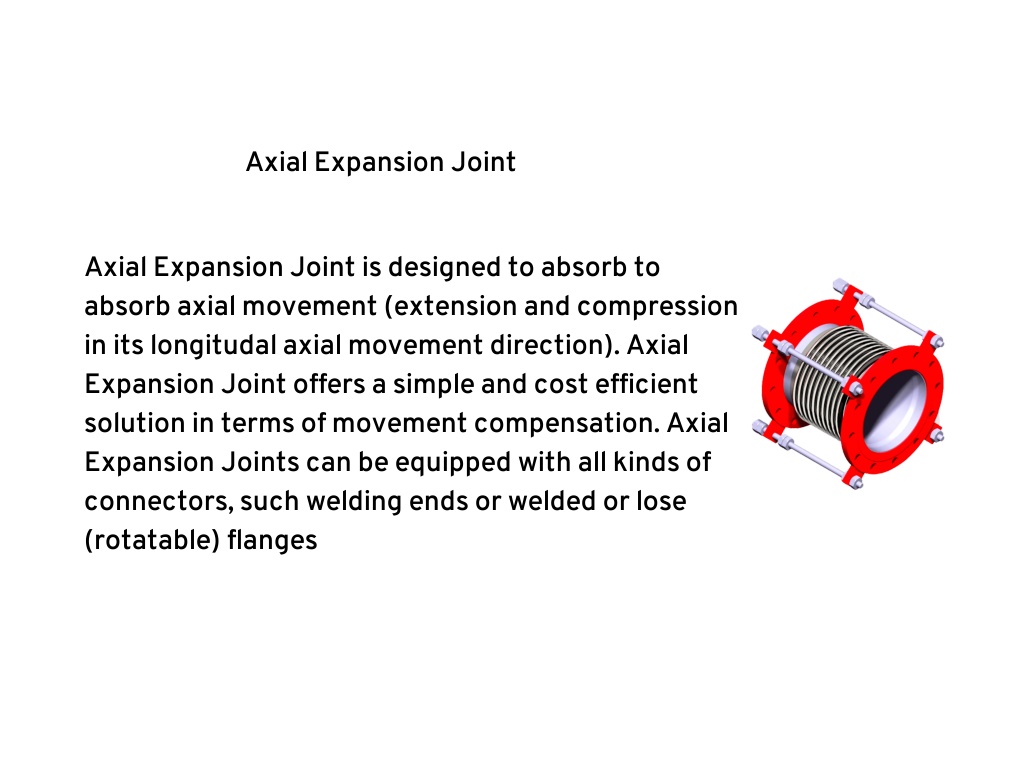

4. Axial Expansion Joint Axial Expansion Joint is designed to absorb to absorb axial movement (extension and compression in its longitudal axial movement direction). Axial Expansion Joint offers a simple and cost efficient solution in terms of movement compensation. Axial Expansion Joints can be equipped with all kinds of connectors, such welding ends or welded or lose (rotatable) flanges

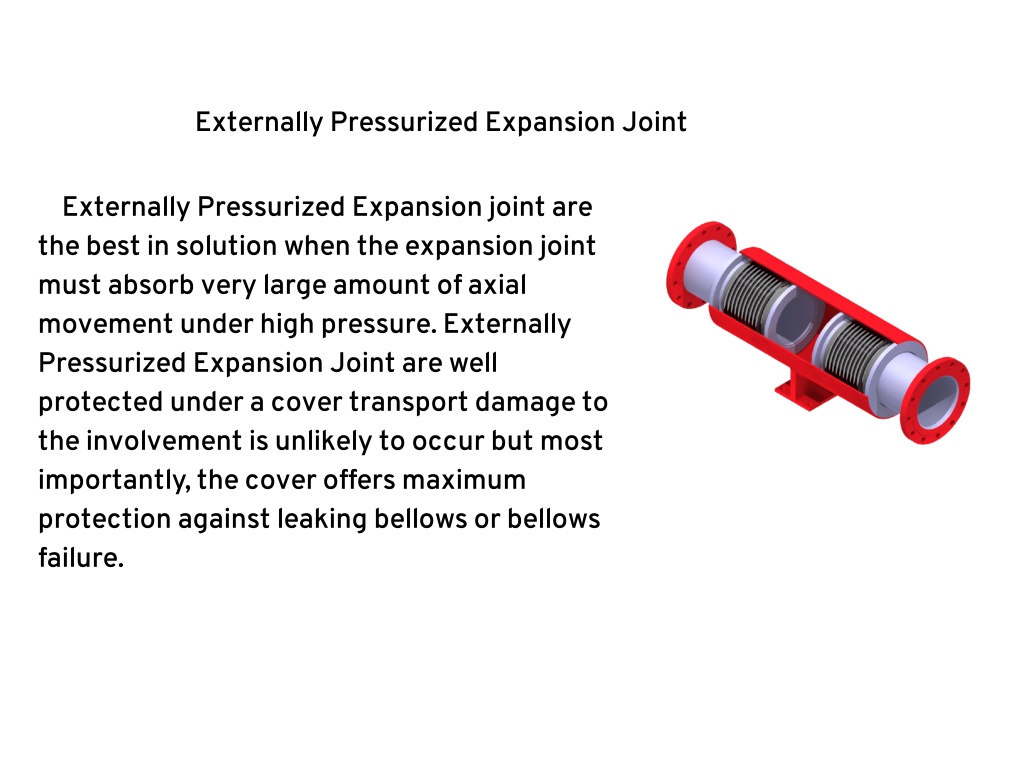

5. Externally Pressurized Expansion Joint Externally Pressurized Expansion joint are the best in solution when the expansion joint must absorb very large amount of axial movement under high pressure. Externally Pressurized Expansion Joint are well protected under a cover transport damage to the involvement is unlikely to occur but most importantly, the cover offers maximum protection against leaking bellows or bellows failure.

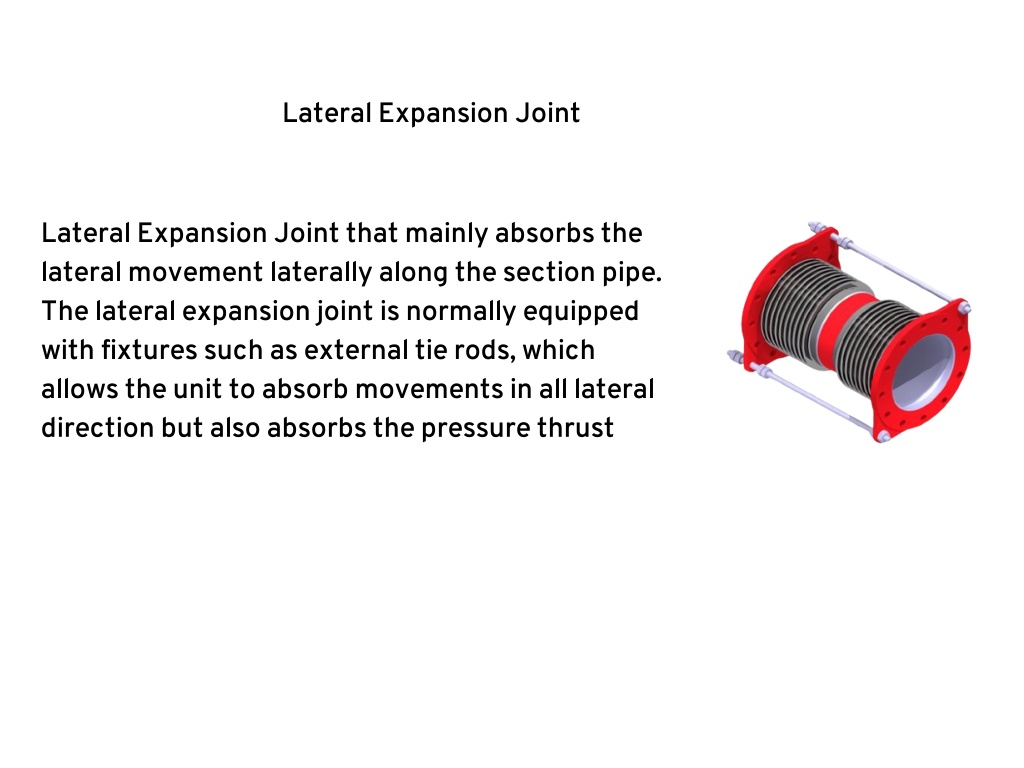

6. Lateral Expansion Joint Lateral Expansion Joint that mainly absorbs the lateral movement laterally along the section pipe. The lateral expansion joint is normally equipped with fixtures such as external tie rods, which allows the unit to absorb movements in all lateral direction but also absorbs the pressure thrust

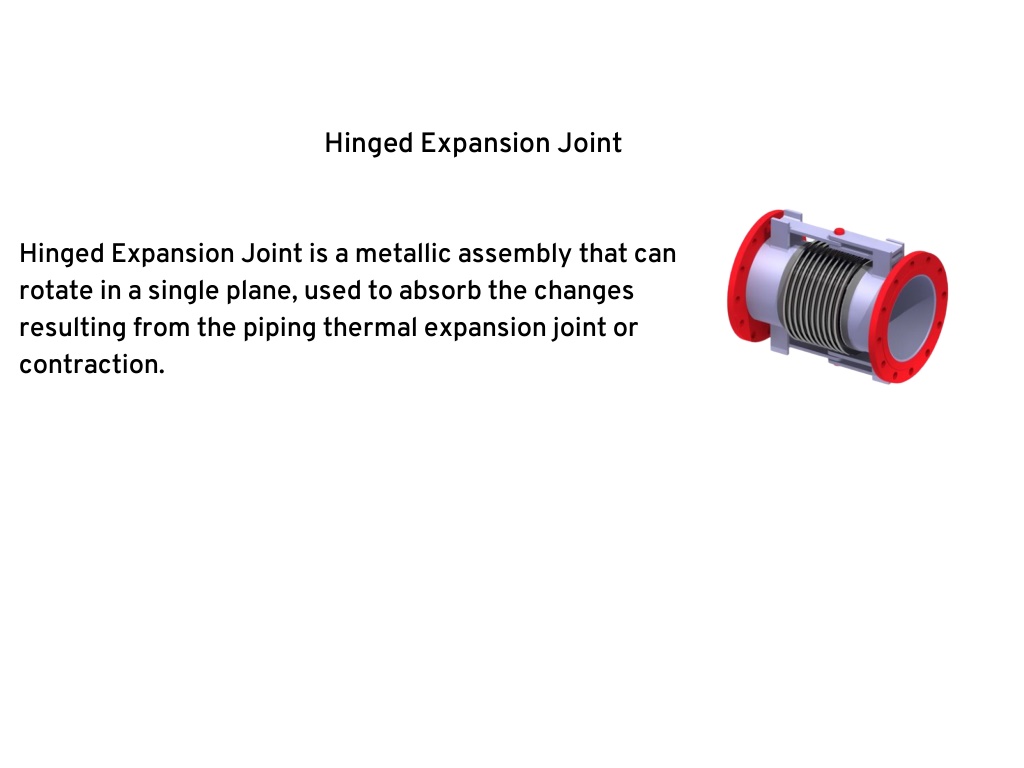

7. Hinged Expansion Joint Hinged Expansion Joint is a metallic assembly that can rotate in a single plane, used to absorb the changes resulting from the piping thermal expansion joint or contraction.

8. Universal Expansion Joint A Universal Expansion Joint contains two bellows with a connecting pipe or centre spool between them. It is usually furnished with the limit rods depending upon the service conditions.

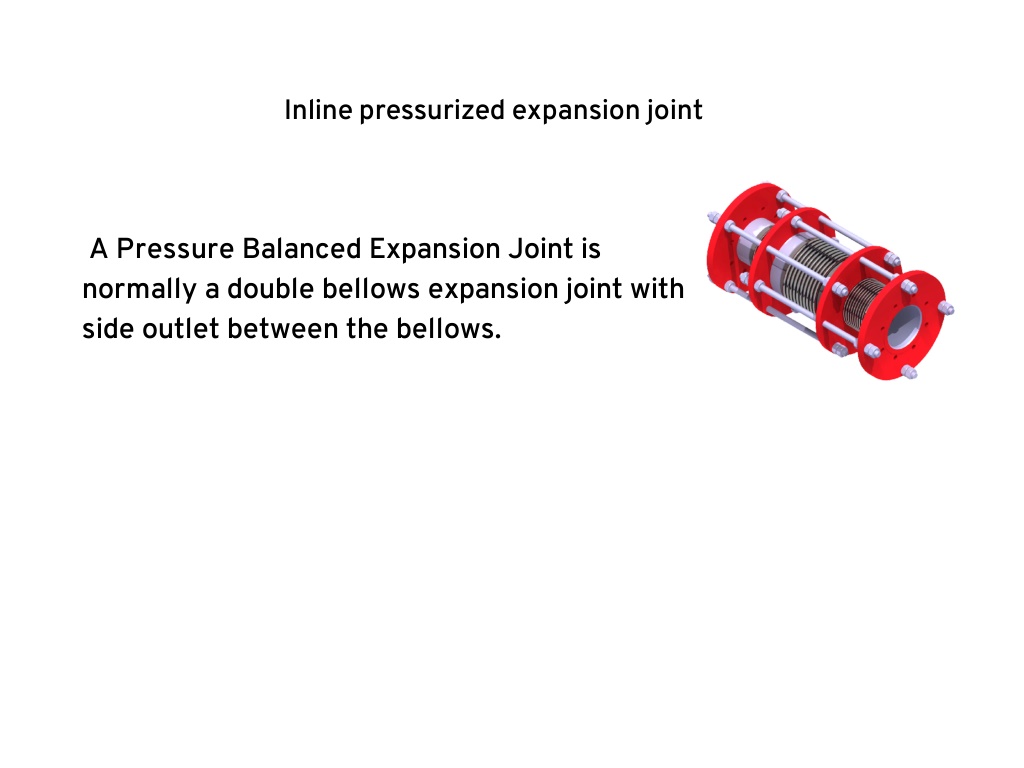

9. Inline pressurized expansion joint A Pressure Balanced Expansion Joint is normally a double bellows expansion joint with side outlet between the bellows.

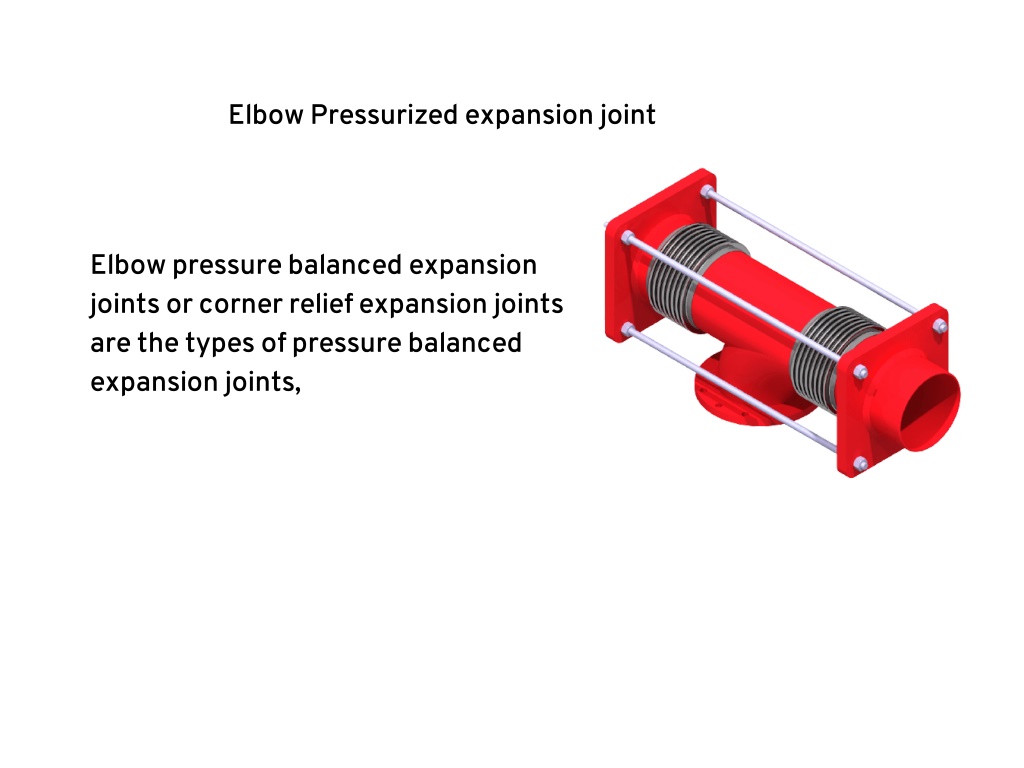

10. Elbow Pressurized expansion joint Elbow pressure balanced expansion joints or corner relief expansion joints are the types of pressure balanced expansion joints,

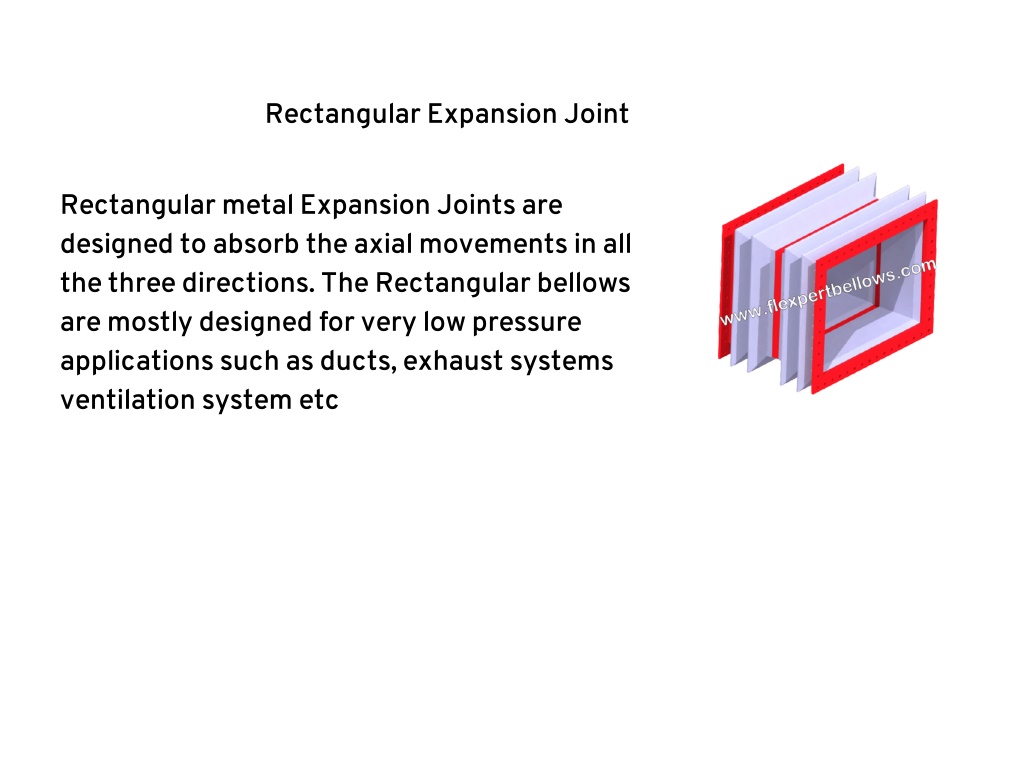

11. Rectangular Expansion Joint Rectangular metal Expansion Joints are designed to absorb the axial movements in all the three directions. The Rectangular bellows are mostly designed for very low pressure applications such as ducts, exhaust systems ventilation system etc

12. Bellows Expansion Joint
