第二章 液位讨论题

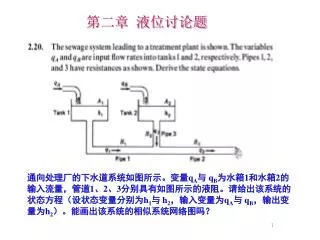

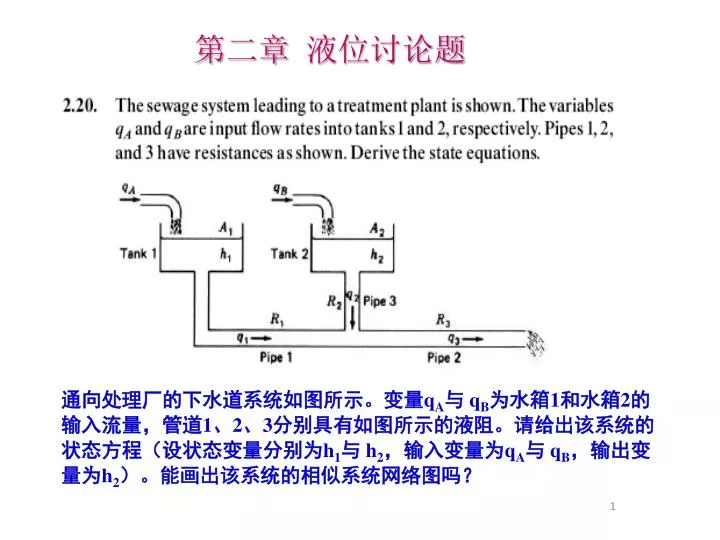

第二章 液位讨论题. 通向处理厂的下水道系统如图所示。变量 q A 与 q B 为水箱 1 和水箱 2 的输入流量，管道 1 、 2 、 3 分别具有如图所示的液阻。请给出该系统的状态方程（设状态变量分别为 h 1 与 h 2 ，输入变量为 q A 与 q B ，输出变量为 h 2 ）。能画出该系统的相似系统网络图吗？.
