  1. Two Forces

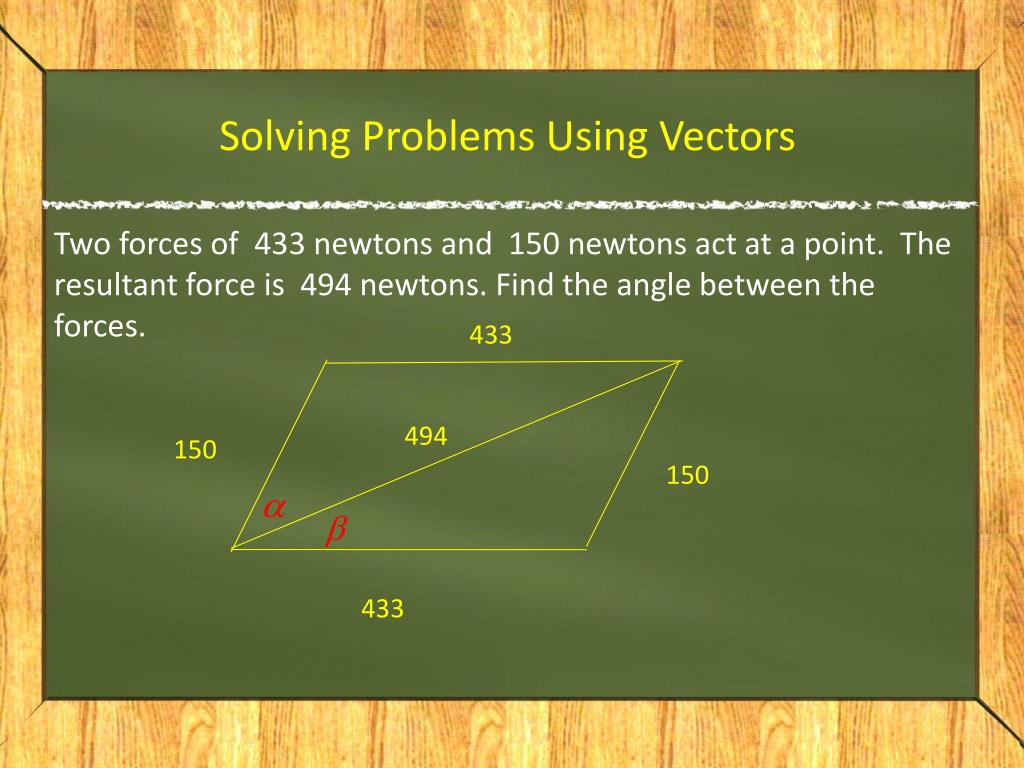

  2. Solving Problems Using Vectors Two forces of 433 newtons and 150 newtons act at a point. The resultant force is 494 newtons. Find the angle between the forces. 433 494 150 150 433

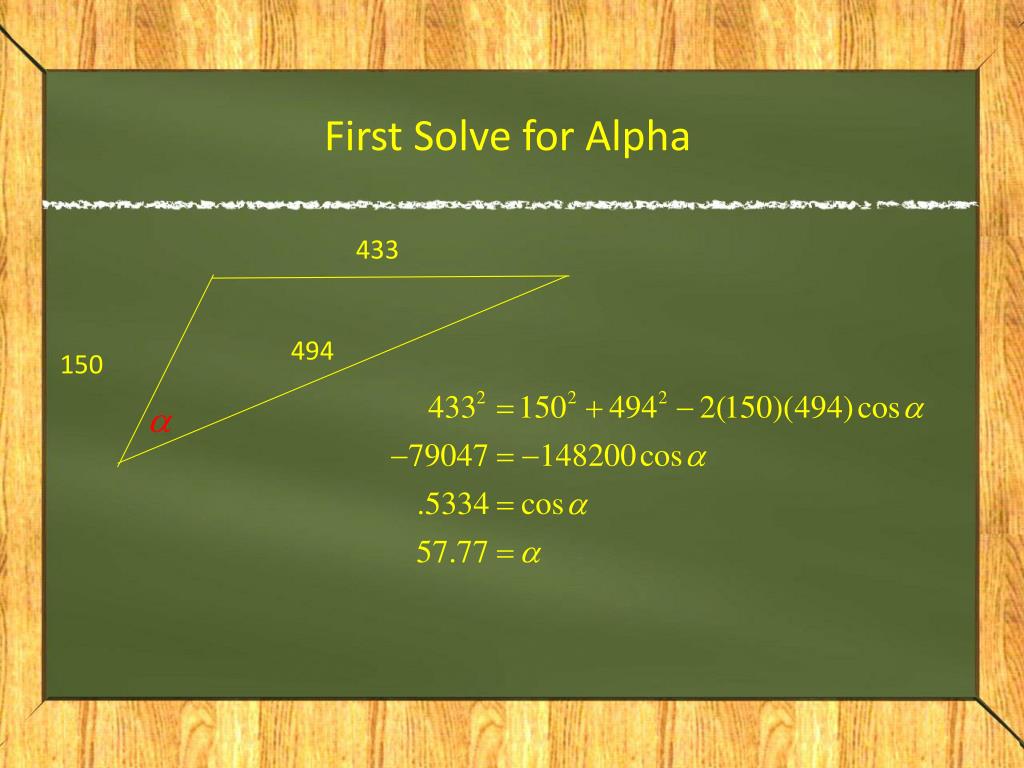

  3. First Solve for Alpha 433 494 150

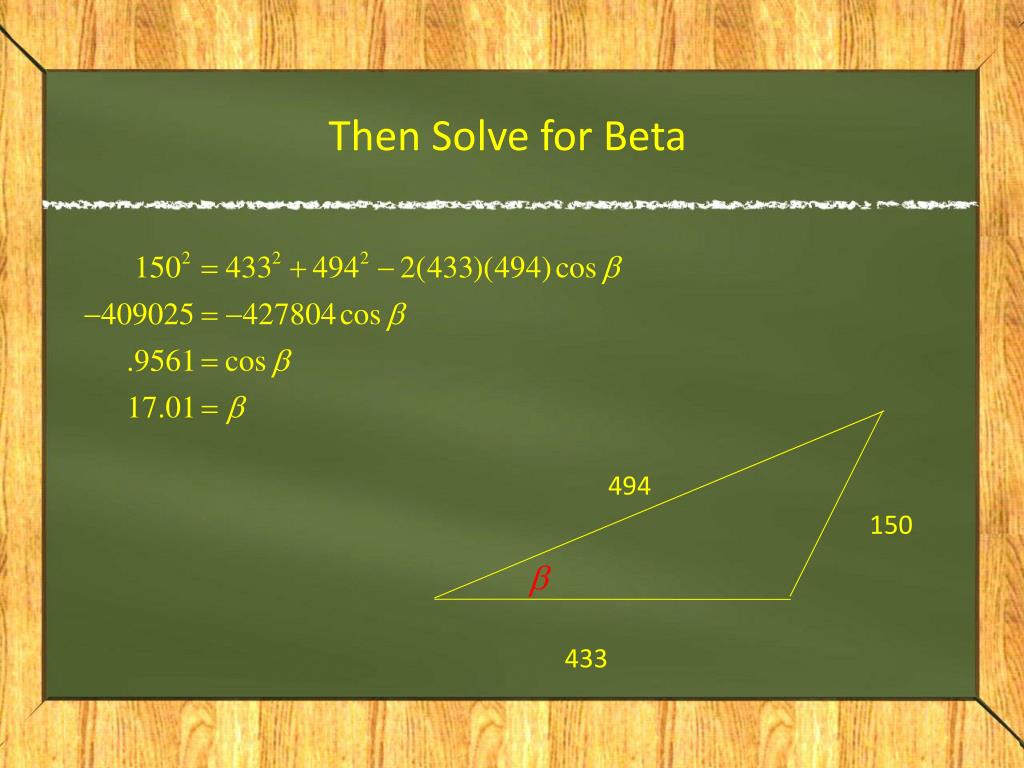

  4. Then Solve for Beta 494 150 433

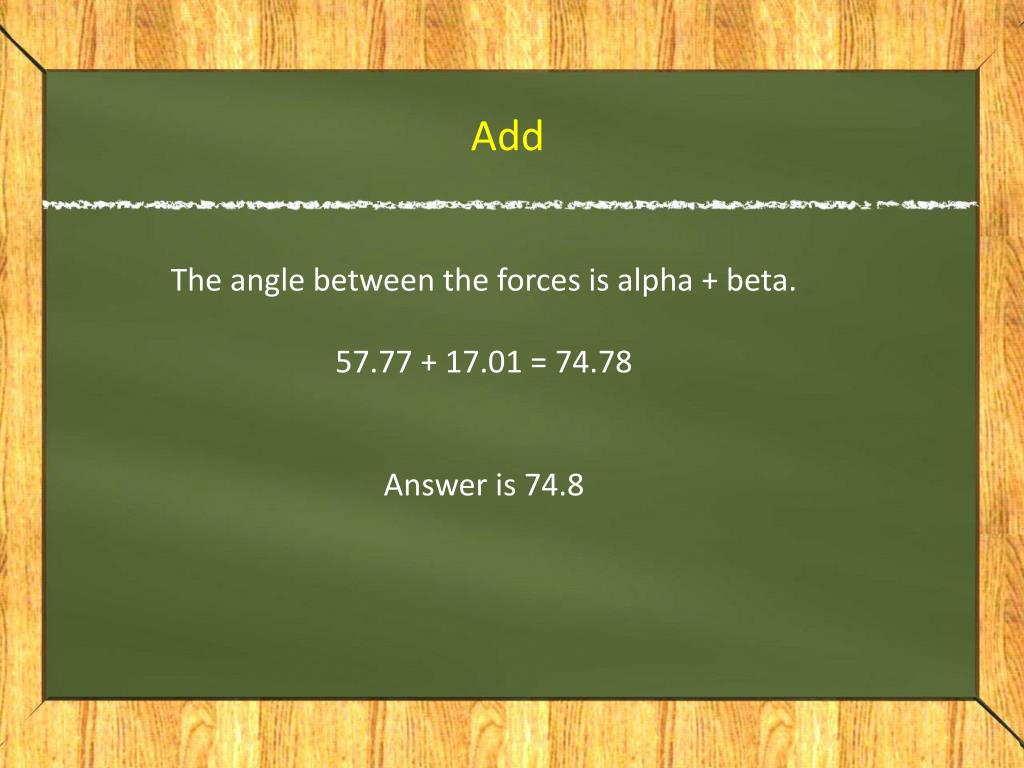

  5. Add The angle between the forces is alpha + beta. 57.77 + 17.01 = 74.78 Answer is 74.8
