  1. Chapter Three Administering and Configuring SQL Server 2000

  2. Objectives • Identify the applications installed with SQL Server 2000 • Configure SQL Server 2000 with the Enterprise Manager and SQL Query Analyzer • Configure SQLMail and SQLAgentMail • Create a linked server

  3. Client Applications Installed with SQL Server 2000 Figure 3-1: The SQL Server 2000 program group

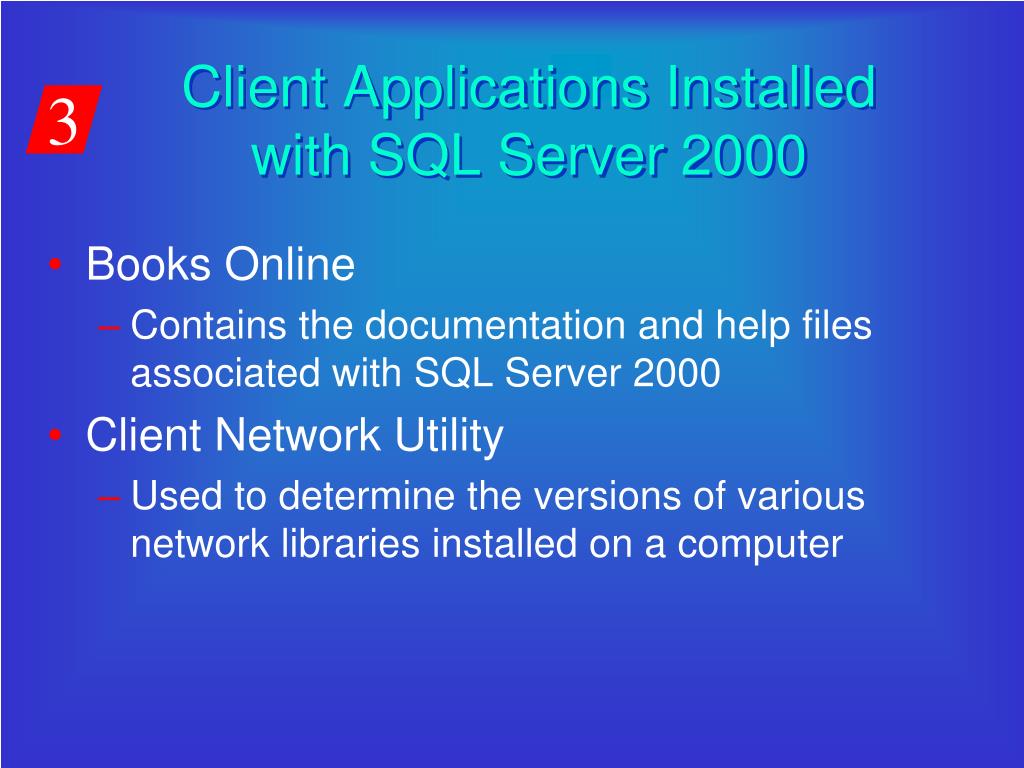

  4. Client Applications Installed with SQL Server 2000 • Books Online • Contains the documentation and help files associated with SQL Server 2000 • Client Network Utility • Used to determine the versions of various network libraries installed on a computer

  5. Client Applications Installed with SQL Server 2000 • Configure SQL XML Support in IIS • Opens IIS Virtual Directory Management for SQL Server, which allows SQL Server 2000 to be configured to listen for requests over the Hypertext Transfer Protocol (HTTP) • Most common protocol used to transfer information from Web servers to Web browsers • Enterprise Manager • Management tool for administering and configuring SQL Server 2000 instances

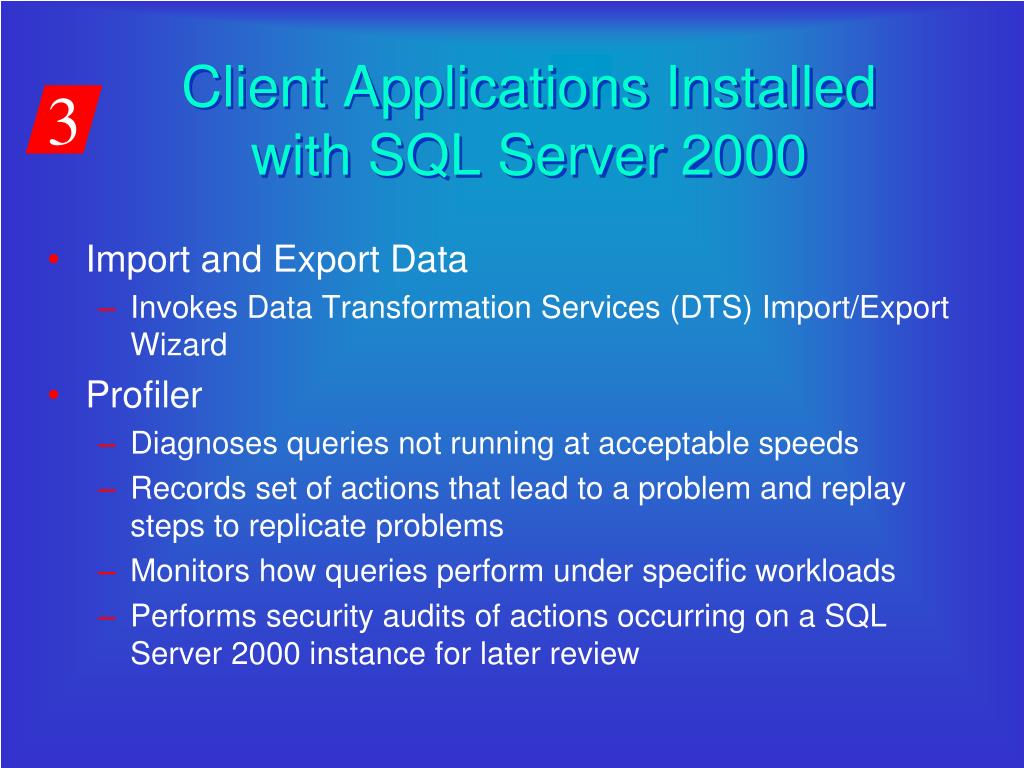

  6. Client Applications Installed with SQL Server 2000 • Import and Export Data • Invokes Data Transformation Services (DTS) Import/Export Wizard • Profiler • Diagnoses queries not running at acceptable speeds • Records set of actions that lead to a problem and replay steps to replicate problems • Monitors how queries perform under specific workloads • Performs security audits of actions occurring on a SQL Server 2000 instance for later review

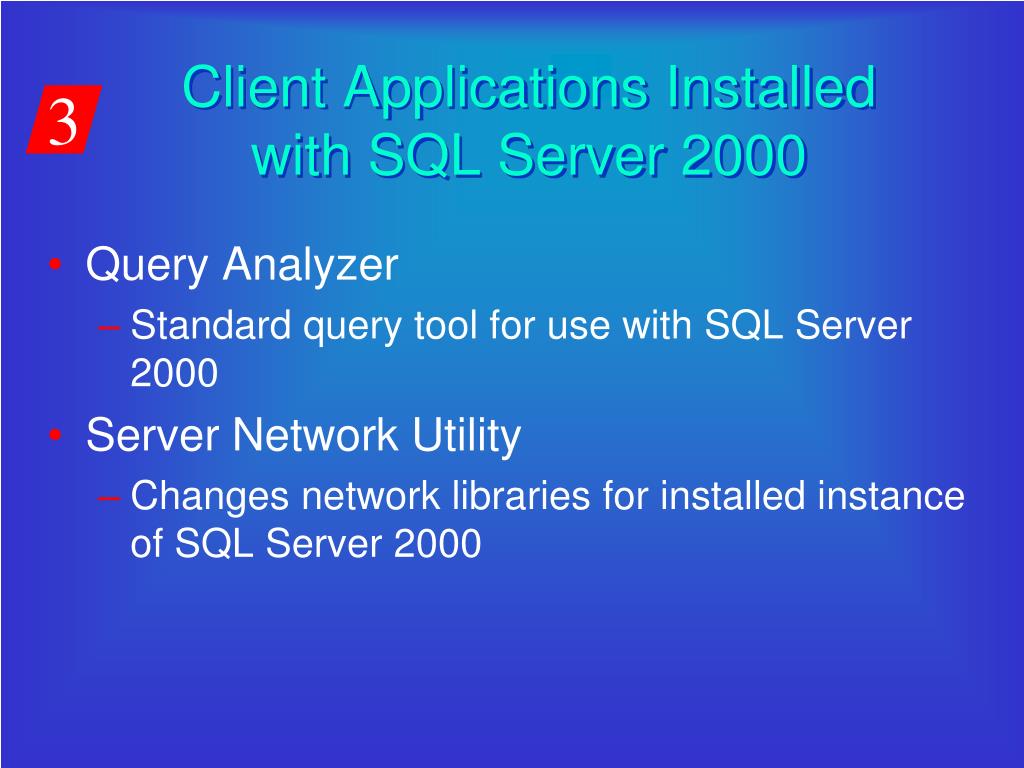

  7. Client Applications Installed with SQL Server 2000 • Query Analyzer • Standard query tool for use with SQL Server 2000 • Server Network Utility • Changes network libraries for installed instance of SQL Server 2000

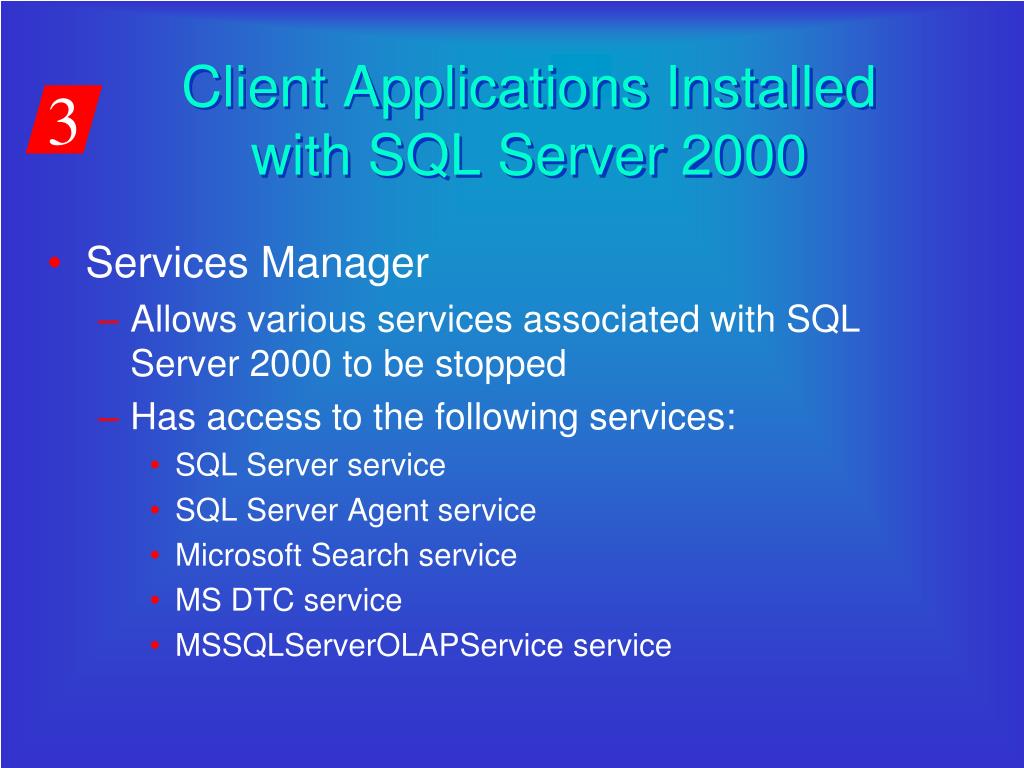

  8. Client Applications Installed with SQL Server 2000 • Services Manager • Allows various services associated with SQL Server 2000 to be stopped • Has access to the following services: • SQL Server service • SQL Server Agent service • Microsoft Search service • MS DTC service • MSSQLServerOLAPService service

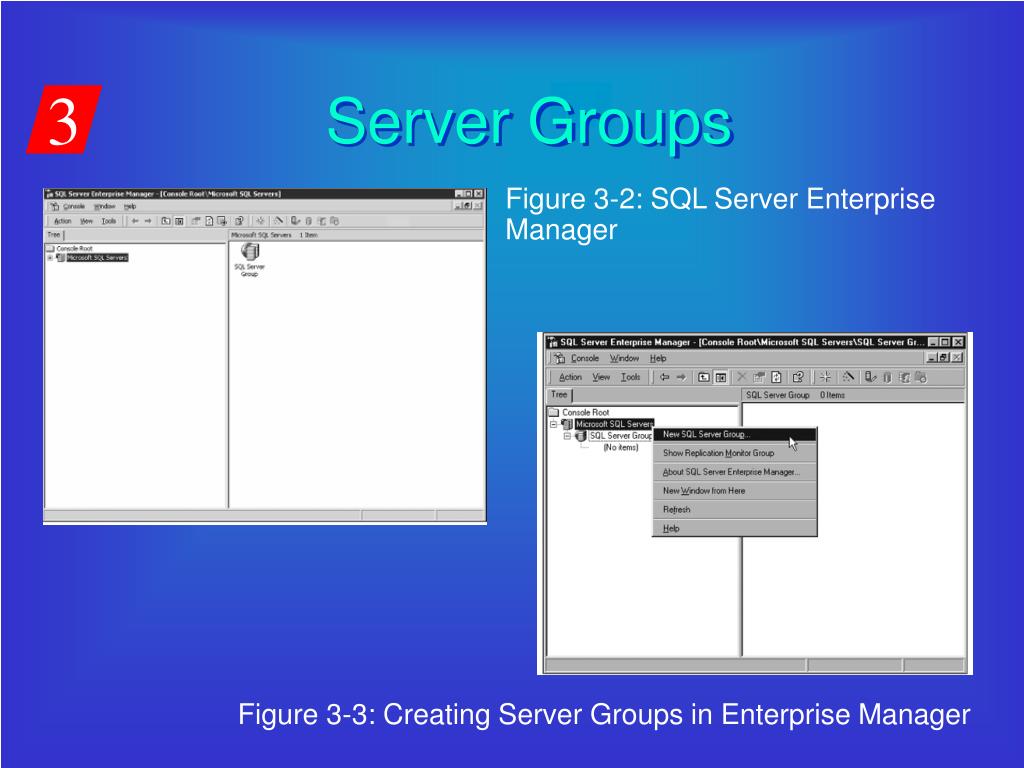

  9. Server Groups Figure 3-2: SQL Server Enterprise Manager Figure 3-3: Creating Server Groups in Enterprise Manager

  10. Server Groups Figure 3-4: Server Groups screen

  11. Registering Servers • To complete a successful registration, you must supply the following about an instance: • Name of the SQL Server 2000 instance • Authentication mode used to connect to the SQL Server • Server group within which the new instance will reside in Enterprise Manager

  12. Registering Servers Figure 3-5: Registered SQL Server Properties screen

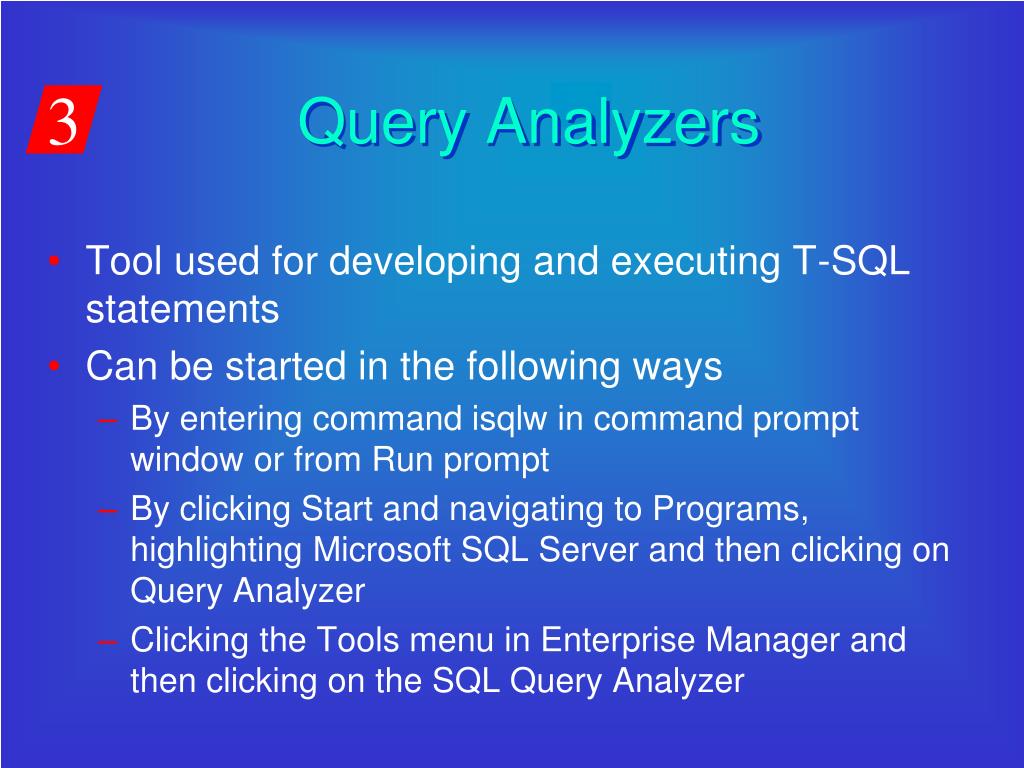

  13. Query Analyzers • Tool used for developing and executing T-SQL statements • Can be started in the following ways • By entering command isqlw in command prompt window or from Run prompt • By clicking Start and navigating to Programs, highlighting Microsoft SQL Server and then clicking on Query Analyzer • Clicking the Tools menu in Enterprise Manager and then clicking on the SQL Query Analyzer

  14. Query Analyzers Figure 3-6 SQL Query Analyzer

  15. Configuring a Registered SQL Server Figure 3-7: Accessing the Properties of a registered instance of SQL Server 2000

  16. Configuring a Registered SQL Server Figure 3-8: General Tab of the SQL Server Properties screen • General tab displays the various software and hardware properties of the computer on which SQL Server 2000 is installed

  17. Configuring a Registered SQL Server Table 3-1: Default startup parameters

  18. Configuring a Registered SQL Server Table 3-2: Additional startup options

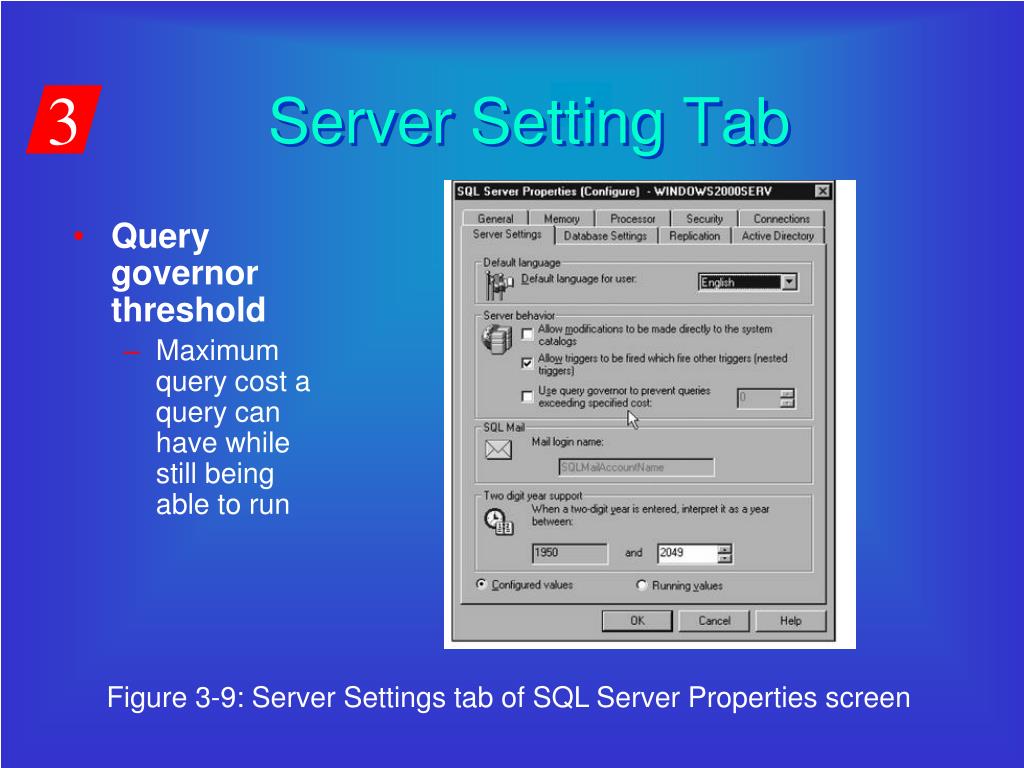

  19. Server Setting Tab • Query governor threshold • Maximum query cost a query can have while still being able to run Figure 3-9: Server Settings tab of SQL Server Properties screen

  20. Server Setting Tab • Way in which SQL Server 2000 handles two-digit years is set from the Server Settings Tab • Two-digit years less than or equal to last two digits of cutoff year are in same century as that of cutoff year • Years greater than last two digits of cutoff year are in century previous to that of cutoff year • Rules are not applied for explicit four-digit years Figure 3-10: Configured values and Running values

  21. Memory Tab • Memory tab allows minimum and maximum size parameter for amount of memory that SQL Server 2000 will use Figure 3-11: Memory tab of the SQL Server Properties screen

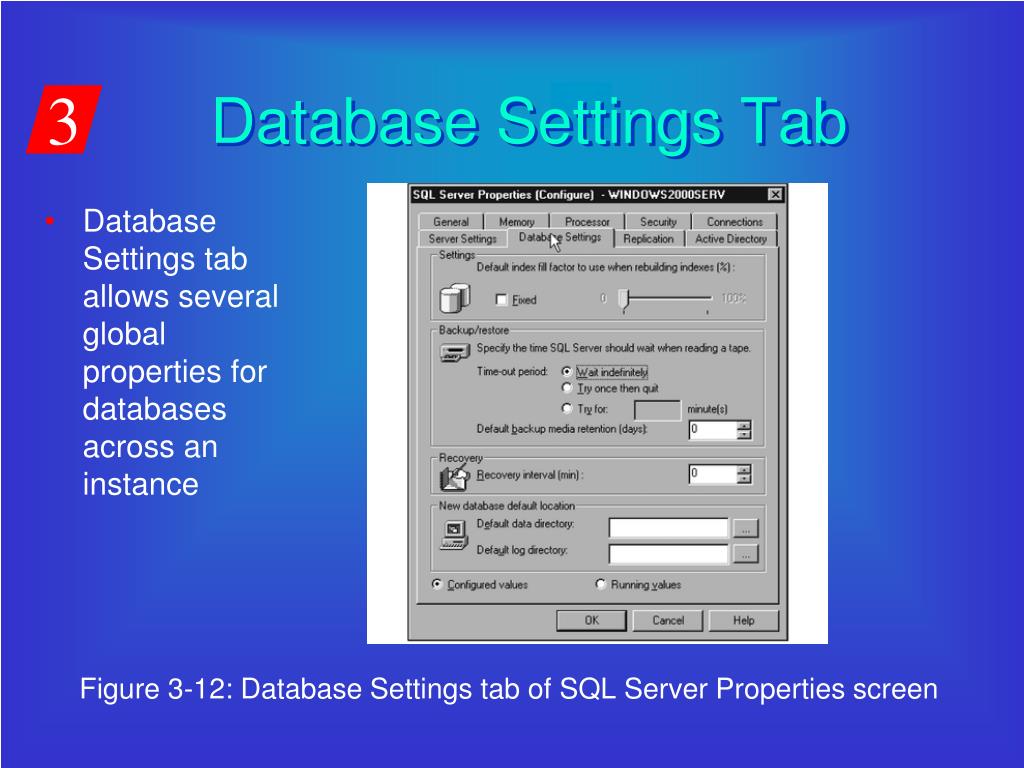

  22. Database Settings Tab • Database Settings tab allows several global properties for databases across an instance Figure 3-12: Database Settings tab of SQL Server Properties screen

  23. Processor Tab • Thread • Operating system component that allows multiple simultaneous requests to a multiuser application to execute as separate tasks Figure 3-13: Processor tab of SQL Server Properties screen

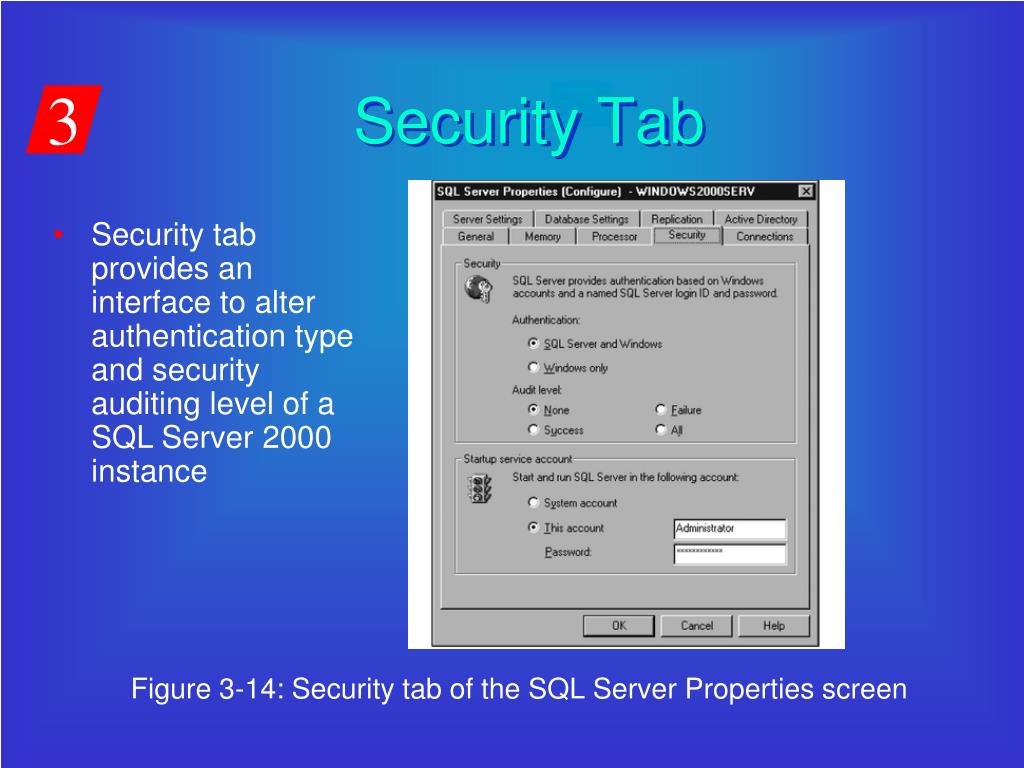

  24. Security Tab • Security tab provides an interface to alter authentication type and security auditing level of a SQL Server 2000 instance Figure 3-14: Security tab of the SQL Server Properties screen

  25. Connections Tab • Connections tab allows maximum number of simultaneous user connections to be specified Figure 3-15: Connections tab of the SQL Server Properties screen

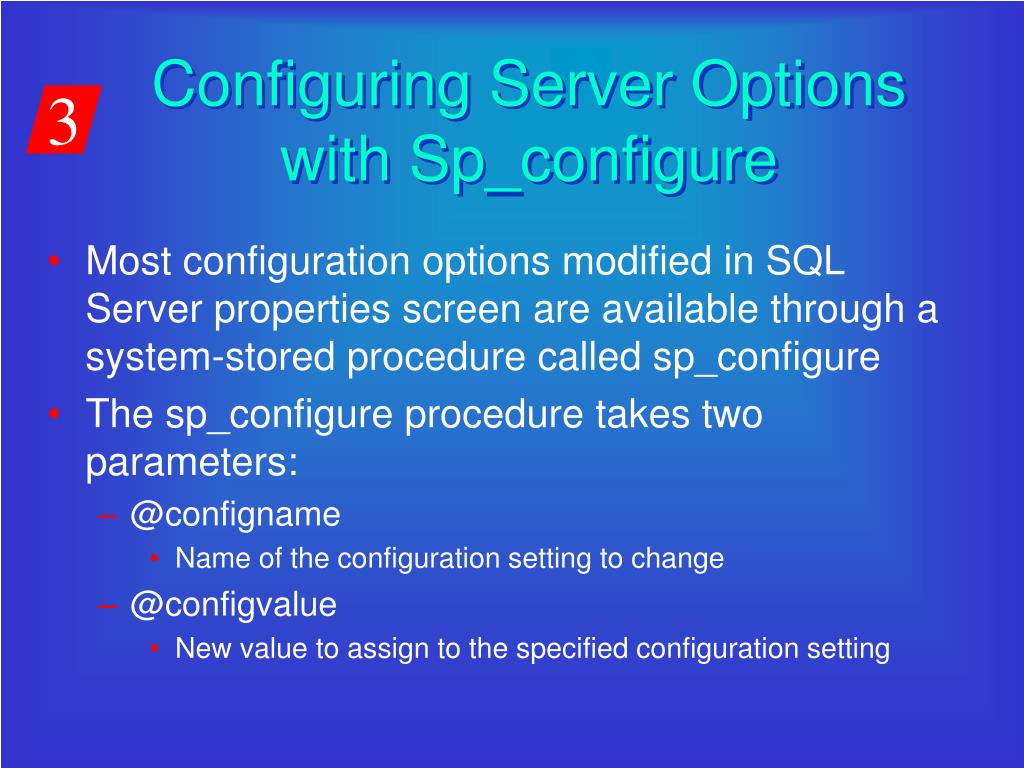

  26. Configuring Server Options with Sp_configure • Most configuration options modified in SQL Server properties screen are available through a system-stored procedure called sp_configure • The sp_configure procedure takes two parameters: • @configname • Name of the configuration setting to change • @configvalue • New value to assign to the specified configuration setting

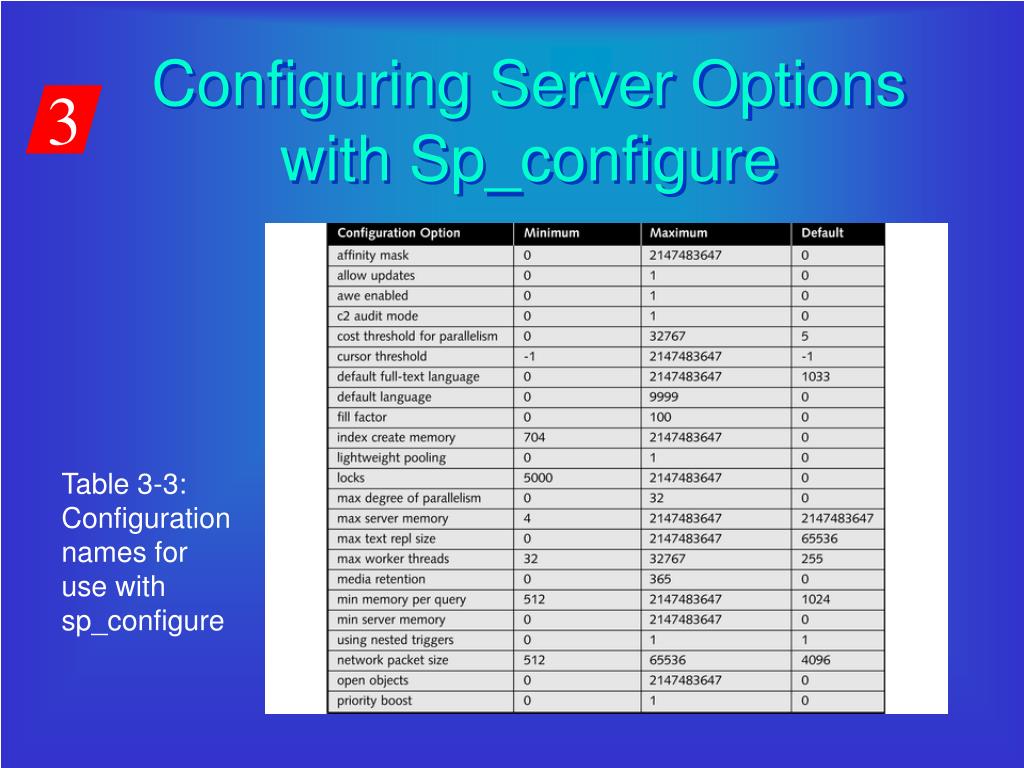

  27. Configuring Server Options with Sp_configure Table 3-3: Configuration names for use with sp_configure

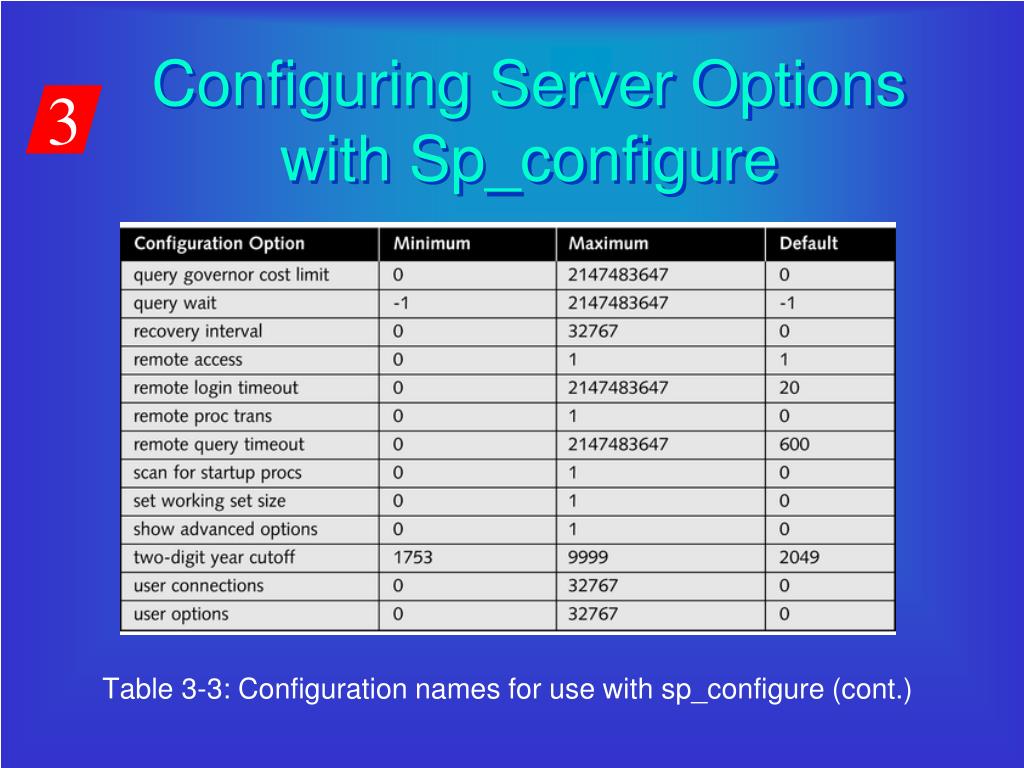

  28. Configuring Server Options with Sp_configure Table 3-3: Configuration names for use with sp_configure (cont.)

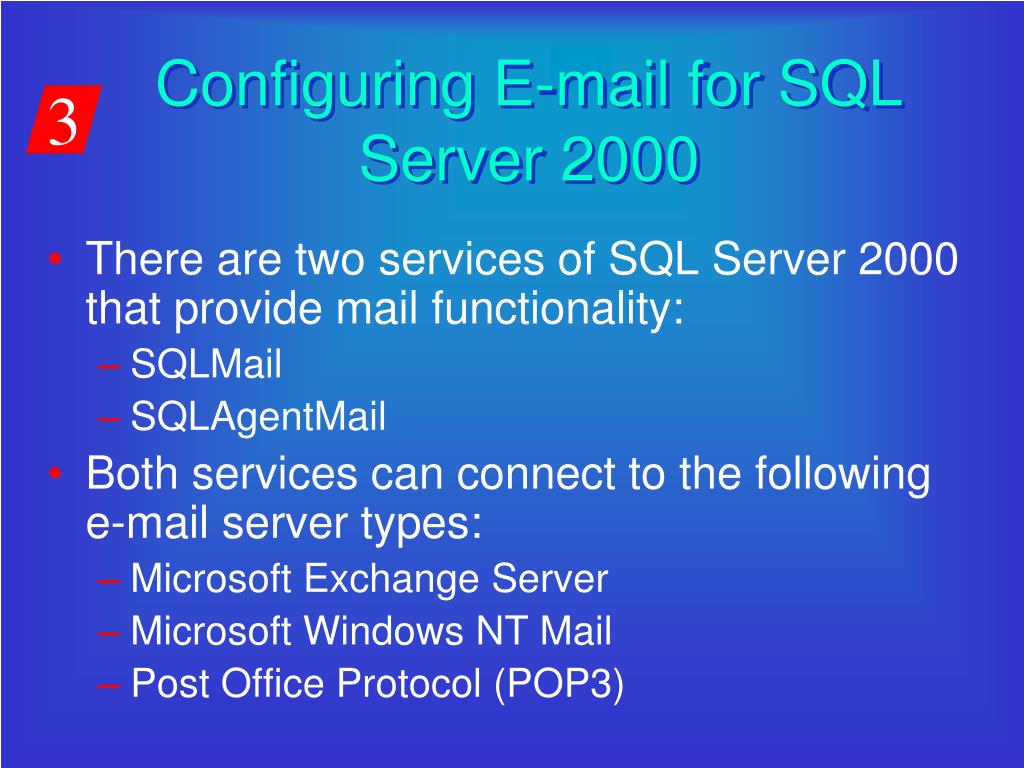

  29. Configuring E-mail for SQL Server 2000 • There are two services of SQL Server 2000 that provide mail functionality: • SQLMail • SQLAgentMail • Both services can connect to the following e-mail server types: • Microsoft Exchange Server • Microsoft Windows NT Mail • Post Office Protocol (POP3)

  30. Configuring E-mail for SQL Server 2000 Figure 3-16: SQL Mail Configuration screen

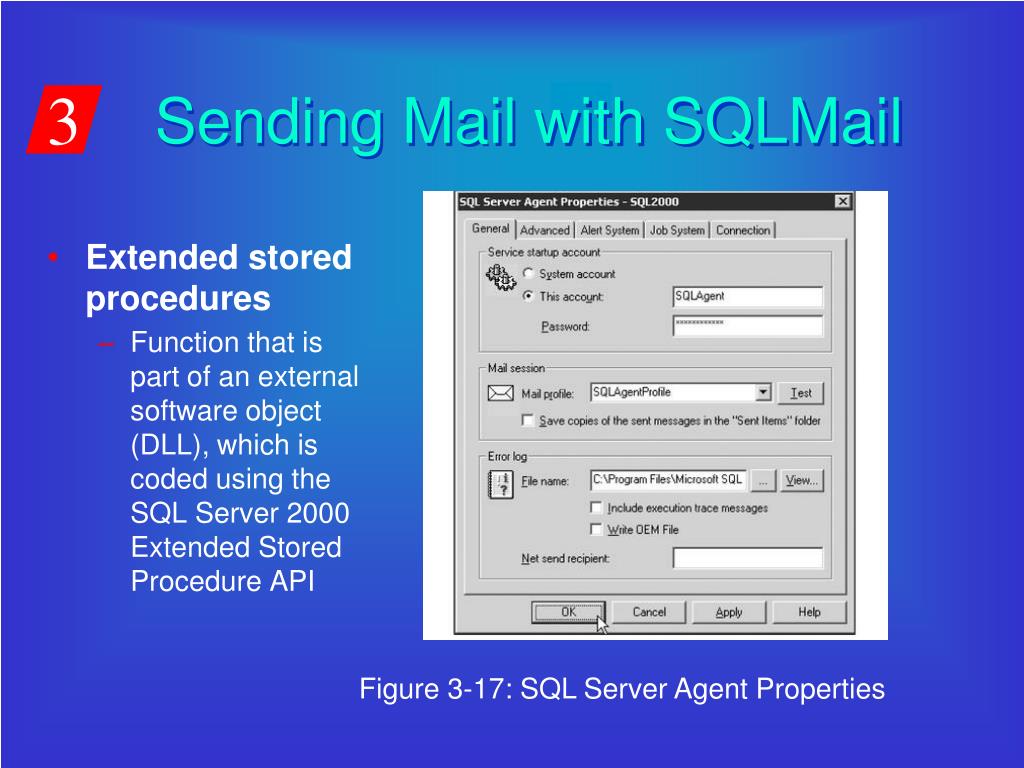

  31. Sending Mail with SQLMail • Extended stored procedures • Function that is part of an external software object (DLL), which is coded using the SQL Server 2000 Extended Stored Procedure API Figure 3-17: SQL Server Agent Properties

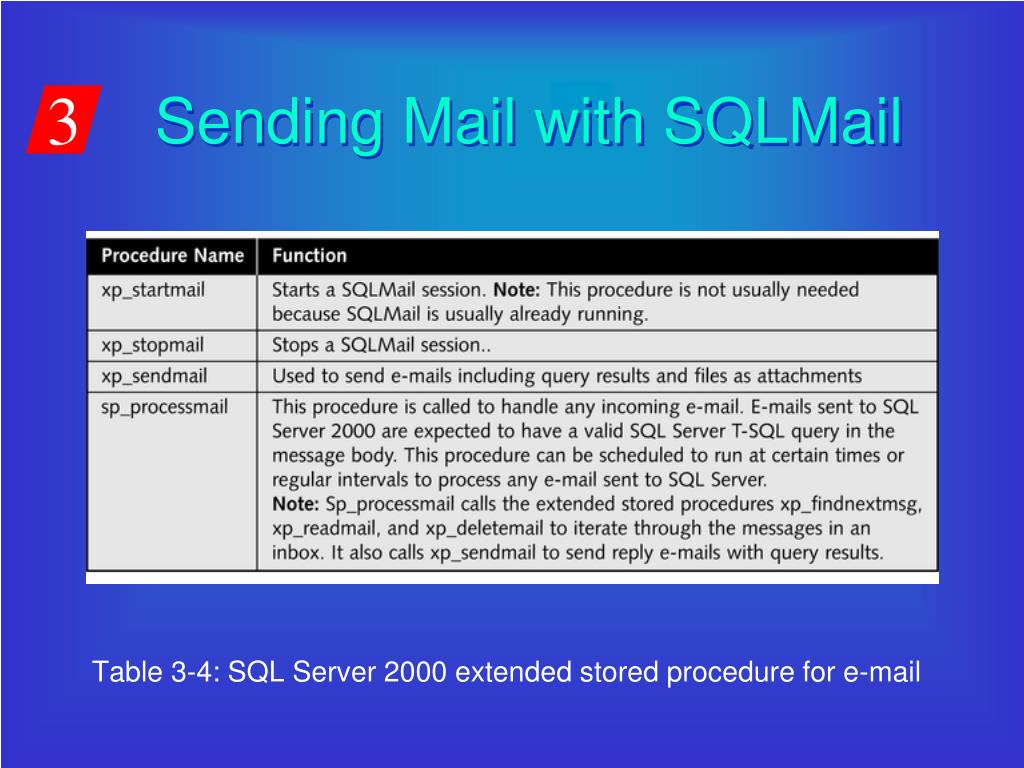

  32. Sending Mail with SQLMail Table 3-4: SQL Server 2000 extended stored procedure for e-mail

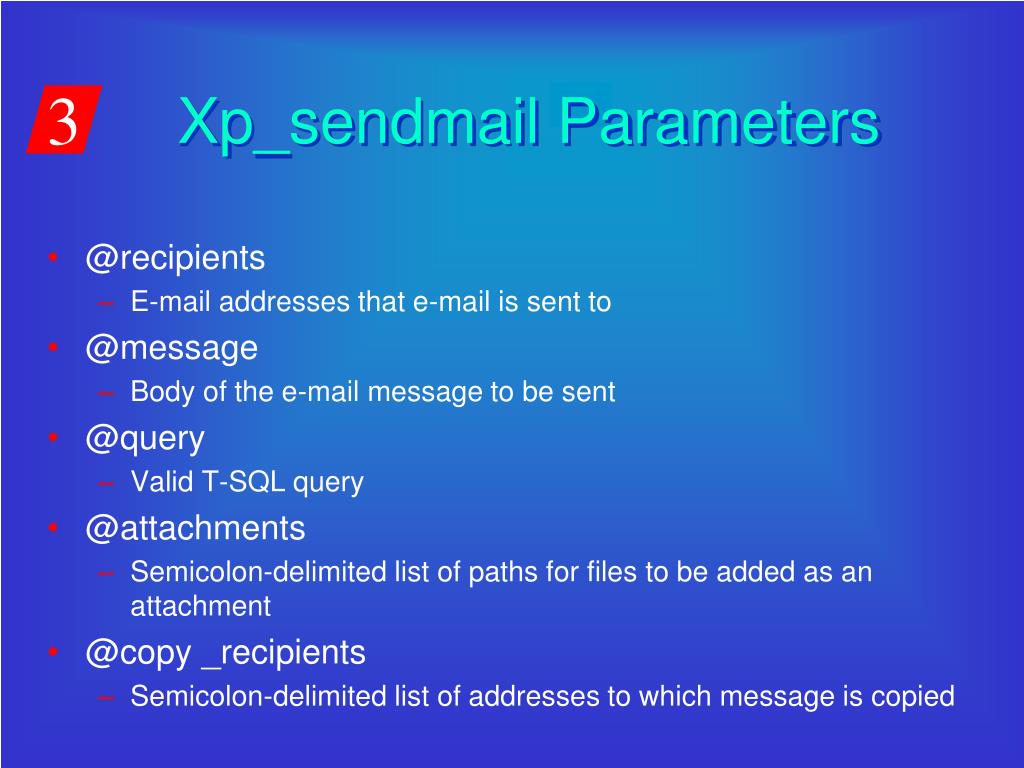

  33. Xp_sendmail Parameters • @recipients • E-mail addresses that e-mail is sent to • @message • Body of the e-mail message to be sent • @query • Valid T-SQL query • @attachments • Semicolon-delimited list of paths for files to be added as an attachment • @copy _recipients • Semicolon-delimited list of addresses to which message is copied

  34. Xp_sendmail Parameters • @blind_copy_recipients • Semicolon-delimited list of addresses to which message is blind copied • @subject • Subject of e-mail to be sent • @type • E-mail message type • @attach_results • Specifies whether query results are returned with the query in the e-mail body

  35. Xp_sendmail Parameters • @no_header • Specifies whether the column headings are returned with the query in the e-mail body • @width • Specifies the line width of the output of a query to prevent line breaks from being inserted into query output • @separator • Text column separator used to format results • @echo_error • Appends any error messages encountered from the execution of the query to the body of the e-mail message

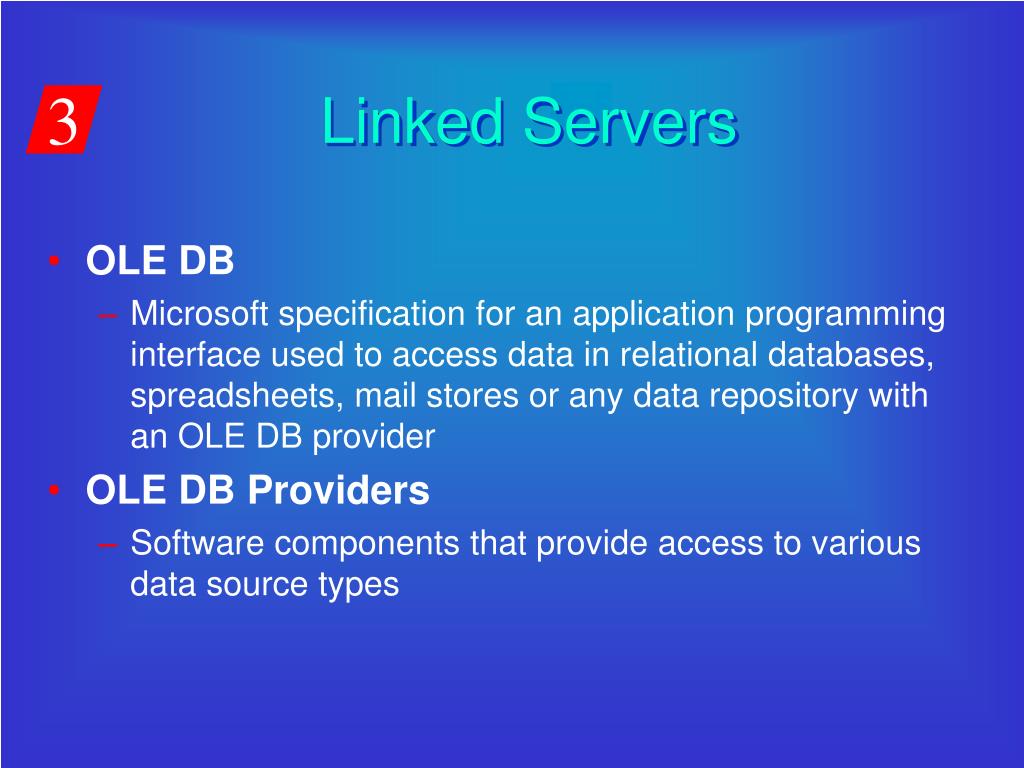

  36. Linked Servers • OLE DB • Microsoft specification for an application programming interface used to access data in relational databases, spreadsheets, mail stores or any data repository with an OLE DB provider • OLE DB Providers • Software components that provide access to various data source types

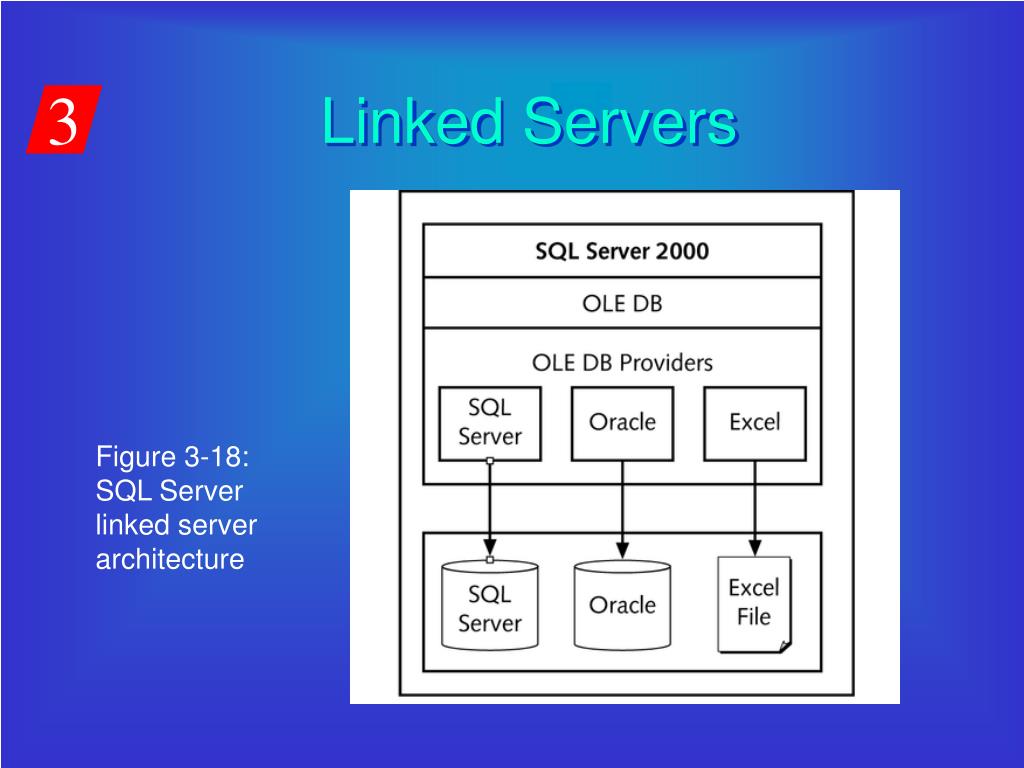

  37. Linked Servers Figure 3-18: SQL Server linked server architecture

  38. Setting Up a Linked Server Figure 3-19: Linked Servers in Enterprise Manager • Linked Servers are set up through either a graphic interface in Enterprise Manager or by executing system-stored procedures

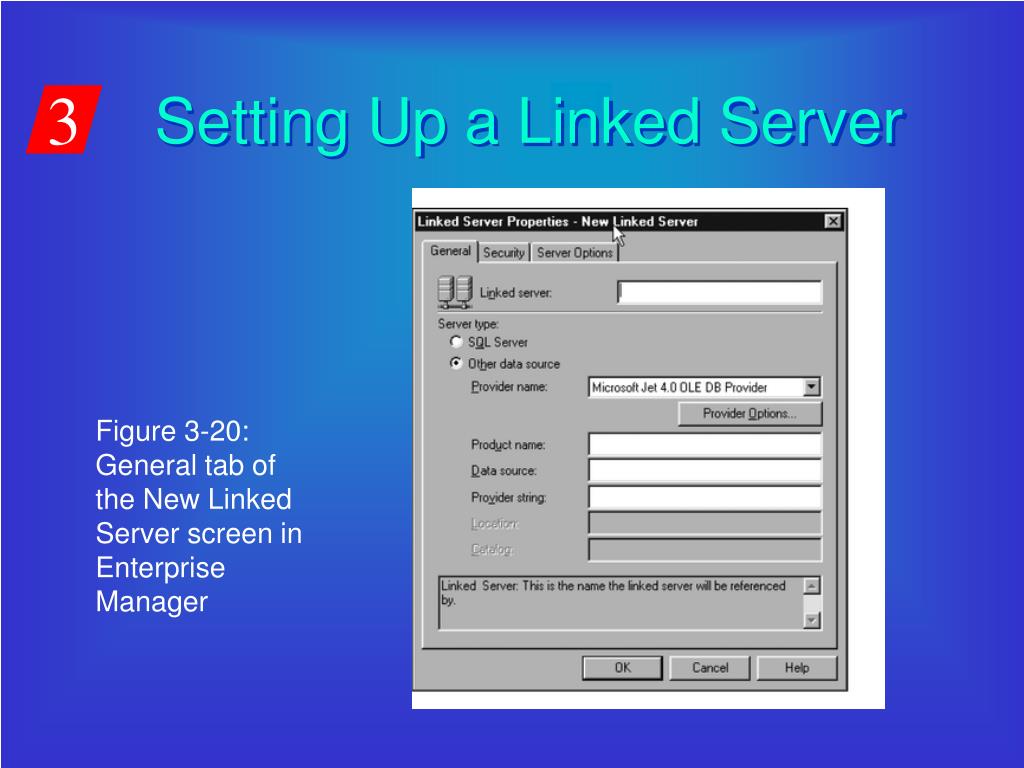

  39. Setting Up a Linked Server Figure 3-20: General tab of the New Linked Server screen in Enterprise Manager

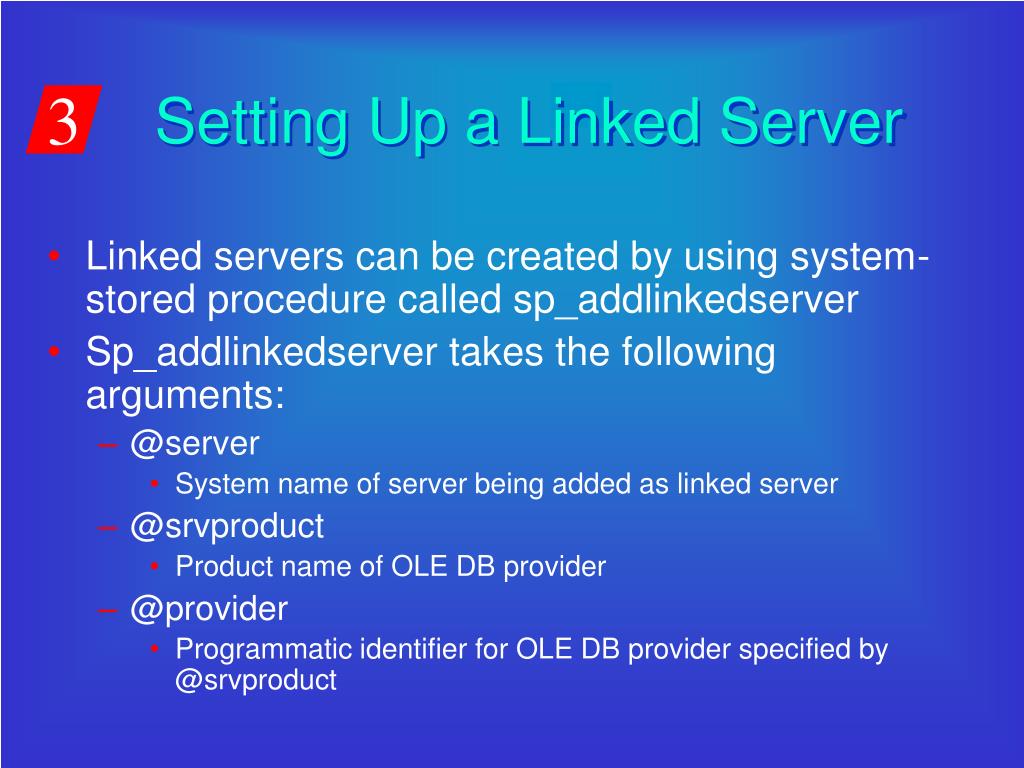

  40. Setting Up a Linked Server • Linked servers can be created by using system-stored procedure called sp_addlinkedserver • Sp_addlinkedserver takes the following arguments: • @server • System name of server being added as linked server • @srvproduct • Product name of OLE DB provider • @provider • Programmatic identifier for OLE DB provider specified by @srvproduct

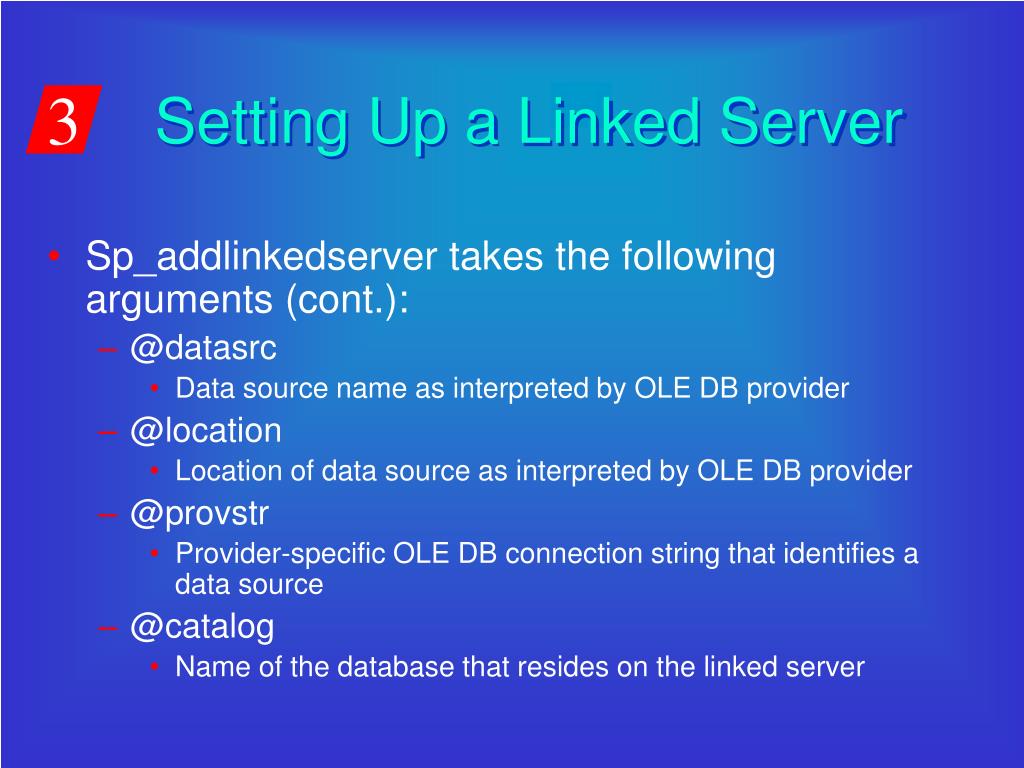

  41. Setting Up a Linked Server • Sp_addlinkedserver takes the following arguments (cont.): • @datasrc • Data source name as interpreted by OLE DB provider • @location • Location of data source as interpreted by OLE DB provider • @provstr • Provider-specific OLE DB connection string that identifies a data source • @catalog • Name of the database that resides on the linked server

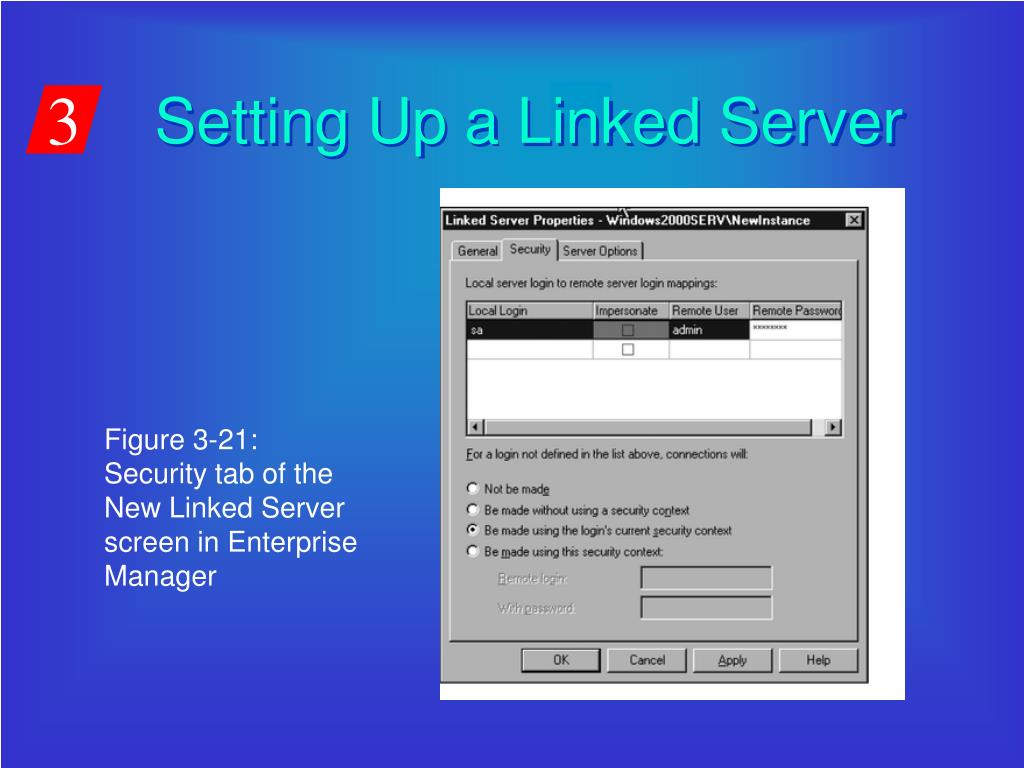

  42. Setting Up a Linked Server Figure 3-21: Security tab of the New Linked Server screen in Enterprise Manager

  43. Setting Up a Linked Server • Security information can be set up using system-stored procedure called sp_addlinkedsrvlogin • Sp_addlinkedsrvlogin takes the following arguments: • @rmtsrvname • Name of the linked server that login applies to • @useself • Specifies the name of the login used to connect to the linked server

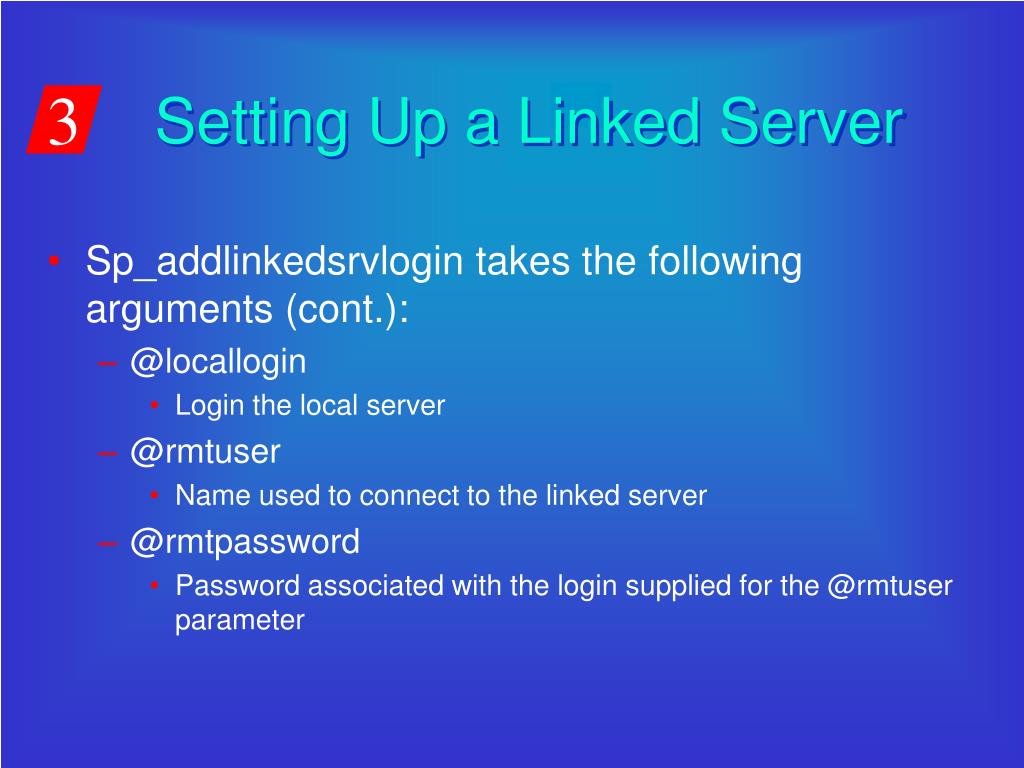

  44. Setting Up a Linked Server • Sp_addlinkedsrvlogin takes the following arguments (cont.): • @locallogin • Login the local server • @rmtuser • Name used to connect to the linked server • @rmtpassword • Password associated with the login supplied for the @rmtuser parameter

  45. Command Line Utilities • Osql utility • Allows T-SQL statements to be run from the command line Figure 3-22: Osql Command Line utility

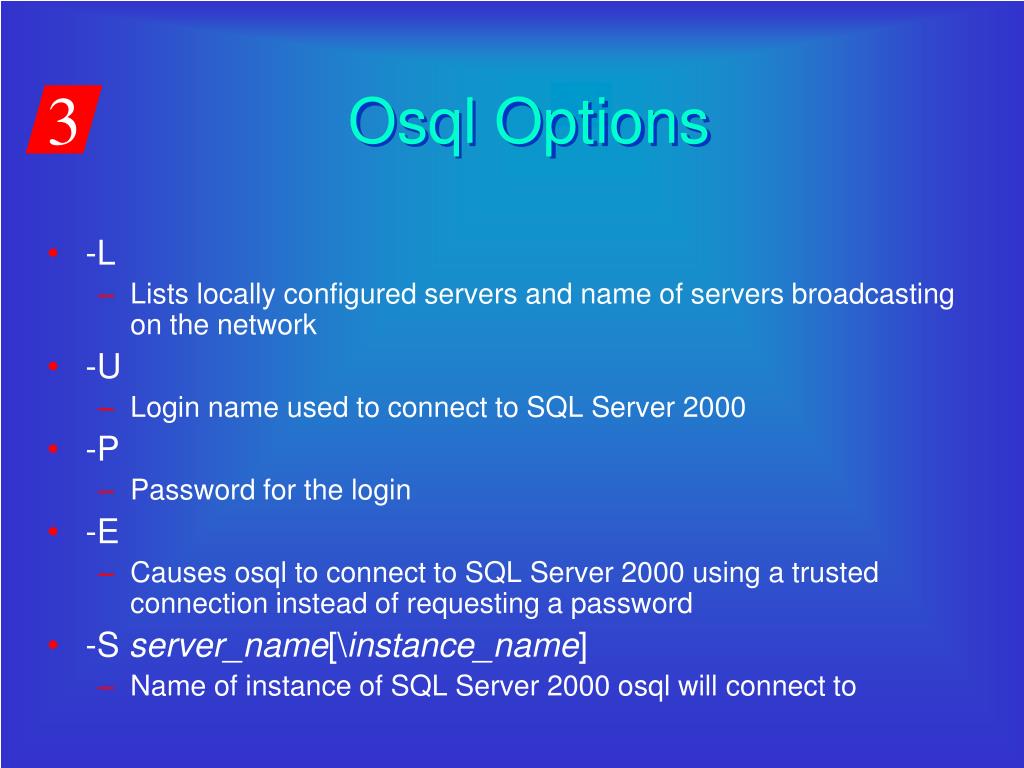

  46. Osql Options • -L • Lists locally configured servers and name of servers broadcasting on the network • -U • Login name used to connect to SQL Server 2000 • -P • Password for the login • -E • Causes osql to connect to SQL Server 2000 using a trusted connection instead of requesting a password • -S server_name[\instance_name] • Name of instance of SQL Server 2000 osql will connect to

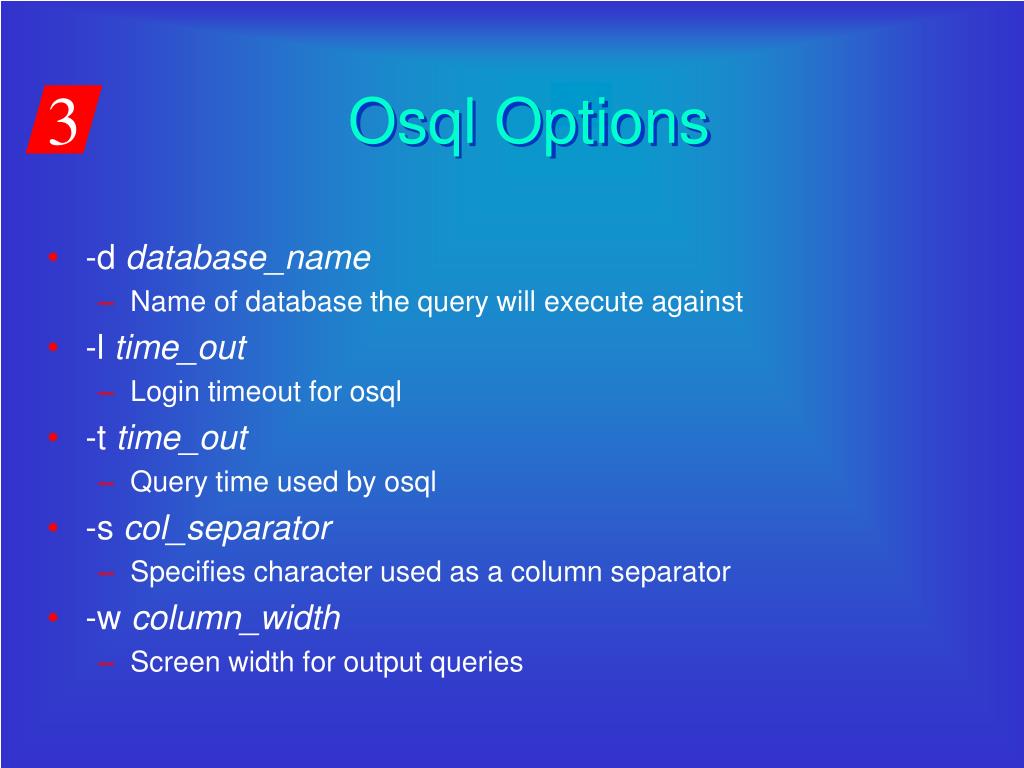

  47. Osql Options • -d database_name • Name of database the query will execute against • -l time_out • Login timeout for osql • -t time_out • Query time used by osql • -s col_separator • Specifies character used as a column separator • -w column_width • Screen width for output queries

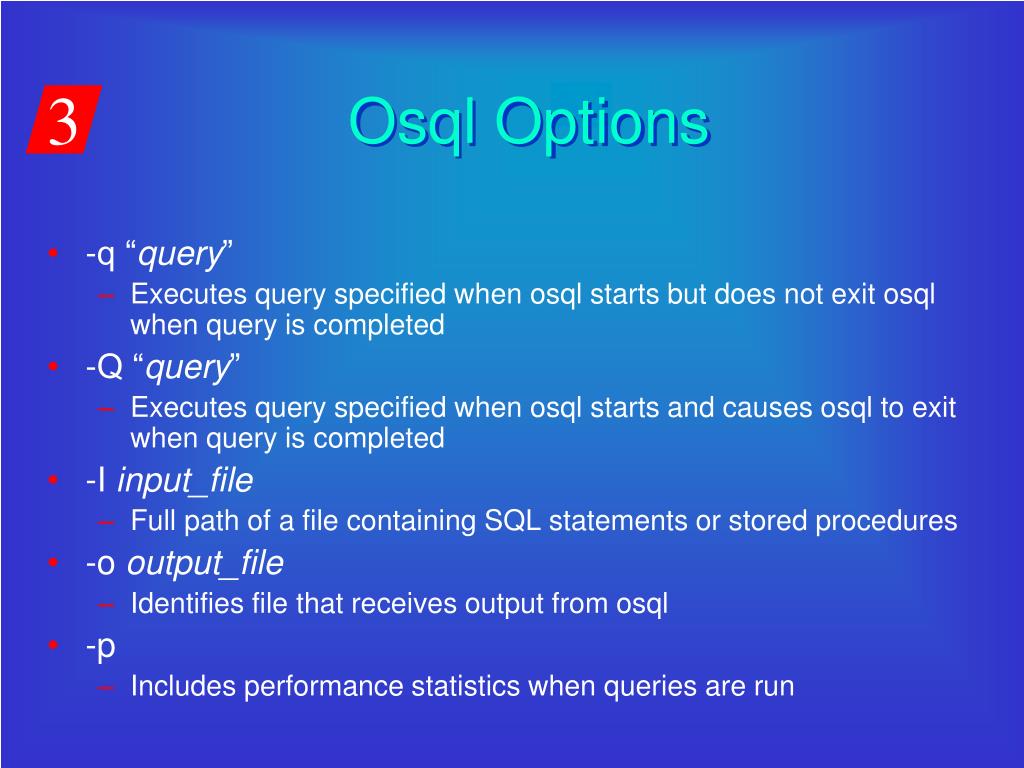

  48. Osql Options • -q “query” • Executes query specified when osql starts but does not exit osql when query is completed • -Q “query” • Executes query specified when osql starts and causes osql to exit when query is completed • -I input_file • Full path of a file containing SQL statements or stored procedures • -o output_file • Identifies file that receives output from osql • -p • Includes performance statistics when queries are run

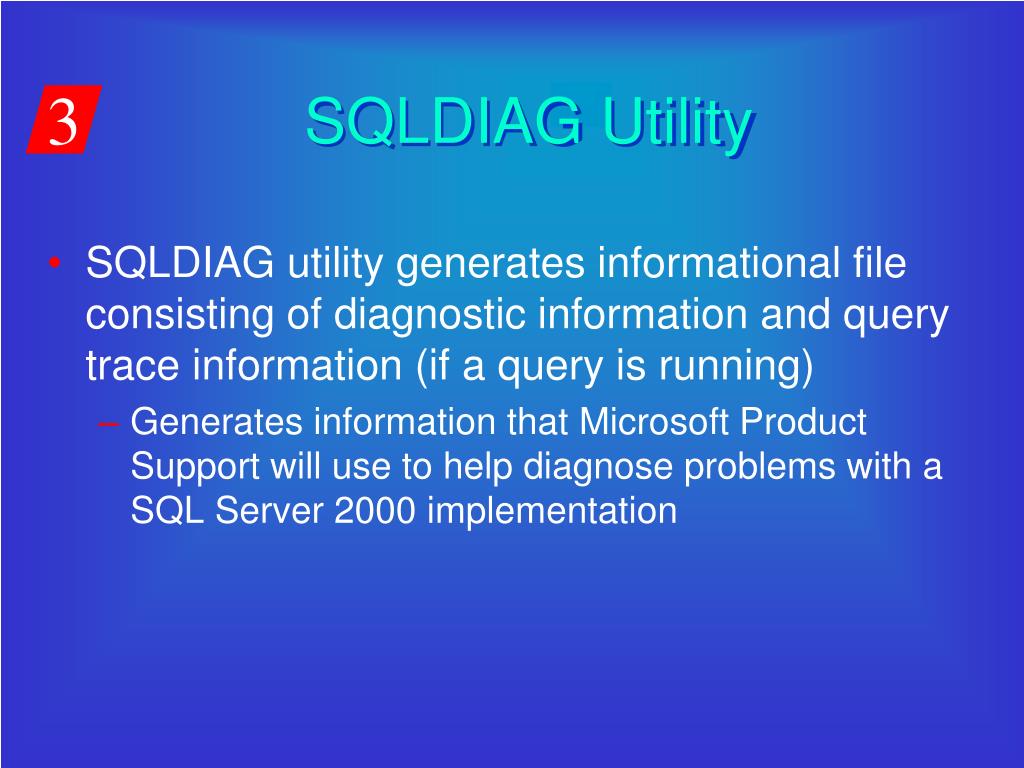

  49. SQLDIAG Utility • SQLDIAG utility generates informational file consisting of diagnostic information and query trace information (if a query is running) • Generates information that Microsoft Product Support will use to help diagnose problems with a SQL Server 2000 implementation

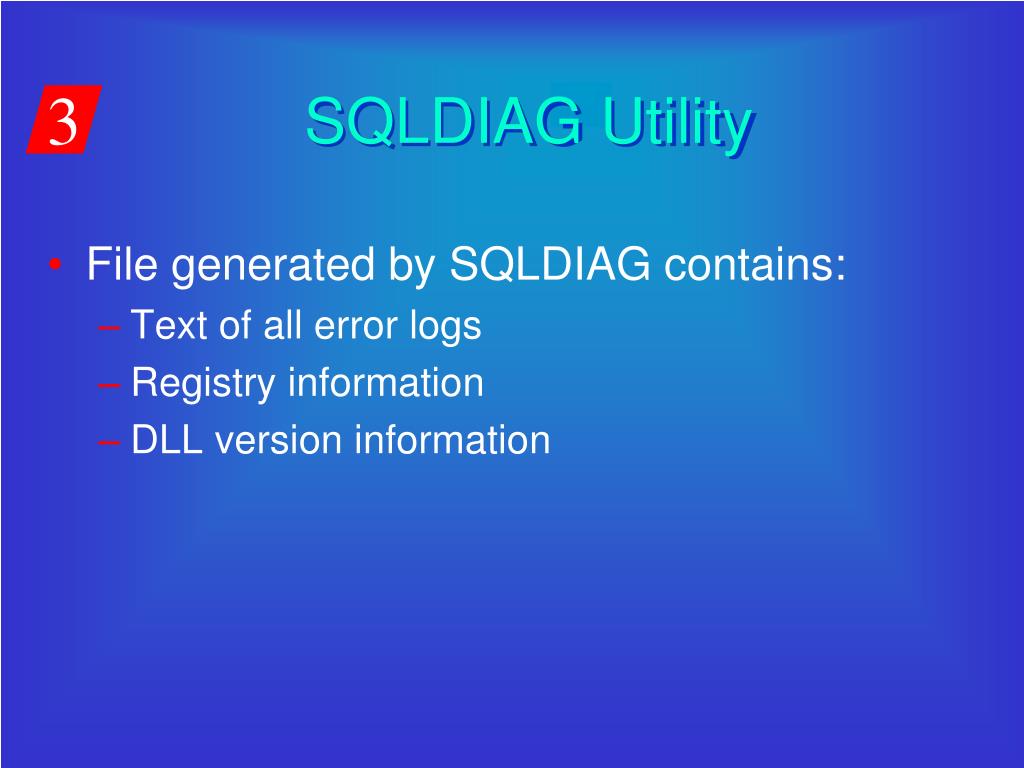

  50. SQLDIAG Utility • File generated by SQLDIAG contains: • Text of all error logs • Registry information • DLL version information
