1. Slip-On Flanges Explained: Features, Installation, Advantages, and Standards Flanges play an essential function in piping structures, making sure secure and efficient connections. Among numerous flange kinds, slip-on flanges are widely used for their ease of installation and cost-effectiveness. In this targeted guide, we will explore slip on flange features, slip on flange functions, slip on flange installation, slip on flange benefits, slip on flange standards, and more. What is a Slip-On Flange? A slip-on flange is a sort of flange designed to slip over the cessation of a pipe after which be welded in location. It is normally used in low-strain applications and gives a smooth float of fluids or gases. These flanges are available in various sizes and substances to shape exclusive business wishes.

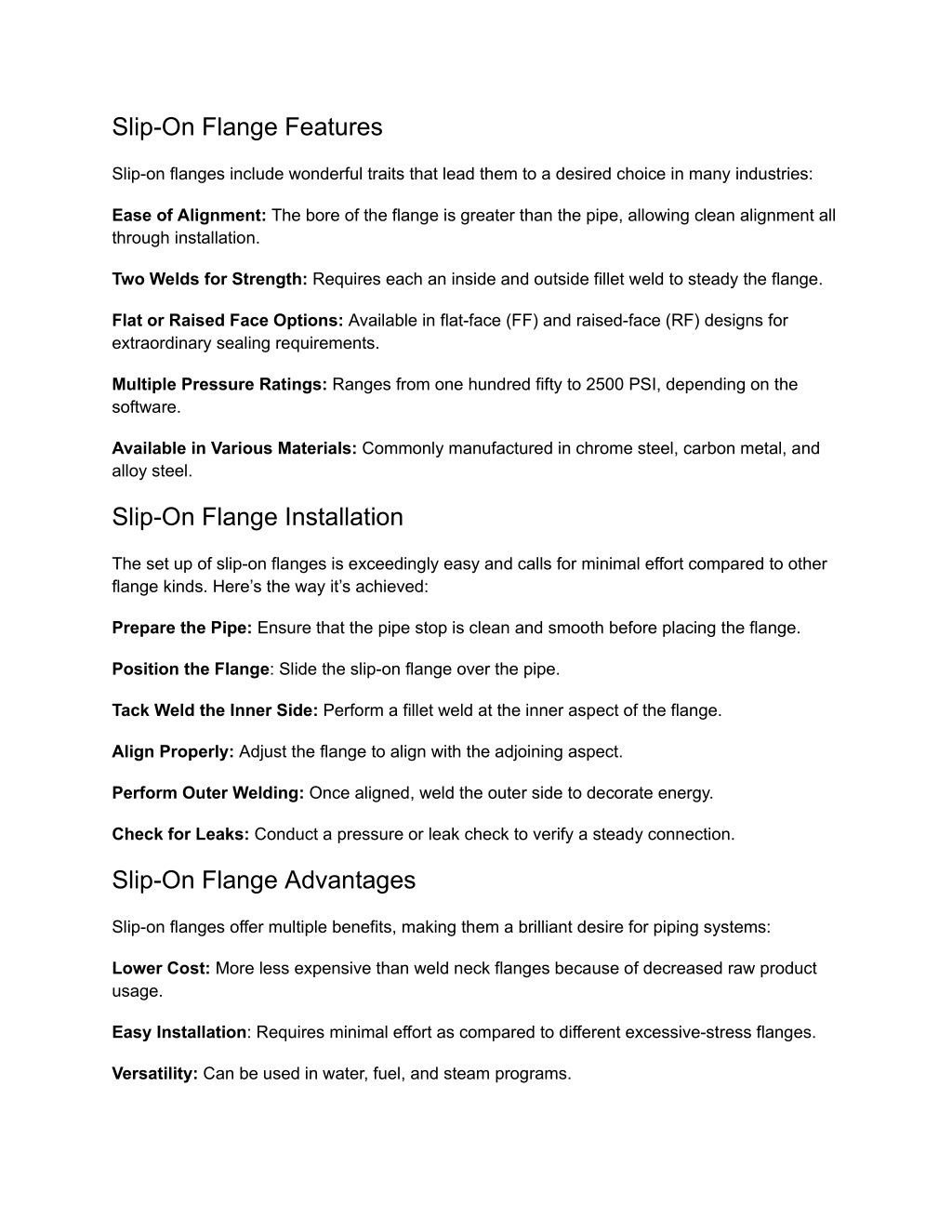

2. Slip-On Flange Features Slip-on flanges include wonderful traits that lead them to a desired choice in many industries: Ease of Alignment: The bore of the flange is greater than the pipe, allowing clean alignment all through installation. Two Welds for Strength: Requires each an inside and outside fillet weld to steady the flange. Flat or Raised Face Options: Available in flat-face (FF) and raised-face (RF) designs for extraordinary sealing requirements. Multiple Pressure Ratings: Ranges from one hundred fifty to 2500 PSI, depending on the software. Available in Various Materials: Commonly manufactured in chrome steel, carbon metal, and alloy steel. Slip-On Flange Installation The set up of slip-on flanges is exceedingly easy and calls for minimal effort compared to other flange kinds. Here’s the way it’s achieved: Prepare the Pipe: Ensure that the pipe stop is clean and smooth before placing the flange. Position the Flange: Slide the slip-on flange over the pipe. Tack Weld the Inner Side: Perform a fillet weld at the inner aspect of the flange. Align Properly: Adjust the flange to align with the adjoining aspect. Perform Outer Welding: Once aligned, weld the outer side to decorate energy. Check for Leaks: Conduct a pressure or leak check to verify a steady connection. Slip-On Flange Advantages Slip-on flanges offer multiple benefits, making them a brilliant desire for piping systems: Lower Cost: More less expensive than weld neck flanges because of decreased raw product usage. Easy Installation: Requires minimal effort as compared to different excessive-stress flanges. Versatility: Can be used in water, fuel, and steam programs.

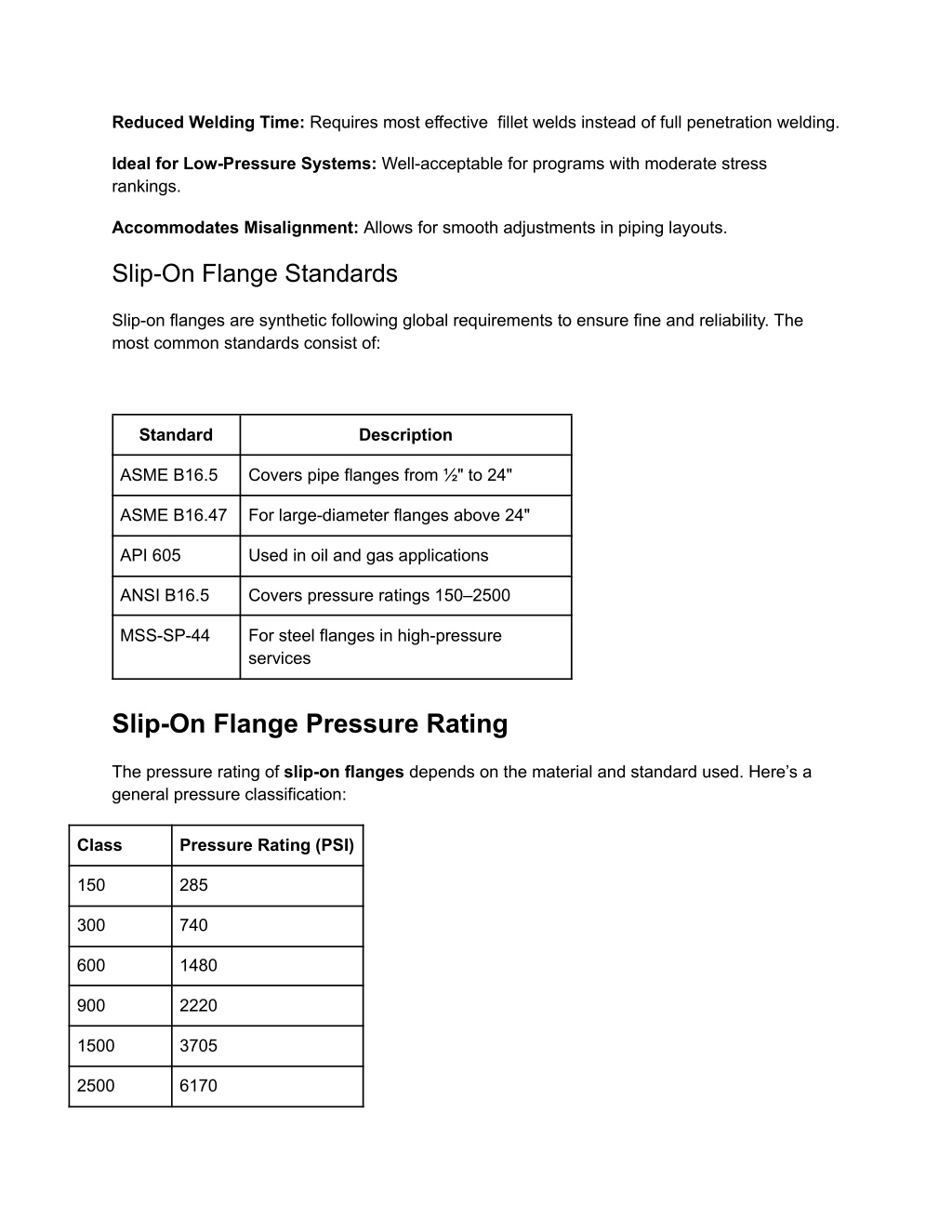

3. Reduced Welding Time: Requires most effective fillet welds instead of full penetration welding. Ideal for Low-Pressure Systems: Well-acceptable for programs with moderate stress rankings. Accommodates Misalignment: Allows for smooth adjustments in piping layouts. Slip-On Flange Standards Slip-on flanges are synthetic following global requirements to ensure fine and reliability. The most common standards consist of: Standard Description ASME B16.5 Covers pipe flanges from ½" to 24" ASME B16.47 For large-diameter flanges above 24" API 605 Used in oil and gas applications ANSI B16.5 Covers pressure ratings 150–2500 MSS-SP-44 For steel flanges in high-pressure services Slip-On Flange Pressure Rating The pressure rating of slip-on flanges depends on the material and standard used. Here’s a general pressure classification: Class Pressure Rating (PSI) 150 285 300 740 600 1480 900 2220 1500 3705 2500 6170

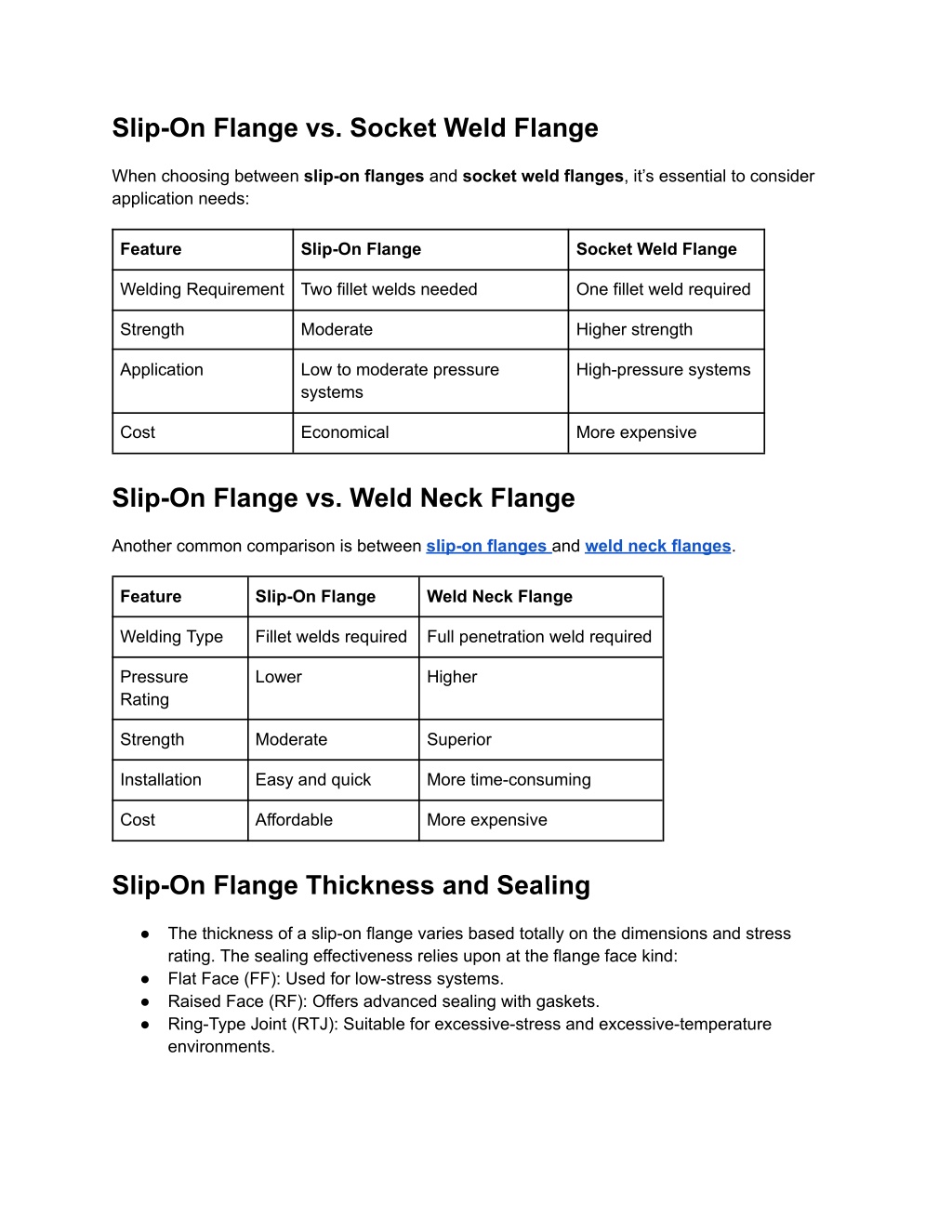

4. Slip-On Flange vs. Socket Weld Flange When choosing between slip-on flanges and socket weld flanges, it’s essential to consider application needs: Feature Slip-On Flange Socket Weld Flange Welding Requirement Two fillet welds needed One fillet weld required Strength Moderate Higher strength Application Low to moderate pressure systems High-pressure systems Cost Economical More expensive Slip-On Flange vs. Weld Neck Flange Another common comparison is between slip-on flangesand weld neck flanges. Feature Slip-On Flange Weld Neck Flange Welding Type Fillet welds required Full penetration weld required Pressure Rating Lower Higher Strength Moderate Superior Installation Easy and quick More time-consuming Cost Affordable More expensive Slip-On Flange Thickness and Sealing ● The thickness of a slip-on flange varies based totally on the dimensions and stress rating. The sealing effectiveness relies upon at the flange face kind: ● Flat Face (FF): Used for low-stress systems. ● Raised Face (RF): Offers advanced sealing with gaskets. ● Ring-Type Joint (RTJ): Suitable for excessive-stress and excessive-temperature environments.

5. Flange Size (inches) Class 150 Thickness (mm) Class 300 Thickness (mm) 2" 12.7 20.7 4" 14.3 22.2 6" 15.9 25.4 8" 19.1 29.4 Slip-On Flange in Piping Systems Slip-on flanges are extensively used throughout industries due to their adaptability. Common applications encompass: Oil and Gas Pipelines Water Treatment Plants Chemical Processing Units HVAC Systems Marine and Offshore Installations Why Choose Flanges Bolt for Slip-On Flanges? At Flanges Bolts, we offer wonderful slip-on flanges that meet international requirements. Our large stock consists of numerous sizes, stress scores, and materials to cater to diverse enterprise necessities. With a commitment to excellence, Flanges Bolt ensures superior products at competitive fees. For top rate slip-on flanges, agree with Flanges Bolt—your reliable provider of business flanges. Conclusion Slip-on flanges are an important factor of piping systems, providing an economical and sensible answer for various packages. Understanding their capabilities, set up methods,

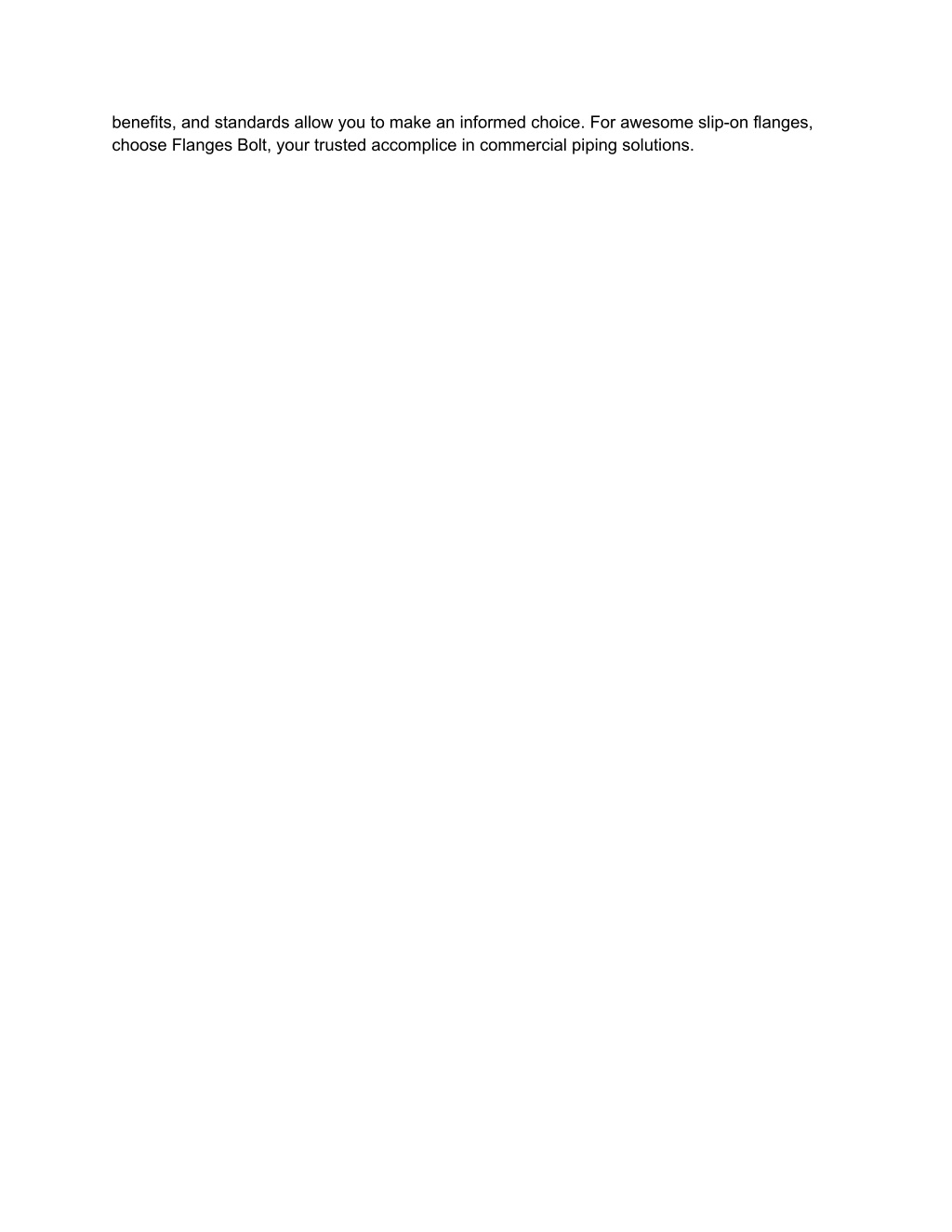

6. benefits, and standards allow you to make an informed choice. For awesome slip-on flanges, choose Flanges Bolt, your trusted accomplice in commercial piping solutions.
