A Guide to Flanged Pipe Connections_ Design, Strength, and Installation

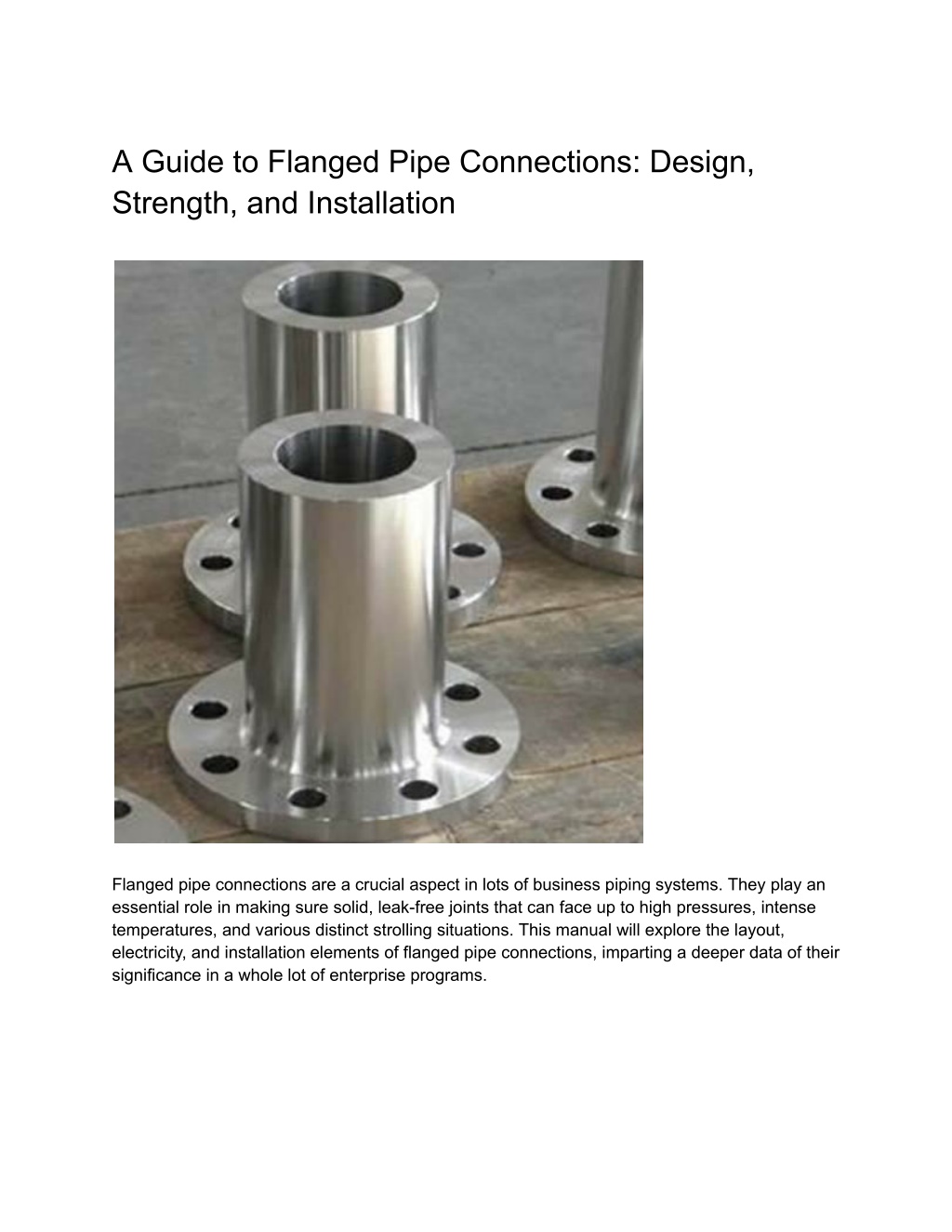

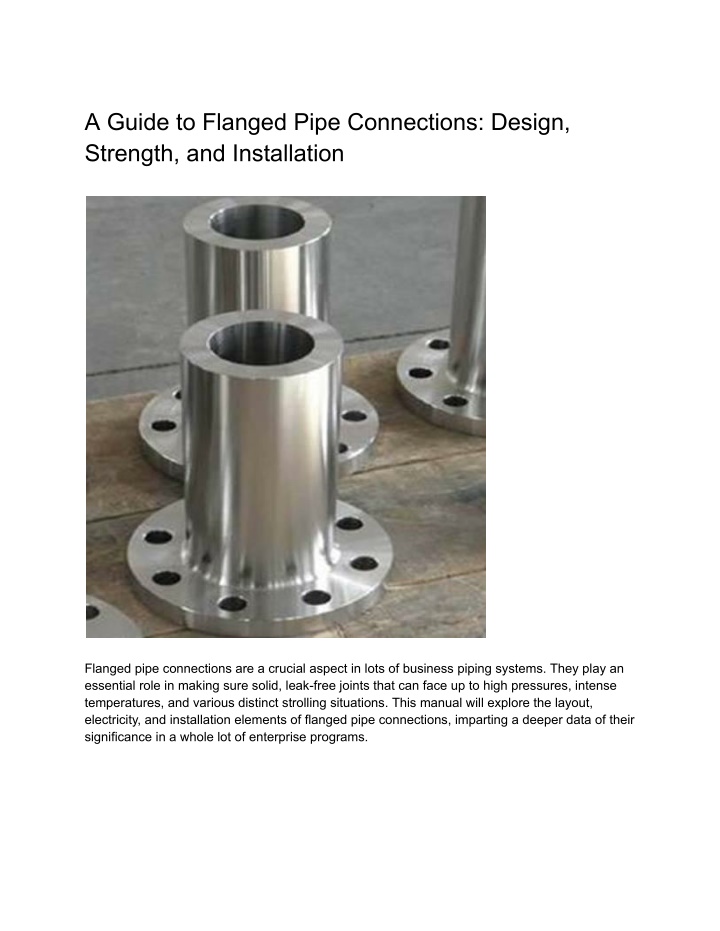

1. A Guide to Flanged Pipe Connections: Design, Strength, and Installation Flanged pipe connections are a crucial aspect in lots of business piping systems. They play an essential role in making sure solid, leak-free joints that can face up to high pressures, intense temperatures, and various distinct strolling situations. This manual will explore the layout, electricity, and installation elements of flanged pipe connections, imparting a deeper data of their significance in a whole lot of enterprise programs.

2. What is a Flanged Pipe Connection? A flanged pipe connection consists of two pipes or additives joined collectively by means of manner of a flange, generally using bolts, nuts, and a gasket. The flanges themselves are flat circular plates which might be bolted together to form a good seal amongst components of the piping gadget. Flanged pipe joints are drastically used across industries due to their versatility and reliability in excessive-strain environments. Flanged pipe joints offer a steady, strong connection that can be without difficulty assembled and disassembled for renovation or inspection, making them important in industries which encompass chemical processing, oil and gas, energy generation, and water treatment. Types of Pipe Joints: Flanged vs. Other Connections In the area of piping structures, there are numerous pipe joint types, each presenting extremely good advantages counting on the utility: Welded Joints – These joints are created via welding pipes collectively. While they provide strong, eternal connections, they will be no longer as flexible as flanged connections on the subject of disassembly and renovation. Threaded Joints – Threaded joints involve screwing pipes collectively. While they're suitable for smaller diameter pipes and lower strain applications, they are usually now not as strong or durable as flanged connections for large, immoderate-strain structures. Compression Joints – Compression joints are typically used for small diameter pipes and offer a short, leak-evidence connection. However, they don’t offer the same power and sturdiness as flanged connections for enterprise systems. Among these, the bolted flange connection is one of the most extensively desired answers for business applications because of its power, ease of set up, and capacity to face up to excessive conditions. Design and Components of a Flanged Pipe Connection The design of a flanged piping gadget is an aggregate of multiple additives that work collectively to offer a constant and leak-loose joint. These encompass: Flanges – Flanges are to be had in numerous designs, at the side of raised face, flat face, and ring-kind joint, each appropriate for precise pressure and temperature scores. Flanges are generally fabricated from materials together with metal, stainless steel, or forged iron, depending on the software program.

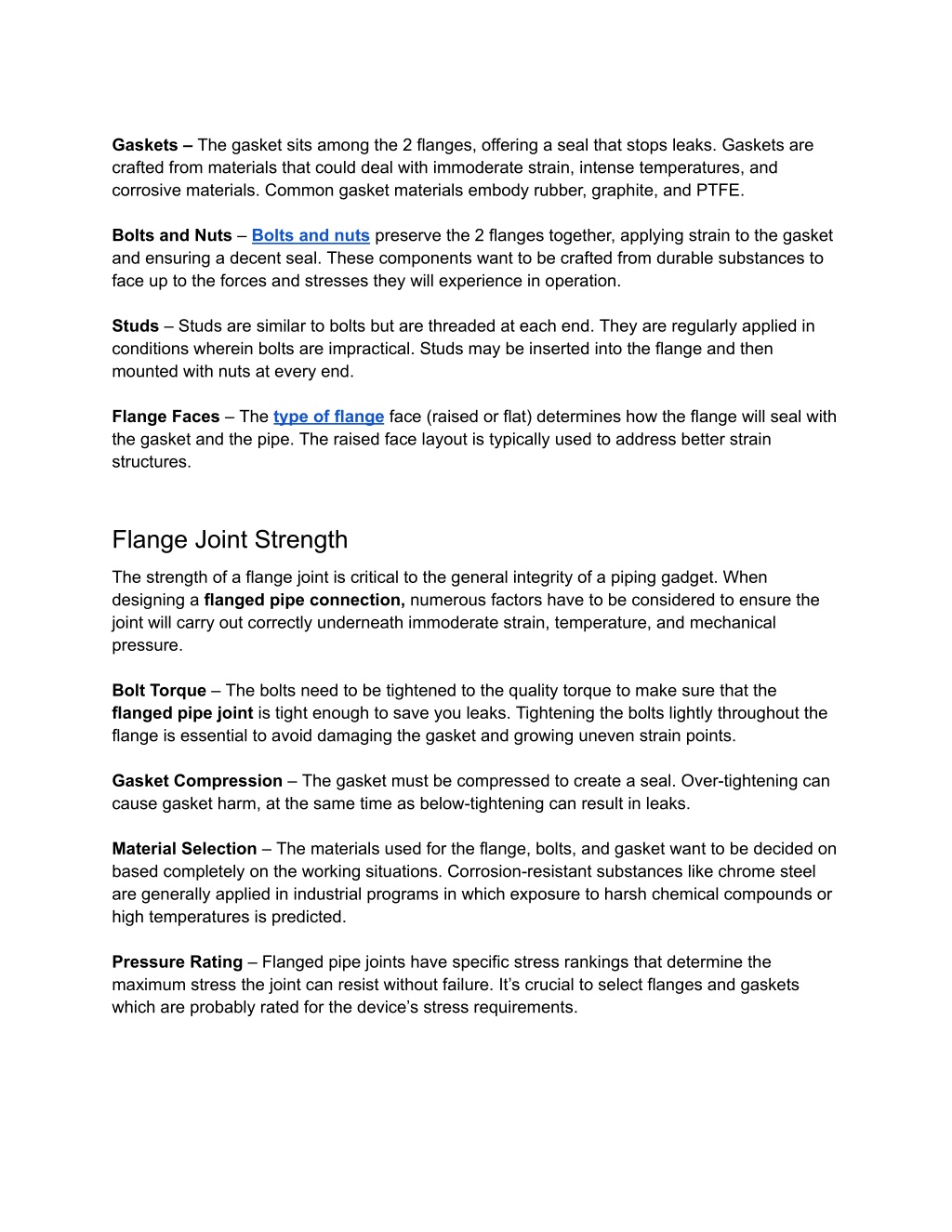

3. Gaskets – The gasket sits among the 2 flanges, offering a seal that stops leaks. Gaskets are crafted from materials that could deal with immoderate strain, intense temperatures, and corrosive materials. Common gasket materials embody rubber, graphite, and PTFE. Bolts and Nuts – Bolts and nuts preserve the 2 flanges together, applying strain to the gasket and ensuring a decent seal. These components want to be crafted from durable substances to face up to the forces and stresses they will experience in operation. Studs – Studs are similar to bolts but are threaded at each end. They are regularly applied in conditions wherein bolts are impractical. Studs may be inserted into the flange and then mounted with nuts at every end. Flange Faces – The type of flange face (raised or flat) determines how the flange will seal with the gasket and the pipe. The raised face layout is typically used to address better strain structures. Flange Joint Strength The strength of a flange joint is critical to the general integrity of a piping gadget. When designing a flanged pipe connection, numerous factors have to be considered to ensure the joint will carry out correctly underneath immoderate strain, temperature, and mechanical pressure. Bolt Torque – The bolts need to be tightened to the quality torque to make sure that the flanged pipe joint is tight enough to save you leaks. Tightening the bolts lightly throughout the flange is essential to avoid damaging the gasket and growing uneven strain points. Gasket Compression – The gasket must be compressed to create a seal. Over-tightening can cause gasket harm, at the same time as below-tightening can result in leaks. Material Selection – The materials used for the flange, bolts, and gasket want to be decided on based completely on the working situations. Corrosion-resistant substances like chrome steel are generally applied in industrial programs in which exposure to harsh chemical compounds or high temperatures is predicted. Pressure Rating – Flanged pipe joints have specific stress rankings that determine the maximum stress the joint can resist without failure. It’s crucial to select flanges and gaskets which are probably rated for the device’s stress requirements.

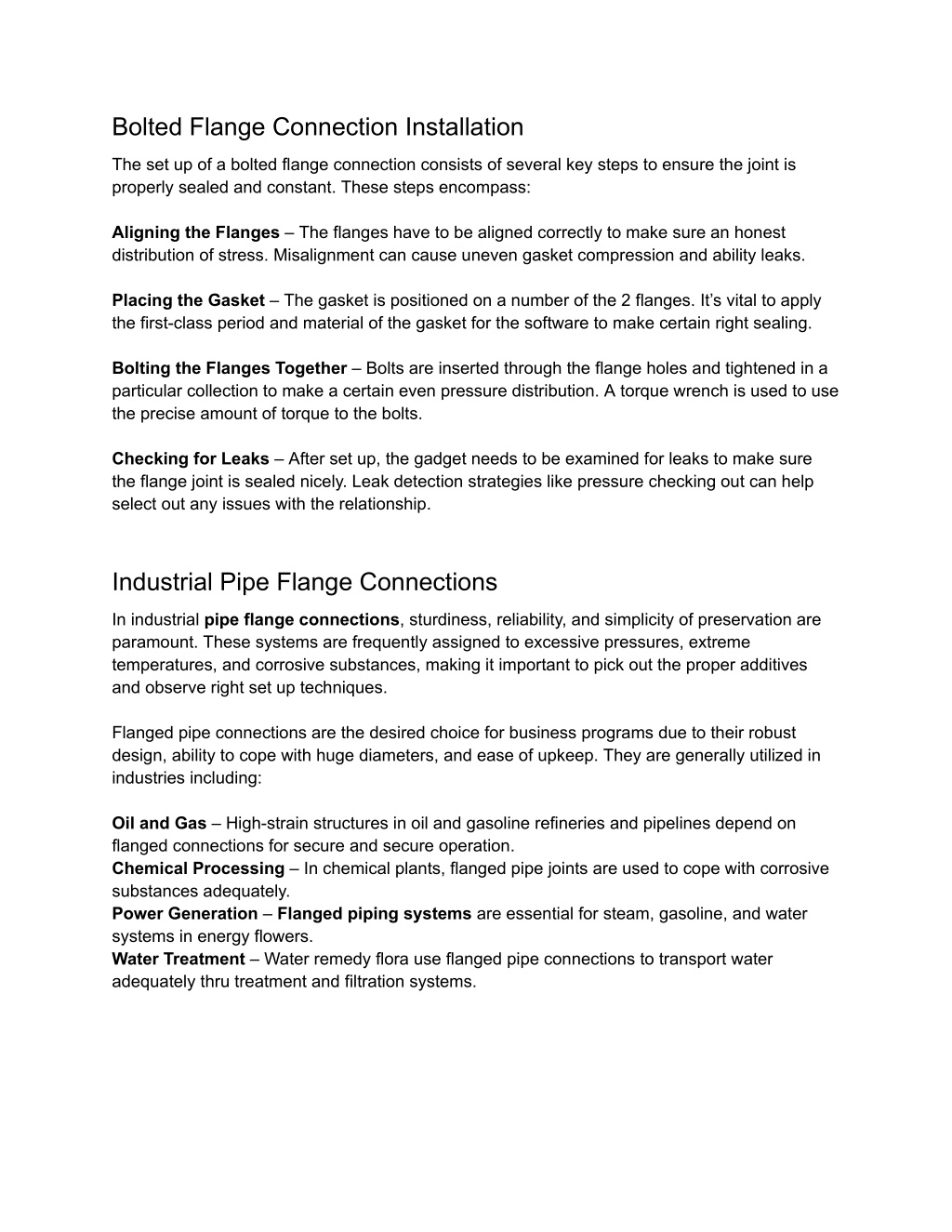

4. Bolted Flange Connection Installation The set up of a bolted flange connection consists of several key steps to ensure the joint is properly sealed and constant. These steps encompass: Aligning the Flanges – The flanges have to be aligned correctly to make sure an honest distribution of stress. Misalignment can cause uneven gasket compression and ability leaks. Placing the Gasket – The gasket is positioned on a number of the 2 flanges. It’s vital to apply the first-class period and material of the gasket for the software to make certain right sealing. Bolting the Flanges Together – Bolts are inserted through the flange holes and tightened in a particular collection to make a certain even pressure distribution. A torque wrench is used to use the precise amount of torque to the bolts. Checking for Leaks – After set up, the gadget needs to be examined for leaks to make sure the flange joint is sealed nicely. Leak detection strategies like pressure checking out can help select out any issues with the relationship. Industrial Pipe Flange Connections In industrial pipe flange connections, sturdiness, reliability, and simplicity of preservation are paramount. These systems are frequently assigned to excessive pressures, extreme temperatures, and corrosive substances, making it important to pick out the proper additives and observe right set up techniques. Flanged pipe connections are the desired choice for business programs due to their robust design, ability to cope with huge diameters, and ease of upkeep. They are generally utilized in industries including: Oil and Gas – High-strain structures in oil and gasoline refineries and pipelines depend on flanged connections for secure and secure operation. Chemical Processing – In chemical plants, flanged pipe joints are used to cope with corrosive substances adequately. Power Generation – Flanged piping systems are essential for steam, gasoline, and water systems in energy flowers. Water Treatment – Water remedy flora use flanged pipe connections to transport water adequately thru treatment and filtration systems.

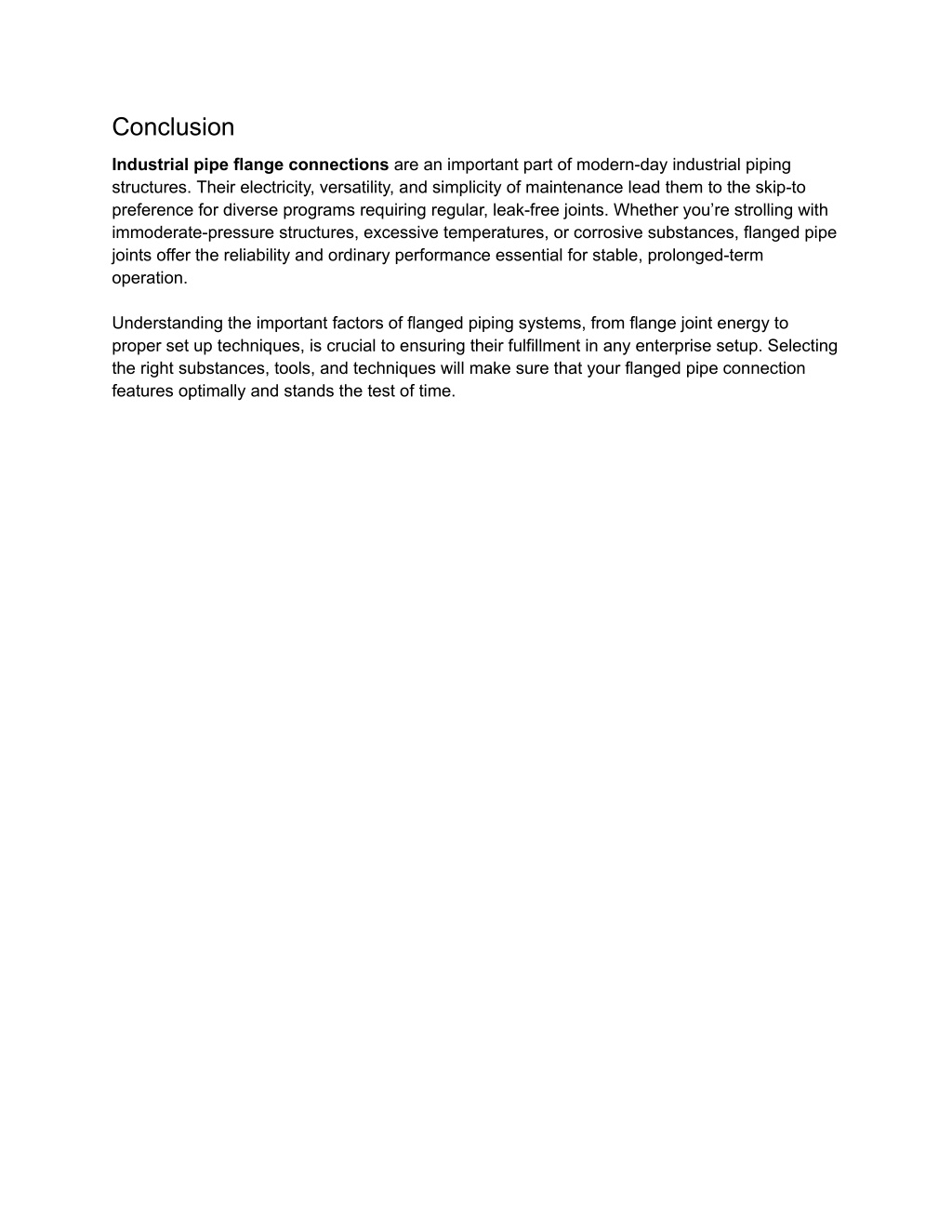

5. Conclusion Industrial pipe flange connections are an important part of modern-day industrial piping structures. Their electricity, versatility, and simplicity of maintenance lead them to the skip-to preference for diverse programs requiring regular, leak-free joints. Whether you’re strolling with immoderate-pressure structures, excessive temperatures, or corrosive substances, flanged pipe joints offer the reliability and ordinary performance essential for stable, prolonged-term operation. Understanding the important factors of flanged piping systems, from flange joint energy to proper set up techniques, is crucial to ensuring their fulfillment in any enterprise setup. Selecting the right substances, tools, and techniques will make sure that your flanged pipe connection features optimally and stands the test of time.
