  1. Autograder Rishabh Singh, Sumitgulwani, Armando solar-lezama A G

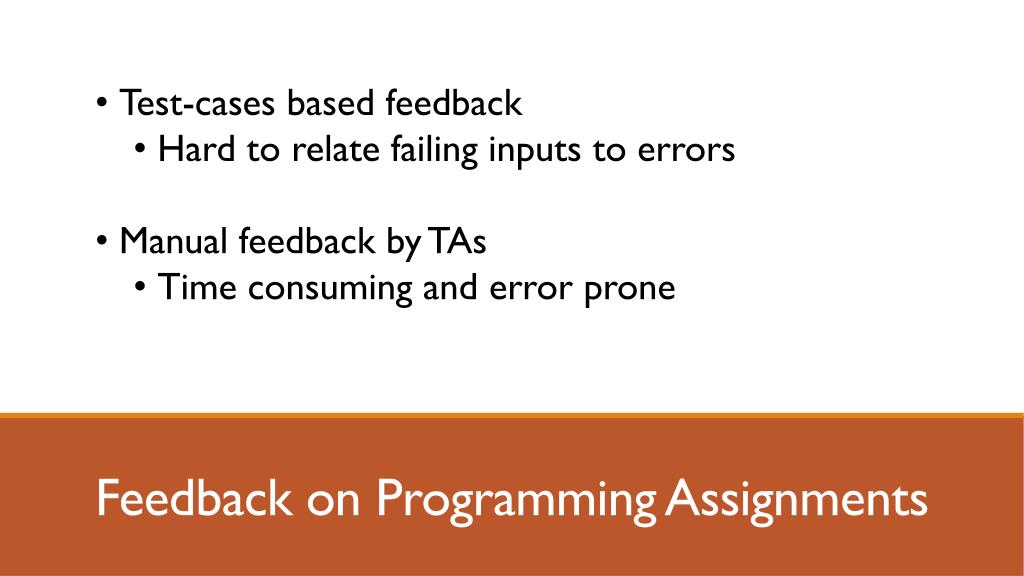

  2. Test-cases based feedback • Hard to relate failing inputs to errors • Manual feedback by TAs • Time consuming and error prone Feedback on Programming Assignments

  3. "Not only did it take 1-2 weeks to grade problem, but the comments were entirely unhelpful in actually helping us fix our errors. …. Apparently they don't read the code -- they just ran their tests and docked points mercilessly. What if I just had a simple typo, but my algorithm was fine? ...." 6.00 Student Feedback (2013)

  4. Scalability Challenges (>100k students) Bigger Challenge in MOOCs

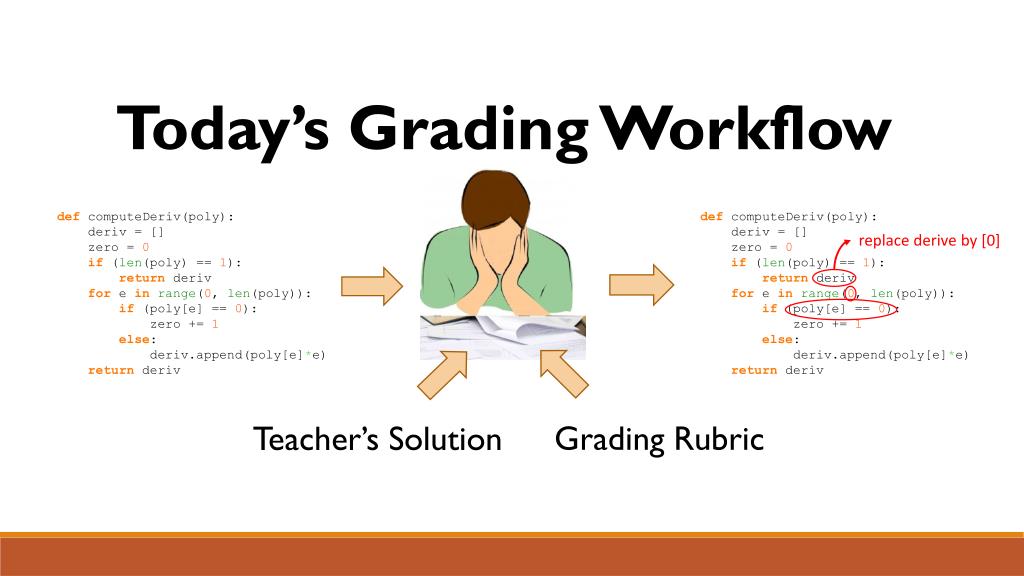

  5. Today’s Grading Workflow • defcomputeDeriv(poly): • deriv = [] •     zero = 0 • if(len(poly) == 1): • returnderiv • for e inrange(0, len(poly)): • if(poly[e] == 0): •             zero += 1 • else: • deriv.append(poly[e]*e) • returnderiv • defcomputeDeriv(poly): • deriv = [] •     zero = 0 • if(len(poly) == 1): • returnderiv • for e inrange(0, len(poly)): • if(poly[e] == 0): •             zero += 1 • else: • deriv.append(poly[e]*e) • returnderiv replace derive by [0] Grading Rubric Teacher’s Solution

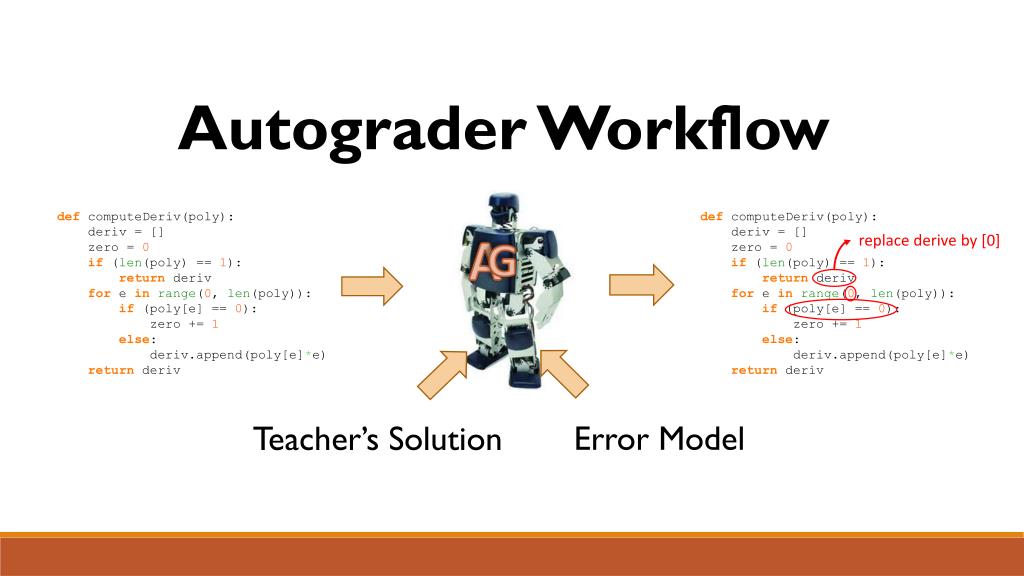

  6. Autograder Workflow • defcomputeDeriv(poly): • deriv = [] •     zero = 0 • if(len(poly) == 1): • returnderiv • for e inrange(0, len(poly)): • if(poly[e] == 0): •             zero += 1 • else: • deriv.append(poly[e]*e) • returnderiv • defcomputeDeriv(poly): • deriv = [] •     zero = 0 • if(len(poly) == 1): • returnderiv • for e inrange(0, len(poly)): • if(poly[e] == 0): •             zero += 1 • else: • deriv.append(poly[e]*e) • returnderiv replace derive by [0] Error Model Teacher’s Solution A G

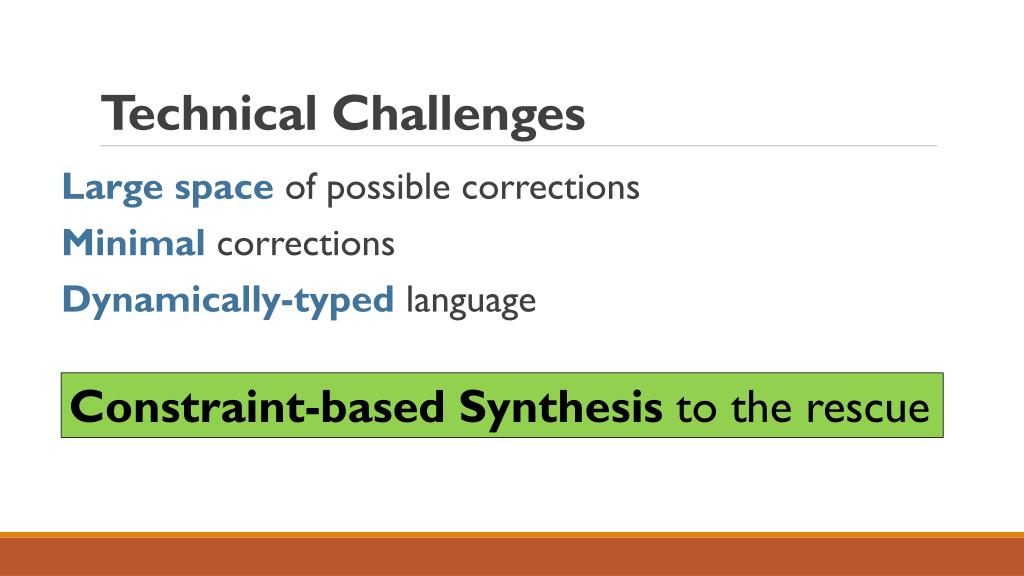

  7. Technical Challenges Large space of possible corrections Minimal corrections Dynamically-typed language Constraint-based Synthesis to the rescue

  8. Running Example

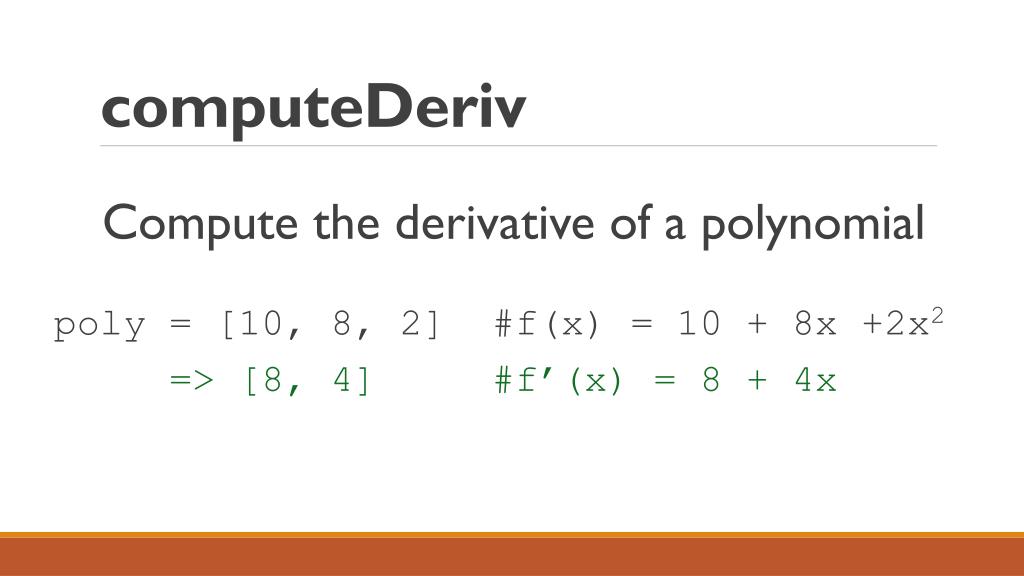

  9. computeDeriv • Compute the derivative of a polynomial • poly = [10, 8, 2] #f(x) = 10 + 8x +2x2 • => [8, 4] #f’(x) = 8 + 4x

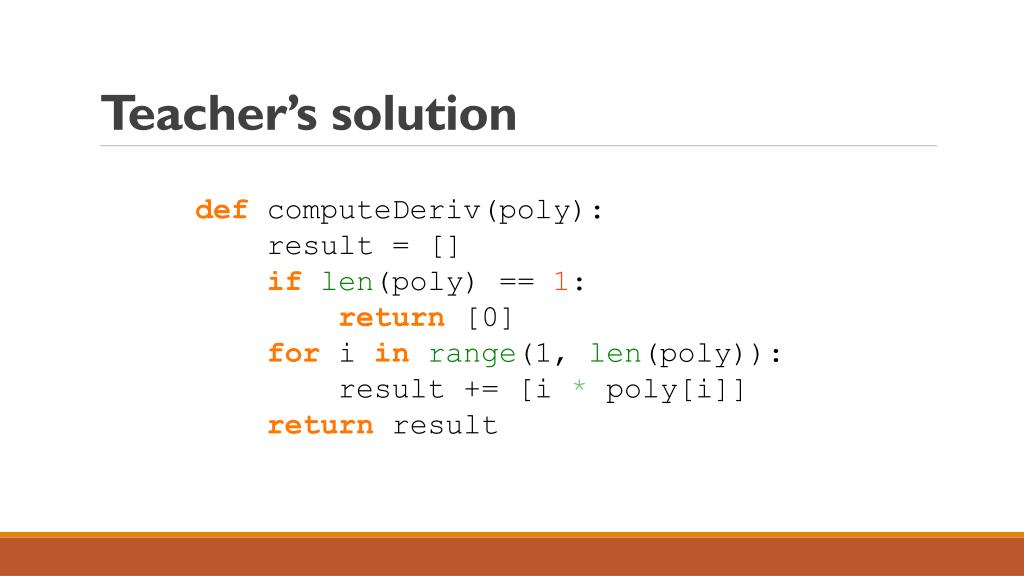

  10. Teacher’s solution defcomputeDeriv(poly):    result = [] iflen(poly) == 1: return[0] foriinrange(1, len(poly)):         result += [i* poly[i]] return result

  11. Demo

  12. Simplified Error Model • return a  return {[0],?a} • range(a1, a2)  range(a1+1,a2) • a0 == a1 False

  13. Autograder Algorithm

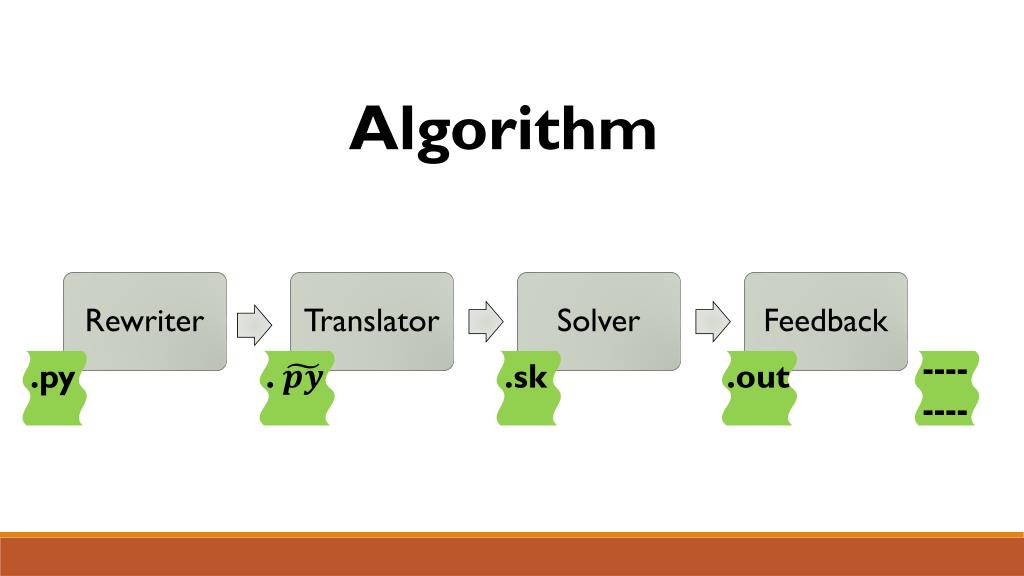

  14. Algorithm ---- ---- .py .sk .out .

  15. Algorithm: Rewriter .py .

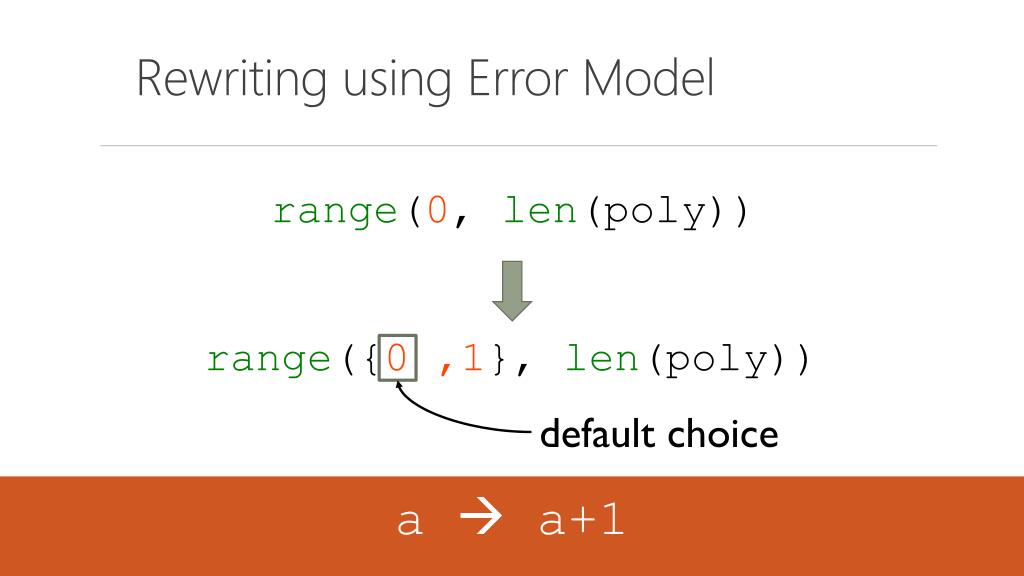

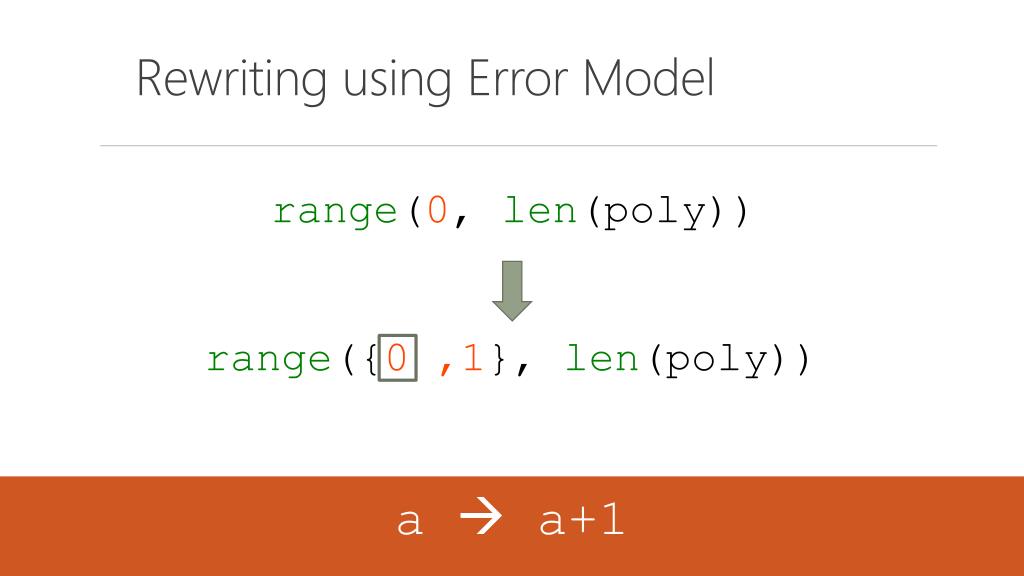

  16. Rewriting using Error Model • range(0, len(poly)) • range({0 ,1}, len(poly)) default choice a  a+1

  17. Rewriting using Error Model • range(0, len(poly)) • range({0 ,1}, len(poly)) a  a+1

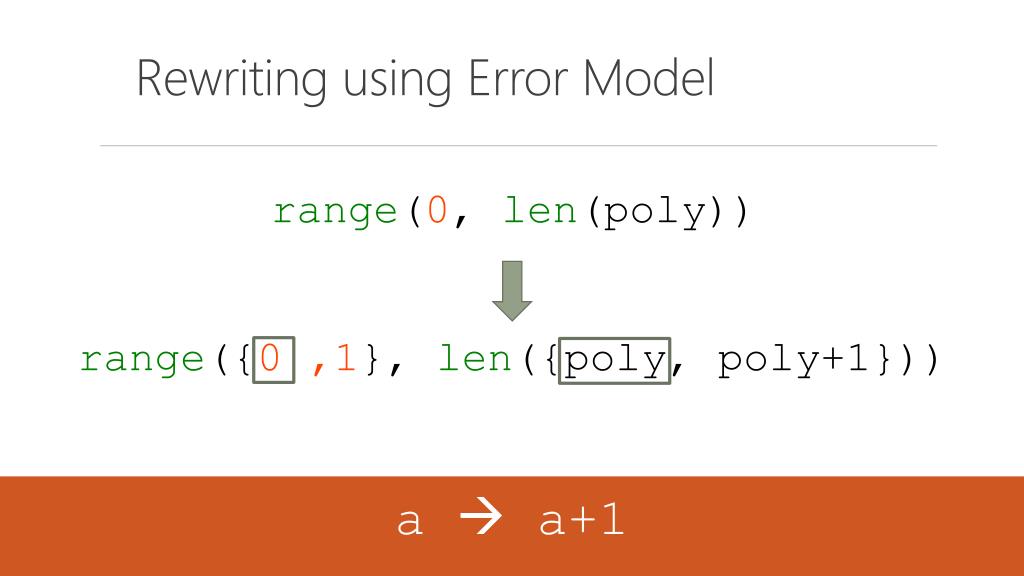

  18. Rewriting using Error Model • range(0, len(poly)) • range({0 ,1}, len({poly, poly+1})) a  a+1

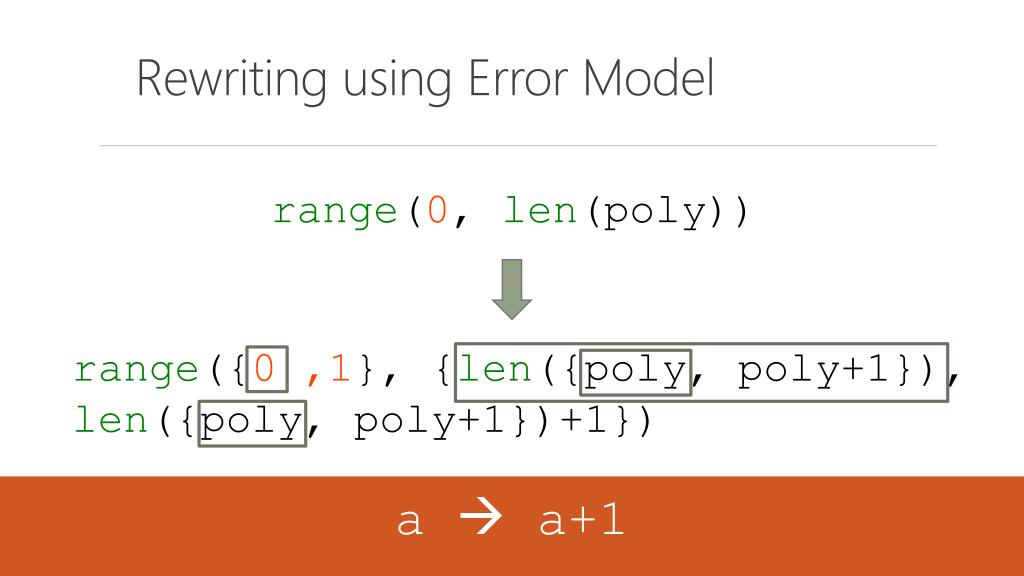

  19. Rewriting using Error Model • range(0, len(poly)) • range({0 ,1}, {len({poly, poly+1}), len({poly, poly+1})+1}) a  a+1

  20. Rewriting using Error Model () • defcomputeDeriv(poly): • deriv = [] •     zero = 0 • if({len(poly) == 1, False}): • return {deriv,[0]} • for e inrange({0,1}, len(poly)): • if(poly[e] == 0): •             zero += 1 • else: • deriv.append(poly[e]*e) • return {deriv,[0]} Problem: Find a program that minimizes cost metricand is functionally equivalent with teacher’s solution

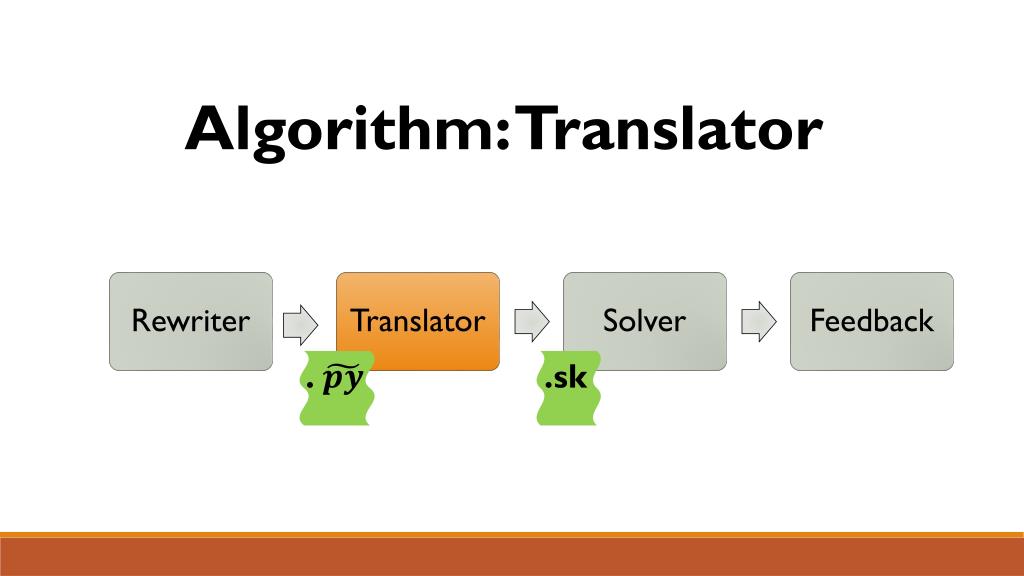

  21. Algorithm: Translator .sk .

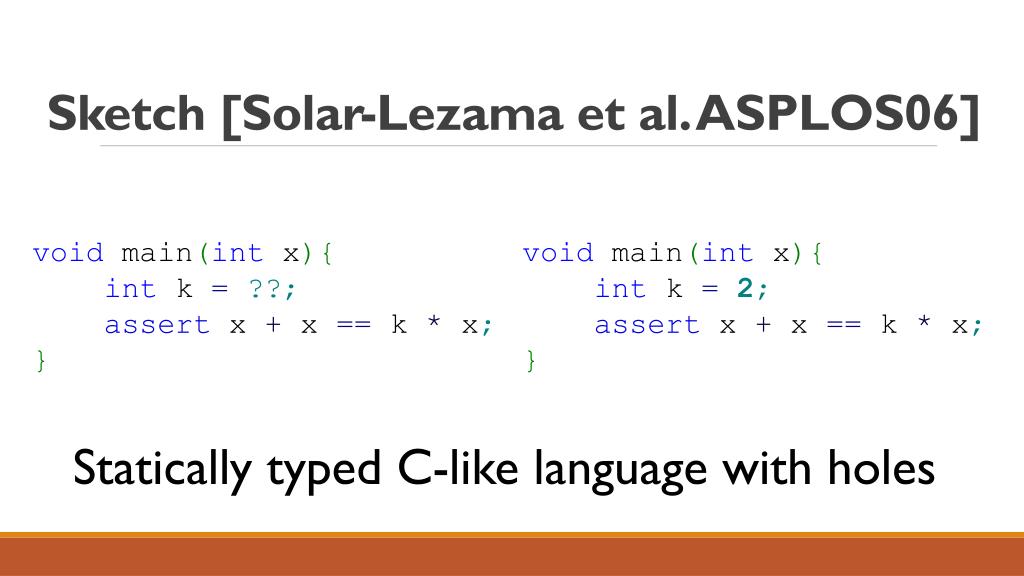

  22. Sketch [Solar-Lezama et al. ASPLOS06] • void main(int x){ • int k =2; • assert x + x == k * x; • } • void main(int x){ • int k =??; • assert x + x == k * x; • } Statically typed C-like language with holes

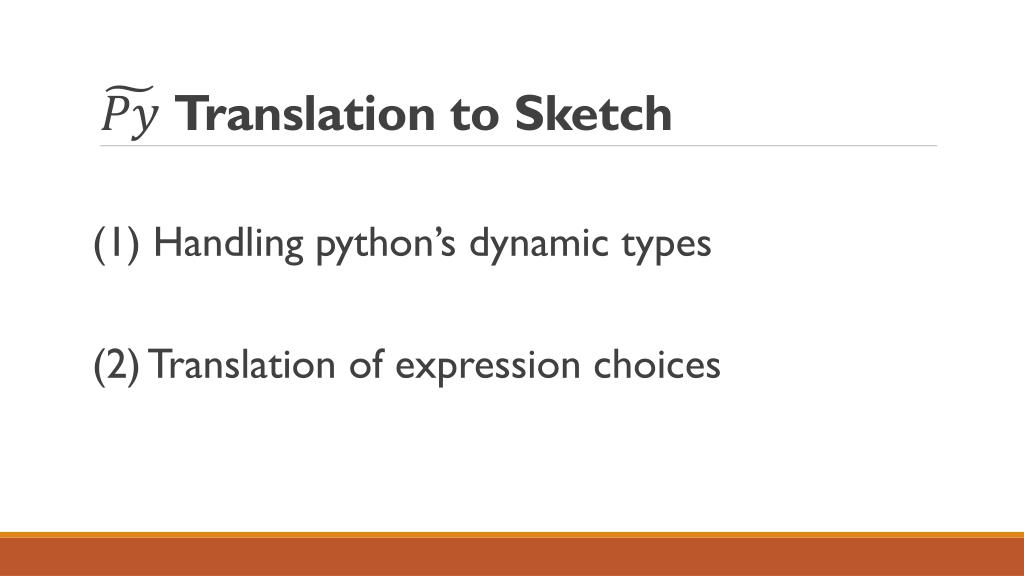

  23. Translation to Sketch (1) Handling python’s dynamic types (2) Translation of expression choices

  24. (1) Handling Dynamic Types • structMultiType{ • inttype; • int ival;bitbval; • MTStringstr;MTListlst; • MTDictdict;MTTupletup; • } bool int list

  25. Python Constants using MultiType 2 1  int int bool bool bool int list list list [1,2] 

  26. Python Exprs using MultiType x + y  int int int bool bool bool list list list

  27. Python Exprs using MultiType x + y  bool bool bool int int int list list list

  28. Python Expressions using MultiType x + y  Typing rules are encoded as constraints bool int int bool list list

  29. (2) Translation of Expression Choices { , } MultiType modifyMTi( , ){ if(??) return else choicei = True return } // default choice // non-default choice

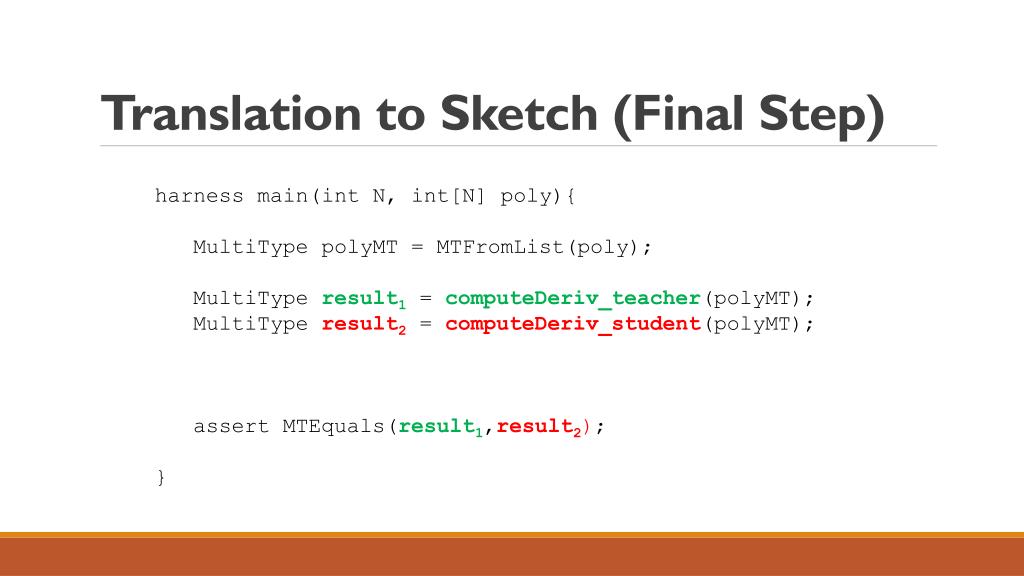

  30. Translation to Sketch (Final Step) harness main(int N, int[N] poly){ MultiTypepolyMT = MTFromList(poly); MultiTyperesult1 = computeDeriv_teacher(polyMT); MultiTyperesult2= computeDeriv_student(polyMT); assert MTEquals(result1,result2); }

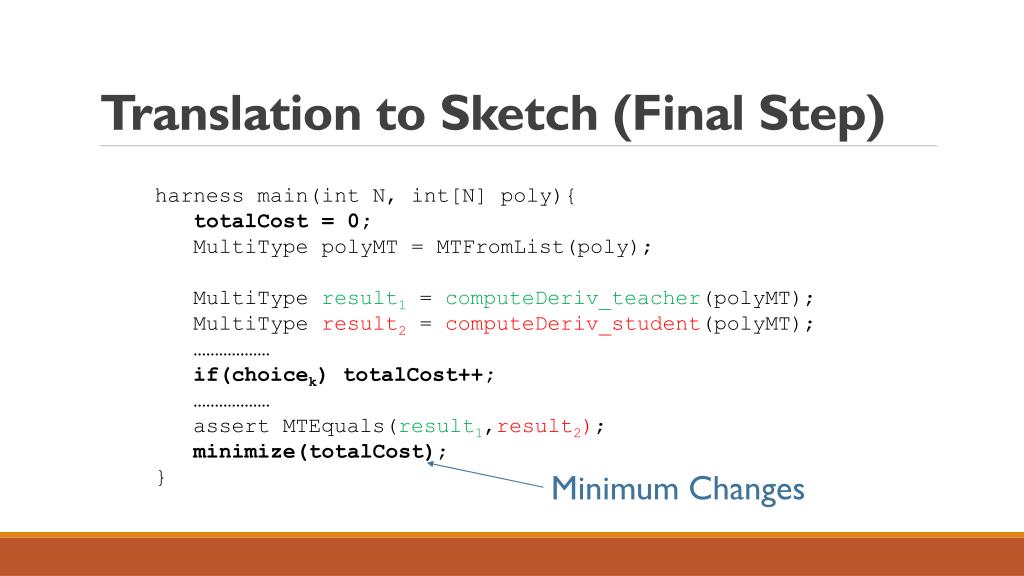

  31. Translation to Sketch (Final Step) harness main(int N, int[N] poly){ totalCost = 0; MultiTypepolyMT = MTFromList(poly); MultiTyperesult1=computeDeriv_teacher(polyMT); MultiTyperesult2=computeDeriv_student(polyMT); ……………… if(choicek) totalCost++; ……………… assert MTEquals(result1,result2); minimize(totalCost); } Minimum Changes

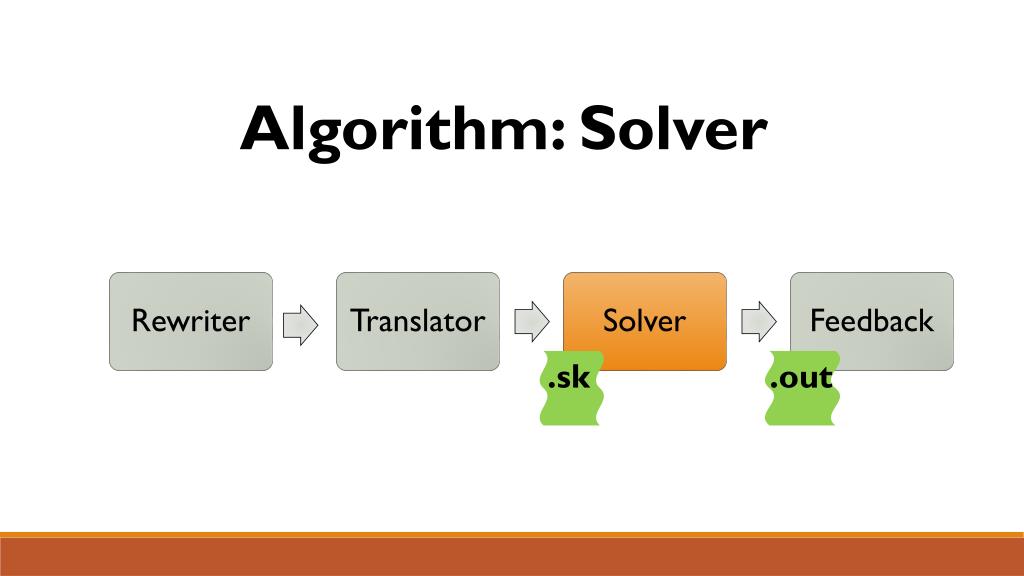

  32. Algorithm: Solver .sk .out

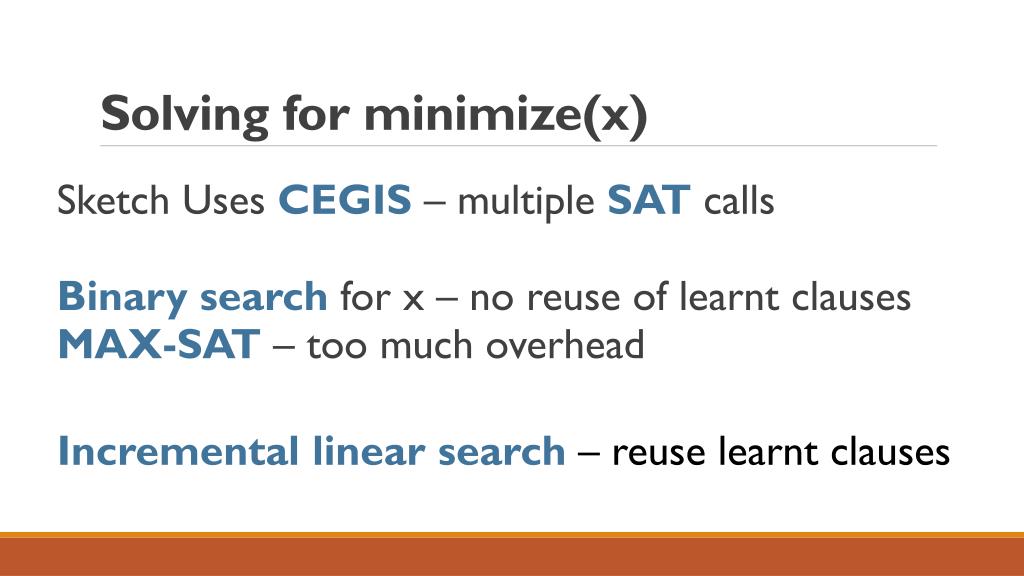

  33. Solving for minimize(x) Binary search for x – no reuse of learnt clauses Sketch Uses CEGIS – multiple SAT calls MAX-SAT – too much overhead Incremental linear search – reuse learnt clauses

  34. Incremental Solving for minimize(x) (P,x) (P1,x=7) Sketch {x<7} Sketch {x<4} UNSAT (P2,x=4) Sketch

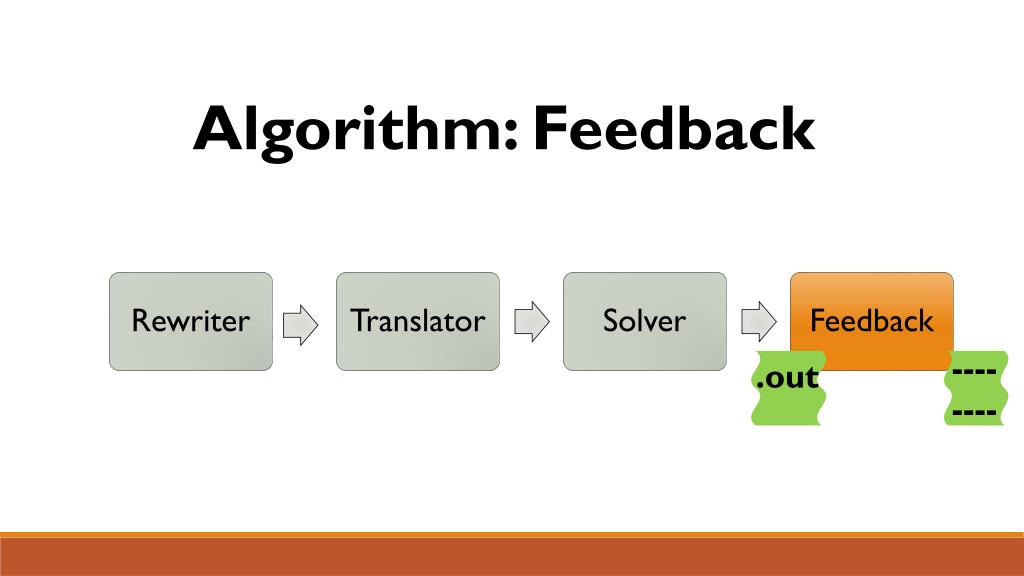

  35. Algorithm: Feedback ---- ---- .out

  36. Feedback Generation Correction rules associated with Feedback Template Extract synthesizer choices to fill templates

  37. Evaluation

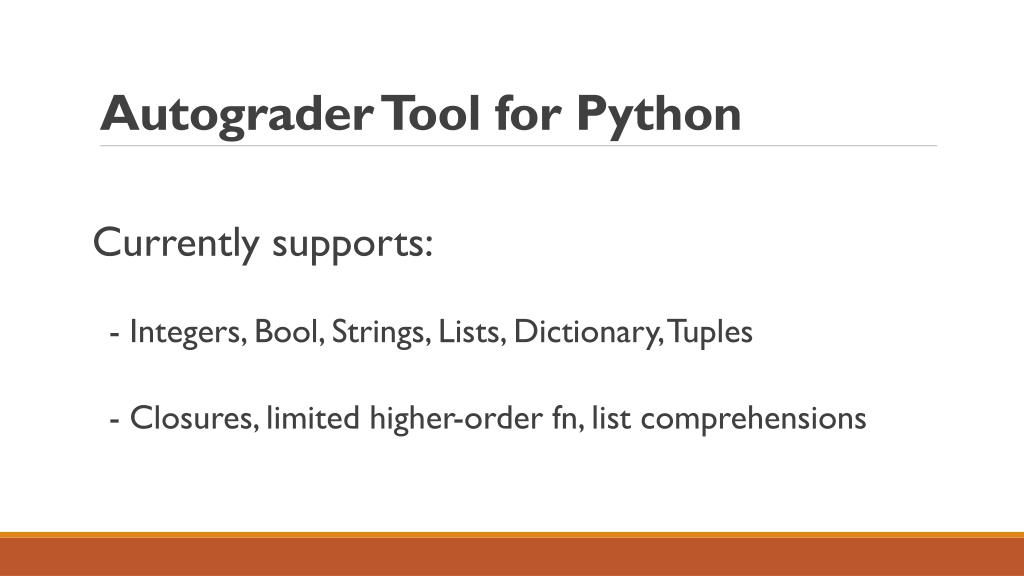

  38. Autograder Tool for Python Currently supports: - Integers, Bool, Strings, Lists, Dictionary, Tuples - Closures, limited higher-order fn, list comprehensions

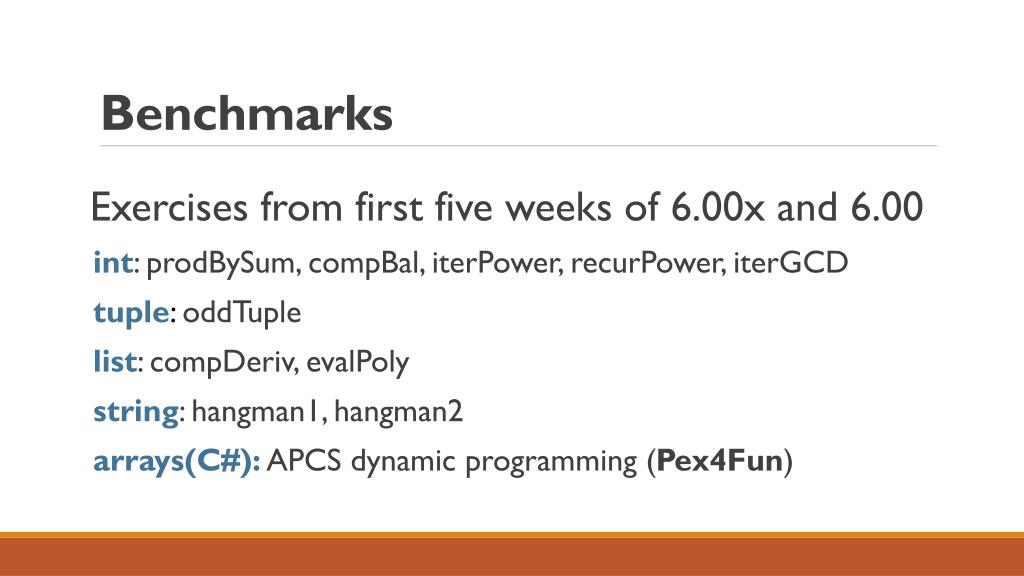

  39. Benchmarks Exercises from first five weeks of 6.00x and 6.00 int: prodBySum, compBal, iterPower, recurPower, iterGCD tuple:oddTuple list: compDeriv, evalPoly string: hangman1, hangman2 arrays(C#): APCS dynamic programming (Pex4Fun)

  40. Average Running Time (in s)

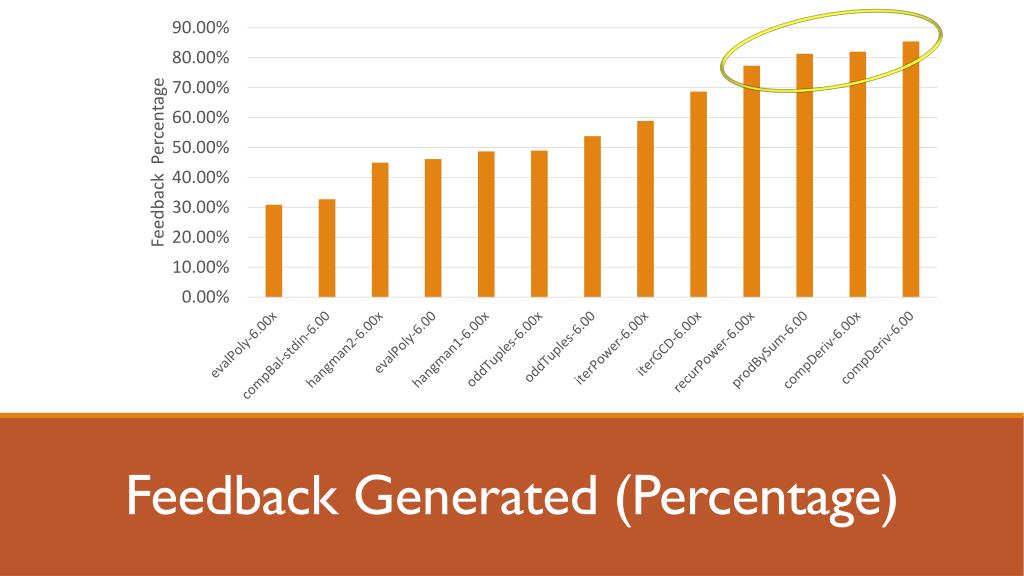

  41. Feedback Generated (Percentage)

  42. Feedback Generated (Percentage)

  43. Feedback Generated (Percentage)

  44. Feedback Generated (Percentage)

  45. Average Performance

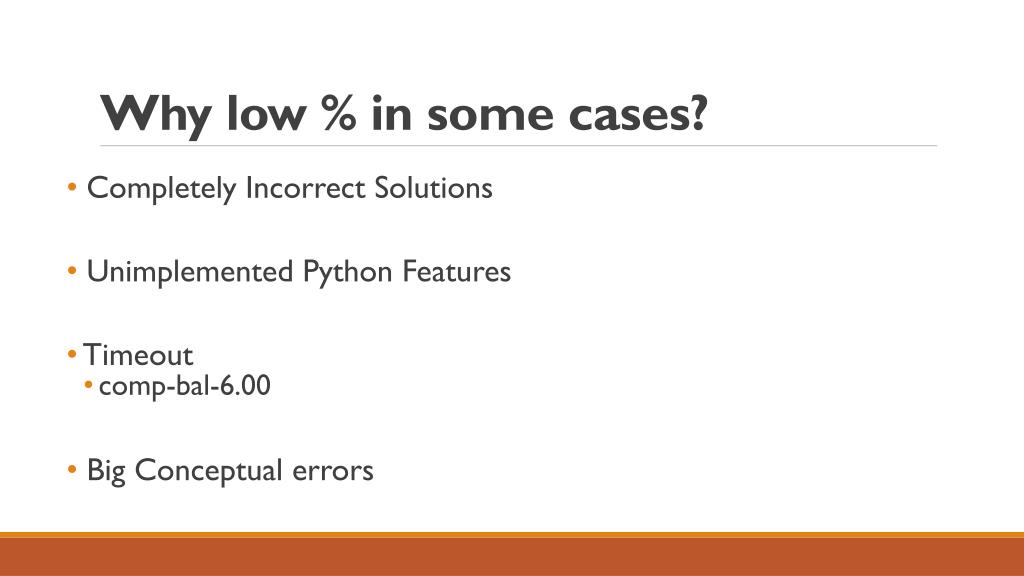

  46. Why low % in some cases? • Completely Incorrect Solutions • Unimplemented Python Features • Timeout • comp-bal-6.00 • Big Conceptual errors

  47. Big Error: Misunderstanding APIs • eval-poly-6.00x • defevaluatePoly(poly, x): •     result = 0 • foriinlist(poly): •         result += i* x **poly.index(i) • return result

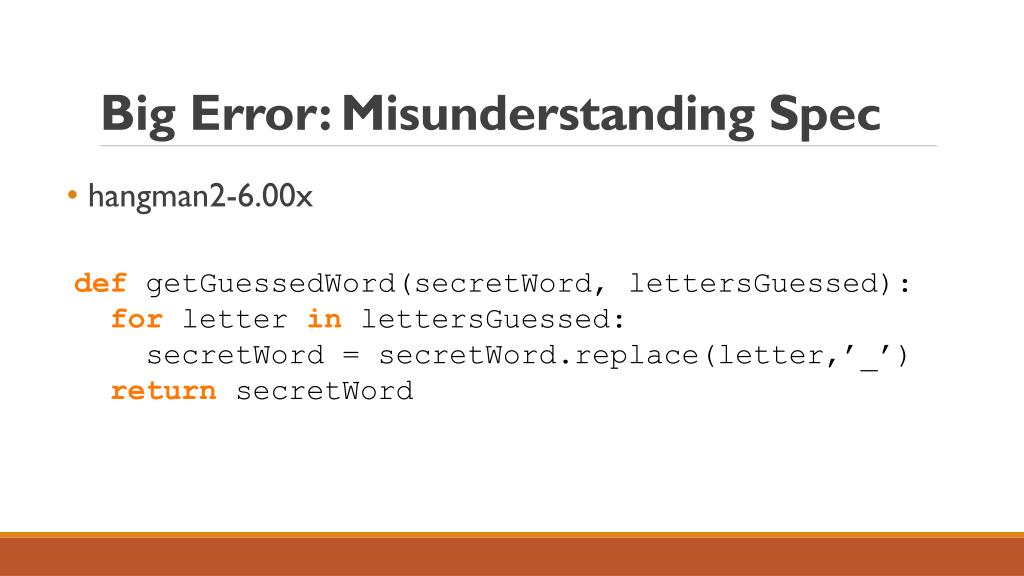

  48. Big Error: Misunderstanding Spec • hangman2-6.00x • def getGuessedWord(secretWord, lettersGuessed): • for letter in lettersGuessed: •     secretWord = secretWord.replace(letter,’_’) • return secretWord

  49. A technique for automated feedback generation Error Models, Constraint-based synthesis • Provide a basis for automated feedback for MOOCs • Towards building a Python Tutoring System rishabh@csail.mit.edu Thanks! Conclusion
