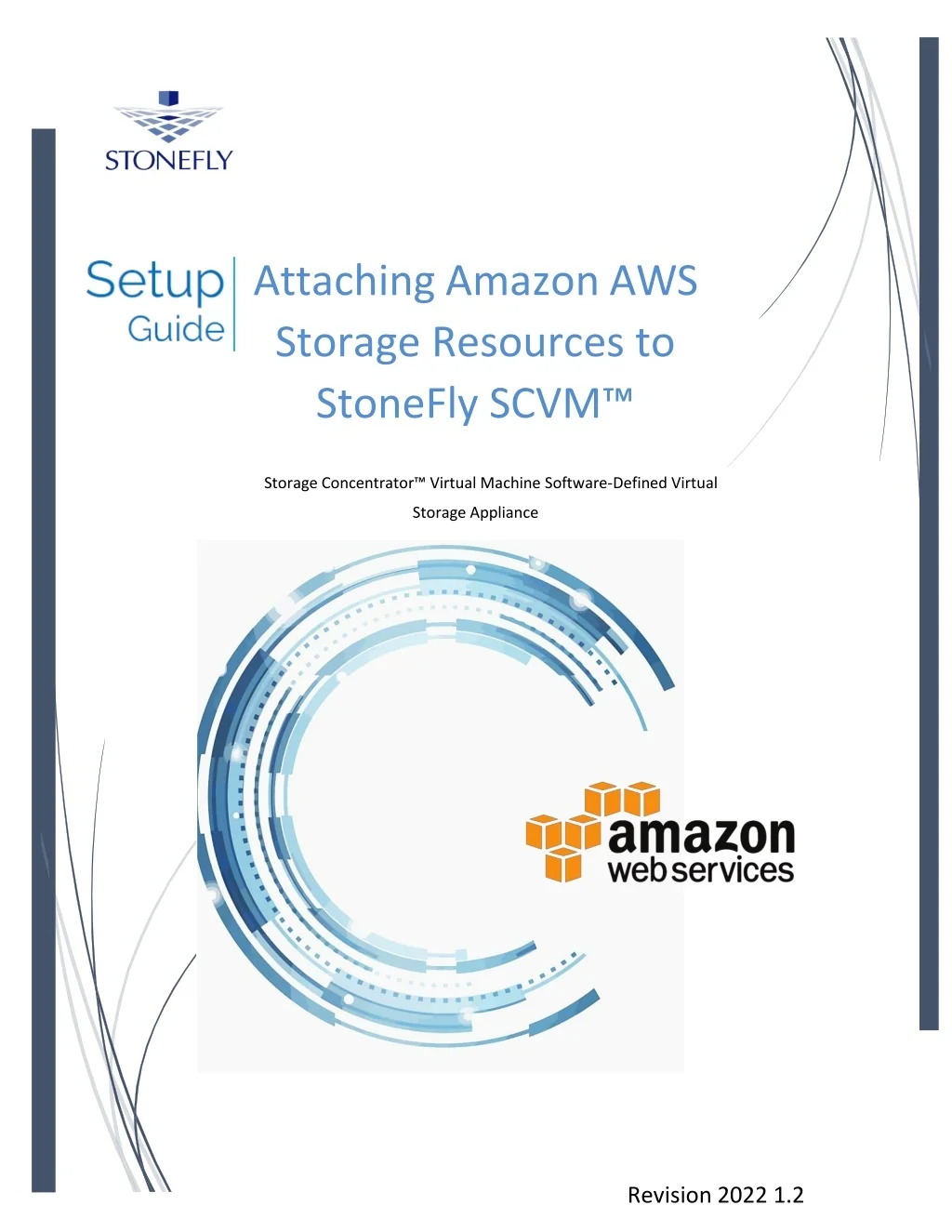

  1. Attaching Amazon AWS Storage Resources to StoneFly SCVM™ Storage Concentrator™ Virtual Machine Software-Defined Virtual Storage Appliance Revision 2022 1.2

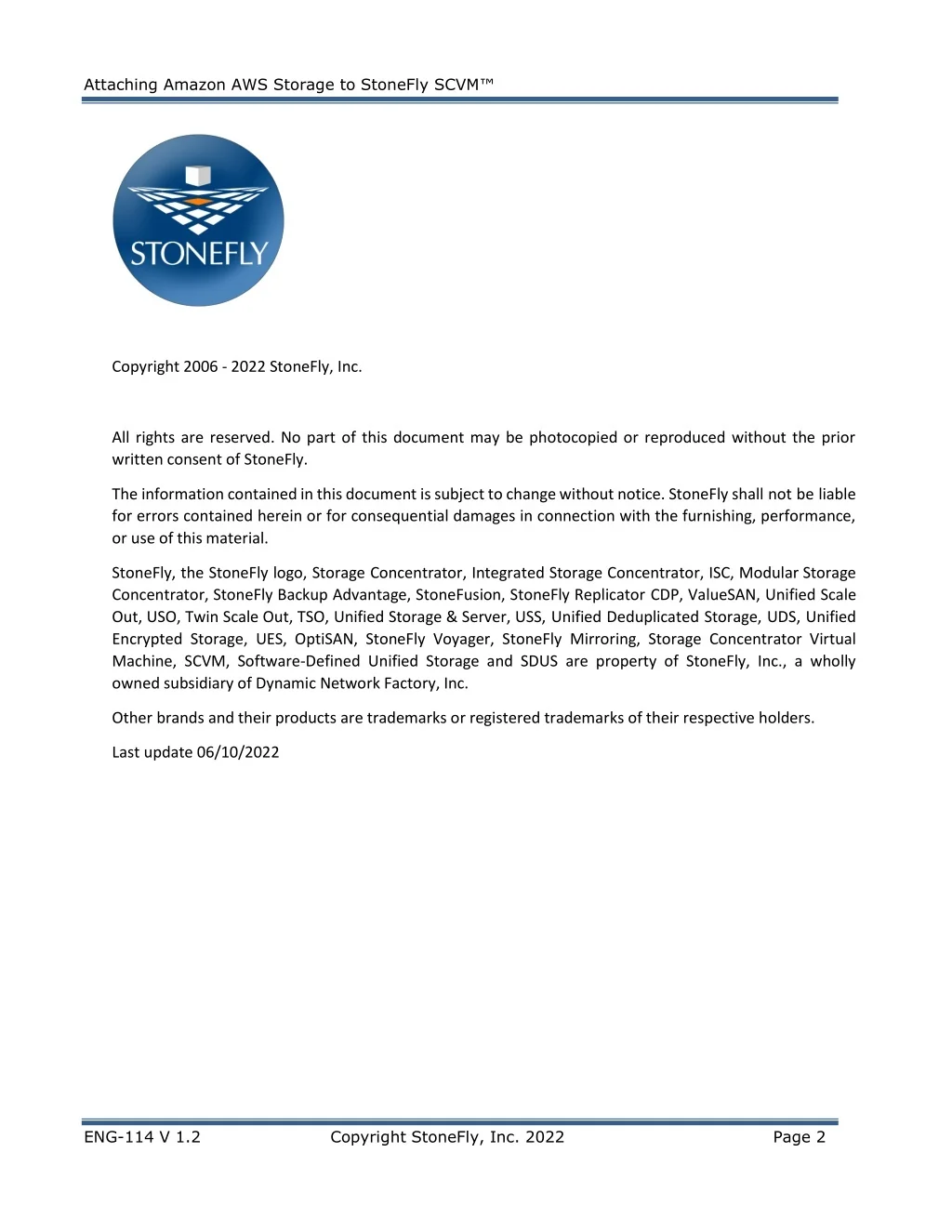

  2. Attaching Amazon AWS Storage to StoneFly SCVM™ Copyright 2006 - 2022 StoneFly, Inc. All rights are reserved. No part of this document may be photocopied or reproduced without the prior written consent of StoneFly. The information contained in this document is subject to change without notice. StoneFly shall not be liable for errors contained herein or for consequential damages in connection with the furnishing, performance, or use of this material. StoneFly, the StoneFly logo, Storage Concentrator, Integrated Storage Concentrator, ISC, Modular Storage Concentrator, StoneFly Backup Advantage, StoneFusion, StoneFly Replicator CDP, ValueSAN, Unified Scale Out, USO, Twin Scale Out, TSO, Unified Storage & Server, USS, Unified Deduplicated Storage, UDS, Unified Encrypted Storage, UES, OptiSAN, StoneFly Voyager, StoneFly Mirroring, Storage Concentrator Virtual Machine, SCVM, Software-Defined Unified Storage and SDUS are property of StoneFly, Inc., a wholly owned subsidiary of Dynamic Network Factory, Inc. Other brands and their products are trademarks or registered trademarks of their respective holders. Last update 06/10/2022 ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 2

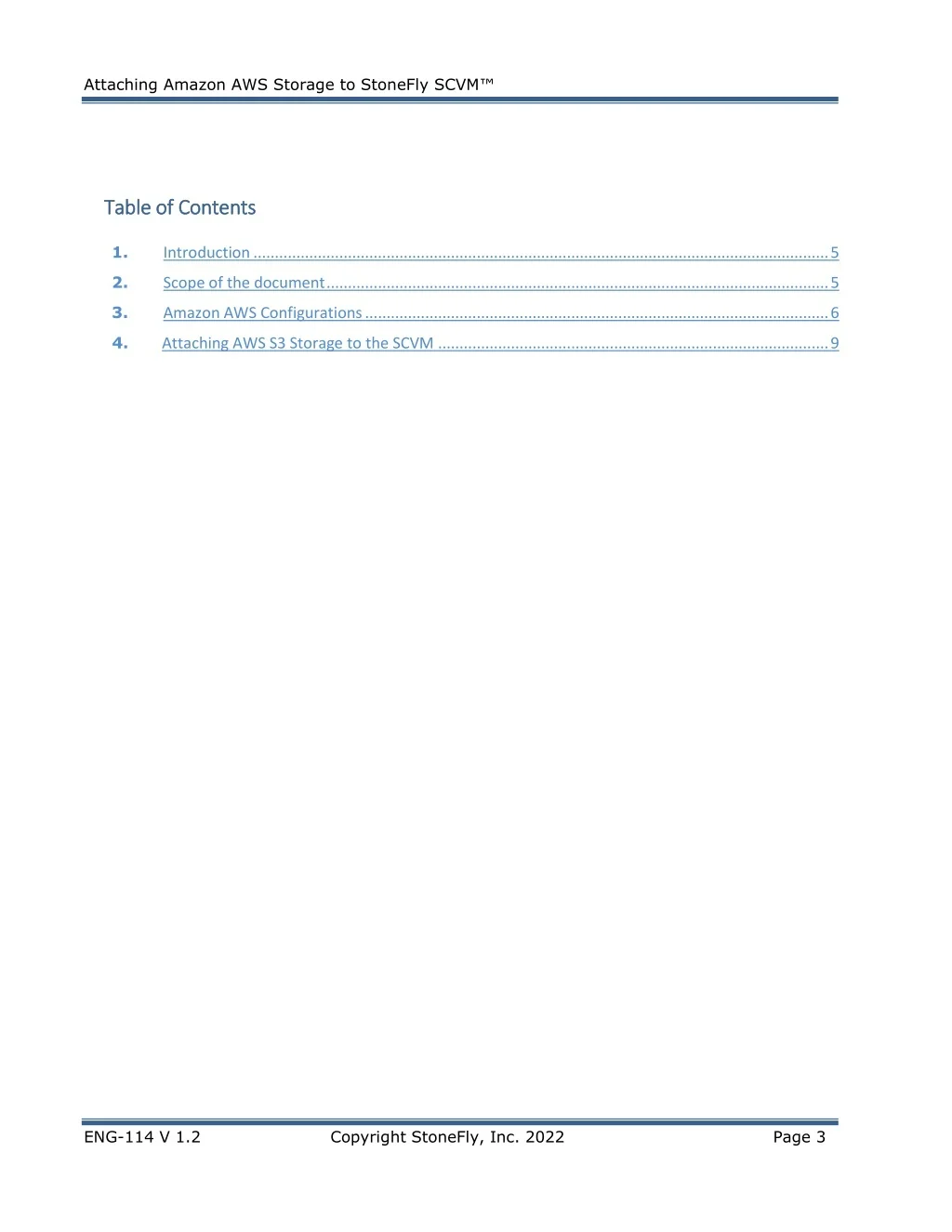

  3. Attaching Amazon AWS Storage to StoneFly SCVM™ Table of Contents Table of Contents 1. Introduction ...................................................................................................................................... 5 2. Scope of the document ..................................................................................................................... 5 3. Amazon AWS Configurations ............................................................................................................ 6 4. Attaching AWS S3 Storage to the SCVM ........................................................................................... 9 ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 3

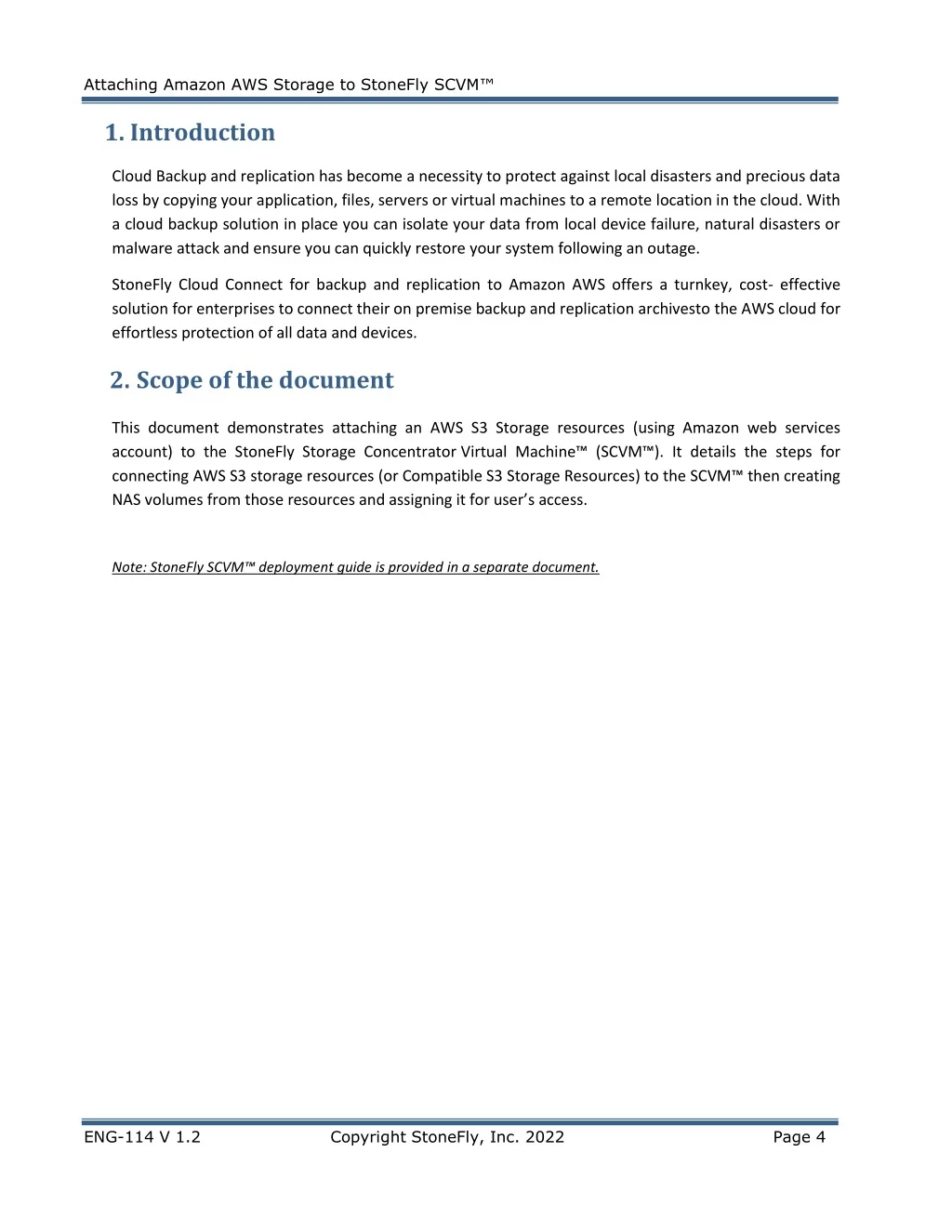

  4. Attaching Amazon AWS Storage to StoneFly SCVM™ 1. Introduction Cloud Backup and replication has become a necessity to protect against local disasters and precious data loss by copying your application, files, servers or virtual machines to a remote location in the cloud. With a cloud backup solution in place you can isolate your data from local device failure, natural disasters or malware attack and ensure you can quickly restore your system following an outage. StoneFly Cloud Connect for backup and replication to Amazon AWS offers a turnkey, cost- effective solution for enterprises to connect their on premise backup and replication archives to the AWS cloud for effortless protection of all data and devices. 2. Scope of the document This document demonstrates attaching an AWS S3 Storage resources (using Amazon web services account) to the StoneFly Storage Concentrator Virtual Machine™ (SCVM™). It details the steps for connecting AWS S3 storage resources (or Compatible S3 Storage Resources) to the SCVM™ then creating NAS volumes from those resources and assigning it for user’s access. Note: StoneFly SCVM™ deployment guide is provided in a separate document. ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 4

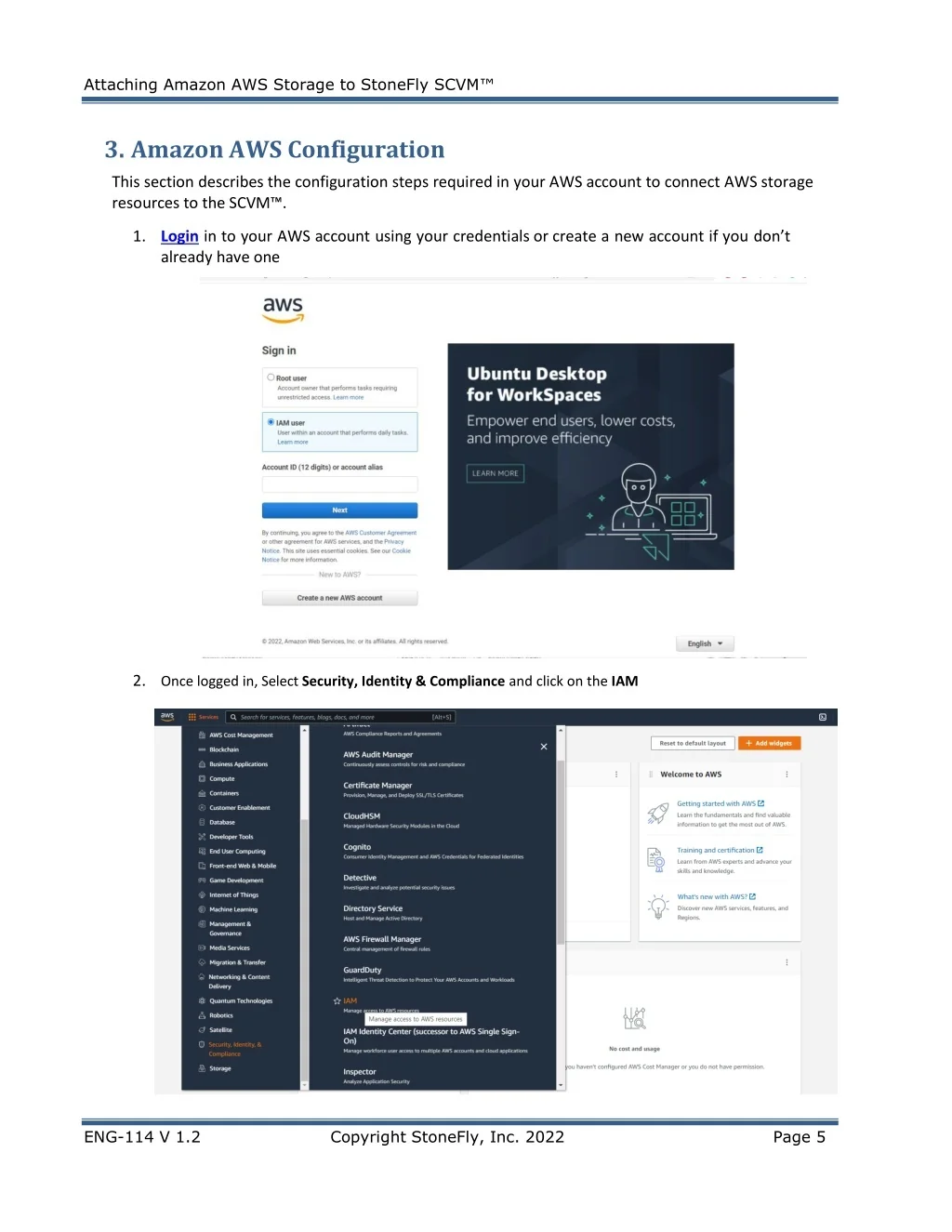

  5. Attaching Amazon AWS Storage to StoneFly SCVM™ 3. Amazon AWS Configuration This section describes the configuration steps required in your AWS account to connect AWS storage resources to the SCVM™. 1.Login in to your AWS account using your credentials or create a new account if you don’t already have one 2.Once logged in, Select Security, Identity & Compliance and click on the IAM ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 5

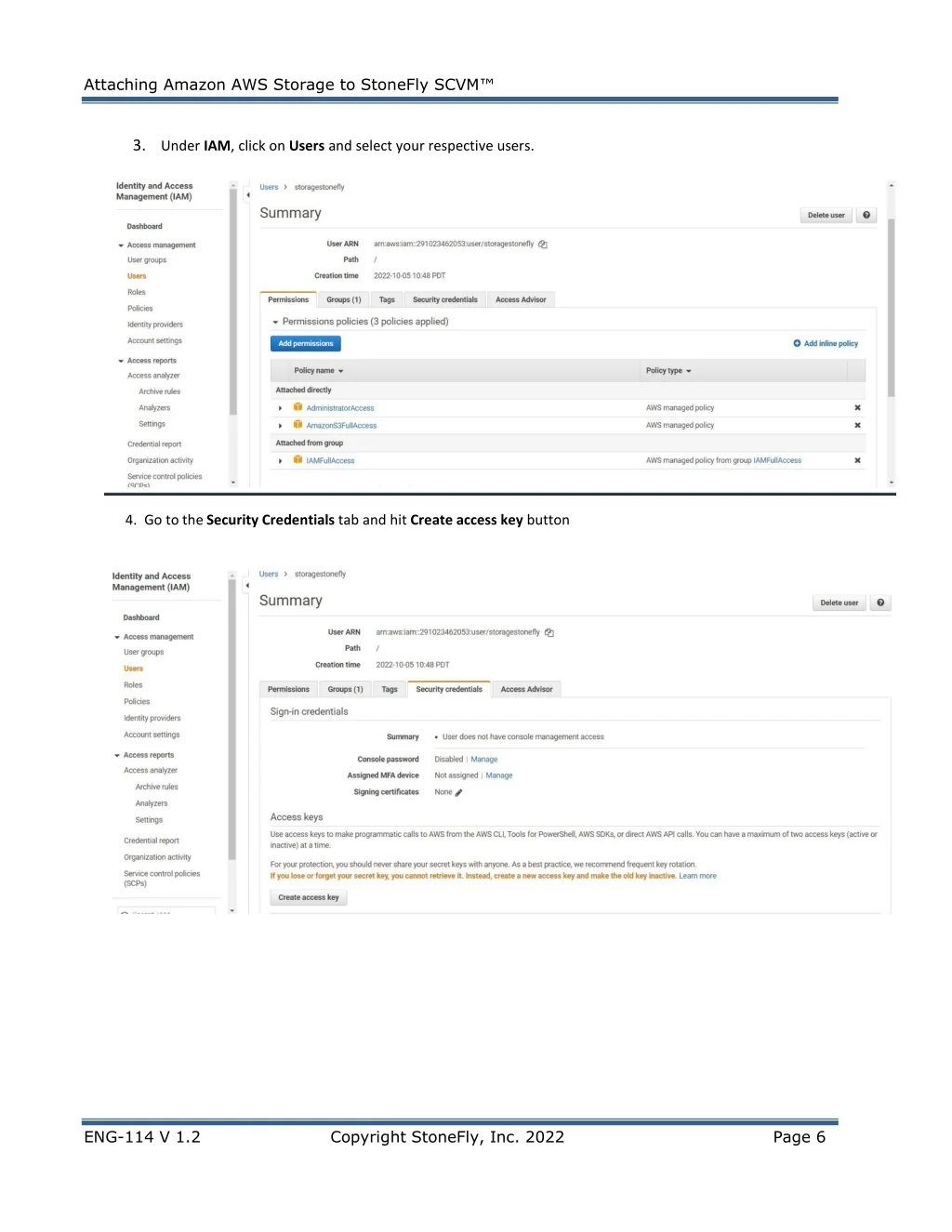

  6. Attaching Amazon AWS Storage to StoneFly SCVM™ 3.Under IAM, click on Users and select your respective users. 4. Go to the Security Credentials tab and hit Create access key button ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 6

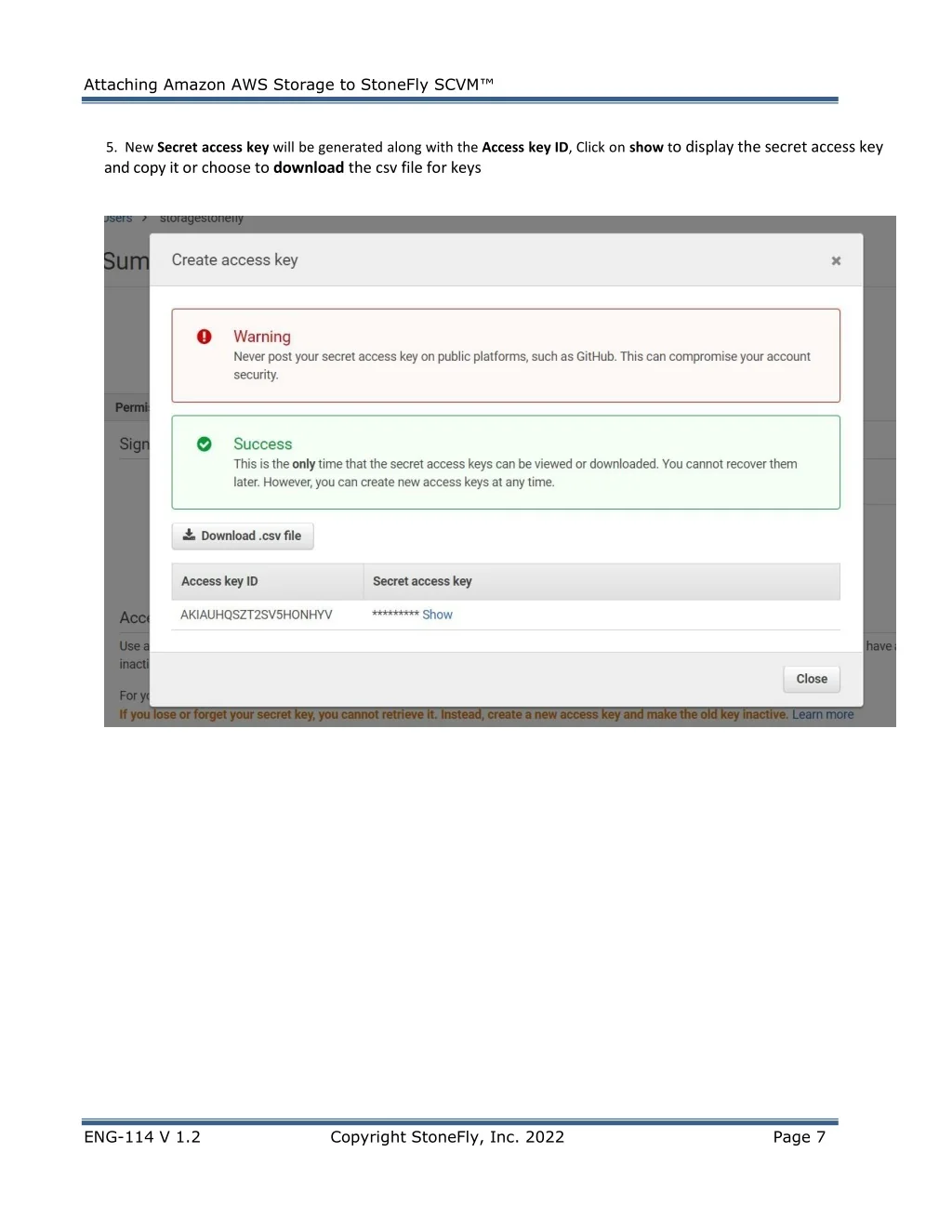

  7. Attaching Amazon AWS Storage to StoneFly SCVM™ 5. New Secret access key will be generated along with the Access key ID, Click on show to display the secret access key and copy it or choose to download the csv file for keys ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 7

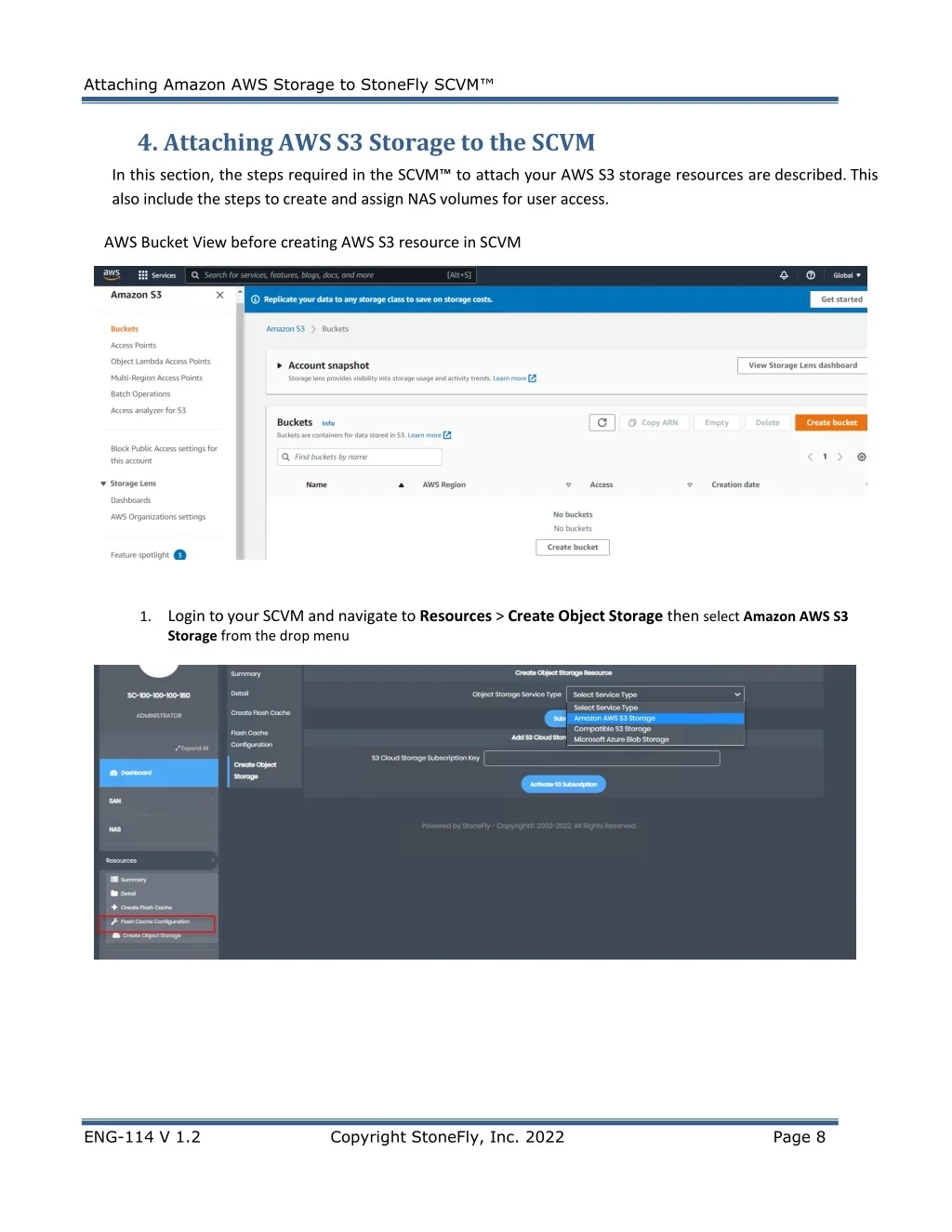

  8. Attaching Amazon AWS Storage to StoneFly SCVM™ 4. Attaching AWS S3 Storage to the SCVM In this section, the steps required in the SCVM™ to attach your AWS S3 storage resources are described. This also include the steps to create and assign NAS volumes for user access. AWS Bucket View before creating AWS S3 resource in SCVM 1.Login to your SCVM and navigate to Resources > Create Object Storage then select Amazon AWS S3 Storage from the drop menu ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 8

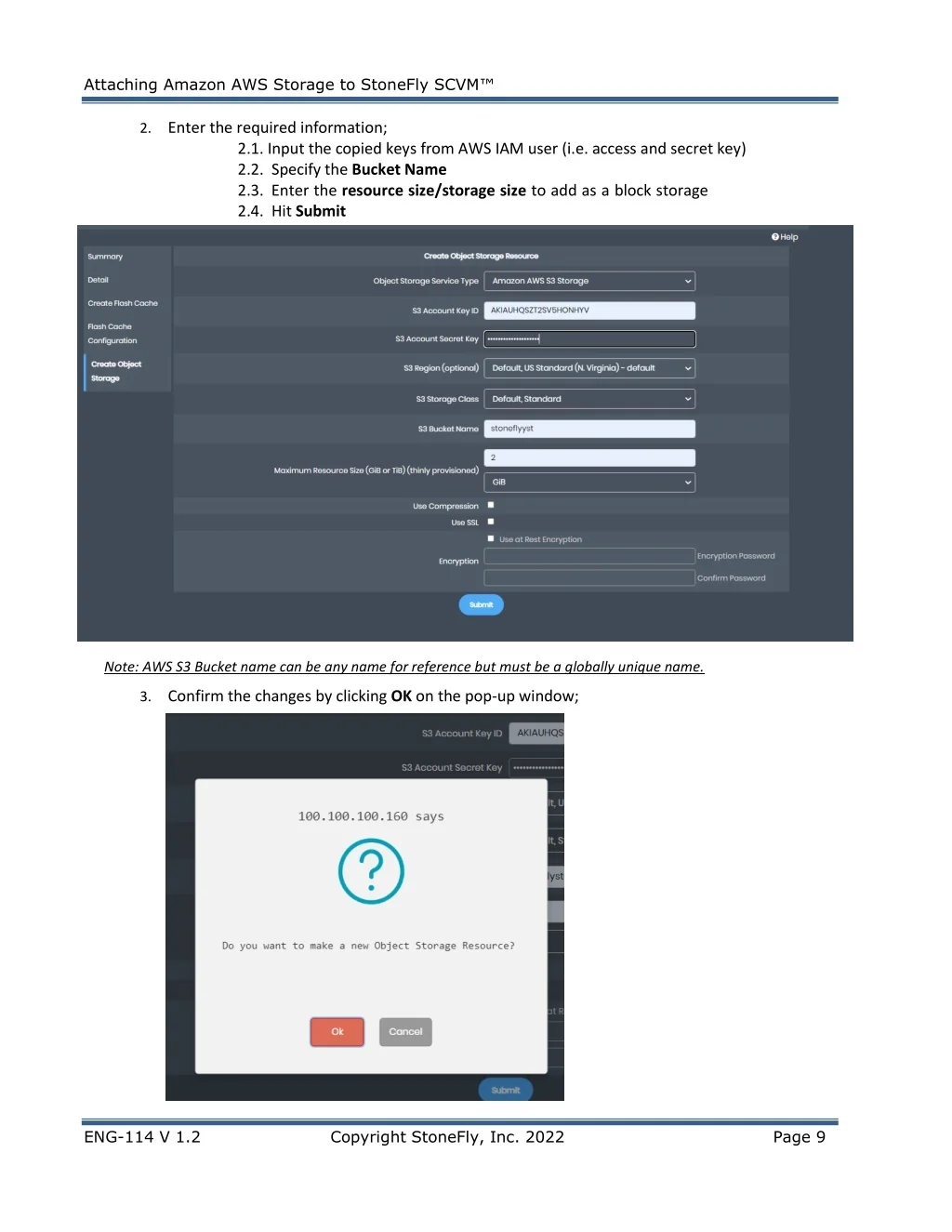

  9. Attaching Amazon AWS Storage to StoneFly SCVM™ 2.Enter the required information; 2.1. Input the copied keys from AWS IAM user (i.e. access and secret key) 2.2. Specify the Bucket Name 2.3. Enter the resource size/storage size to add as a block storage 2.4. Hit Submit Note: AWS S3 Bucket name can be any name for reference but must be a globally unique name. 3.Confirm the changes by clicking OK on the pop-up window; ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 9

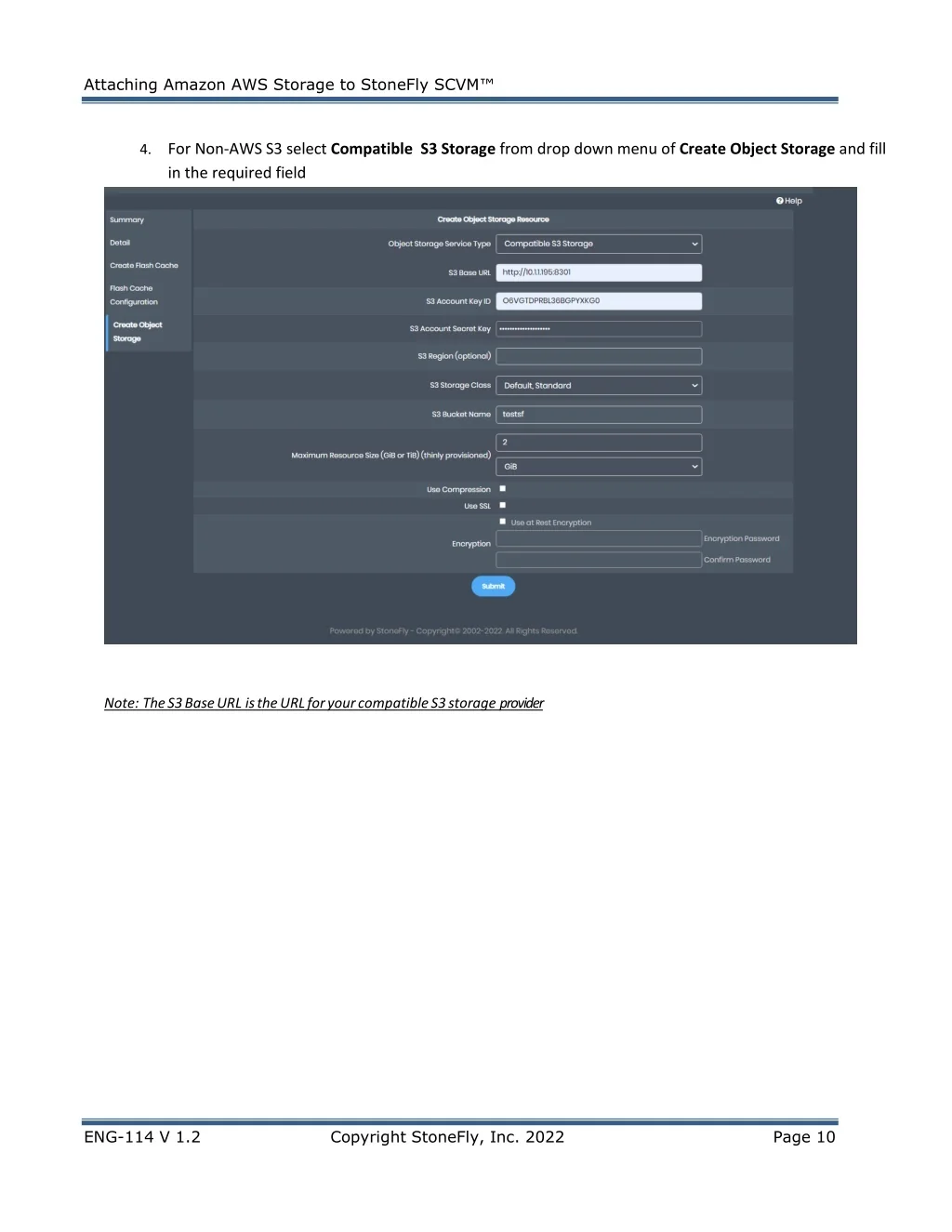

  10. Attaching Amazon AWS Storage to StoneFly SCVM™ 4.For Non-AWS S3 select Compatible S3 Storage from drop down menu of Create Object Storage and fill in the required field Note: The S3 Base URL is the URL for your compatible S3 storage provider ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 10

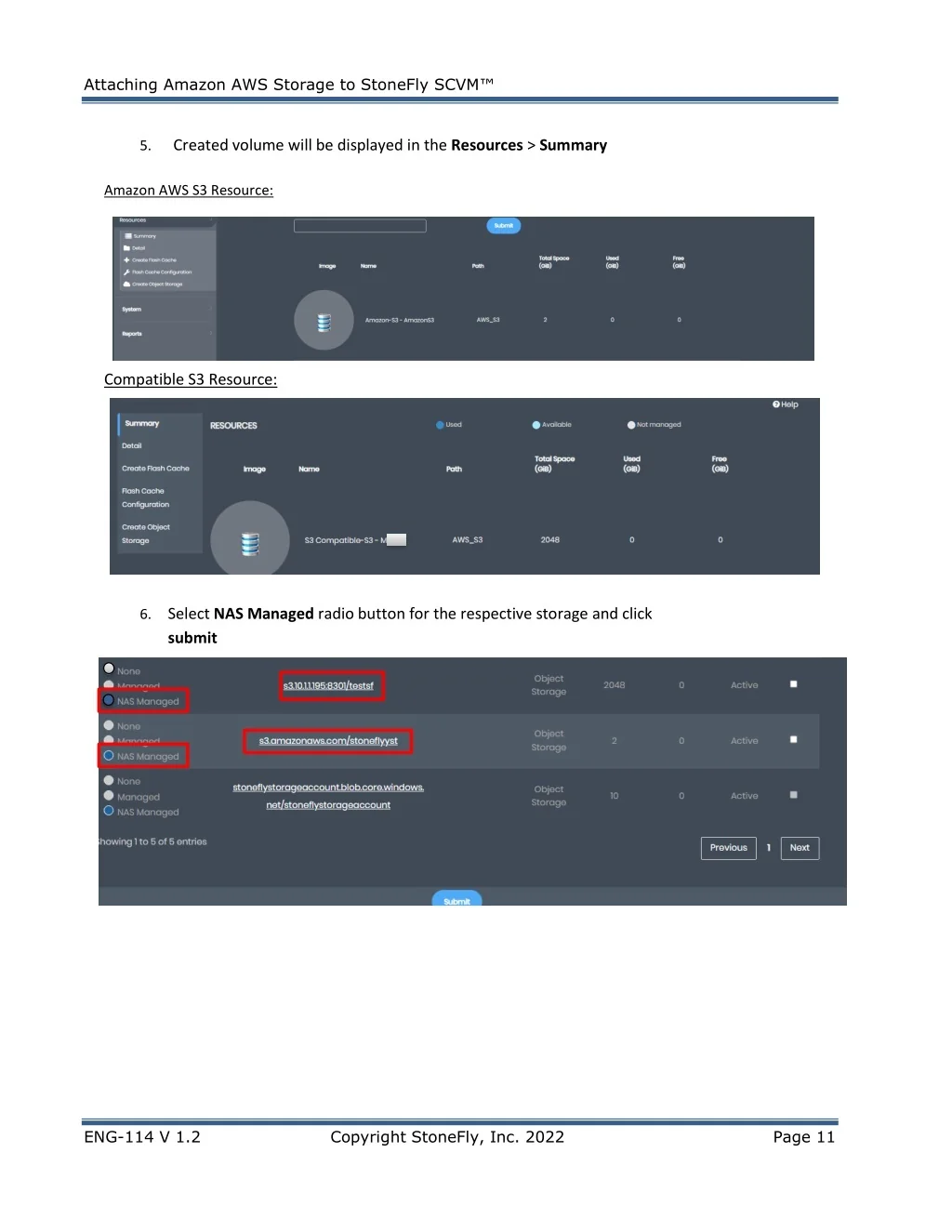

  11. Attaching Amazon AWS Storage to StoneFly SCVM™ 5. Created volume will be displayed in the Resources > Summary Amazon AWS S3 Resource: Compatible S3 Resource: 6.Select NAS Managed radio button for the respective storage and click submit ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 11

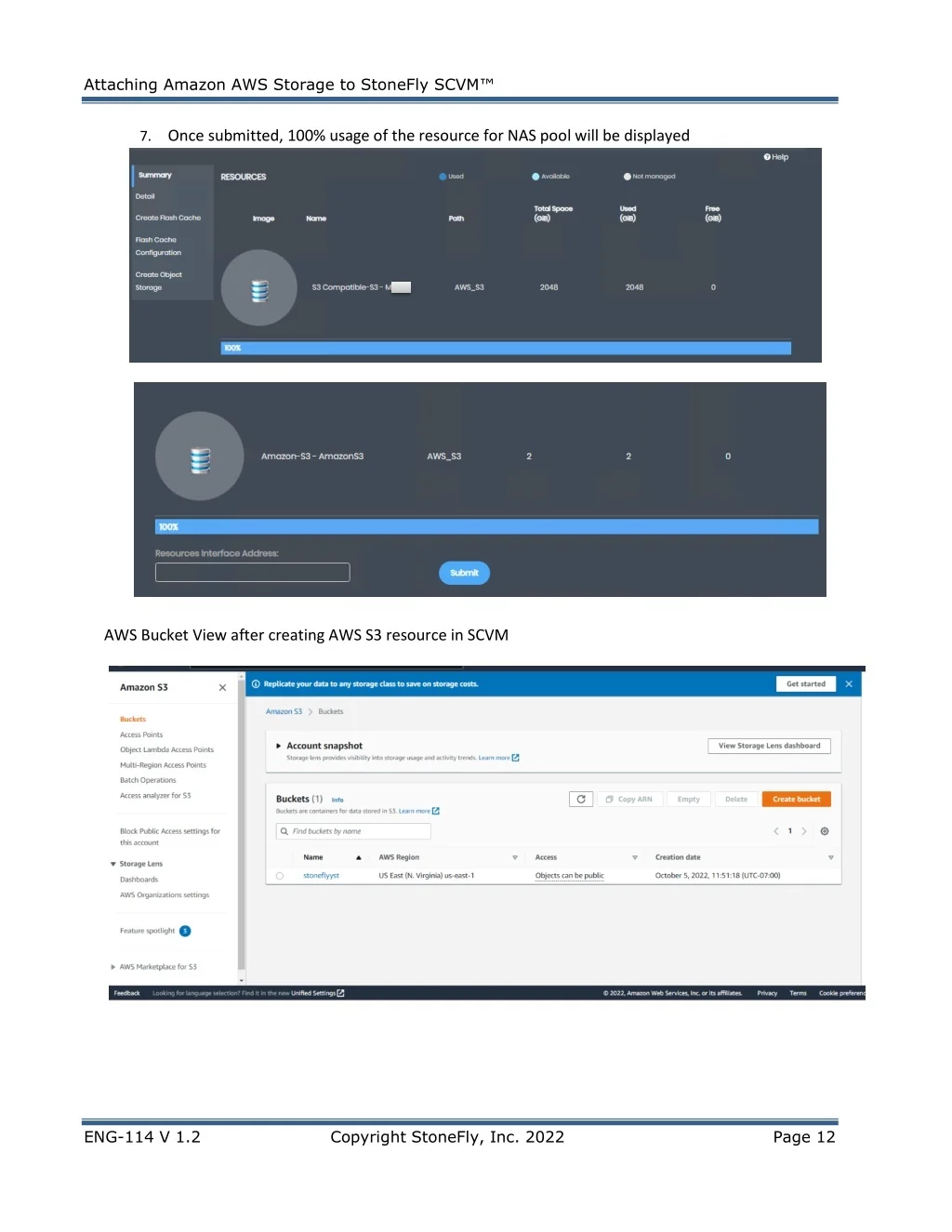

  12. Attaching Amazon AWS Storage to StoneFly SCVM™ 7.Once submitted, 100% usage of the resource for NAS pool will be displayed AWS Bucket View after creating AWS S3 resource in SCVM ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 12

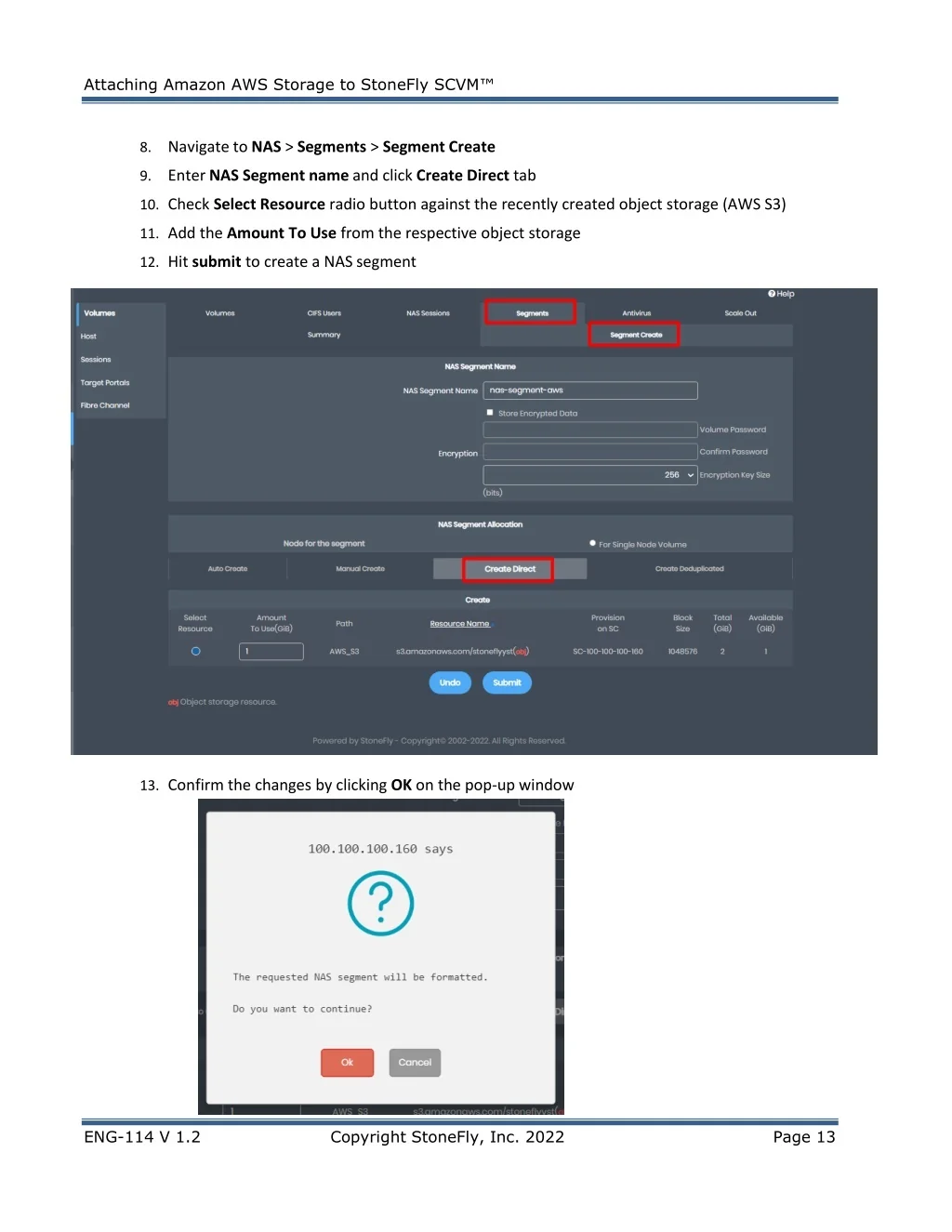

  13. Attaching Amazon AWS Storage to StoneFly SCVM™ 8.Navigate to NAS > Segments > Segment Create 9.Enter NAS Segment name and click Create Direct tab 10.Check Select Resource radio button against the recently created object storage (AWS S3) 11.Add the Amount To Use from the respective object storage 12. Hit submit to create a NAS segment 13.Confirm the changes by clicking OK on the pop-up window ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 13

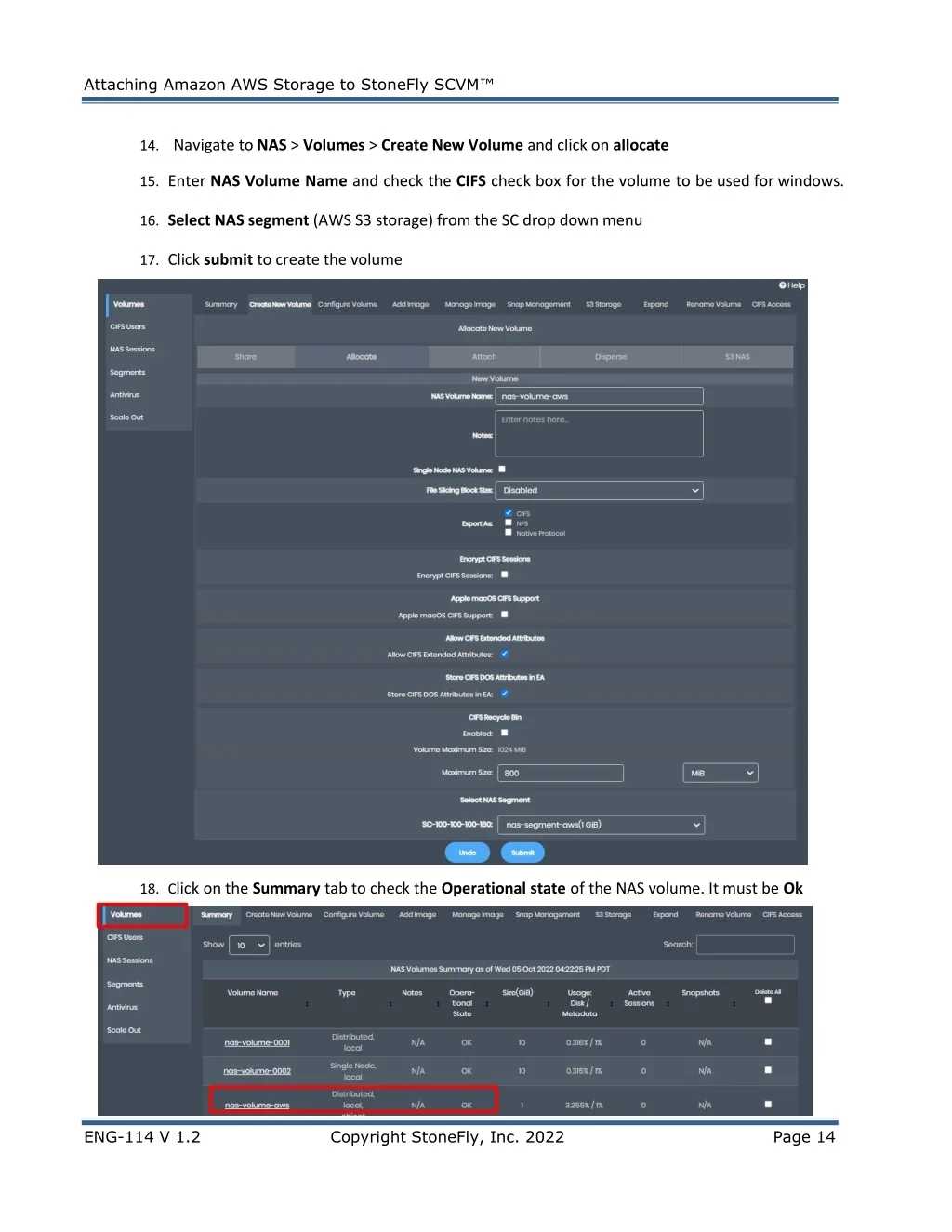

  14. Attaching Amazon AWS Storage to StoneFly SCVM™ 14.Navigate to NAS > Volumes > Create New Volume and click on allocate 15.Enter NAS Volume Name and check the CIFS check box for the volume to be used for windows. 16.Select NAS segment (AWS S3 storage)from the SC drop down menu 17.Click submit to create the volume 18.Click on the Summary tab to check the Operational state of the NAS volume. It must be Ok ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 14

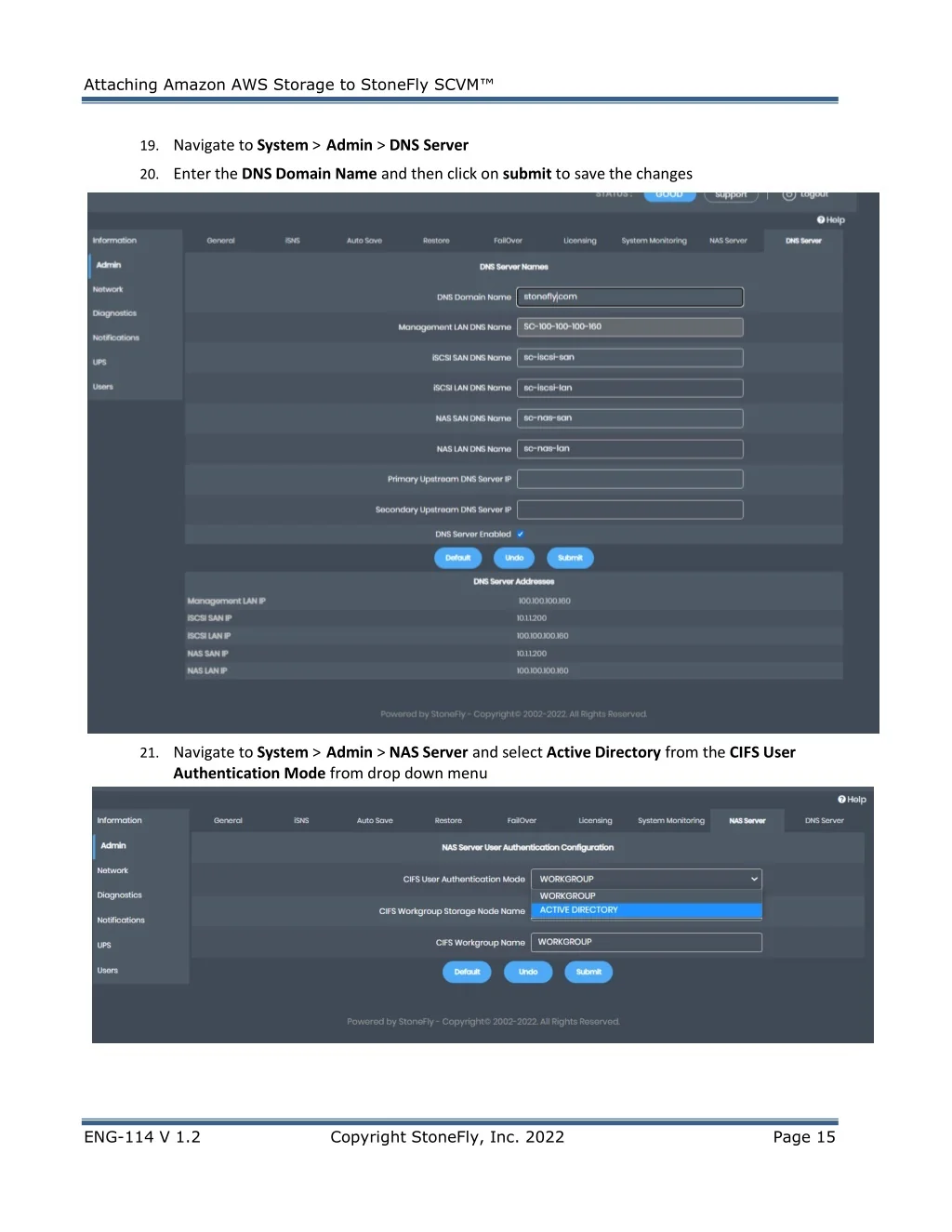

  15. Attaching Amazon AWS Storage to StoneFly SCVM™ 19.Navigate to System > Admin > DNS Server 20.Enter the DNS Domain Name and then click on submit to save the changes 21.Navigate to System > Admin > NAS Server and select Active Directory from the CIFS User Authentication Mode fromdrop down menu ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 15

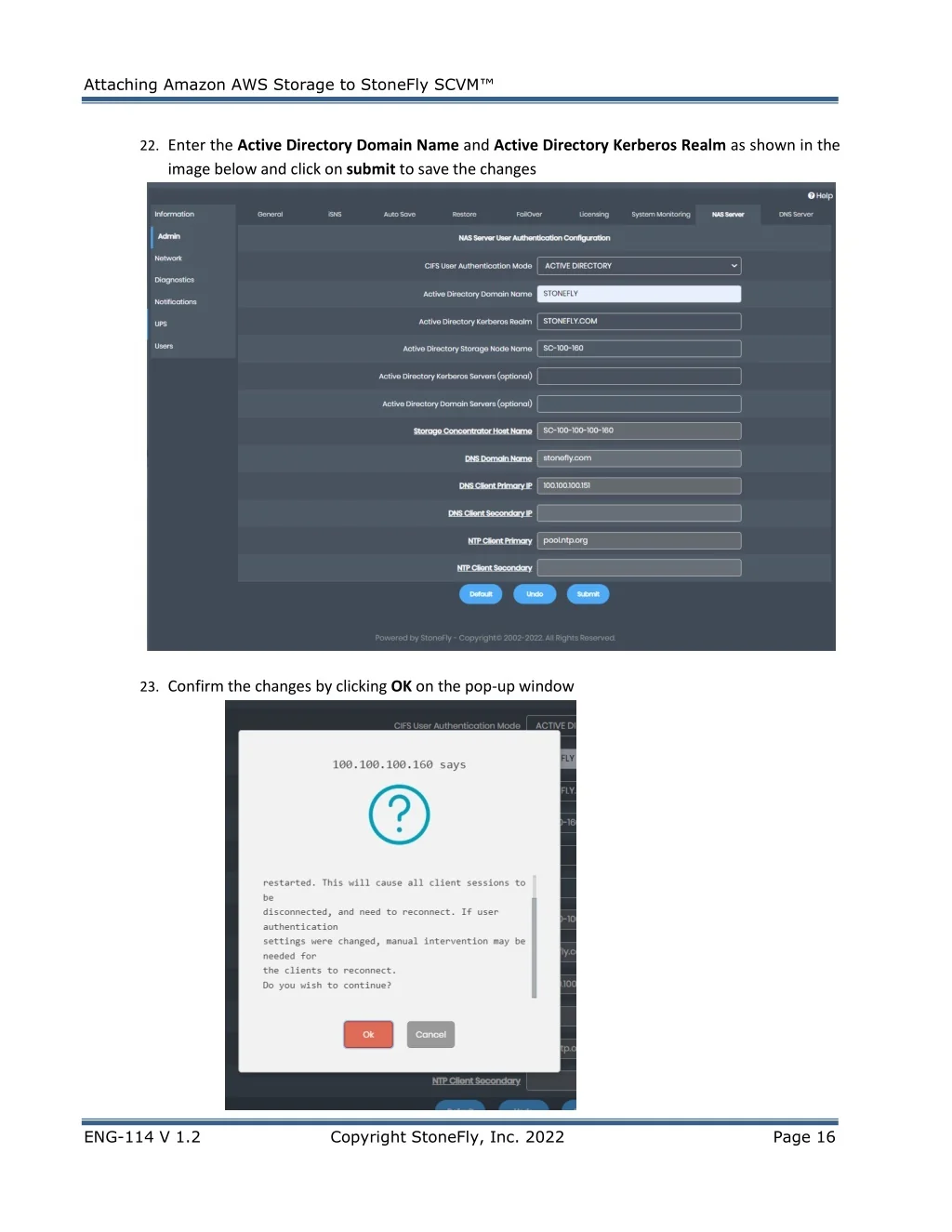

  16. Attaching Amazon AWS Storage to StoneFly SCVM™ 22.Enter the Active Directory Domain Name and Active Directory Kerberos Realm as shown in the image below and click on submit to save the changes 23.Confirm the changes by clicking OK on the pop-up window ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 16

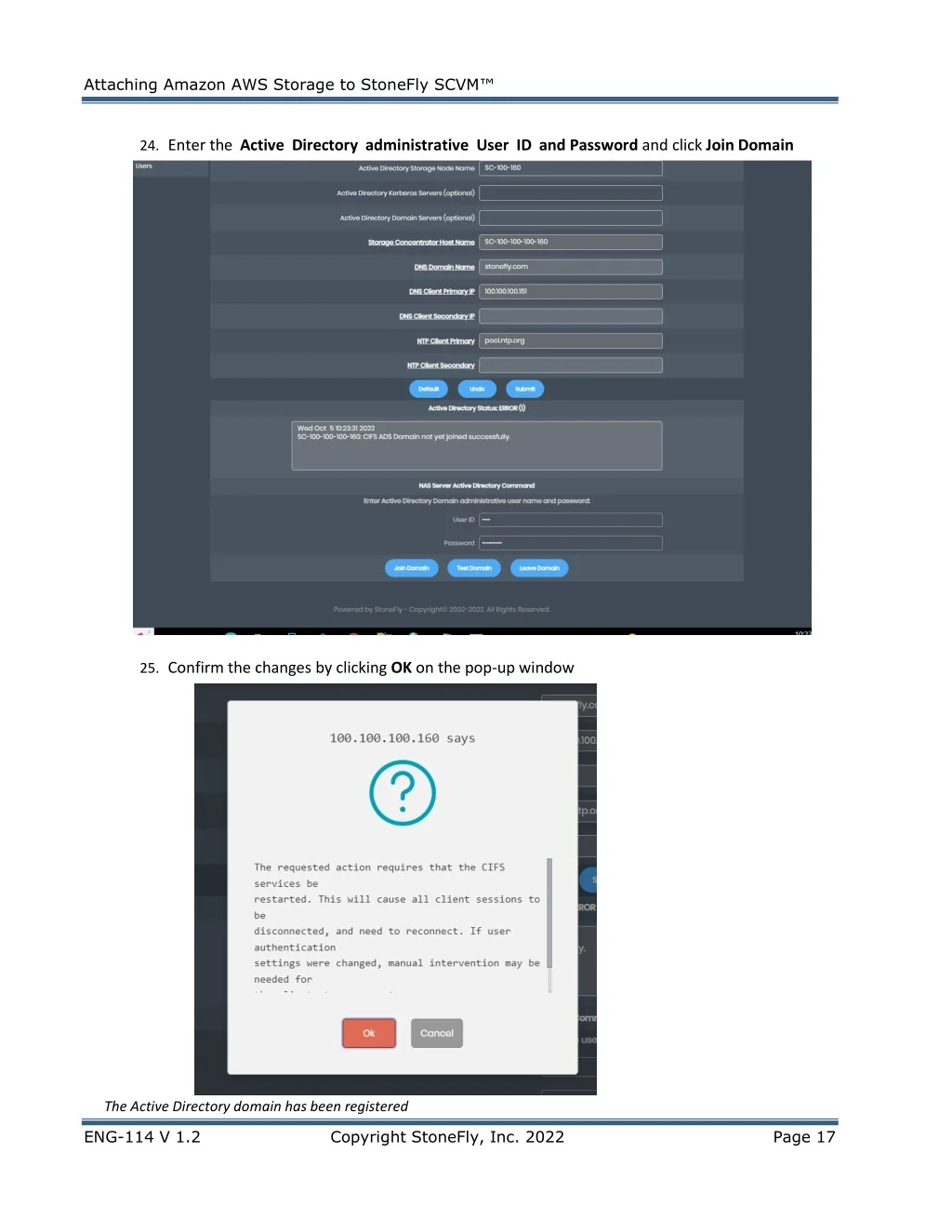

  17. Attaching Amazon AWS Storage to StoneFly SCVM™ 24.Enter the Active Directory administrative User ID and Password and click Join Domain 25.Confirm the changes by clicking OK on the pop-up window The Active Directory domain has been registered ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 17

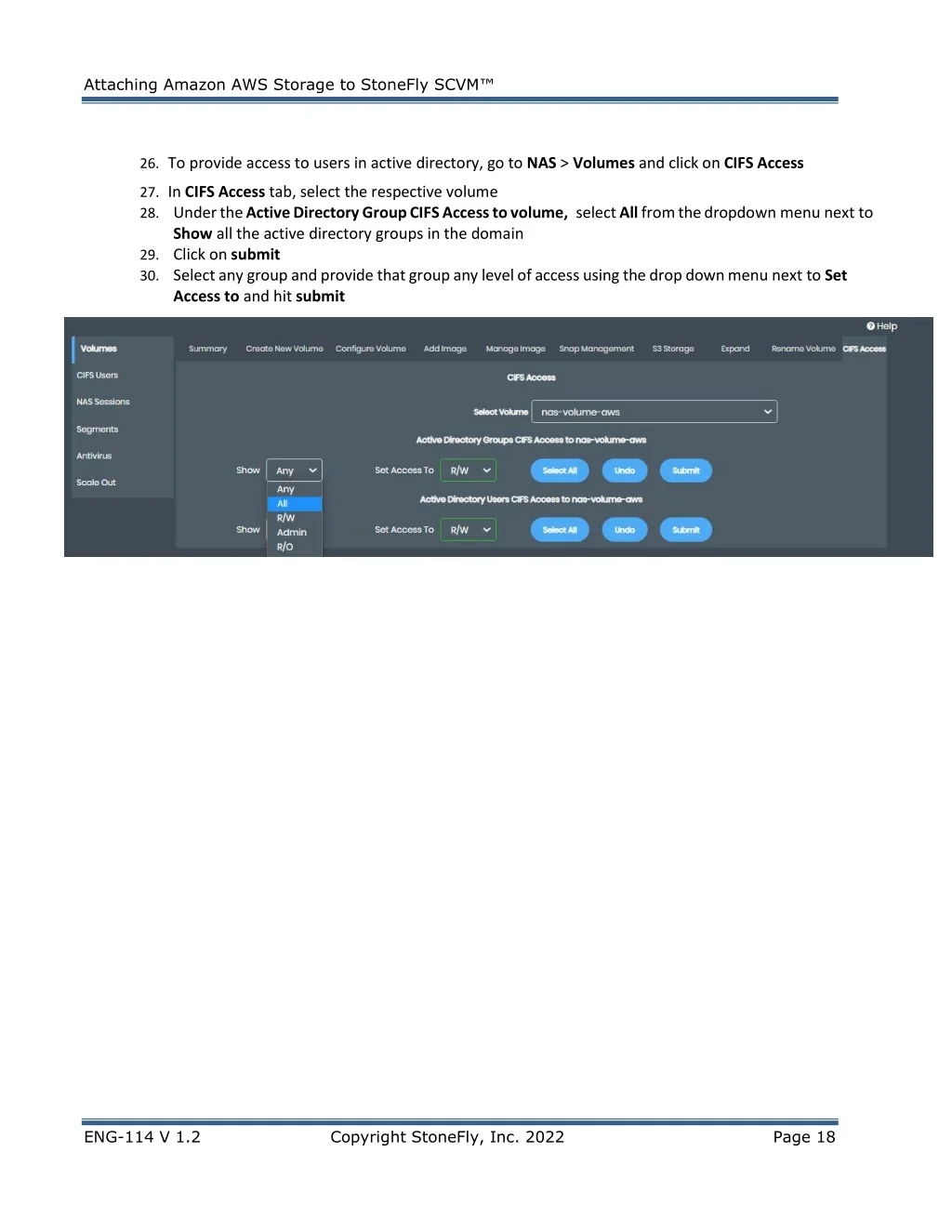

  18. Attaching Amazon AWS Storage to StoneFly SCVM™ 26.To provide access to users in active directory, go to NAS > Volumes and click on CIFS Access 27.In CIFS Access tab, select the respective volume 28.Under the Active Directory Group CIFS Access to volume, select All from the drop down menu next to Show all the active directory groups in the domain 29.Click on submit 30.Select any group and provide that group any level of access using the drop down menu next to Set Access to and hit submit ENG-114 V 1.2 Copyright StoneFly, Inc. 2022 Page 18
