  1. EUROLUPE http://www.eurolupe.com TM Eurolupe01.ppt

  2. Illuminated Magnifiers ..easy profit, easy loss.. from Hellmut Miksch 1999 & 2007

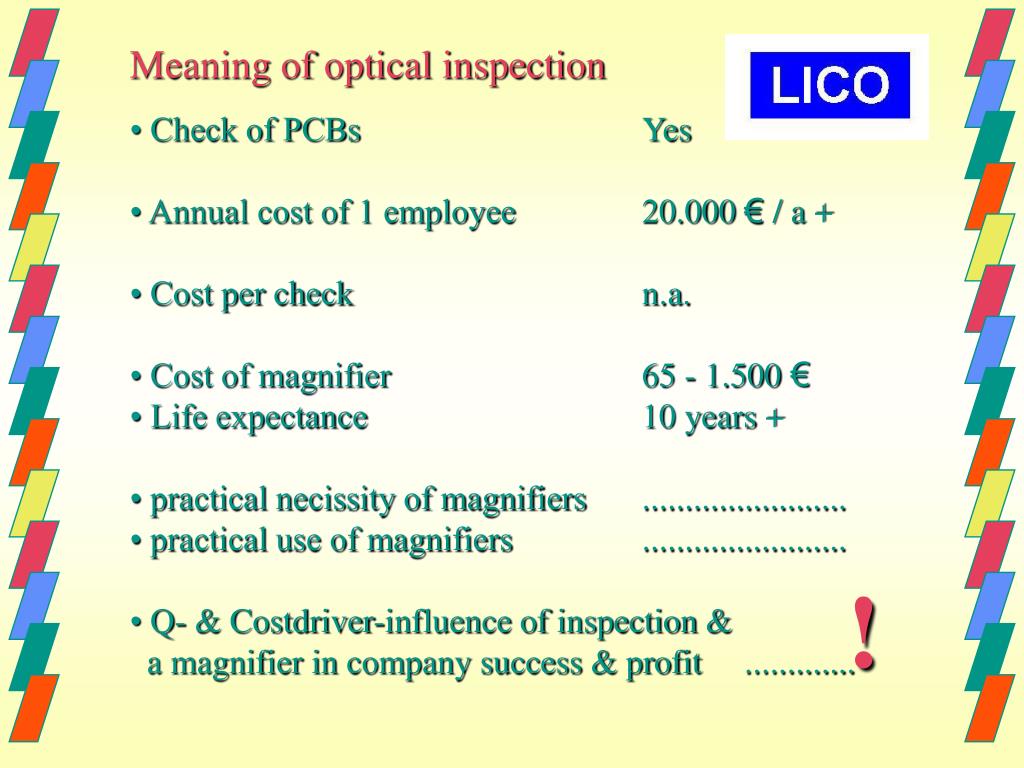

  3. Meaning of optical inspection • Check of PCBs Yes • Annual cost of 1 employee 20.000 € / a + • Cost per check n.a. • Cost of magnifier 65 - 1.500 € • Life expectance 10 years + • practical necissity of magnifiers ........................ • practical use of magnifiers ........................ • Q- & Costdriver-influence of inspection & a magnifier in company success & profit ............. !

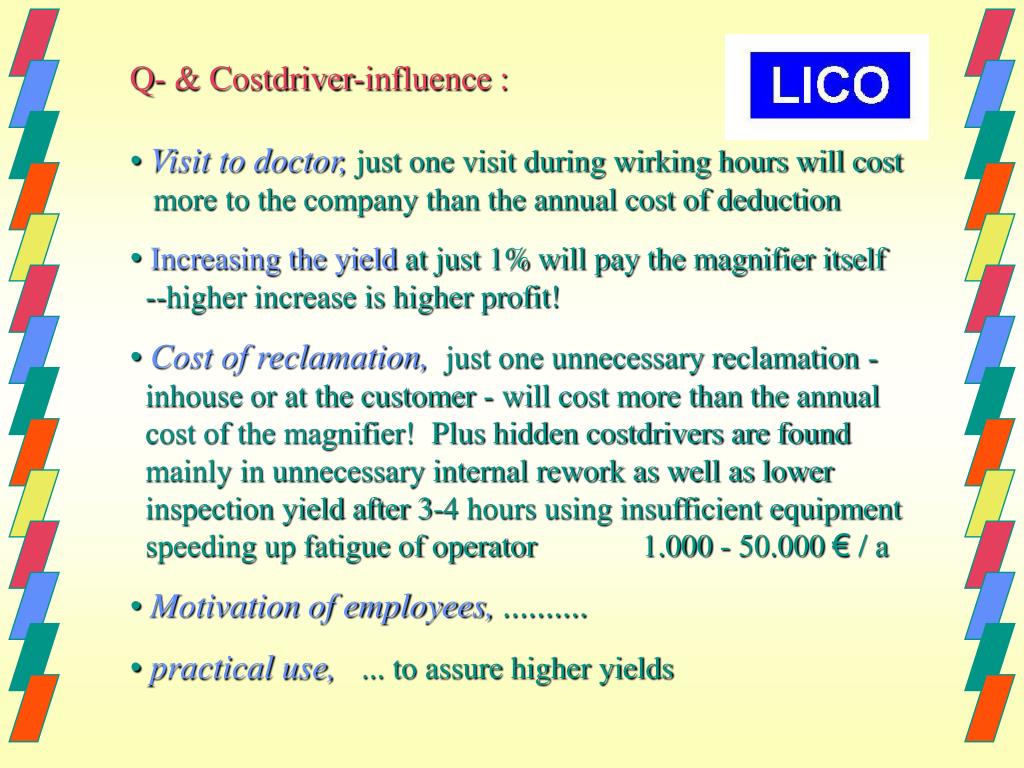

  4. Q- & Costdriver-influence : • Visit to doctor,just one visit during wirking hours will cost more to the company than the annual cost of deduction • Increasing the yield at just 1% will pay the magnifier itself --higher increase is higher profit! • Cost of reclamation, just one unnecessary reclamation - inhouse or at the customer - will cost more than the annual cost of the magnifier! Plus hidden costdrivers are found mainly in unnecessary internal rework as well as lower inspection yield after 3-4 hours using insufficient equipment speeding up fatigue of operator 1.000 - 50.000 € / a • Motivation of employees, .......... • practical use,... to assure higher yields

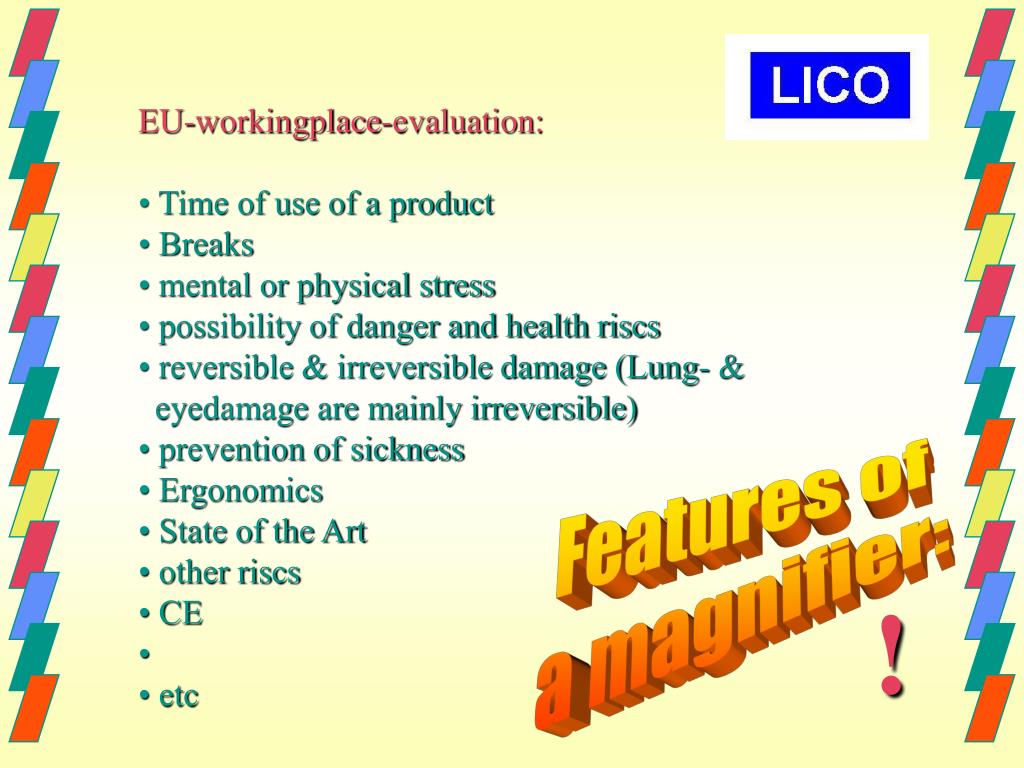

  5. EU-workingplace-evaluation: • Time of use of a product • Breaks • mental or physical stress • possibility of danger and health riscs • reversible & irreversible damage (Lung- & eyedamage are mainly irreversible) • prevention of sickness • Ergonomics • State of the Art • other riscs • CE • • etc Features of a magnifier: !

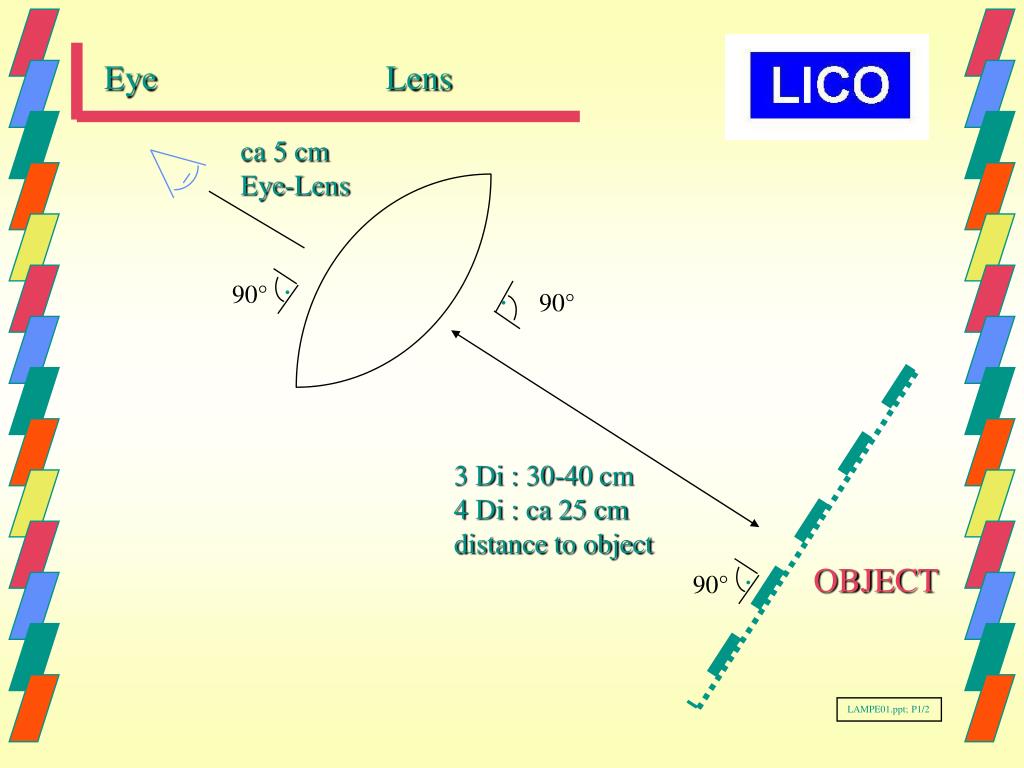

  6. Eye Lens ca 5 cm Eye-Lens . 90° 90° . 3 Di : 30-40 cm 4 Di : ca 25 cm distance to object . OBJECT 90° LAMPE01.ppt; P1/2

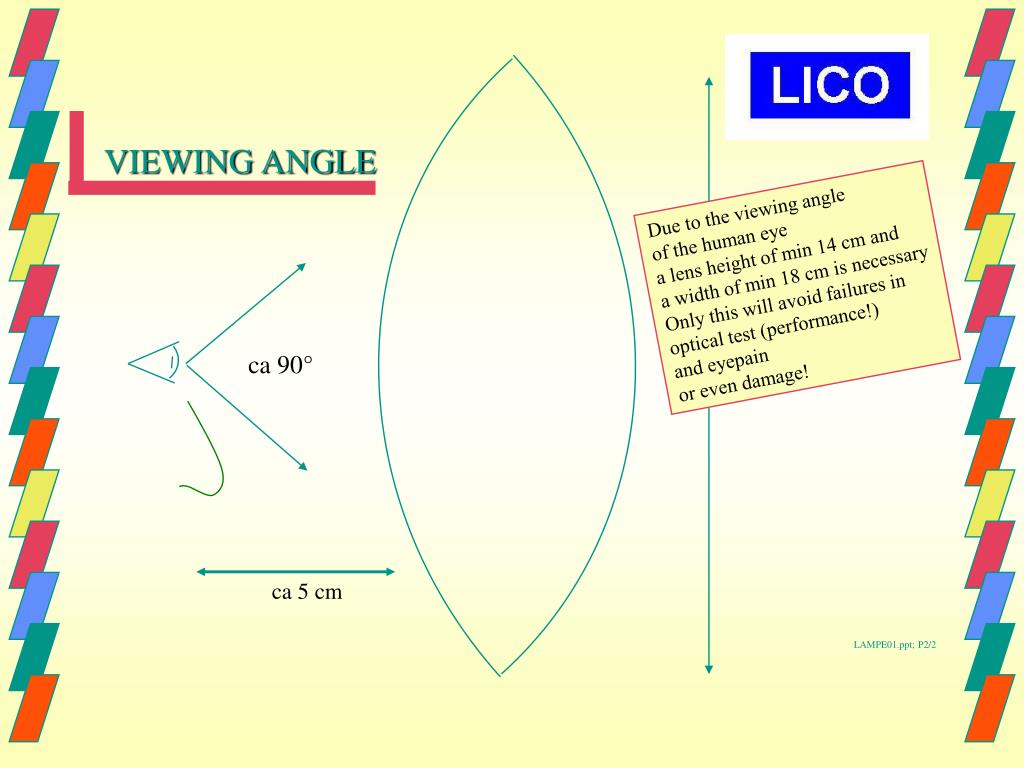

  7. VIEWING ANGLE Due to the viewing angle of the human eye a lens height of min 14 cm and a width of min 18 cm is necessary Only this will avoid failures in optical test (performance!) and eyepain or even damage! ca 90° ca 5 cm LAMPE01.ppt; P2/2

  8. View from the top of the head Ca 5 cm Due to the viewing angle of the human eye a lens height of min 14 cm and a width of min 18 cm is necessary Only this will avoid failures in optical test (performance!) and eyepain or even damage! ca 90° ca 90° Right eye Left eye LAMPE01.ppt; P2/2

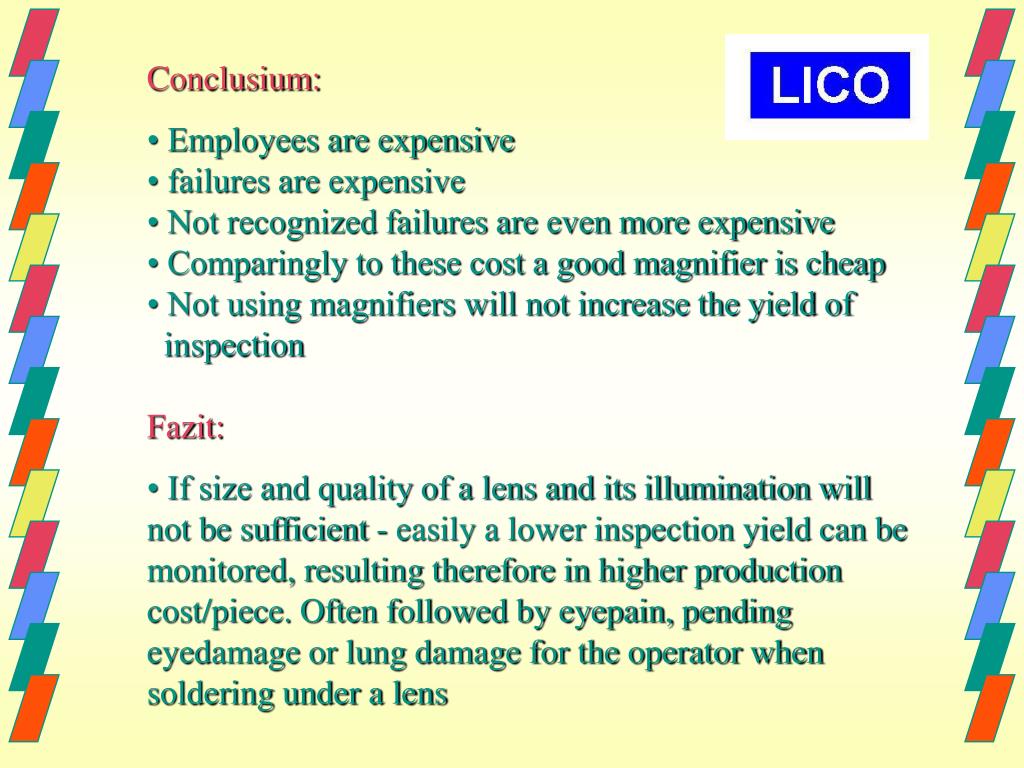

  9. Conclusium: • Employees are expensive • failures are expensive • Not recognized failures are even more expensive • Comparingly to these cost a good magnifier is cheap • Not using magnifiers will not increase the yield of inspection Fazit: • If size and quality of a lens and its illumination will not be sufficient - easily a lower inspection yield can be monitored, resulting therefore in higher production cost/piece. Often followed by eyepain, pending eyedamage or lung damage for the operator when soldering under a lens

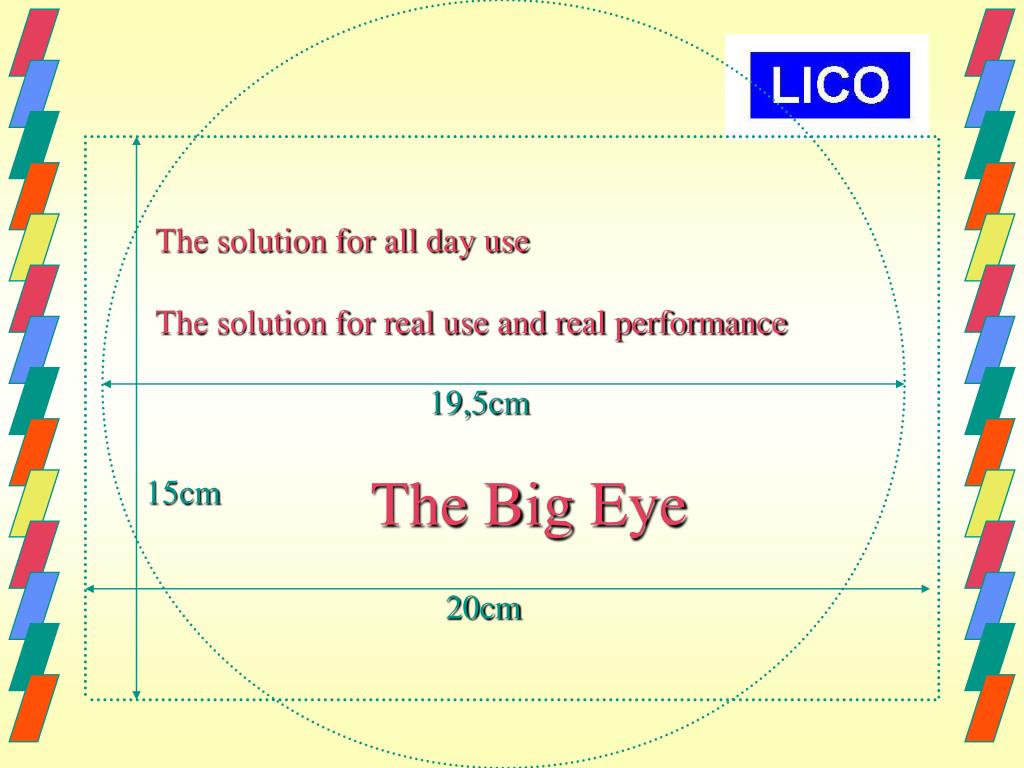

  10. The solution for all day use The solution for real use and real performance The Big Eye 19,5cm 15cm 20cm

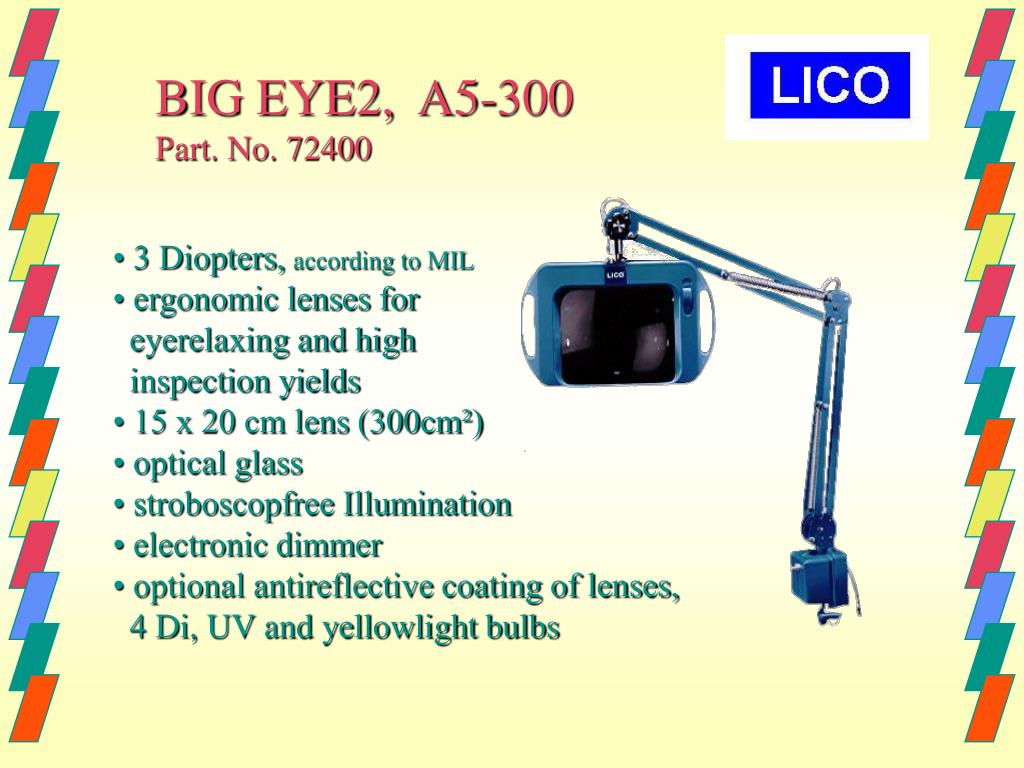

  11. BIG EYE2, A5-300 Part. No. 72400 • 3 Diopters, according to MIL • ergonomic lenses for eyerelaxing and high inspection yields • 15 x 20 cm lens (300cm²) • optical glass • stroboscopfree Illumination • electronic dimmer • optional antireflective coating of lenses, 4 Di, UV and yellowlight bulbs

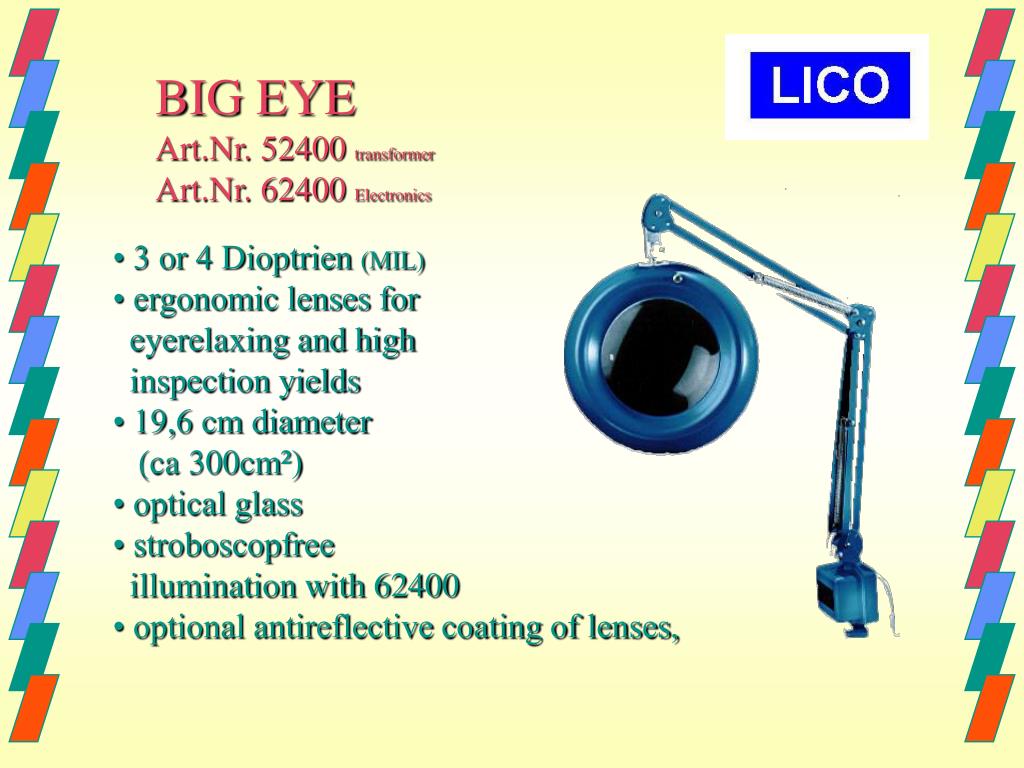

  12. BIG EYE Art.Nr. 52400 transformer Art.Nr. 62400 Electronics • 3 or 4 Dioptrien (MIL) • ergonomic lenses for eyerelaxing and high inspection yields • 19,6 cm diameter (ca 300cm²) • optical glass • stroboscopfree illumination with 62400 • optional antireflective coating of lenses,

  13. Bulbs • special high-power 34 W bulbs • very high illumination > 2400 Lux • dimmable 100 - 25%! Colors • Cool-white • Glarefree • yellowlight • UV • with 72400 & 62400 stroboscopefree!

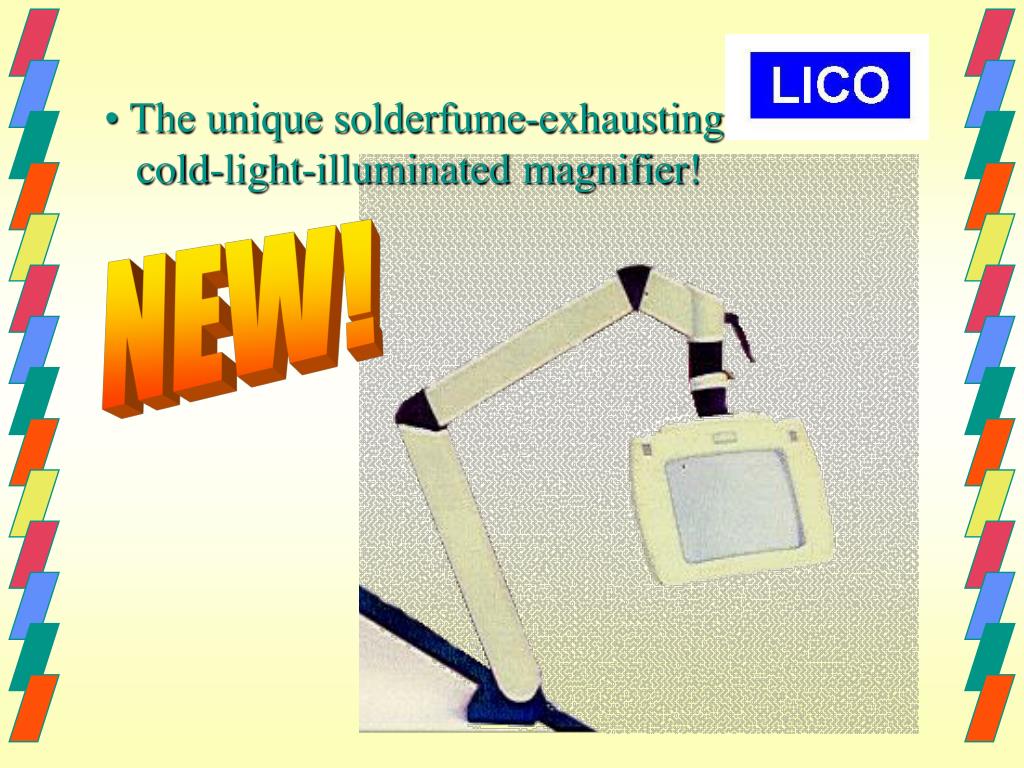

  14. • The unique solderfume-exhausting cold-light-illuminated magnifier! NEW!

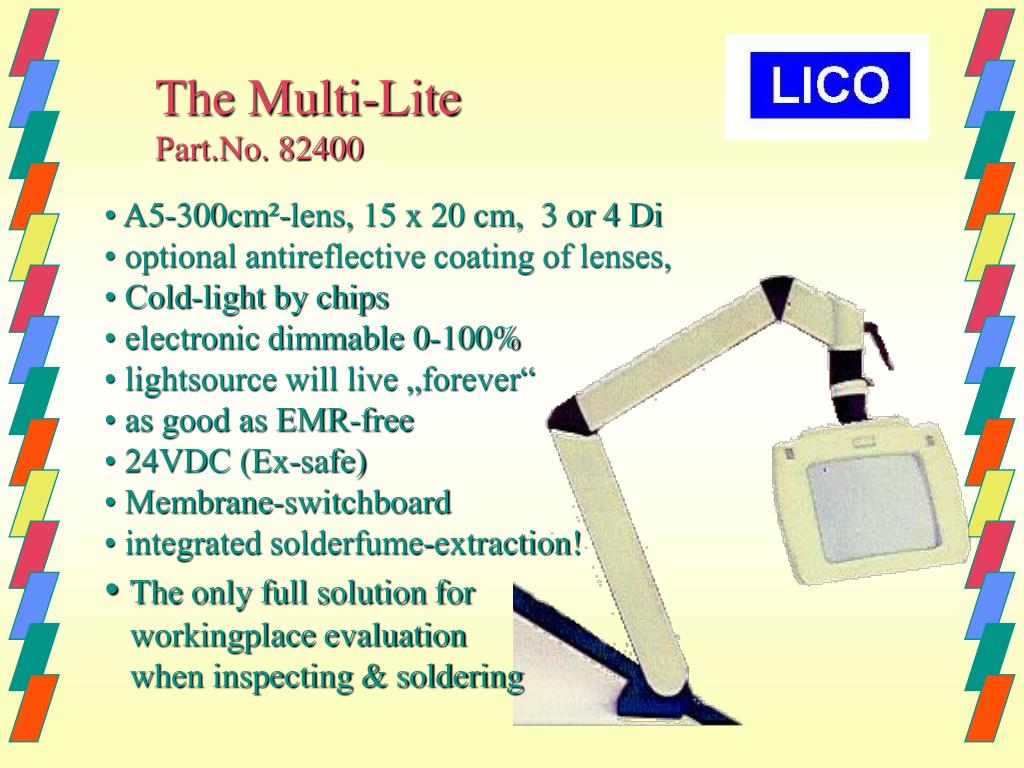

  15. The Multi-Lite Part.No. 82400 • A5-300cm²-lens, 15 x 20 cm, 3 or 4 Di • optional antireflective coating of lenses, • Cold-light by chips • electronic dimmable 0-100% • lightsource will live „forever“ • as good as EMR-free • 24VDC (Ex-safe) • Membrane-switchboard • integrated solderfume-extraction! • The only full solution for workingplace evaluation when inspecting & soldering

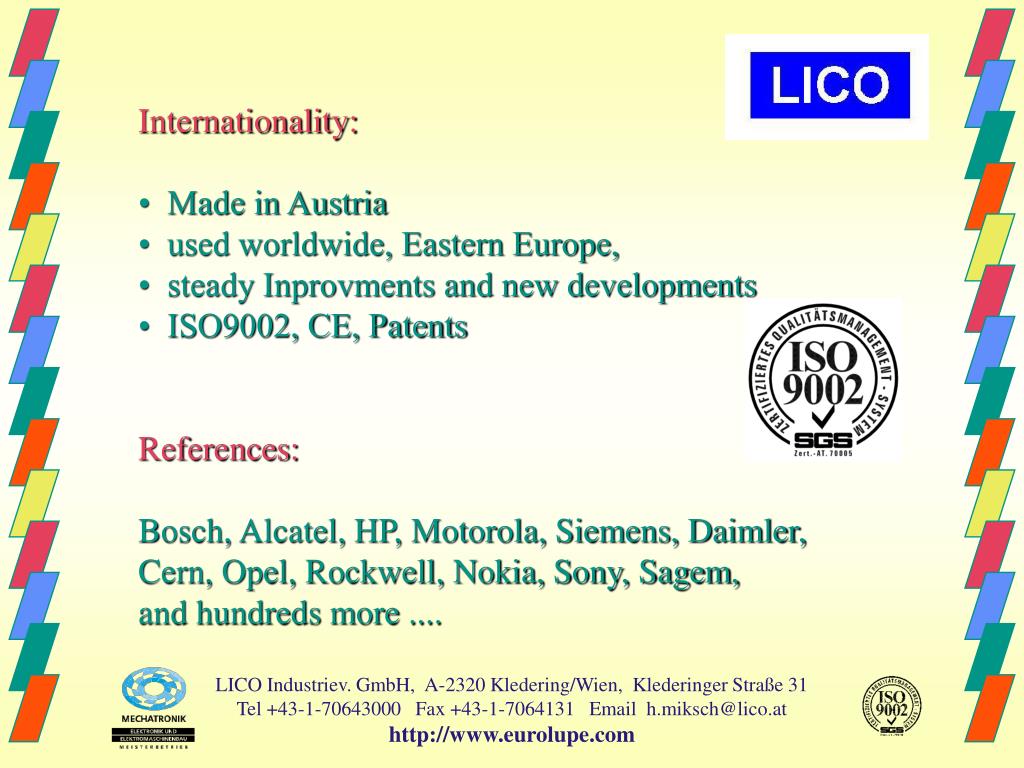

  16. Internationality: • Made in Austria • used worldwide, Eastern Europe, • steady Inprovments and new developments • ISO9002, CE, Patents References: Bosch, Alcatel, HP, Motorola, Siemens, Daimler, Cern, Opel, Rockwell, Nokia, Sony, Sagem, and hundreds more .... LICO Industriev. GmbH, A-2320 Kledering/Wien, Klederinger Straße 31 Tel +43-1-70643000 Fax +43-1-7064131 Email h.miksch@lico.at http://www.eurolupe.com
