The Evolution Of Boring Bars Beyond Circular Precision

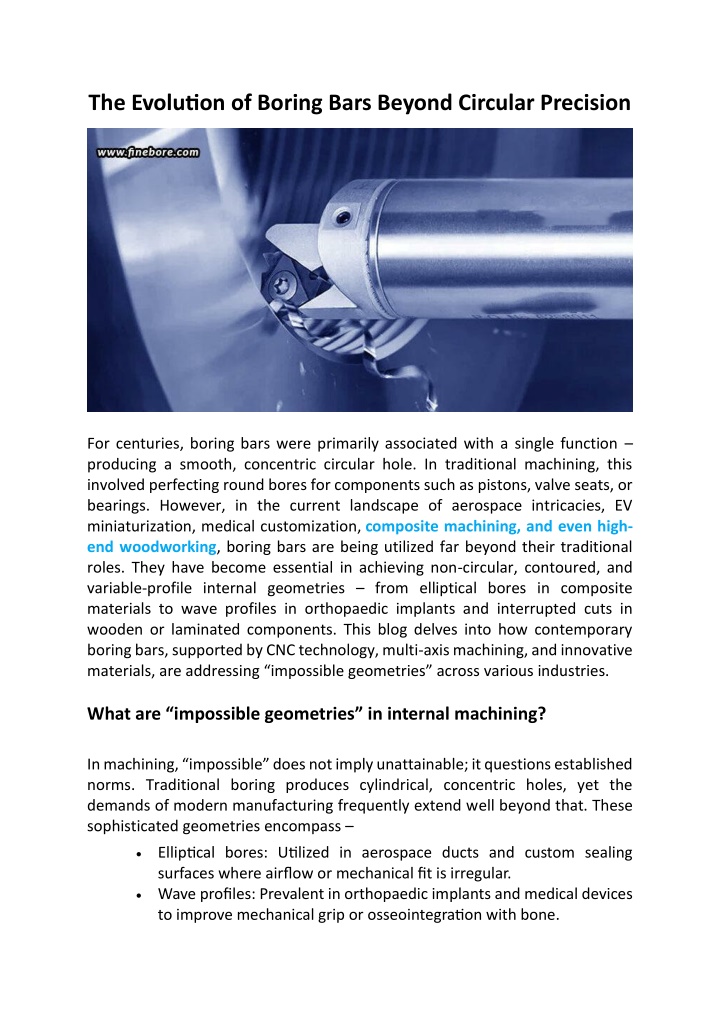

1. The Evolution of Boring Bars Beyond Circular Precision For centuries, boring bars were primarily associated with a single function – producing a smooth, concentric circular hole. In traditional machining, this involved perfecting round bores for components such as pistons, valve seats, or bearings. However, in the current landscape of aerospace intricacies, EV miniaturization, medical customization, composite machining, and even high- end woodworking, boring bars are being utilized far beyond their traditional roles. They have become essential in achieving non-circular, contoured, and variable-profile internal geometries – from elliptical bores in composite materials to wave profiles in orthopaedic implants and interrupted cuts in wooden or laminated components. This blog delves into how contemporary boring bars, supported by CNC technology, multi-axis machining, and innovative materials, are addressing “impossible geometries” across various industries. What are “impossible geometries” in internal machining? In machining, “impossible” does not imply unattainable; it questions established norms. Traditional boring produces cylindrical, concentric holes, yet the demands of modern manufacturing frequently extend well beyond that. These sophisticated geometries encompass – •Elliptical bores: Utilized in aerospace ducts and custom sealing surfaces where airflow or mechanical fit is irregular. •Wave profiles: Prevalent in orthopaedic implants and medical devices to improve mechanical grip or osseointegration with bone.

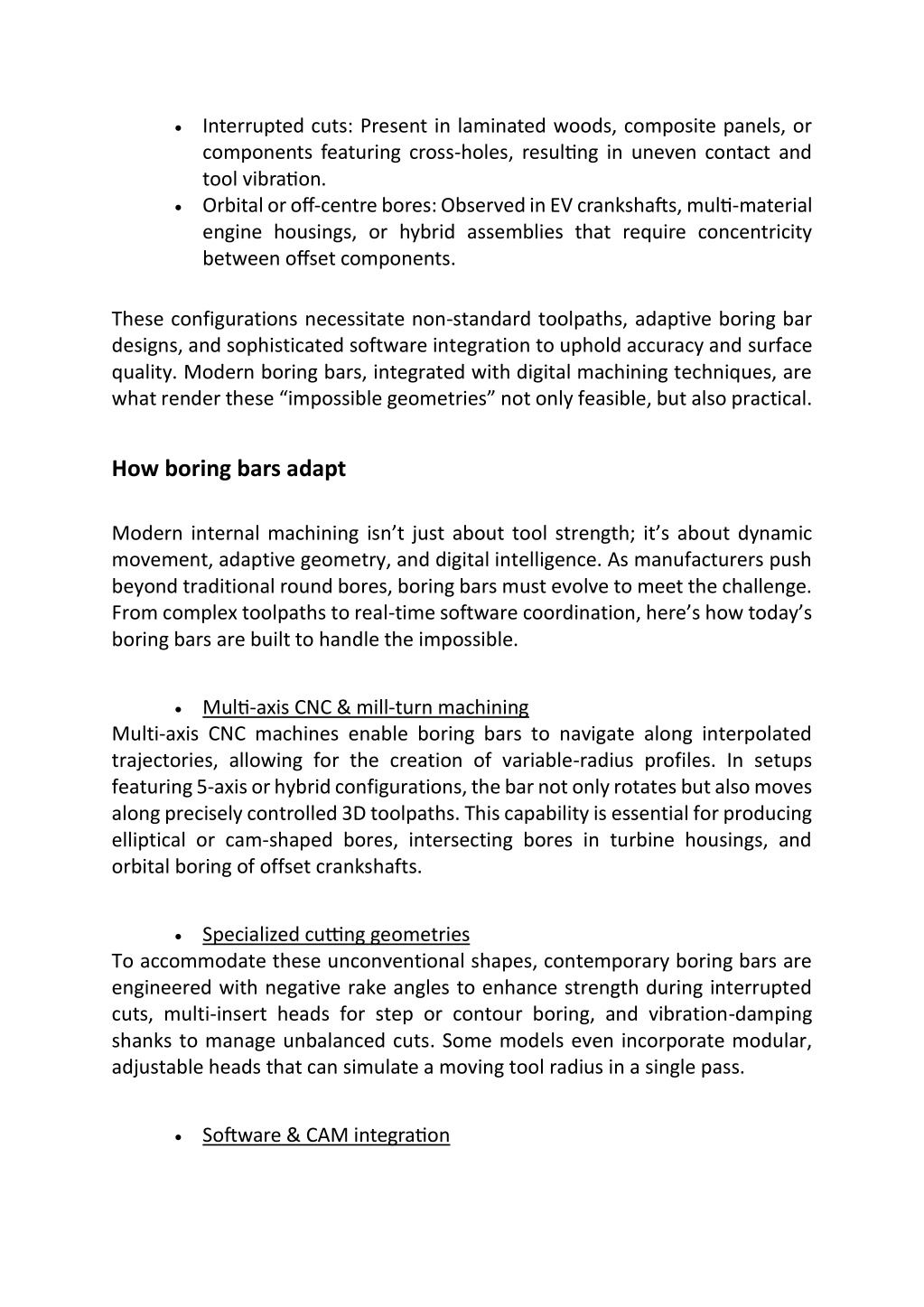

2. •Interrupted cuts: Present in laminated woods, composite panels, or components featuring cross-holes, resulting in uneven contact and tool vibration. •Orbital or off-centre bores: Observed in EV crankshafts, multi-material engine housings, or hybrid assemblies that require concentricity between offset components. These configurations necessitate non-standard toolpaths, adaptive boring bar designs, and sophisticated software integration to uphold accuracy and surface quality. Modern boring bars, integrated with digital machining techniques, are what render these “impossible geometries” not only feasible, but also practical. How boring bars adapt Modern internal machining isn’t just about tool strength; it’s about dynamic movement, adaptive geometry, and digital intelligence. As manufacturers push beyond traditional round bores, boring bars must evolve to meet the challenge. From complex toolpaths to real-time software coordination, here’s how today’s boring bars are built to handle the impossible. •Multi-axis CNC & mill-turn machining Multi-axis CNC machines enable boring bars to navigate along interpolated trajectories, allowing for the creation of variable-radius profiles. In setups featuring 5-axis or hybrid configurations, the bar not only rotates but also moves along precisely controlled 3D toolpaths. This capability is essential for producing elliptical or cam-shaped bores, intersecting bores in turbine housings, and orbital boring of offset crankshafts. •Specialized cutting geometries To accommodate these unconventional shapes, contemporary boring bars are engineered with negative rake angles to enhance strength during interrupted cuts, multi-insert heads for step or contour boring, and vibration-damping shanks to manage unbalanced cuts. Some models even incorporate modular, adjustable heads that can simulate a moving tool radius in a single pass. •Software & CAM integration

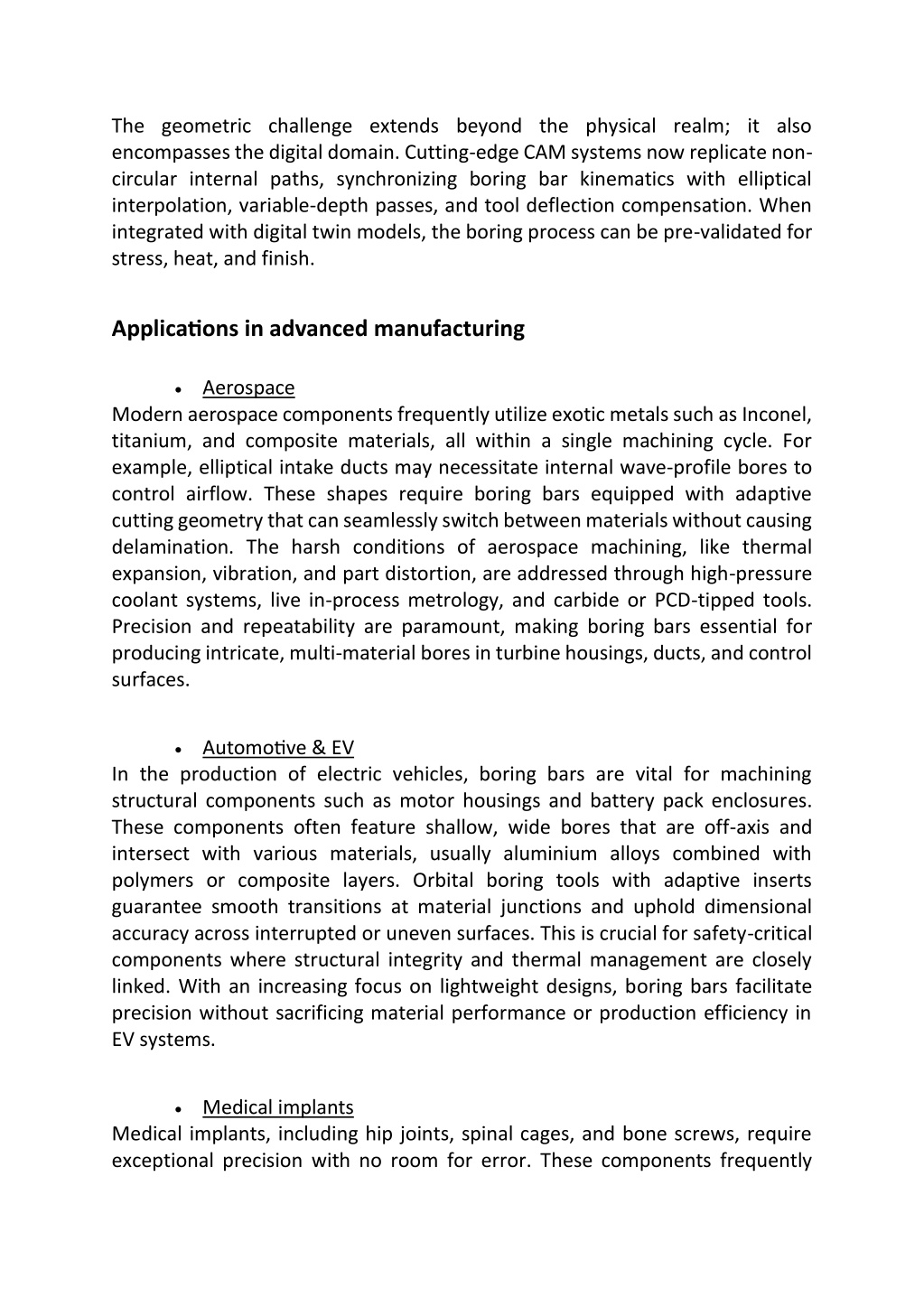

3. The geometric challenge extends beyond the physical realm; it also encompasses the digital domain. Cutting-edge CAM systems now replicate non- circular internal paths, synchronizing boring bar kinematics with elliptical interpolation, variable-depth passes, and tool deflection compensation. When integrated with digital twin models, the boring process can be pre-validated for stress, heat, and finish. Applications in advanced manufacturing •Aerospace Modern aerospace components frequently utilize exotic metals such as Inconel, titanium, and composite materials, all within a single machining cycle. For example, elliptical intake ducts may necessitate internal wave-profile bores to control airflow. These shapes require boring bars equipped with adaptive cutting geometry that can seamlessly switch between materials without causing delamination. The harsh conditions of aerospace machining, like thermal expansion, vibration, and part distortion, are addressed through high-pressure coolant systems, live in-process metrology, and carbide or PCD-tipped tools. Precision and repeatability are paramount, making boring bars essential for producing intricate, multi-material bores in turbine housings, ducts, and control surfaces. •Automotive & EV In the production of electric vehicles, boring bars are vital for machining structural components such as motor housings and battery pack enclosures. These components often feature shallow, wide bores that are off-axis and intersect with various materials, usually aluminium alloys combined with polymers or composite layers. Orbital boring tools with adaptive inserts guarantee smooth transitions at material junctions and uphold dimensional accuracy across interrupted or uneven surfaces. This is crucial for safety-critical components where structural integrity and thermal management are closely linked. With an increasing focus on lightweight designs, boring bars facilitate precision without sacrificing material performance or production efficiency in EV systems. •Medical implants Medical implants, including hip joints, spinal cages, and bone screws, require exceptional precision with no room for error. These components frequently

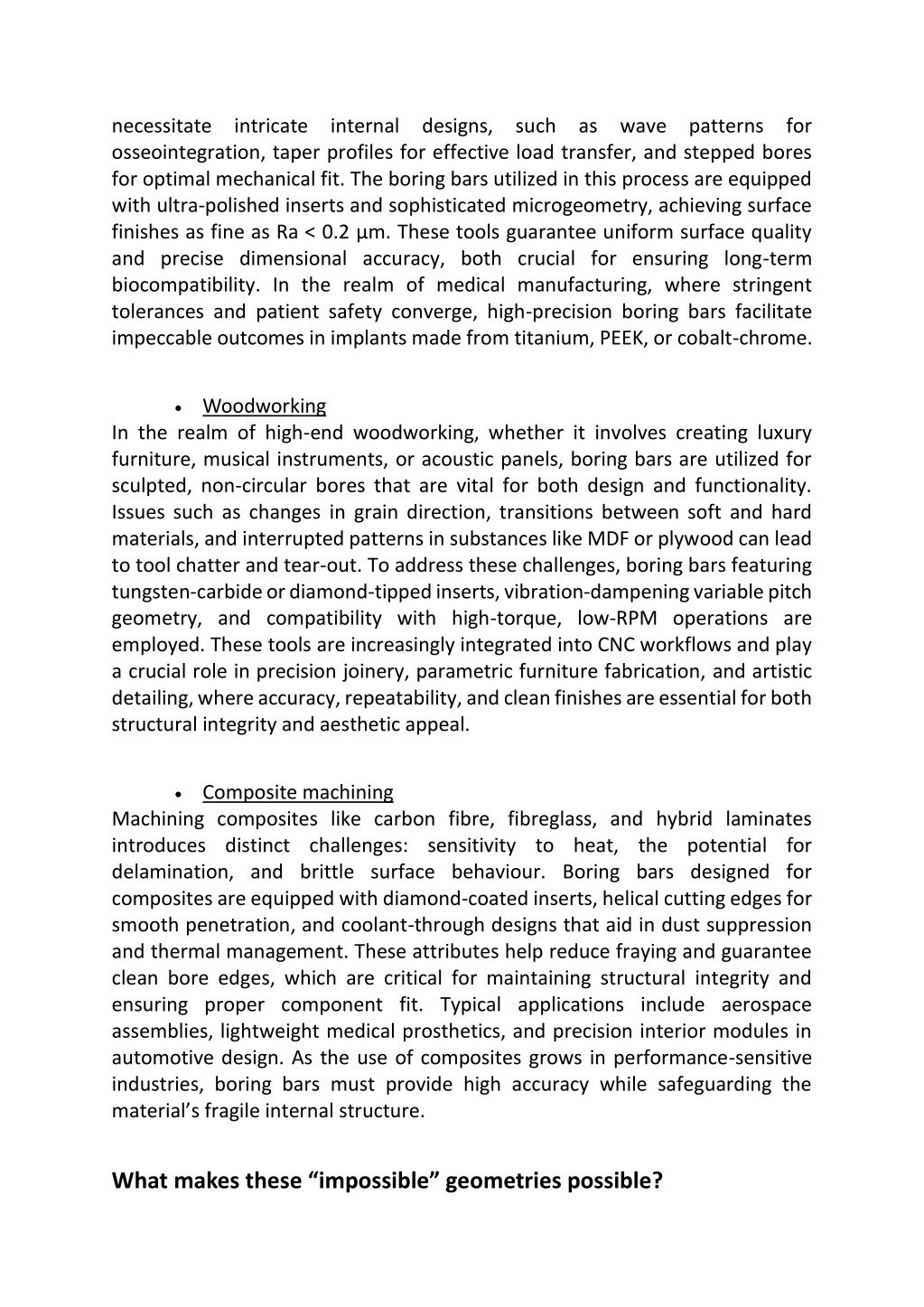

4. necessitate intricate internal designs, such as wave patterns for osseointegration, taper profiles for effective load transfer, and stepped bores for optimal mechanical fit. The boring bars utilized in this process are equipped with ultra-polished inserts and sophisticated microgeometry, achieving surface finishes as fine as Ra < 0.2 µm. These tools guarantee uniform surface quality and precise dimensional accuracy, both crucial for ensuring long-term biocompatibility. In the realm of medical manufacturing, where stringent tolerances and patient safety converge, high-precision boring bars facilitate impeccable outcomes in implants made from titanium, PEEK, or cobalt-chrome. •Woodworking In the realm of high-end woodworking, whether it involves creating luxury furniture, musical instruments, or acoustic panels, boring bars are utilized for sculpted, non-circular bores that are vital for both design and functionality. Issues such as changes in grain direction, transitions between soft and hard materials, and interrupted patterns in substances like MDF or plywood can lead to tool chatter and tear-out. To address these challenges, boring bars featuring tungsten-carbide or diamond-tipped inserts, vibration-dampening variable pitch geometry, and compatibility with high-torque, low-RPM operations are employed. These tools are increasingly integrated into CNC workflows and play a crucial role in precision joinery, parametric furniture fabrication, and artistic detailing, where accuracy, repeatability, and clean finishes are essential for both structural integrity and aesthetic appeal. •Composite machining Machining composites like carbon fibre, fibreglass, and hybrid laminates introduces distinct challenges: sensitivity to heat, the potential for delamination, and brittle surface behaviour. Boring bars designed for composites are equipped with diamond-coated inserts, helical cutting edges for smooth penetration, and coolant-through designs that aid in dust suppression and thermal management. These attributes help reduce fraying and guarantee clean bore edges, which are critical for maintaining structural integrity and ensuring proper component fit. Typical applications include aerospace assemblies, lightweight medical prosthetics, and precision interior modules in automotive design. As the use of composites grows in performance-sensitive industries, boring bars must provide high accuracy while safeguarding the material’s fragile internal structure. What makes these “impossible” geometries possible?

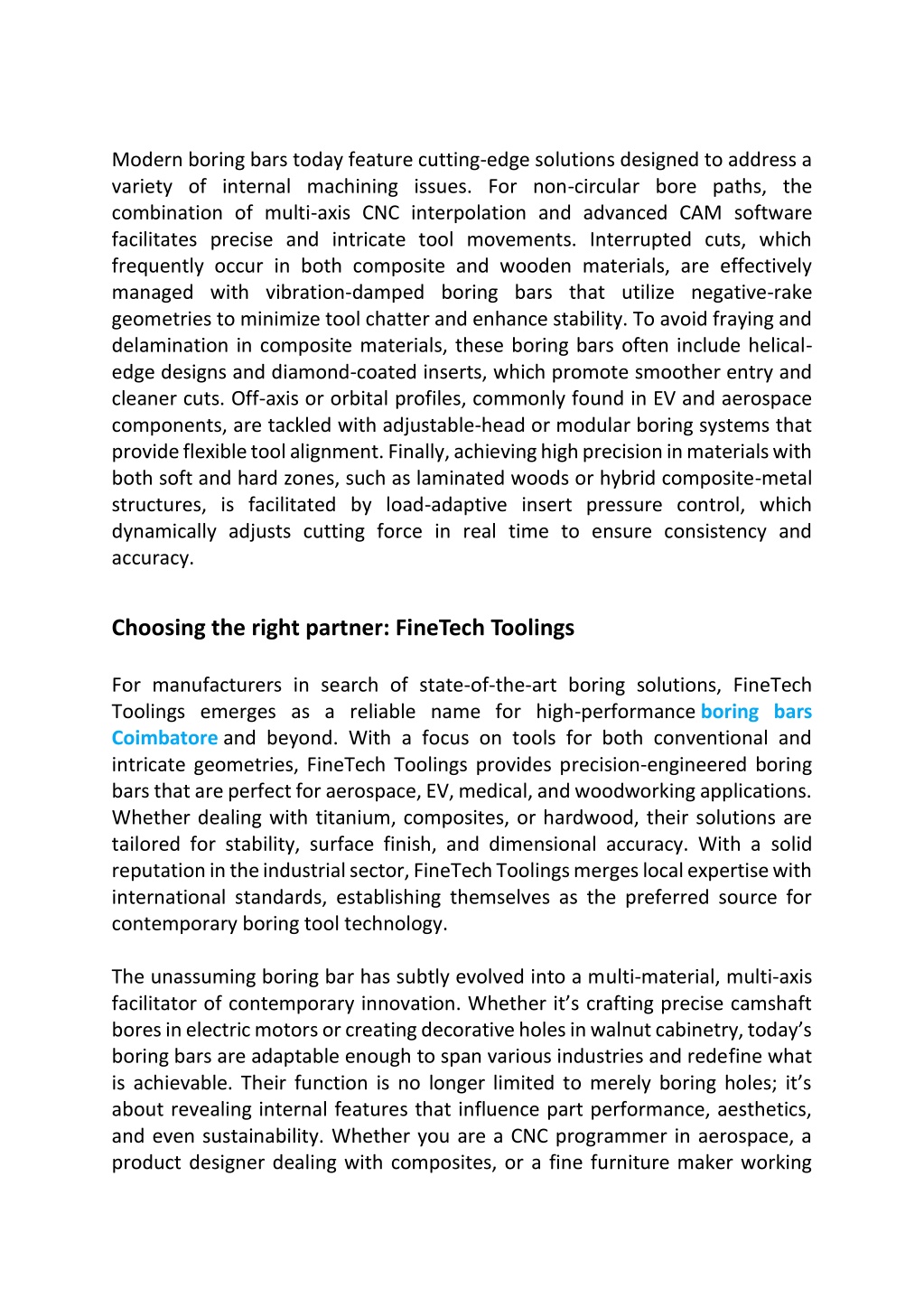

5. Modern boring bars today feature cutting-edge solutions designed to address a variety of internal machining issues. For non-circular bore paths, the combination of multi-axis CNC interpolation and advanced CAM software facilitates precise and intricate tool movements. Interrupted cuts, which frequently occur in both composite and wooden materials, are effectively managed with vibration-damped boring bars that utilize negative-rake geometries to minimize tool chatter and enhance stability. To avoid fraying and delamination in composite materials, these boring bars often include helical- edge designs and diamond-coated inserts, which promote smoother entry and cleaner cuts. Off-axis or orbital profiles, commonly found in EV and aerospace components, are tackled with adjustable-head or modular boring systems that provide flexible tool alignment. Finally, achieving high precision in materials with both soft and hard zones, such as laminated woods or hybrid composite-metal structures, is facilitated by load-adaptive insert pressure control, which dynamically adjusts cutting force in real time to ensure consistency and accuracy. Choosing the right partner: FineTech Toolings For manufacturers in search of state-of-the-art boring solutions, FineTech Toolings emerges as a reliable name for high-performance boring bars Coimbatore and beyond. With a focus on tools for both conventional and intricate geometries, FineTech Toolings provides precision-engineered boring bars that are perfect for aerospace, EV, medical, and woodworking applications. Whether dealing with titanium, composites, or hardwood, their solutions are tailored for stability, surface finish, and dimensional accuracy. With a solid reputation in the industrial sector, FineTech Toolings merges local expertise with international standards, establishing themselves as the preferred source for contemporary boring tool technology. The unassuming boring bar has subtly evolved into a multi-material, multi-axis facilitator of contemporary innovation. Whether it’s crafting precise camshaft bores in electric motors or creating decorative holes in walnut cabinetry, today’s boring bars are adaptable enough to span various industries and redefine what is achievable. Their function is no longer limited to merely boring holes; it’s about revealing internal features that influence part performance, aesthetics, and even sustainability. Whether you are a CNC programmer in aerospace, a product designer dealing with composites, or a fine furniture maker working

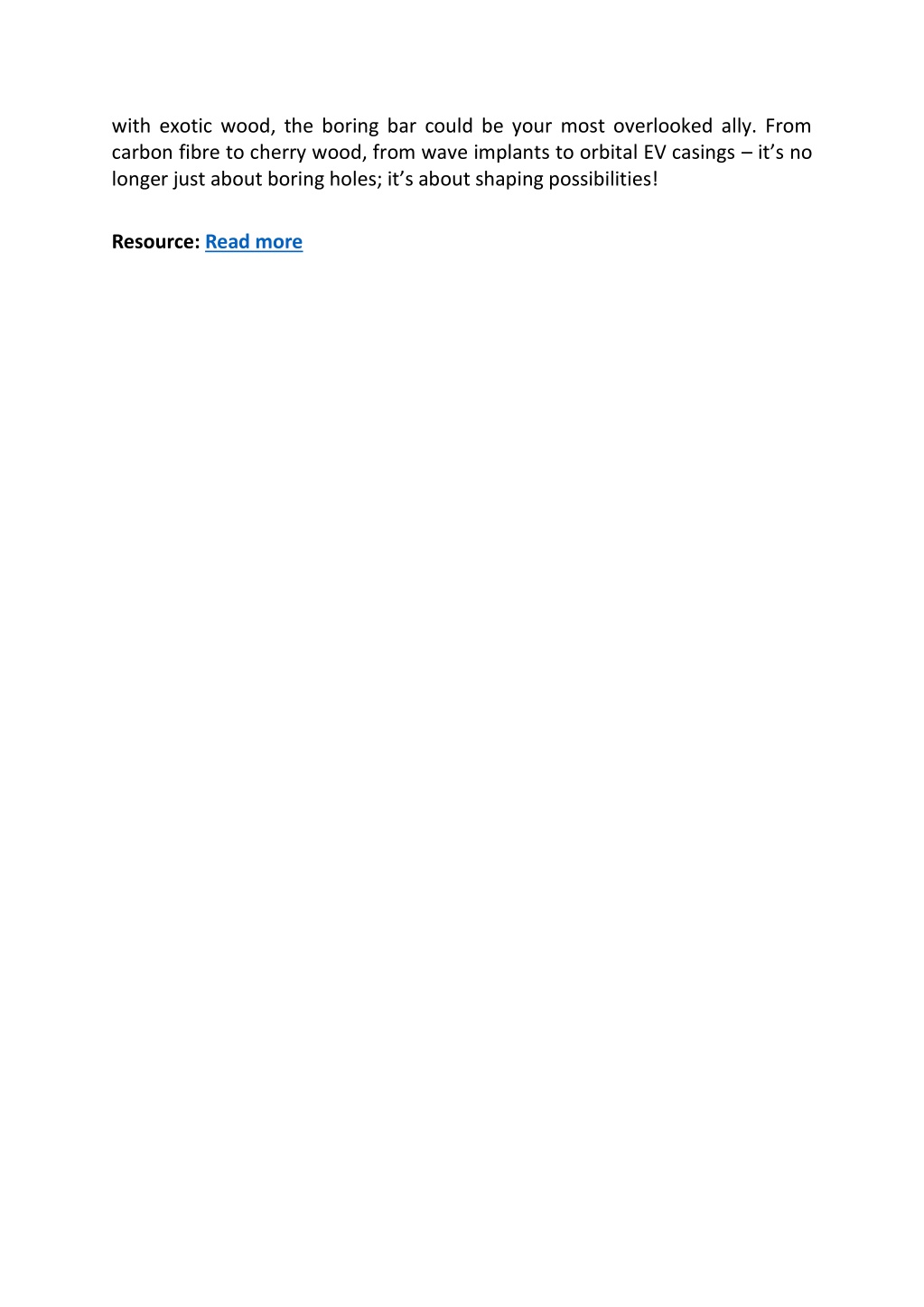

6. with exotic wood, the boring bar could be your most overlooked ally. From carbon fibre to cherry wood, from wave implants to orbital EV casings –it’s no longer just about boring holes; it’s about shaping possibilities! Resource: Read more
