Micro-Boring – The Challenges, Tools, And Techniques

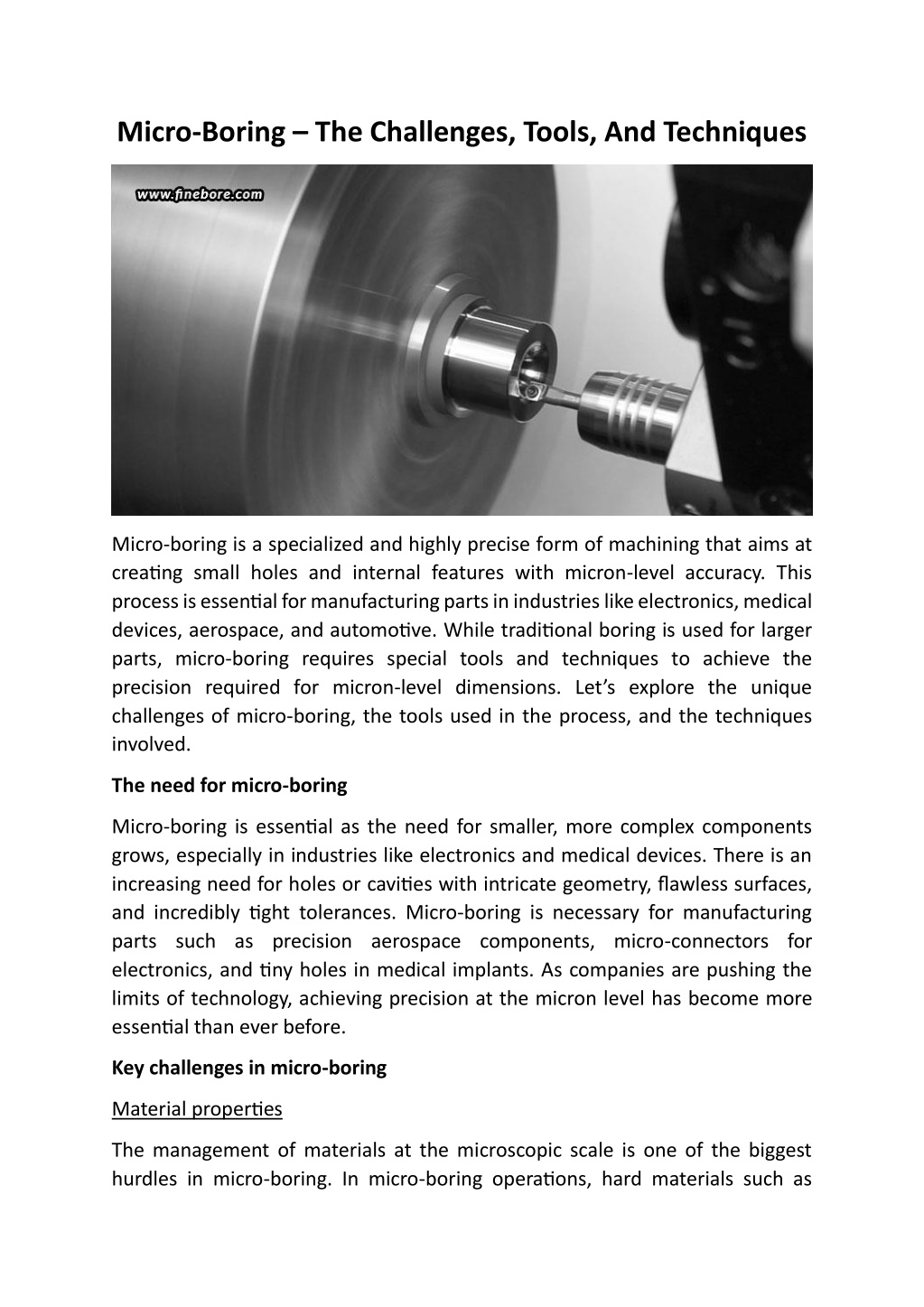

1. Micro-Boring – The Challenges, Tools, And Techniques Micro-boring is a specialized and highly precise form of machining that aims at creating small holes and internal features with micron-level accuracy. This process is essential for manufacturing parts in industries like electronics, medical devices, aerospace, and automotive. While traditional boring is used for larger parts, micro-boring requires special tools and techniques to achieve the precision required for micron-level dimensions. Let’s explore the unique challenges of micro-boring, the tools used in the process, and the techniques involved. The need for micro-boring Micro-boring is essential as the need for smaller, more complex components grows, especially in industries like electronics and medical devices. There is an increasing need for holes or cavities with intricate geometry, flawless surfaces, and incredibly tight tolerances. Micro-boring is necessary for manufacturing parts such as precision aerospace components, micro-connectors for electronics, and tiny holes in medical implants. As companies are pushing the limits of technology, achieving precision at the micron level has become more essential than ever before. Key challenges in micro-boring Material properties The management of materials at the microscopic scale is one of the biggest hurdles in micro-boring. In micro-boring operations, hard materials such as

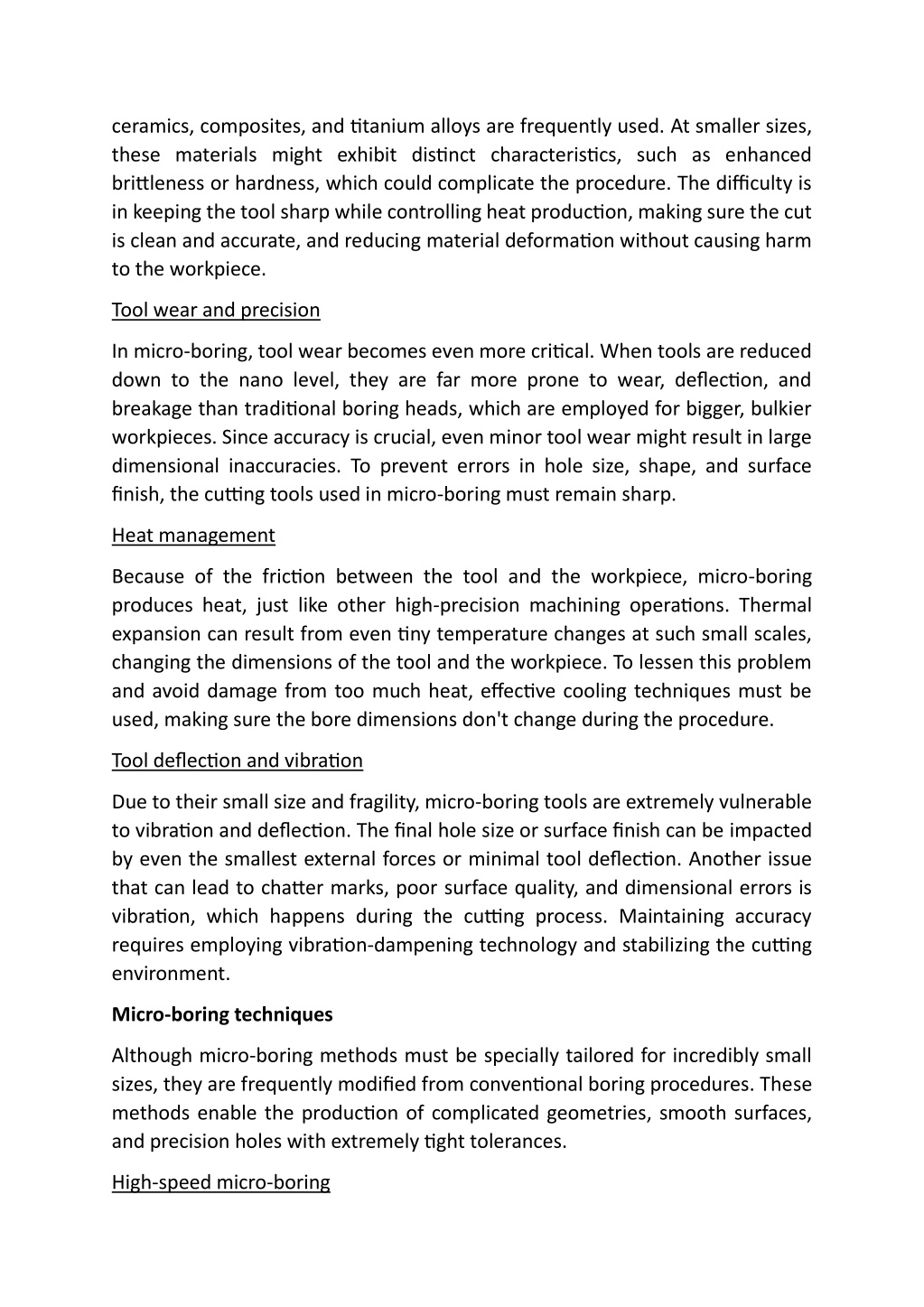

2. ceramics, composites, and titanium alloys are frequently used. At smaller sizes, these materials might exhibit distinct characteristics, such as enhanced brittleness or hardness, which could complicate the procedure. The difficulty is in keeping the tool sharp while controlling heat production, making sure the cut is clean and accurate, and reducing material deformation without causing harm to the workpiece. Tool wear and precision In micro-boring, tool wear becomes even more critical. When tools are reduced down to the nano level, they are far more prone to wear, deflection, and breakage than traditional boring heads, which are employed for bigger, bulkier workpieces. Since accuracy is crucial, even minor tool wear might result in large dimensional inaccuracies. To prevent errors in hole size, shape, and surface finish, the cutting tools used in micro-boring must remain sharp. Heat management Because of the friction between the tool and the workpiece, micro-boring produces heat, just like other high-precision machining operations. Thermal expansion can result from even tiny temperature changes at such small scales, changing the dimensions of the tool and the workpiece. To lessen this problem and avoid damage from too much heat, effective cooling techniques must be used, making sure the bore dimensions don't change during the procedure. Tool deflection and vibration Due to their small size and fragility, micro-boring tools are extremely vulnerable to vibration and deflection. The final hole size or surface finish can be impacted by even the smallest external forces or minimal tool deflection. Another issue that can lead to chatter marks, poor surface quality, and dimensional errors is vibration, which happens during the cutting process. Maintaining accuracy requires employing vibration-dampening technology and stabilizing the cutting environment. Micro-boring techniques Although micro-boring methods must be specially tailored for incredibly small sizes, they are frequently modified from conventional boring procedures. These methods enable the production of complicated geometries, smooth surfaces, and precision holes with extremely tight tolerances. High-speed micro-boring

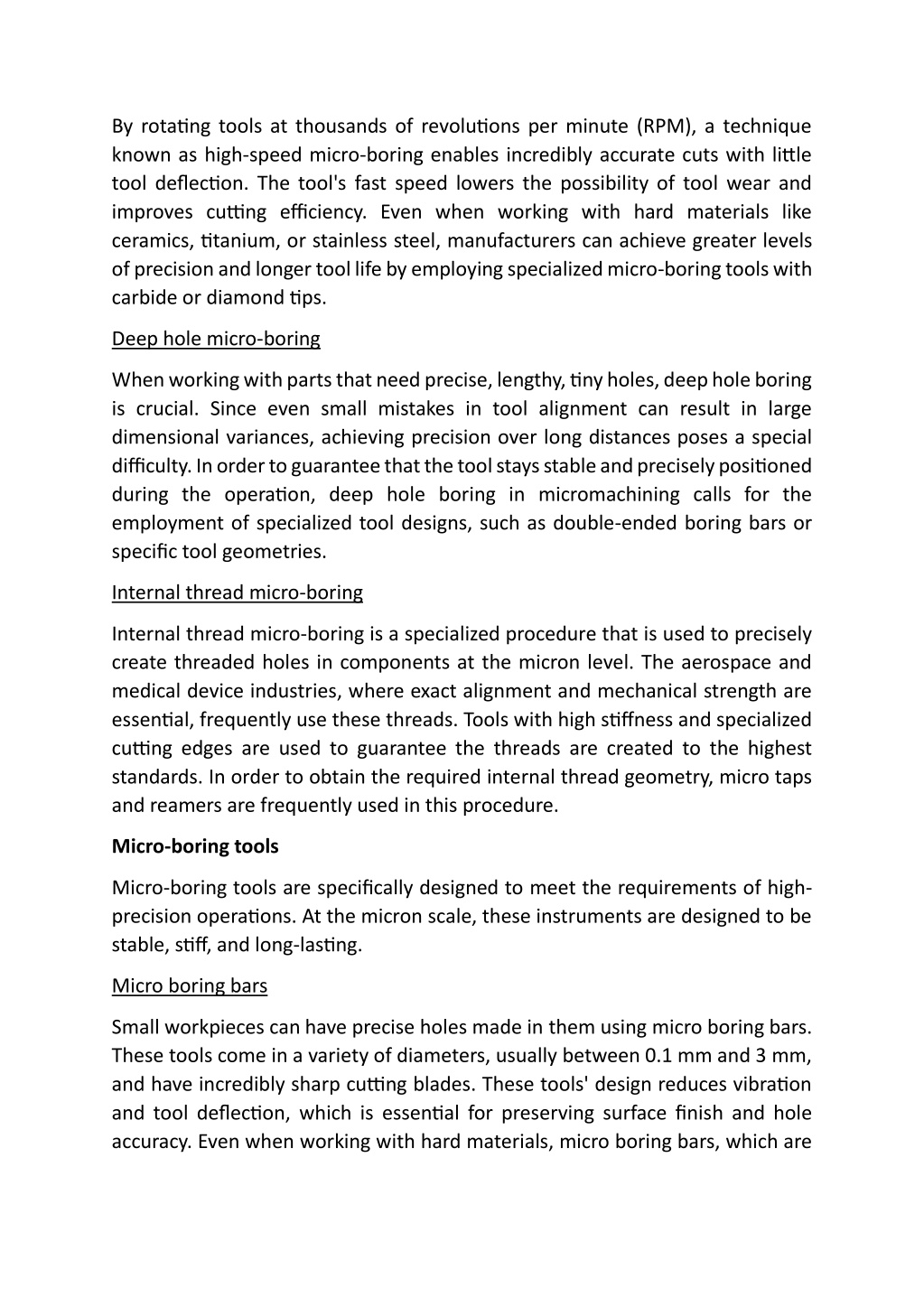

3. By rotating tools at thousands of revolutions per minute (RPM), a technique known as high-speed micro-boring enables incredibly accurate cuts with little tool deflection. The tool's fast speed lowers the possibility of tool wear and improves cutting efficiency. Even when working with hard materials like ceramics, titanium, or stainless steel, manufacturers can achieve greater levels of precision and longer tool life by employing specialized micro-boring tools with carbide or diamond tips. Deep hole micro-boring When working with parts that need precise, lengthy, tiny holes, deep hole boring is crucial. Since even small mistakes in tool alignment can result in large dimensional variances, achieving precision over long distances poses a special difficulty. In order to guarantee that the tool stays stable and precisely positioned during the operation, deep hole boring in micromachining calls for the employment of specialized tool designs, such as double-ended boring bars or specific tool geometries. Internal thread micro-boring Internal thread micro-boring is a specialized procedure that is used to precisely create threaded holes in components at the micron level. The aerospace and medical device industries, where exact alignment and mechanical strength are essential, frequently use these threads. Tools with high stiffness and specialized cutting edges are used to guarantee the threads are created to the highest standards. In order to obtain the required internal thread geometry, micro taps and reamers are frequently used in this procedure. Micro-boring tools Micro-boring tools are specifically designed to meet the requirements of high- precision operations. At the micron scale, these instruments are designed to be stable, stiff, and long-lasting. Micro boring bars Small workpieces can have precise holes made in them using micro boring bars. These tools come in a variety of diameters, usually between 0.1 mm and 3 mm, and have incredibly sharp cutting blades. These tools' design reduces vibration and tool deflection, which is essential for preserving surface finish and hole accuracy. Even when working with hard materials, micro boring bars, which are

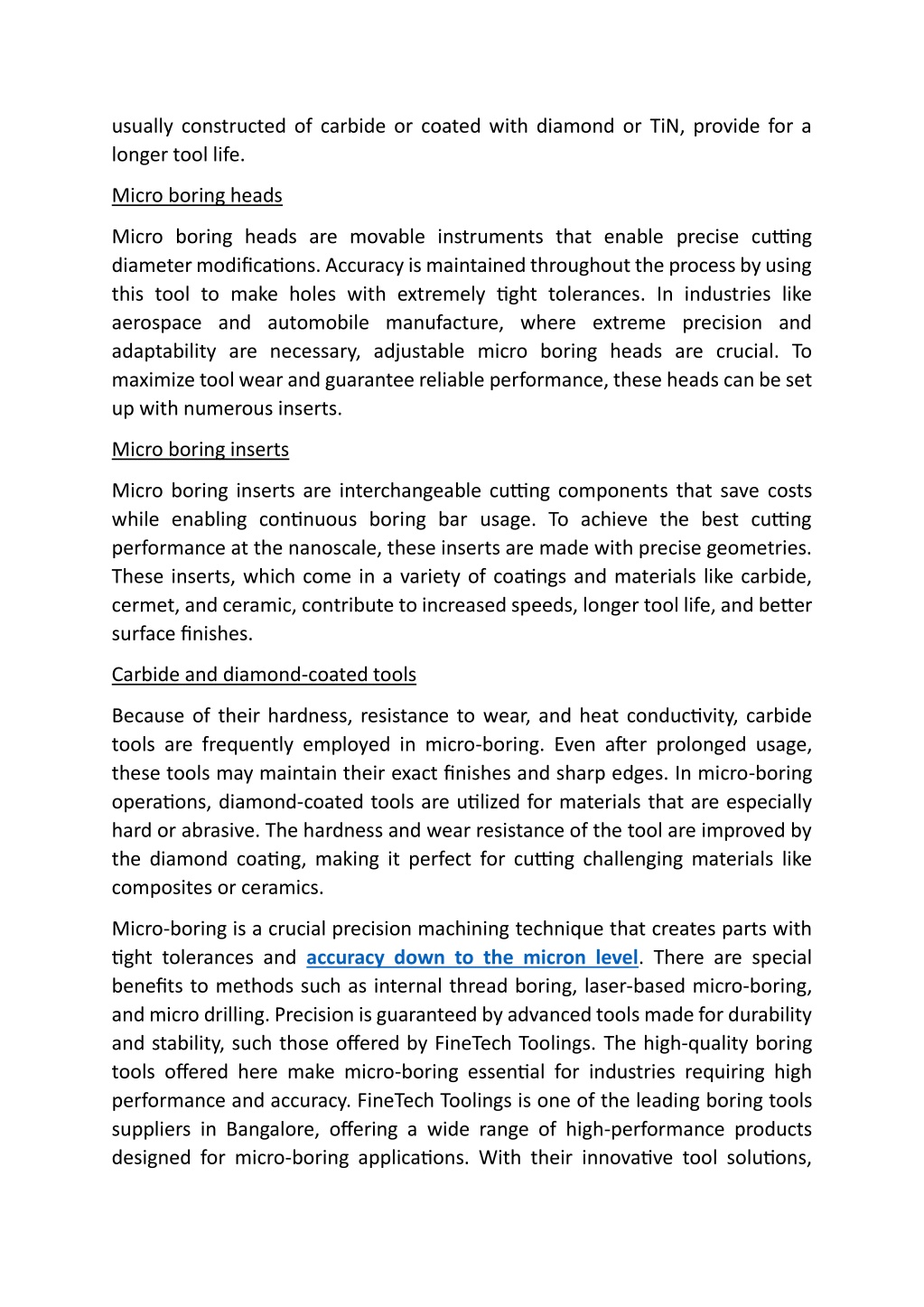

4. usually constructed of carbide or coated with diamond or TiN, provide for a longer tool life. Micro boring heads Micro boring heads are movable instruments that enable precise cutting diameter modifications. Accuracy is maintained throughout the process by using this tool to make holes with extremely tight tolerances. In industries like aerospace and automobile manufacture, where extreme precision and adaptability are necessary, adjustable micro boring heads are crucial. To maximize tool wear and guarantee reliable performance, these heads can be set up with numerous inserts. Micro boring inserts Micro boring inserts are interchangeable cutting components that save costs while enabling continuous boring bar usage. To achieve the best cutting performance at the nanoscale, these inserts are made with precise geometries. These inserts, which come in a variety of coatings and materials like carbide, cermet, and ceramic, contribute to increased speeds, longer tool life, and better surface finishes. Carbide and diamond-coated tools Because of their hardness, resistance to wear, and heat conductivity, carbide tools are frequently employed in micro-boring. Even after prolonged usage, these tools may maintain their exact finishes and sharp edges. In micro-boring operations, diamond-coated tools are utilized for materials that are especially hard or abrasive. The hardness and wear resistance of the tool are improved by the diamond coating, making it perfect for cutting challenging materials like composites or ceramics. Micro-boring is a crucial precision machining technique that creates parts with tight tolerances and accuracy down to the micron level. There are special benefits to methods such as internal thread boring, laser-based micro-boring, and micro drilling. Precision is guaranteed by advanced tools made for durability and stability, such those offered by FineTech Toolings. The high-quality boring tools offered here make micro-boring essential for industries requiring high performance and accuracy. FineTech Toolings is one of the leading boring tools suppliers in Bangalore, offering a wide range of high-performance products designed for micro-boring applications. With their innovative tool solutions,

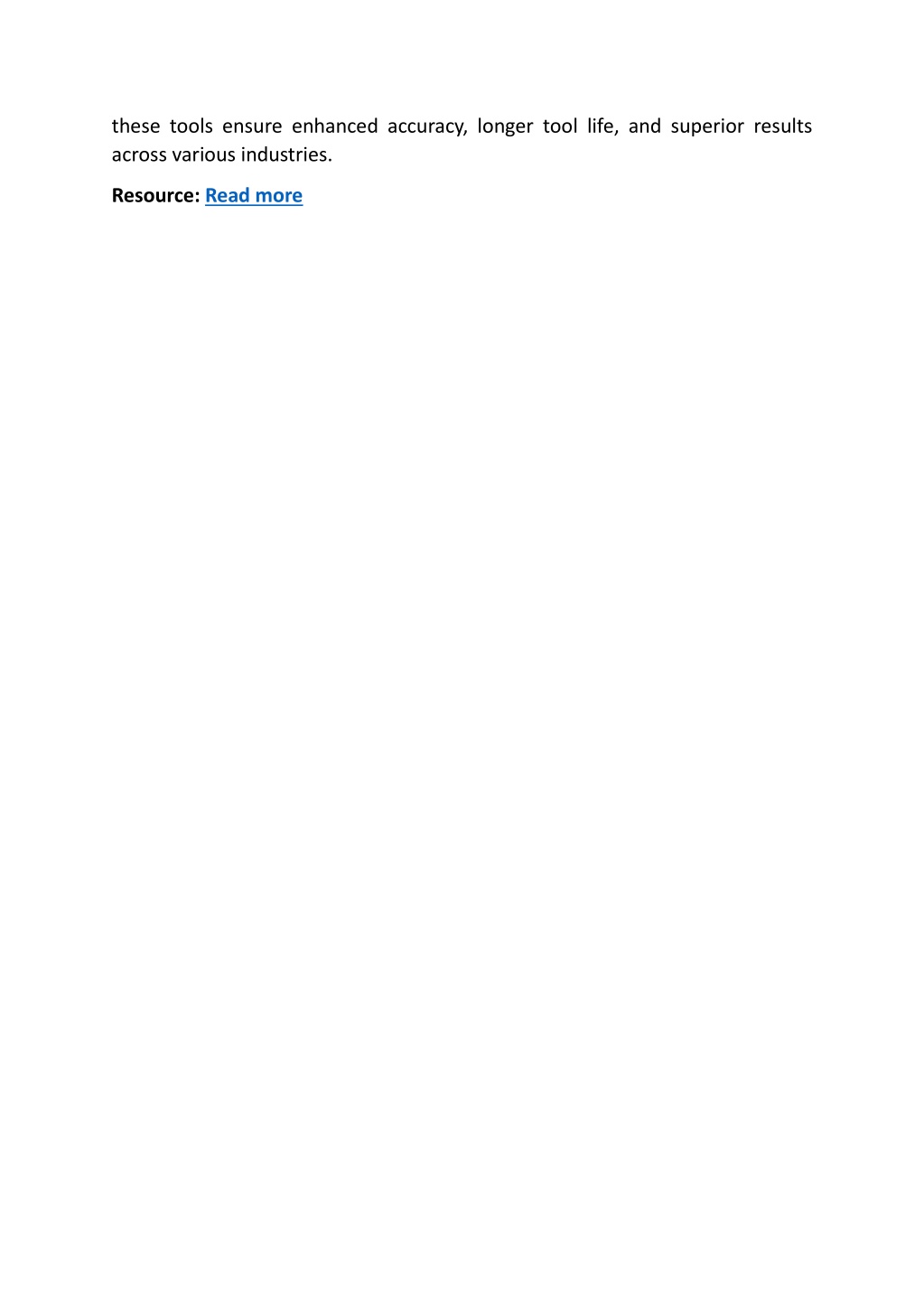

5. these tools ensure enhanced accuracy, longer tool life, and superior results across various industries. Resource: Read more
