Basic Information About the XASDI Feed

Gain insights into the new XML-based ASDI feed for real-time flight data, including changes in VPN usage, message batching, packet compression, and XML schema. Get ready to transition to the updated system!

findleyj
Download Presentation

Basic Information About the XASDI Feed

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

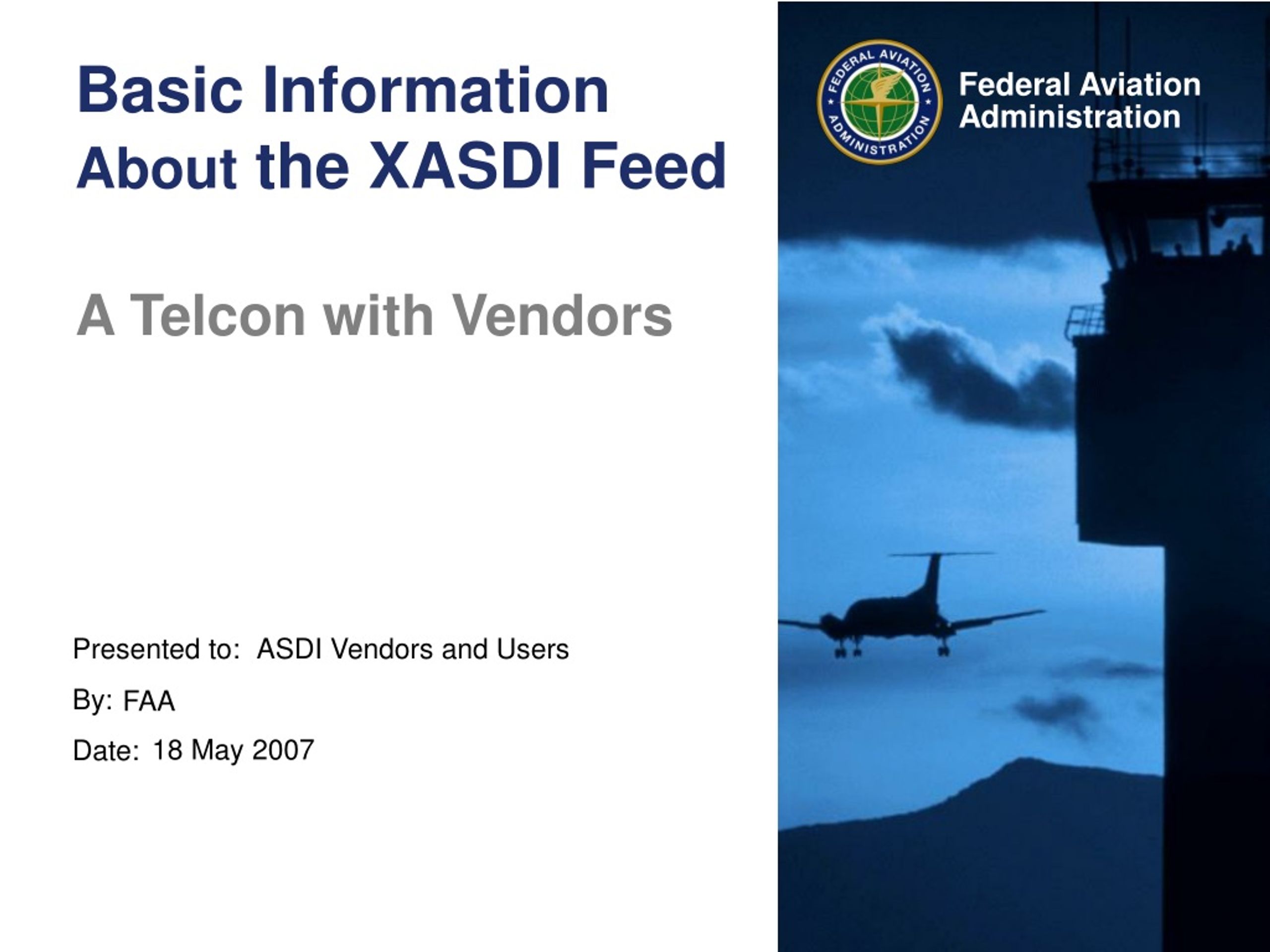

  1. Basic Information About the XASDI Feed A Telcon with Vendors ASDI Vendors and Users FAA 18 May 2007

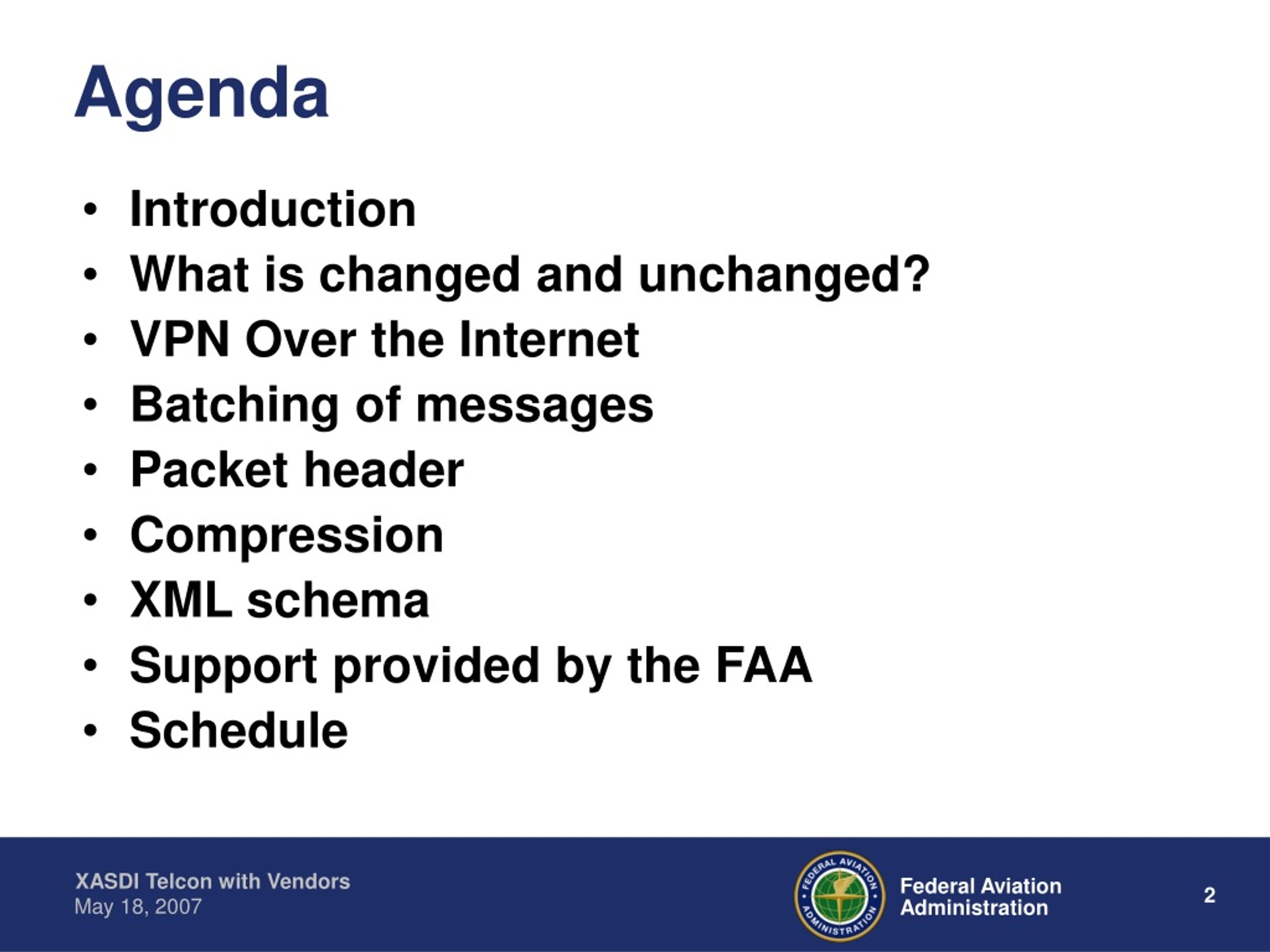

  2. Agenda • Introduction • What is changed and unchanged? • VPN Over the Internet • Batching of messages • Packet header • Compression • XML schema • Support provided by the FAA • Schedule

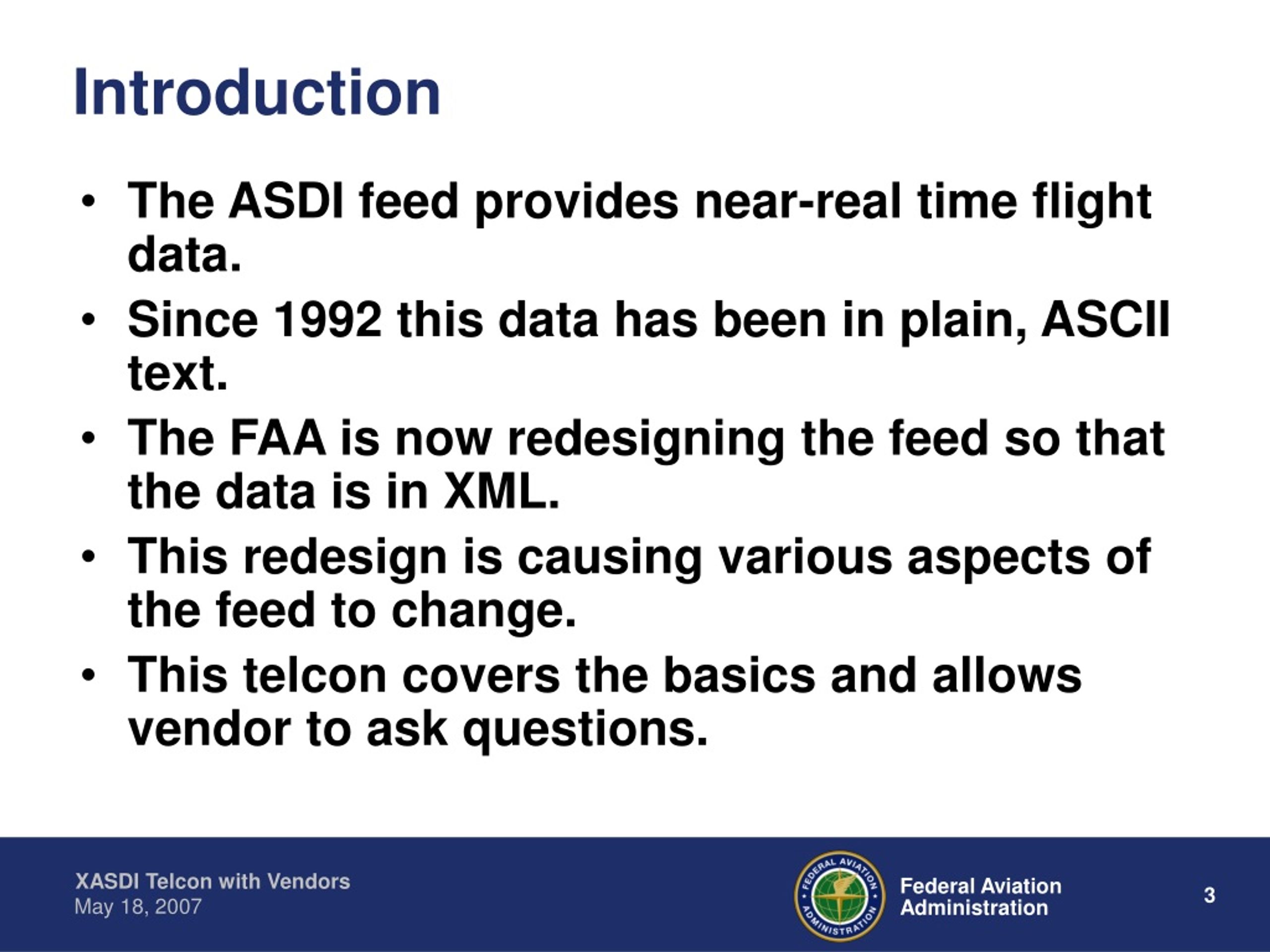

  3. Introduction • The ASDI feed provides near-real time flight data. • Since 1992 this data has been in plain, ASCII text. • The FAA is now redesigning the feed so that the data is in XML. • This redesign is causing various aspects of the feed to change. • This telcon covers the basics and allows vendor to ask questions.

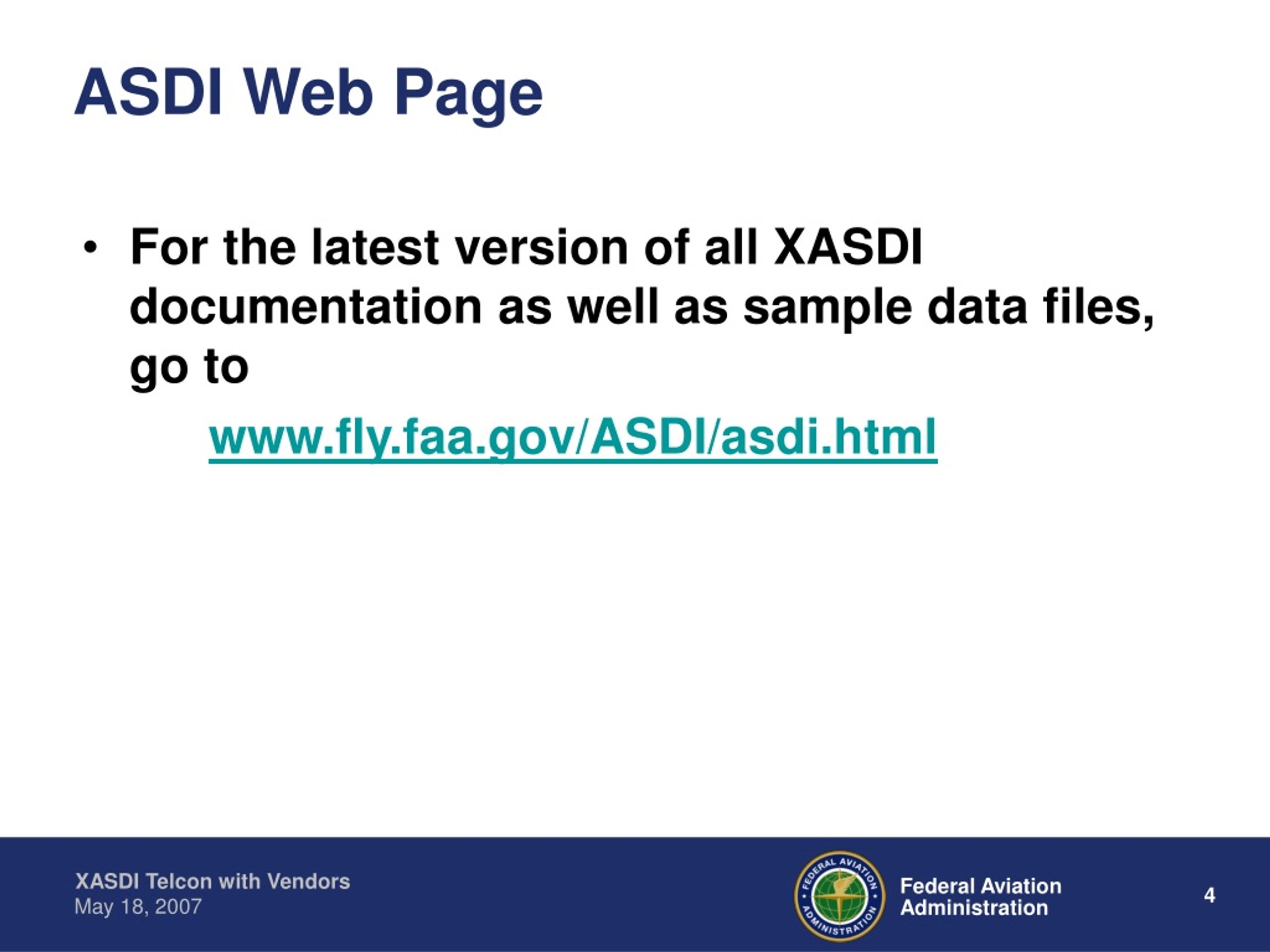

  4. ASDI Web Page • For the latest version of all XASDI documentation as well as sample data files, go to www.fly.faa.gov/ASDI/asdi.html

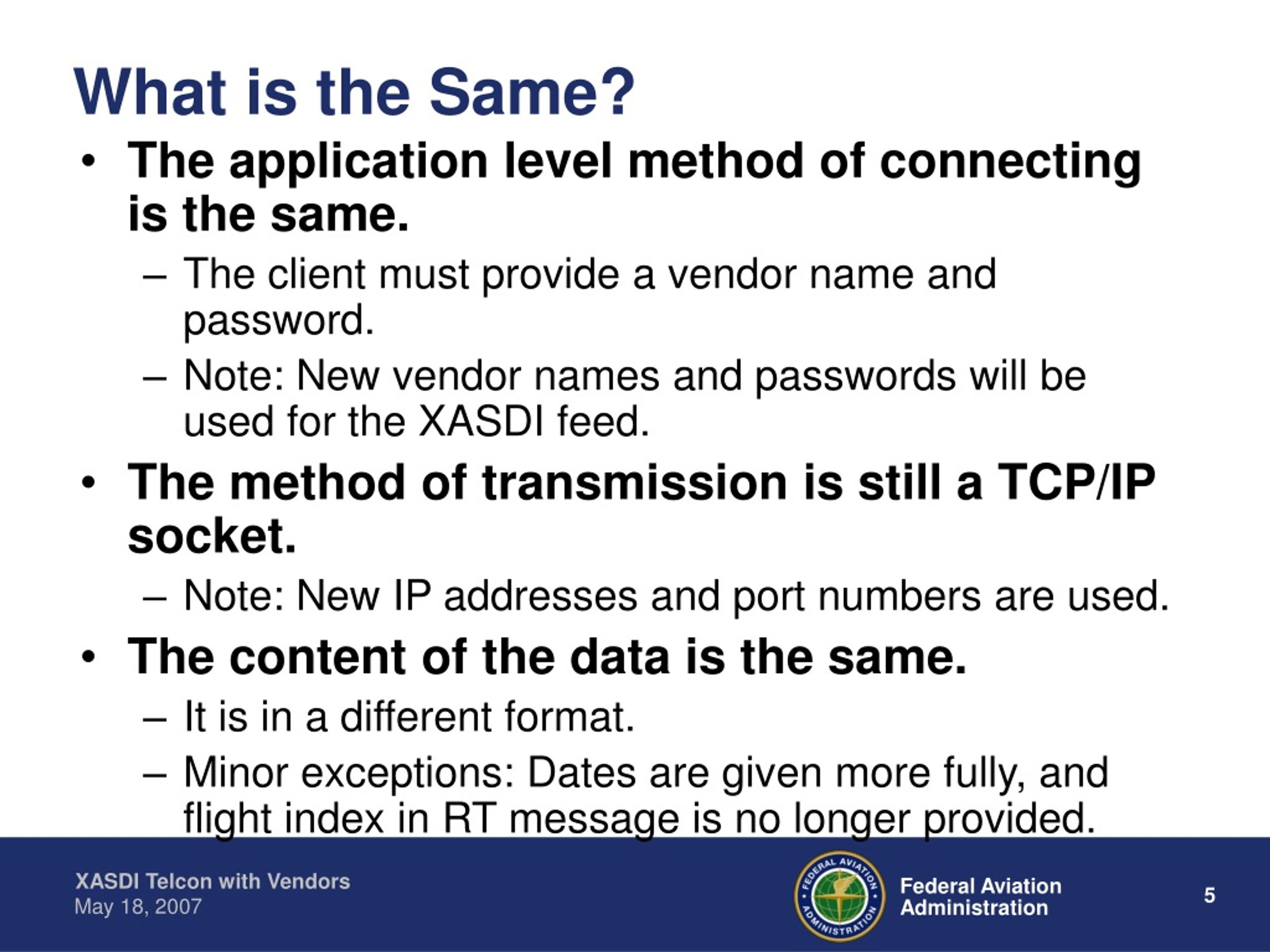

  5. What is the Same? • The application level method of connecting is the same. • The client must provide a vendor name and password. • Note: New vendor names and passwords will be used for the XASDI feed. • The method of transmission is still a TCP/IP socket. • Note: New IP addresses and port numbers are used. • The content of the data is the same. • It is in a different format. • Minor exceptions: Dates are given more fully, and flight index in RT message is no longer provided.

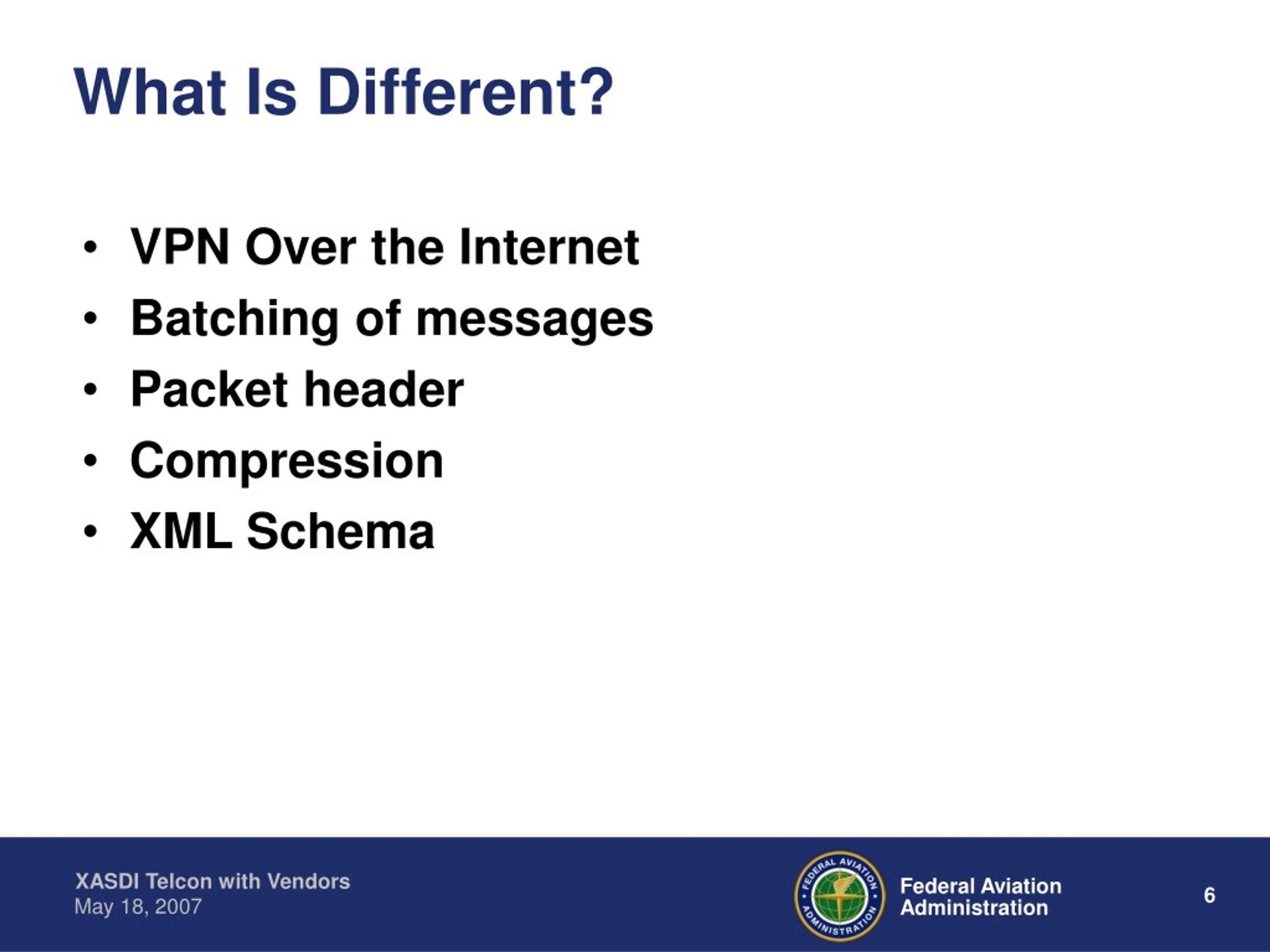

  6. What Is Different? • VPN Over the Internet • Batching of messages • Packet header • Compression • XML Schema

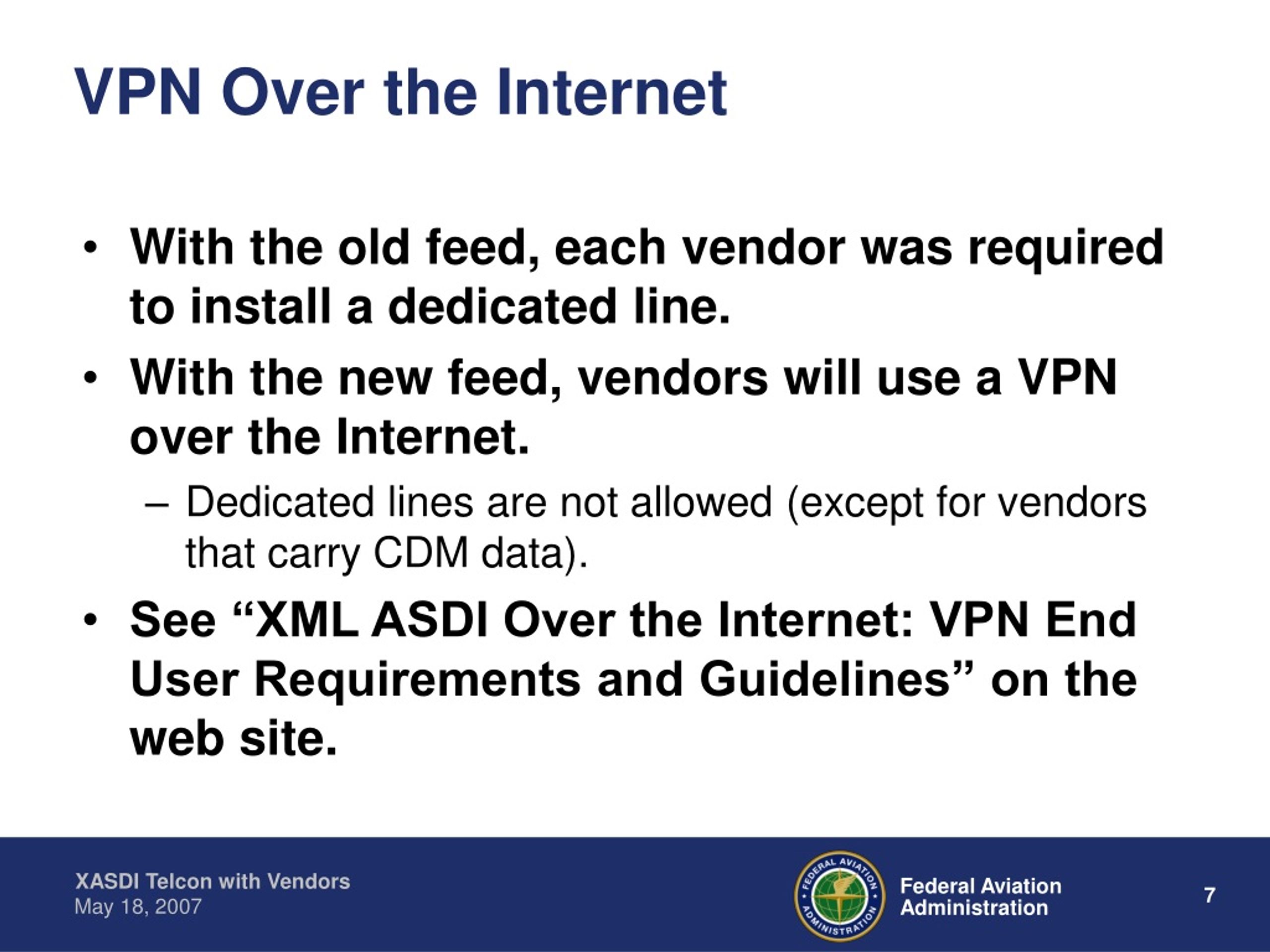

  7. VPN Over the Internet • With the old feed, each vendor was required to install a dedicated line. • With the new feed, vendors will use a VPN over the Internet. • Dedicated lines are not allowed (except for vendors that carry CDM data). • See “XML ASDI Over the Internet: VPN End User Requirements and Guidelines” on the web site.

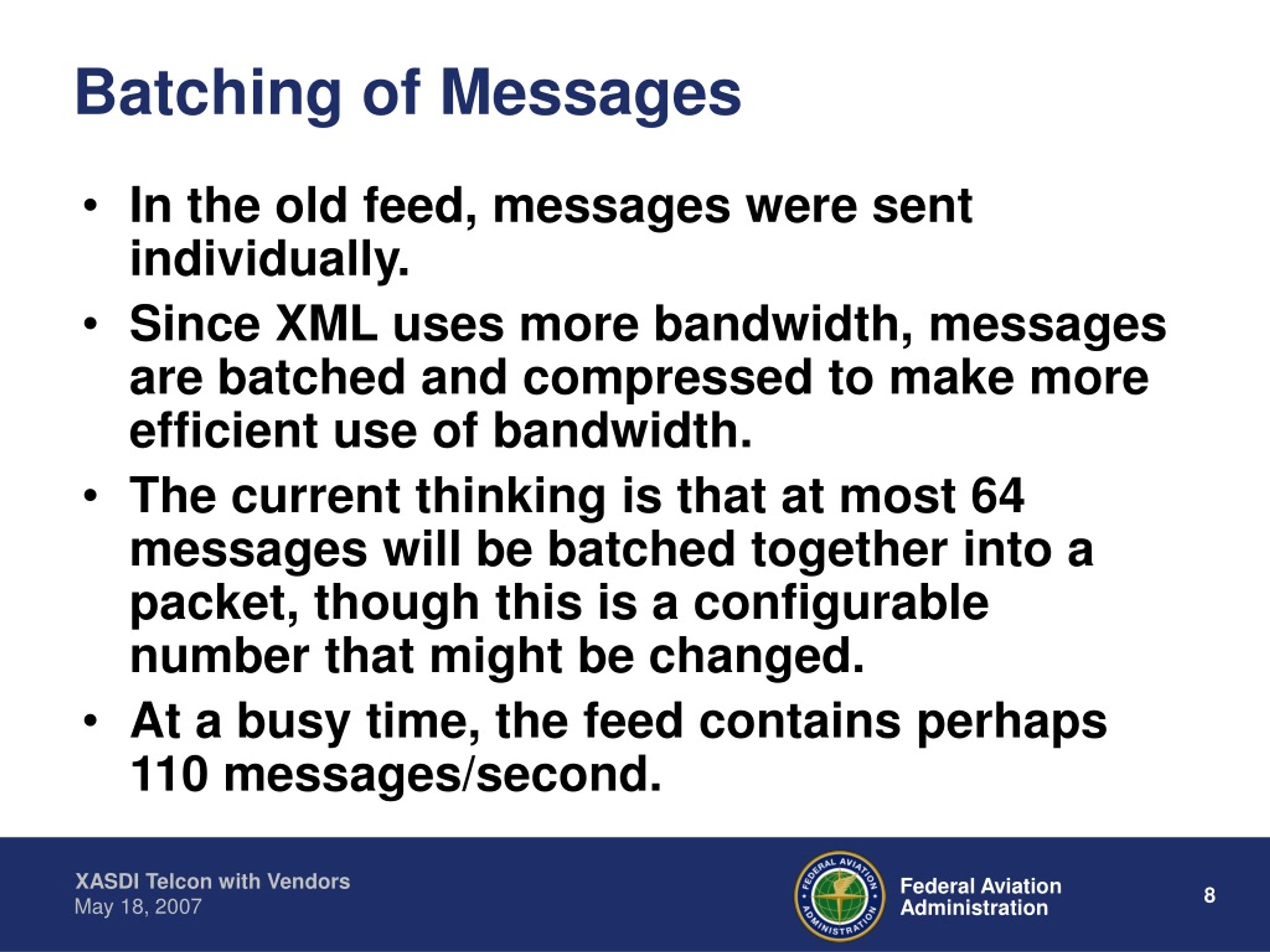

  8. Batching of Messages • In the old feed, messages were sent individually. • Since XML uses more bandwidth, messages are batched and compressed to make more efficient use of bandwidth. • The current thinking is that at most 64 messages will be batched together into a packet, though this is a configurable number that might be changed. • At a busy time, the feed contains perhaps 110 messages/second.

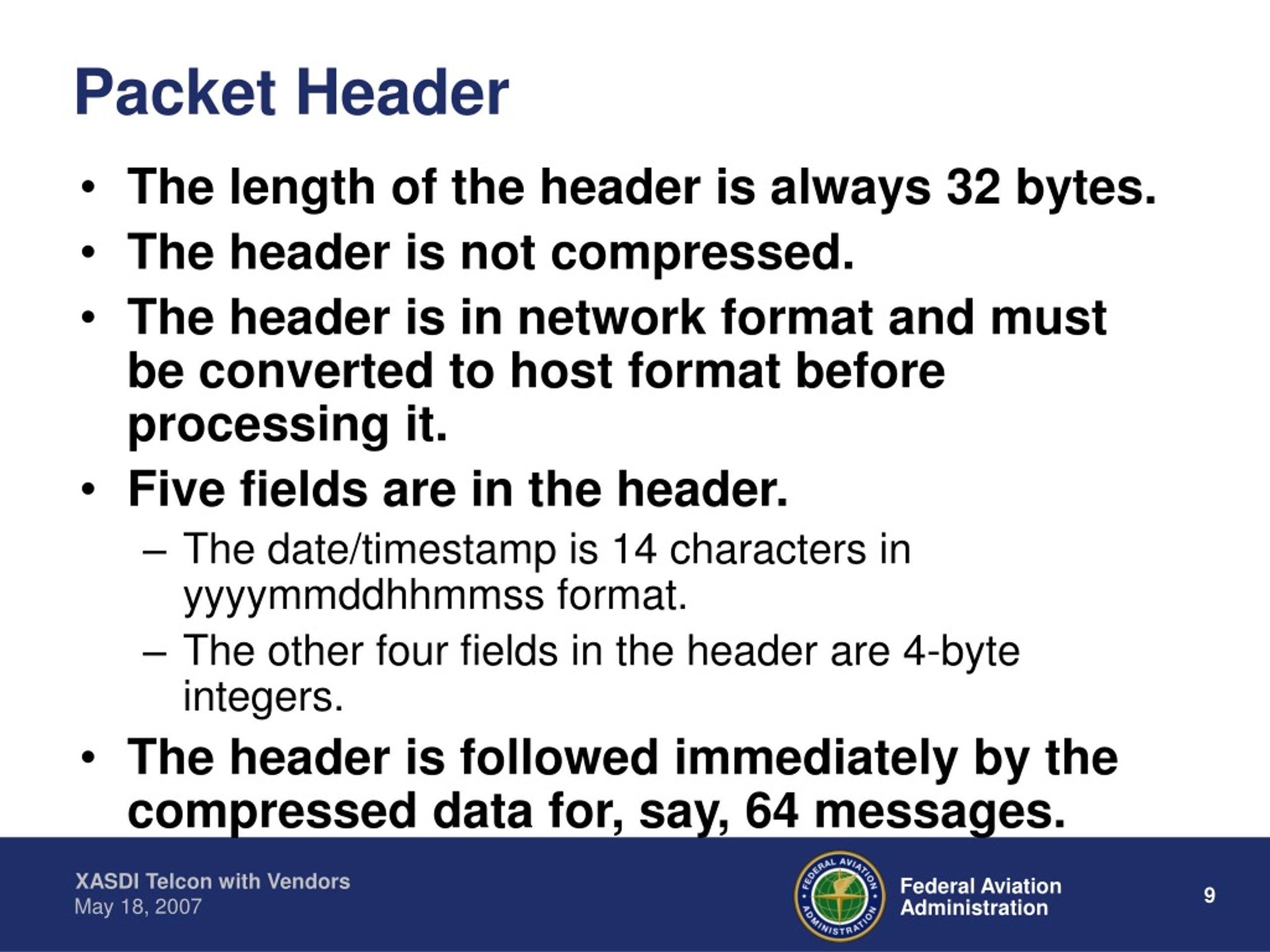

  9. Packet Header • The length of the header is always 32 bytes. • The header is not compressed. • The header is in network format and must be converted to host format before processing it. • Five fields are in the header. • The date/timestamp is 14 characters in yyyymmddhhmmss format. • The other four fields in the header are 4-byte integers. • The header is followed immediately by the compressed data for, say, 64 messages.

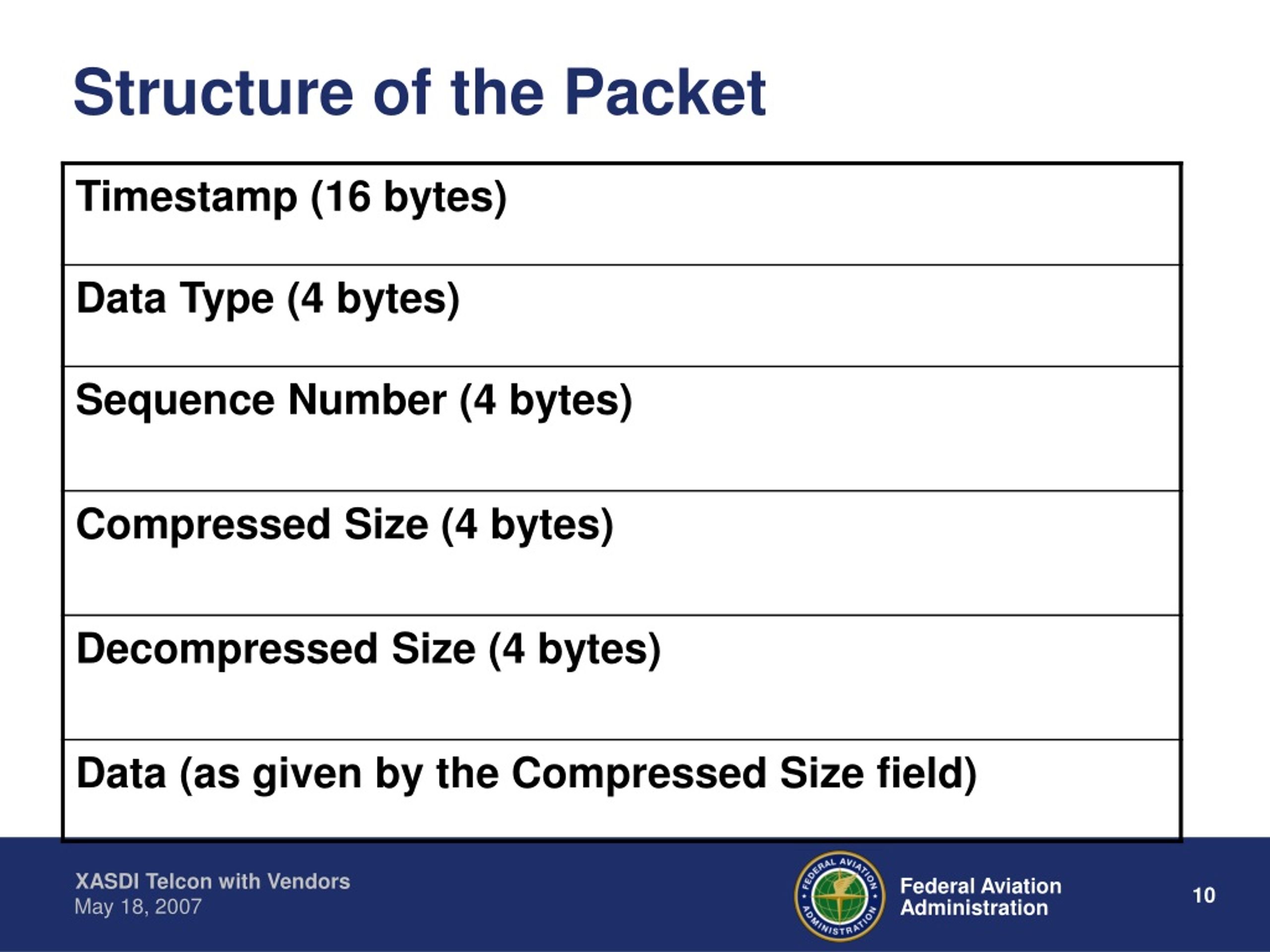

  10. Structure of the Packet

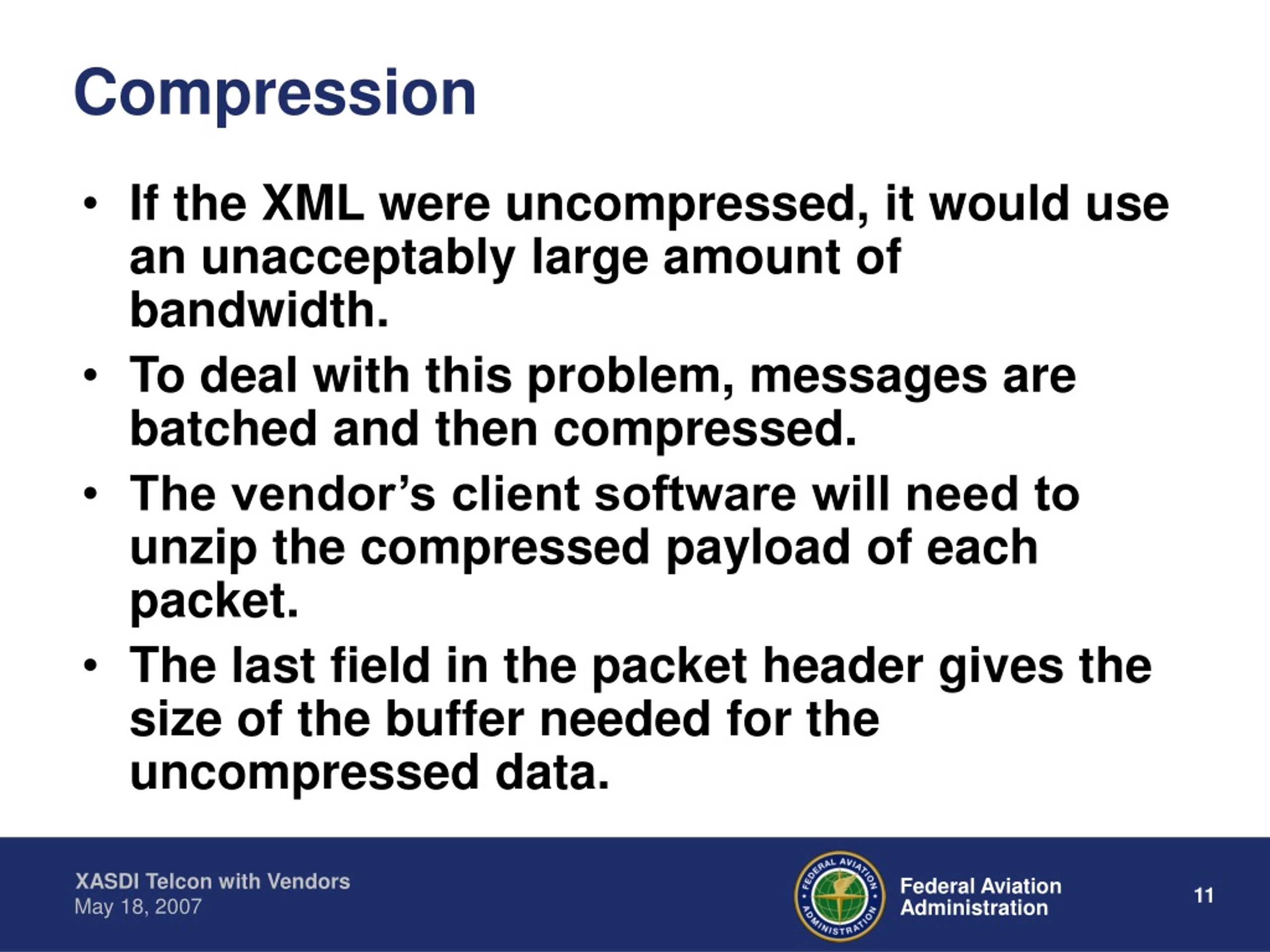

  11. Compression • If the XML were uncompressed, it would use an unacceptably large amount of bandwidth. • To deal with this problem, messages are batched and then compressed. • The vendor’s client software will need to unzip the compressed payload of each packet. • The last field in the packet header gives the size of the buffer needed for the uncompressed data.

  12. XML Schema • The ASDI data is fully formed using XML • Lowest level of data items are described by XML elements and attributes • The ASDI XML documents are validated using XML Schema Definitions (XSD) • XSDs ensure that only valid data is sent to each client • Definitions are based on NAS and ETMS standards

  13. XML Schema • There are five schemas used to describe and validate ASDI data • TFMS_XIS.xsd • ASDI.xsd • MessageMetaData.xsd • NasXCommonMessages.xsd • NasXCoreElements.xsd

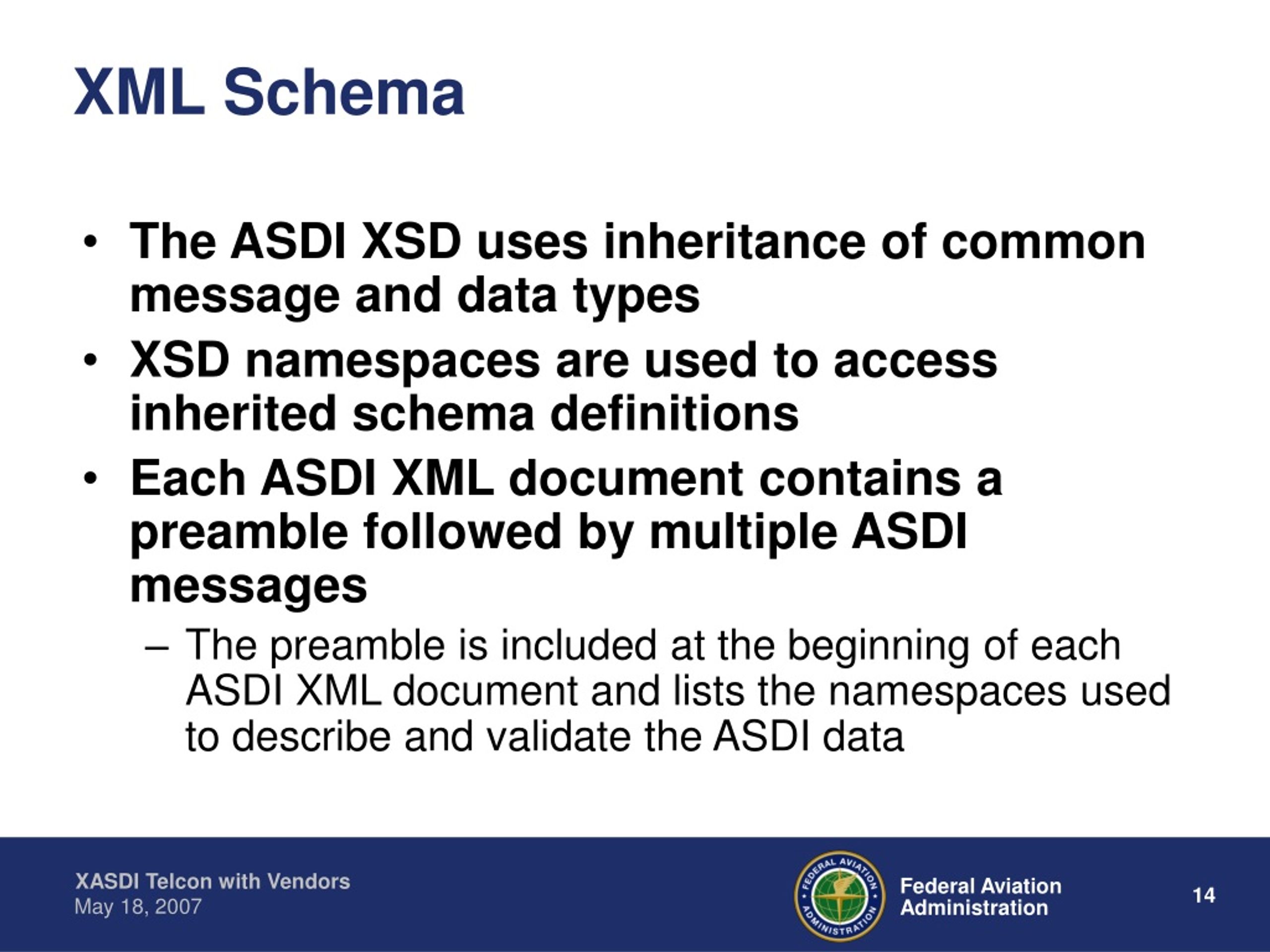

  14. XML Schema • The ASDI XSD uses inheritance of common message and data types • XSD namespaces are used to access inherited schema definitions • Each ASDI XML document contains a preamble followed by multiple ASDI messages • The preamble is included at the beginning of each ASDI XML document and lists the namespaces used to describe and validate the ASDI data

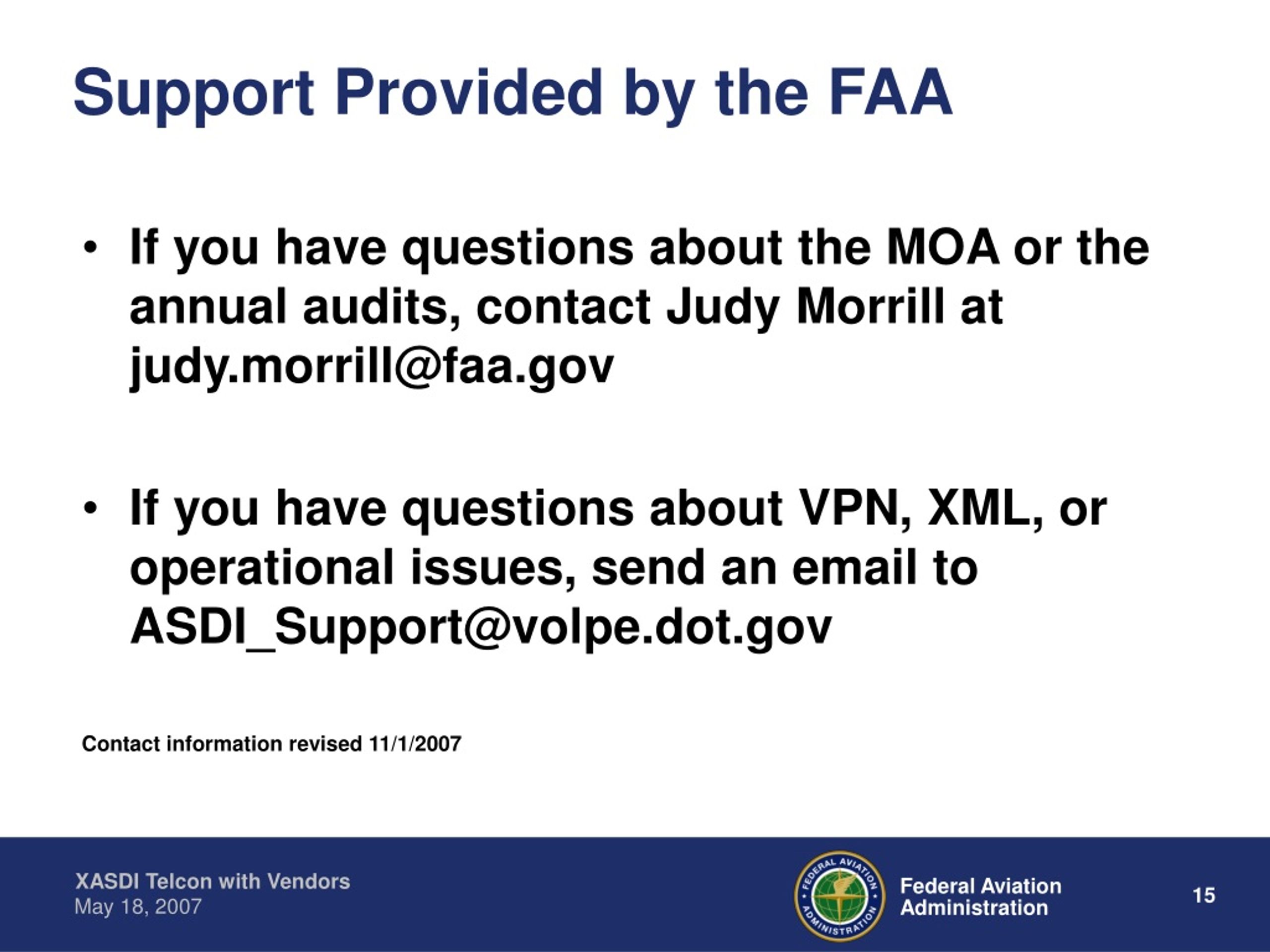

  15. Support Provided by the FAA • If you have questions about the MOA or the annual audits, contact Judy Morrill at judy.morrill@faa.gov • If you have questions about VPN, XML, or operational issues, send an email to ASDI_Support@volpe.dot.gov Contact information revised 11/1/2007

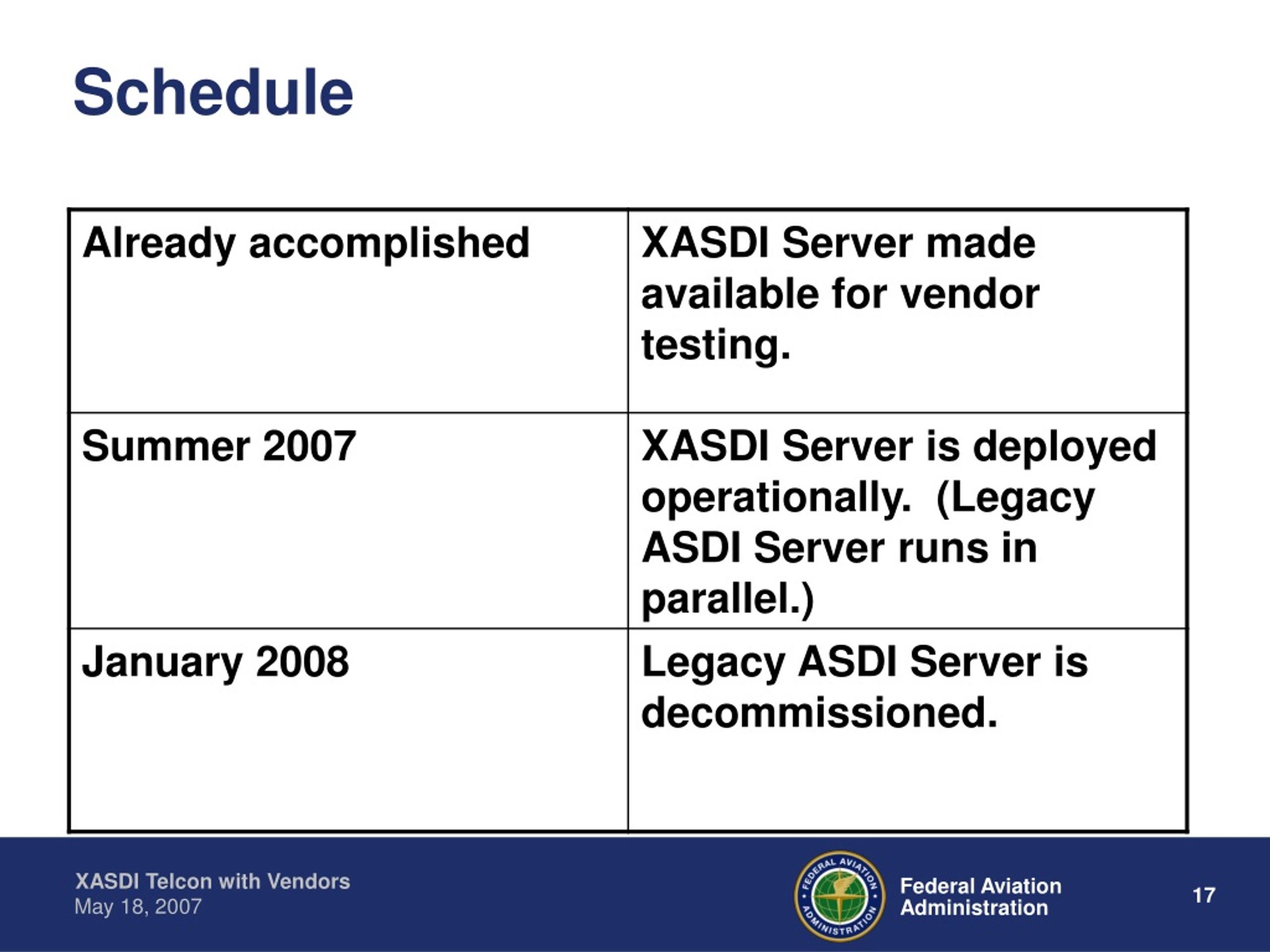

  16. Schedule

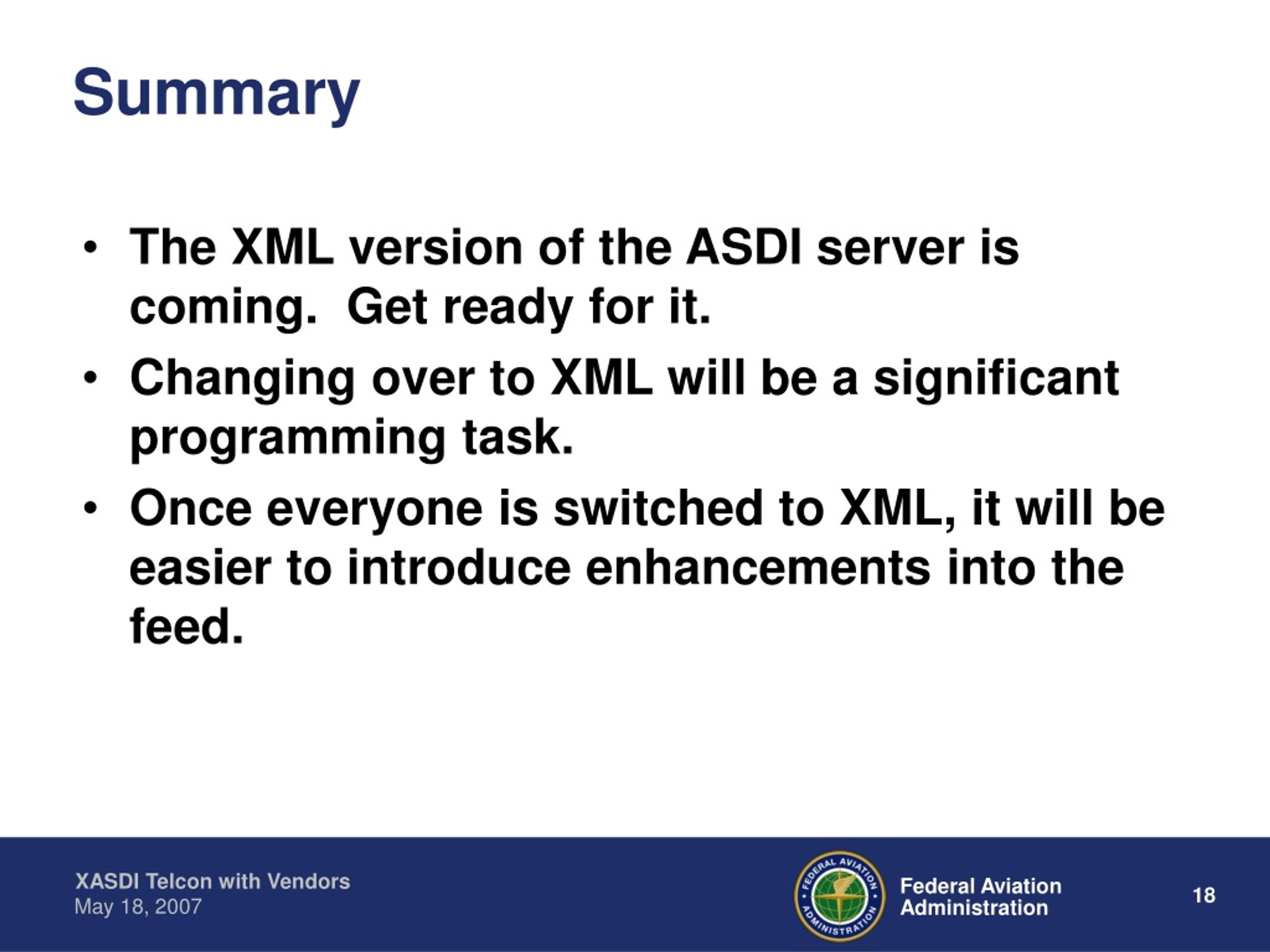

  17. Summary • The XML version of the ASDI server is coming. Get ready for it. • Changing over to XML will be a significant programming task. • Once everyone is switched to XML, it will be easier to introduce enhancements into the feed.
