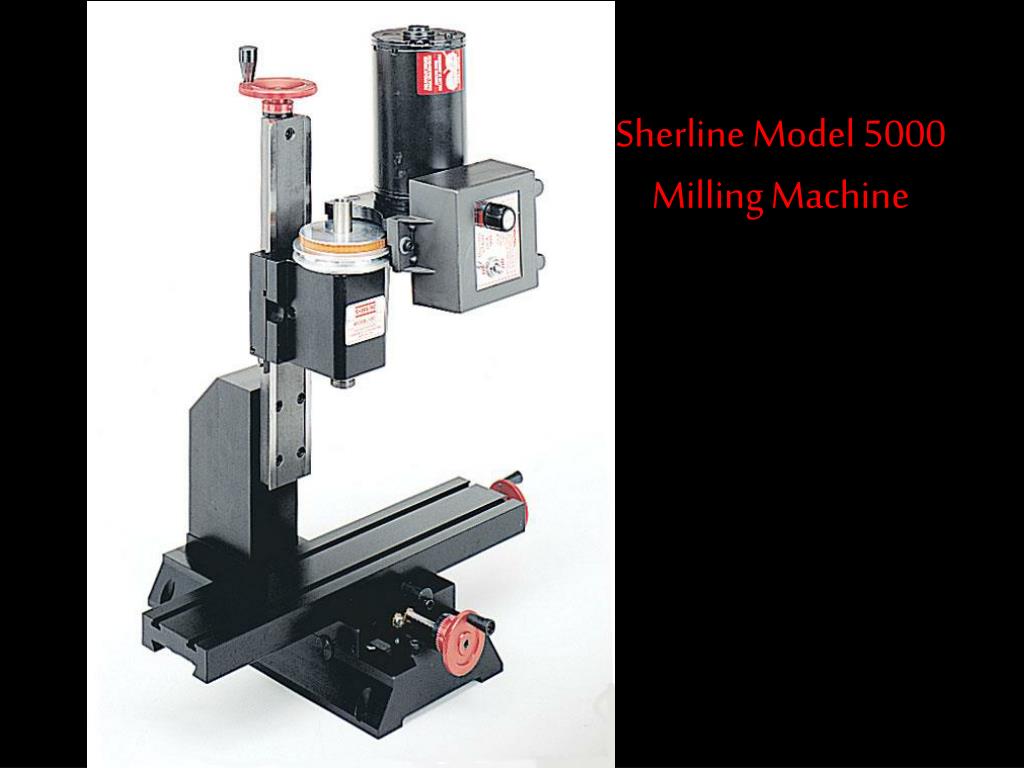

Sherline Model 5000 Milling Machine

Loading in 2 Seconds...

play fullscreen
1 / 8

Sherline Model 5000 Milling Machine - PowerPoint PPT Presentation


  • 241 Views
  • Uploaded on

Sherline Model 5000 Milling Machine. 5400A Mill with Accessory Package. Column saddle with Headstock removed. 5000 (5100) Mill Specifications. Clearance—table to spindle 8.00” (203 mm) Throat 2.25” (50 mm) X-Axis Travel 8.38” (213 mm) Y-Axis Travel 3.00” (76 mm)

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

Sherline Model 5000 Milling Machine


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide6

Column saddle with

Headstock removed

slide8

5000 (5100) Mill Specifications

  • Clearance—table to spindle 8.00” (203 mm)
  • Throat 2.25” (50 mm)
  • X-Axis Travel 8.38” (213 mm)
  • Y-Axis Travel 3.00” (76 mm)
  • Z-Axis Travel 6.25” (159 mm)
  • Spindle nose external thread 3/4 -16
  • Spindle nose internal taper #1 Morse
  • Spindle through hole .405” (10 mm)
  • Handwheel Graduations .001” (.01 mm)
  • Table Size 2.75” x 13” (70 mm x 330 mm)
  • Electronically controlled

spindle speed range 70-2800 RPM

  • Width overall 14.75” (375 mm)
  • Depth overall 11.75” (298 mm)
  • Max. Height (Incl. motor) 20.75” (527 mm)
  • Shipping Weight 33 lb (15.0 kg)
