Torque. Angular analogue of force Rotary motion T = F x r r is the moment arm or perpendicular distance from the axis of rotation. Torque & Forces. Centric force External force directed through the COG Linear motion or translation Eccentric force

Download Presentation
## Torque

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

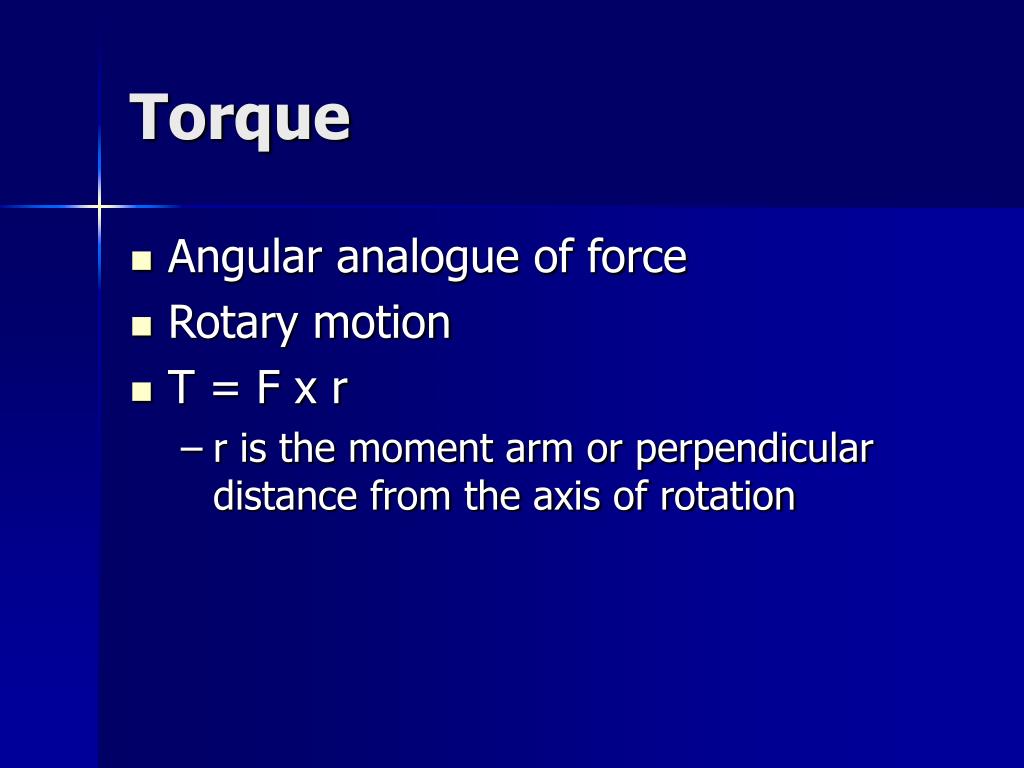

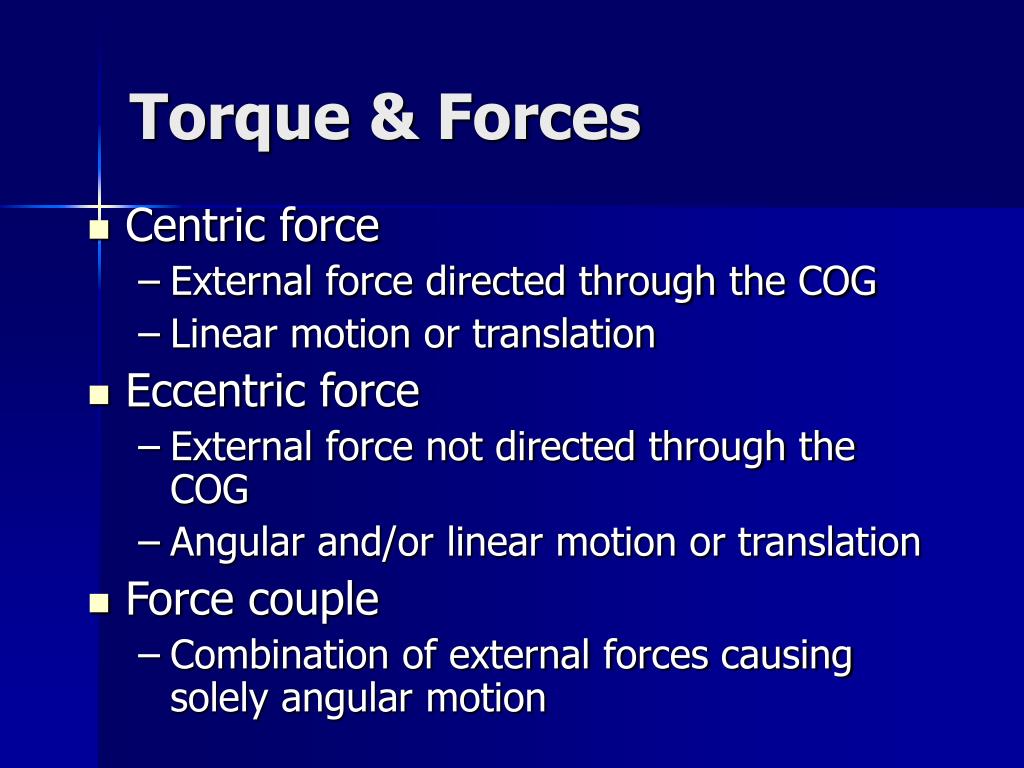

**Torque**• Angular analogue of force • Rotary motion • T = F x r • r is the moment arm or perpendicular distance from the axis of rotation**Torque & Forces**• Centric force • External force directed through the COG • Linear motion or translation • Eccentric force • External force not directed through the COG • Angular and/or linear motion or translation • Force couple • Combination of external forces causing solely angular motion**Examples of Torque**• Figure 5.1 • Effects on torque • Moment arm length • Force application • Ease of applying force • Leverage/friction • Stability of axis of rotation • Friction (flat tire on wheel barrow) • Self-Experiments 5.1 to 5.6**Levers**• First class • Second class • Third class**Application**• Come up with five different examples of each type of lever mechanism! • Split up in to groups of two!**Muscular Torque**• Figure 5.6 • Effectiveness of force application and leverage • Figure 5.5 + 5.8 • Moment arm length**Applied examples**• Stability & Potential Energy • 3 point stance • 4 point stance • Defensive back lined up against a WR • Wrestler or MMA fighter**Stability & Balance**• Stability • Linear • Resistance to disruption of equilibrium • Rotary • Resistance to disruption related to rotational equilibrium • Balance or Equilibrium • Ability to control equilibrium • Coordination and control • Base of support • Figure 5.17 • Major effects on stability**Center of Gravity**• Point around which the mass and weight of an object are balanced in all directions! • Center of mass • Mass Centroid (Watch out the aliens are coming!) • COG for Objects • Figures 5.19, 5.20, & 5.21 • Borelli’s Reaction Board • Balance scale • Intersection of the 3 cardinal planes forms the COG**Equations of Equilibrium**• Static equilibrium • Motionless state • Sum of all vertical, horizontal, and torques equals 0! • Dynamic equilibrium • D’Alembert’s principle • Bodies in motion have a balance between inertia effects and all vertical, horizontal, and torque components! • Elevator example • Elevator going up (greater mass of individual on scale)**Rotary Stability Factors**• Increase the base of support • Line of gravity within base of support • Lower the center of gravity • Increase body mass • Extend base of support in direction of oncoming force • Move line of gravity toward an oncoming force**Rotary Stability Factors Combined**• Adding the factors together increase stability! • Leaning, widening, squatting, crouching, etc. • Spinning enhances stability in certain objects! • Ice skater, spiral football pass, discus, etc. • Minimal stability positions • Track start with leverage (starting block) • Running race on ice • Which start is more stable? • Traditional or upright stance
