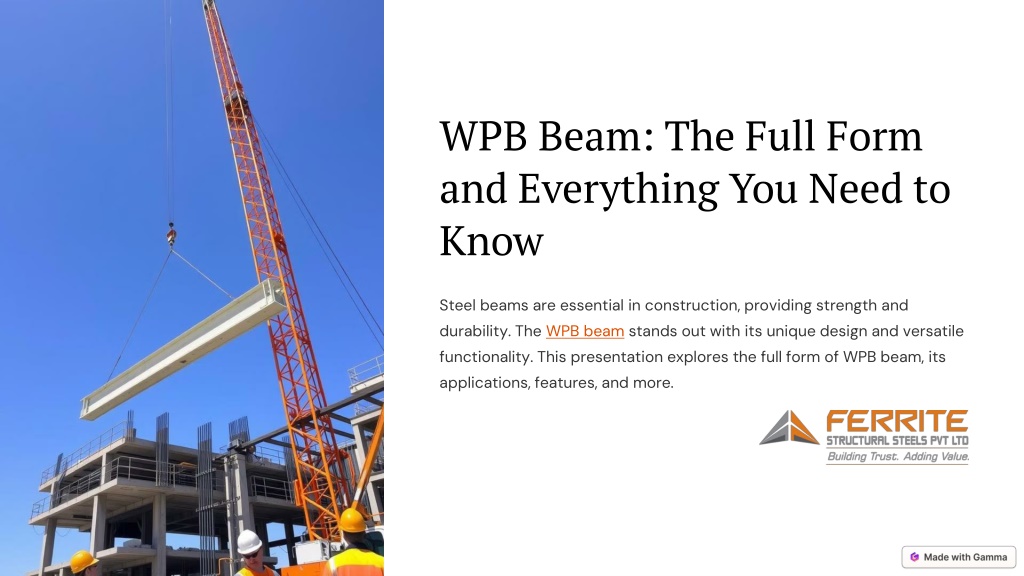

  1. WPB Beam: The Full Form and Everything You Need to Know Steel beams are essential in construction, providing strength and durability. The WPB beam stands out with its unique design and versatile functionality. This presentation explores the full form of WPB beam, its applications, features, and more.

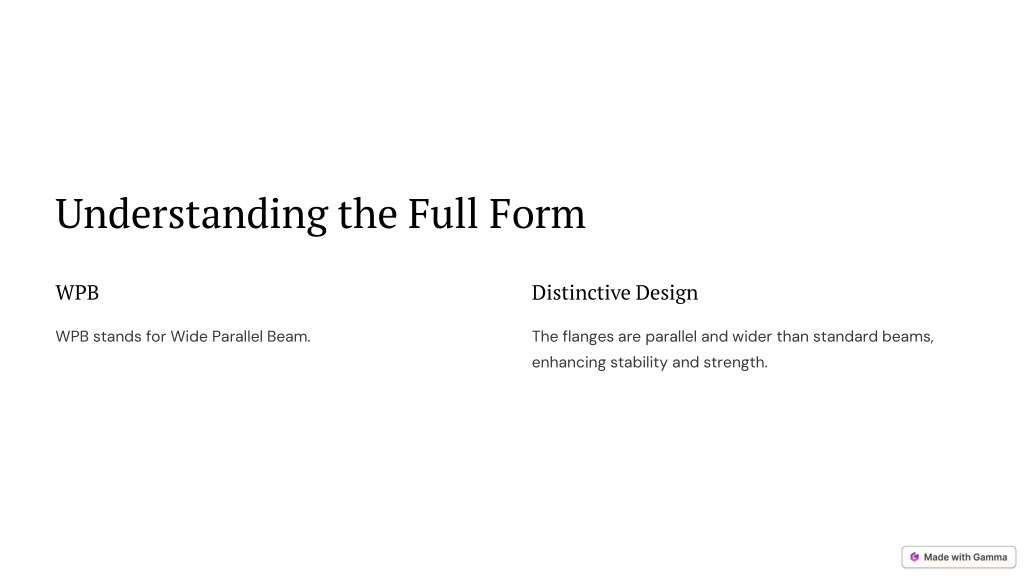

  2. Understanding the Full Form WPB Distinctive Design WPB stands for Wide Parallel Beam. The flanges are parallel and wider than standard beams, enhancing stability and strength.

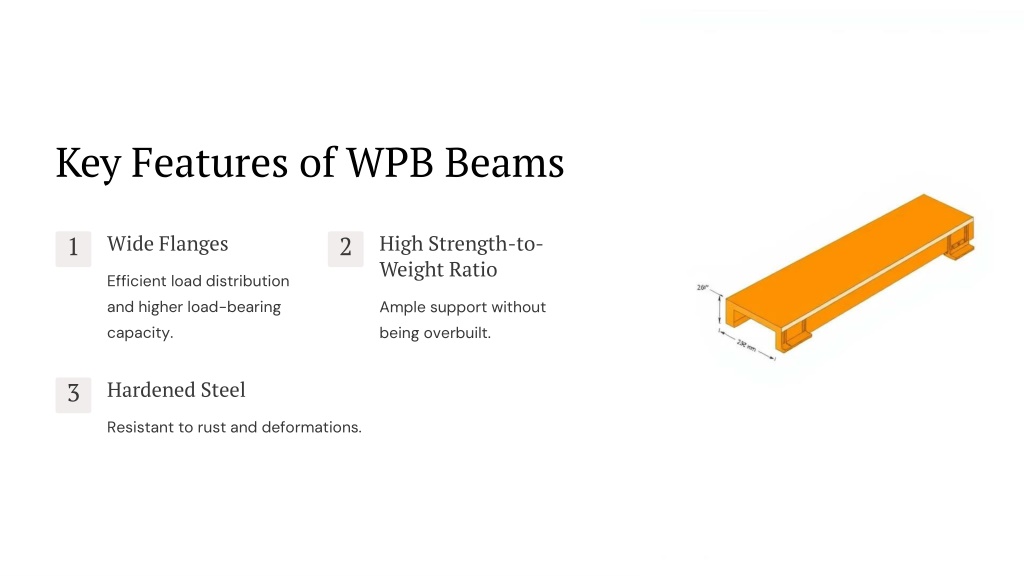

  3. Key Features of WPB Beams Wide Flanges High Strength-to-Weight Ratio 1 2 Efficient load distribution and higher load-bearing capacity. Ample support without being overbuilt. Hardened Steel 3 Resistant to rust and deformations.

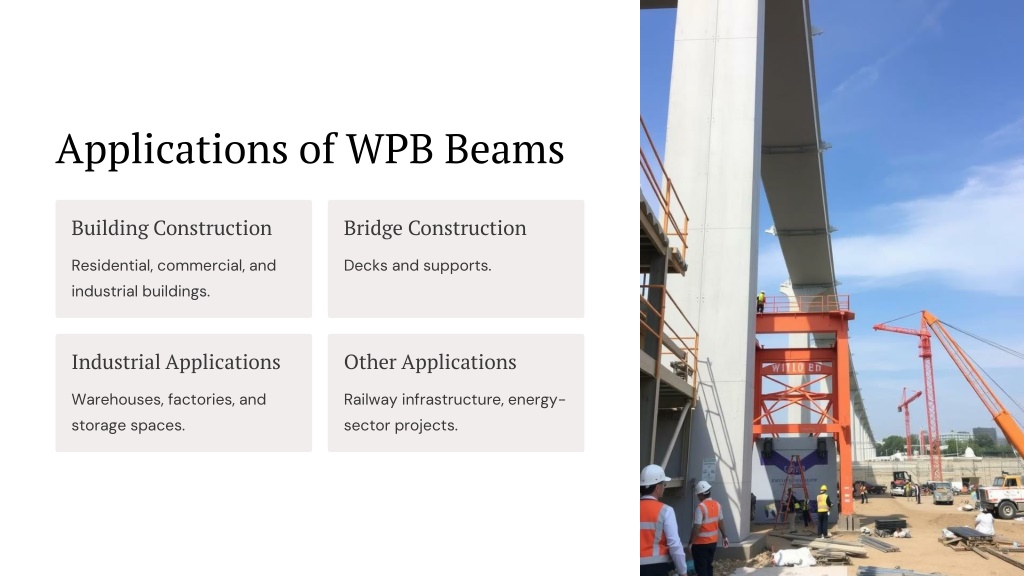

  4. Applications of WPB Beams Building Construction Bridge Construction Residential, commercial, and industrial buildings. Decks and supports. Industrial Applications Other Applications Warehouses, factories, and storage spaces. Railway infrastructure, energy-sector projects.

  5. WPB Beam Standards ASTM Standards EN Standards IS Standards Guidelines for composition and mechanical properties. Quality and performance criteria for use in the EU. Specifications for WPB beams in India.

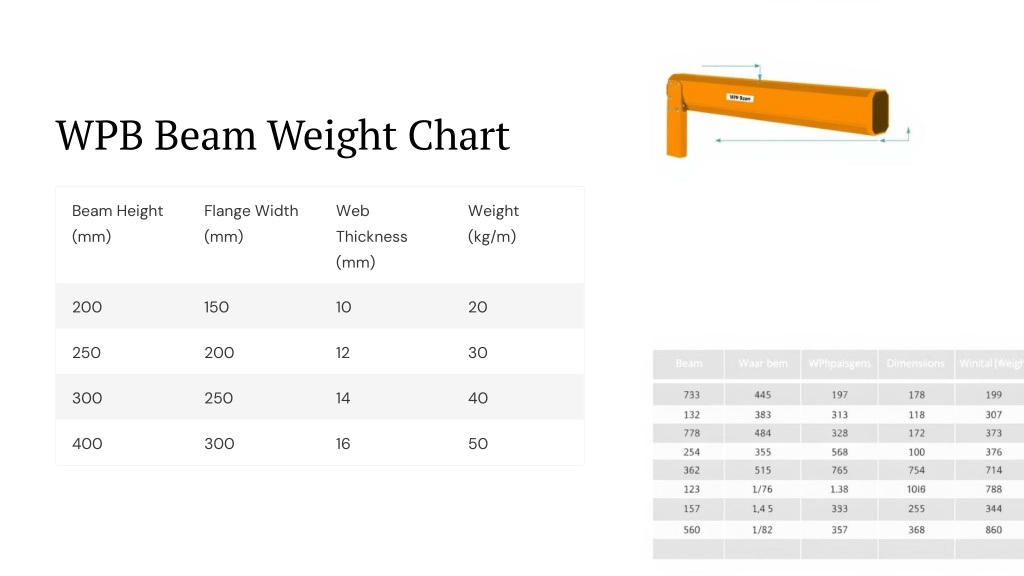

  6. WPB Beam Weight Chart Beam Height (mm) Flange Width (mm) Web Thickness (mm) Weight (kg/m) 200 150 10 20 250 200 12 30 300 250 14 40 400 300 16 50

  7. Choosing the Right WPB Beam Load-Bearing Needs 1 Determine the weight of the load and its type. Beam Measurements 2 Height, flange width, and web thickness. Steel Quality and Grade 3 Ensure durability and resistance to environmental factors. Ease of Installation 4 Compatibility with other structural components.

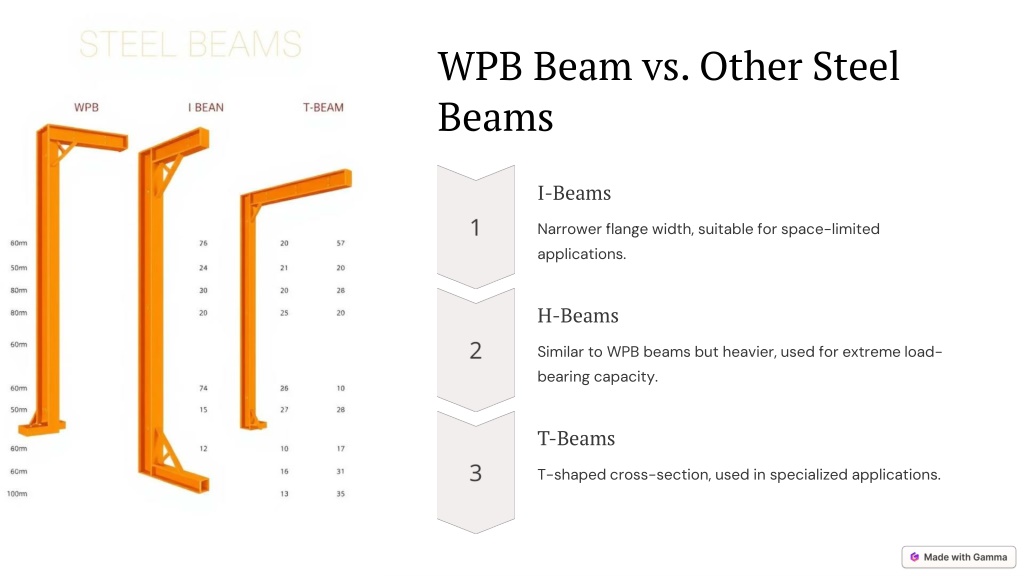

  8. WPB Beam vs. Other Steel Beams I-Beams Narrower flange width, suitable for space-limited applications. H-Beams Similar to WPB beams but heavier, used for extreme load-bearing capacity. T-Beams T-shaped cross-section, used in specialized applications.

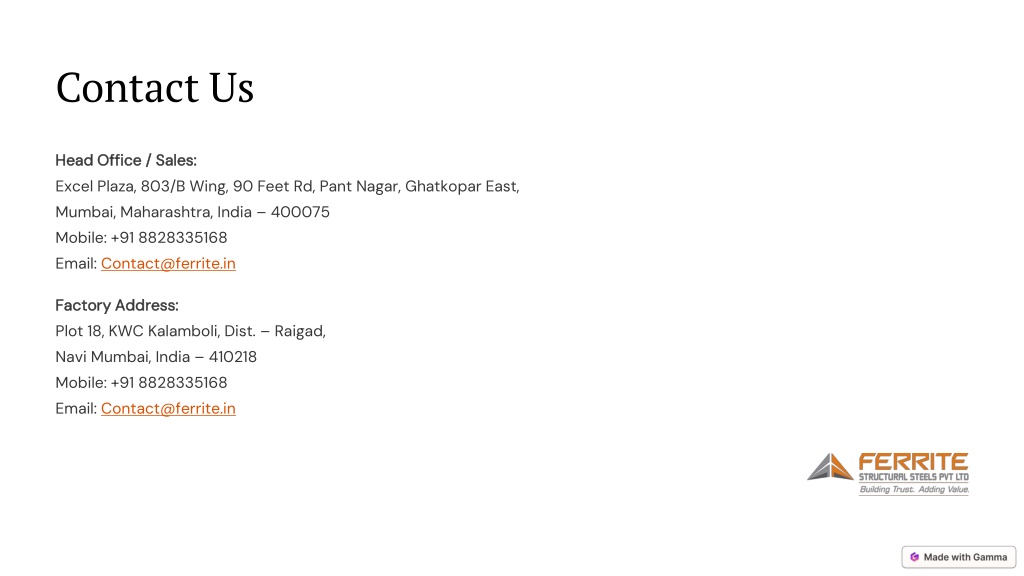

  9. Contact Us Head Office / Sales:Excel Plaza, 803/B Wing, 90 Feet Rd, Pant Nagar, Ghatkopar East,Mumbai, Maharashtra, India – 400075Mobile: +91 8828335168Email: Contact@ferrite.in Factory Address:Plot 18, KWC Kalamboli, Dist. – Raigad,Navi Mumbai, India – 410218Mobile: +91 8828335168Email: Contact@ferrite.in
