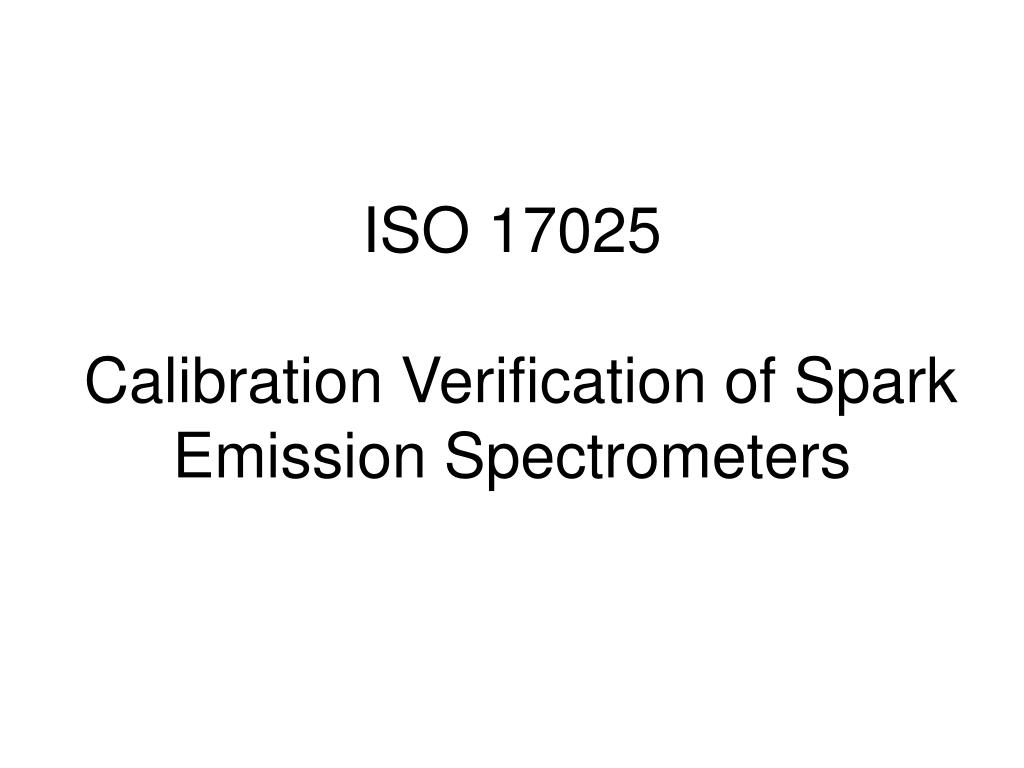

ISO 17025 Calibration Verification of Spark Emission Spectrometers

Loading in 2 Seconds...

play fullscreen
1 / 25

ISO 17025 Calibration Verification of Spark Emission Spectrometers - PowerPoint PPT Presentation


  • 264 Views
  • Uploaded on

ISO 17025 Calibration Verification of Spark Emission Spectrometers. Presented by Ken Suddaby Canalytical Instrumentation Services Inc. 1110 Heritage Road, Unit 7 Burlington, Ontario Canada L7L 4X9 Tel: 905 331 3386 Fax: 905 331 3388. Canalytical. Incorporated in 1997.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'ISO 17025 Calibration Verification of Spark Emission Spectrometers' - fergus


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

Presented byKen SuddabyCanalytical Instrumentation Services Inc.1110 Heritage Road, Unit 7Burlington, OntarioCanadaL7L 4X9 Tel: 905 331 3386Fax: 905 331 3388

canalytical
Canalytical
  • Incorporated in 1997.
  • Sales and service representative for several manufacturers whose products include Spark Emission, ICP and Mercury Analyzers.
  • Provider of 3rd party service on various spectrometer brands.
qs9000
QS9000
  • Calibration work for QS 9000 companies to be performed by:
    • the manufacturer’s direct representative.

OR

    • Accredited to ISO/IEC Guide 25 or ISO/IEC 17025
ts16949
TS16949

ISO/TS 16949 will require that all suppliers comply with ISO 17025 and that all independent test and calibration lab sub-contractors be accredited to the standard.

challenges to accreditation
Challenges to Accreditation
  • No Defined Standard to Certify compliance of Spark Emission performance.
  • ASTM only have recommended methods and practices. ie ASTM- E1009-95 Standard practice for Evaluating an Optical Emission Vacuum Spectrometer to Analyze Carbon and Low-Alloy Steel
  • Manufactures are not consistent with acceptance criteria.
requirements for iso17025
Requirements for ISO17025
  • Development of Quality Manual
  • Acceptance criteria of Spark emission spectrometers?
criteria of acceptance
Criteria of Acceptance

Precision

Accuracy

Test Uncertainty Ratio of 4:1 as Compared to Factory Specifications

measurement uncertainty
Measurement Uncertainty
  • Type B Evaluation of Standard Uncertainty
    • As per NIST Technical Note 1297
precision
Precision
  • CRM is Analyzed for 5 consecutive burns to obtain the Standard Deviation
  • Compared to the Instrument Manufacturers’ published precision data at the various levels of concentration.
determination of accuracy
Determination of Accuracy
  • Calculate the Standard Error (SE) from the Delta of the CRMs.

Compare this data to

  • The Calculated Standard Error (SE) of the CRMs from their Confidence level.
the report

The Report

Includes

cover letter
Cover Letter
  • Includes:
    • Definitions
    • Exceptions, trends with recommended plans of action
    • Formulas
definitions
Definitions
  • Standard Error (SE) or Standard Error of Estimate (SEE)
    • This is a measure of how well a calibration has been defined; Standard Error (SE) is used in this practice as an indicator of accuracy. It is CRM (Certified Reference Material) dependant and instrument operator dependant. ATSM E 1009
  • Precision (Repeatability)
    • The agreement among repeated measurements, usually expressed as repeatability or reproducibility. The precision is the Relative Standard Deviation (1 sigma).
  • Range
    • The analytical range of the calibration curve(s) of the particular element in the alloy tested. Represented in percent unless otherwise stated.
  • Content
    • The content of the sample, in percent, at which the comparison for precision was taken.
  • Alpha
    • The slope of the comparison between the analysis mean of the element and the Certified Value.
  • Delta
    • The difference between the actual certified value and the measured content.
  • Y-U
    • The measured content less the sum of the standard uncertainty and instrument confidence (U).
  • Y+U
    • The measured content plus the sum of the standard uncertainty and instrument confidence (U).
certificate requirements
Certificate Requirements
  • Name, Address, Instrument, SN.
  • Elements, Exceptions, Standards.
  • Environmental Conditions
  • Uncertainty of Measurement
  • Evidence of Traceability
customer summary
Customer Summary
  • A quick visual of each analytical line.
  • Provides the statistical data for each analytical line.
    • Includes: Standard Deviation of each CRM, Variance, 95% Confidence level, Measurement Uncertainty, Standard Error of the range tested.
    • Also provide the R2 Value and alpha.
  • ISO 17025 Certification
slide24
Identified trends

Improved customers accuracy

Identified hardware issues through precision
