rdb use at triumf isac
RDB Use at TRIUMF/ISAC

R. Keitel

Epics Collaboration Meeting, SLAC, 27-Apr-2005

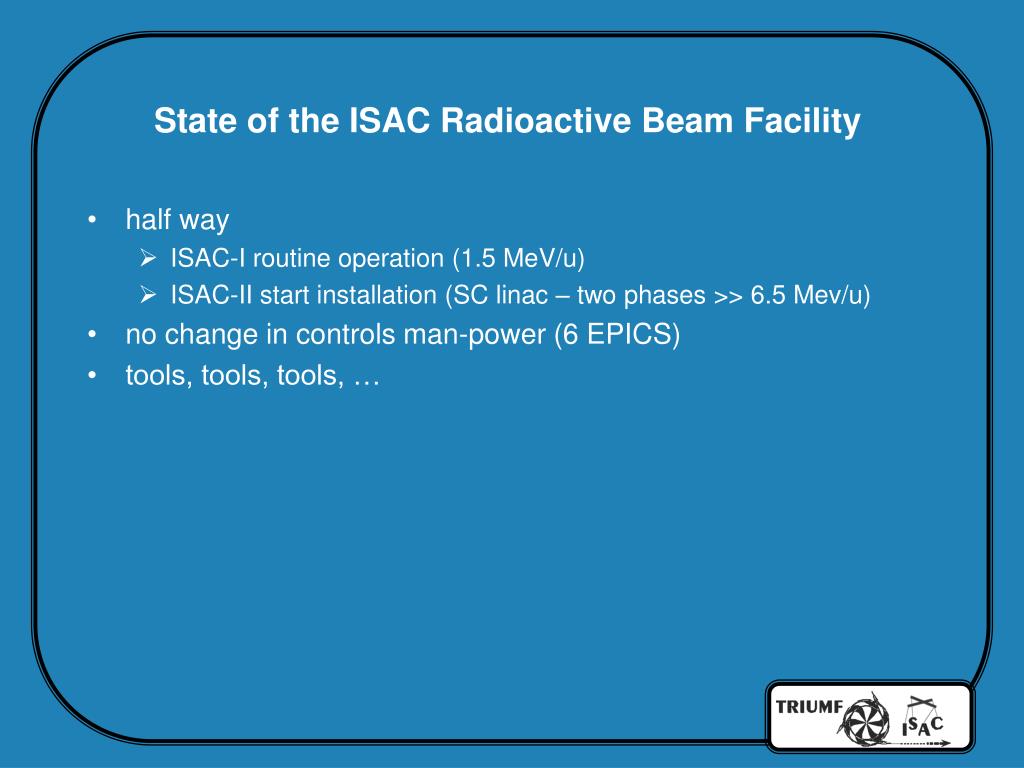

state of the isac radioactive beam facility
State of the ISAC Radioactive Beam Facility
  • half way
    • ISAC-I routine operation (1.5 MeV/u)
    • ISAC-II start installation (SC linac – two phases >> 6.5 Mev/u)
  • no change in controls man-power (6 EPICS)
  • tools, tools, tools, …
epics environment at isac
EPICS Environment at ISAC
  • EPICS 3.13.10
  • EPICS 3.14.7 (softIOC, gateway)
  • vxWorks 5.5 (MV162, 486-PC104, Pentium-VME)
  • Capfast
  • Edd/dm >>> Edm
  • Trar archiver
  • Striptool, alh, …
  • Perl
  • IOCs
    • 20 >>30 ( ISAC)
    • 10 (other systems)
  • 80k EPICS records

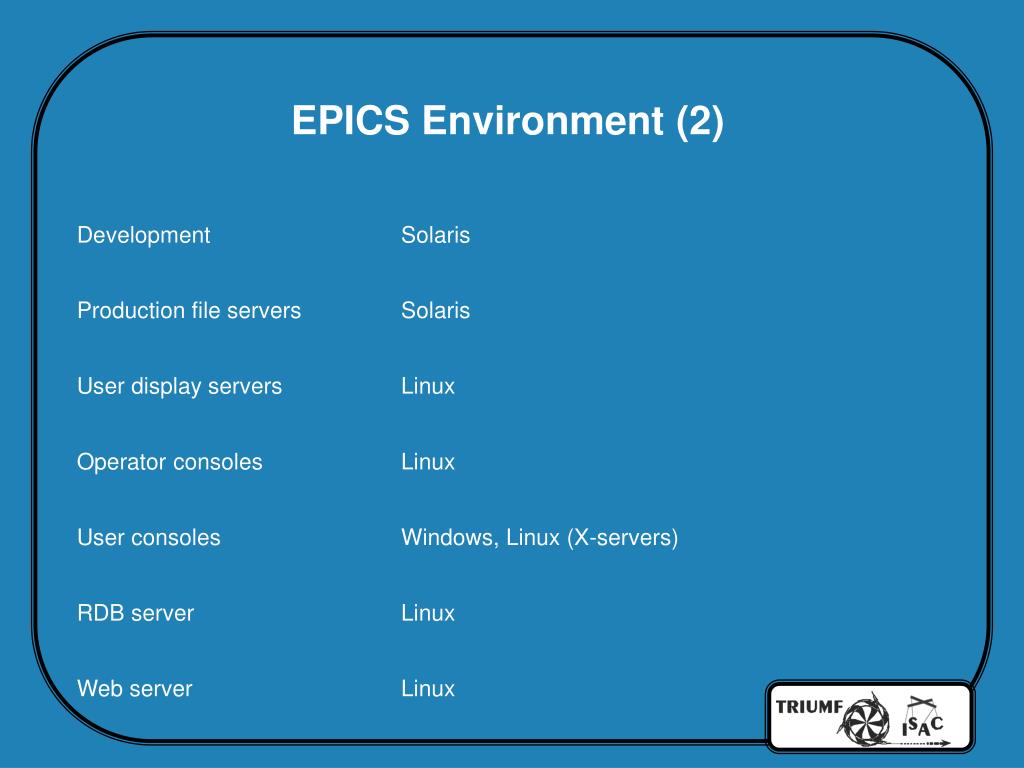

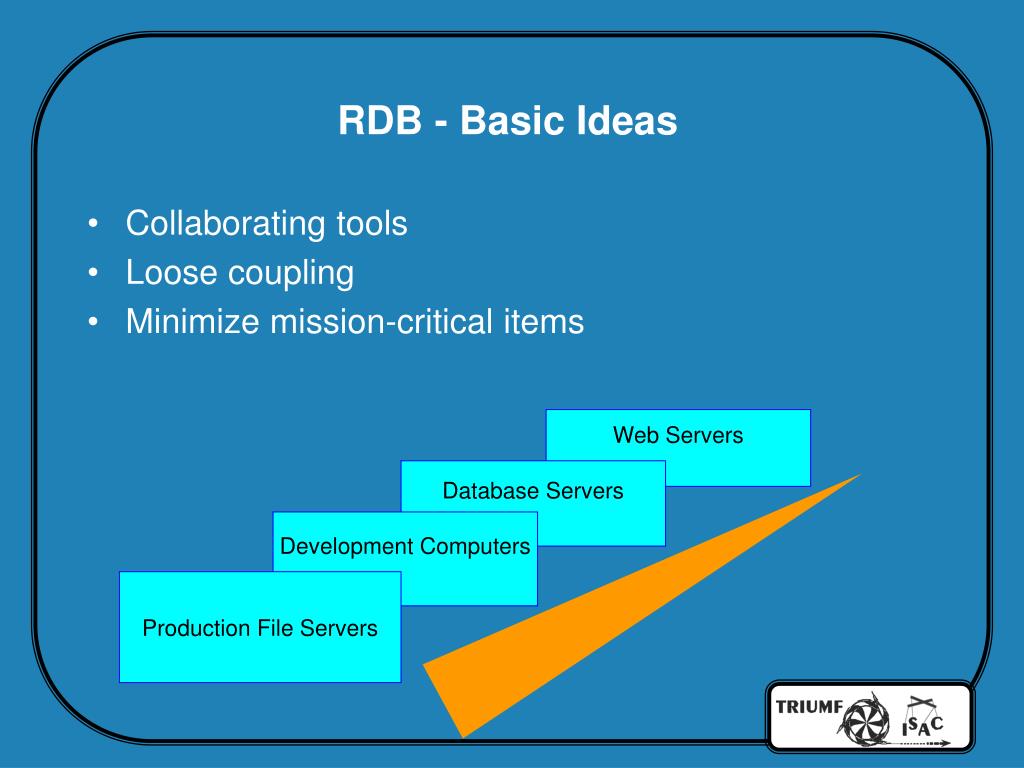

rdb basic ideas
RDB - Basic Ideas
  • Collaborating tools
  • Loose coupling
  • Minimize mission-critical items

Web Servers

Database Servers

Development Computers

Production File Servers

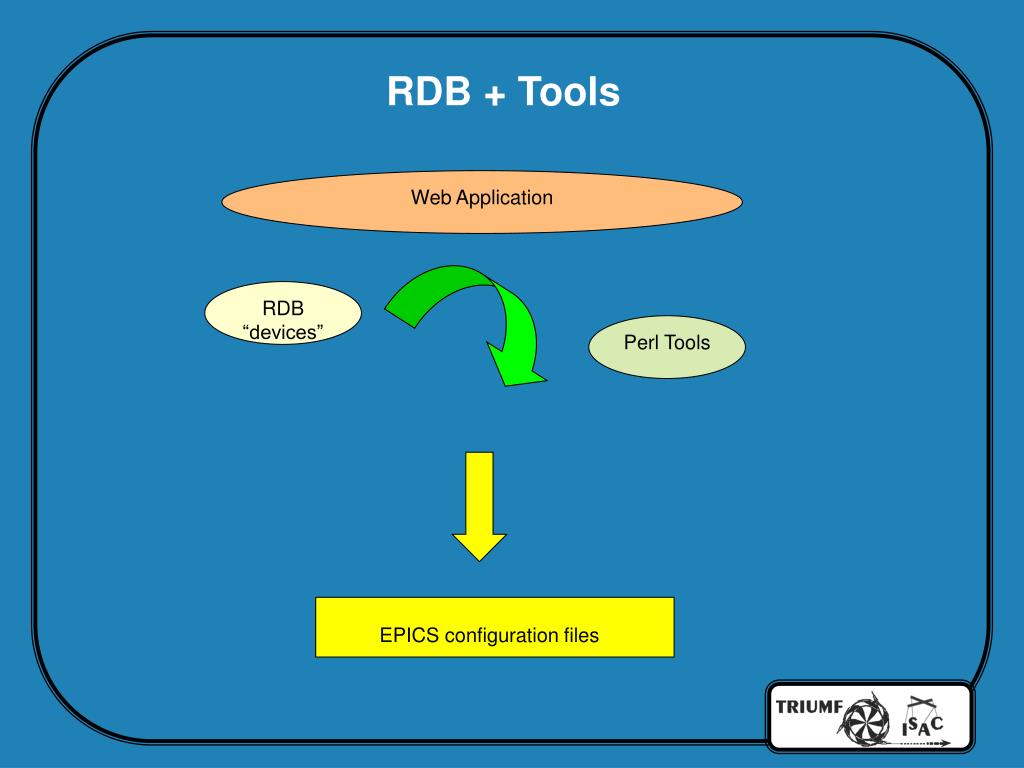

rdb tools
RDB + Tools

Web Application

RDB

“devices”

Perl Tools

EPICS configuration files

relational database postgresql
Relational Database (PostgreSQL)
  • Device classes
    • Capfast
    • I/O ports
    • Macros
  • Device instances
    • Hardware addresses
    • Macros
    • Interlocks
  • Hardware info
    • PLC drops
    • VME crates
  • IOC info
    • Boot area etc.

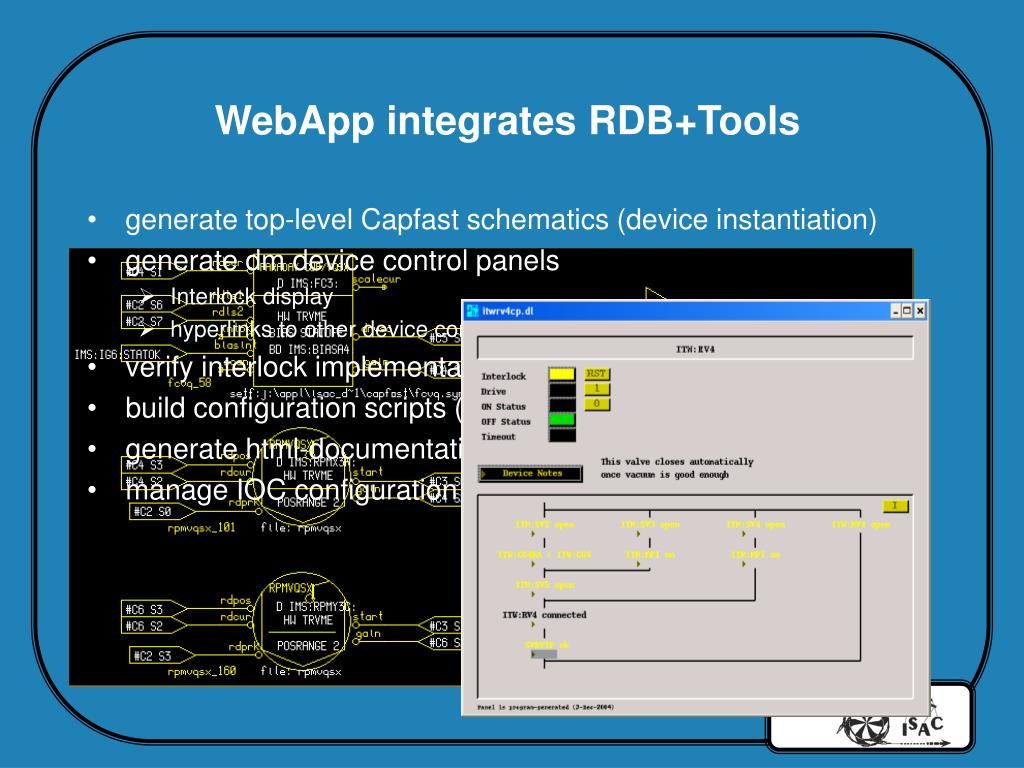

webapp integrates rdb tools
WebApp integrates RDB+Tools
  • generate top-level Capfast schematics (device instantiation)
  • generate dm device control panels
    • Interlock display
    • hyperlinks to other device control panels
  • verify interlock implementation against specification
  • build configuration scripts (CAN-bus, setpoint restore, ..)
  • generate html-documentation (VME channels)
  • manage IOC configuration and roll-back

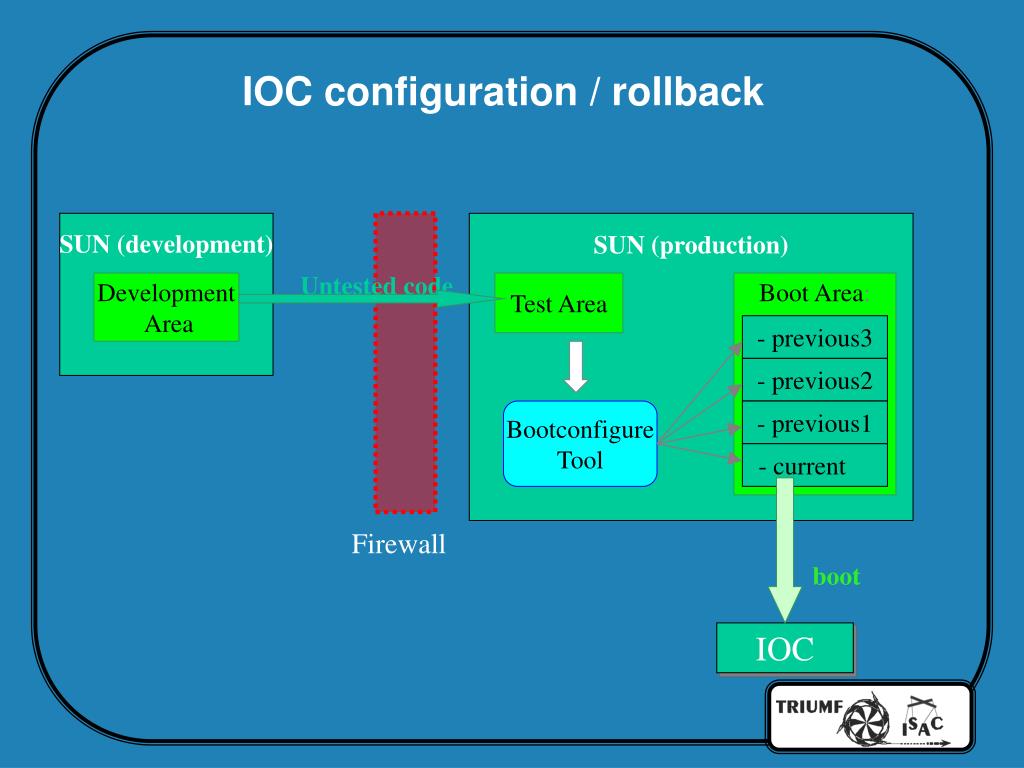

slide9

IOC configuration / rollback

SUN (development)

SUN (production)

Untested code

Development

Area

Test Area

Boot Area:

- previous3

- previous2

Bootconfigure

Tool

- previous1

- current

Firewall

boot

IOC

slide10

Bootconfigure Tool (Perl – integrated in WebApp)

SUN (production)

Boot Area:

update

boot area

roll back

- previous3

Test Area

3

1

- previous2

4

2

2

- previous1

3

1

Bootconfigure

Tool

4

- current

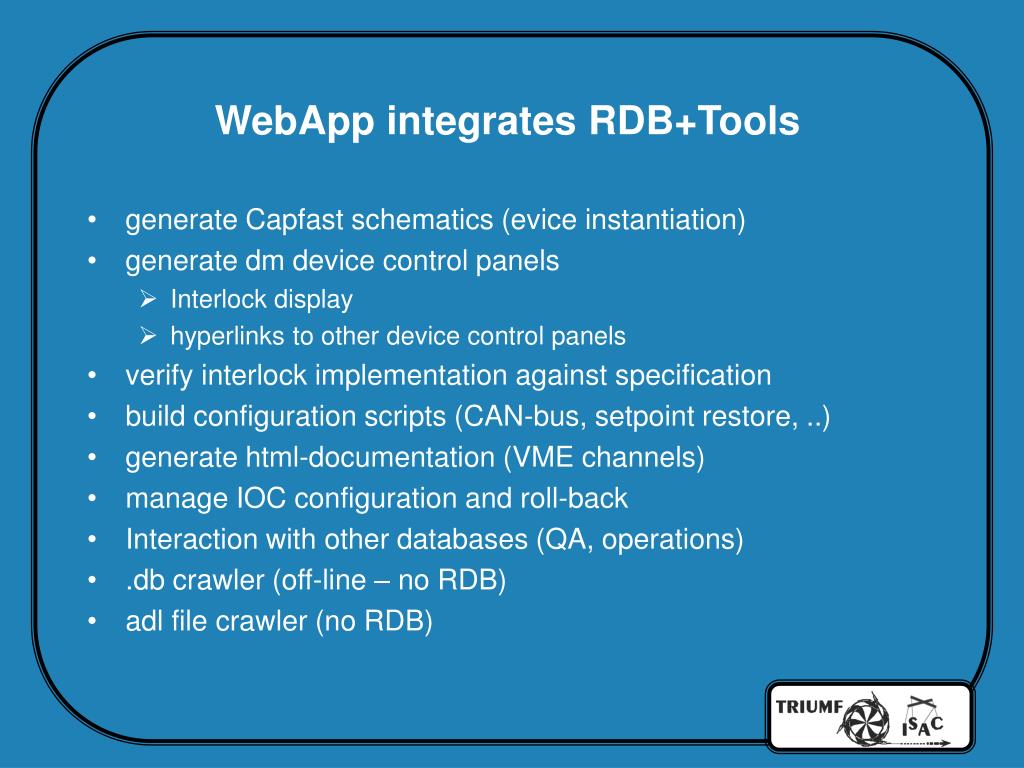

webapp integrates rdb tools1
generate Capfast schematics (evice instantiation)

generate dm device control panels

Interlock display

hyperlinks to other device control panels

verify interlock implementation against specification

build configuration scripts (CAN-bus, setpoint restore, ..)

generate html-documentation (VME channels)

manage IOC configuration and roll-back

Interaction with other databases (QA, operations)

.db crawler (off-line – no RDB)

adl file crawler (no RDB)

WebApp integrates RDB+Tools

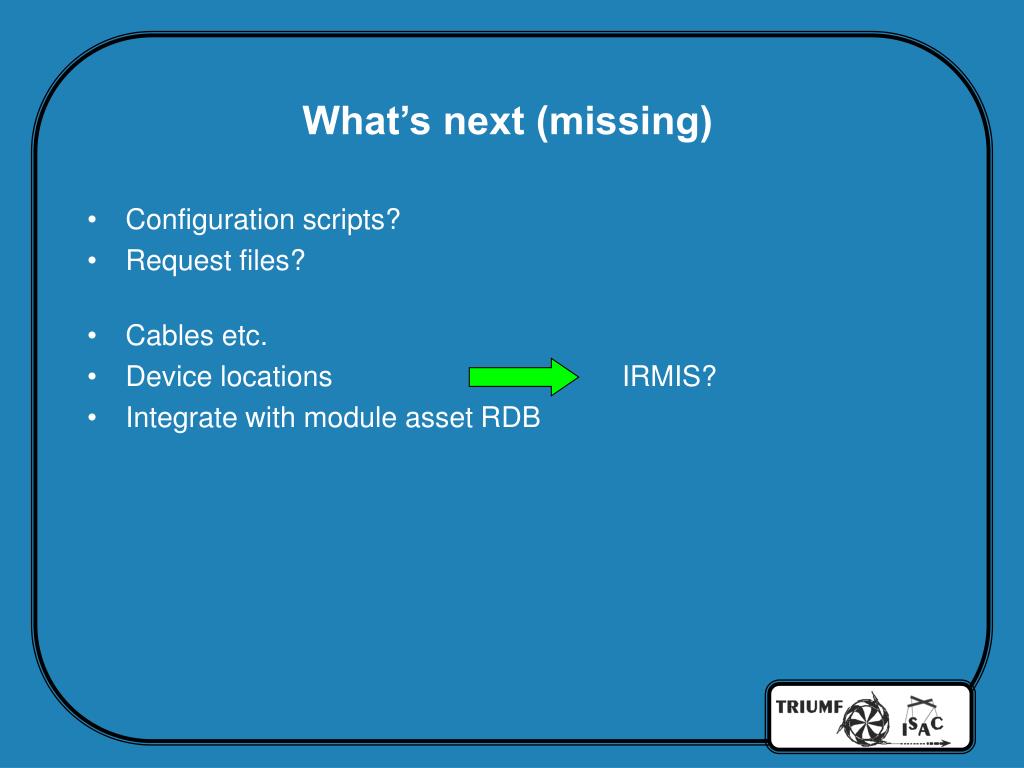

what s next missing
What’s next (missing)
  • Configuration scripts?
  • Request files?
  • Cables etc.
  • Device locations IRMIS?
  • Integrate with module asset RDB
