  1. Dynamic Maintenance of Molecular Surfaces under Conformational Changes Eran Eyal and Dan Halperin Tel-Aviv University

  2. Molecular Simulations Molecular simulations help to understand the structure (and function) of protein molecules • Monte Carlo Simulation (MCS) • Molecular Dynamics Simulation (MDS)

  3. Solvent Models • Explicit Solvent Models : using solvent molecules • Implicit Solvent Models : all the effects of the solvent molecules are included in an effective potential : W = Welec + Wnp Wnp = ΣiγiAi(X) Ai(X) – the area of atom i accessible to solvent for a given conformation X

  4. Molecular Surfaces • van der Waals surface • Solvent Accessible surface • Smooth molecular surface (solvent excluded) Taken from http://www.netsci.org/Science/Compchem/feature14.html (Connolly)

  5. Related Work • Lee and Richards, 1971 – Solvent accessible surface • Richards, 1977 – Smooth molecular surface • Connolly, 1983 – First computation of smooth molecular surface • Edelsbrunner, 1995 – Computing the molecular surface using Alpha Shapes • Sanner and Olson, 1997 – Dynamic reconstruction of the molecular surface when a small number of atoms move • Edelsbrunner et al, 2001 – algorithm to maintain an approximating triangulation of a deforming 3D surface • Bajaj et al, 2003 – dynamically maintain molecular surfaces as the solvent radius changes

  6. Our Results • a fast method to maintain a highly accurate surface area of a molecule dynamically during conformation changes • robust while using floating point • efficiently accounting for topological changes : theory and practice

  7. Initial Construction of the Surface • Finding all pairs of intersecting atoms • Construction of spherical arrangements • Controlled Perturbation • Combining the spherical arrangements • Constructing the boundary and calculating its surface area

  8. Finding the Intersecting Atoms Using a grid based solution introduced by Halperin and Overmars : Theorem : Given S = {S1,…,Sn} spheres with radii r1,…,rnsuch that • rmax/rmin < c for some constant c • There’s a constant ρ such that for each sphere Si, the concentric sphere with radii ρri does not contain the center of any other sphere Then : (1) The maximum number of spheres that intersect any given sphere in S is bounded by a constant (2) The maximum complexity of the boundary of the union of the spheres is O(n)

  9. The Grid Algorithm • Subdivide space into cubes 2xrmax long • For each sphere compute the cubes it intersects (up to 8 cubes) • For each sphere check intersection with the spheres located in its cubes • Constructed in O(n) time with O(n) space • Finding all pairs of intersecting spheres takes O(n) time

  10. Construction of Spherical Arrangements Full trapezoidal decomposition Spherical Arrangement Partial trapezoidal decomposition

  11. Controlled Perturbation • A method of robust computation while using floating point arithmetic • Handles two types of degeneracies : • Type I : intrinsic degeneracies of the spherical arrangement • Type II : degeneracies induced by the trapezoidal decomposition

  12. Type I Degeneracies We wish to ensure the following conditions : 1. No Inner or outer tangency of two atoms 2. No three atoms intersecting in a single point 3. No four atoms intersecting in a common point We achieve these conditions by randomly perturbing the center of each atom that induces a degeneracy by at most δ (the perturbation parameter). δ is a function of ε (the resolution parameter), m (the maximum number of atoms that intersect any given atom) and R (the maximum atom radius) δ = 2m ε1/3R2/3 - ensures elimination of all Type I degeneracies in expected O(n) time

  13. Type II Degeneracies • Happens when two arcs added by the trapezoidal decomposition are too close (the angle between them is less than a certain ω threshold) • These degeneracies are prevented by randomly choosing a direction for the north pole of an atom that induces no degeneracies • sin ω < 1/(2m(m-1)) – ensures finding a good pole direction in expected O(n) time

  14. Combining the Spherical Arrangements • For each atom, the arc of each intersection circle points to the same arc on the intersection circle of the second atom. • Now we have a subset of the arrangement of the spheres (contains all features of the arrangement except the 3 dimensional cells)

  15. Building the Boundary of the Molecule • Start with the lowest region (2D face) of the bottommost atom • Traverse the outer boundary of the 3D arrangements : Whenever an arc of an intersection circle is reached, we jump to the opposite region on the other atom that shares this arc • During the traversal, the area of each encountered region is calculated, and summed up

  16. Finding the voids • Find for each atom the exposed regions (regions not covered by other atoms) • Find the difference between the set of exposed regions on all atoms and the outer boundary • Traverse the difference to construct the boundary of the voids

  17. Screenshot

  18. Dynamic Maintenance of the Surface • We wish to maintain the boundary of the protein molecule and its area as the molecule undergoes conformational changes • The grid algorithm requires reconstruction from scratch of the entire structure on each step, which is slow for large molecules (even though it is asymptotically optimal in the worst case), O(n) time where n is the number of atoms

  19. The Problem • We perform a simulation where each time several DOFs of the backbone change (Φ and Ψ angles) • A simulation step is accepted when it causes no self collisions • After a step is accepted, we wish to quickly update the boundary of the molecule and its surface area

  20. A Step of the Simulation • Perform a k-DOF change • Check if the change incurs self collisions • If not : • Find all the pairs of intersecting atoms affected by the change • Modify the spherical arrangements • Modify the boundary of the molecule and its surface area : account for topological changes

  21. Attaching Frames to the Backbone The backbone of a protein with the reference frames of each link For each atom center we calculate its coordinates within its frame

  22. Detecting Self Collision • We use the ChainTree introduced by Lotan et al Courtesy of Itay Lotan

  23. ChainTree Performance • Update Algorithm – Modifies the ChainTree after a k-DOF change in O(klog(n/k)) time • Testing Algorithm – Finds self collision in O(n4/3) time

  24. Finding intersecting atom pairs • After a DOF change is accepted, we use the ChainTree to find all the pairs of intersecting atoms affected by the change: • Deleted pairs • Inserted pairs • Updated pairs

  25. The IntersectionsTree • A tree used for efficient retrieval of modified intersections • Updated in a similar way to the testing algorithm of the ChainTree • Worst case running time : O(n4/3) (in practice very efficient)

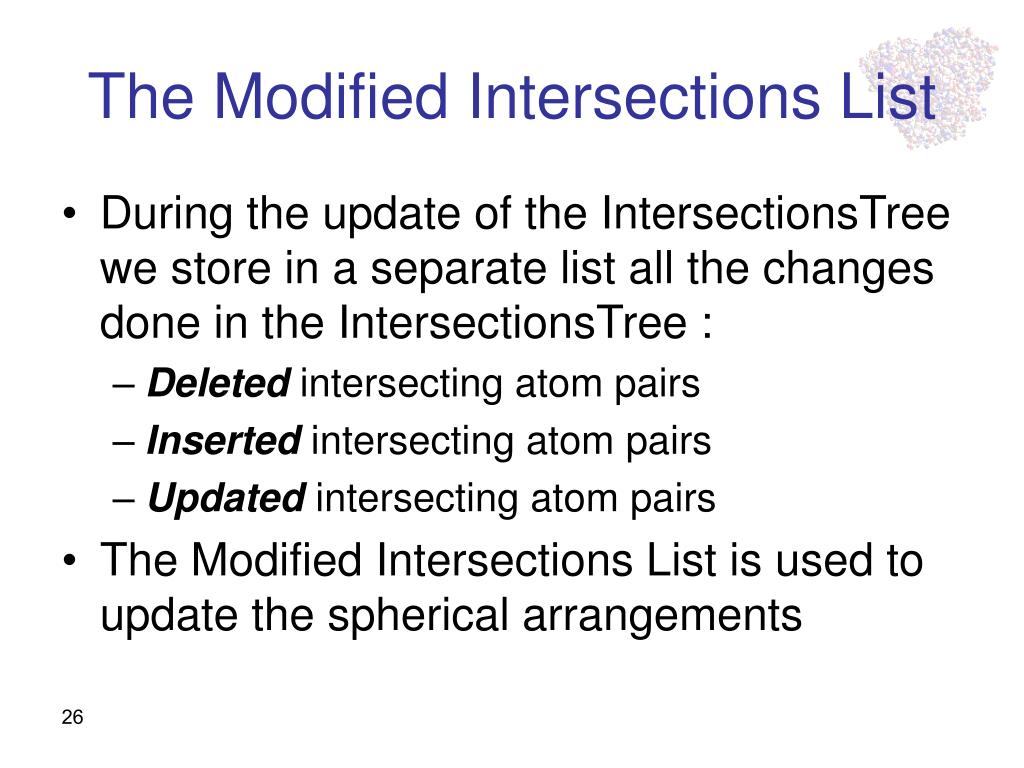

  26. The Modified Intersections List • During the update of the IntersectionsTree we store in a separate list all the changes done in the IntersectionsTree : • Deleted intersecting atom pairs • Inserted intersecting atom pairs • Updated intersecting atom pairs • The Modified Intersections List is used to update the spherical arrangements

  27. Updating the Spherical Arrangements • For each pair of inserted intersecting atoms – add their intersection circle to the spherical arrangements of both atoms • For each pair of updated intersecting atoms – remove their old intersection circle from the two spherical arrangements and add their new intersection circle • For each pair of deleted intersecting atoms – remove their old intersection circle from the two spherical arrangements The Cost : O(p), where p is the number of atoms whose spherical arrangements were modified

  28. Example Backbone of 4PTI - A single 180o DOF change of the Ψ angle of the 13th amino acid Affected atoms : 14 out of 454 (p out of n) Modified intersection circles : 13

  29. Example - Continued (Hemi)spherical arrangement of one of the affected atoms (the N atom of the 14th amino acid) of 4PTI before (left) and after (right) the mentioned DOF change

  30. Dynamic Controlled Perturbation Goals : • Perturb as few atoms as possible • For efficiency • To reduce errors • Avoid cascading errors caused by • Perturbing an atom several times in different simulation steps • Changing a torsion angle several times

  31. Type I Degeneracies • Extend the Modified Intersections List to include also pairs of atoms that almost intersect • Check all atoms in the Modified Intersections List that belong to inserted and updated pairs and the atoms that belong to near intersecting pairs • Each of these atoms is checked against the atoms that intersect it or almost intersect it • The center of an atom that causes a degeneracy is perturbed within a sphere or radius δ around the original center of the atom within its reference frame • The spherical arrangement of a perturbed atom must be re-computed from scratch

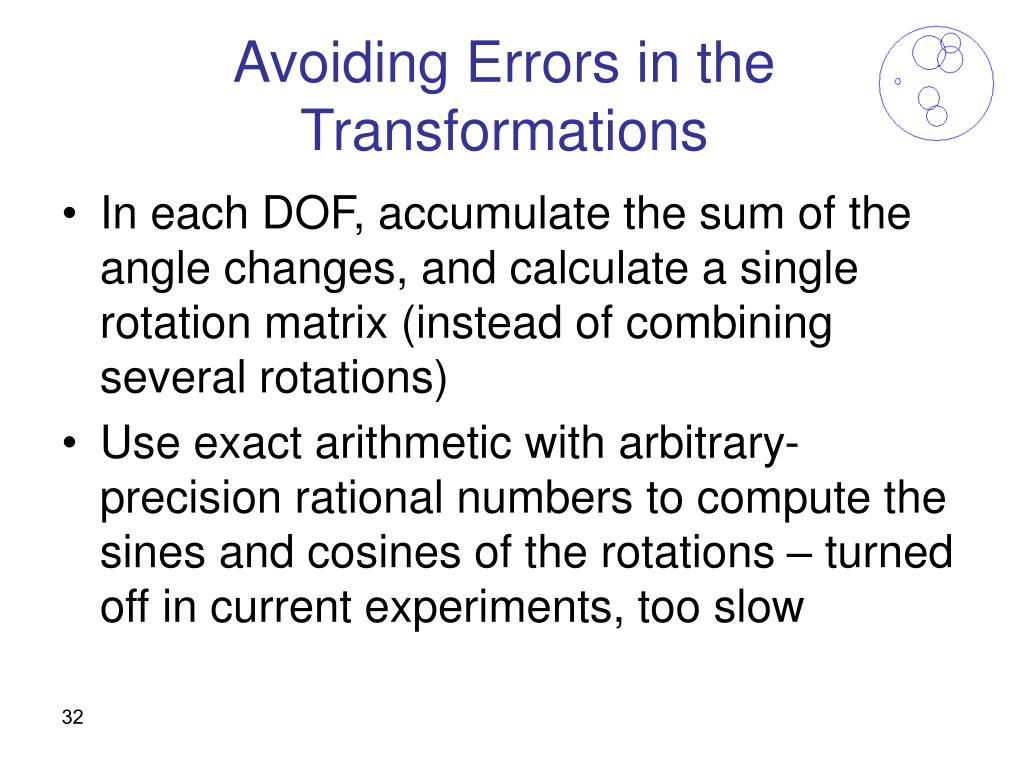

  32. Avoiding Errors in the Transformations • In each DOF, accumulate the sum of the angle changes, and calculate a single rotation matrix (instead of combining several rotations) • Use exact arithmetic with arbitrary-precision rational numbers to compute the sines and cosines of the rotations – turned off in current experiments, too slow

  33. Type II Degeneracies • The same set of atoms is tested • For perturbed atoms we re-calculate their spherical arrangements from scratch

  34. Running Time • The expected update time of the spherical arrangements including the perturbation time is O(p)

  35. Modify the Boundary and Surface Area Naïve method : • The same method used for the initial construction – traverse the outer boundary, and then traverse the voids • Some savings : • No need to recalculate the surface area of regions that weren’t updated • No need to recalculate the exposed regions of atoms that weren’t updated The Cost : O(n)

  36. Dynamic Graph Connectivity • We use a Dynamic Graph Connectivity algorithm introduced by Holm, De Lichtenberg & Thorup (2001) • We define the boundary graph : • Each exposed region of the spherical arrangements is a vertex of the graph • Two vertices of the graph are connected by an edge if their respective regions are adjacent on the boundary of the molecule • A connected component of the graph corresponds to a connected component of the boundary of the molecule (outer boundary or voids)

  37. Boundary Graph Illustration

  38. Updating the Boundary Graph • After the spherical arrangements are modified (in an accepted DOF change) : • Remove all the vertices corresponding to modified or deleted regions (with their incident edges) • Add new vertices corresponding to modified or new regions • Add new edges connecting the new vertices to each other and to the rest of the graph

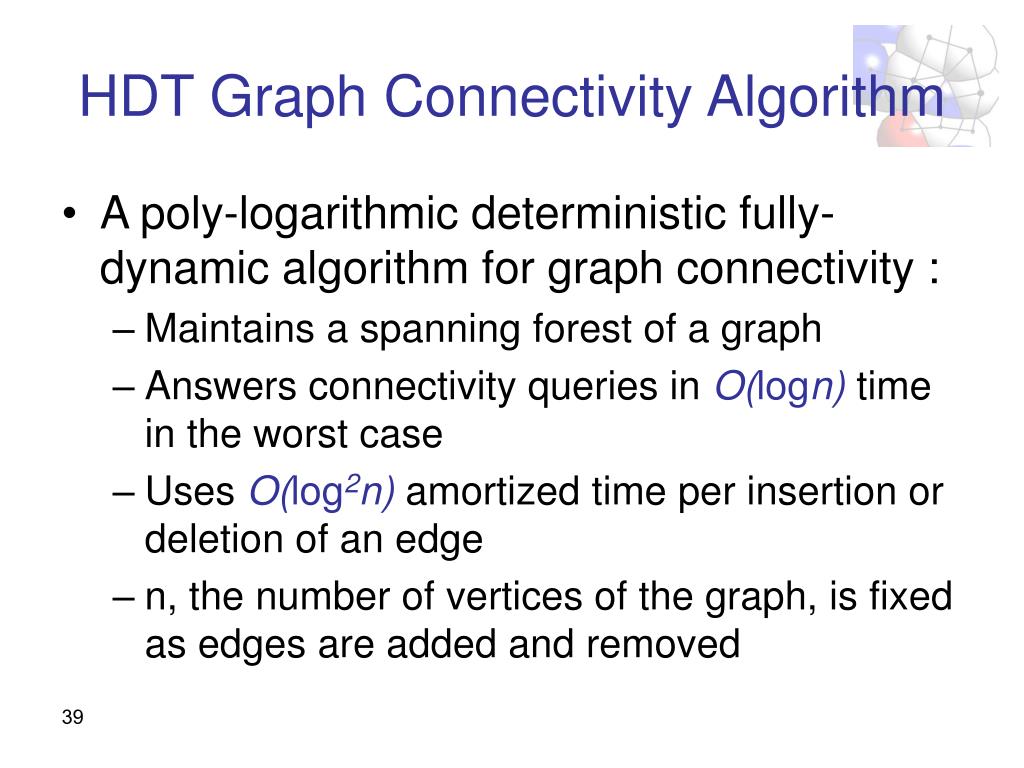

  39. HDT Graph Connectivity Algorithm • A poly-logarithmic deterministic fully-dynamic algorithm for graph connectivity : • Maintains a spanning forest of a graph • Answers connectivity queries in O(logn) time in the worst case • Uses O(log2n) amortized time per insertion or deletion of an edge • n, the number of vertices of the graph, is fixed as edges are added and removed

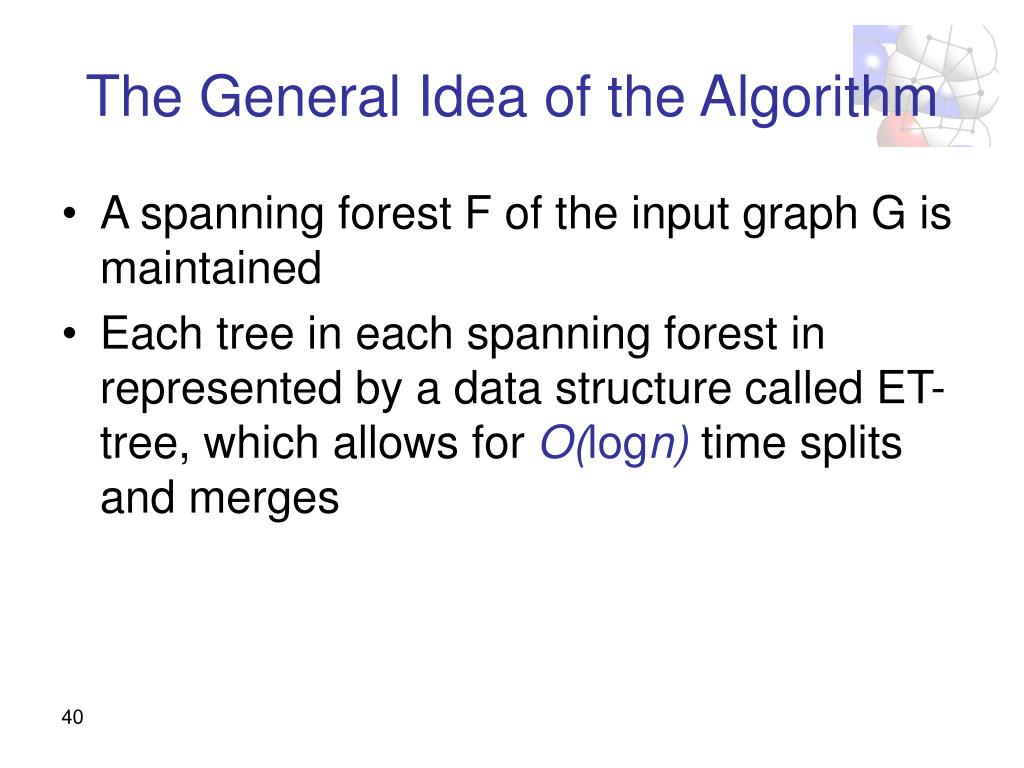

  40. The General Idea of the Algorithm • A spanning forest F of the input graph G is maintained • Each tree in each spanning forest in represented by a data structure called ET-tree, which allows for O(logn) time splits and merges

  41. ET-tree A Spanning Tree Euler Tour ET-Tree

  42. ET-tree properties • Merging two ET-trees or splitting an ET-tree can takes O(logn) time while maintaining the balance of the trees • Each vertex of the original tree may appear several times in the ET-tree. One occurrence is chosen arbitrarily as representative • Each internal node of the ET-tree represents all the representative leaves on its sub-tree, and may hold data that represent these leaves

  43. Spanning Forests Hierarchy • The edges of the graph are split into lmax=log2n levels • A hierarchy F=F0  F1 …  Flmaxof spanning forests is maintained where Fiis the sub forest of F induced by the edges of level  I • Invariants : • If (v,w) is a non-tree edge, v and w are connected in Fl(v,w) • The maximal number of nodes in a tree (component) of Fi is n/2i

  44. Updating the Graph • Insert an edge – added to level 0. If it connects two components, it becomes a tree edge (the components are merged) • Remove a non-tree edge – trivial • Remove a tree edge - more difficult. We must search for an edge that replaces the removed edge on the relevant spanning tree

  45. Removing a Tree Edge • The removal of a tree edge e=(v,w) splits its tree to Tv and Tw (Tv is the smaller one) • The replacement edge can be found only on levels  l(e) • On each level  l(e) (starting with l(e)) : • Promote the edges of Tv to the next level • Each non-tree edge incident to vertices of Tv is tested • If it reconnects the split component, we are done • If not, we promote it to the next level

  46. Amortization Argument • The amortization argument of the algorithm is based on increasing the levels of the edges (each level can be increased at most lmaxtimes)

  47. Illustration of the Algorithm

  48. Our Extensions • We allow vertices of the graph to be inserted and removed. This has no effect on the amortized running time, because throughout the simulation the number of vertices remains O(n) • In each representative occurrence of each ET-tree we store the area of the relevant region • Each internal node of each ET-tree holds the sum of the areas of the representative leaves in its sub-tree • Maintaining the area information takes O(logn) time per split or merge of the ET-trees

  49. ET-tree with Areas

  50. The Running Time • Maintaining the area information for the spanning forest F takes O(log2n) amortized time for each insertion or deletion of an edge • Finding the connected component of a given region of the boundary takes O(logn) time • The amortized cost of recalculating the surface area of the outer boundary and voids of the molecule is O(plog2n) • The cost of computing the contribution of a given atom to the boundary and all the voids is O(logn)
