Spout Pouch Filling Machine

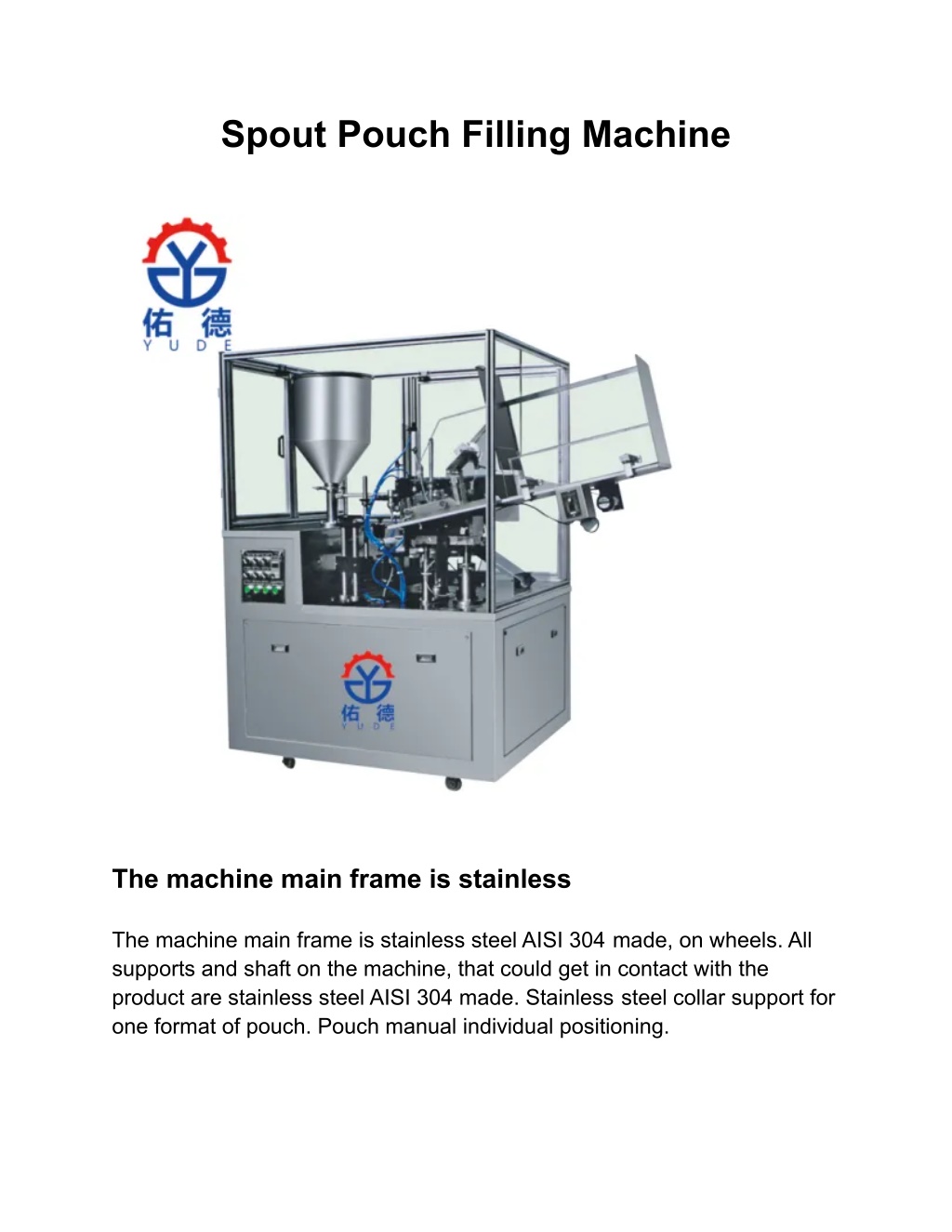

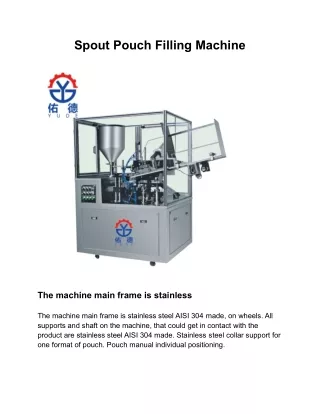

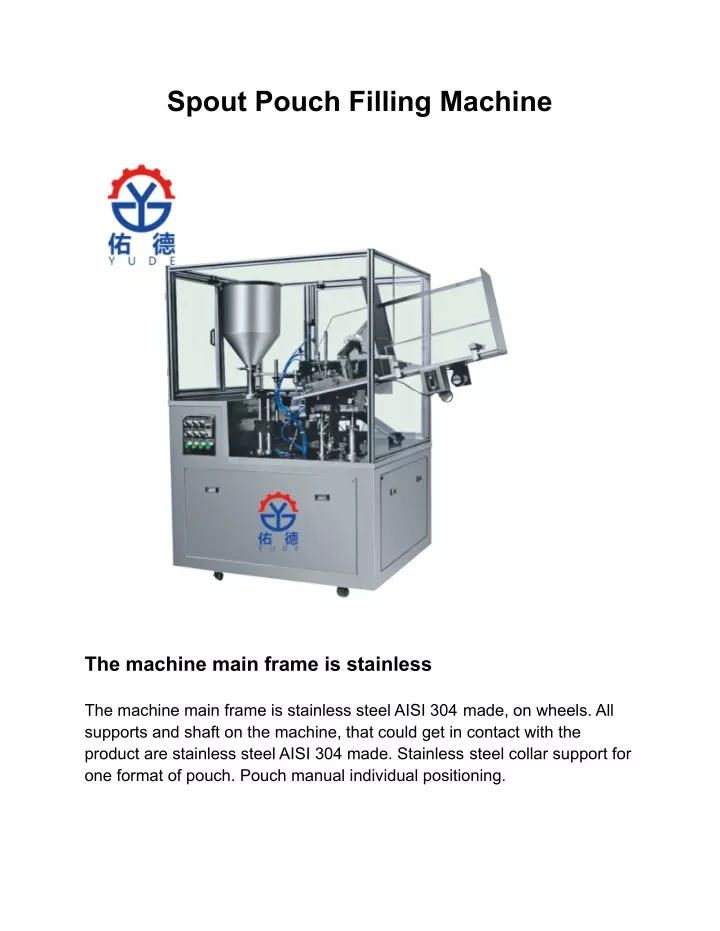

1. Spout Pouch Filling Machine The machine main frame is stainless The machine main frame is stainless steel AISI 304 made, on wheels. All supports and shaft on the machine, that could get in contact with the product are stainless steel AISI 304 made. Stainless steel collar support for one format of pouch. Pouch manual individual positioning.

2. The operator puts the pouch on the collar. The volumetric filler determines the volume of product by a hand-wheel regulation. Suction and filling speed are both adjustable in compliance with the requirements. By manually moving a lever, the filling valve goes in working position; the operator starts the filling cycle by pressing a button. At the end of the filling cycle, the machine can inject nitrogen in the pouch hollow space for increasing the product shelf life and helping preservation. The nitrogen injection time and flow are both adjustable through a delay and a pressure regulator. Successively, the operator puts the cap on the spout and moves the closing head in capping position, through the lever system. The cap tightening is performed by pressing the start button. The cap torque application is adjustable. Fenbo Packaging is the leading flexible packaging manufacturers and suppliers from Shantou in China,supplying various of flexible packaging products to our valued customer.it is mainly included spout pouches,stand up pouches and etc,as well as the kitted packing machine. Our experience and flexible business model ensure optimum flexible packaging solutions for our customer.We work closely with our clients through every step in the process to ensure high quality and great efficiency. As the name suggests,spout pouch filling machine is a kind of filling equipment dedicated to the spout pouch with cap,or,to be simply understood it as a spout pouch filling and capping machine,that is filled thru the spout. Throughout its development history,in a sense,this kind of spout pouch machine is the derivatives of the spout pouch and evolving along with its development,in terms of filling speed and stability of machine,it is relatively

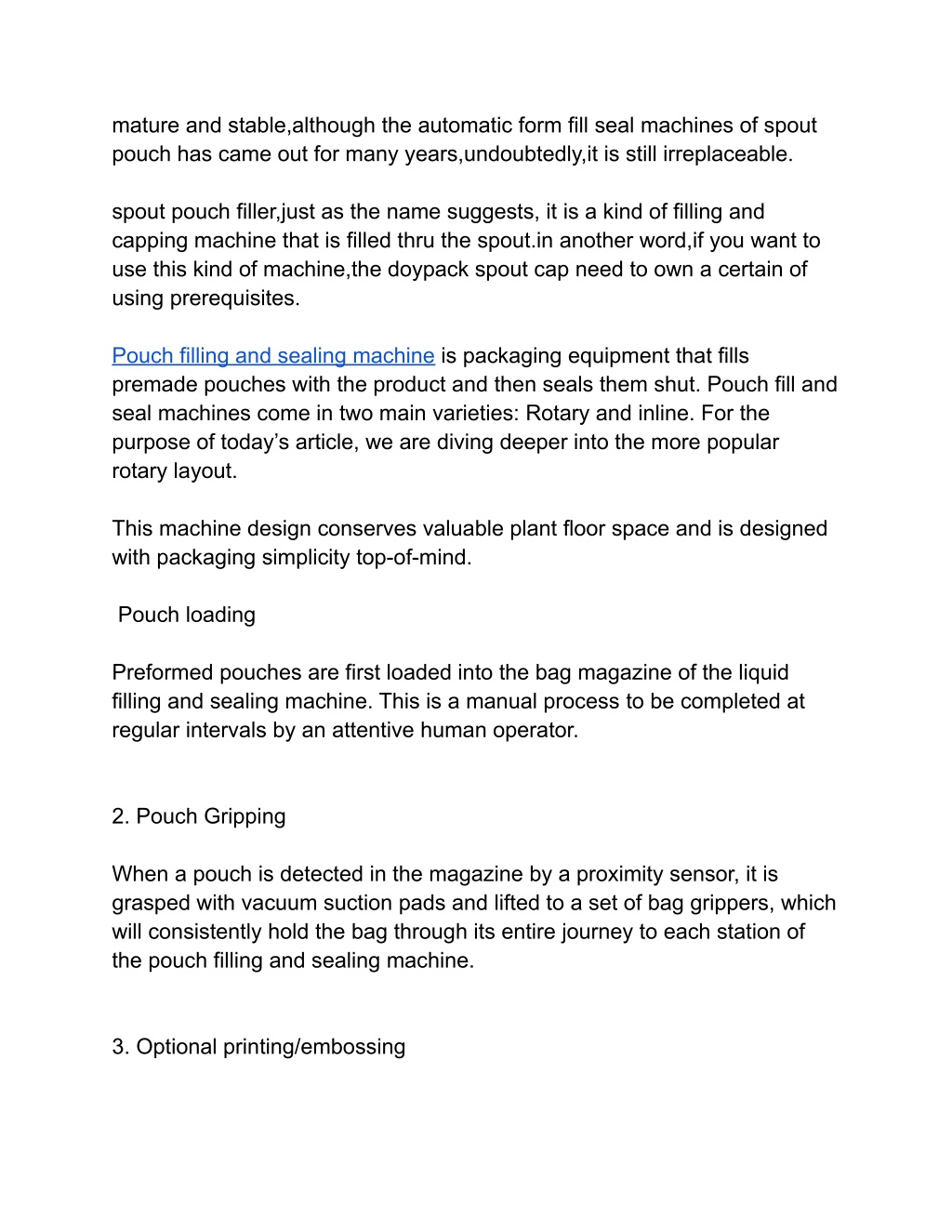

3. mature and stable,although the automatic form fill seal machines of spout pouch has came out for many years,undoubtedly,it is still irreplaceable. spout pouch filler,just as the name suggests, it is a kind of filling and capping machine that is filled thru the spout.in another word,if you want to use this kind of machine,the doypack spout cap need to own a certain of using prerequisites. Pouch filling and sealing machine is packaging equipment that fills premade pouches with the product and then seals them shut. Pouch fill and seal machines come in two main varieties: Rotary and inline. For the purpose of today’s article, we are diving deeper into the more popular rotary layout. This machine design conserves valuable plant floor space and is designed with packaging simplicity top-of-mind. Pouch loading Preformed pouches are first loaded into the bag magazine of the liquid filling and sealing machine. This is a manual process to be completed at regular intervals by an attentive human operator. 2. Pouch Gripping When a pouch is detected in the magazine by a proximity sensor, it is grasped with vacuum suction pads and lifted to a set of bag grippers, which will consistently hold the bag through its entire journey to each station of the pouch filling and sealing machine. 3. Optional printing/embossing

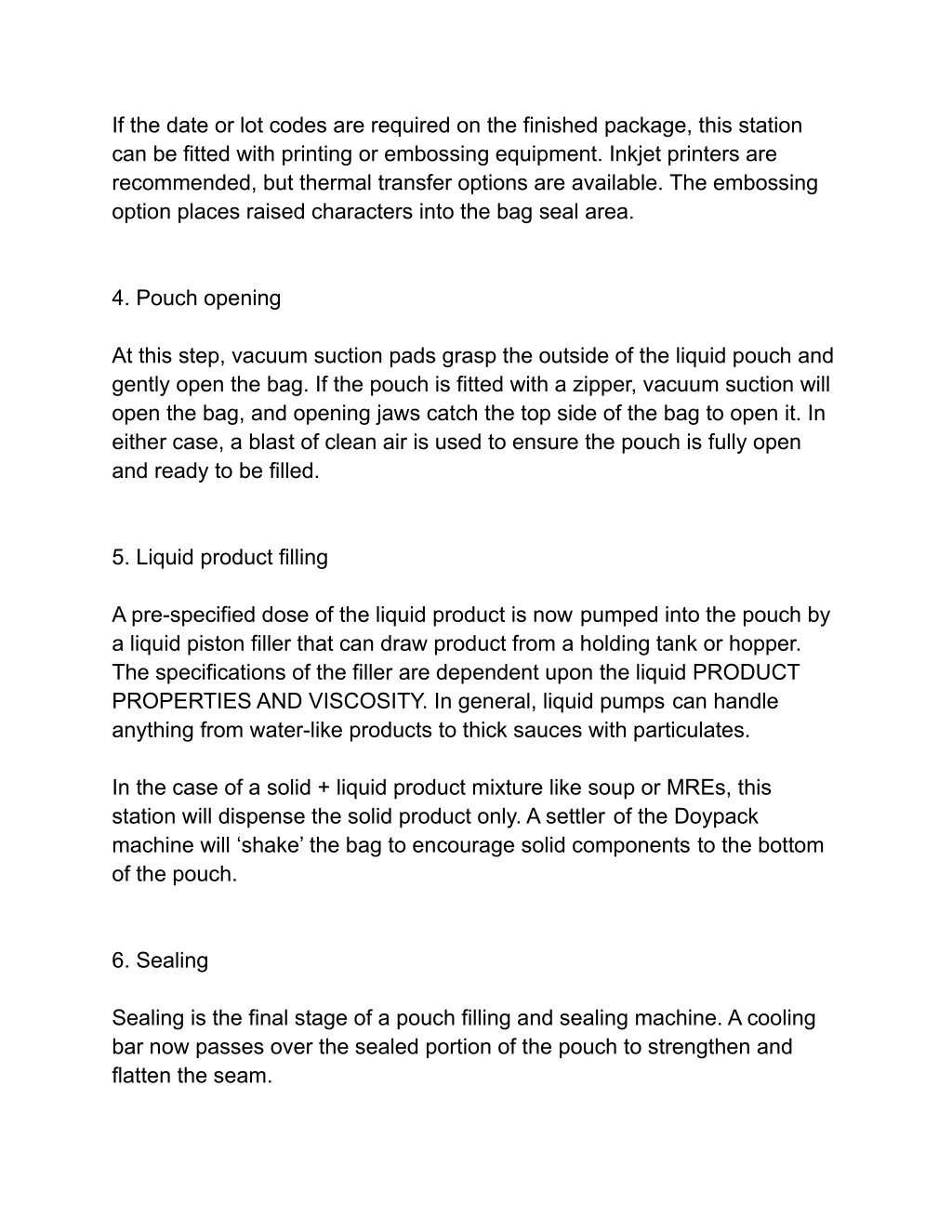

4. If the date or lot codes are required on the finished package, this station can be fitted with printing or embossing equipment. Inkjet printers are recommended, but thermal transfer options are available. The embossing option places raised characters into the bag seal area. 4. Pouch opening At this step, vacuum suction pads grasp the outside of the liquid pouch and gently open the bag. If the pouch is fitted with a zipper, vacuum suction will open the bag, and opening jaws catch the top side of the bag to open it. In either case, a blast of clean air is used to ensure the pouch is fully open and ready to be filled. 5. Liquid product filling A pre-specified dose of the liquid product is now pumped into the pouch by a liquid piston filler that can draw product from a holding tank or hopper. The specifications of the filler are dependent upon the liquid PRODUCT PROPERTIES AND VISCOSITY. In general, liquid pumps can handle anything from water-like products to thick sauces with particulates. In the case of a solid + liquid product mixture like soup or MREs, this station will dispense the solid product only. A settler of the Doypack machine will ‘shake’ the bag to encourage solid components to the bottom of the pouch. 6. Sealing Sealing is the final stage of a pouch filling and sealing machine. A cooling bar now passes over the sealed portion of the pouch to strengthen and flatten the seam.
