Presentation Transcript
a student guide to object oriented development

A Student Guide to Object-Oriented Development

Chapter 6 Identifying Functionality

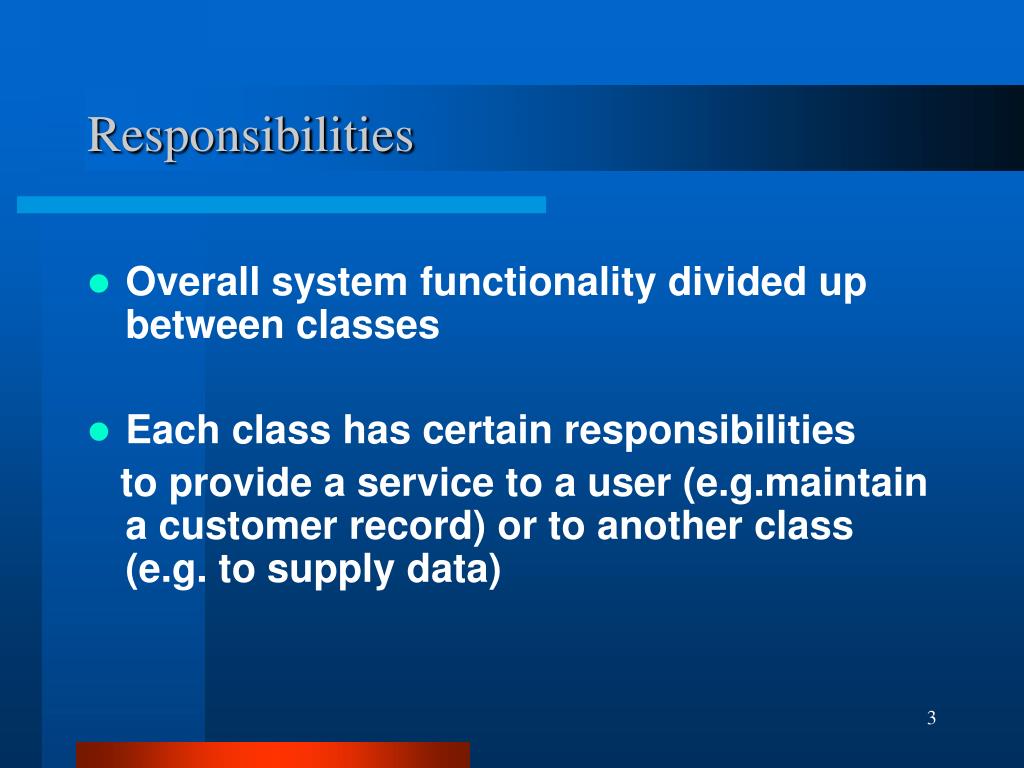

  • Overall system functionality divided up between classes
  • Each class has certain responsibilities

to provide a service to a user (e.g.maintain a customer record) or to another class (e.g. to supply data)

crc cards

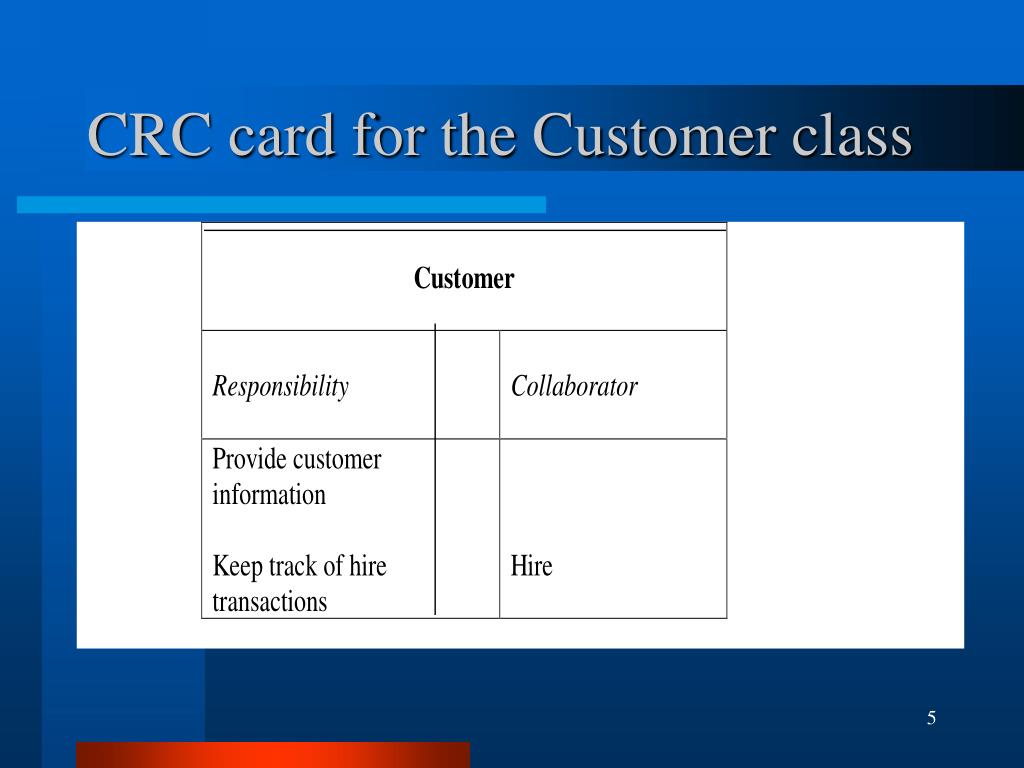

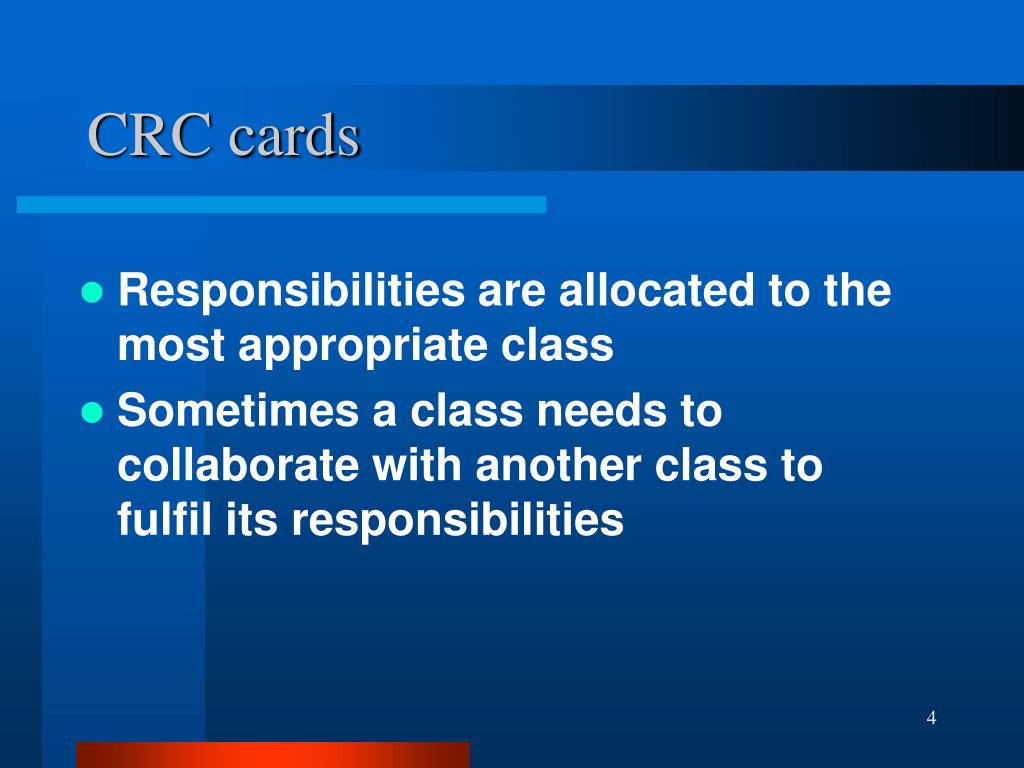

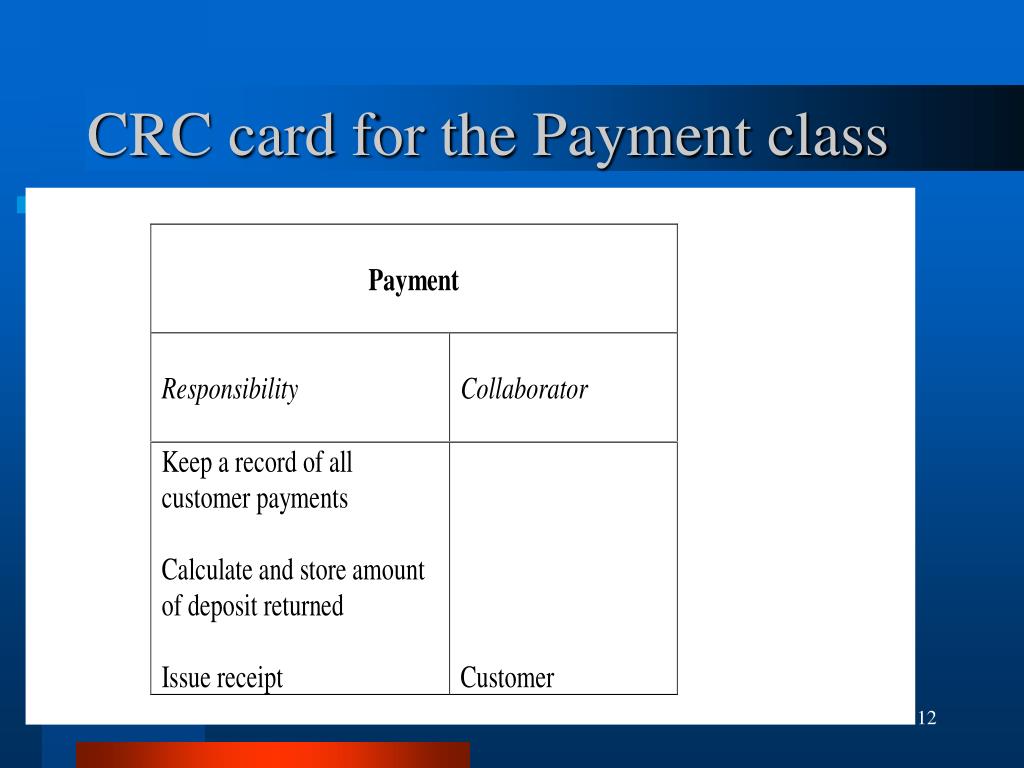

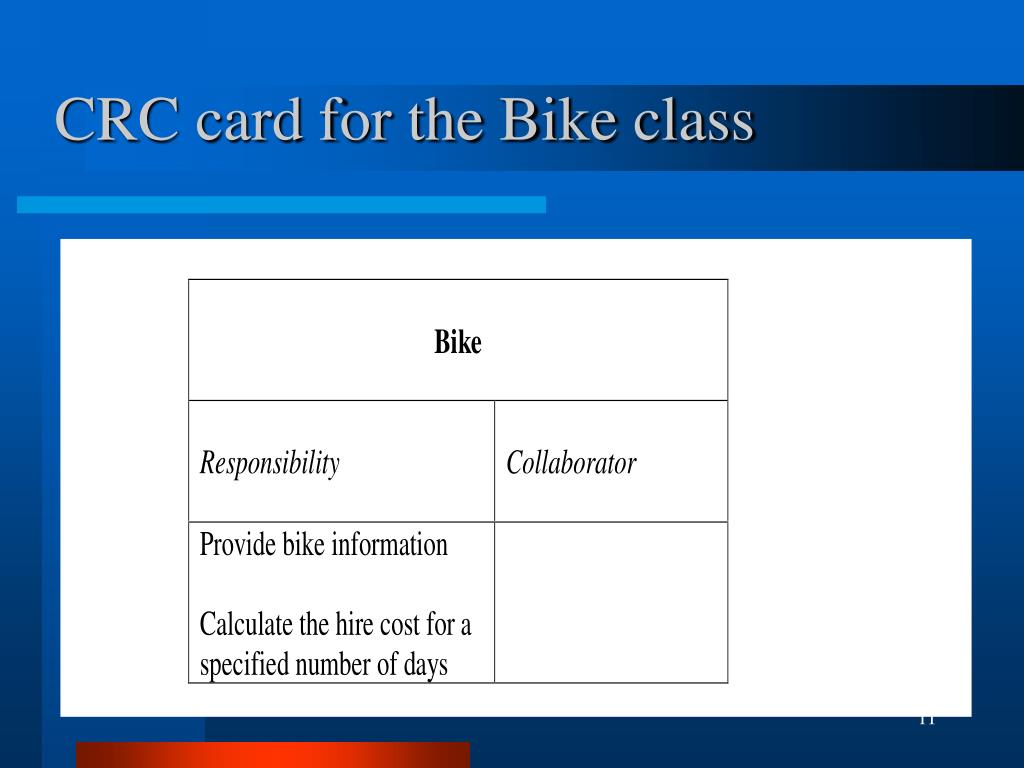

CRC cards
  • Responsibilities are allocated to the most appropriate class
  • Sometimes a class needs to collaborate with another class to fulfil its responsibilities

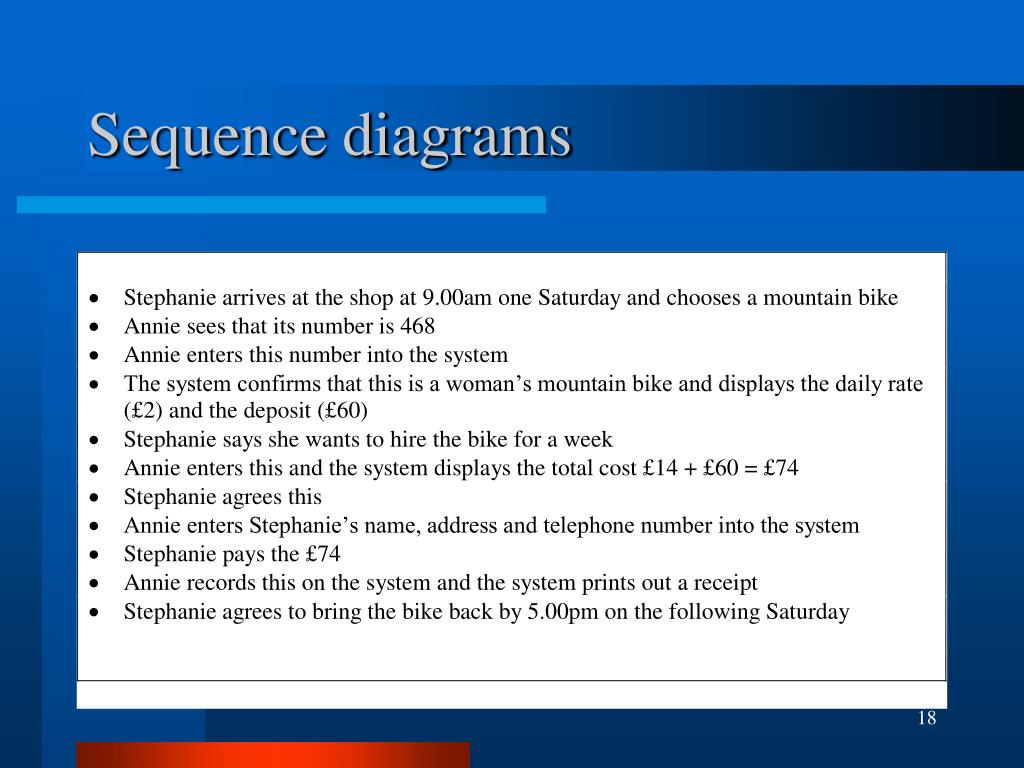

identifying responsibilities from scenarios
Identifying responsibilities from scenarios
  • Stephanie arrives at the shop at 9.00am one Saturday and chooses a mountain bike
  • Annie sees that its number is 468
  • Annie enters this number into the system
  • The system confirms that this is a woman’s mountain bike and displays the daily rate (£2) and the deposit (£60) (:Bike)
  • Stephanie says she wants to hire the bike for a week
  • Annie enters this and the system displays the total cost £14 + £60 = £74 (:Bike)
  • Stephanie agrees this
  • Annie enters Stephanie’s name, address and telephone number into the system (:Customer)
  • Stephanie pays the £74
  • Annie records this on the system and the system prints out a receipt (:Payment collaborating with :Customer)
  • Stephanie agrees to bring the bike back by 5.00pm on the following Saturday
collaboration of objects
Collaboration of objects

A collaboration is the group of objects that interact to execute a use case

sample collaboration diagram

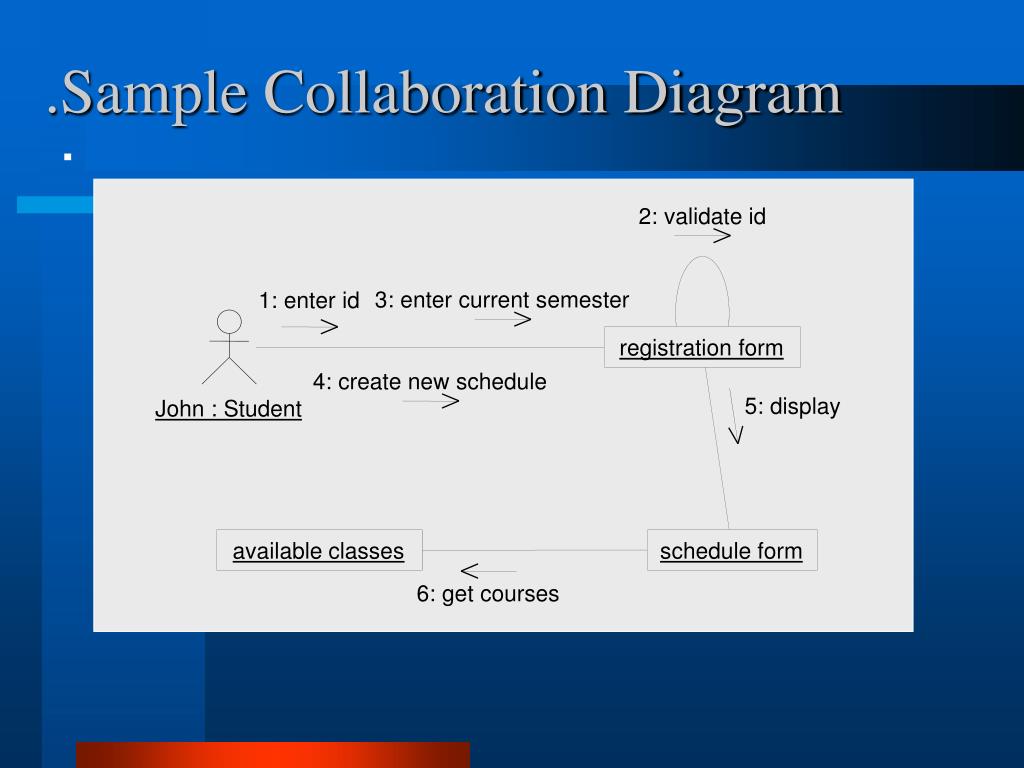

.Sample Collaboration Diagram

2: validate id


3: enter current semester

1: enter id

registration form

4: create new schedule

5: display

John : Student

available classes

schedule form

6: get courses

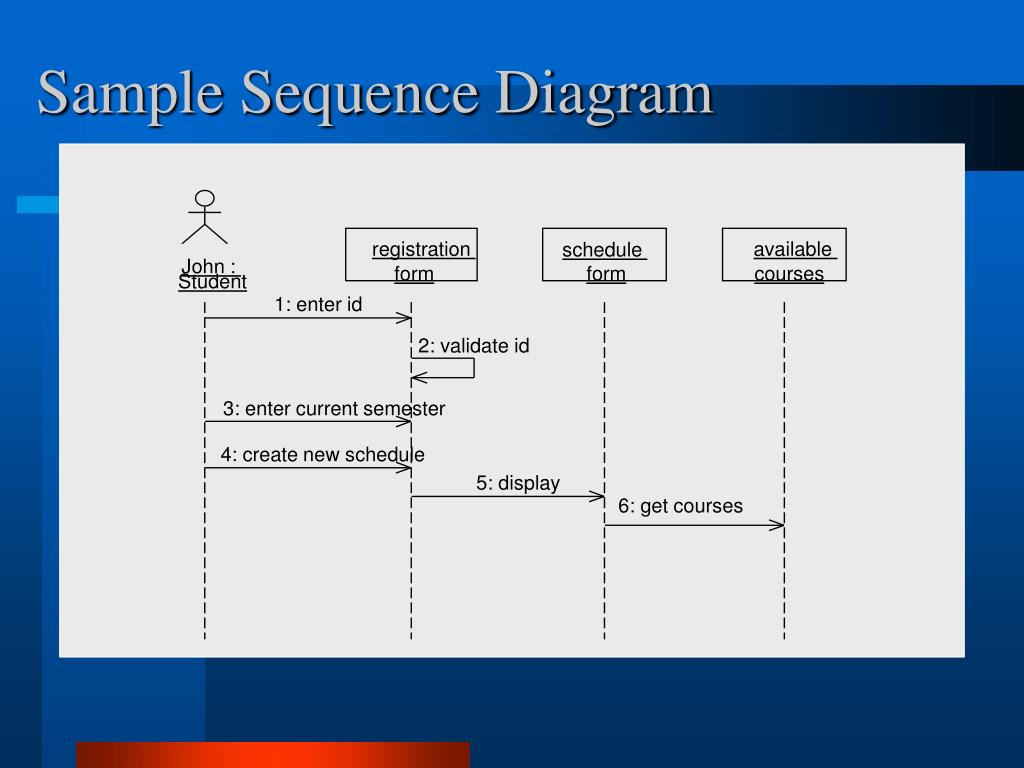

sample sequence diagram




John :





1: enter id

2: validate id

3: enter current semester

4: create new schedule

5: display

6: get courses

Sample Sequence Diagram
deriving operations from responsibilities

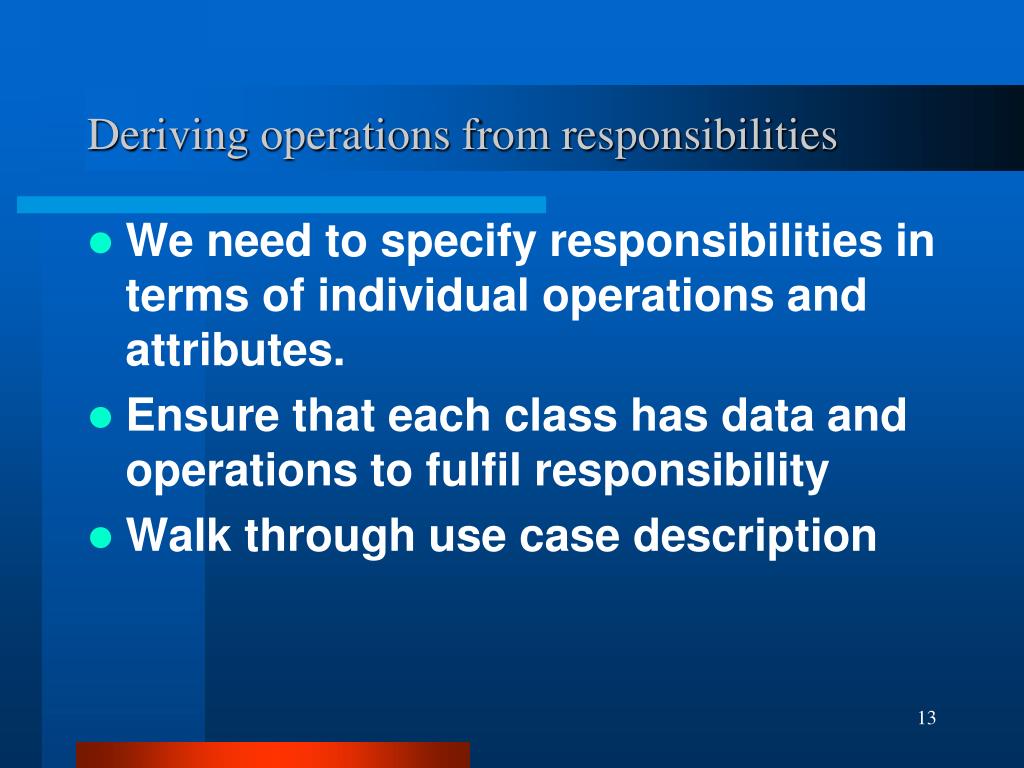

Deriving operations from responsibilities
  • We need to specify responsibilities in terms of individual operations and attributes.
  • Ensure that each class has data and operations to fulfil responsibility

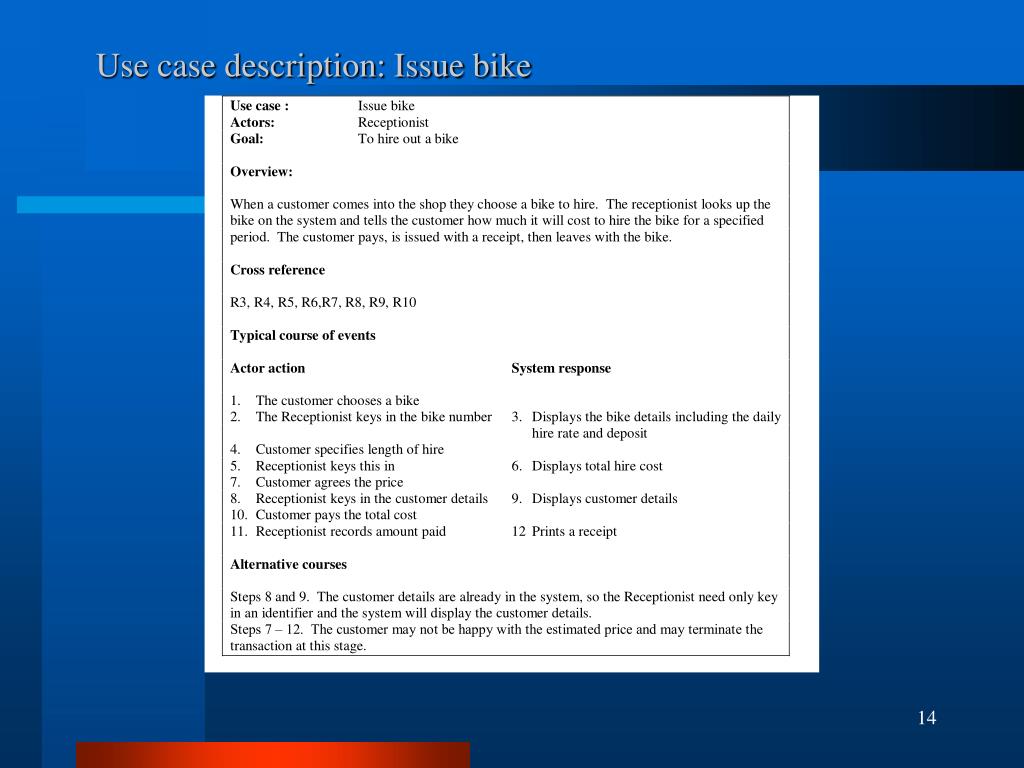

  • Walk through use case description
interaction diagrams
Interaction Diagrams
  • Describe messaging between objects to achieve use case goal
  • Revisit sequence of events in each scenario
  • View in terms of messages spawned by each event.
  • Two types of interaction diagram: sequence and collaboration
sequence diagrams4

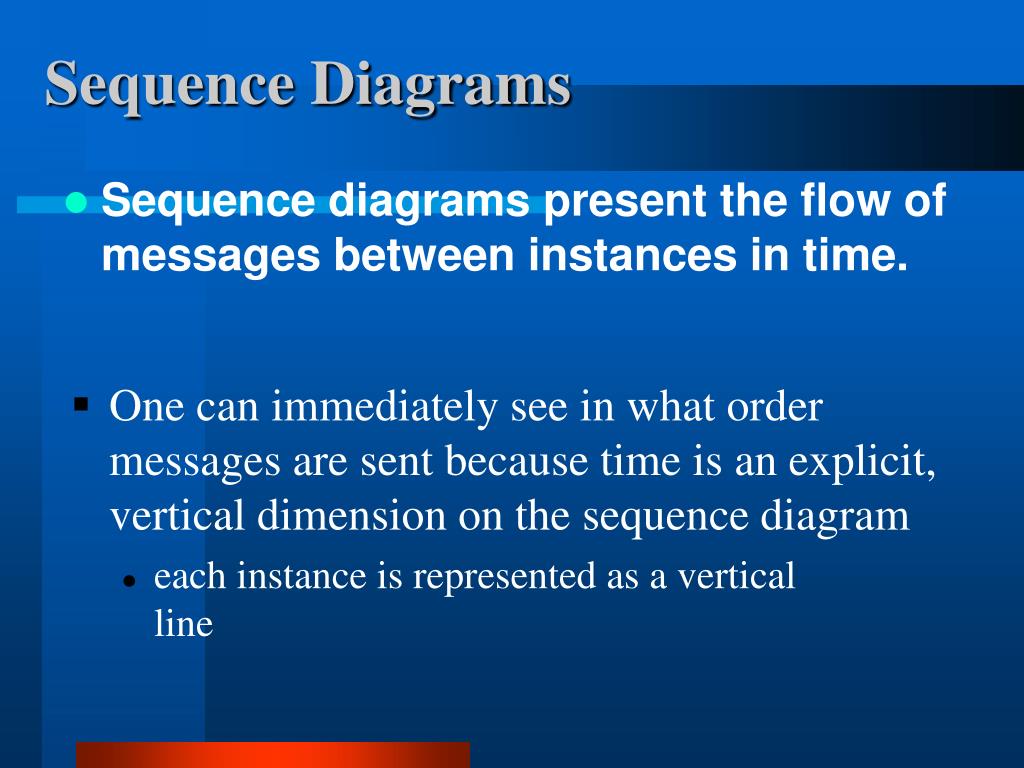

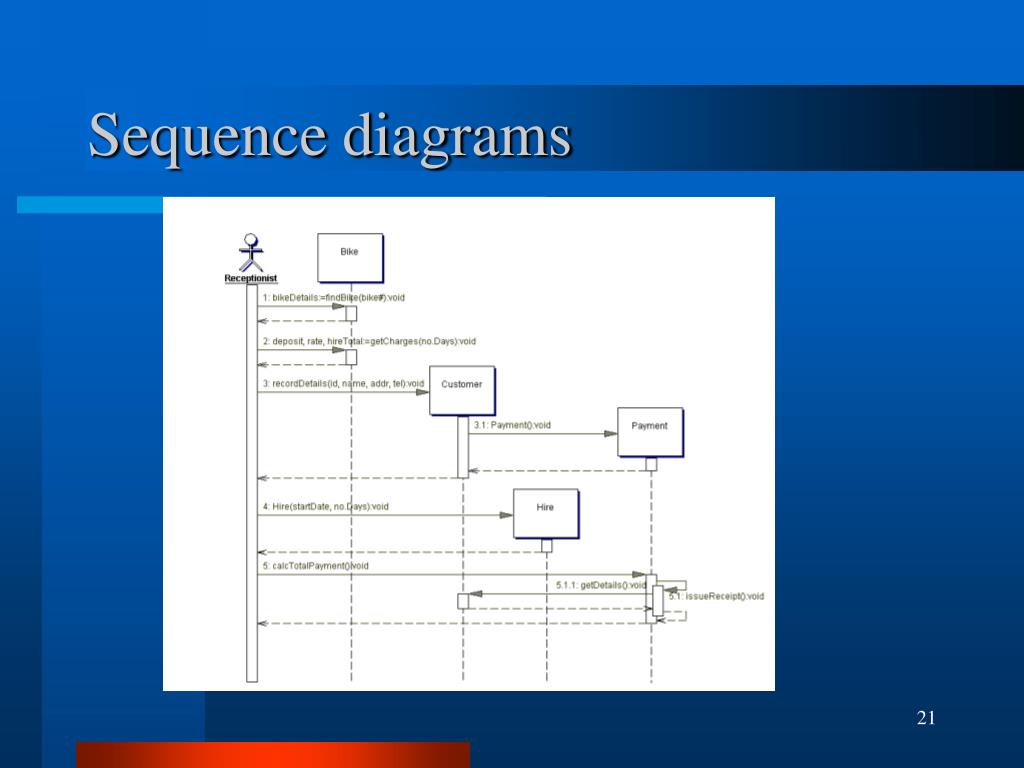

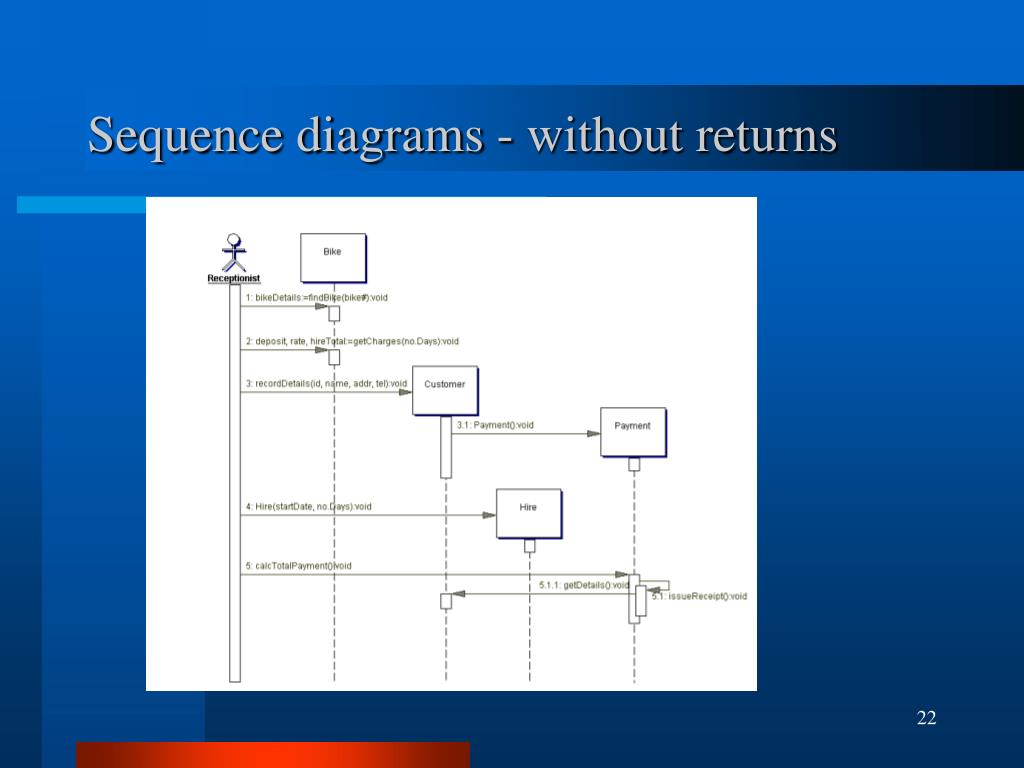

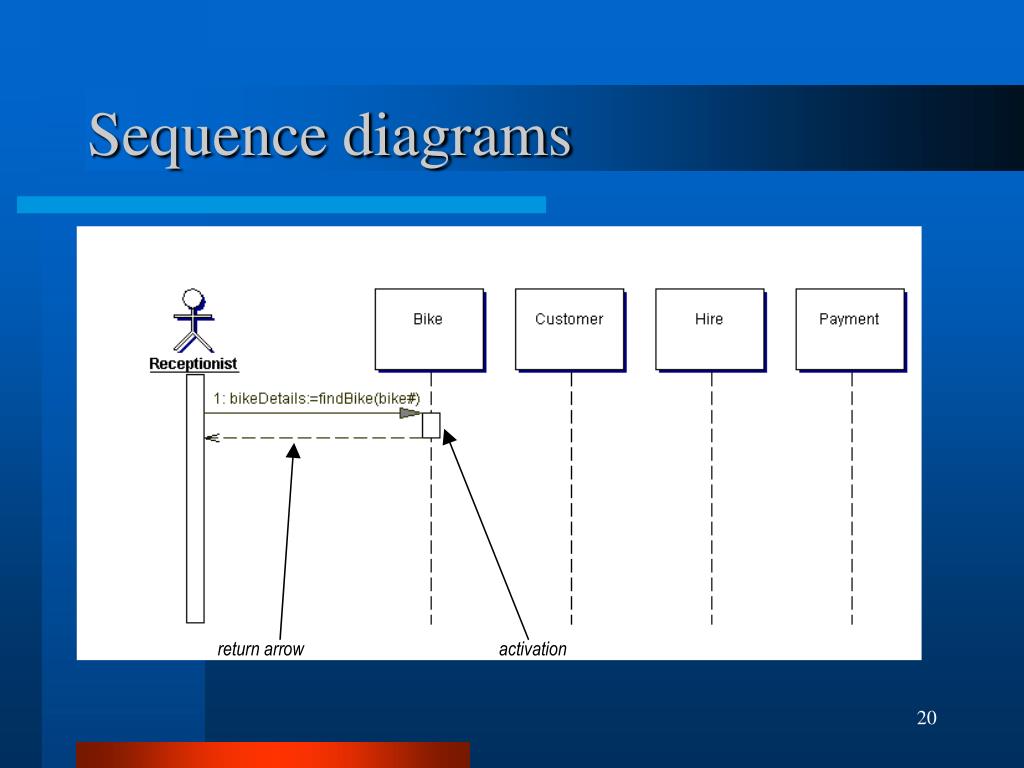

Sequence Diagrams
  • Sequence diagrams present the flow of messages between instances in time.
  • One can immediately see in what order messages are sent because time is an explicit, vertical dimension on the sequence diagram
    • each instance is represented as a verticalline

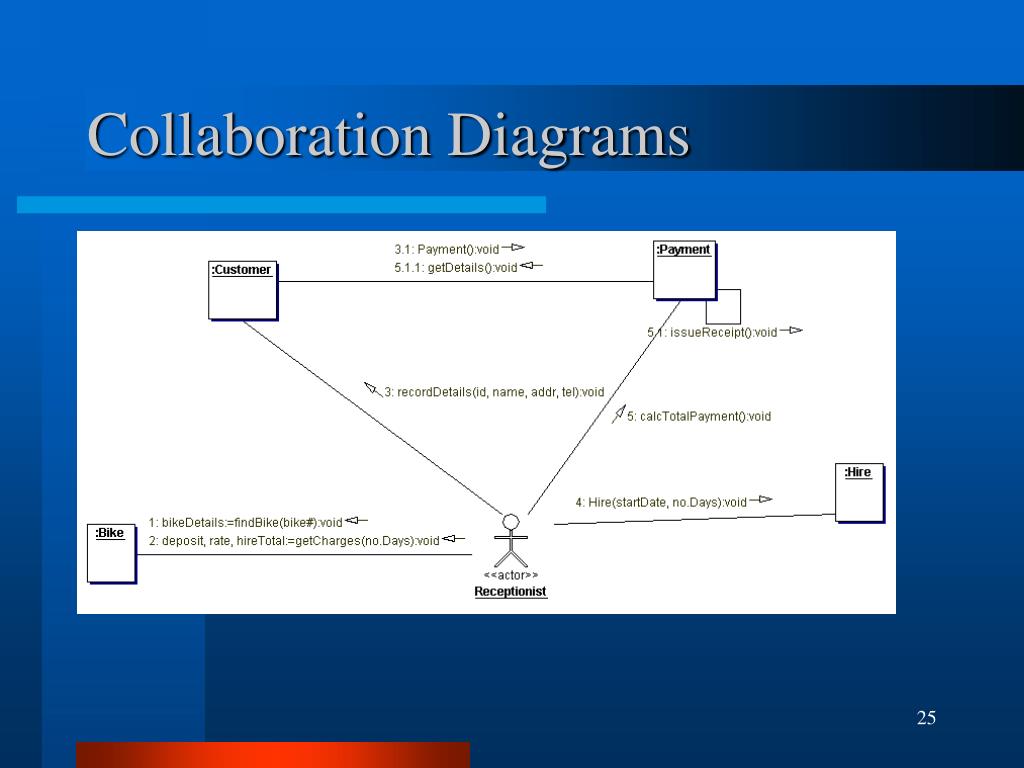

collaboration diagrams

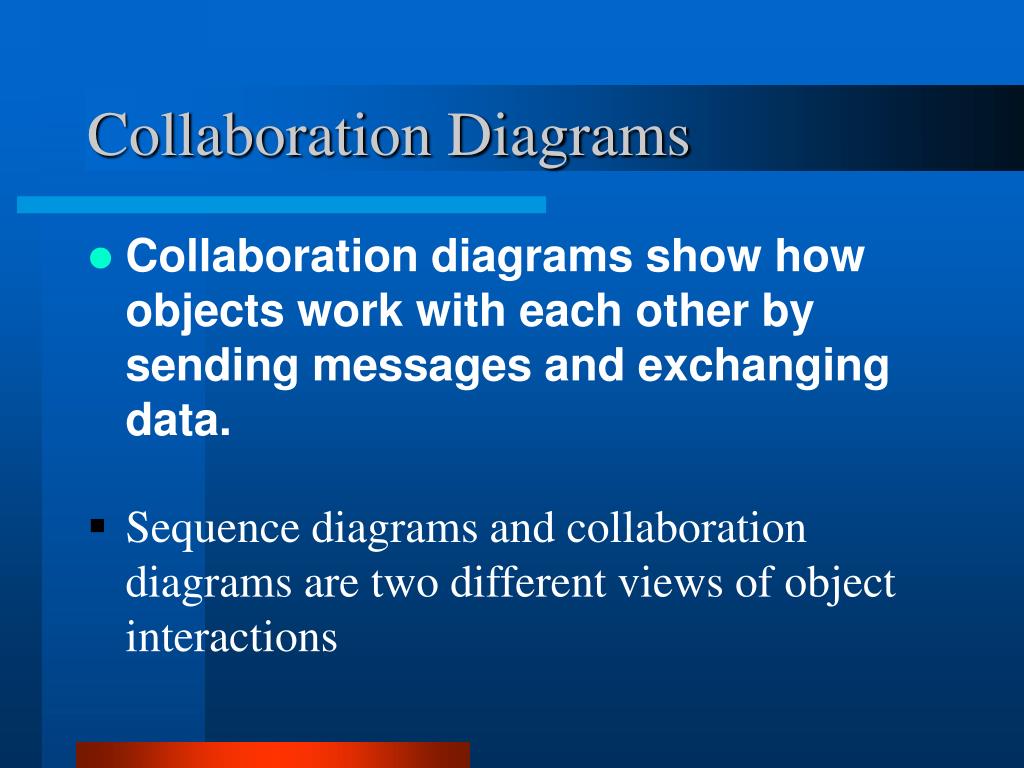

Collaboration Diagrams
  • Collaboration diagrams show how objects work with each other by sending messages and exchanging data.
  • Sequence diagrams and collaboration diagrams are two different views of object interactions
data dictionary operations

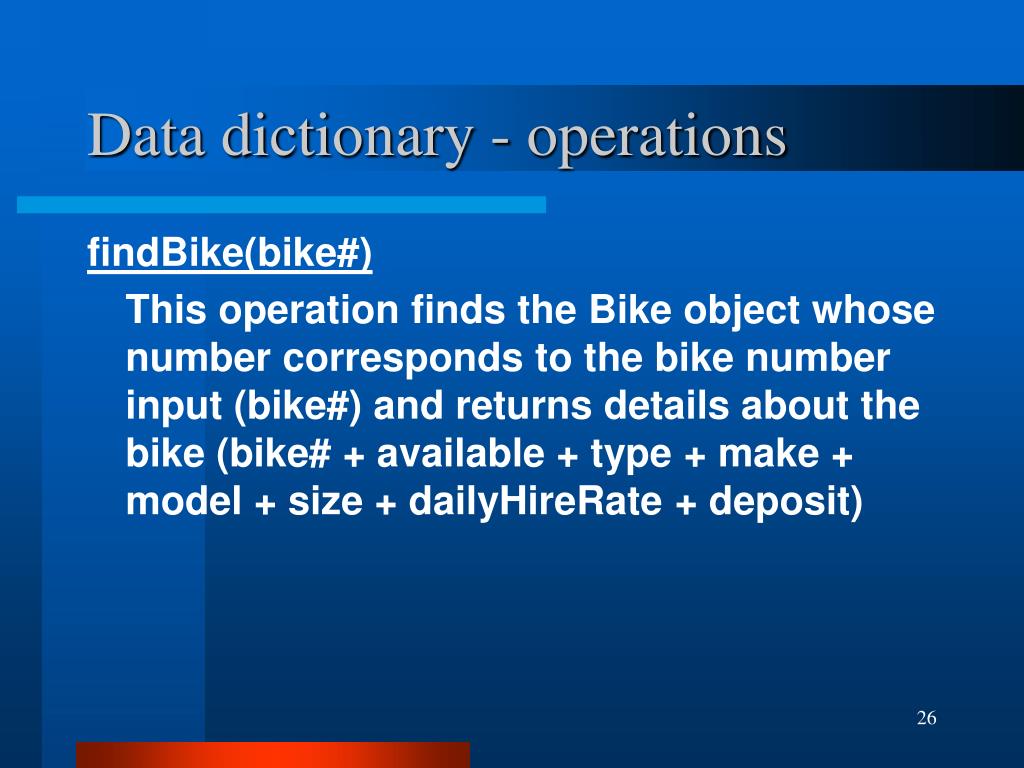

Data dictionary - operations


This operation finds the Bike object whose number corresponds to the bike number input (bike#) and returns details about the bike (bike# + available + type + make + model + size + dailyHireRate + deposit)

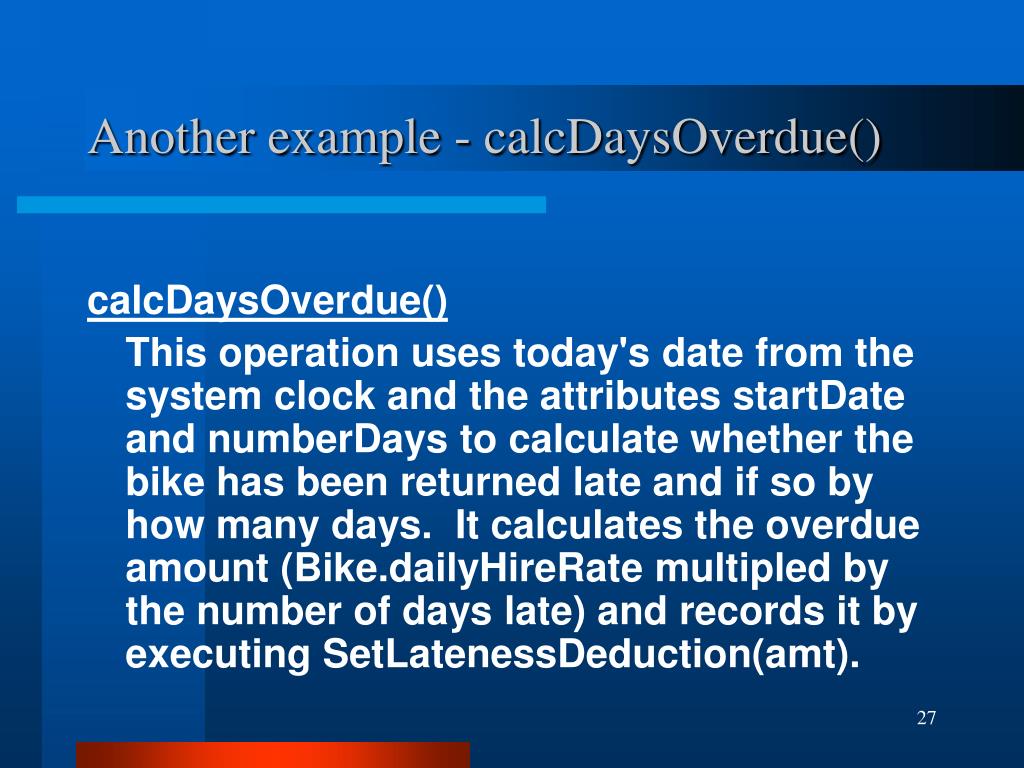

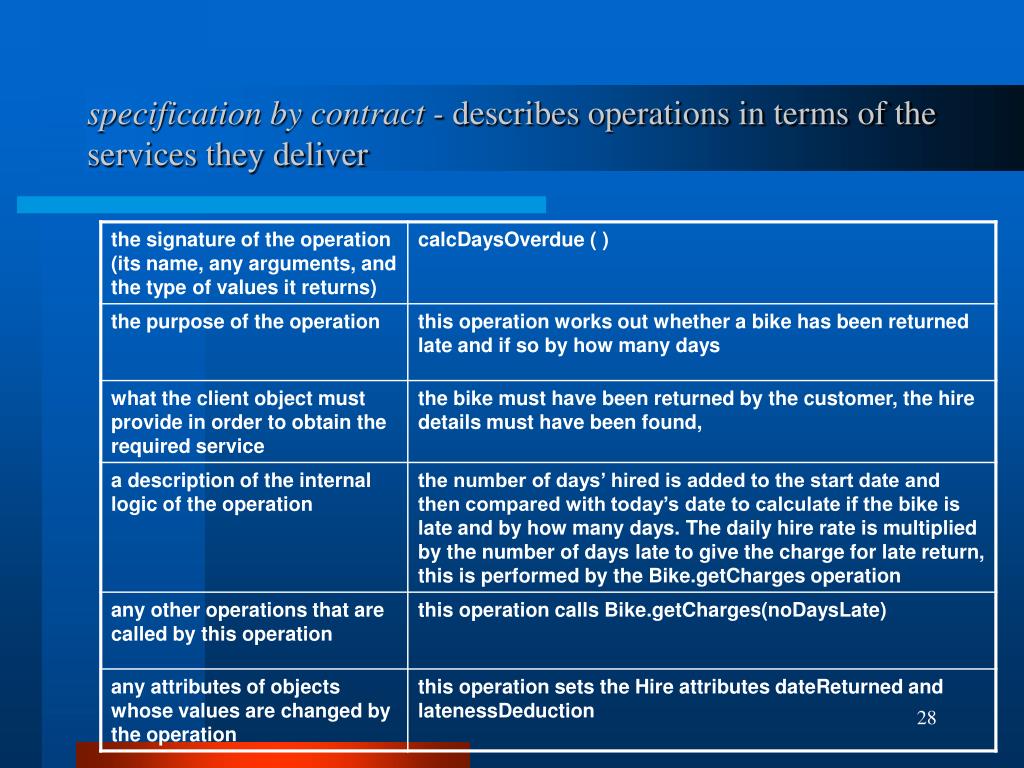

another example calcdaysoverdue
Another example - calcDaysOverdue()


This operation uses today's date from the system clock and the attributes startDate and numberDays to calculate whether the bike has been returned late and if so by how many days. It calculates the overdue amount (Bike.dailyHireRate multipled by the number of days late) and records it by executing SetLatenessDeduction(amt).
