  1. OPA – vJ – 27Aug12 WG78/SC214 Sub-group meeting10-14 Sep 12

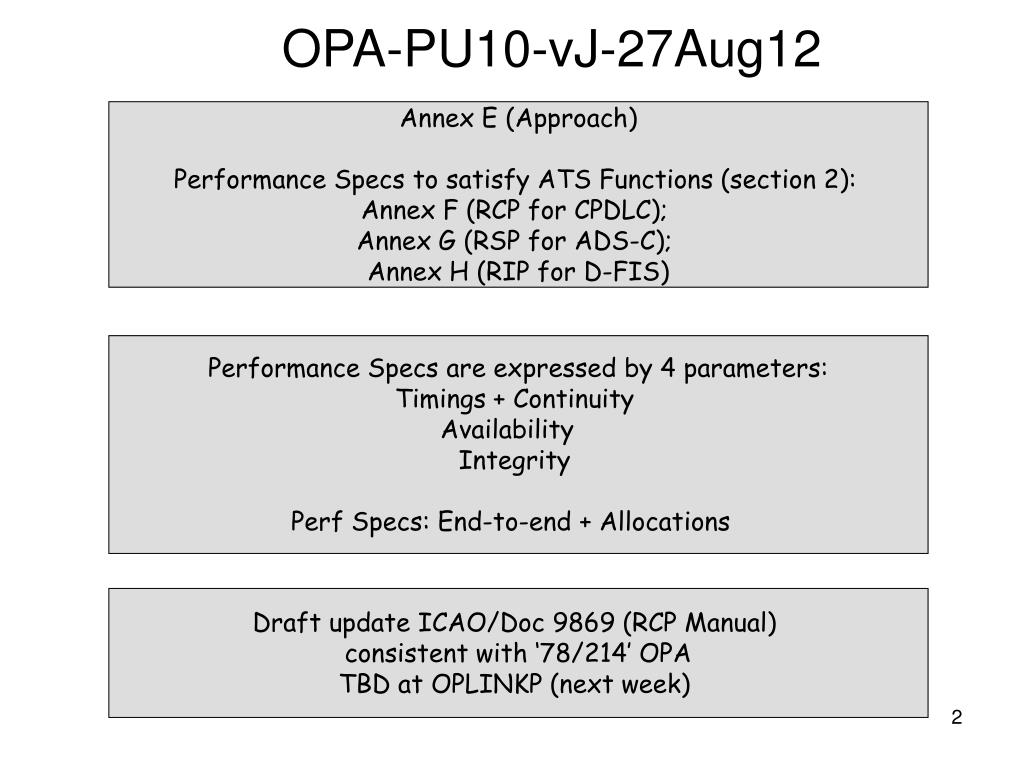

  2. OPA-PU10-vJ-27Aug12 Annex E (Approach) Performance Specs to satisfy ATS Functions (section 2): Annex F (RCP for CPDLC); Annex G (RSP for ADS-C); Annex H (RIP for D-FIS) Performance Specs are expressed by 4 parameters: Timings + Continuity Availability Integrity Perf Specs: End-to-end + Allocations Draft update ICAO/Doc 9869 (RCP Manual) consistent with ‘78/214’ OPA TBD at OPLINKP (next week)

  3. Main OPA Updates Editorial improvements throughout the OPA CPDLC: ‘Special’ RCP for DCL ADS-C: - Modified Time-seq diagram - Combined FMS & Avionics: AC System Kept term ‘RSP’ (TBD at OPLINKP) CPDLC and ADS-C: - Combined ATSU and ACSP: ATSP - Removed ATS function: CDP D-FIS: - Completed Perf Spec (RIP) for D-FIS services, In addition to RCP for CPDLC and RSP for ADS-C

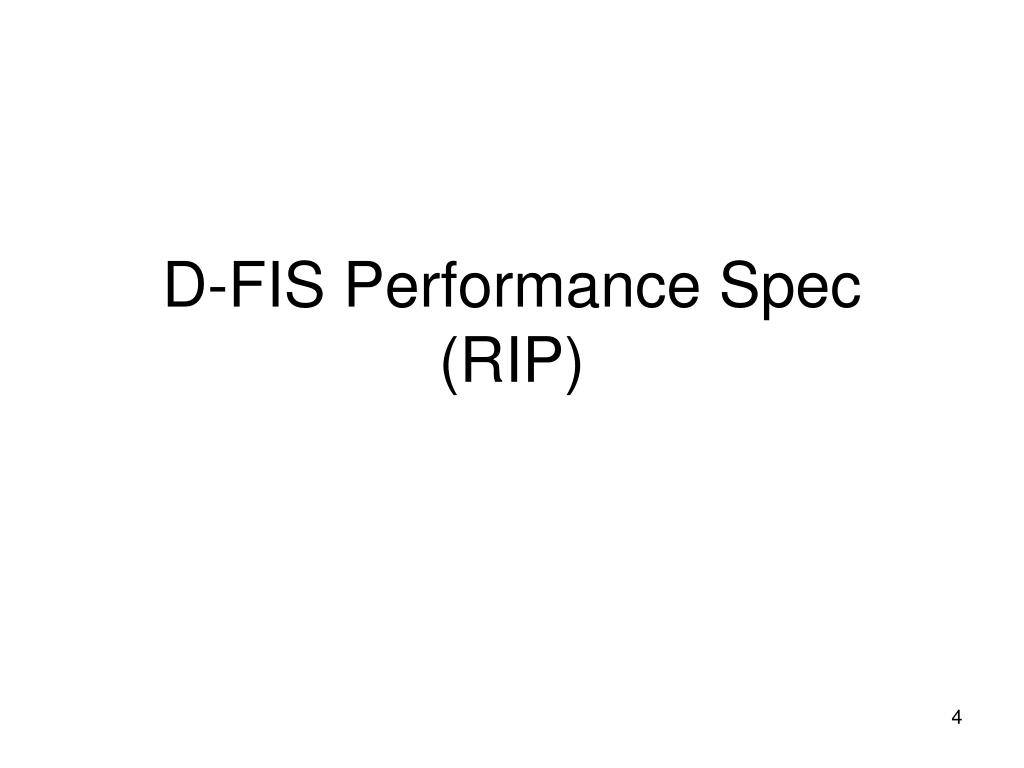

  4. D-FIS Performance Spec (RIP)

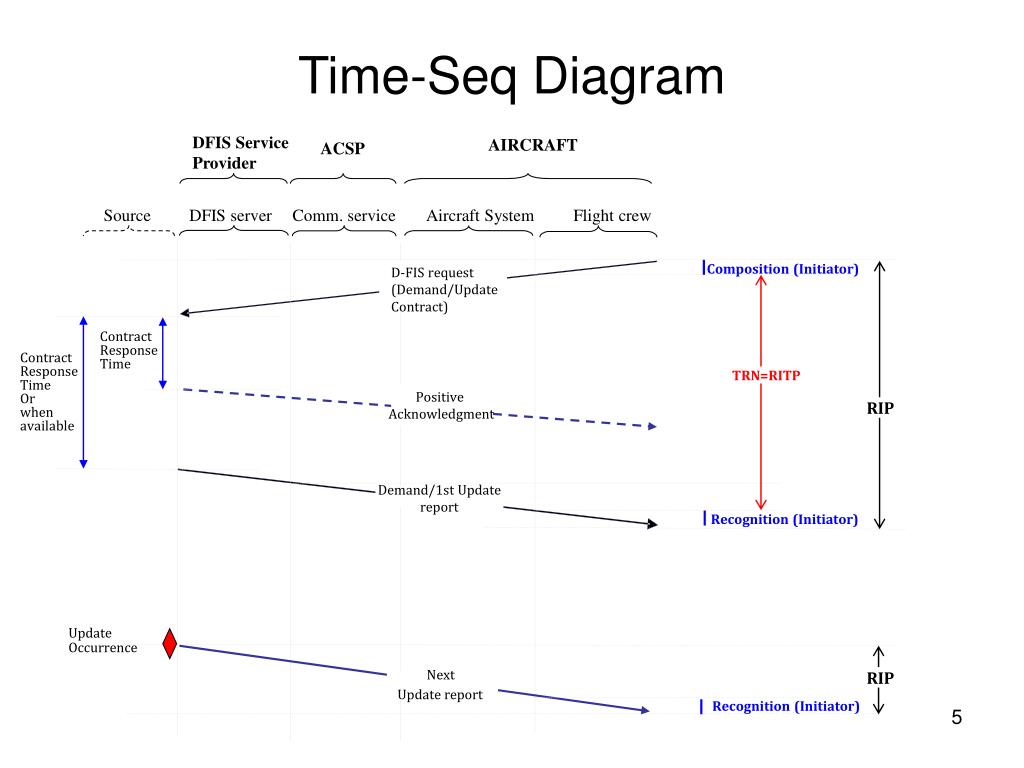

  5. TRN=RITP Time-Seq Diagram DFIS Service Provider AIRCRAFT ACSP Source DFIS server Comm. service Aircraft System Flight crew Composition (Initiator) D-FIS request (Demand/Update Contract) Contract Response Time Contract Response Time Or when available Positive Acknowledgment RIP Demand/1st Update report Recognition (Initiator) Update Occurrence RIP Next Update report Recognition (Initiator)

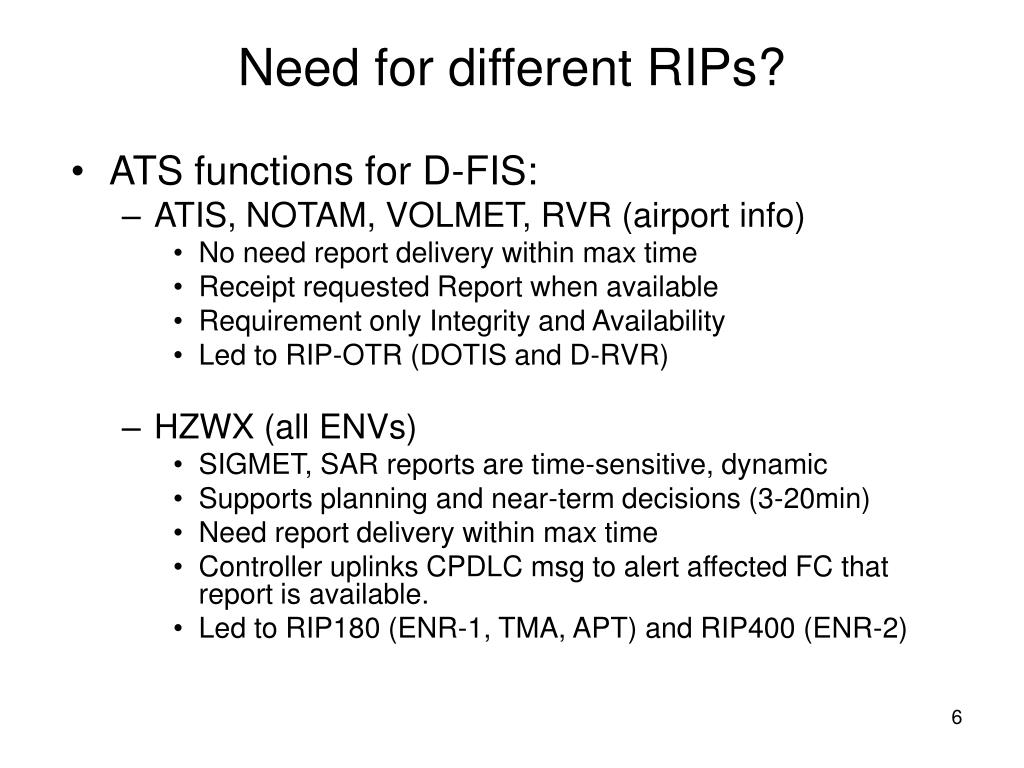

  6. Need for different RIPs? • ATS functions for D-FIS: • ATIS, NOTAM, VOLMET, RVR (airport info) • No need report delivery within max time • Receipt requested Report when available • Requirement only Integrity and Availability • Led to RIP-OTR (DOTIS and D-RVR) • HZWX (all ENVs) • SIGMET, SAR reports are time-sensitive, dynamic • Supports planning and near-term decisions (3-20min) • Need report delivery within max time • Controller uplinks CPDLC msg to alert affected FC that report is available. • Led to RIP180 (ENR-1, TMA, APT) and RIP400 (ENR-2)

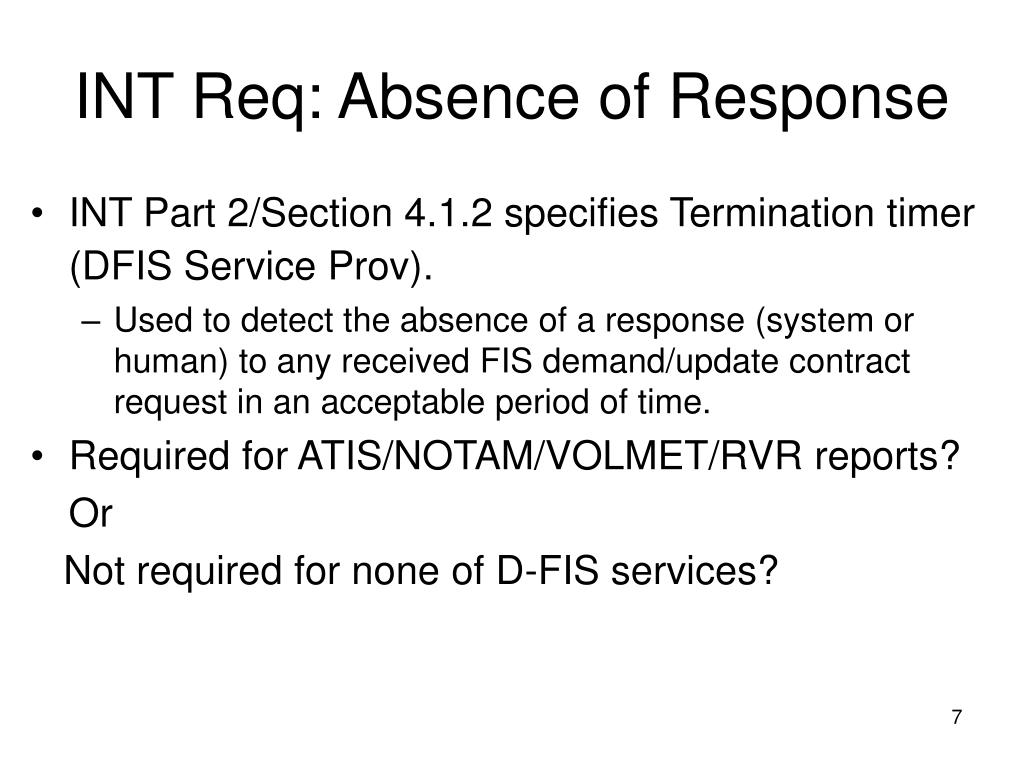

  7. INT Req: Absence of Response • INT Part 2/Section 4.1.2 specifies Termination timer (DFIS Service Prov). • Used to detect the absence of a response (system or human) to any received FIS demand/update contract request in an acceptable period of time. • Required for ATIS/NOTAM/VOLMET/RVR reports? Or Not required for none of D-FIS services?

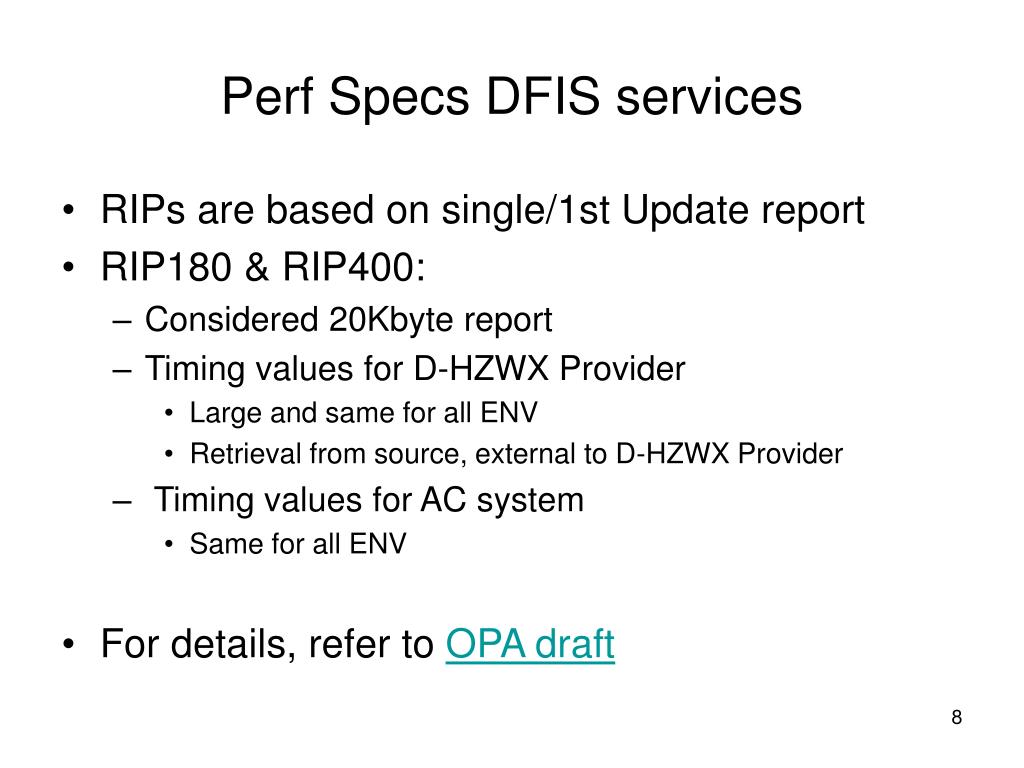

  8. Perf Specs DFIS services • RIPs are based on single/1st Update report • RIP180 & RIP400: • Considered 20Kbyte report • Timing values for D-HZWX Provider • Large and same for all ENV • Retrieval from source, external to D-HZWX Provider • Timing values for AC system • Same for all ENV • For details, refer to OPA draft

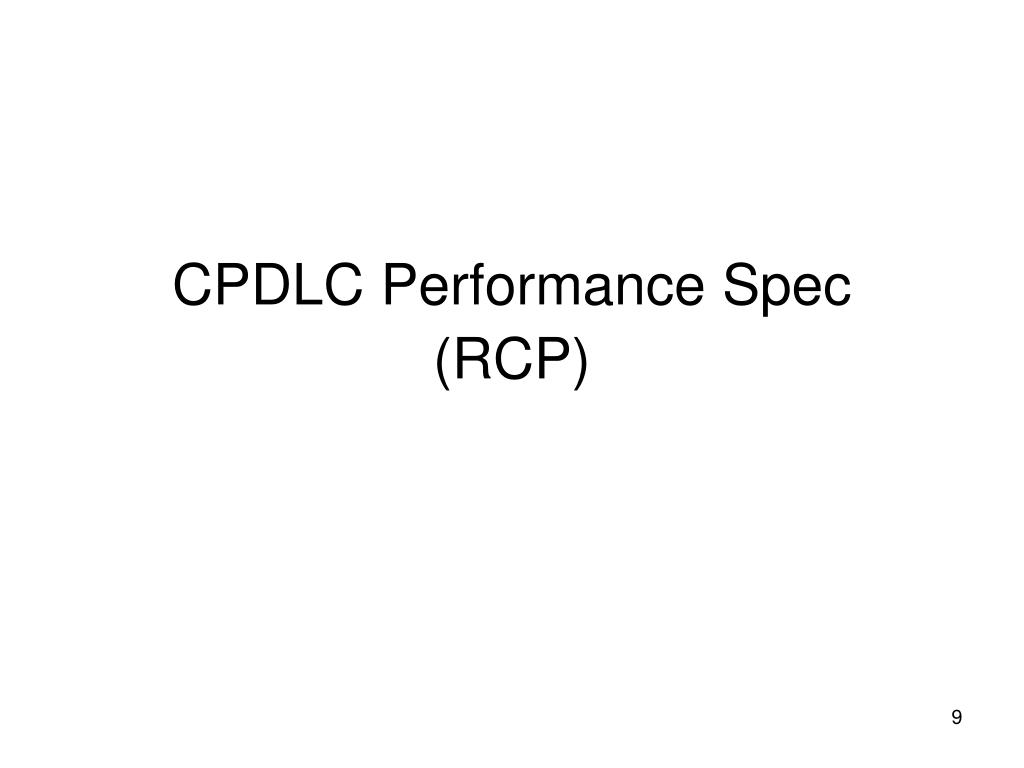

  9. CPDLC Performance Spec (RCP)

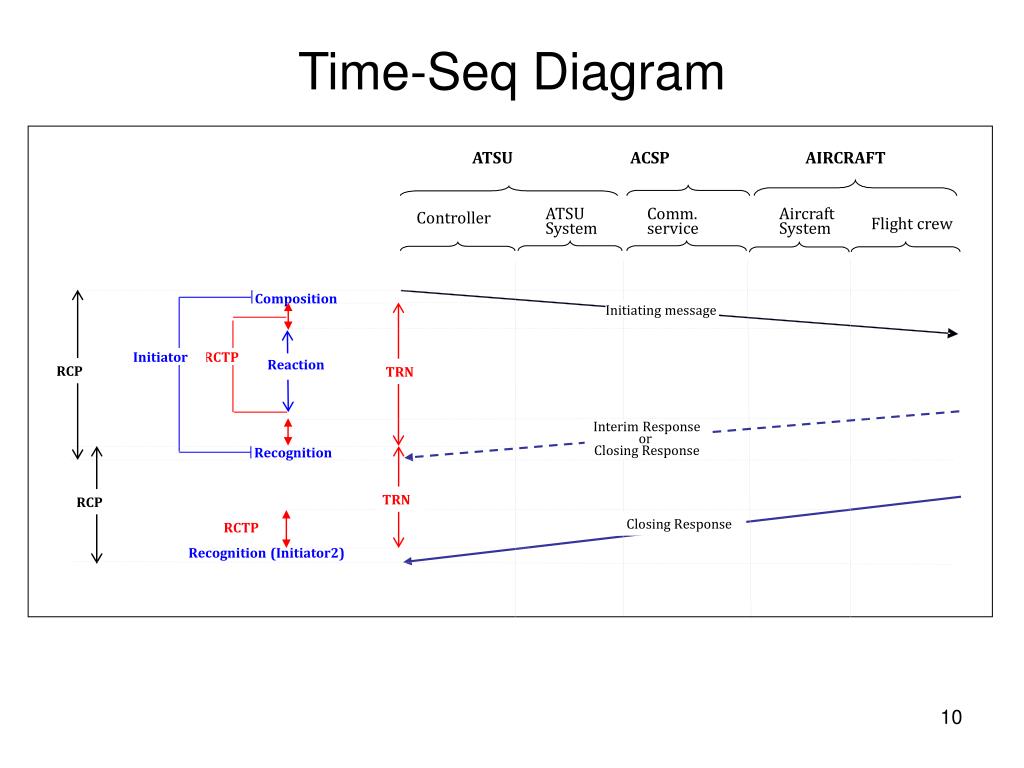

  10. ATSU ACSP AIRCRAFT ATSU System Comm. service Aircraft System Controller Flight crew Composition Initiating message Reaction Initiator RCTP RCP TRN Interim Response or Closing Response Recognition TRN RCP Closing Response RCTP Recognition (Initiator2) Time-Seq Diagram

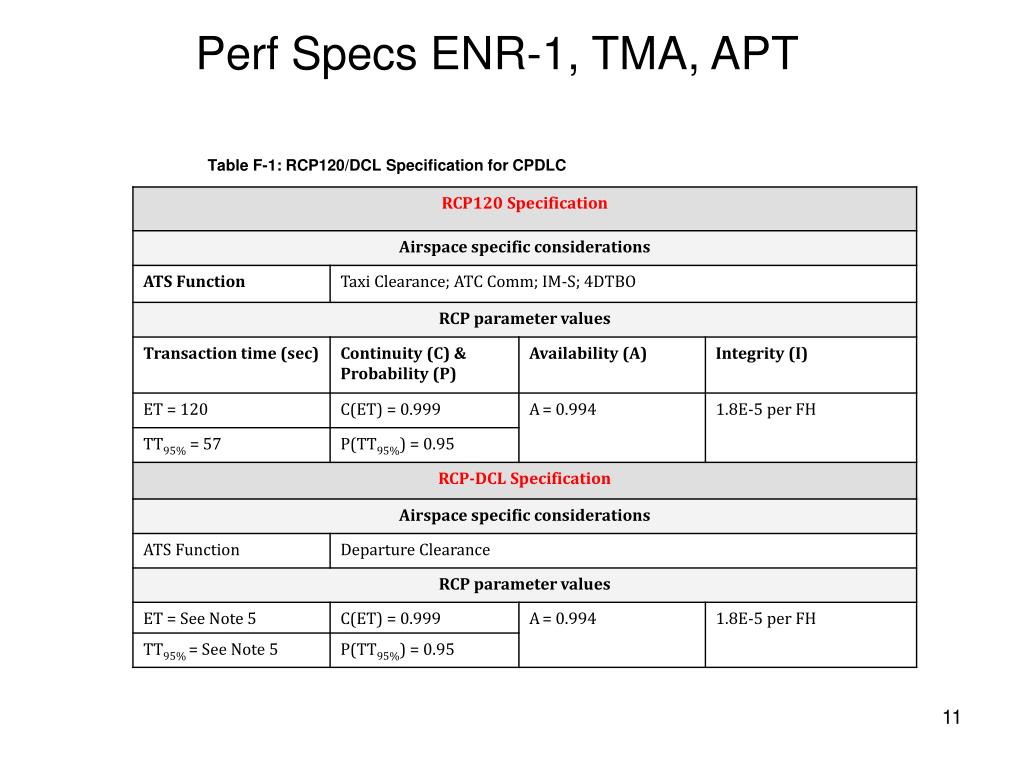

  11. Perf Specs ENR-1, TMA, APT Table F-1: RCP120/DCL Specification for CPDLC

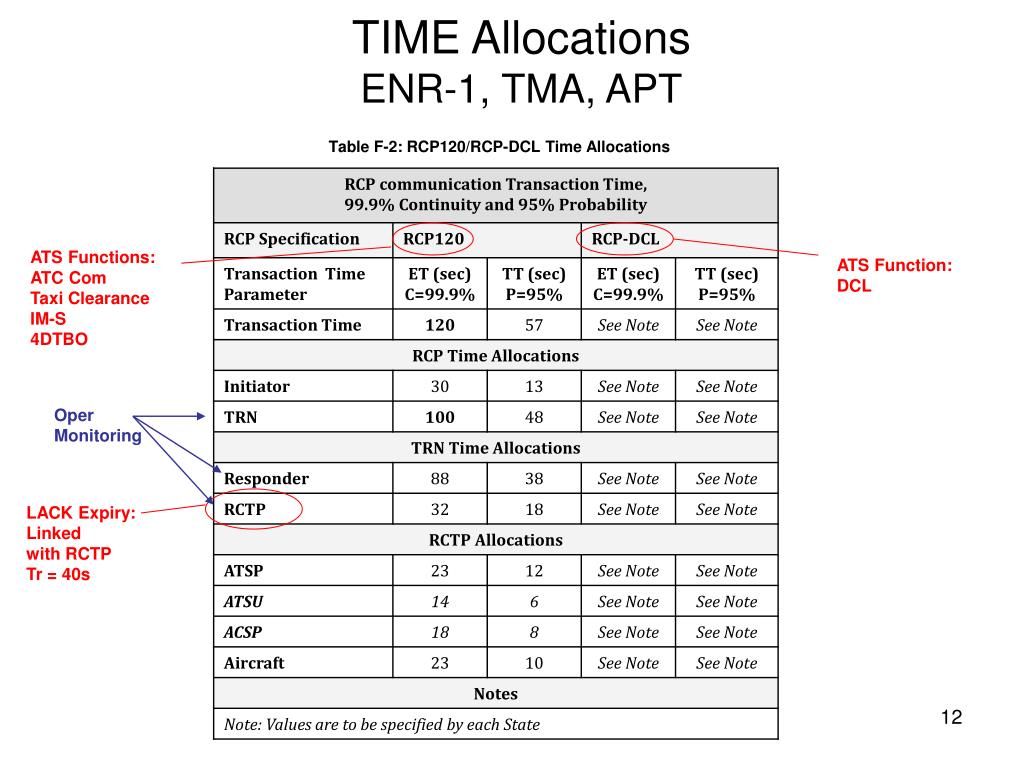

  12. Oper Monitoring LACK Expiry: Linked with RCTP Tr = 40s TIME Allocations ENR-1, TMA, APT Table F-2: RCP120/RCP-DCL Time Allocations ATS Functions: ATC Com Taxi Clearance IM-S 4DTBO ATS Function: DCL

  13. Oper Monitoring Integrity and Availability AllocationsENR-1, TMA and APT Table F-3: RCP120/RCP-DCL Allocations for Availability and Integrity

  14. Perf Specs ENR-2

  15. Oper Monitoring LACK Expiry: Linked with RCTP Proposal: Tr 150s TIME Allocations ENR-2 ATS Function: SA-1 ATS Functions: ATC Com SA-2; ITP

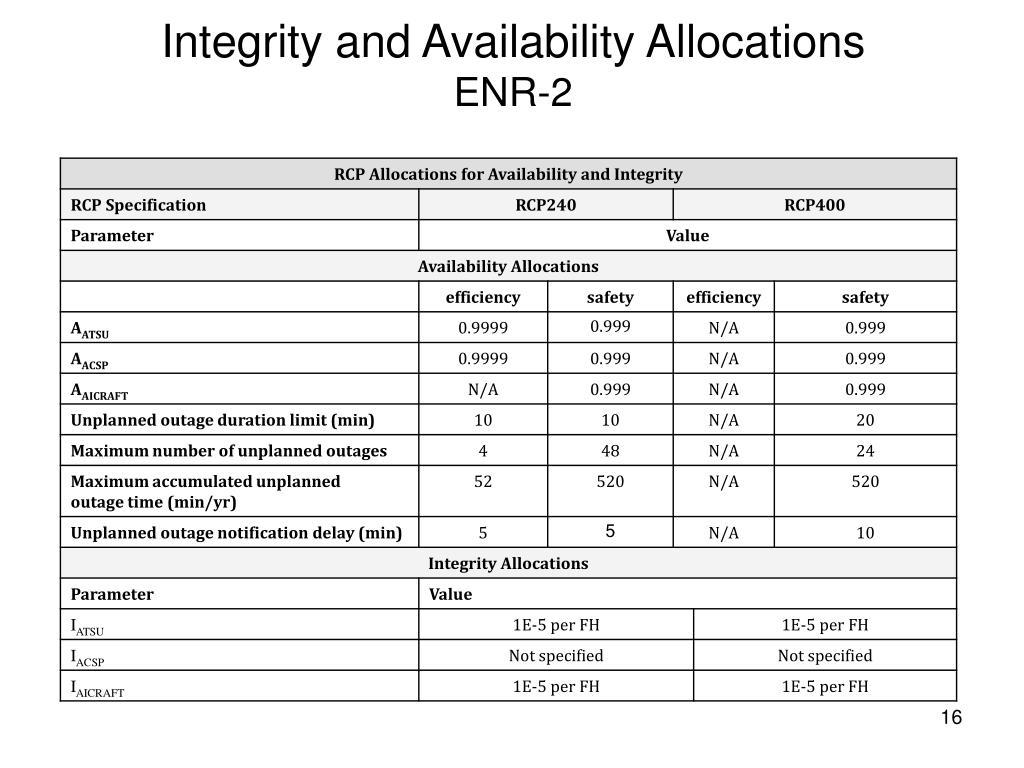

  16. Integrity and Availability AllocationsENR-2

  17. ADS-C Performance Spec (RSP)

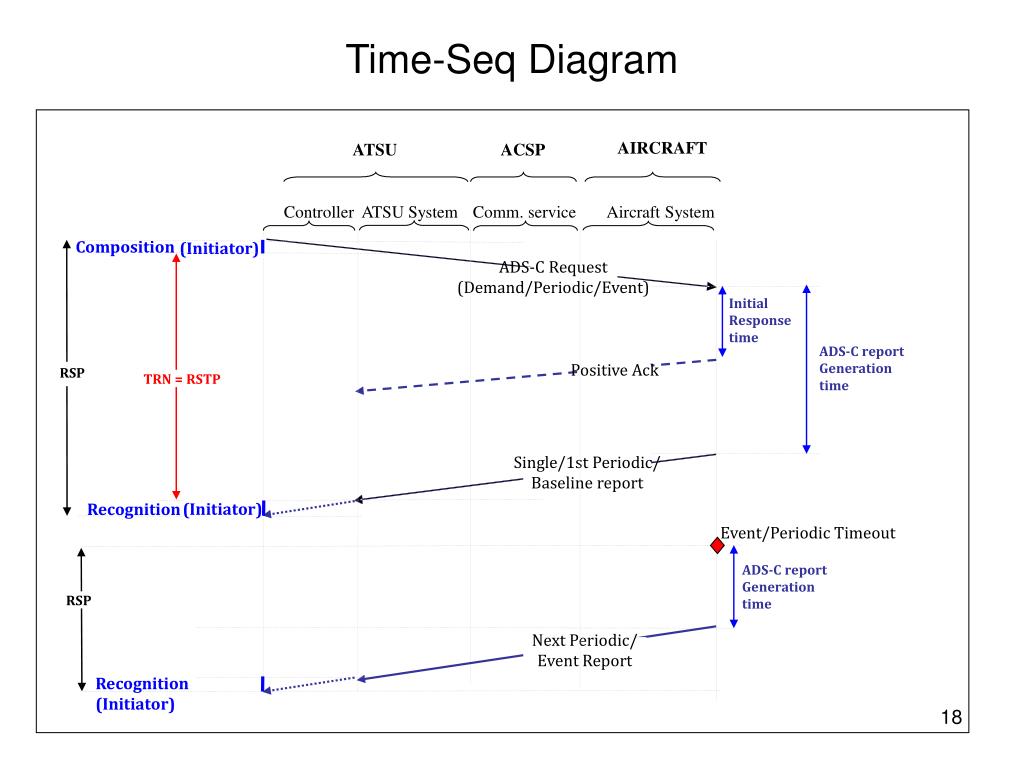

  18. TRN = RSTP RSP Time-Seq Diagram AIRCRAFT ATSU ACSP Controller ATSU System Comm. service Aircraft System Composition (Initiator) ADS-C Request (Demand/Periodic/Event) Initial Response time ADS-C report Generation time Positive Ack Single/1st Periodic/ Baseline report (Initiator) Recognition Event/Periodic Timeout ADS-C report Generation time RSP Next Periodic/ Event Report Recognition (Initiator)

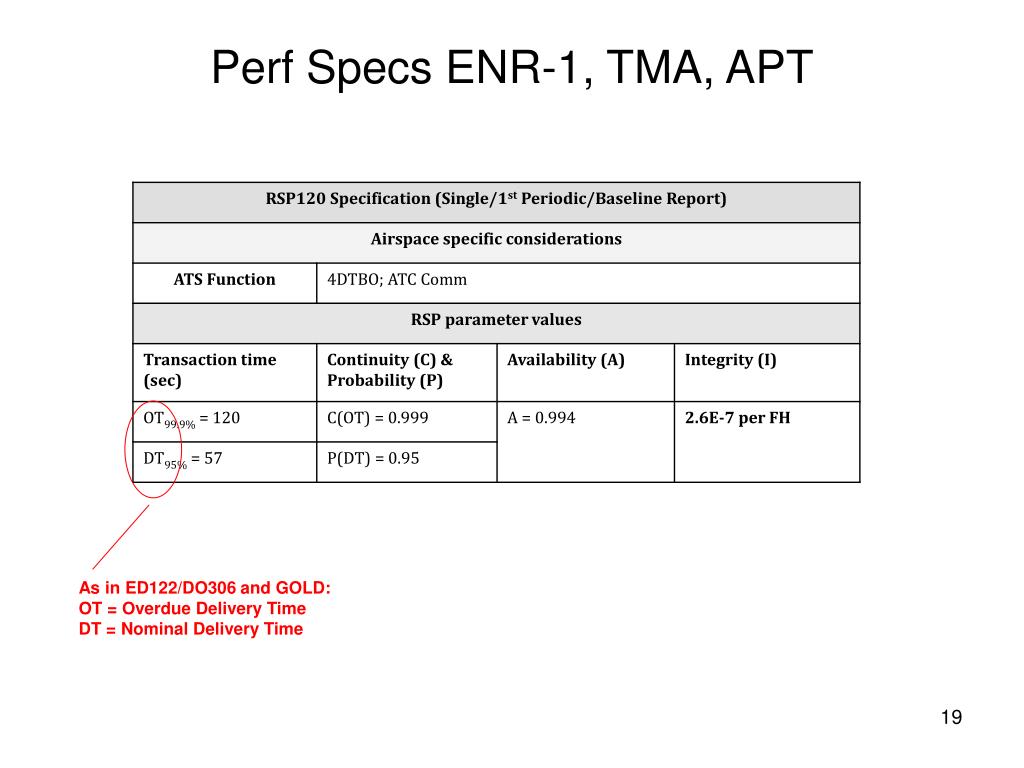

  19. Perf Specs ENR-1, TMA, APT As in ED122/DO306 and GOLD: OT = Overdue Delivery Time DT = Nominal Delivery Time

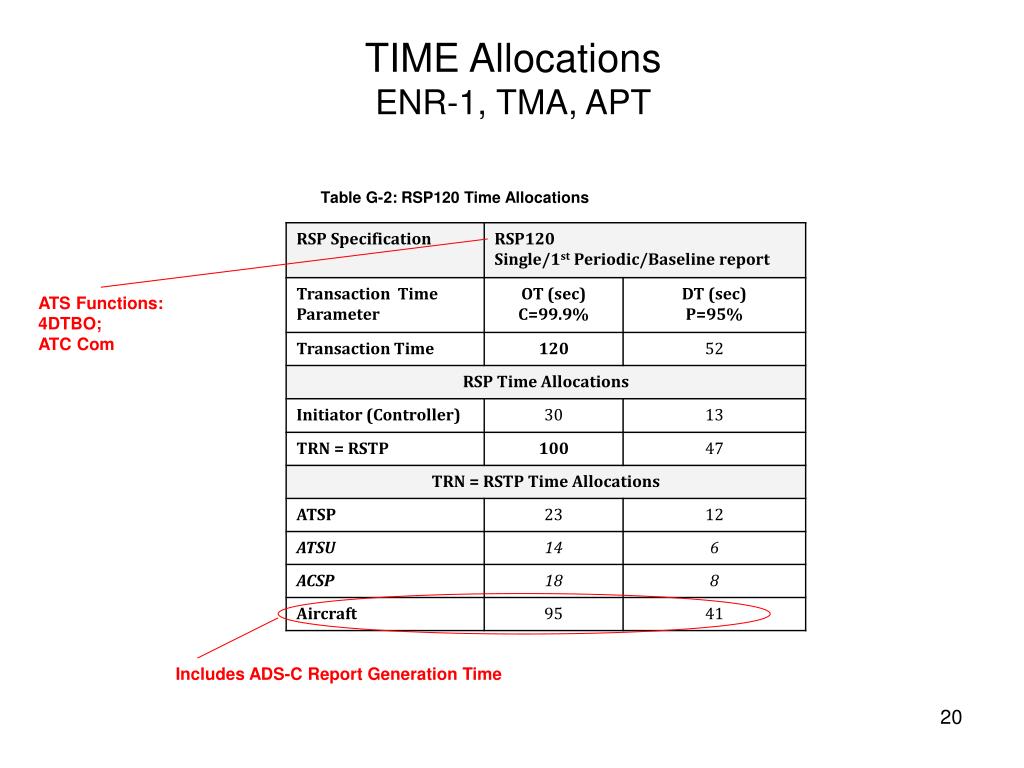

  20. Includes ADS-C Report Generation Time TIME Allocations ENR-1, TMA, APT Table G-2: RSP120 Time Allocations ATS Functions: 4DTBO; ATC Com

  21. Integrity and Availability AllocationsENR-1, TMA and APT Table G-3: RSP120 Allocations for Availability and Integrity

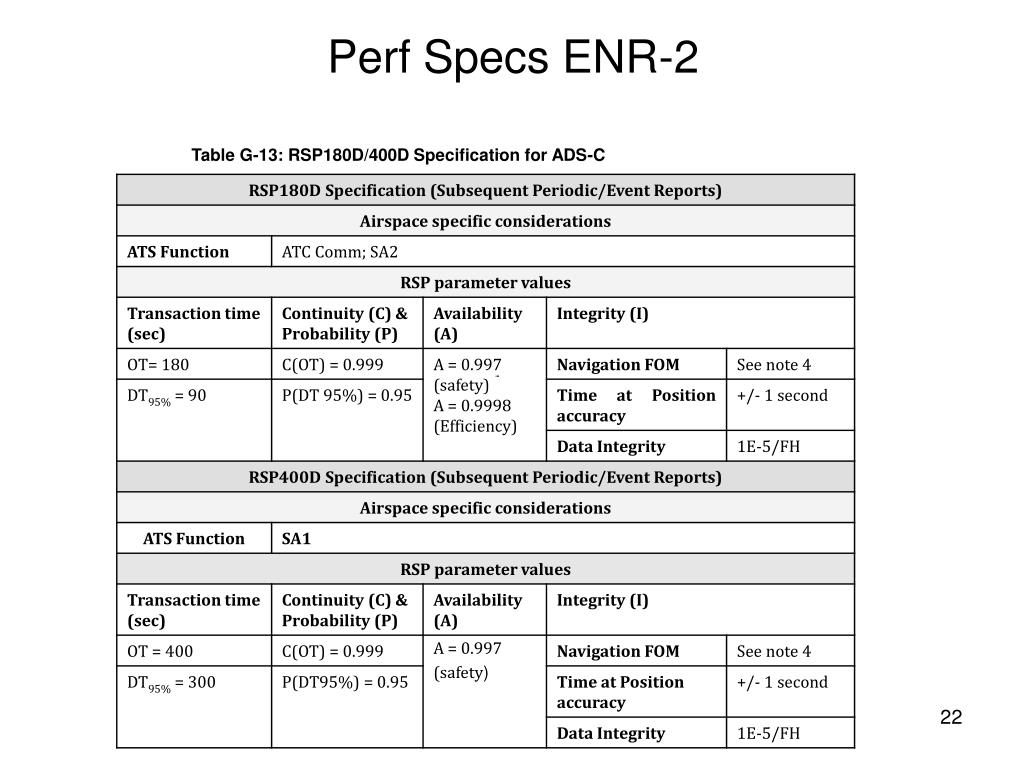

  22. Perf Specs ENR-2 Table G-13: RSP180D/400D Specification for ADS-C

  23. Includes ADS-C Report Generation Time TIME Allocations ENR-2 Table G-14: RSP180D/400D Time Allocations

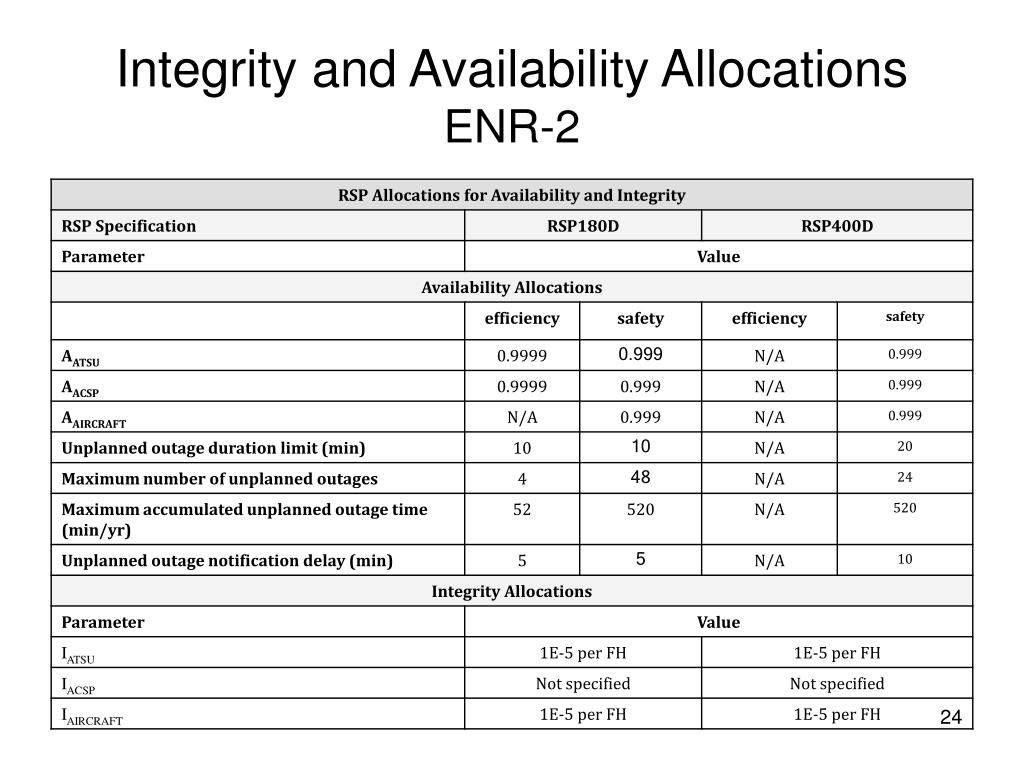

  24. Integrity and Availability AllocationsENR-2
