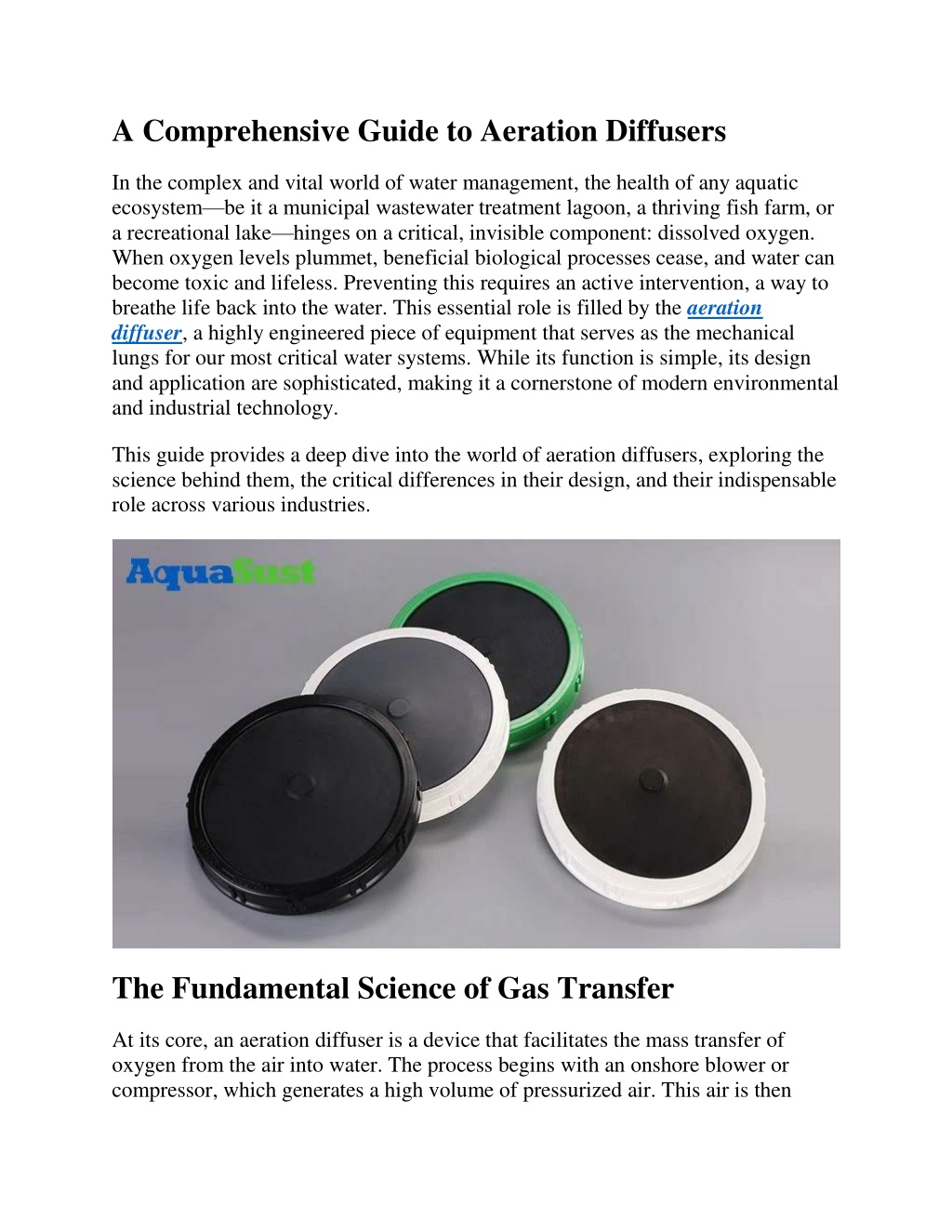

  1. A Comprehensive Guide to Aeration Diffusers In the complex and vital world of water management, the health of any aquatic ecosystem—be it a municipal wastewater treatment lagoon, a thriving fish farm, or a recreational lake—hinges on a critical, invisible component: dissolved oxygen. When oxygen levels plummet, beneficial biological processes cease, and water can become toxic and lifeless. Preventing this requires an active intervention, a way to breathe life back into the water. This essential role is filled by the aeration diffuser, a highly engineered piece of equipment that serves as the mechanical lungs for our most critical water systems. While its function is simple, its design and application are sophisticated, making it a cornerstone of modern environmental and industrial technology. This guide provides a deep dive into the world of aeration diffusers, exploring the science behind them, the critical differences in their design, and their indispensable role across various industries. The Fundamental Science of Gas Transfer At its core, an aeration diffuser is a device that facilitates the mass transfer of oxygen from the air into water. The process begins with an onshore blower or compressor, which generates a high volume of pressurized air. This air is then

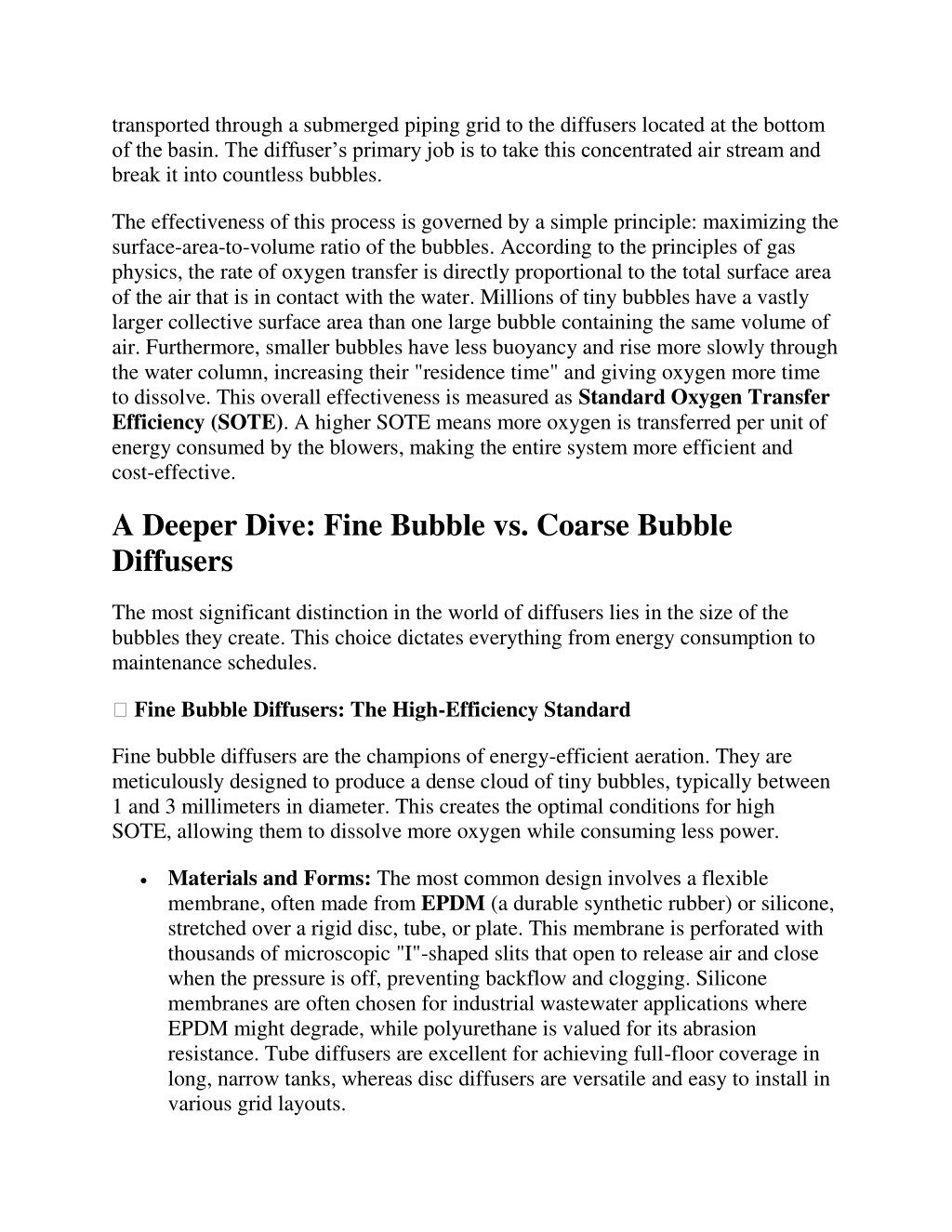

  2. transported through a submerged piping grid to the diffusers located at the bottom of the basin. The diffuser’s primary job is to take this concentrated air stream and break it into countless bubbles. The effectiveness of this process is governed by a simple principle: maximizing the surface-area-to-volume ratio of the bubbles. According to the principles of gas physics, the rate of oxygen transfer is directly proportional to the total surface area of the air that is in contact with the water. Millions of tiny bubbles have a vastly larger collective surface area than one large bubble containing the same volume of air. Furthermore, smaller bubbles have less buoyancy and rise more slowly through the water column, increasing their "residence time" and giving oxygen more time to dissolve. This overall effectiveness is measured as Standard Oxygen Transfer Efficiency (SOTE). A higher SOTE means more oxygen is transferred per unit of energy consumed by the blowers, making the entire system more efficient and cost-effective. A Deeper Dive: Fine Bubble vs. Coarse Bubble Diffusers The most significant distinction in the world of diffusers lies in the size of the bubbles they create. This choice dictates everything from energy consumption to maintenance schedules. Fine Bubble Diffusers: The High-Efficiency Standard Fine bubble diffusers are the champions of energy-efficient aeration. They are meticulously designed to produce a dense cloud of tiny bubbles, typically between 1 and 3 millimeters in diameter. This creates the optimal conditions for high SOTE, allowing them to dissolve more oxygen while consuming less power. Materials and Forms: The most common design involves a flexible membrane, often made from EPDM (a durable synthetic rubber) or silicone, stretched over a rigid disc, tube, or plate. This membrane is perforated with thousands of microscopic "I"-shaped slits that open to release air and close when the pressure is off, preventing backflow and clogging. Silicone membranes are often chosen for industrial wastewater applications where EPDM might degrade, while polyurethane is valued for its abrasion resistance. Tube diffusers are excellent for achieving full-floor coverage in long, narrow tanks, whereas disc diffusers are versatile and easy to install in various grid layouts.

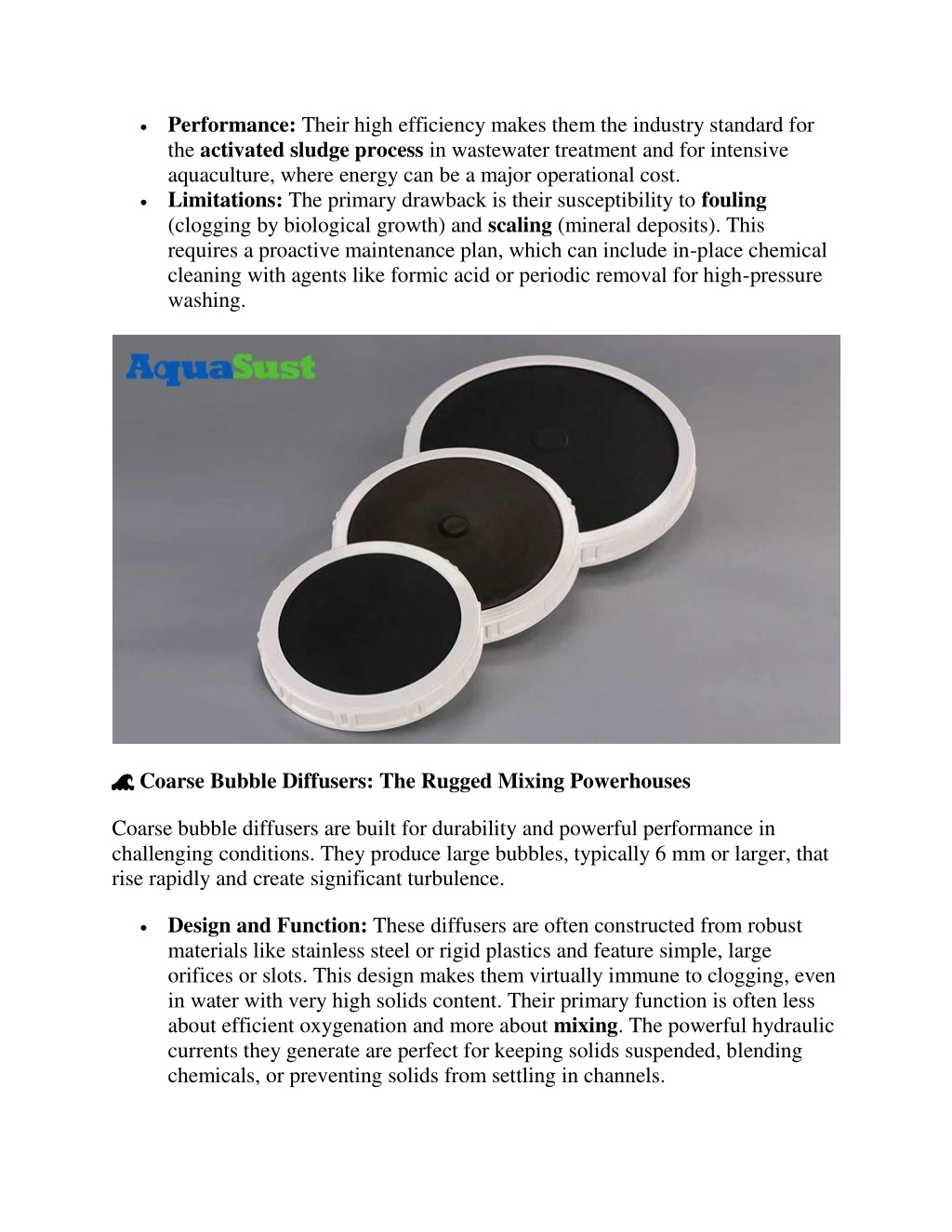

  3. Performance: Their high efficiency makes them the industry standard for the activated sludge process in wastewater treatment and for intensive aquaculture, where energy can be a major operational cost. Limitations: The primary drawback is their susceptibility to fouling (clogging by biological growth) and scaling (mineral deposits). This requires a proactive maintenance plan, which can include in-place chemical cleaning with agents like formic acid or periodic removal for high-pressure washing. ? ? Coarse Bubble Diffusers: The Rugged Mixing Powerhouses Coarse bubble diffusers are built for durability and powerful performance in challenging conditions. They produce large bubbles, typically 6 mm or larger, that rise rapidly and create significant turbulence. Design and Function: These diffusers are often constructed from robust materials like stainless steel or rigid plastics and feature simple, large orifices or slots. This design makes them virtually immune to clogging, even in water with very high solids content. Their primary function is often less about efficient oxygenation and more about mixing. The powerful hydraulic currents they generate are perfect for keeping solids suspended, blending chemicals, or preventing solids from settling in channels.

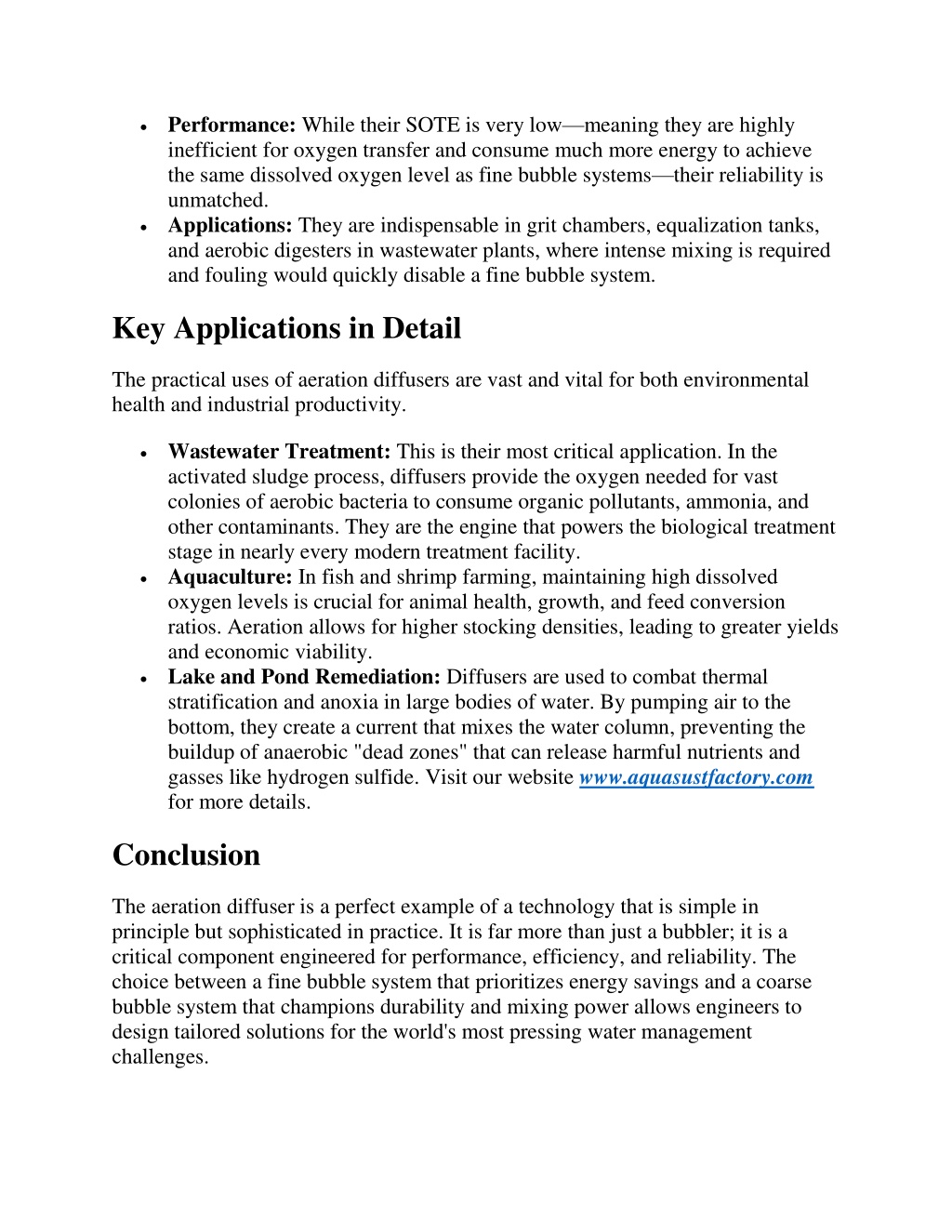

  4. Performance: While their SOTE is very low—meaning they are highly inefficient for oxygen transfer and consume much more energy to achieve the same dissolved oxygen level as fine bubble systems—their reliability is unmatched. Applications: They are indispensable in grit chambers, equalization tanks, and aerobic digesters in wastewater plants, where intense mixing is required and fouling would quickly disable a fine bubble system. Key Applications in Detail The practical uses of aeration diffusers are vast and vital for both environmental health and industrial productivity. Wastewater Treatment: This is their most critical application. In the activated sludge process, diffusers provide the oxygen needed for vast colonies of aerobic bacteria to consume organic pollutants, ammonia, and other contaminants. They are the engine that powers the biological treatment stage in nearly every modern treatment facility. Aquaculture: In fish and shrimp farming, maintaining high dissolved oxygen levels is crucial for animal health, growth, and feed conversion ratios. Aeration allows for higher stocking densities, leading to greater yields and economic viability. Lake and Pond Remediation: Diffusers are used to combat thermal stratification and anoxia in large bodies of water. By pumping air to the bottom, they create a current that mixes the water column, preventing the buildup of anaerobic "dead zones" that can release harmful nutrients and gasses like hydrogen sulfide. Visit our website www.aquasustfactory.com for more details. Conclusion The aeration diffuser is a perfect example of a technology that is simple in principle but sophisticated in practice. It is far more than just a bubbler; it is a critical component engineered for performance, efficiency, and reliability. The choice between a fine bubble system that prioritizes energy savings and a coarse bubble system that champions durability and mixing power allows engineers to design tailored solutions for the world's most pressing water management challenges.
