  1. Ripley Rasmus AIA LEED AP The Sustainable Air Terminal HOK St. Louis, Missouri

  2. Ripley Rasmus AIA LEED AP The Sustainable Air Terminal • Sustainable Design • The art of designing the built environment in support of the natural environment. • “Meeting the needs of the present without compromising the ability of future generations to meet their needs” • LEED • USGBC Leadership in Energy and Environmental Design • Guidelines supporting Sustainable Design and Building practices. • A rating system for measuring compliance with sustainable design guidelines.

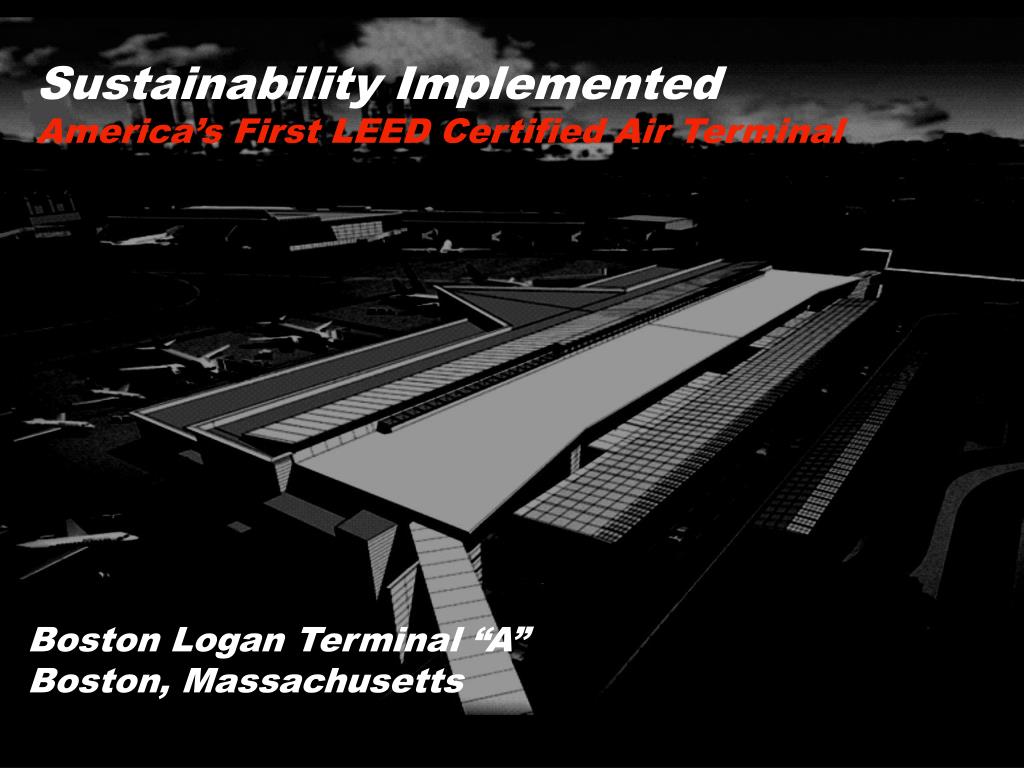

  3. Sustainability Implemented America’s First LEED Certified Air Terminal Boston Logan Terminal “A” Boston, Massachusetts

  4. Boston Logan Terminal A Boston, Massachusetts

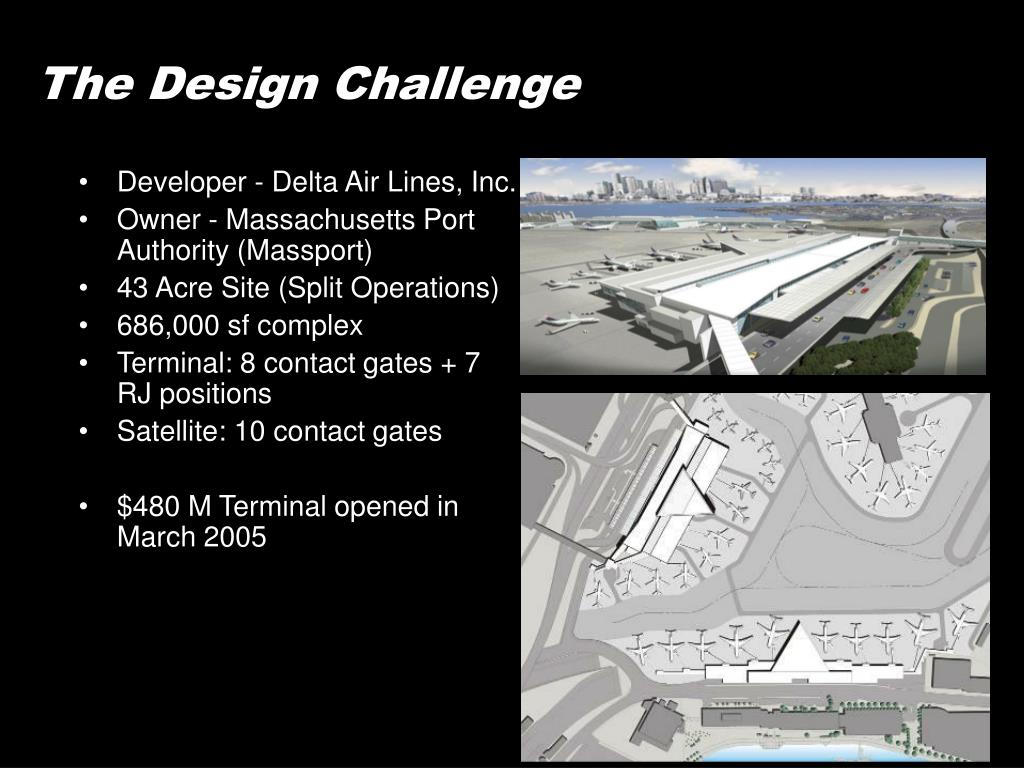

  5. The Design Challenge • Developer - Delta Air Lines, Inc. • Owner - Massachusetts Port Authority (Massport) • 43 Acre Site (Split Operations) • 686,000 sf complex • Terminal: 8 contact gates + 7 RJ positions • Satellite: 10 contact gates • $480 M Terminal opened in March 2005

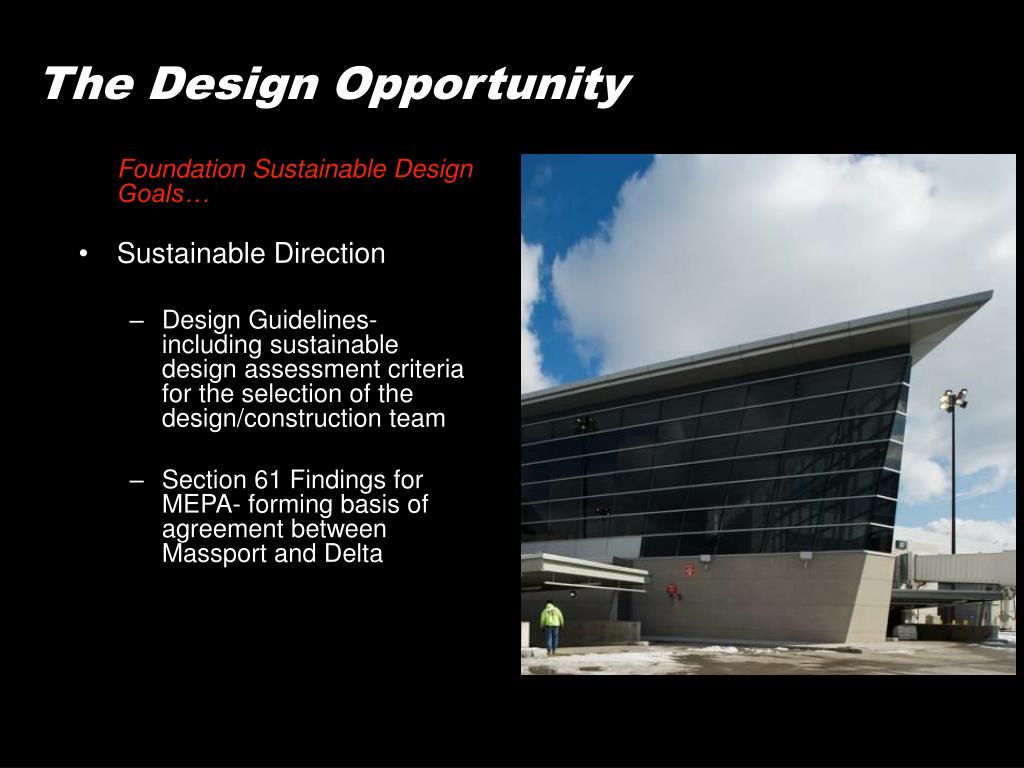

  6. The Design Opportunity Foundation Sustainable Design Goals… • Sustainable Direction • Design Guidelines- including sustainable design assessment criteria for the selection of the design/construction team • Section 61 Findings for MEPA- forming basis of agreement between Massport and Delta

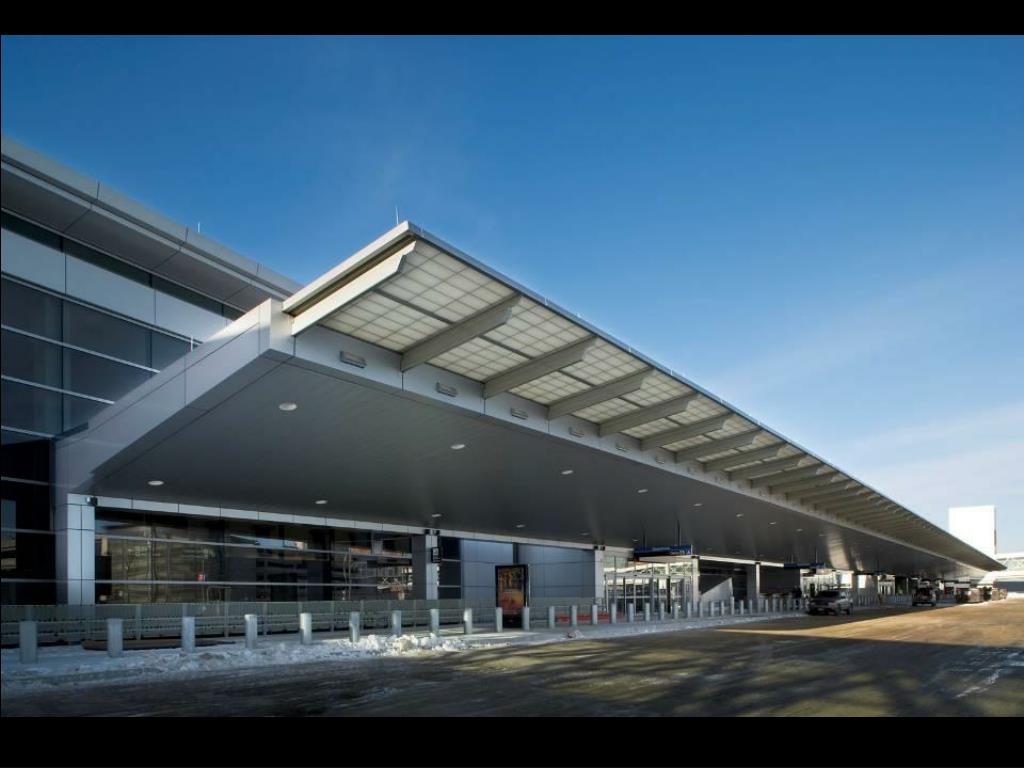

  7. Boston Logan Terminal A Boston, Massachusetts Simple, Architecture

  8. Boston Logan Terminal A Boston, Massachusetts

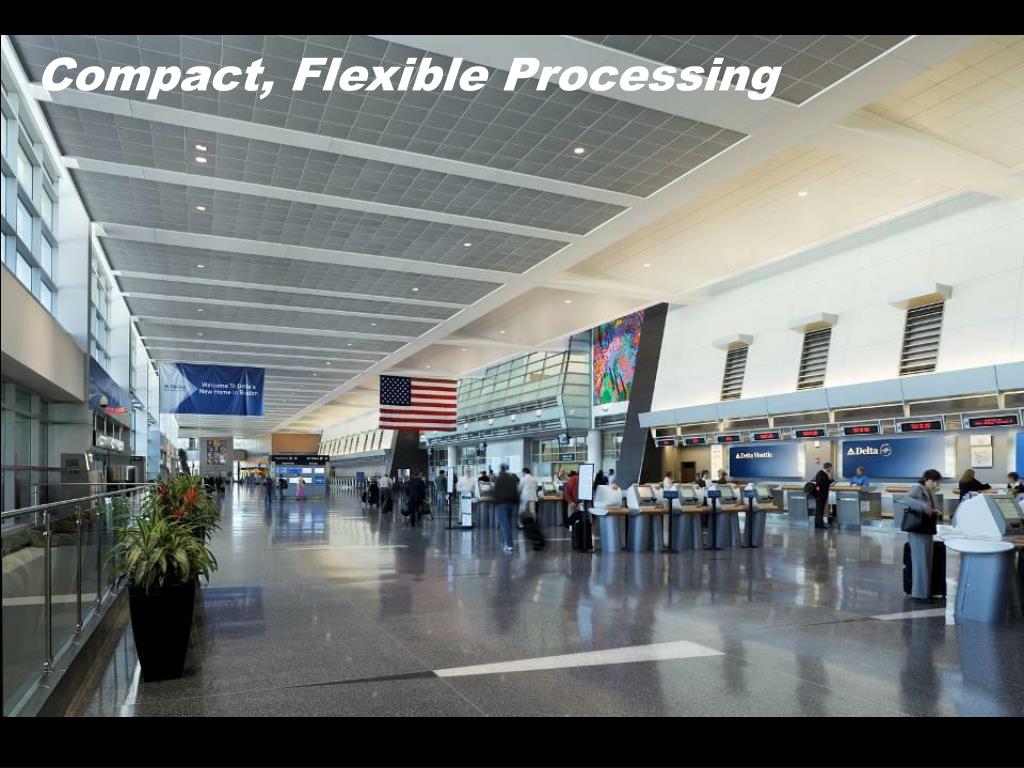

  9. Boston Logan Terminal A Boston, Massachusetts Compact, Flexible Processing

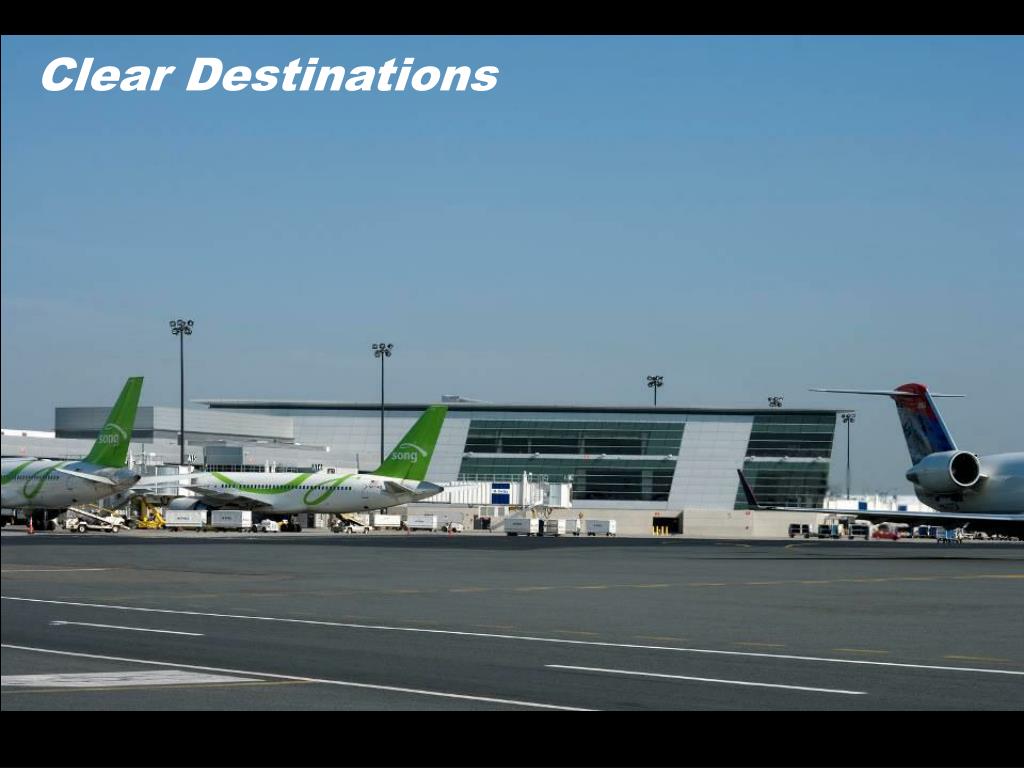

  10. Boston Logan Terminal A Boston, Massachusetts Clear Destinations

  11. Boston Logan Terminal A Boston, Massachusetts Clear Destinations

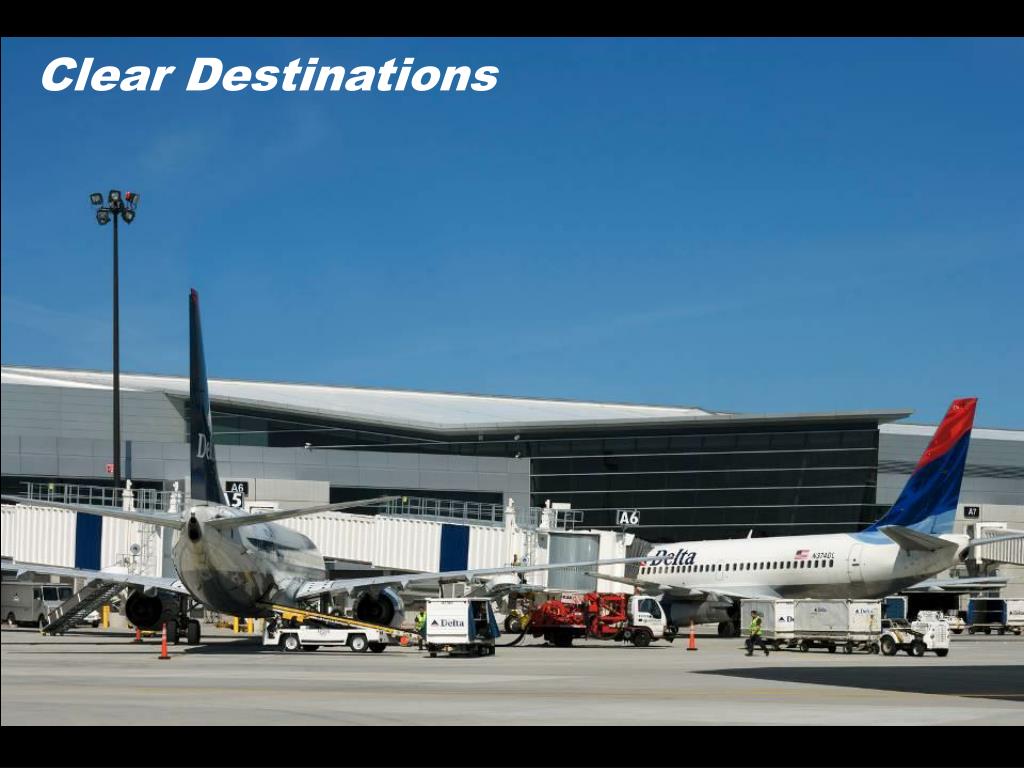

  12. Boston Logan Terminal A Boston, Massachusetts Clear Destinations

  13. Daylighting, Views and Place

  14. Boston Logan Terminal A Boston, Massachusetts

  15. Boston Logan Terminal A Boston, Massachusetts

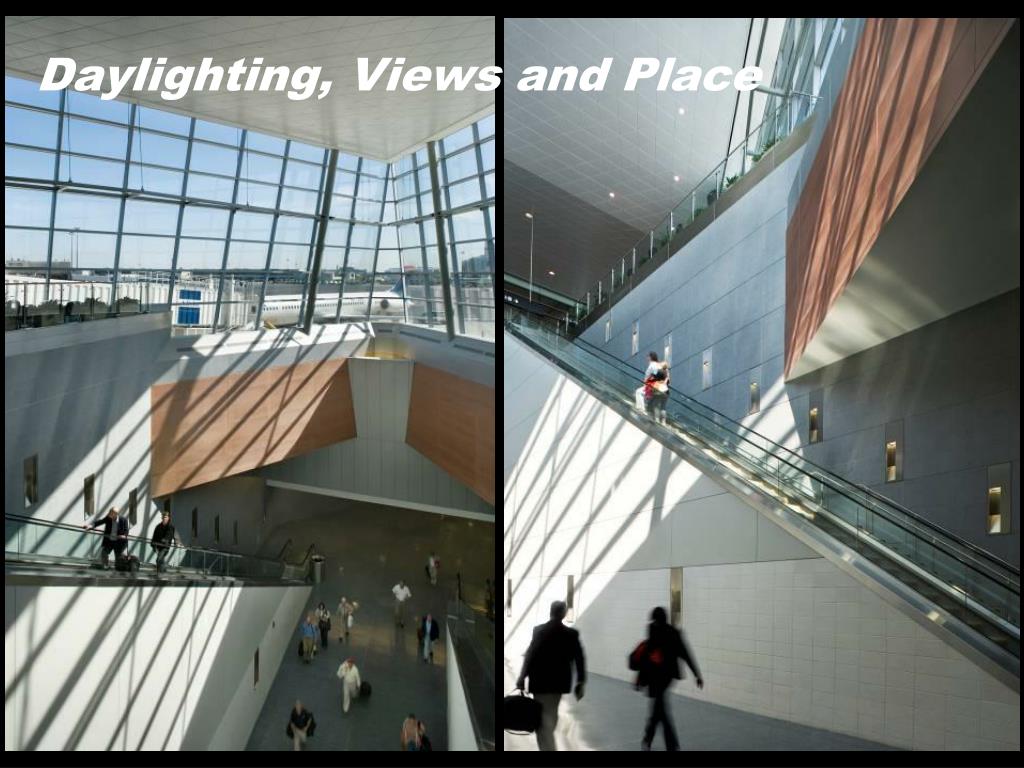

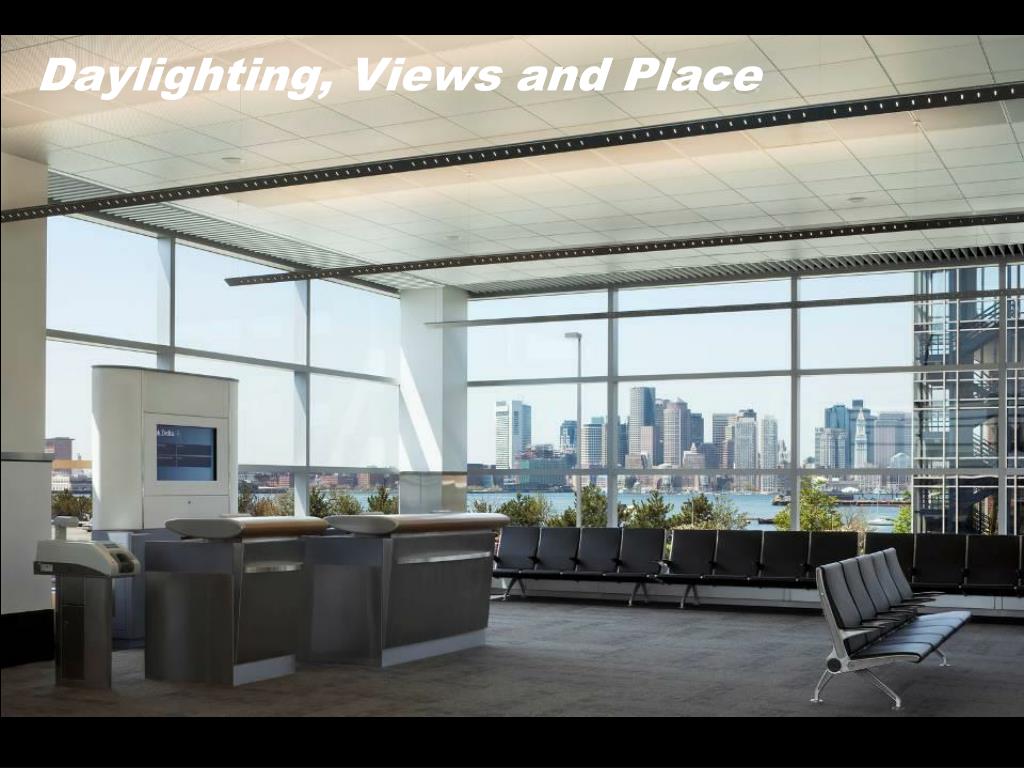

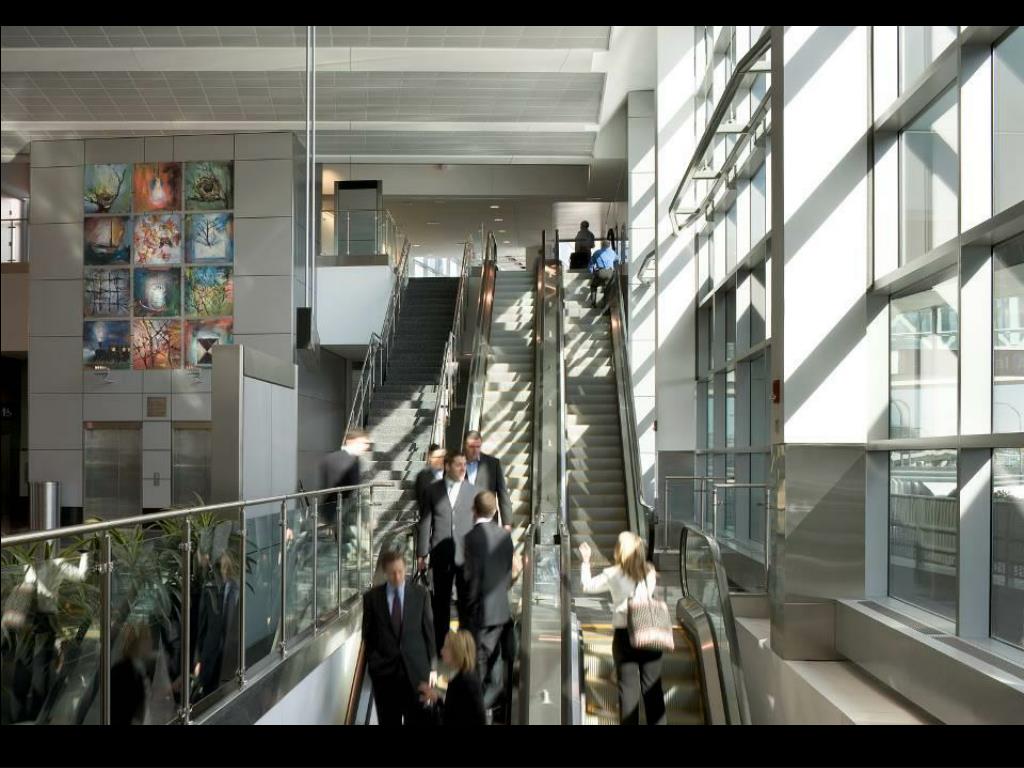

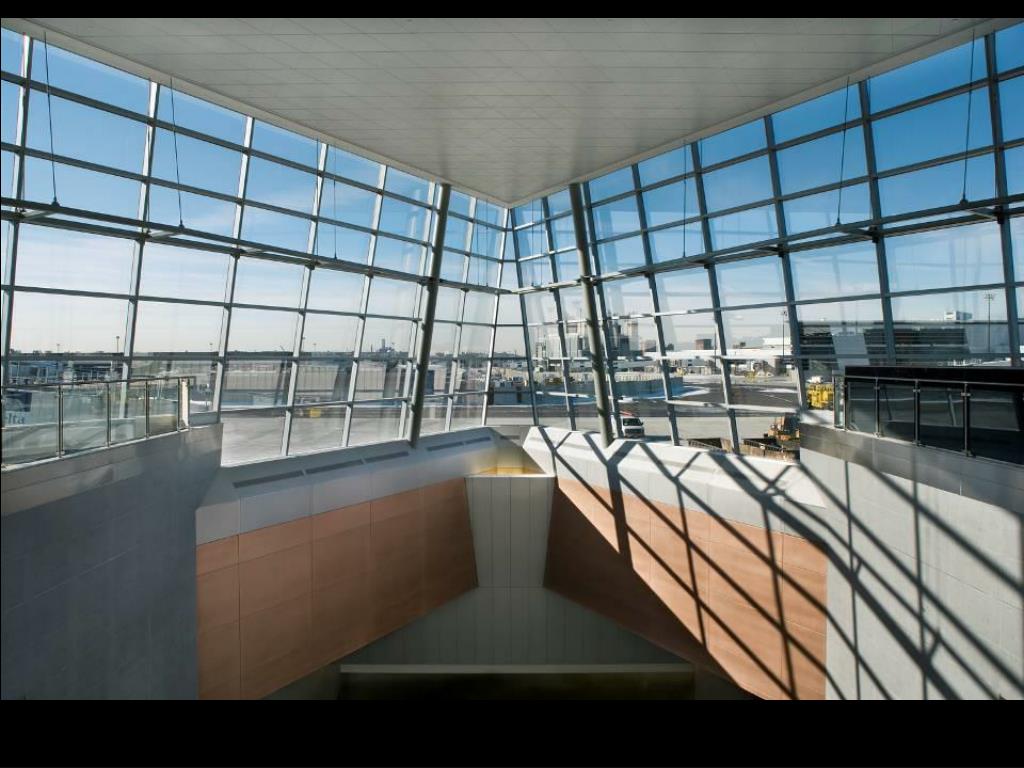

  16. Boston Logan Terminal A Boston, Massachusetts Daylighting, Views and Place

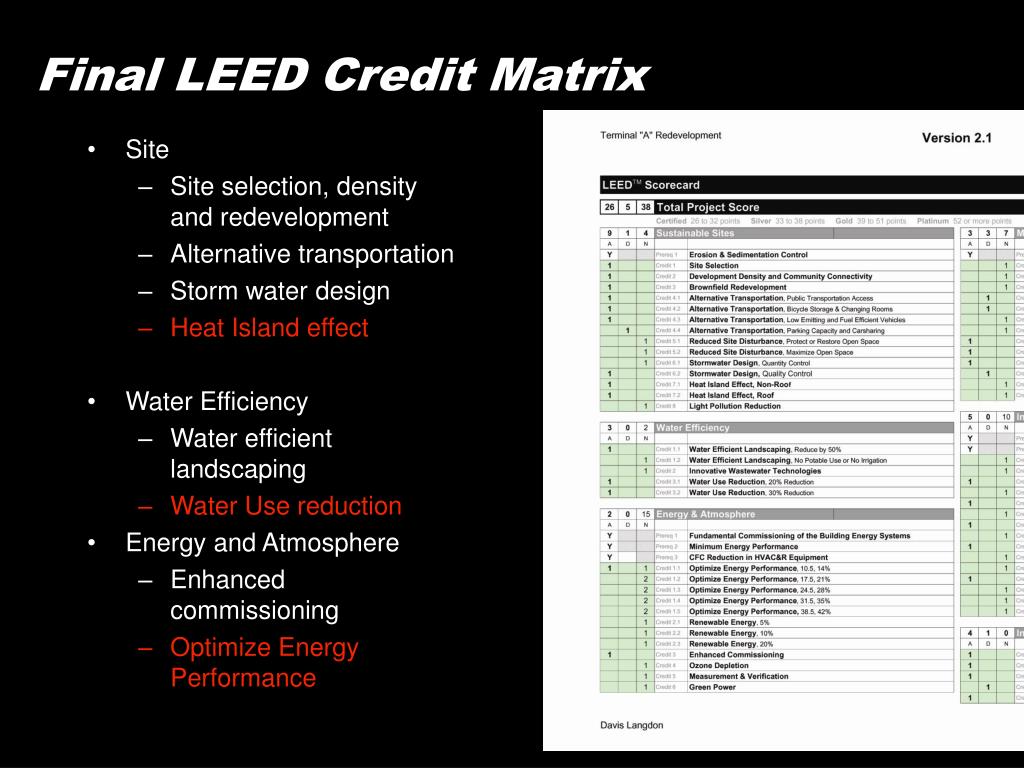

  17. Final LEED Credit Matrix • Site • Site selection, density and redevelopment • Alternative transportation • Storm water design • Heat Island effect • Water Efficiency • Water efficient landscaping • Water Use reduction • Energy and Atmosphere • Enhanced commissioning • Optimize Energy Performance

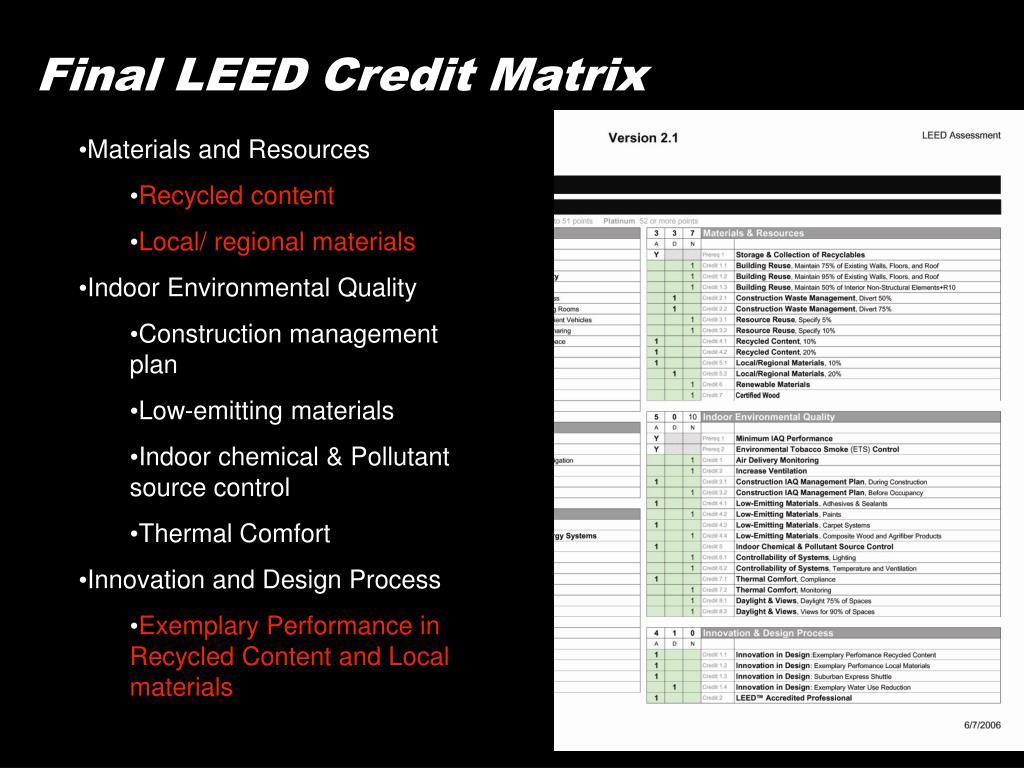

  18. Final LEED Credit Matrix • Materials and Resources • Recycled content • Local/ regional materials • Indoor Environmental Quality • Construction management plan • Low-emitting materials • Indoor chemical & Pollutant source control • Thermal Comfort • Innovation and Design Process • Exemplary Performance in Recycled Content and Local materials

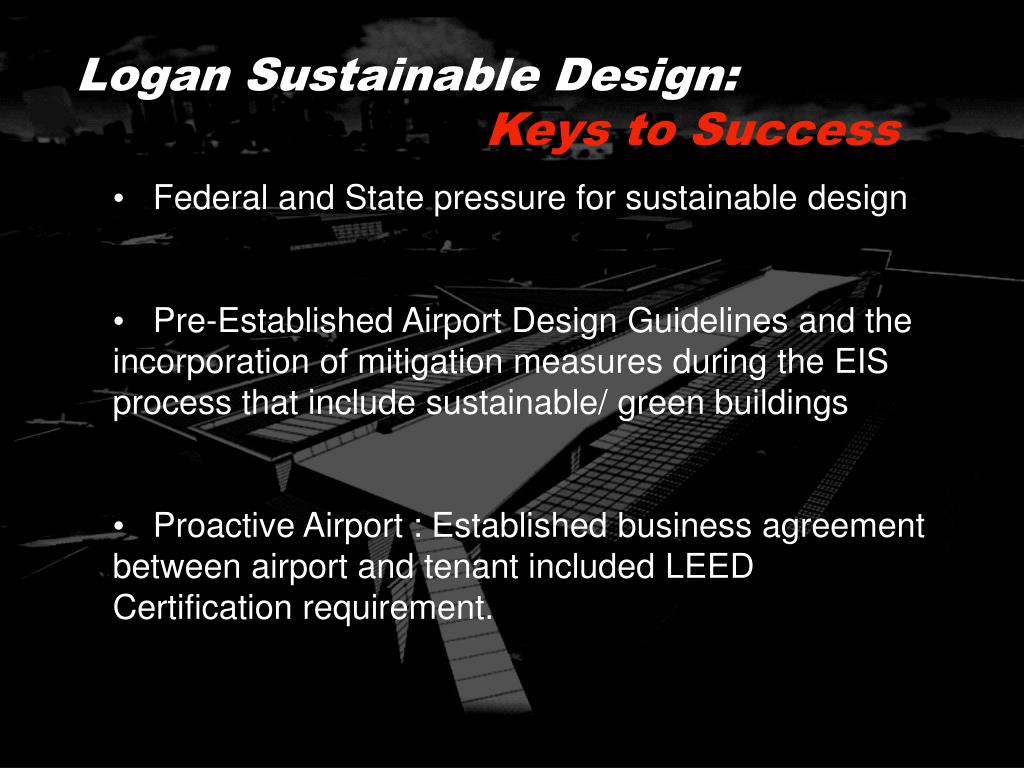

  19. Logan Sustainable Design: Keys to Success • Federal and State pressure for sustainable design • Pre-Established Airport Design Guidelines and the incorporation of mitigation measures during the EIS process that include sustainable/ green buildings • Proactive Airport : Established business agreement between airport and tenant included LEED Certification requirement.

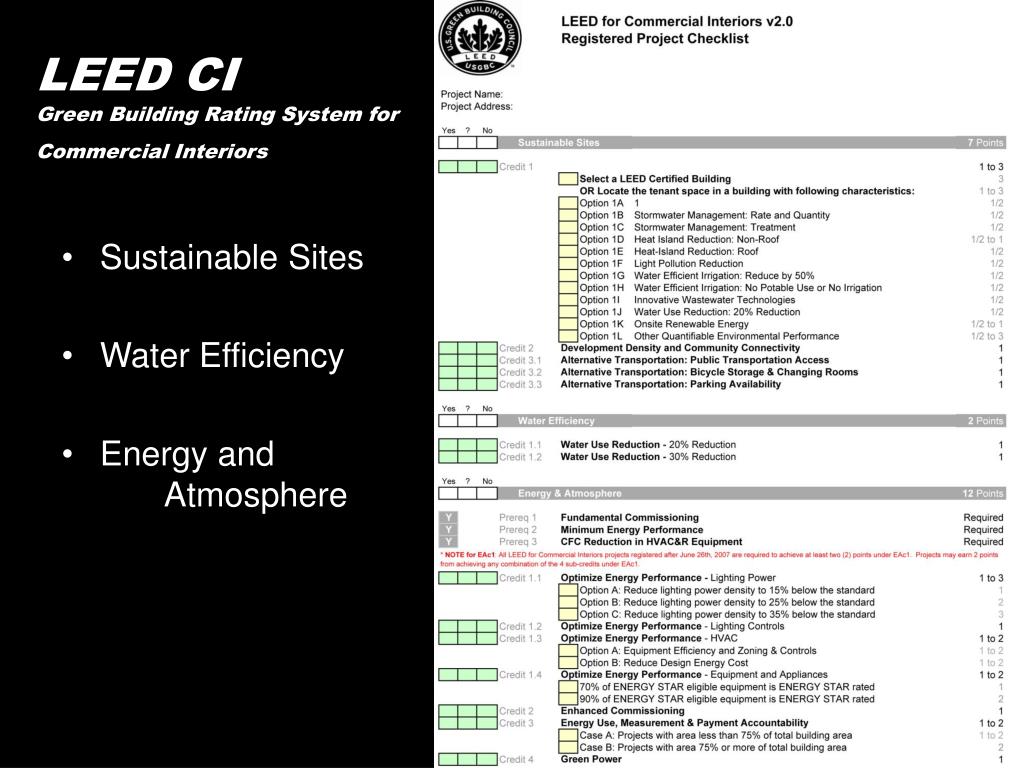

  20. LEED CI Green Building Rating System for Commercial Interiors • Sustainable Sites • Water Efficiency • Energy and Atmosphere

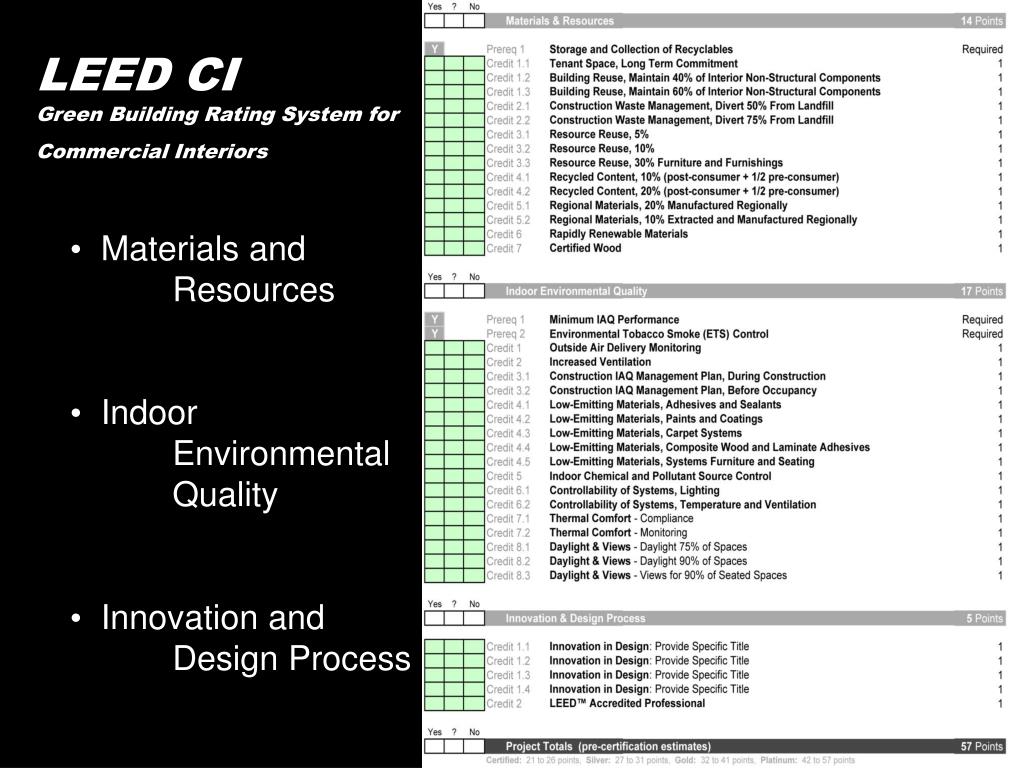

  21. LEED CI Green Building Rating System for Commercial Interiors • Materials and Resources • Indoor Environmental Quality • Innovation and Design Process

  22. Sustainable Design and Building Form Shaping a Sustainable Architecture The New Indianapolis Airport Indianapolis, Indiana

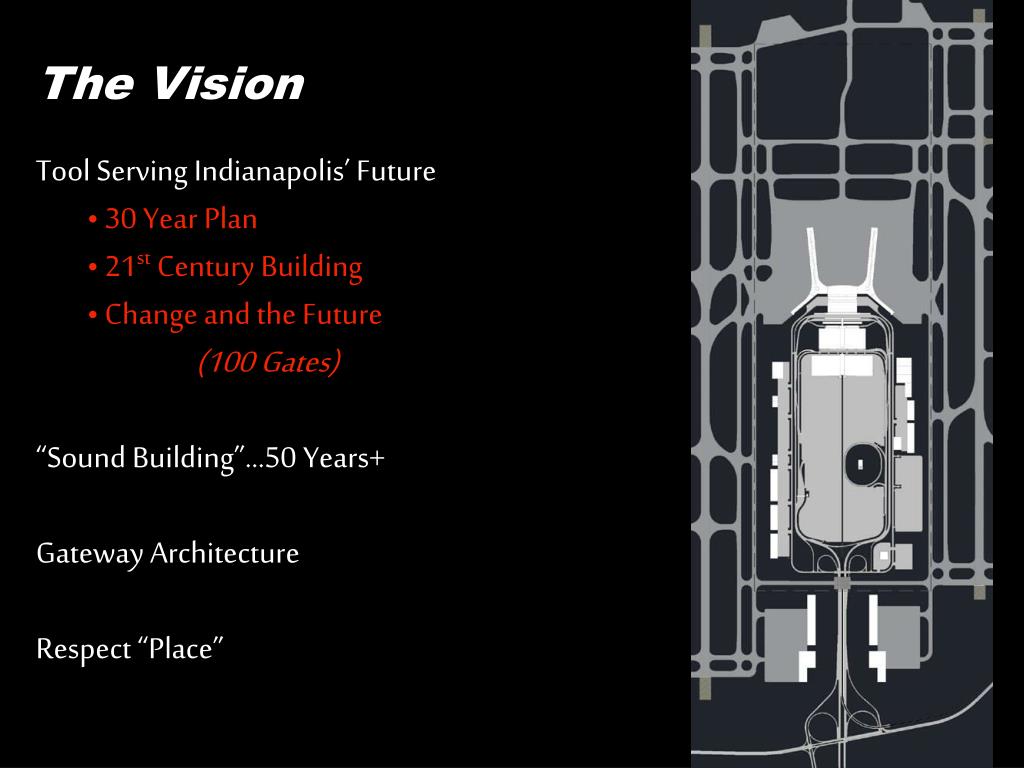

  23. The Vision • Tool Serving Indianapolis’ Future • 30 Year Plan • 21st Century Building • Change and the Future • (100 Gates) • “Sound Building”…50 Years+ • Gateway Architecture • Respect “Place”

  24. The Design Opportunity • Visionary Client • 30 Year Plan • 50 Year Buildings • Respect for Place • 21st Century Building • Change and the Future • (100 Gates) • Sustainable Design Objectives • Integrated Design Team with Sustainable Design Focus

  25. N The Indy Powerhouse Hwy. 465 existing terminaloriginal runwayrunway expansionproposed terminal (40 Gates)new control towerproposed access ramp system 1 1 2 I-70 2 3 4 3 5 4 6 5 3 6 I-70

  26. The Air Terminal

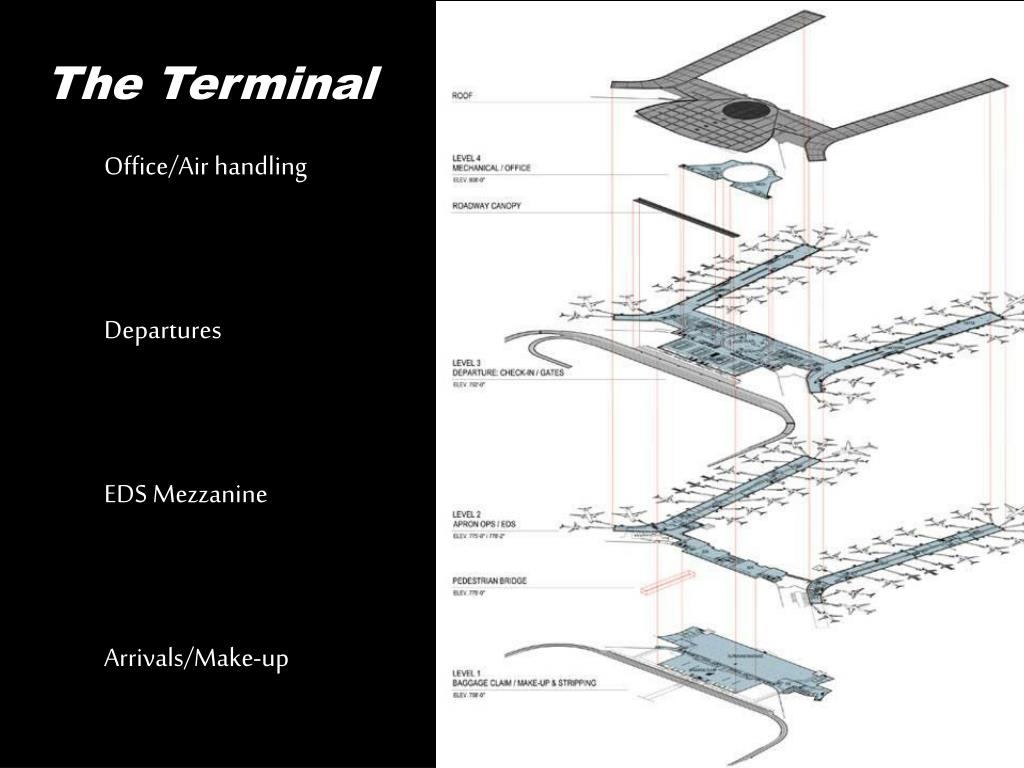

  27. The Terminal Office/Air handling Departures EDS Mezzanine Arrivals/Make-up

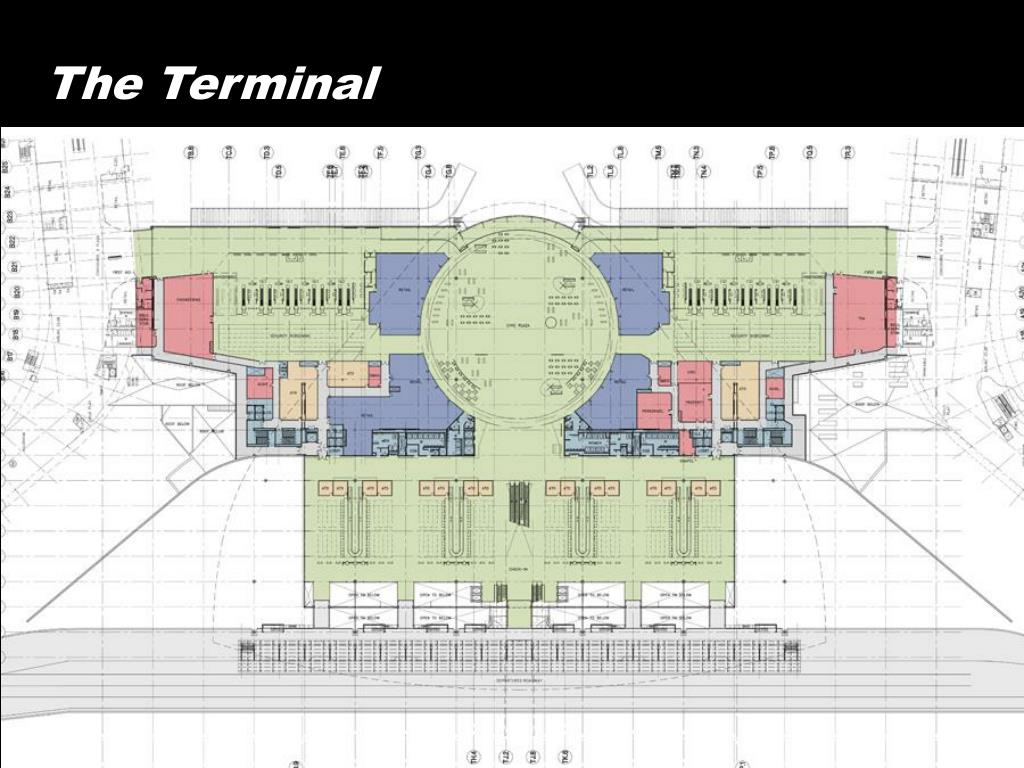

  28. The Terminal

  29. Design Approach Principles: 1. Allow the Best & Most Rational Planning to Govern 2. Embrace the Natural Environment of Indiana 3. Reflect Indiana’s Culture in Every Part of the MTC 4. Maximize Potential for Change & Growth

  30. Sustainable Design Principles: “Embrace the Natural Environment Here” • Tailor the Building to the Sun, the Wind, the Rain and Snow • Embrace the Landscape of Horizon & Sky.

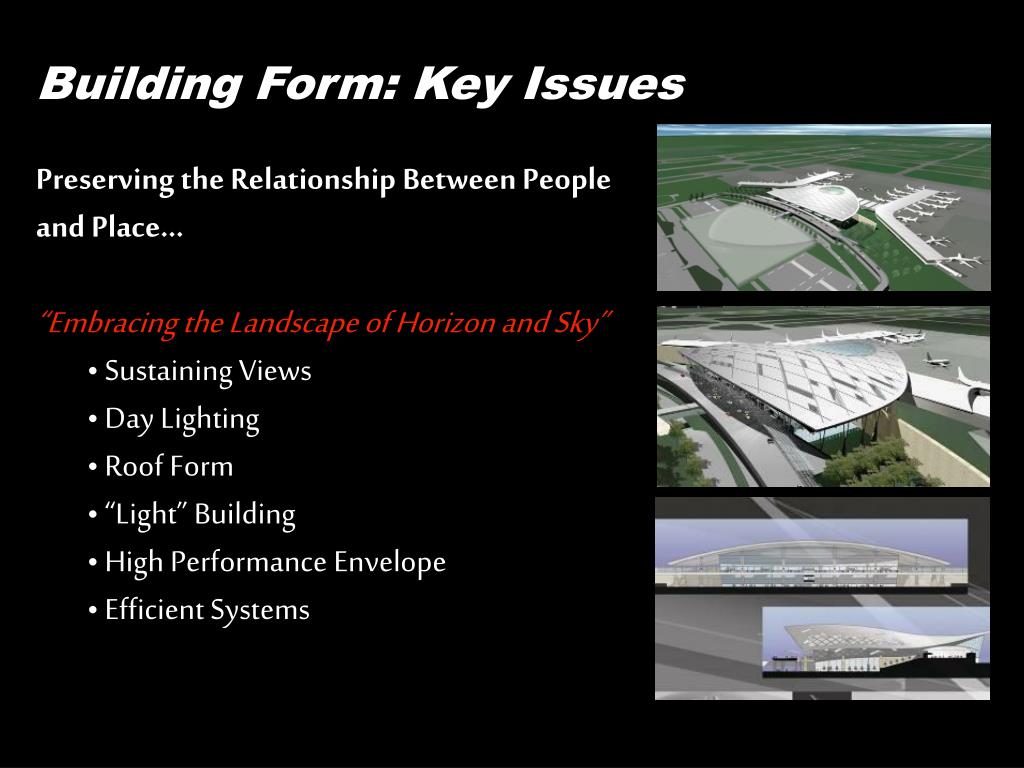

  31. Building Form: Key Issues • Preserving the Relationship Between People and Place… • “Embracing the Landscape of Horizon and Sky” • Sustaining Views • Day Lighting • Roof Form • “Light” Building • High Performance Envelope • Efficient Systems

  32. Views and Light

  33. The Procession

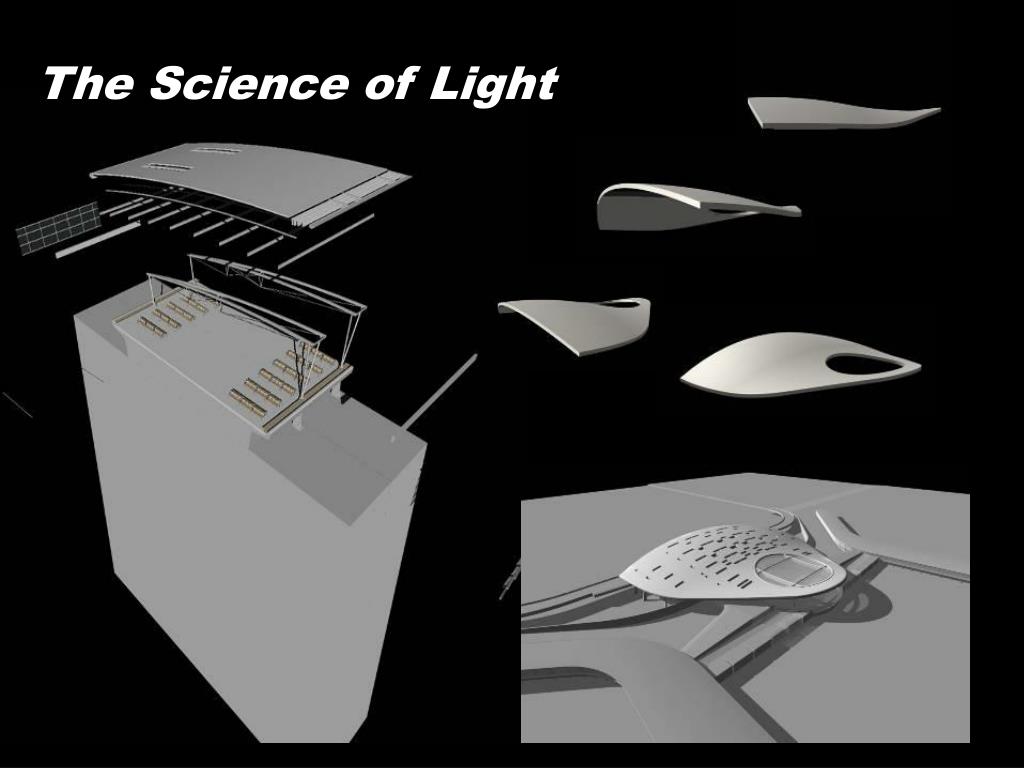

  34. The Science of Light

  35. The Sheltering Roof

  36. High Performance Curtain Wall

  37. Concourses

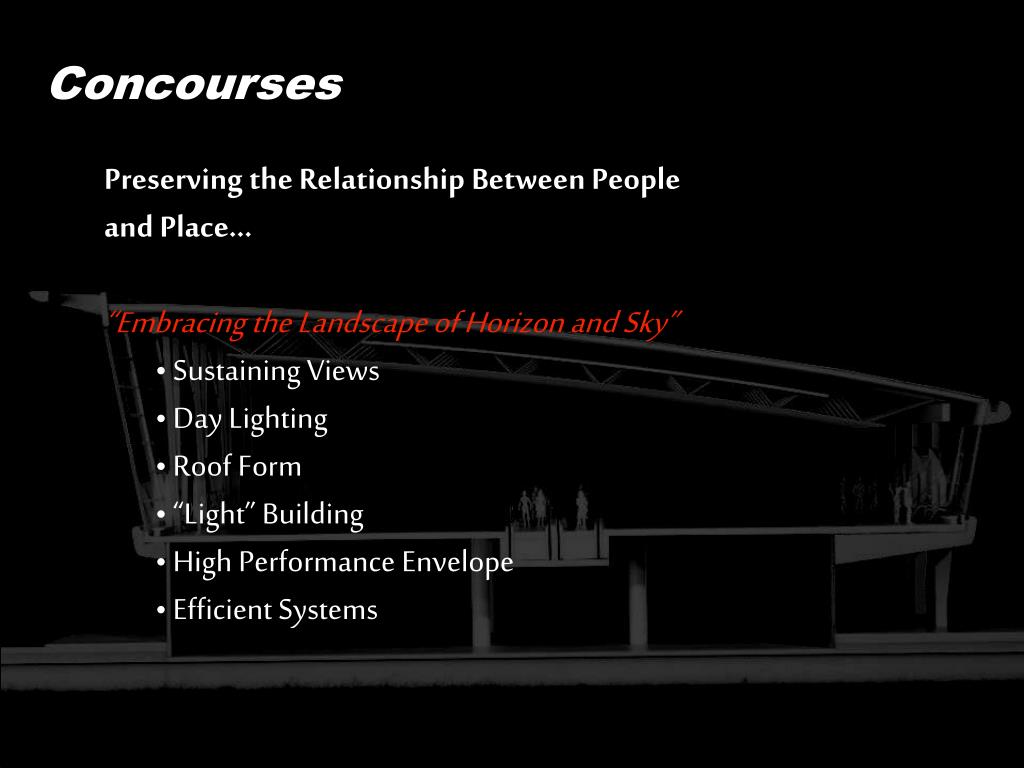

  38. Concourses • Preserving the Relationship Between People and Place… • “Embracing the Landscape of Horizon and Sky” • Sustaining Views • Day Lighting • Roof Form • “Light” Building • High Performance Envelope • Efficient Systems

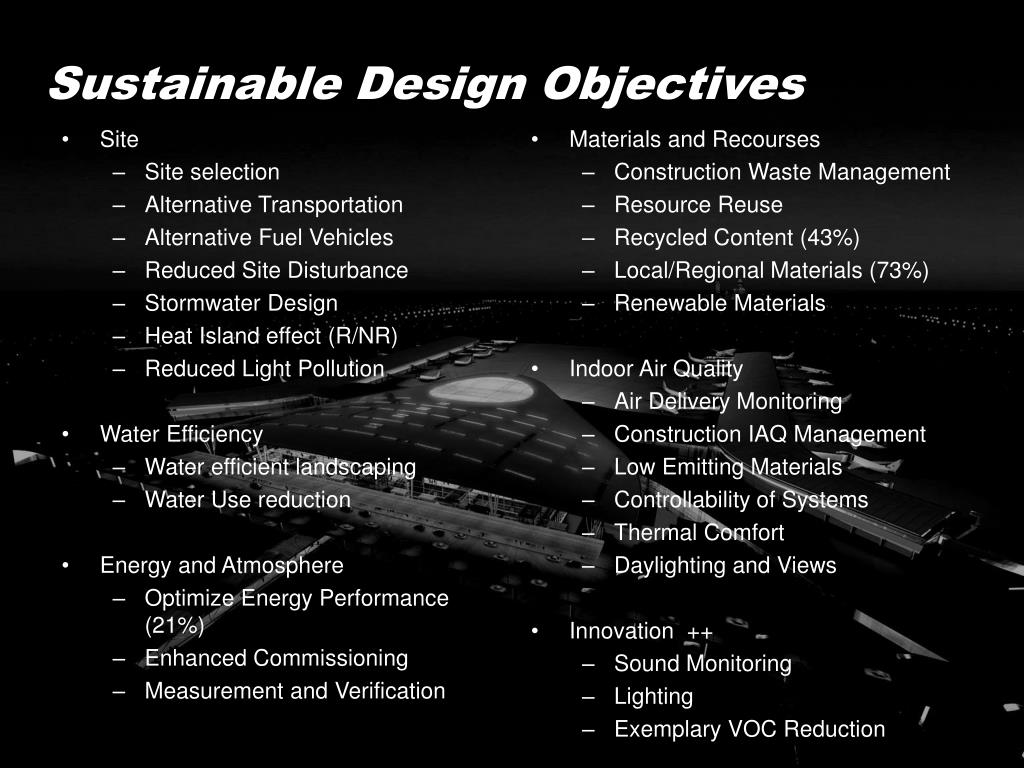

  39. Sustainable Design Objectives • Site • Site selection • Alternative Transportation • Alternative Fuel Vehicles • Reduced Site Disturbance • Stormwater Design • Heat Island effect (R/NR) • Reduced Light Pollution • Water Efficiency • Water efficient landscaping • Water Use reduction • Energy and Atmosphere • Optimize Energy Performance (21%) • Enhanced Commissioning • Measurement and Verification • Materials and Recourses • Construction Waste Management • Resource Reuse • Recycled Content (43%) • Local/Regional Materials (73%) • Renewable Materials • Indoor Air Quality • Air Delivery Monitoring • Construction IAQ Management • Low Emitting Materials • Controllability of Systems • Thermal Comfort • Daylighting and Views • Innovation ++ • Sound Monitoring • Lighting • Exemplary VOC Reduction

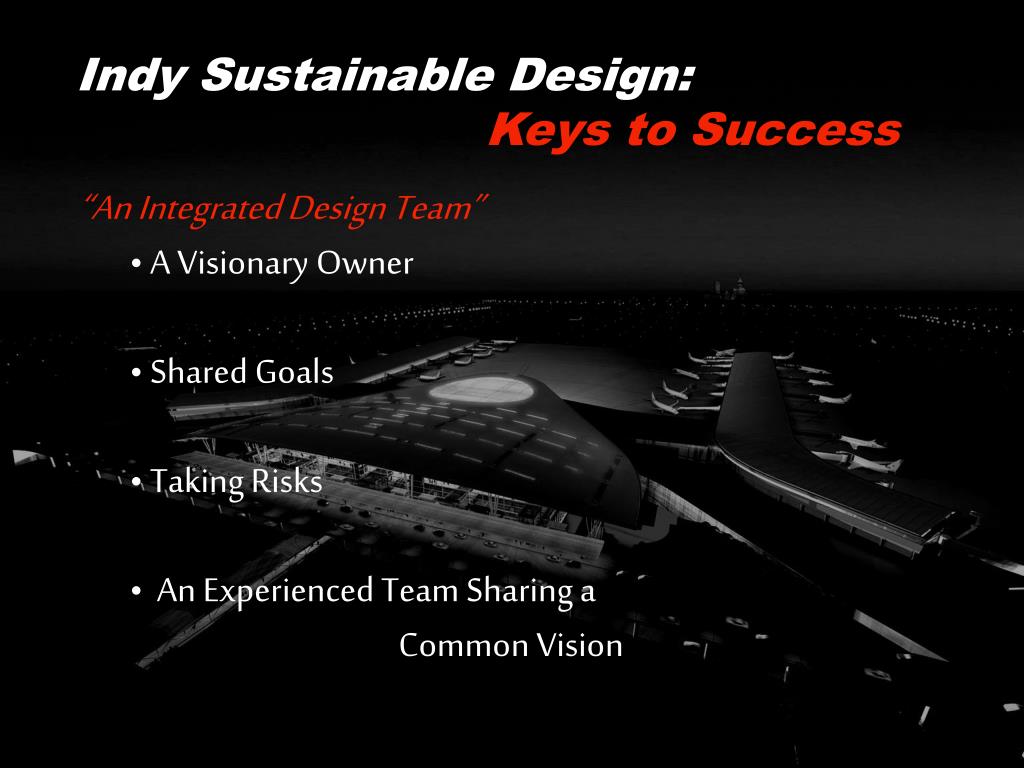

  40. Indy Sustainable Design: Keys to Success • “An Integrated Design Team” • A Visionary Owner • Shared Goals • Taking Risks • An Experienced Team Sharing a Common Vision
