Presentation Transcript

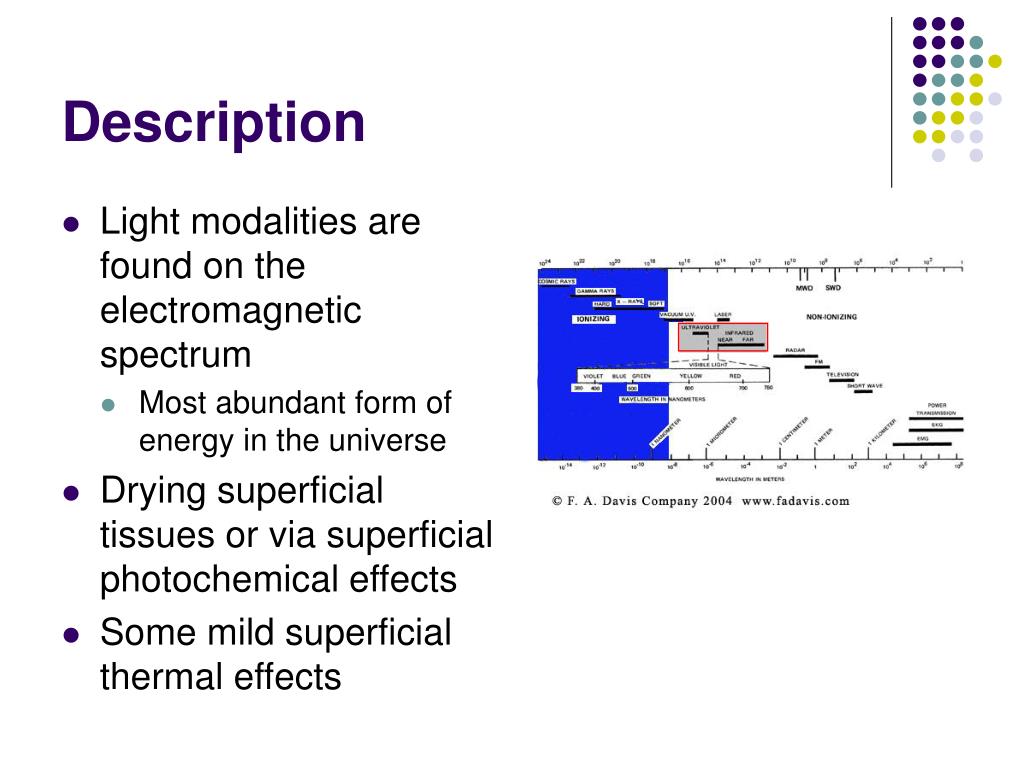

  • Light modalities are found on the electromagnetic spectrum
    • Most abundant form of energy in the universe
  • Drying superficial tissues or via superficial photochemical effects
  • Some mild superficial thermal effects
types of therapeutic lamps

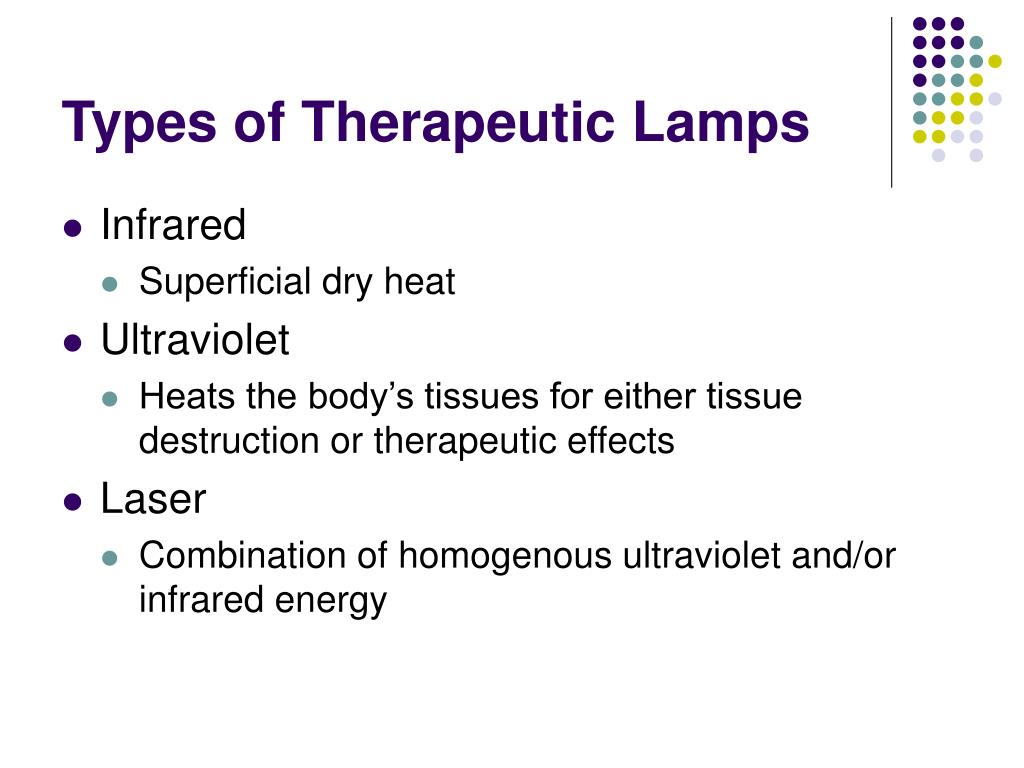

Types of Therapeutic Lamps
  • Infrared
    • Superficial dry heat
  • Ultraviolet
    • Heats the body’s tissues for either tissue destruction or therapeutic effects
  • Laser
    • Combination of homogenous ultraviolet and/or infrared energy
infrared lamp

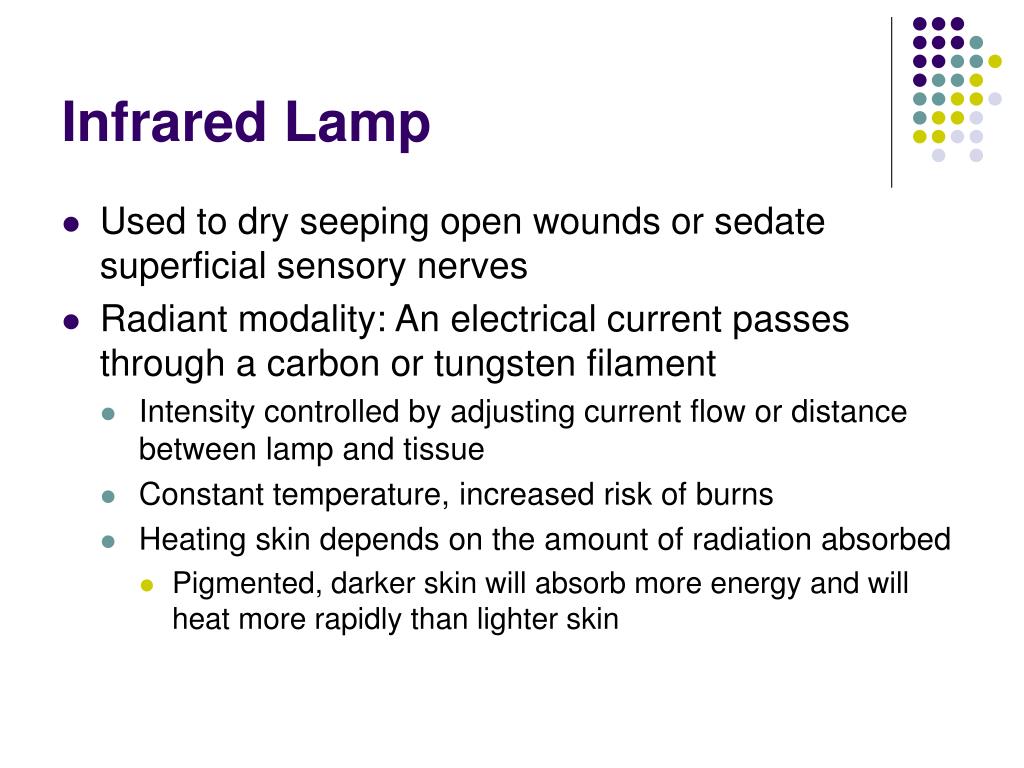

Infrared Lamp
  • Used to dry seeping open wounds or sedate superficial sensory nerves
  • Radiant modality: An electrical current passes through a carbon or tungsten filament
    • Intensity controlled by adjusting current flow or distance between lamp and tissue
    • Constant temperature, increased risk of burns
    • Heating skin depends on the amount of radiation absorbed
      • Pigmented, darker skin will absorb more energy and will heat more rapidly than lighter skin
types of infrared lamps

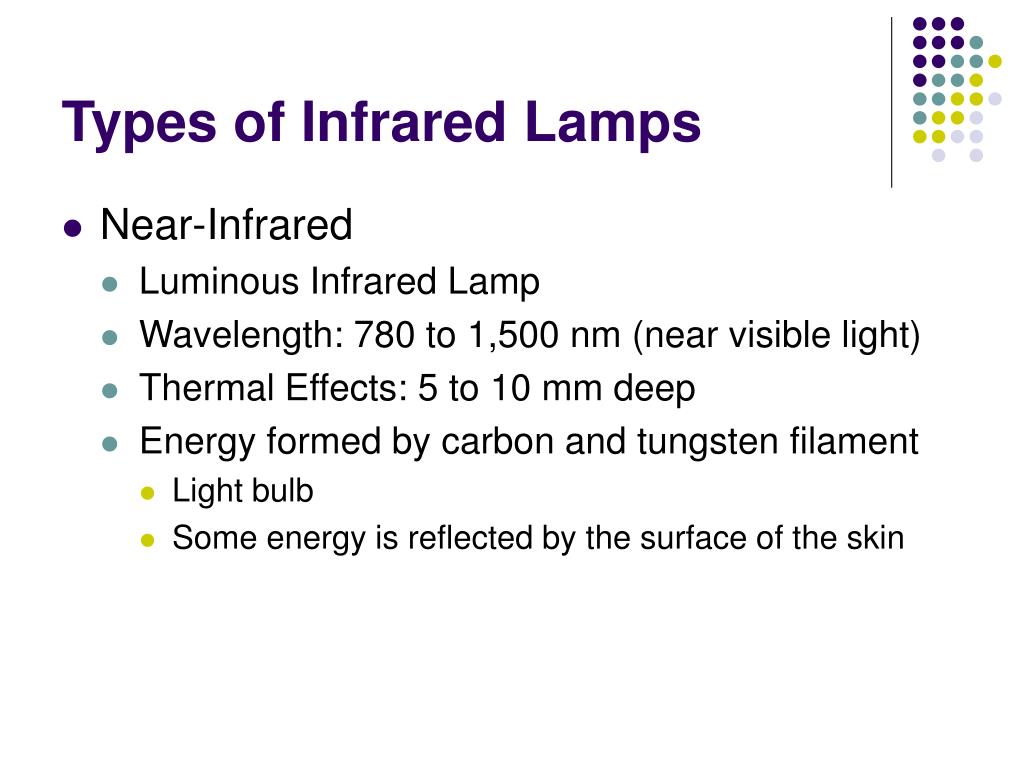

Types of Infrared Lamps
  • Near-Infrared
    • Luminous Infrared Lamp
    • Wavelength: 780 to 1,500 nm (near visible light)
    • Thermal Effects: 5 to 10 mm deep
    • Energy formed by carbon and tungsten filament
      • Light bulb
      • Some energy is reflected by the surface of the skin
types of infrared lamps1

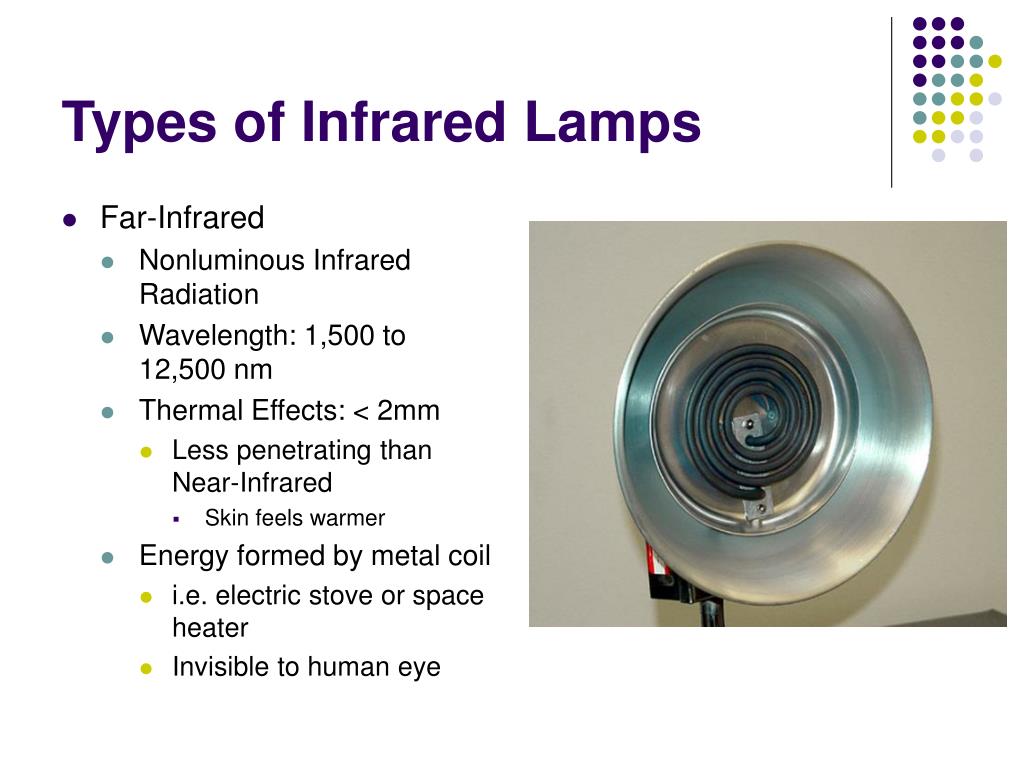

Types of Infrared Lamps
  • Far-Infrared
    • Nonluminous Infrared Radiation
    • Wavelength: 1,500 to 12,500 nm
    • Thermal Effects: < 2mm
      • Less penetrating than Near-Infrared
        • Skin feels warmer
    • Energy formed by metal coil
      • i.e. electric stove or space heater
      • Invisible to human eye
effects of infrared lamps

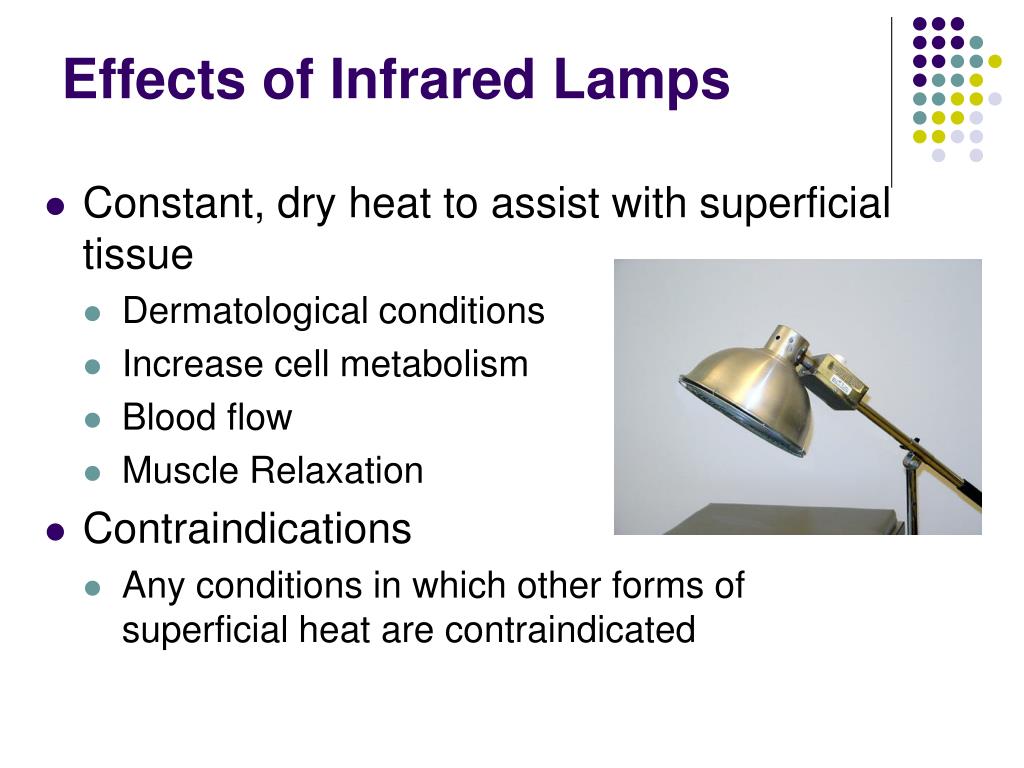

Effects of Infrared Lamps
  • Constant, dry heat to assist with superficial tissue
    • Dermatological conditions
    • Increase cell metabolism
    • Blood flow
    • Muscle Relaxation
  • Contraindications
    • Any conditions in which other forms of superficial heat are contraindicated
clinical application

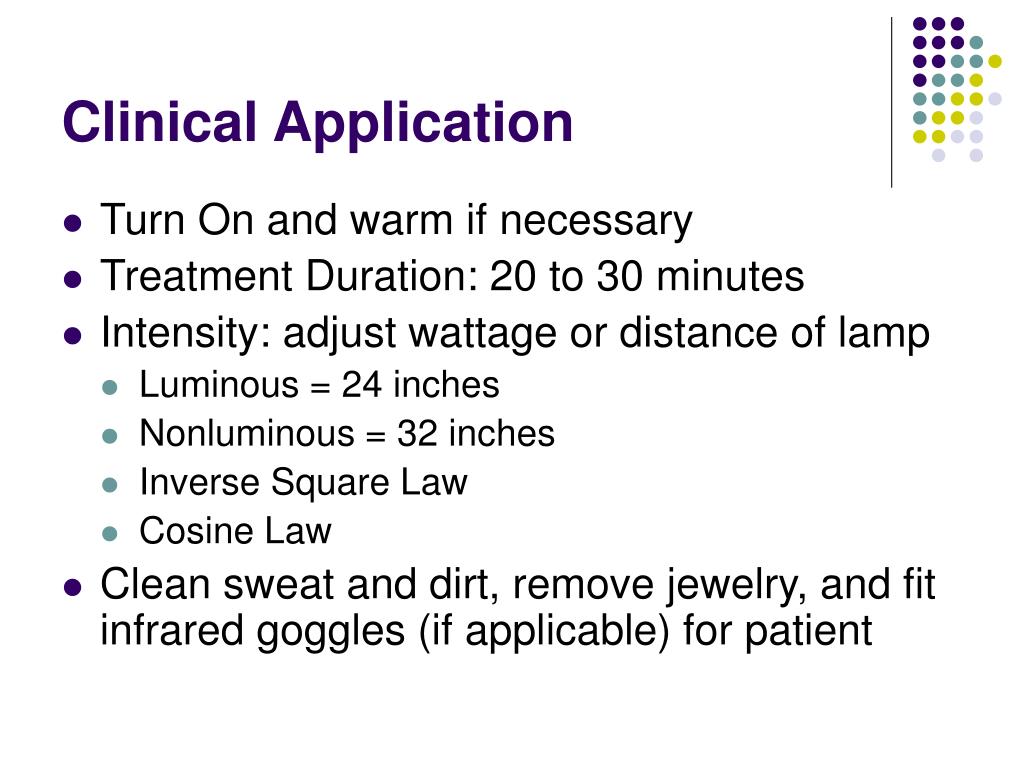

Clinical Application
  • Turn On and warm if necessary
  • Treatment Duration: 20 to 30 minutes
  • Intensity: adjust wattage or distance of lamp
    • Luminous = 24 inches
    • Nonluminous = 32 inches
    • Inverse Square Law
    • Cosine Law
  • Clean sweat and dirt, remove jewelry, and fit infrared goggles (if applicable) for patient
ultraviolet therapy

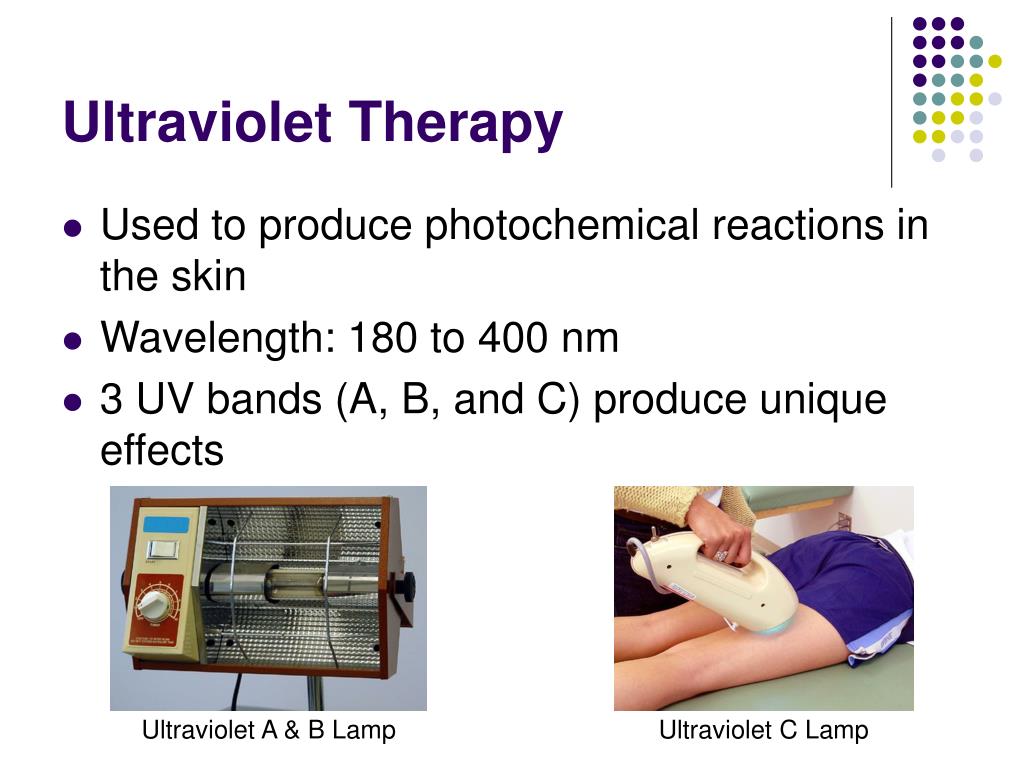

Ultraviolet Therapy
  • Used to produce photochemical reactions in the skin
  • Wavelength: 180 to 400 nm
  • 3 UV bands (A, B, and C) produce unique effects

Ultraviolet A & B Lamp

Ultraviolet C Lamp

types of uv
Types of UV
  • UV-A
    • AKA: near UV
    • Effect:
      • Erythema without pigmentation
  • UV-B
    • AKA: middle UV
    • Effects:
      • Erythema without pigmentation
      • Formation of vitamin D
      • Skin tanning (blister/burn)
  • UV-C
    • AKA: far UV
    • Effects:
      • Kills bacteria
      • Formation of vitamin D
      • Skin tanning
types of uv lamps
Types of UV Lamps
  • ‘Hot’ UV Lamps
    • Low Volt (30-110V) High-Amp (5A)
    • Electrical current passes through tube, argon gas heats, vaporizing and polarizing mercury to produce UV light in ALL 3 bands and visible violet light
  • ‘Cold’ UV Lamps
    • High Volt (3000V) Low-Amp (15mA)
    • Energy is cooler than ‘Hot’ and produce UV-C
biophysical effects

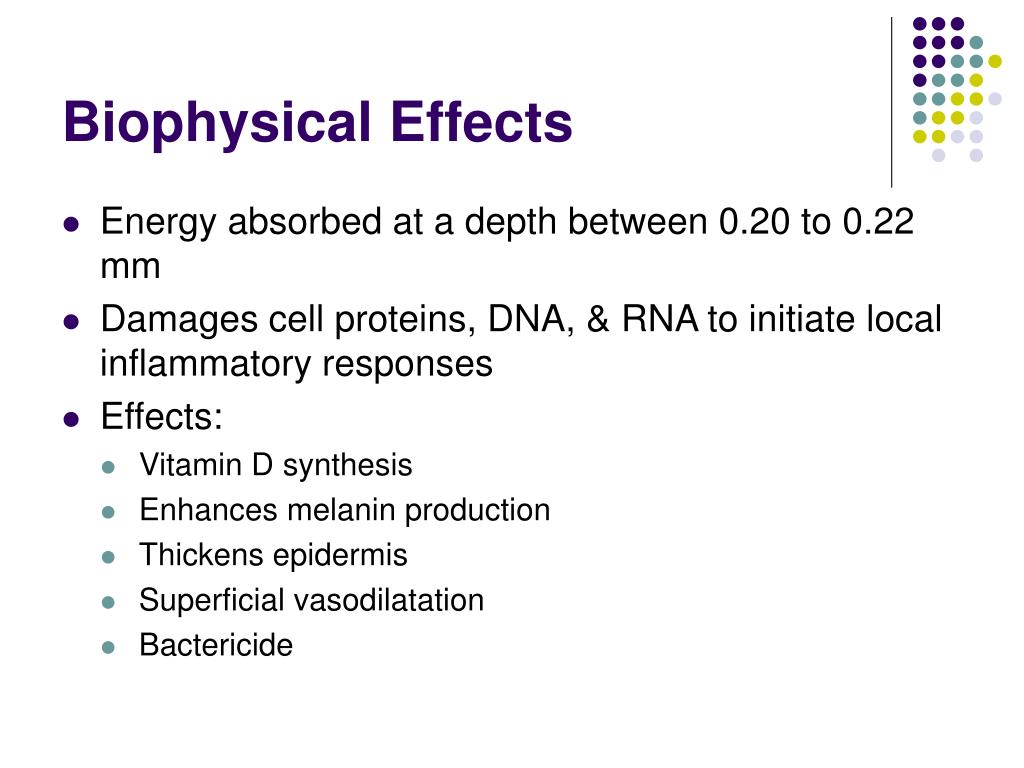

Biophysical Effects
  • Energy absorbed at a depth between 0.20 to 0.22 mm
  • Damages cell proteins, DNA, & RNA to initiate local inflammatory responses
  • Effects:
    • Vitamin D synthesis
    • Enhances melanin production
    • Thickens epidermis
    • Superficial vasodilatation
    • Bactericide
effects of uv lamps

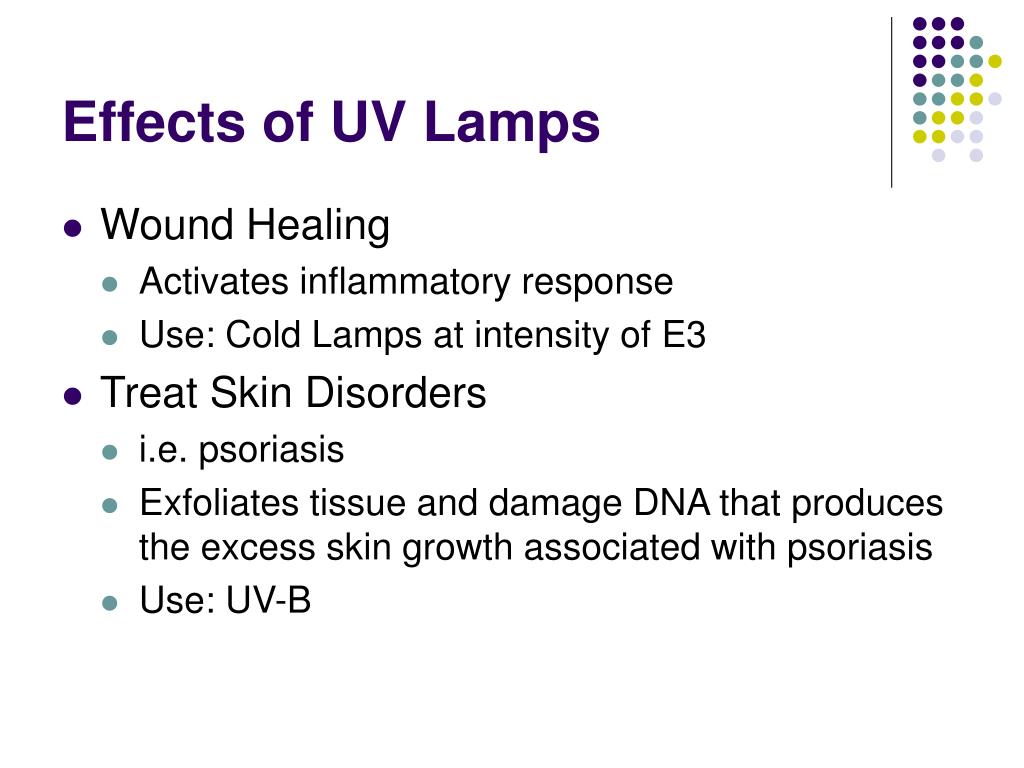

Effects of UV Lamps
  • Wound Healing
    • Activates inflammatory response
    • Use: Cold Lamps at intensity of E3
  • Treat Skin Disorders
    • i.e. psoriasis
    • Exfoliates tissue and damage DNA that produces the excess skin growth associated with psoriasis
    • Use: UV-B
uv contraindications

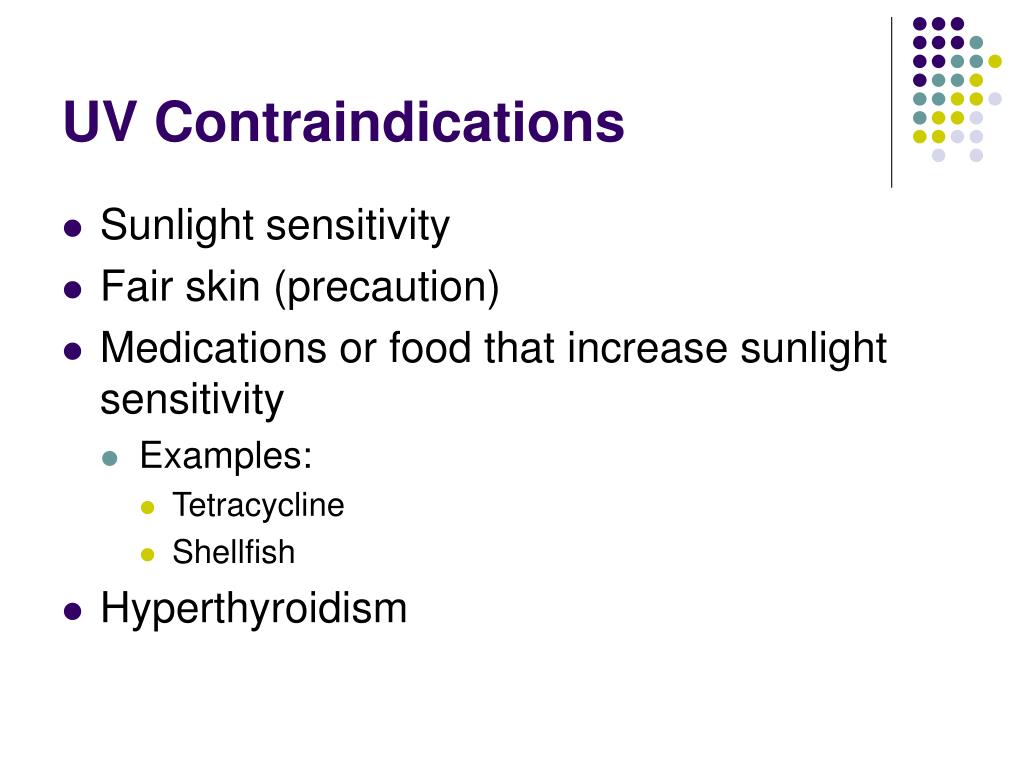

UV Contraindications
  • Sunlight sensitivity
  • Fair skin (precaution)
  • Medications or food that increase sunlight sensitivity
    • Examples:
      • Tetracycline
      • Shellfish
  • Hyperthyroidism
uv dosage
UV Dosage
  • Determined by Minimal Erythema Dose
    • Least amount of UV exposure time to produce redness within 1-6 hrs and disappear within 24 hours
  • “Hot” Lamps
    • Determined by each patient and each lamp
    • Standard distance = 30 in., not closer than 15 in.
  • “Cold” Lamps
    • Standard MED value
    • 12-15 seconds at a distance = 1 in.
determining med for uv lamp
Determining MED for UV Lamp
  • Cardboard Test Strips
    • 1. 6 different shapes cut out
    • 2. Use to cover shapes
  • UV Lamp 30 in. away
med cont
MED (Cont.)
  • Expose 1 cut out, open the shutters for 30- sec., expose the 2nd cut out and leave the 1st uncover for the 30-sec.
  • Repeat the steps above for the remaining 4 cut outs, but expose them at 15-sec intervals
  • Instruct patient to check area every hour and record changes
uv treatment dosage
UV Treatment Dosage
  • SED
    • No erythema
  • MED
    • Smallest dose that produces erythema within 1-6 hr
  • E1
    • Erythema lasts for 1-3 days, some scaling of skin present, approximately 2.5x MED
  • E2
    • Erythema with edema, peeling, and pigmentation, approximately 5x MED
  • E3
    • Severe erythema and burning, blistering, peeling, edema, approximately, 10x MED
clinical application1

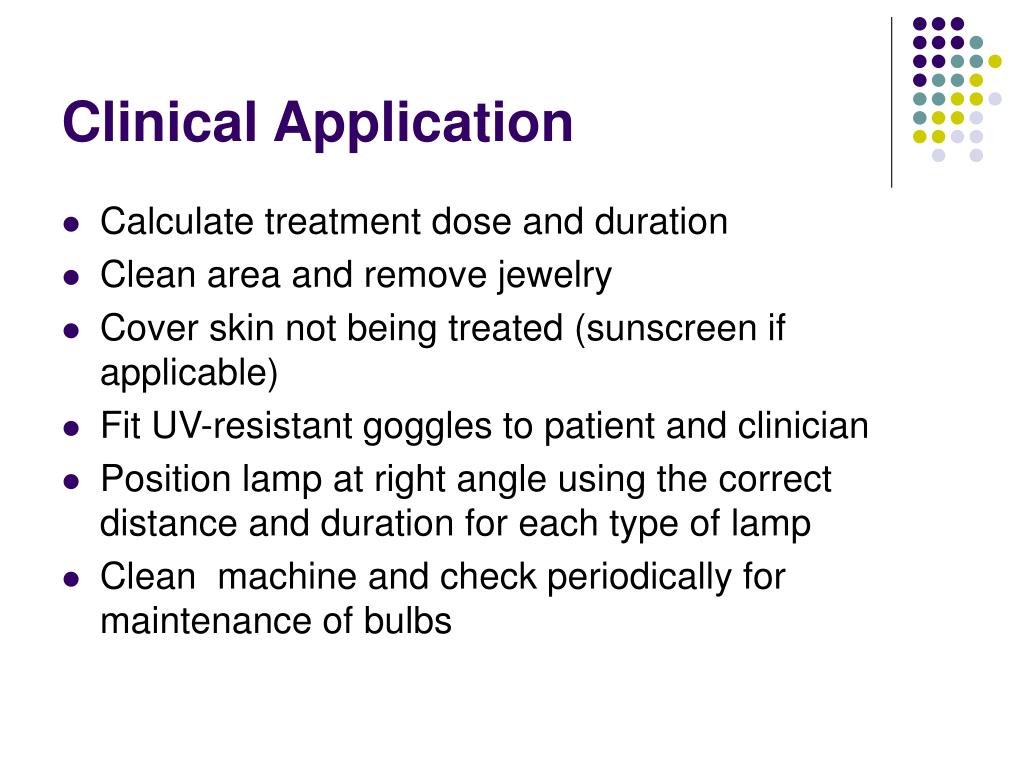

Clinical Application
  • Calculate treatment dose and duration
  • Clean area and remove jewelry
  • Cover skin not being treated (sunscreen if applicable)
  • Fit UV-resistant goggles to patient and clinician
  • Position lamp at right angle using the correct distance and duration for each type of lamp
  • Clean machine and check periodically for maintenance of bulbs
adjusting the treatment dose
Adjusting the Treatment Dose
  • Biophysical changes occur with light exposure causing changes in treatment
  • Duration
    • 30 to 50% increase for each subsequent treatment
    • If 3 to 5 minutes, then distance is reduced
    • 5 to 10 sec is decreased when missing a treatment
  • Be aware of patients skin color and the lamps distance, duration, and angle
therapeutic lasers

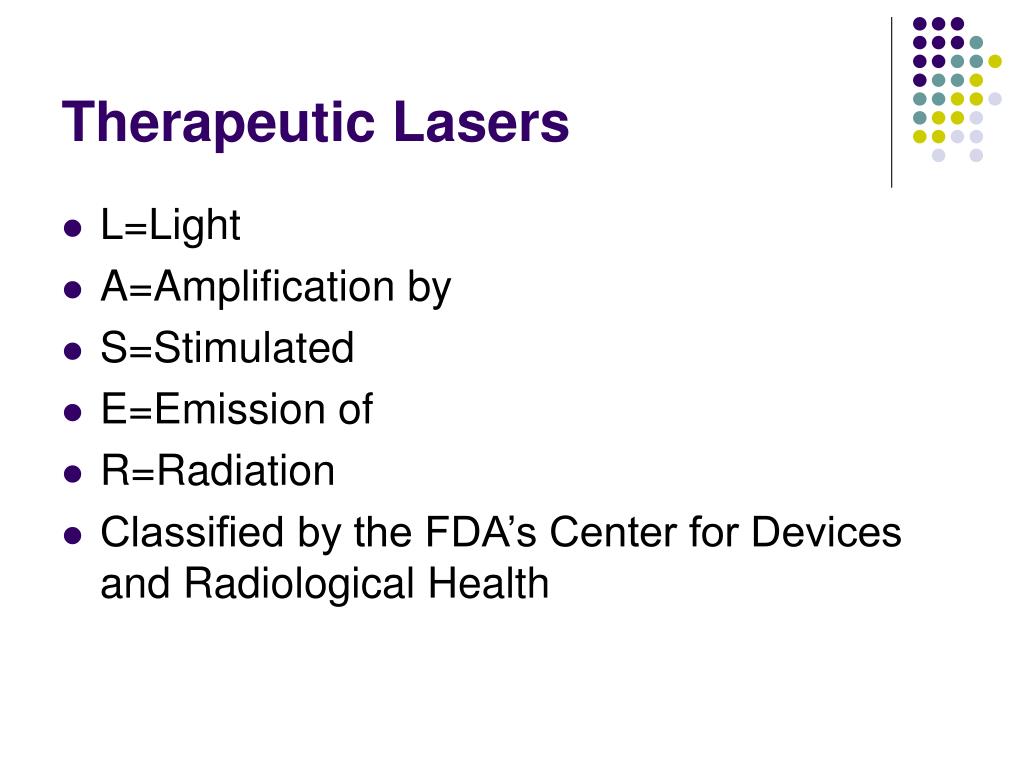

Therapeutic Lasers
  • L=Light
  • A=Amplification by
  • S=Stimulated
  • E=Emission of
  • R=Radiation
  • Classified by the FDA’s Center for Devices and Radiological Health
types of lasers

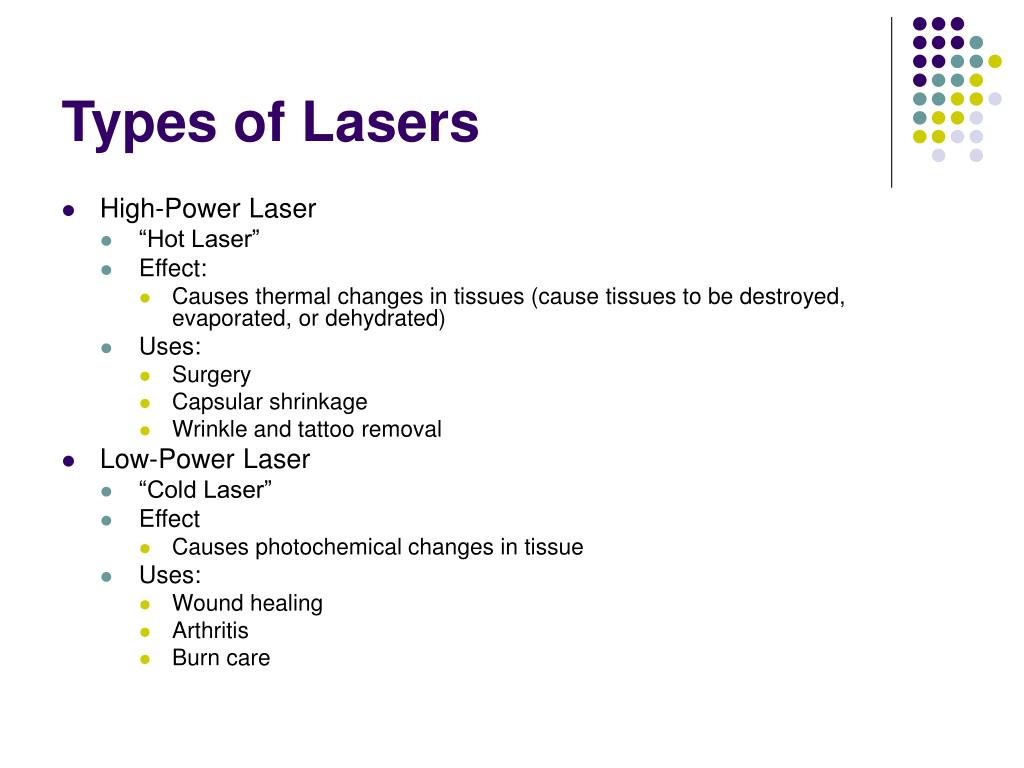

Types of Lasers
  • High-Power Laser
    • “Hot Laser”
    • Effect:
      • Causes thermal changes in tissues (cause tissues to be destroyed, evaporated, or dehydrated)
    • Uses:
      • Surgery
      • Capsular shrinkage
      • Wrinkle and tattoo removal
  • Low-Power Laser
    • “Cold Laser”
    • Effect
      • Causes photochemical changes in tissue
    • Uses:
      • Wound healing
      • Arthritis
      • Burn care
production of laser energy

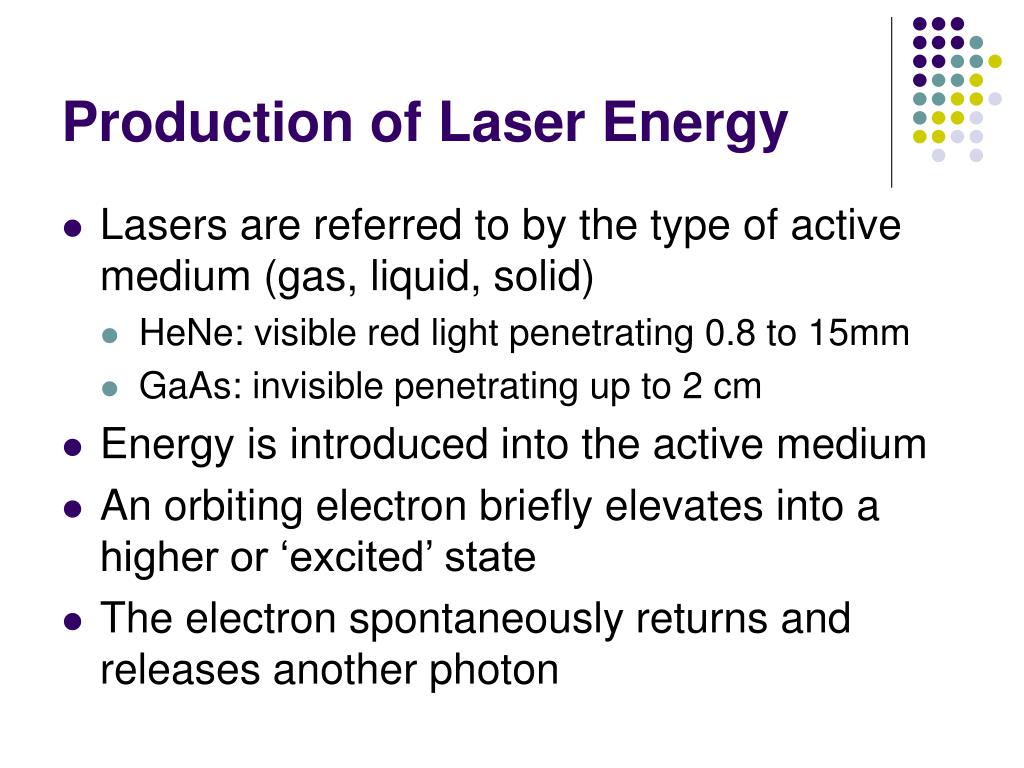

Production of Laser Energy
  • Lasers are referred to by the type of active medium (gas, liquid, solid)
    • HeNe: visible red light penetrating 0.8 to 15mm
    • GaAs: invisible penetrating up to 2 cm
  • Energy is introduced into the active medium
  • An orbiting electron briefly elevates into a higher or ‘excited’ state
  • The electron spontaneously returns and releases another photon
effects of lasers
Effects of Lasers
  • Photons are absorbed by tissues to alter molecular-level activity
  • Theorized to affect pain-producing tissue (muscle spasm), by increasing ATP synthesis that increases cell metabolism and encourages the release of free radicals
wound healing

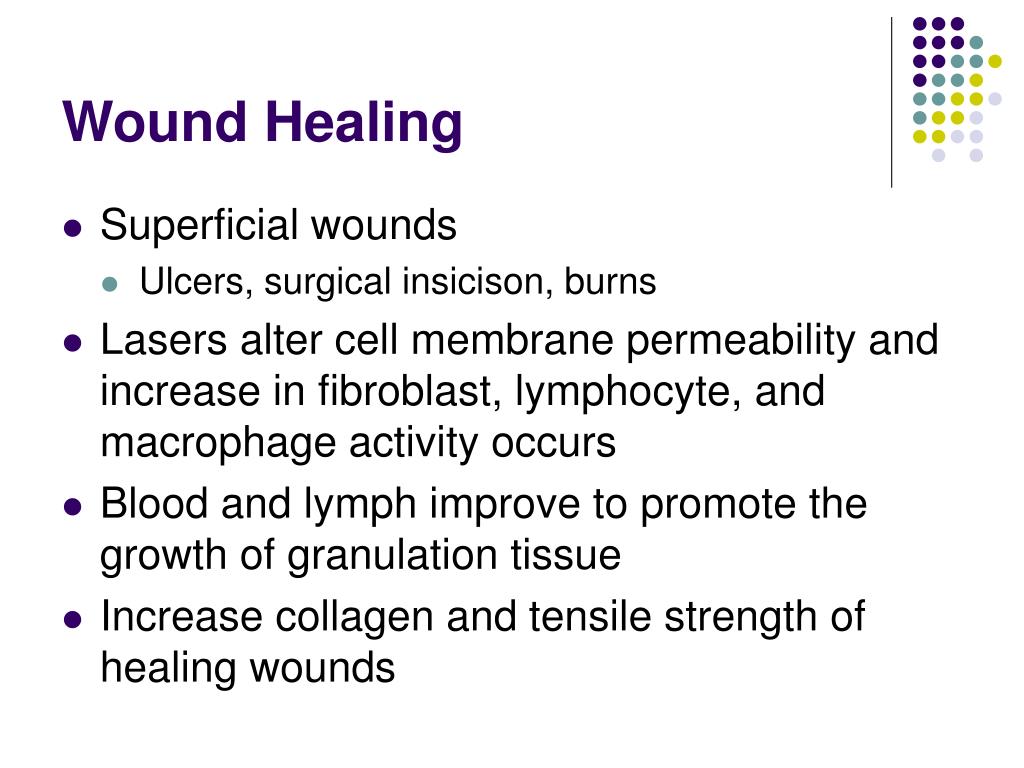

Wound Healing
  • Superficial wounds
    • Ulcers, surgical insicison, burns
  • Lasers alter cell membrane permeability and increase in fibroblast, lymphocyte, and macrophage activity occurs
  • Blood and lymph improve to promote the growth of granulation tissue
  • Increase collagen and tensile strength of healing wounds
pain reduction
Pain Reduction
  • Decrease acute and chronic pain
  • Reduce the rate and velocity of sensory nerve impulses
    • Similar to cryotherapy but without thermal changes
fracture healing
Fracture Healing
  • May enhance fracture healing and bone remodeling by increasing capillary formation, calcium deposition, increase callus formation, and reducing hematomas
  • Photons striking the tissue create acoustic waves that affect bone healing similar to ultrasonic bone growth stimulators
