  1. 進度報告 2005/10/11

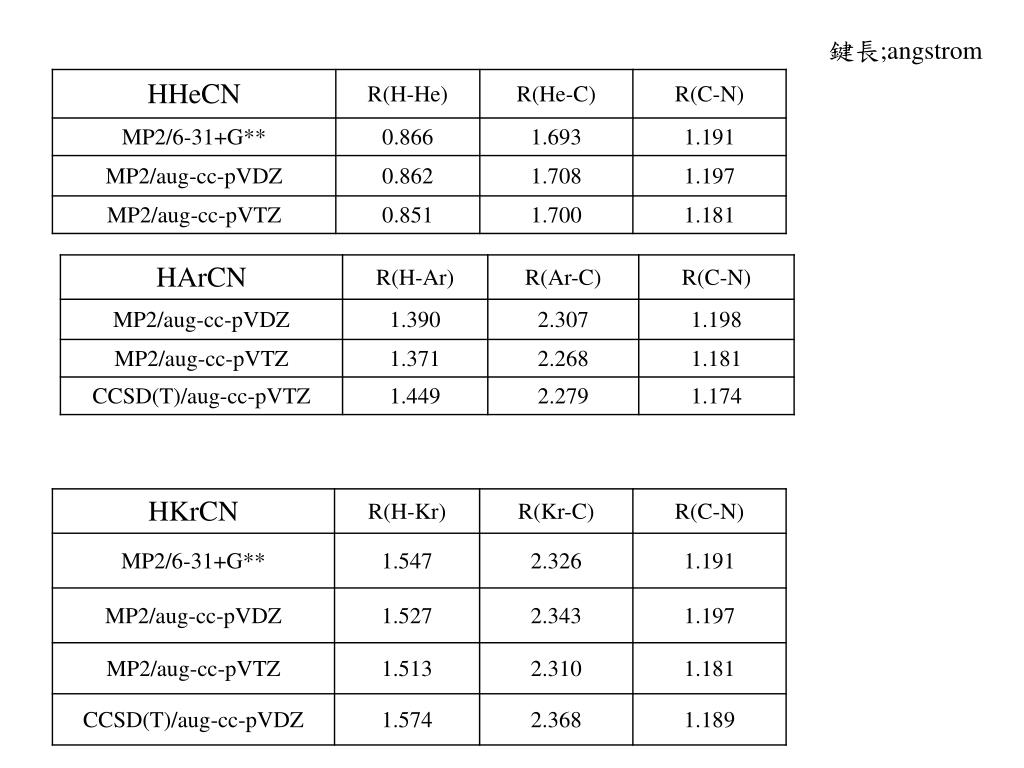

  2. 鍵長;angstrom

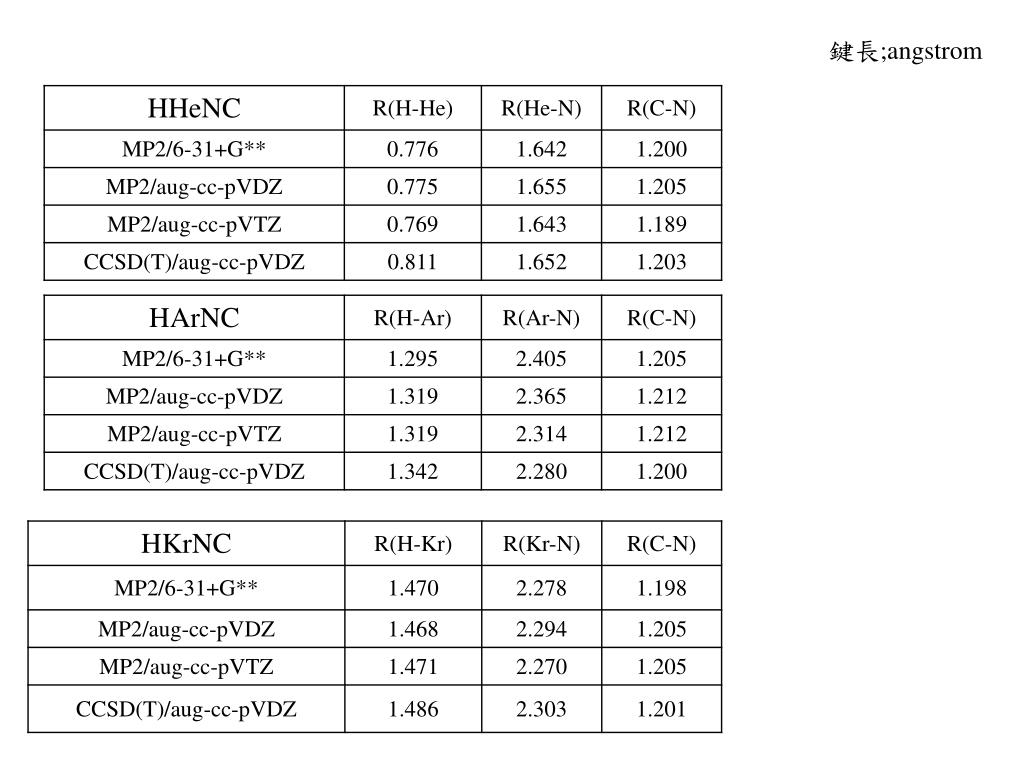

  3. 鍵長;angstrom

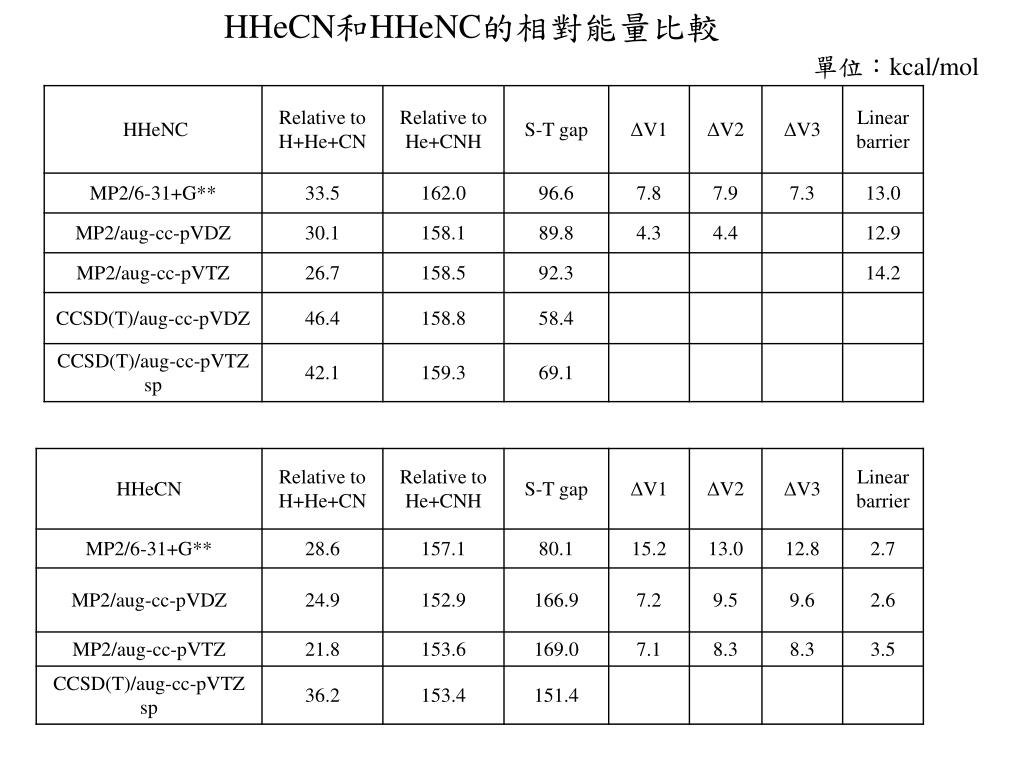

  4. HHeCN和HHeNC的相對能量比較 單位：kcal/mol

  5. HArNC和HArCN的相對能量比較 單位：kcal/mol

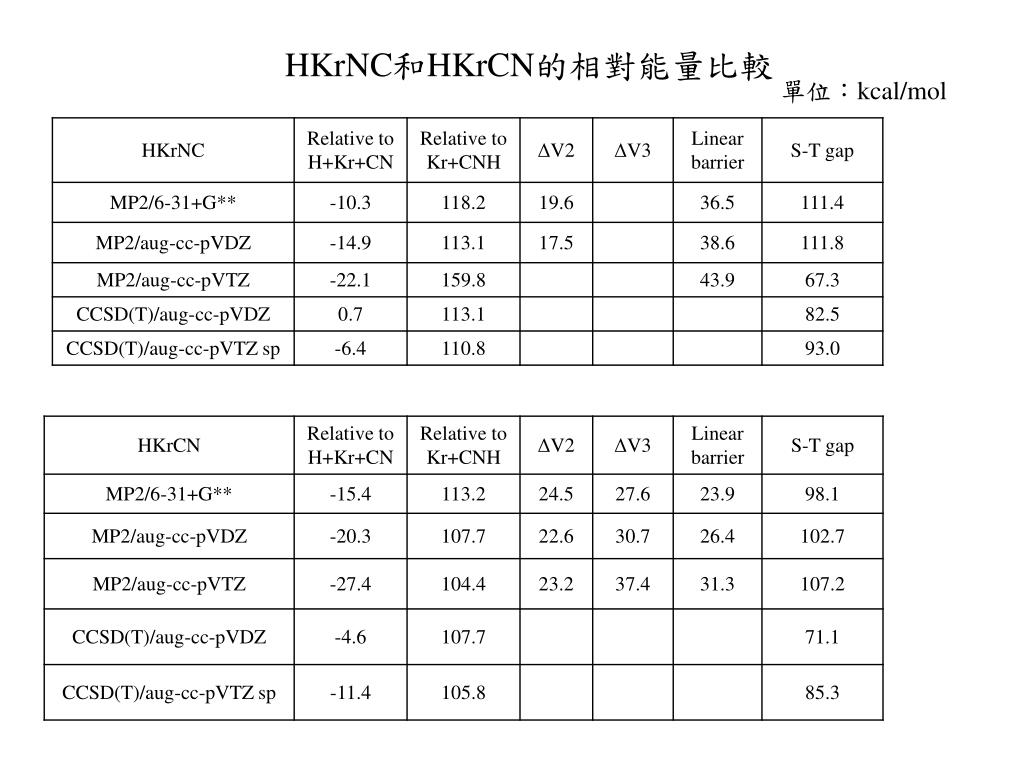

  6. HKrNC和HKrCN的相對能量比較 單位：kcal/mol

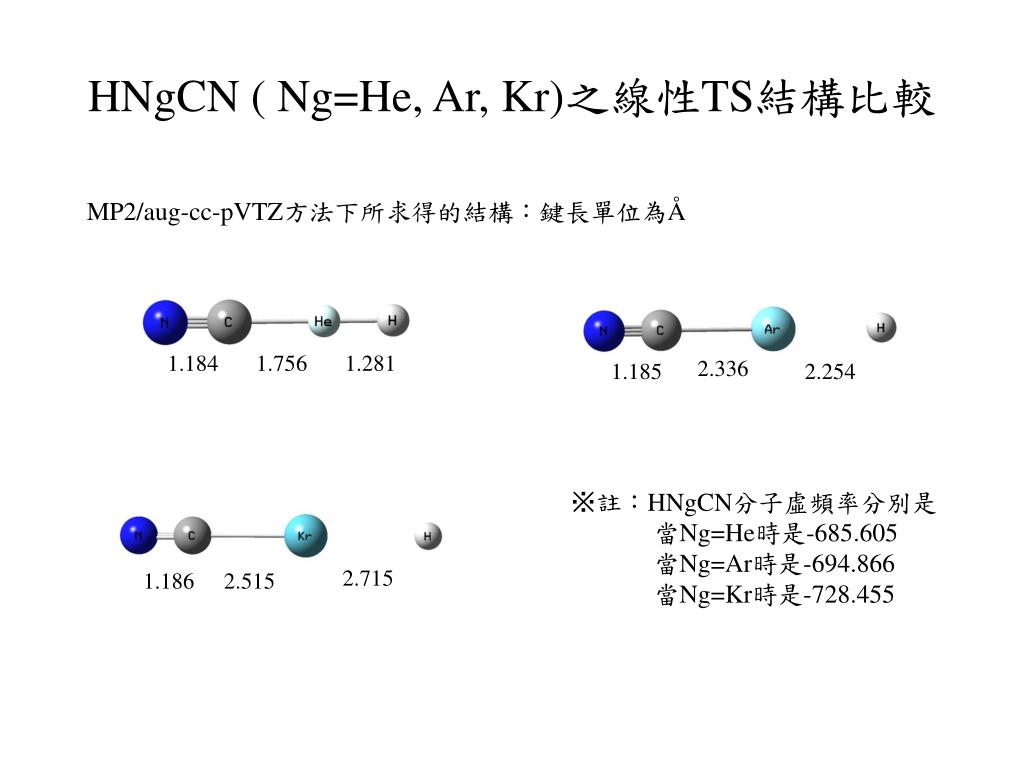

  7. HNgCN ( Ng=He, Ar, Kr)之線性TS結構比較 MP2/aug-cc-pVTZ方法下所求得的結構：鍵長單位為Å 1.184 1.756 1.281 2.336 1.185 2.254 ※註：HNgCN分子虛頻率分別是 當Ng=He時是-685.605 當Ng=Ar時是-694.866 當Ng=Kr時是-728.455 2.715 1.186 2.515

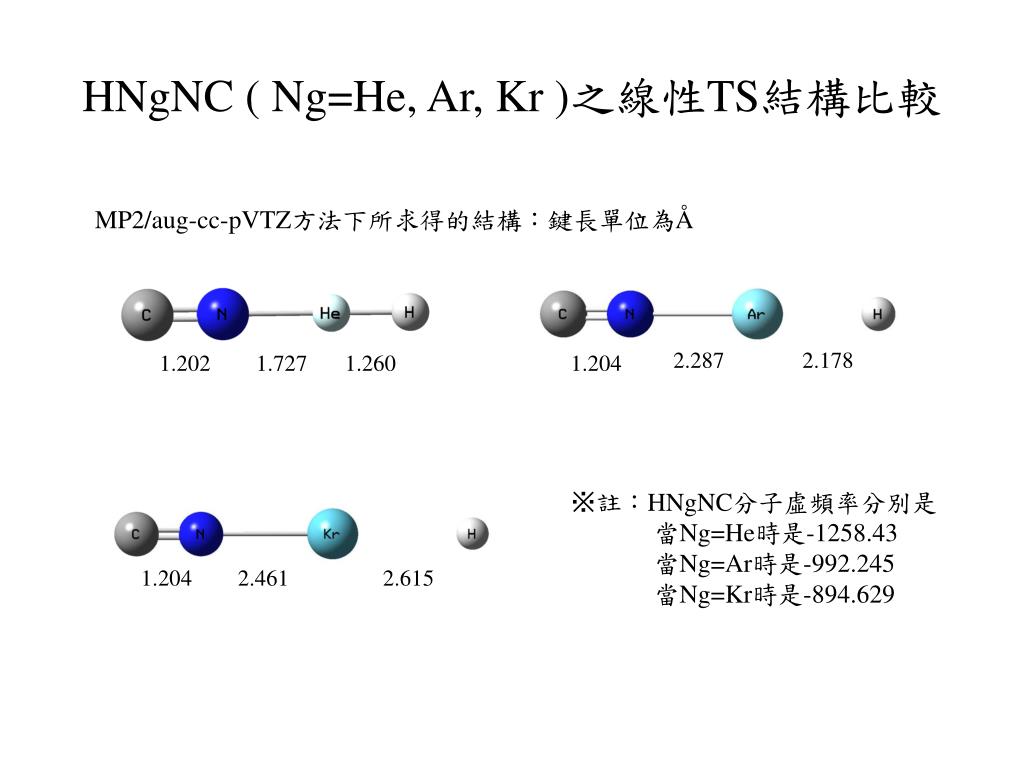

  8. HNgNC ( Ng=He, Ar, Kr )之線性TS結構比較 MP2/aug-cc-pVTZ方法下所求得的結構：鍵長單位為Å 2.287 2.178 1.202 1.727 1.260 1.204 ※註：HNgNC分子虛頻率分別是 當Ng=He時是-1258.43 當Ng=Ar時是-992.245 當Ng=Kr時是-894.629 1.204 2.461 2.615

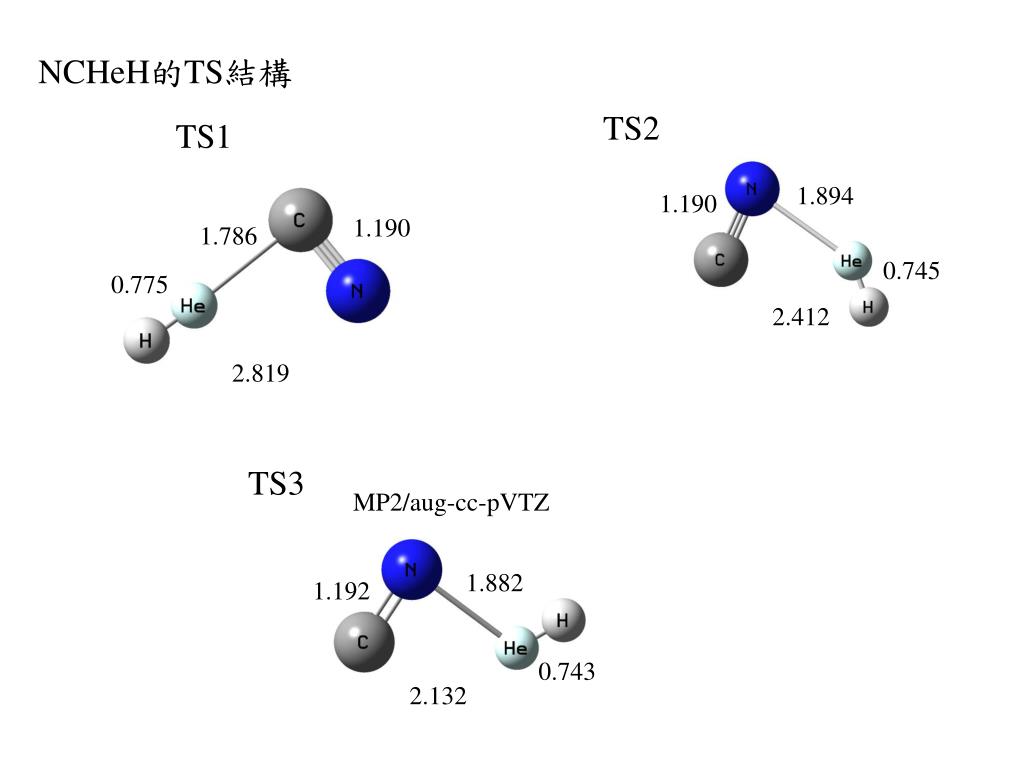

  9. TS3 MP2/aug-cc-pVTZ 1.882 1.192 0.743 NCHeH的TS結構 TS2 TS1 1.894 1.190 1.190 1.786 0.745 0.775 2.412 2.819 2.132
