  1. Operating Demonstration Please view carefully before using Tender Skin Laser System (IPL) (FRT-TSLS) for treatment

  2. Affusion Please note: You must input the water Before you do anything

  3. Affusion Pull out small pipe

  4. Affusion Pull out small pipe

  5. Affusion Affusion Orifice Vent Orifice

  6. Affusion Input water(approx. 5.5—6L)

  7. Water levelobserved Water level (approx. 5.5—6L)

  8. Water levelobserved

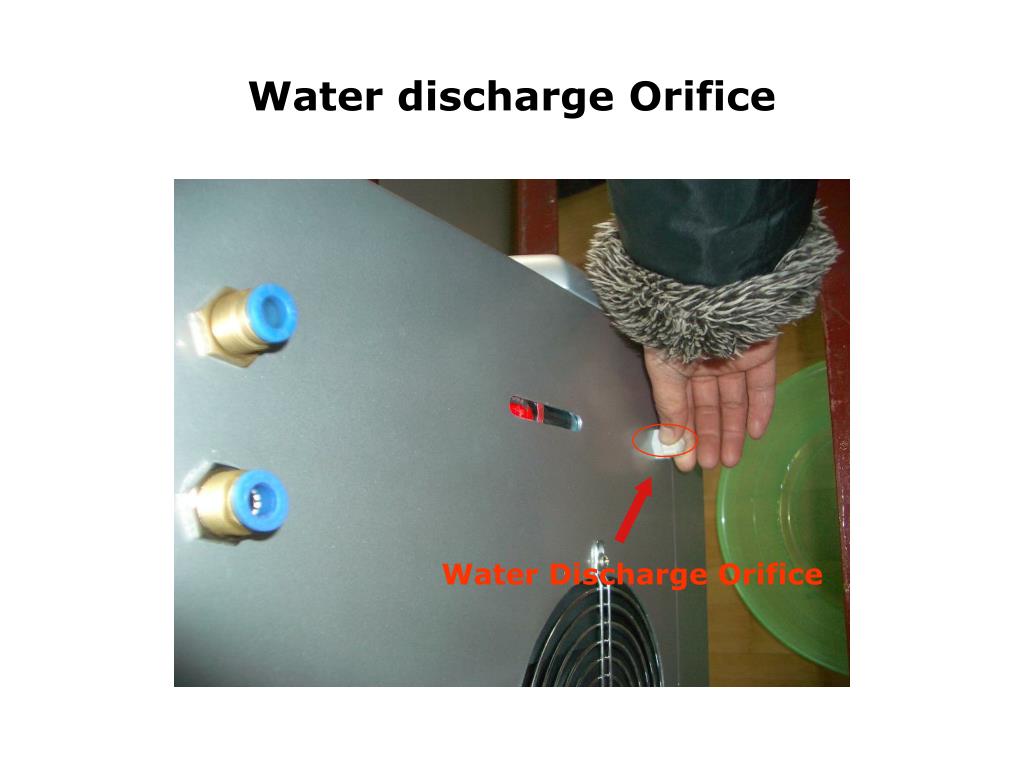

  9. Water discharge Orifice Water Discharge Orifice

  10. Water discharge Twist off

  11. Water discharge Pull out small unit

  12. Water discharge

  13. Laser Head Check laser head, this is for Hair Removal treatment

  14. Laser Head Check laser head, this is for Skin Tender treatment

  15. Start Operating Ok, You can start to use your machine now Turn the key to start

  16. Adjust Operating Parameters

  17. Treatment Ok, when the head is cooled, You can use your machine for treatment now

  18. Thanks for your view • Thank you for your selecting our laser system. • If you have any questions or comments, please do not hesitate to contact us. • Tel: +86-29-88173006 • Email: mirafone@163.net FULL RANGE ENTERPRISE CO.,LTD.
