3D Intersection Plane Analysis Tool

This tool calculates intersection points on a plane in 3D space based on input coordinates. It determines new points on the plane through cutting actions with various objects. The resulting points provide essential data for geometric analysis.

fatima-dean
Download Presentation

3D Intersection Plane Analysis Tool

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

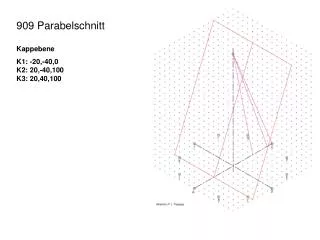

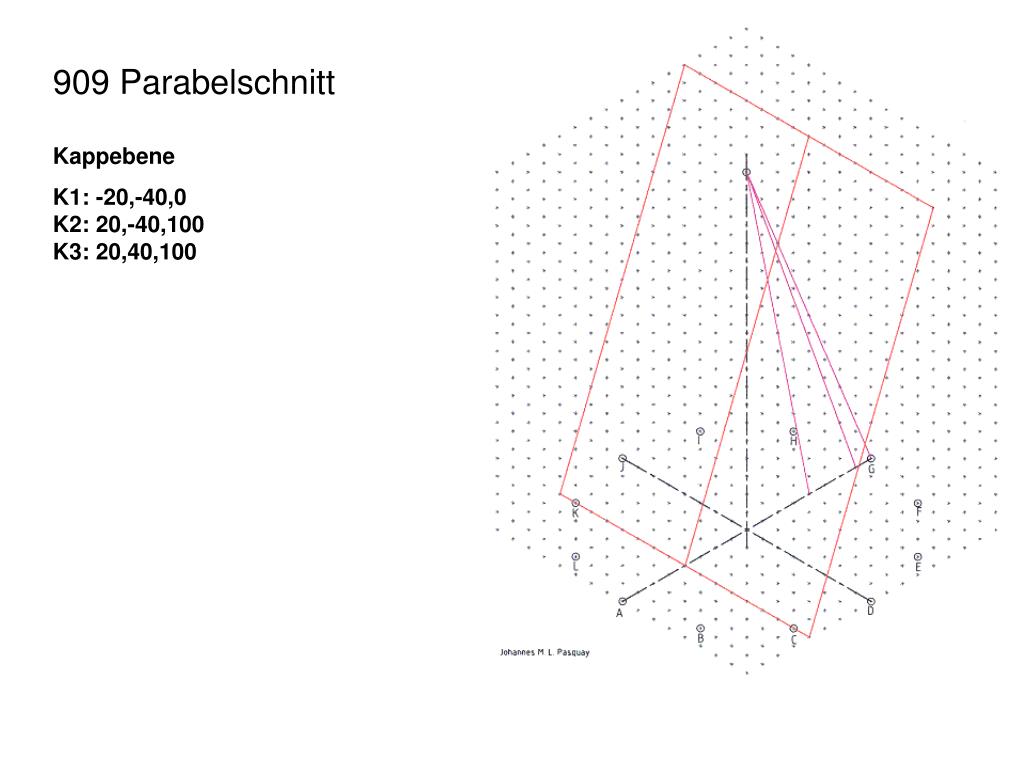

  1. 909 Parabelschnitt Kappebene K1: -20,-40,0 K2: 20,-40,100 K3: 20,40,100

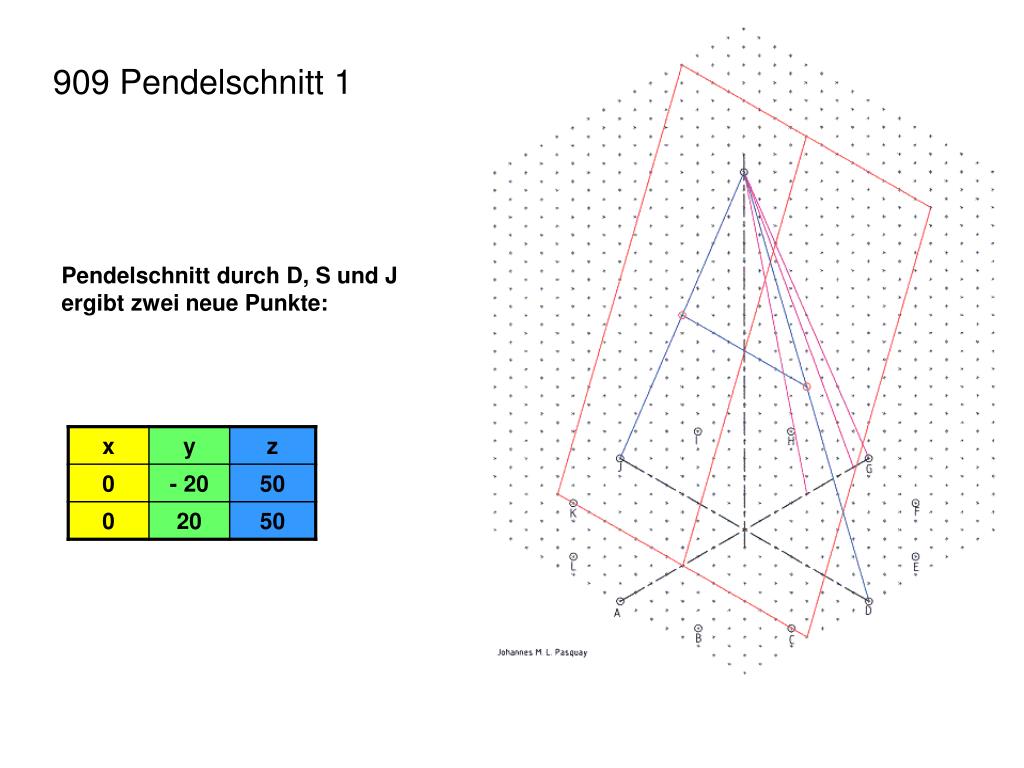

  2. 909 Pendelschnitt 1 Pendelschnitt durch D, S und J ergibt zwei neue Punkte:

  3. 909 Pendelschnitt 2 Pendelschnitt durch E, S und I ergibt zwei neue Punkte:

  4. 909 Pendelschnitt 3 Pendelschnitt durch F, S und H ergibt zwei neue Punkte:

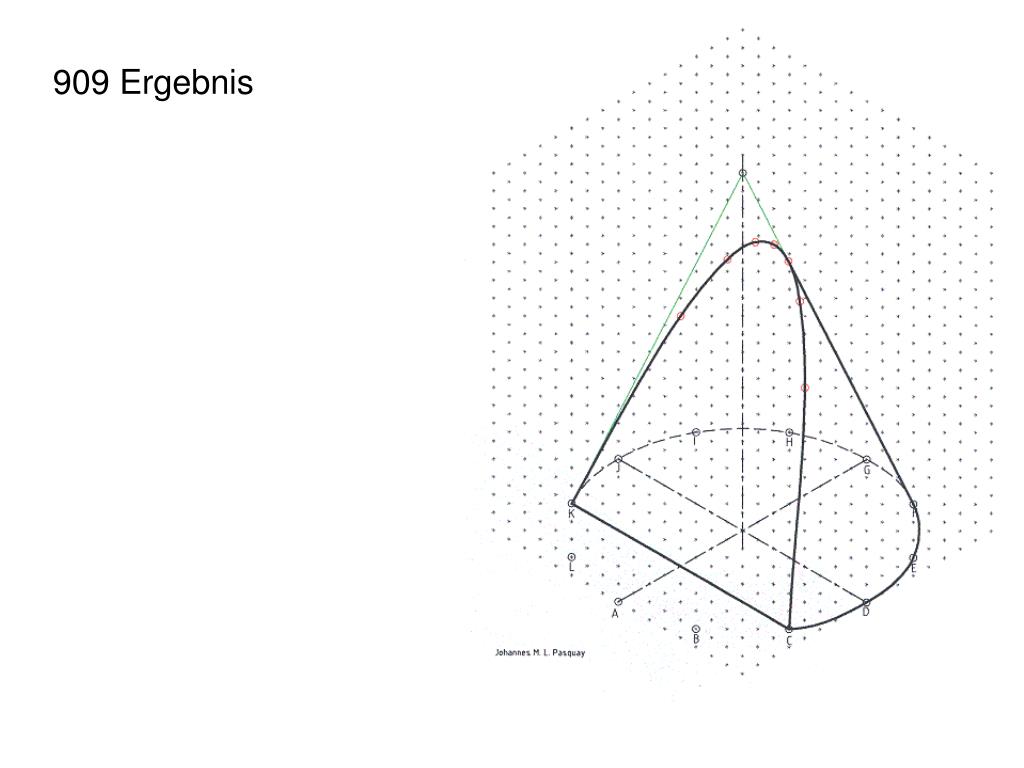

  5. 909 Ergebnis
