电渗是 CE 的基本现象之一，它可以控制组分的迁移速度和方向，进 而影响 CE 的分离效率和重现性．

电渗是 CE 的基本现象之一，它可以控制组分的迁移速度和方向，进 而影响 CE 的分离效率和重现性．. 如何控制电渗流？. 理论： 能影响电渗的因素都有可能用于电渗的控制 实际： 能理想地调节电渗而又不影响分离过程的控制方法目前 不多见． 对于 DNA 分离及测序来说， pH-8.3 ，常用管壁涂层（涂覆 ) 技术. 化学涂覆. 如聚丙烯酰胺、聚乙烯基吡咯烷酮涂层可在 pH9-pH6 以内基本消除电渗. 优点. 抑制熔硅毛细管表面 Si － OH 解离，修饰表面 Zeta 电势． 聚合物或硅烷化试剂的取代基覆盖已离解的 Si － OH ．

fathia
Download Presentation

电渗是 CE 的基本现象之一，它可以控制组分的迁移速度和方向，进 而影响 CE 的分离效率和重现性．

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

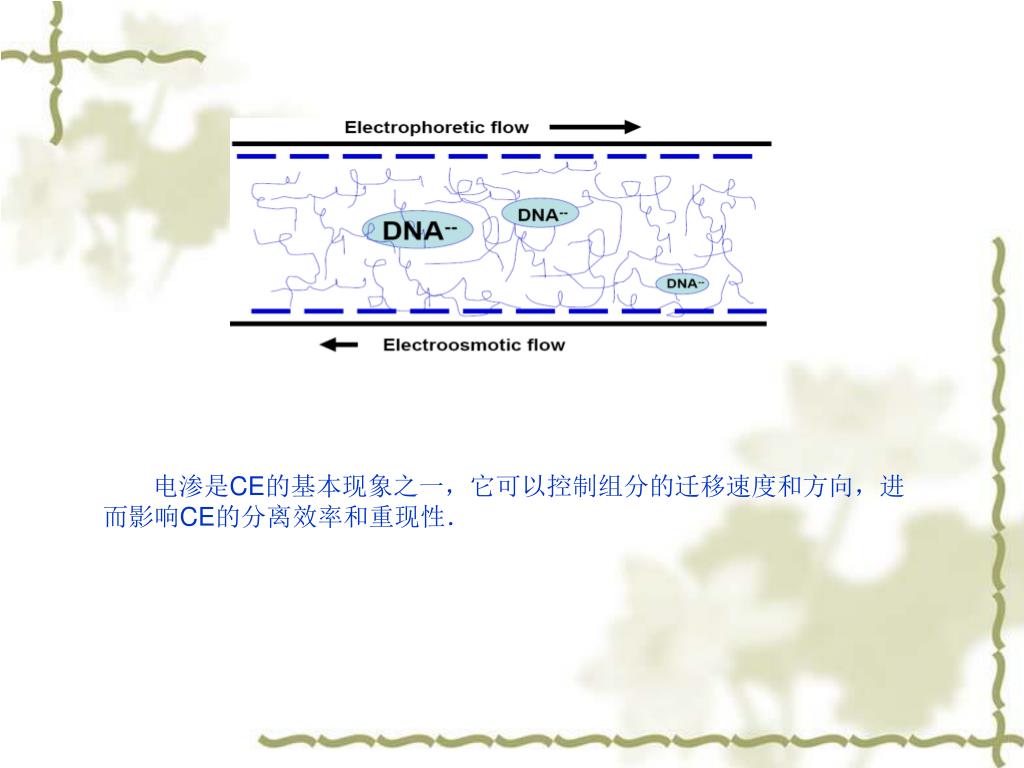

  1. 电渗是CE的基本现象之一，它可以控制组分的迁移速度和方向，进电渗是CE的基本现象之一，它可以控制组分的迁移速度和方向，进 而影响CE的分离效率和重现性．

  2. 如何控制电渗流？ 理论： 能影响电渗的因素都有可能用于电渗的控制 实际： 能理想地调节电渗而又不影响分离过程的控制方法目前 不多见． 对于DNA分离及测序来说，pH-8.3，常用管壁涂层（涂覆) 技术.

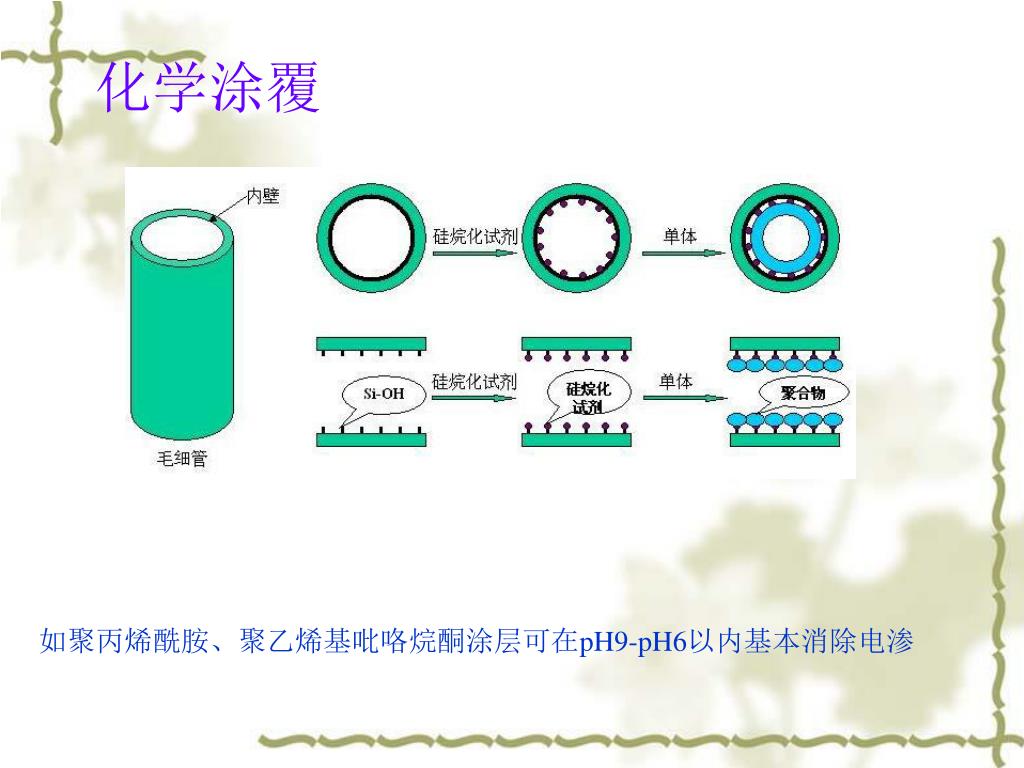

  3. 化学涂覆 如聚丙烯酰胺、聚乙烯基吡咯烷酮涂层可在pH9-pH6以内基本消除电渗

  4. 优点 • 抑制熔硅毛细管表面Si－OH解离，修饰表面Zeta电势． • 聚合物或硅烷化试剂的取代基覆盖已离解的Si－OH． • 增加了内壁表面层附近溶液的粘度，涂层的厚度和密度都将影响到表面　　　层附近溶液的粘度，从而影响涂层的涂覆效果。 • 涂层寿命长，稳定性好，分离效率高。 缺点 • 化学键合的过程中涉及毛细管硅烷化和引发单体聚合两步反应，一方面受两步反应的转化率影响，Si－OH很难被完全屏蔽；另一方面，毛细管内的聚合反应很难控制，容易造成涂层的不均一性、不规整性，甚至阻塞毛细管。 • 价格昂贵。

  5. 物理涂覆

  6. 优点 • 涂层制备过程简单易操作，涂覆过程可一步完成， • 涂层可再生。这种涂层可以是中性的、带正电荷的、也可以是吸附在带正电的聚合物涂层表面转而带负电荷的。 缺点 物理吸附涂层稳定性不及化学键合涂层．

  7. 用于DNA分离的聚合物 非交联聚合物 交联聚合物: 交联聚丙烯酰胺、琼脂糖

  8. 均聚物 poly-N-hydroxyethylacrylamide（PHEA) 存在的问题：

  9. 共聚物 理想的筛分介质：高筛分能力、低粘度、自涂覆功能 a. 无规共聚物 poly (DEA-co-DMA)　 聚 (N, N -二乙基丙烯酰胺- co -N, N - 二甲基丙烯酰胺） poly (AM-co-DMA)　 聚(丙烯酰胺- co - N, N - 二甲基丙烯酰胺) poly (AA-co-AG)　　 聚(丙烯酰胺- co - β-吡喃型葡萄糖) poly(AM-co-AAG)　　 聚(丙烯酰胺- co -葡糖酰丙胺) poly(NEEA-co-NMEA)　聚(乙氧基乙基丙烯酰胺- co -乙氧基甲基丙烯酰胺)等 b.嵌段共聚物 PEG-(CnF2n+1)2 末端带有碳氟化合物的聚乙二醇 PEO-PPO-PEO 低分子量的聚环氧乙烷和聚环氧丙烷的三嵌段共聚物 BEB/EBE 聚环氧乙烷和聚环氧丁烷的三嵌段共聚物等

  10. C. 接枝共聚物 PAM-g-PNIPAM （聚丙烯酰胺-g- 聚N-异丙基丙烯酰胺) PNIPAM-g-PEO (聚N-异丙基丙烯酰胺-g- 聚环氧乙烷) PAM-g-PDMA （聚丙烯酰胺 -g- 聚N，N- 二甲基丙烯酰胺） PDMA-g-PMMA（聚N，N- 二甲基丙烯酰胺-g-聚甲基丙烯酸甲酯）等 存在的问题：

  11. 共混聚合物 • 不同分子量的PEO分离ds 和ss DNA • HEC，LPA等不同分子量的混合物也都能成功地对DNA分离或排序 存在的问题：

  12. 准互穿网络聚合物

  13. Yanmei Wang,Dehai Liang, Jingcheng Hao, Dufei Fang, Benjamin Chu, Electrophoresis 2002, 23, 1460-1466

  14. Mechanism of particle formation by inverse microemulsion polymerization of AM/AIBN system. M is monomer acrylamide; I is initiator; R is free radical.

  15. Electrophoretic separation of DNA fragments generated on Big Dye TM Terminator Cycle Sequencing Standard with AmpliTaq FS under optimum experimental conditions: 2.5% IPNs, 200 V/cm and room temperature. A-track red, T-track blue, G-track green, and C-track black. Electrophoretic conditions were as follows: effective length 36 cm, total length 41cm, 75-m-i.d., 365-m-o.d. anode buffer 1TTE; cathode buffer 1TTE/7M urea. The sample was injected at a constant electric field of 73 V/cm for 40 s. Yanmei Wang, Dehai Liang, Q. Ying, B. Chu，Electrophoresis 2005, 26, 126-136

  16. initiator quasi-IPN LPA DMA GNPs quasi-IPN/GNPs quasi-IPN quasi-IPN/GNPs复合介质 Preparation of quasi-IPN/GNPs composite matrices

  17. During the preparation of Au colloids, citrate acted as both a reducing agent and a capping agent to avoid aggregation of GNPs. The particle sizes of prepared GNPs could be controlled by the amount of trisodium citrate. TEM images of (A) GNPs20 (~20 nm), (B) GNPs40 (~40 nm), and (C) GNPs60 (~60 nm) in water, and (D) GNPs40 (~40 nm) in quasi-IPN3 polymer solution.

  18. DNA sequencing by CE and data analysis The full four-color (base C, T, A, G) electropherograms of Bigdye Terminator V 3.1 sequencing standard DNA sample by CE using 2.5% w/v quasi-IPN3/GNPs40-1 at 50℃. Sequencing conditions: effective/total length of bare fused-silica capillaries, 50/61 cm; id/od, 75/365μm; sequencing electric field strength, 150 V/cm; DNA electrokinetic injection, 41 V/cm for 30 s; anode buffer, 1×TTE; cathode buffer, 1×TTE/7M urea.

  19. The partial four-color (base C, T, A, G) electropherograms of standard DNA sample using 2.5% w/v quasi-IPN3/GNPs40-1 by CE at 50℃. Electrophoresis, 2007, 28, 1072-1080. Electrophoresis, 2007, 28, 2998-3007 • 中国发明专利：申请号：200610114099.3. 公开号：CN1966719A

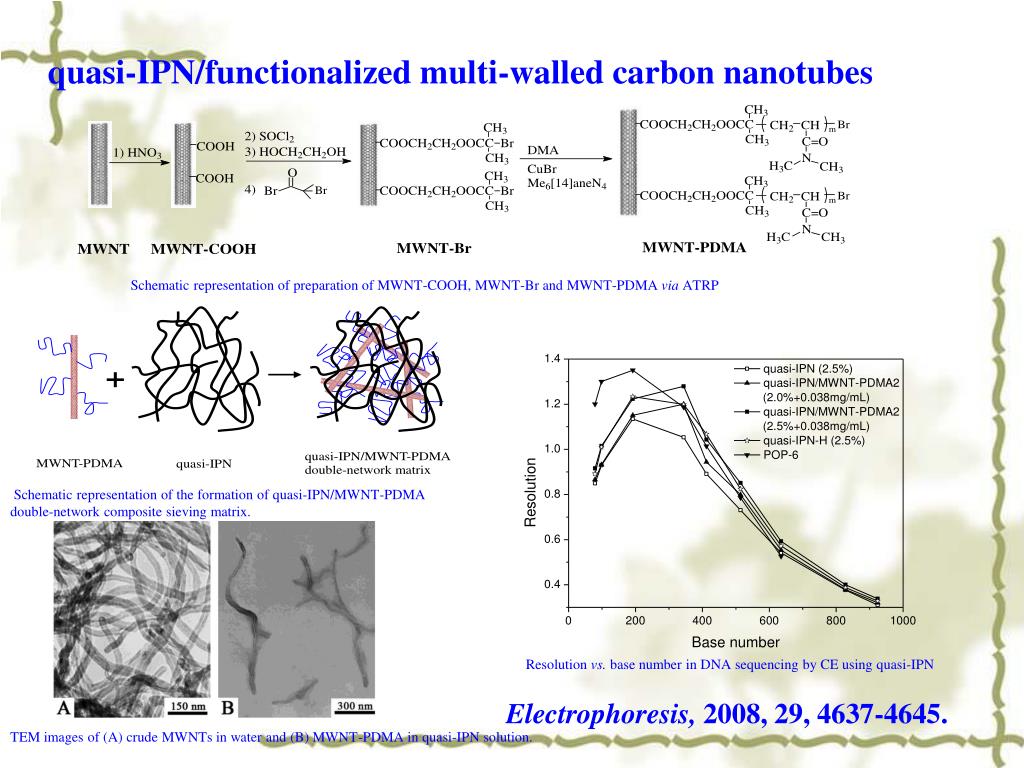

  20. quasi-IPN/functionalized multi-walled carbon nanotubes Schematic representation of preparation of MWNT-COOH, MWNT-Br and MWNT-PDMA via ATRP Schematic representation of the formation of quasi-IPN/MWNT-PDMA double-network composite sieving matrix. Resolution vs. base number in DNA sequencing by CE using quasi-IPN Electrophoresis, 2008, 29, 4637-4645. TEM images of (A) crude MWNTs in water and (B) MWNT-PDMA in quasi-IPN solution.

  21. ■ HEC ○ HEC-g-PAM-1 ▲ HEC-g-PAM-2 ◇ HEC-g-PAM-3 ▼ HEC-g-PAM-4 HEC-g-PAM Formation of HEC-g-PAM Viscosity versustemperature for different HEC-g-PAM copolymers. .Resolution versus size of DNA fragments by using HEC, HEC-g-PAM and PDMA as separation medium at 1.5% w/v. Schematic representation of the structure of HEC-g-PAM copolymer and of its adsorption to a capillary wall. Electrophoresis, 2007, 28, 3223-3231.

  22. 价格表
