  1. Cognitive Radios for Open Access to Spectrum Narayan Mandayam Christopher Rose Predrag Spasojevic Roy Yates (in partnership with Lucent Technologies) Rutgers Universitywww.winlab.rutgers.edu Email: narayan@winlab.rutgers.edu

  2. Project MotivationTriumph of Technology vs. Triumph of Economics • What everyone agrees on: • Spectrum use is inefficient • FCC licensing has yielded false scarcity • The Spectrum Debate: • Open Access (Commons) • [Noam, Benkler, Shepard, Reed …] • Agile wideband radios will dynamically share a commons • Spectrum Property Rights • [Coase, Hazlett, Faulhaber+Farber] • Owners can buy/sell/trade spectrum • Flexible use, flexible technology, flexible divisibility, transferability • A spectrum market will (by the force of economics) yield an efficient solution

  3. The Open Access Conundrum • Systems of end-user devices • Technology Panacea • Spread spectrum, UWB, MIMO • Short range communications • Ad hoc multi-hop mesh networks • Evidence: success of 802.11 vs. 3G • Minor technical rules for transceivers • power, spreading • Technical arguments against Open Access • Partially developed theory • ad hoc network capacity, with/without mobility • IT relay and interference channel • Infant technology • UWB, antenna arrays • Transmitter agility • Technology not separable from user assumptions • Capabilities of technology vary with cooperation

  4. Technology for Enabling Open Access? Research themes that have emerged from adhoc/sensor networks research: • Hierarchical Architecture wins • Capacity scaling, energy efficiency, increases lifetimes, facilitates discovery • Cooperation wins • Fundamental performance limits via information theoretic relay and broadcast channels • “Global” awareness and coordination wins • Space, time and frequency awareness and coordination beyond local measurements

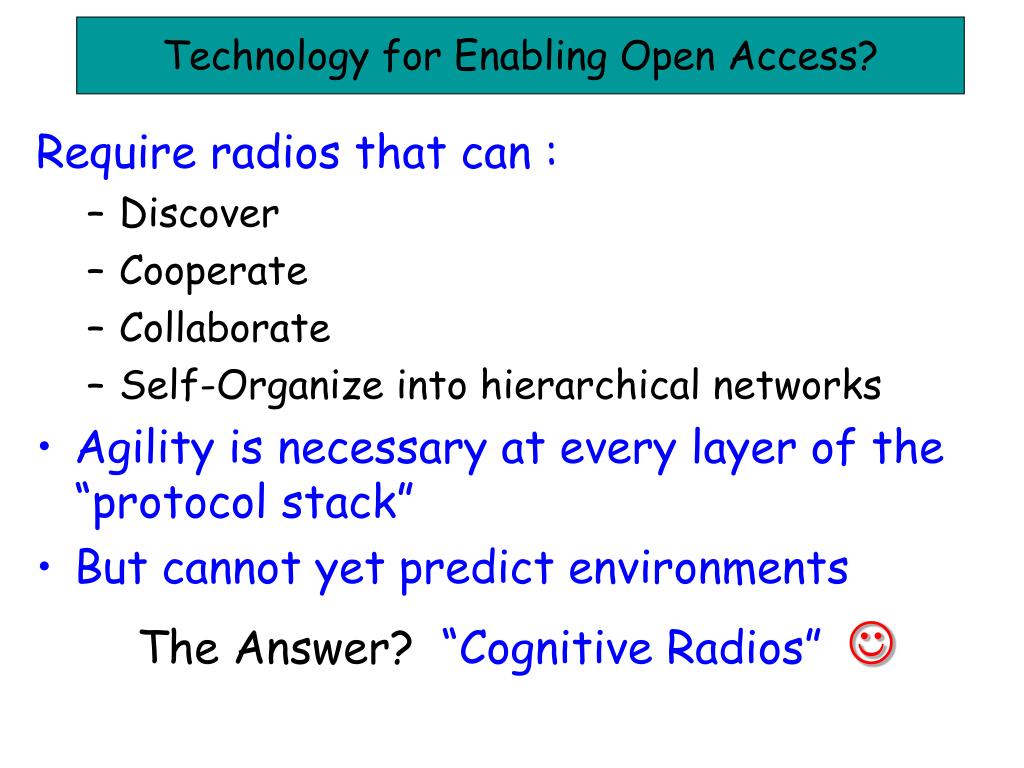

  5. Technology for Enabling Open Access? Require radios that can : • Discover • Cooperate • Collaborate • Self-Organize into hierarchical networks • Agility is necessary at every layer of the “protocol stack” • But cannot yet predict environments The Answer? “Cognitive Radios”

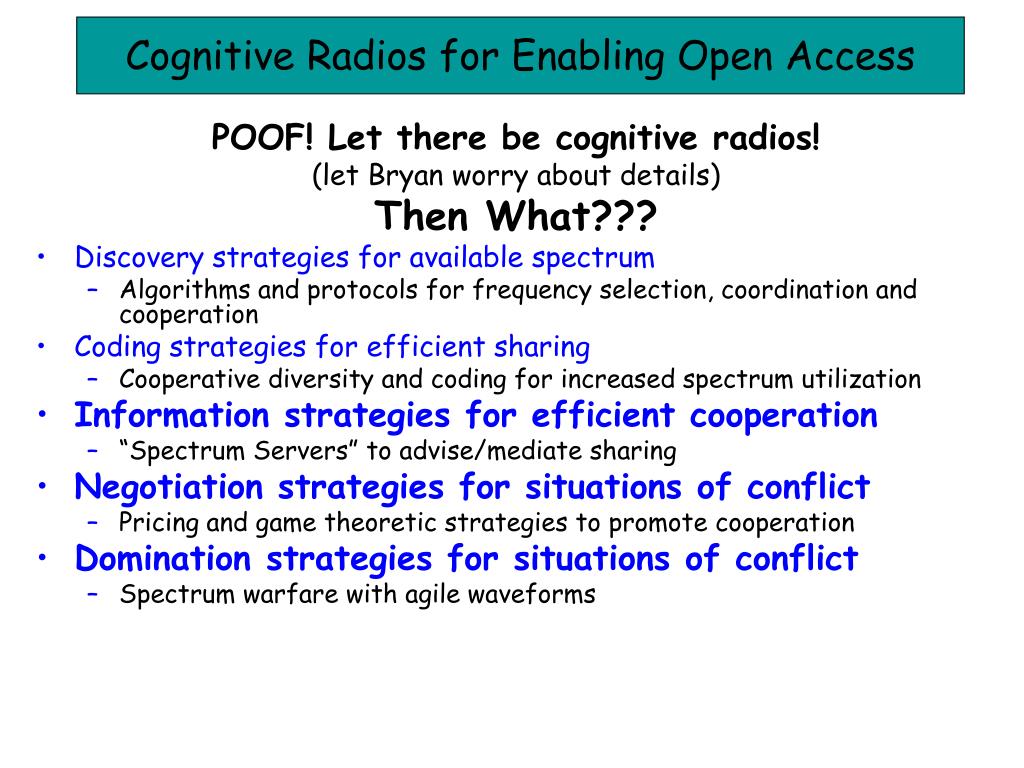

  6. Cognitive Radios for Enabling Open Access POOF! Let there be cognitive radios! (let Bryan worry about details) Then What??? • Discovery strategies for available spectrum • Algorithms and protocols for frequency selection, coordination and cooperation • Coding strategies for efficient sharing • Cooperative diversity and coding for increased spectrum utilization • Information strategies for efficient cooperation • “Spectrum Servers” to advise/mediate sharing • Negotiation strategies for situations of conflict • Pricing and game theoretic strategies to promote cooperation • Domination strategies for situations of conflict • Spectrum warfare with agile waveforms

  7. Spectrum Policy Server (SPS) Internet-based Spectrum Policy Servercan help to coordinate wireless networks • needs connection to Internet even under congested conditions (...low bit-rate OK) • some level of position determination needed (..coarse location OK) • spectrum coordination achieved via etiquette protocol centralized at server Spectrum Policy Server www.spectrum.net Internet AP1: type, loc, freq, pwr AP2: type, loc, freq, pwr BT MN: type, loc, freq, pwr Etiquette Protocol AP1 Access Point (AP2) WLAN operator A WLAN operator B Master Node Wide-area Cellular data service Ad-hoc Bluetooth Piconet

  8. SPS SPS Methodology • New users get an SPS address • Analogous to DHCP • Users send activity traces to SPS server • SPS maintains database of activity traces SPS Issues • What to measure? • Coarseness of measurements? • Trace update frequency? • SPS database organization to facilitate fast searching? SPS Actions • Share wireless node descriptors? • Coordinate comm. between nodes? • Mediate spectrum sharing among nodes?

  9. Incentives for Forwarding? • Forwarding reduces interference, saves battery life, increases coverage area • There are two kinds of costs associated with packet forwarding: • Power Consumption (REAL COST) • Delay in Own Data (OPPORTUNITY COST) • Why (and how) will autonomous nodes forward ? Fostering Cooperation Through “Bribery”

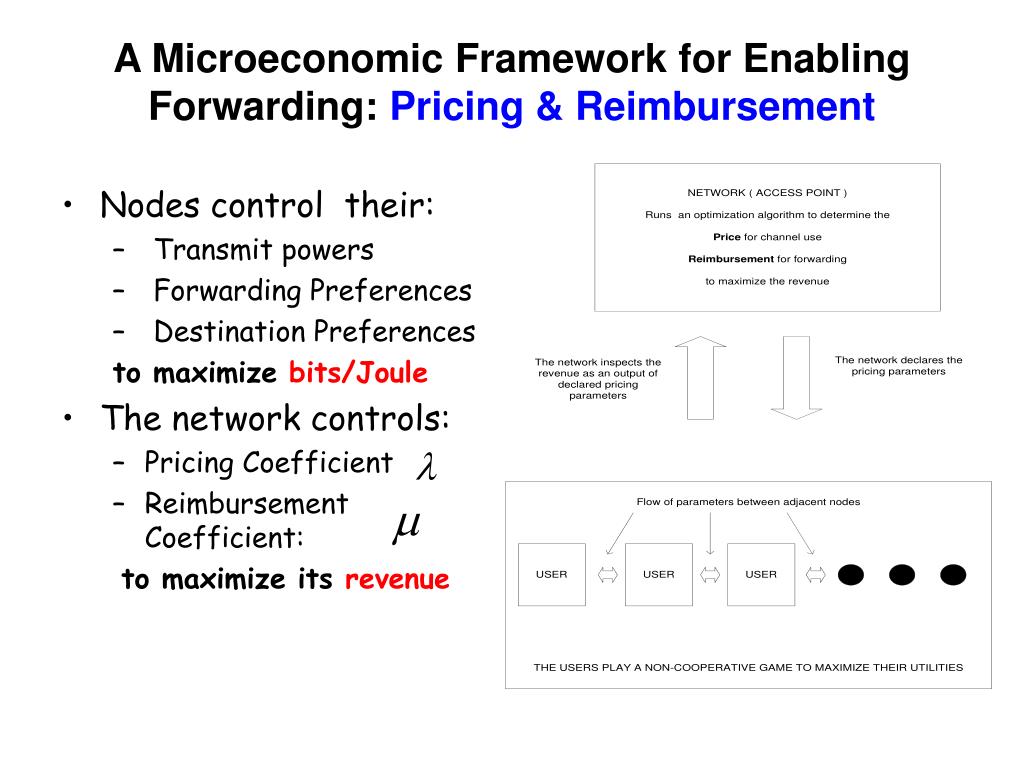

  10. A Microeconomic Framework for Enabling Forwarding: Pricing & Reimbursement • Nodes control their: • Transmit powers • Forwarding Preferences • Destination Preferences to maximize bits/Joule • The network controls: • Pricing Coefficient • Reimbursement Coefficient: to maximize its revenue

  11. 19 10 Aggregate bits/Joule Aggregate bits/Joule, no reimbursement. ACCESS POINT 18 10 Radio tower 5 m 17 10 POSITIONS OF USER 1 IN 16 HORIZONTAL 10 5 m 10 m GEOMETRY 15 10 USER 2 -5 m USER 1(NON- (POTENTIAL FORWARDER) FORWARDER) 14 10 - 0 1 2 3 4 5 6 7 Two User-One Access Point Example Horizontal Trajectory user 2 distance • Incentives for forwarding works when nodes tend to “cluster” • The aggregate bits/Joule in network is higher • Network revenue is also higher

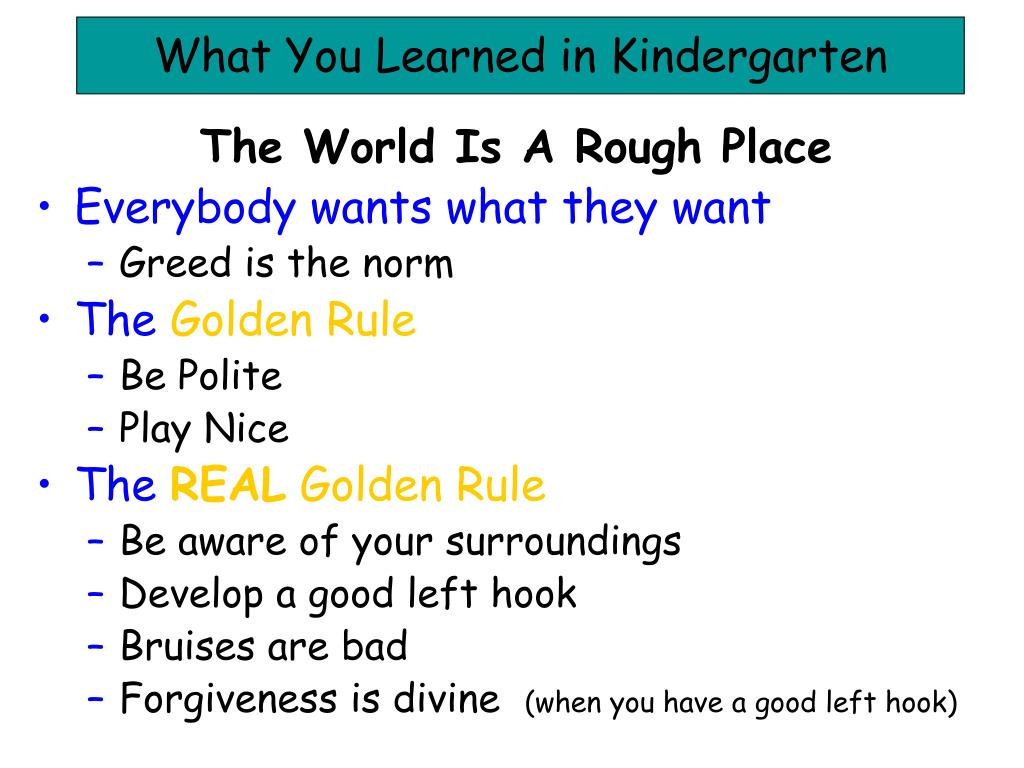

  12. What You Learned in Kindergarten The World Is A Rough Place • Everybody wants what they want • Greed is the norm • The Golden Rule • Be Polite • Play Nice • The REAL Golden Rule • Be aware of your surroundings • Develop a good left hook • Bruises are bad • Forgiveness is divine (when you have a good left hook)

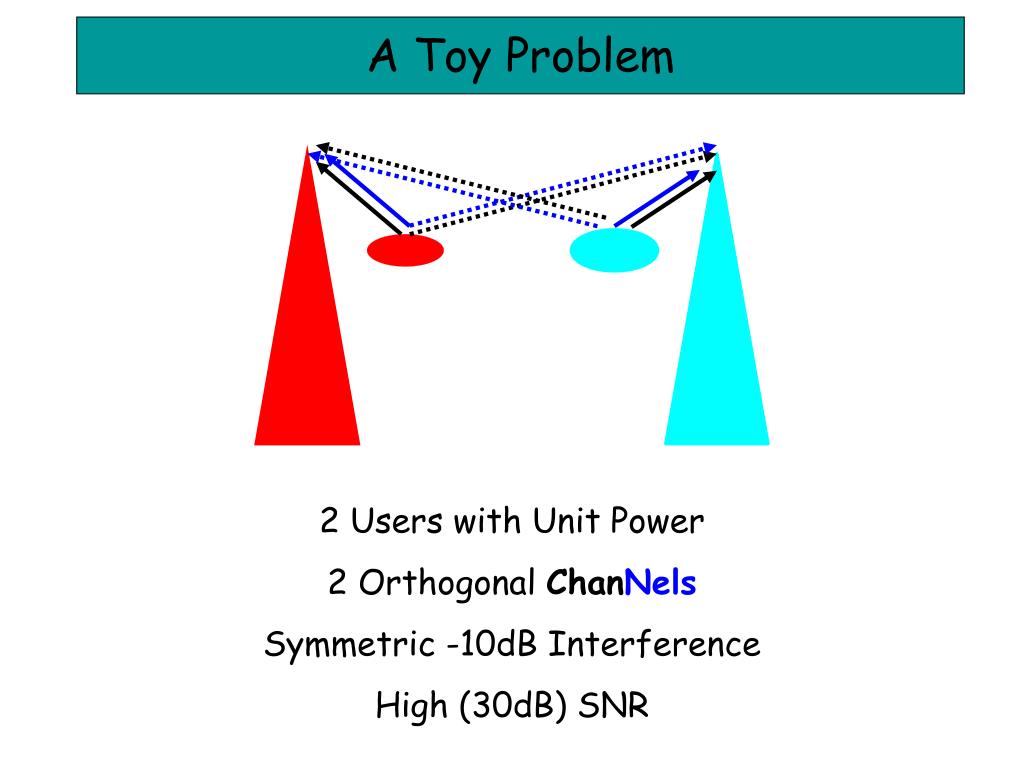

  13. A Toy Problem 2 Users with Unit Power 2 Orthogonal ChanNels Symmetric -10dB Interference High (30dB) SNR

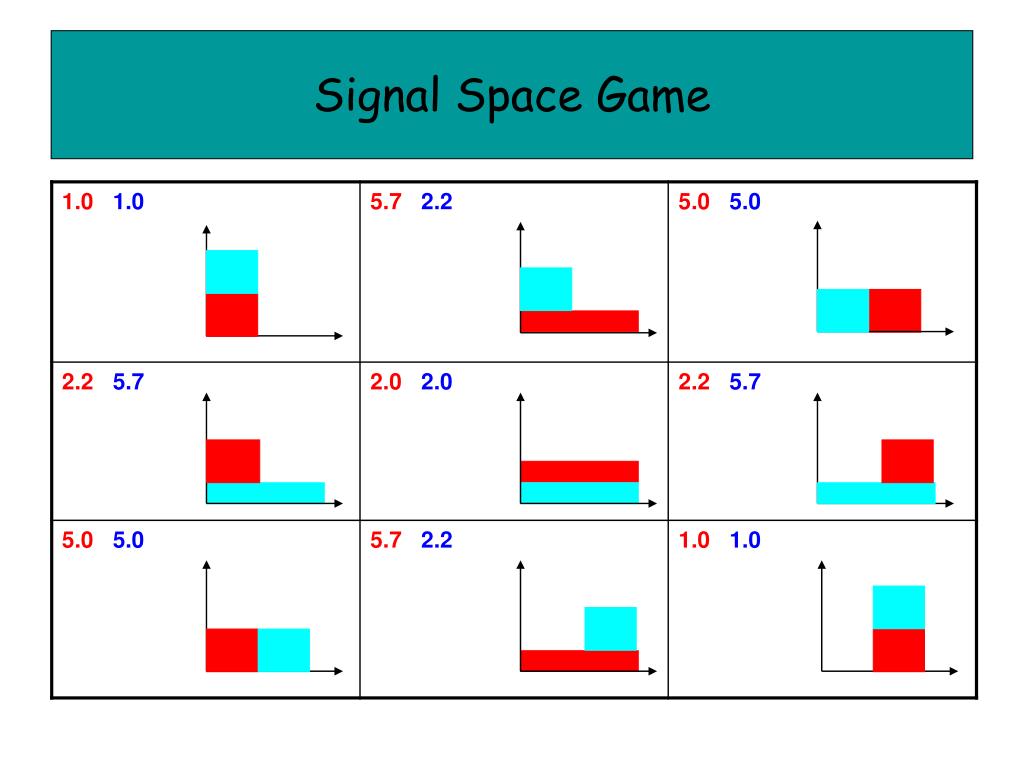

  14. Signal Space Game

  15. Preliminary Results If Better Performers Survive in Marketplace… • Adaptive Policy • tit for tat • Even Better • tit for tat with random start • forgiveness is divine • Use Genetic Algorithms • evolve against chosen policies • evolve against evolving policies

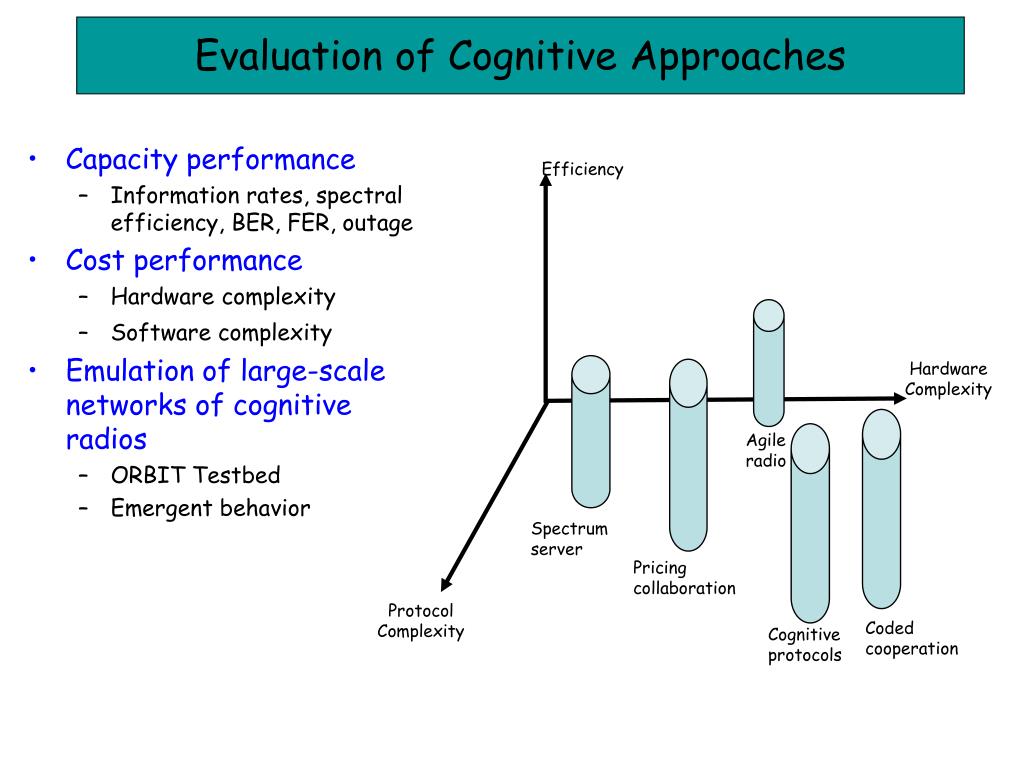

  16. Capacity performance Information rates, spectral efficiency, BER, FER, outage Cost performance Hardware complexity Software complexity Emulation of large-scale networks of cognitive radios ORBIT Testbed Emergent behavior Evaluation of Cognitive Approaches Efficiency HardwareComplexity Agileradio Spectrumserver Pricing collaboration ProtocolComplexity Coded cooperation Cognitive protocols
