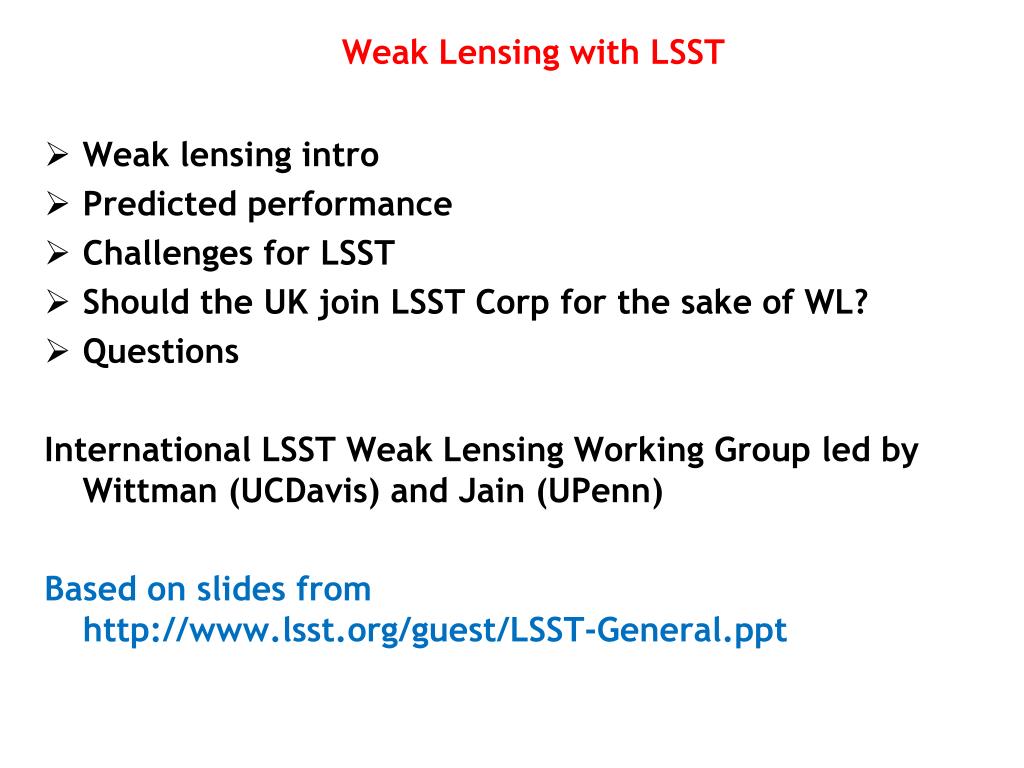

  1. Weak Lensing with LSST • Weak lensing intro • Predicted performance • Challenges for LSST • Should the UK join LSST Corp for the sake of WL? • Questions International LSST Weak Lensing Working Group led by Wittman (UCDavis) and Jain (UPenn) Based on slides from http://www.lsst.org/guest/LSST-General.ppt

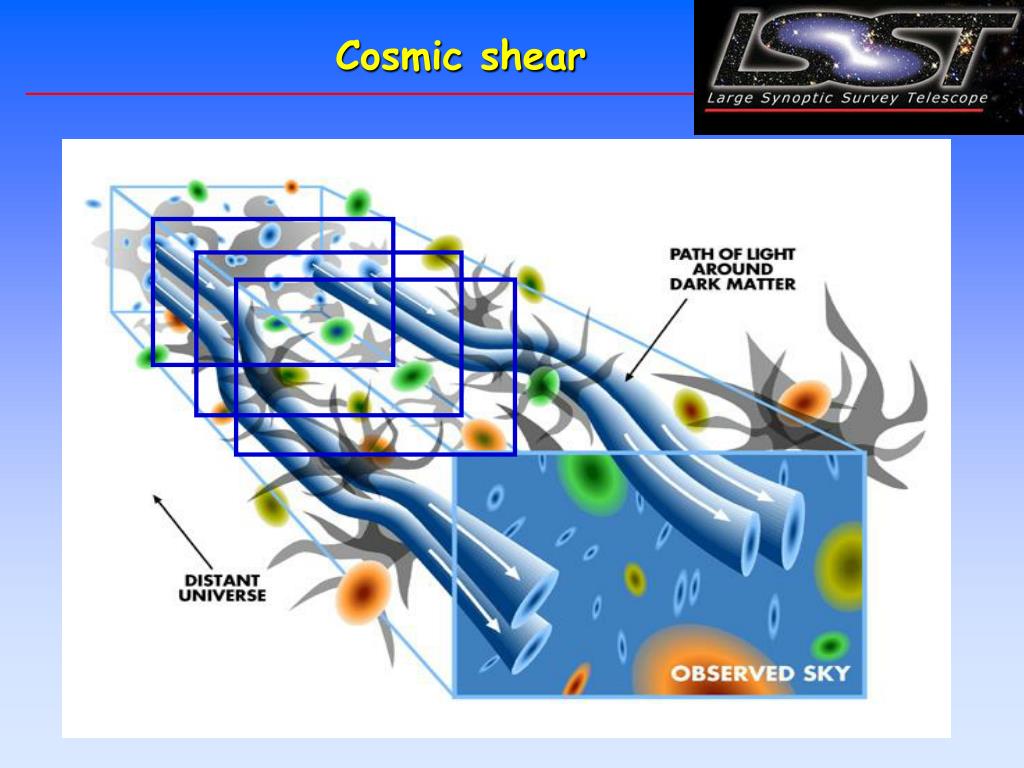

  2. Cosmic shear

  3. 3d map of the dark matter • Dark energy • Nature of dark matter • Galaxy formation

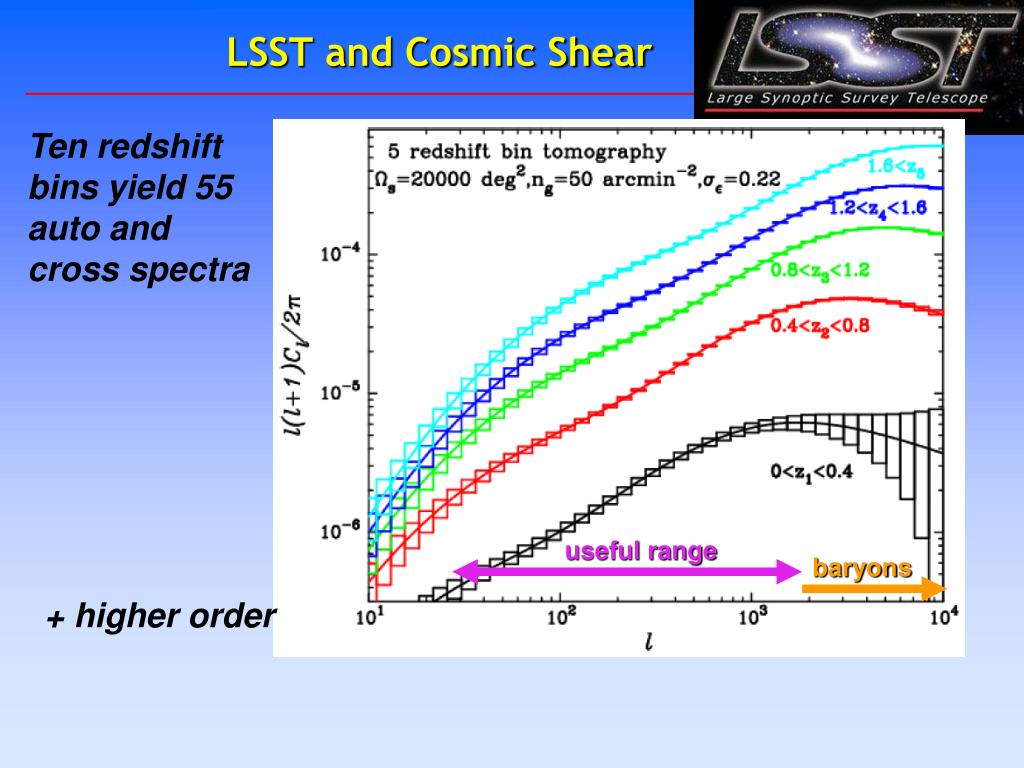

  4. LSST and Cosmic Shear Ten redshift bins yield 55 auto and cross spectra useful range baryons + higher order

  5. LSST Precision on Dark Energy [in DETF language] Zhan 2006 Combining techniques breaks degeneracies. Requires wide sky area deep survey.

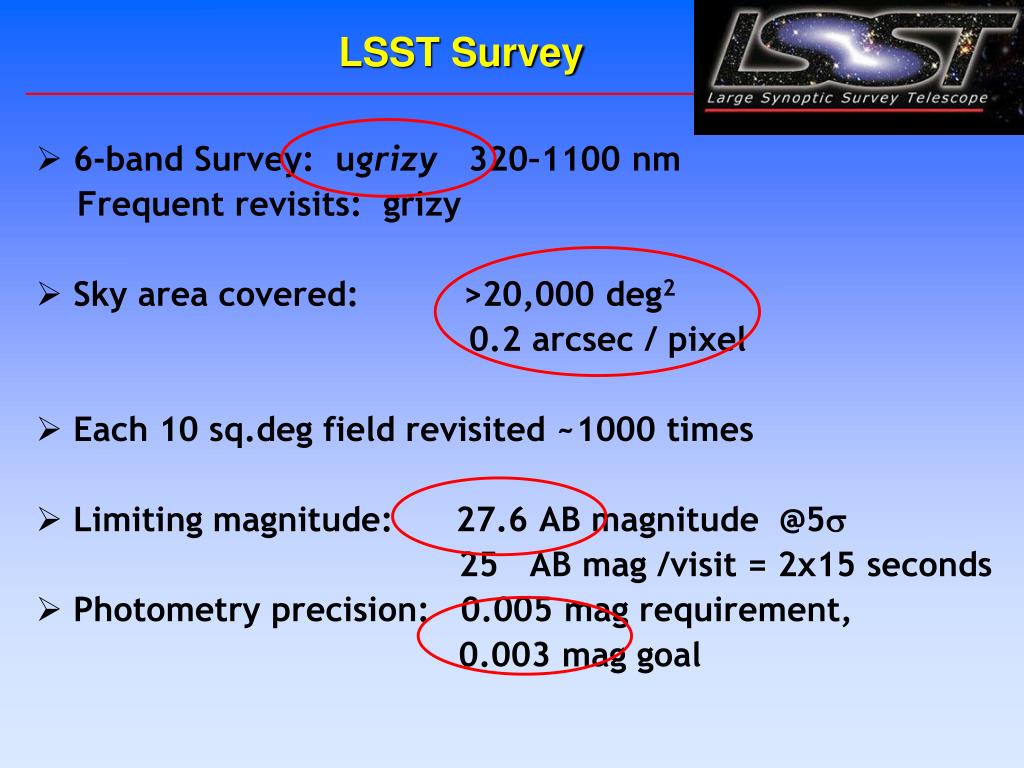

  6. LSST Survey 6-band Survey: ugrizy 320–1100 nm Frequent revisits: grizy Sky area covered: >20,000 deg2 0.2 arcsec / pixel Each 10 sq.deg field revisited ~1000 times Limiting magnitude: 27.6 AB magnitude @5s 25 AB mag /visit = 2x15 seconds Photometry precision: 0.005 mag requirement, 0.003 mag goal

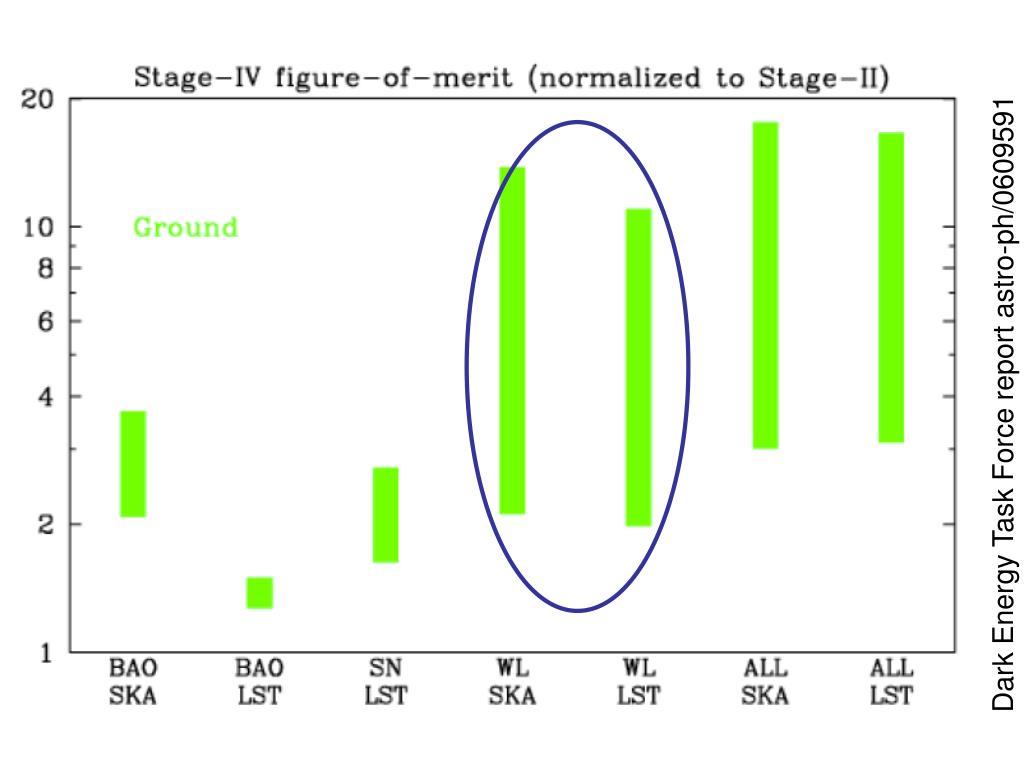

  7. Dark Energy Task Force report astro-ph/0609591

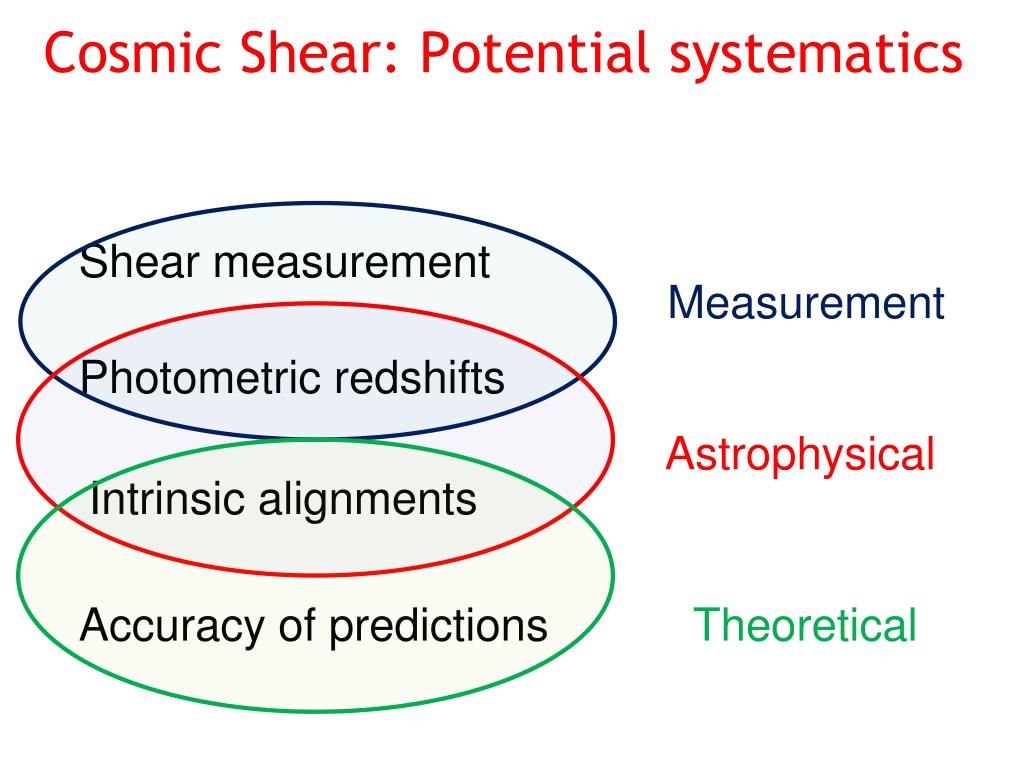

  8. Cosmic Shear: Potential systematics Shear measurement Measurement Photometric redshifts Astrophysical Intrinsic alignments Accuracy of predictions Theoretical

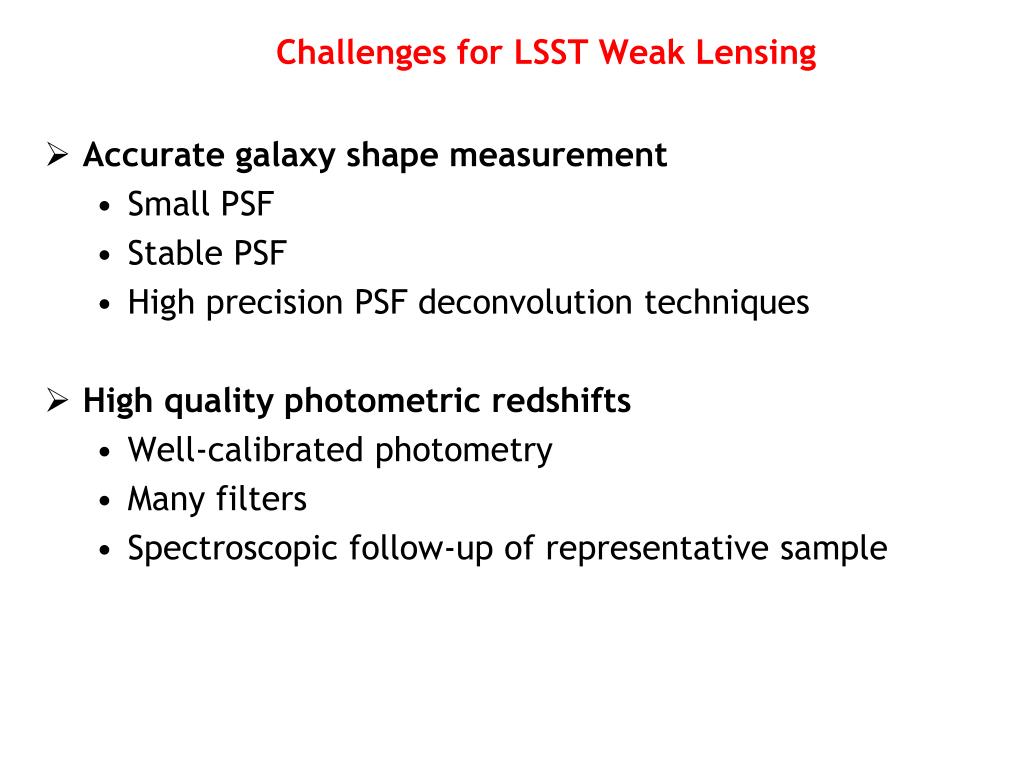

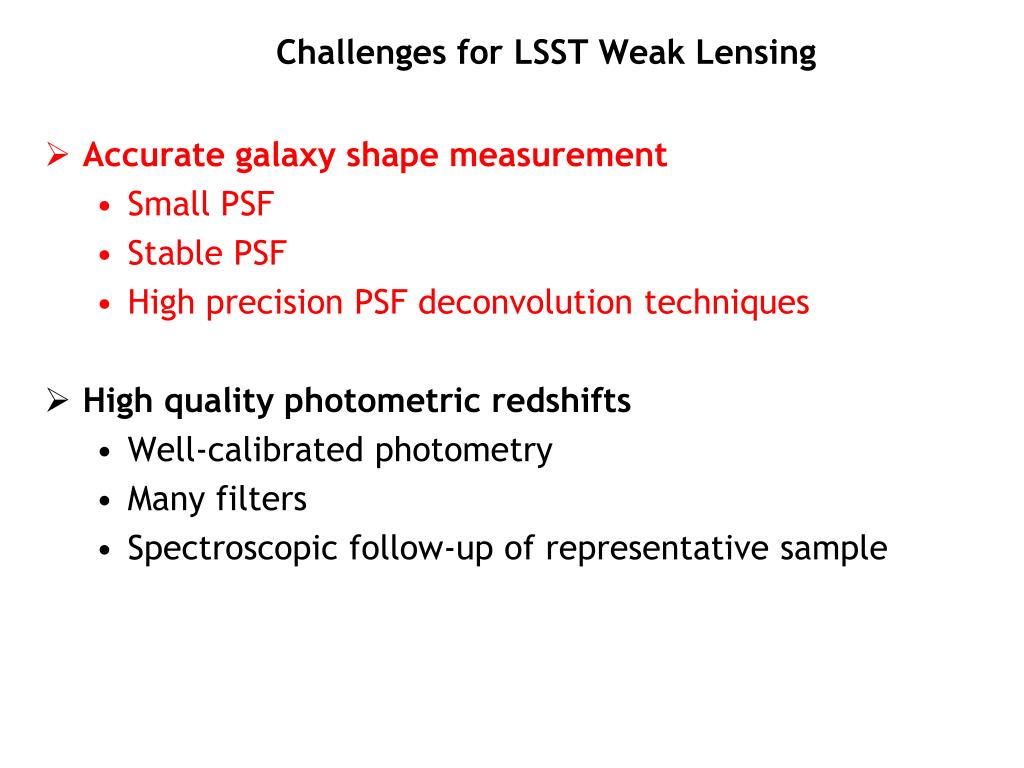

  9. Challenges for LSST Weak Lensing • Accurate galaxy shape measurement • Small PSF • Stable PSF • High precision PSF deconvolution techniques • High quality photometric redshifts • Well-calibrated photometry • Many filters • Spectroscopic follow-up of representative sample

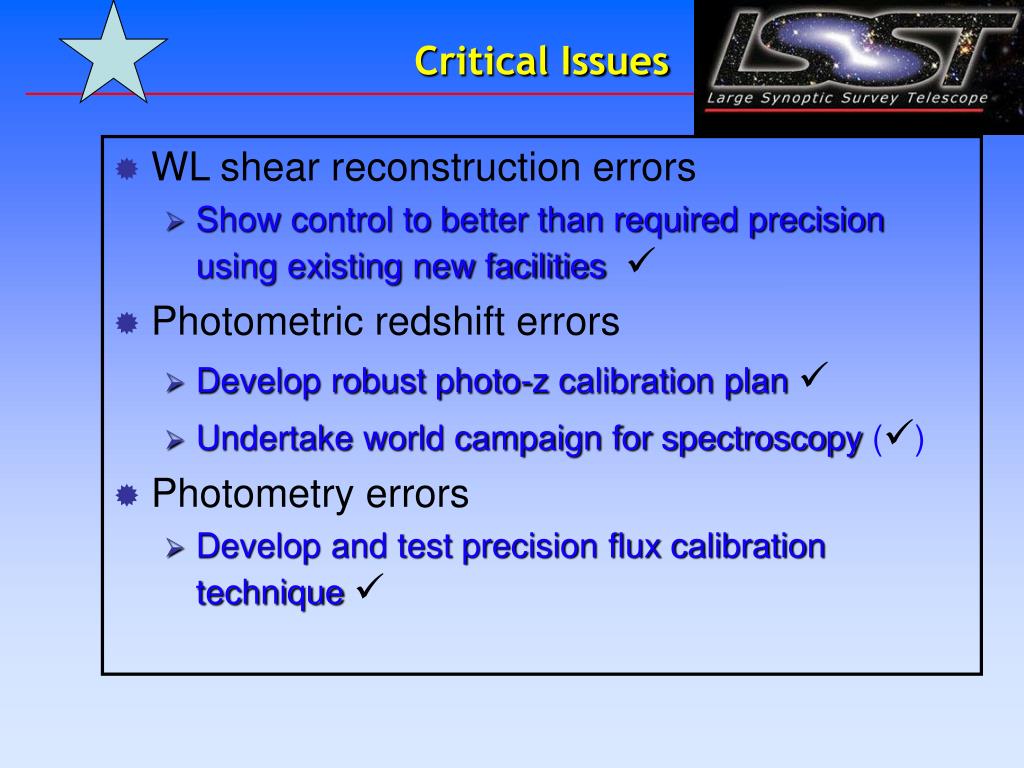

  10. Critical Issues • WL shear reconstruction errors • Show control to better than required precision using existing new facilities • Photometric redshift errors • Develop robust photo-z calibration plan • Undertake world campaign for spectroscopy () • Photometry errors • Develop and test precision flux calibration technique

  11. Challenges for LSST Weak Lensing • Accurate galaxy shape measurement • Small PSF • Stable PSF • High precision PSF deconvolution techniques • High quality photometric redshifts • Well-calibrated photometry • Many filters • Spectroscopic follow-up of representative sample

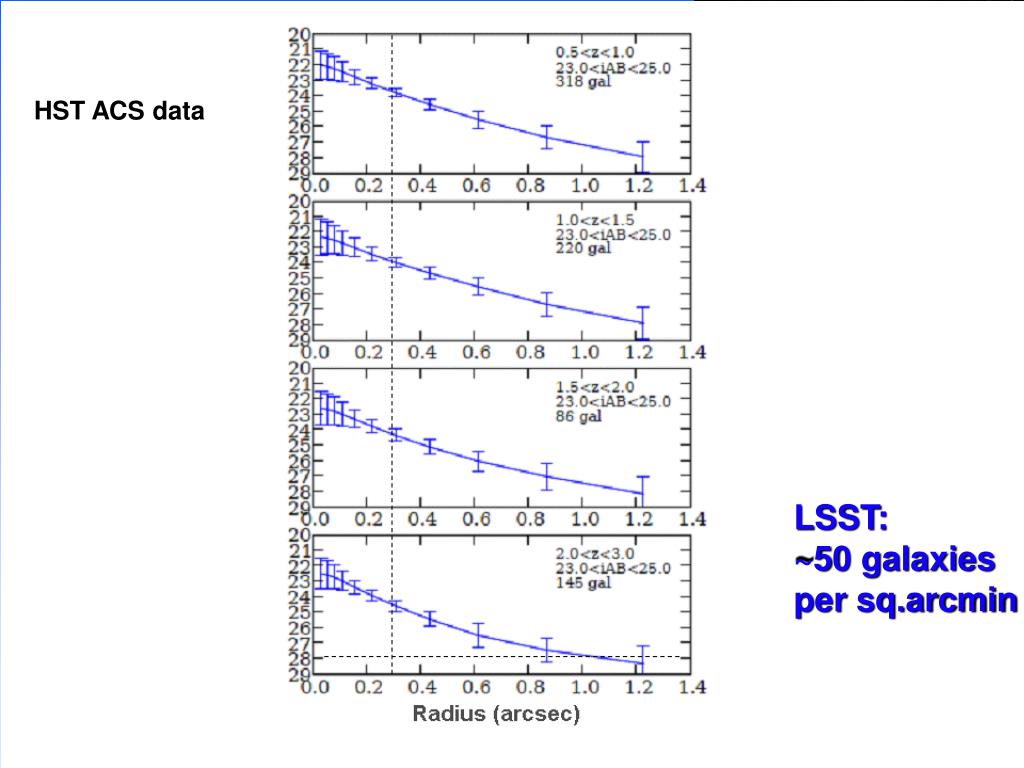

  12. HST ACS data LSST: ~50 galaxies per sq.arcmin

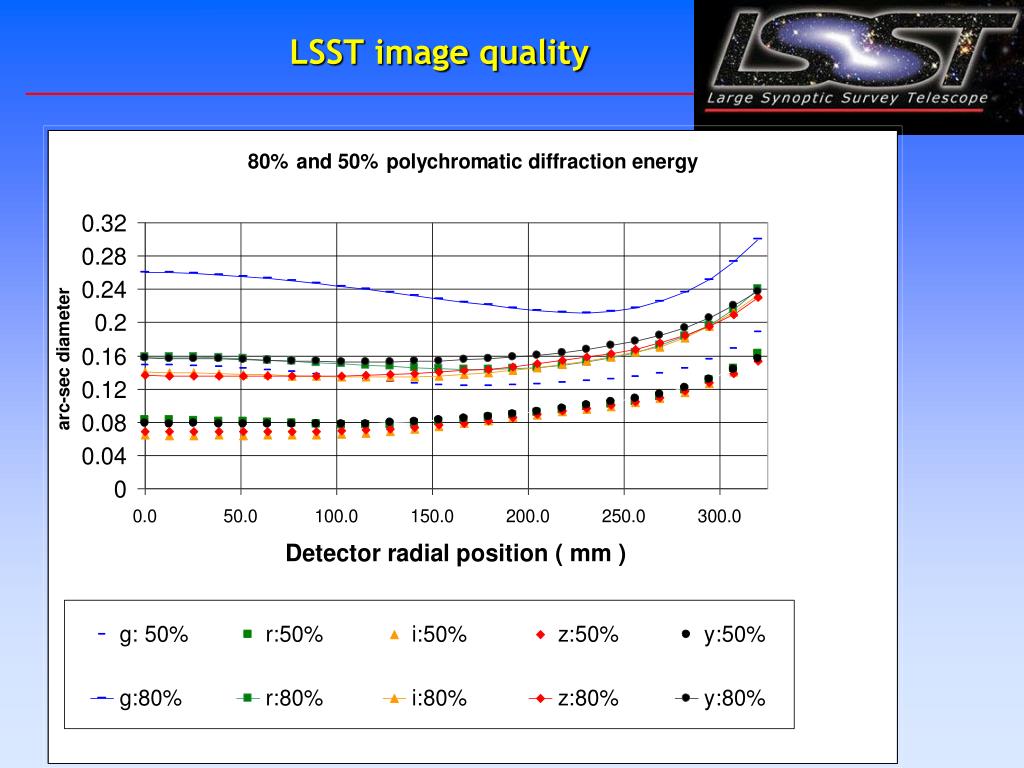

  13. LSST image quality

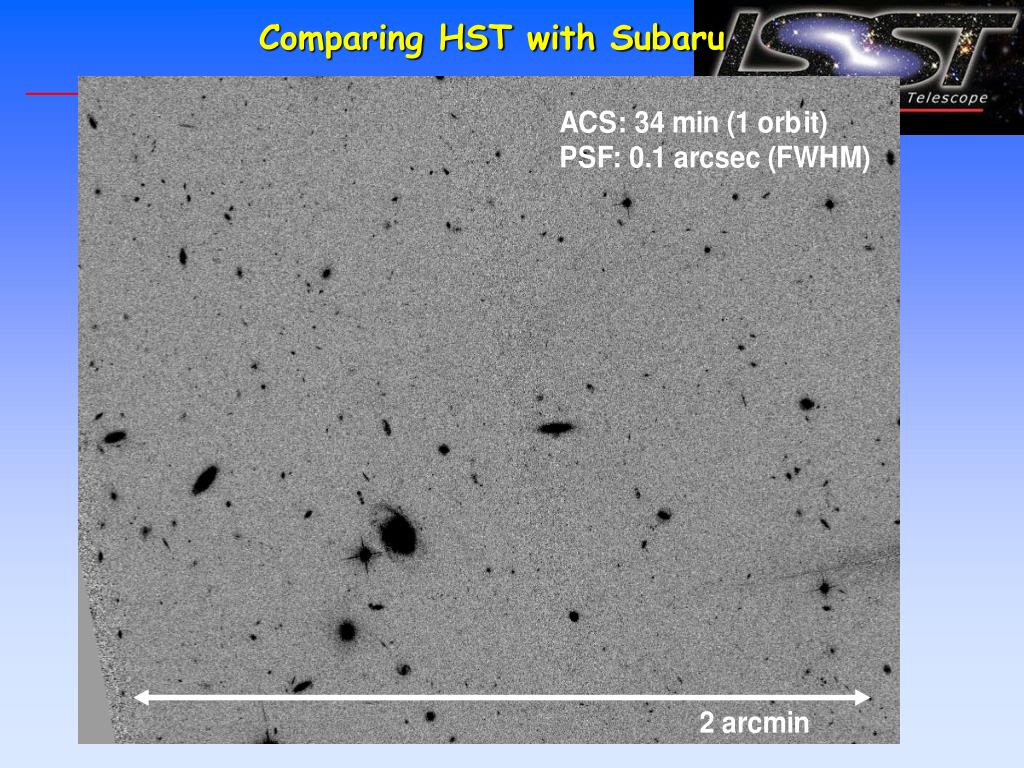

  14. Comparing HST with Subaru

  15. Comparing HST with Subaru

  16. space weak lensing shear ground Shear Data: Ground vs Space Typical cosmic shear is ~ 1%, and must be measured with high accuracy Space: small and stable PSF: larger number of resolved galaxies  reduced systematics

  17. Residual shear correlation Test of shear systematics: Use faint stars as proxies for galaxies, and calculate the shear-shear correlation after correcting for PSF ellipticity via a different set of stars. Compare with expected cosmic shear signal. Conclusion: 200 exposures per sky patch will yield negligible PSF induced shear systematics. Wittman (2005) Cosmic shear signal Stars

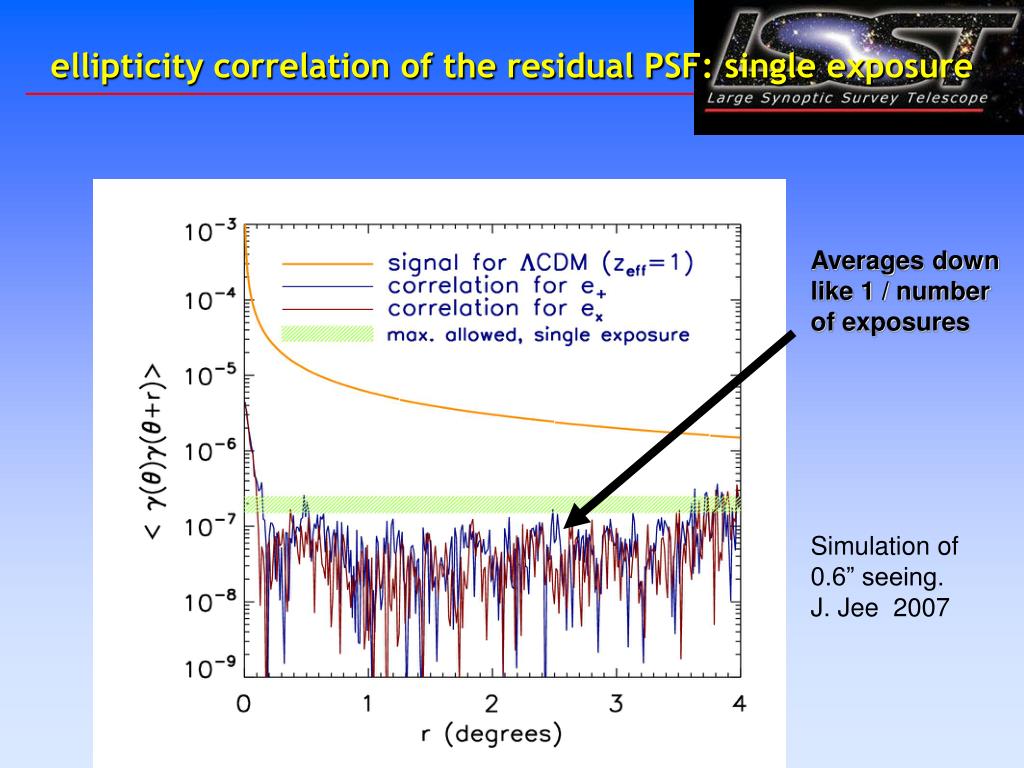

  18. ellipticity correlation of the residual PSF: single exposure Averages down like 1 / number of exposures Simulation of 0.6” seeing. J. Jee 2007

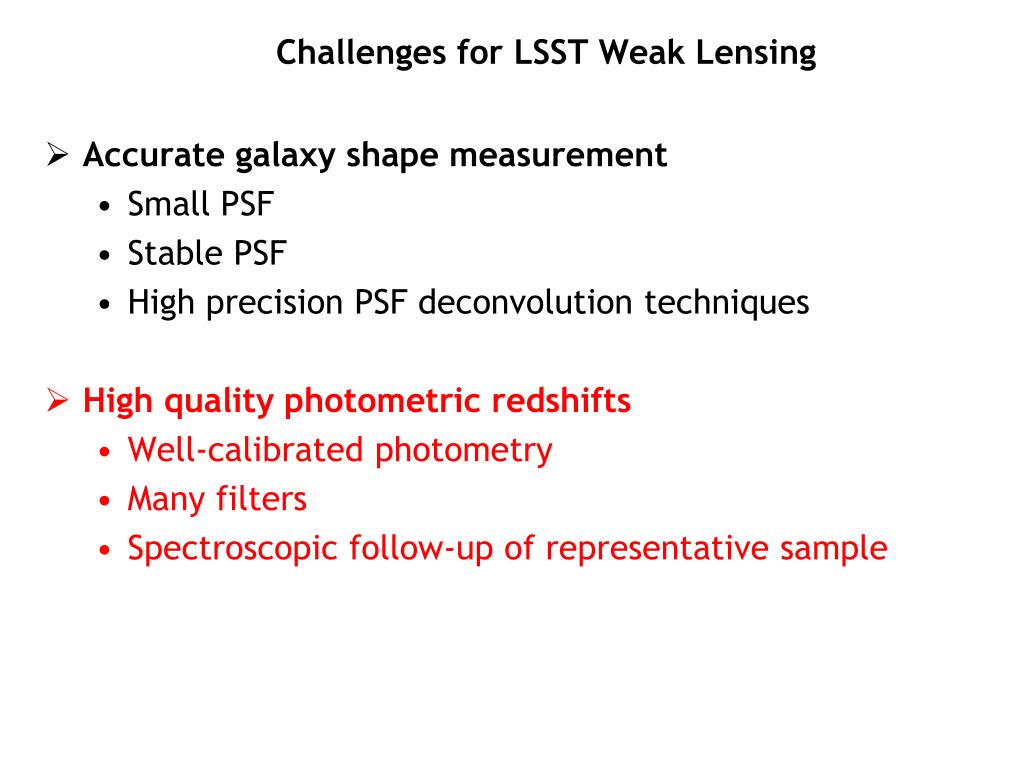

  19. Challenges for LSST Weak Lensing • Accurate galaxy shape measurement • Small PSF • Stable PSF • High precision PSF deconvolution techniques • High quality photometric redshifts • Well-calibrated photometry • Many filters • Spectroscopic follow-up of representative sample

  20. LSST six color system Includes sensor QE, atmospheric attenuation, optical transmission functions Relative system throughput (%) Wavelength (nm)

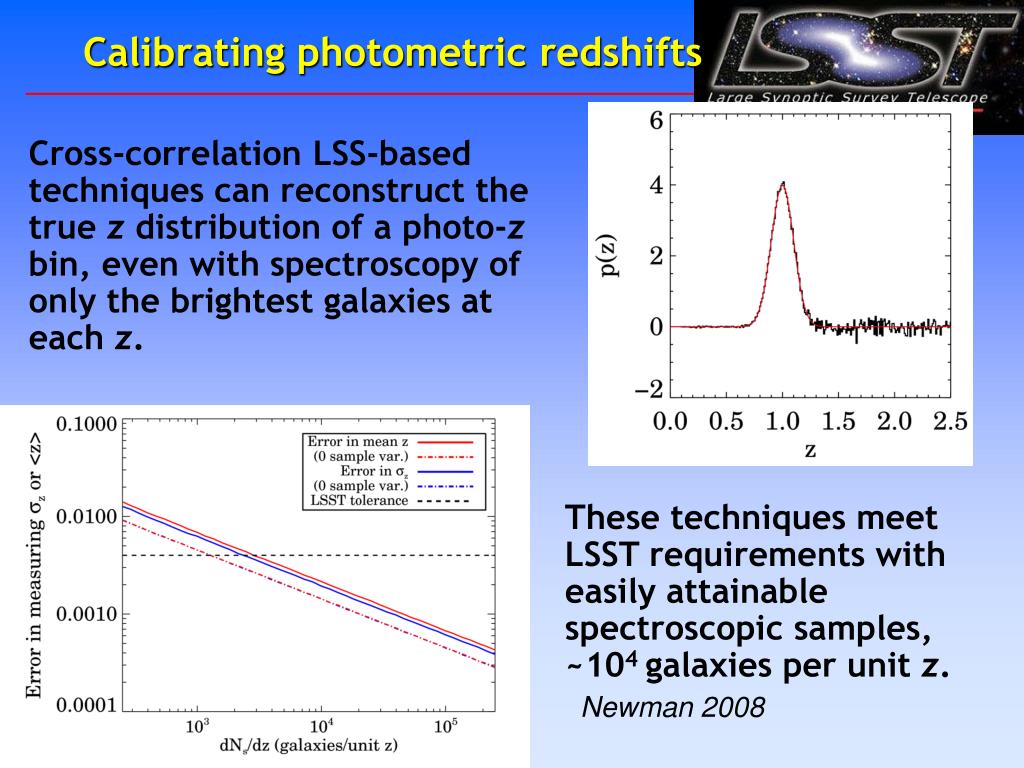

  21. Calibrating photometric redshifts Cross-correlation LSS-based techniques can reconstruct the true z distribution of a photo-z bin, even with spectroscopy of only the brightest galaxies at each z. These techniques meet LSST requirements with easily attainable spectroscopic samples, ~104 galaxies per unit z. Newman 2008

  22. Should the UK join LSST Corp for the sake of Weak Lensing? • Will good shears and photozs be in public catalogue? Yes -> 6 No -> 2 • Is PS4 going to do it all? Yes -> 6 (but how do we get into PS4?) No -> 3 • Is Euclid going to happen? Yes: still want photozs from LSST (+LSST deeper?) -> 5 No -> 4 • Can shear be done well enough from the ground? Yes -> 5 No -> 3 • Yes • No

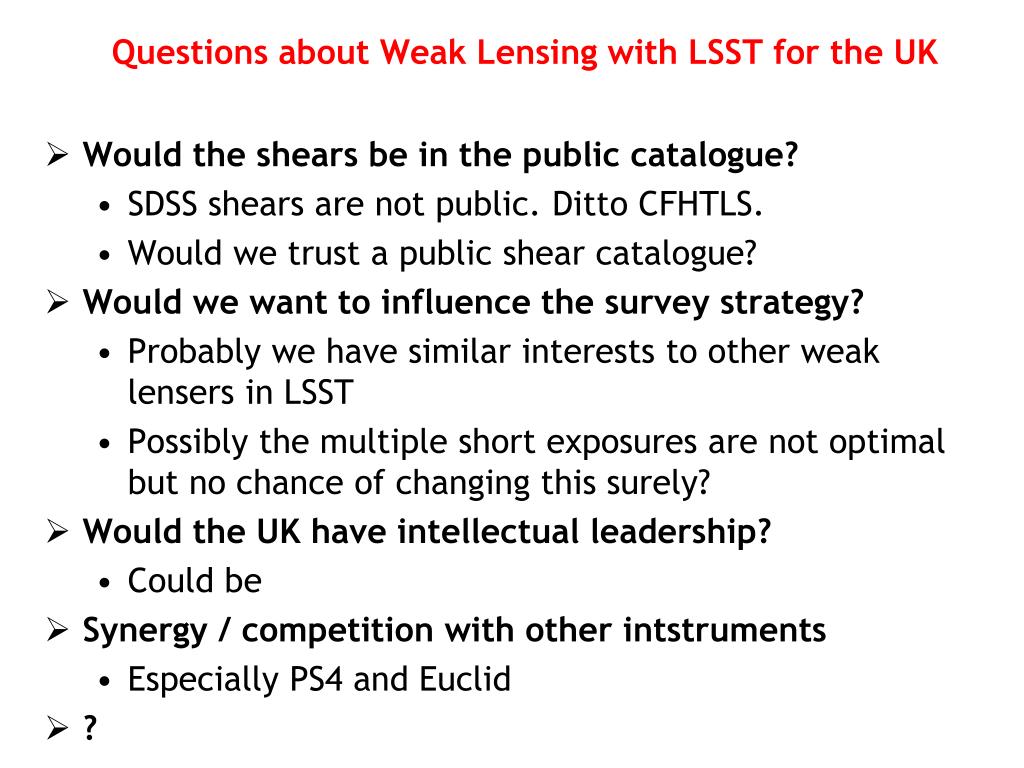

  23. Questions about Weak Lensing with LSST for the UK • Would the shears be in the public catalogue? • SDSS shears are not public. Ditto CFHTLS. • Would we trust a public shear catalogue? • Would we want to influence the survey strategy? • Probably we have similar interests to other weak lensers in LSST • Possibly the multiple short exposures are not optimal but no chance of changing this surely? • Would the UK have intellectual leadership? • Could be • Synergy / competition with other intstruments • Especially PS4 and Euclid • ?

  24. Potential UK Contributions for Weak Lensing • Algorithms and simulations • Shear measurement algorithms • Taking into account many short exposures • Photometric redshift measurement • Intrinsic alignment simulations • Simulations on the effect of baryons • ? • Data • Infrared imaging from Euclid • Spectra from Euclid and/or WFMOS • ? • ?
