ABRED (by Ozaki)

http://staff.aist.go.jp/t-ozaki/. ABRED (by Ozaki). Pseudopotential Localized basis set (LCAO) charge: uniform grid --- similar to SIESTA But basis function optimization stable order-N algorithm. Making PseudoAtomic orbitals (PAO). TM/BHS PS. A wall to make PAOs confined.

fallon
Download Presentation

ABRED (by Ozaki)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. http://staff.aist.go.jp/t-ozaki/ ABRED (by Ozaki) • Pseudopotential • Localized basis set (LCAO) • charge: uniform grid • --- similar to SIESTA • But • basis function optimization • stable order-N algorithm

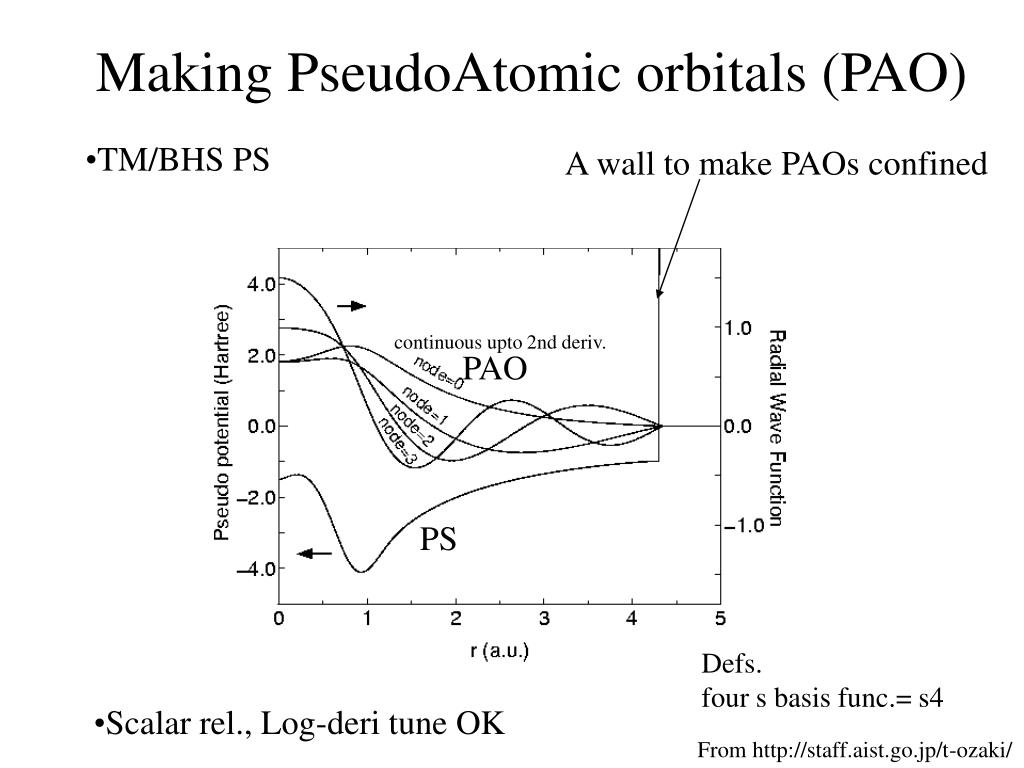

  2. Making PseudoAtomic orbitals (PAO) • TM/BHS PS A wall to make PAOs confined continuous upto 2nd deriv. PAO PS Defs. four s basis func.= s4 • Scalar rel., Log-deri tune OK From http://staff.aist.go.jp/t-ozaki/

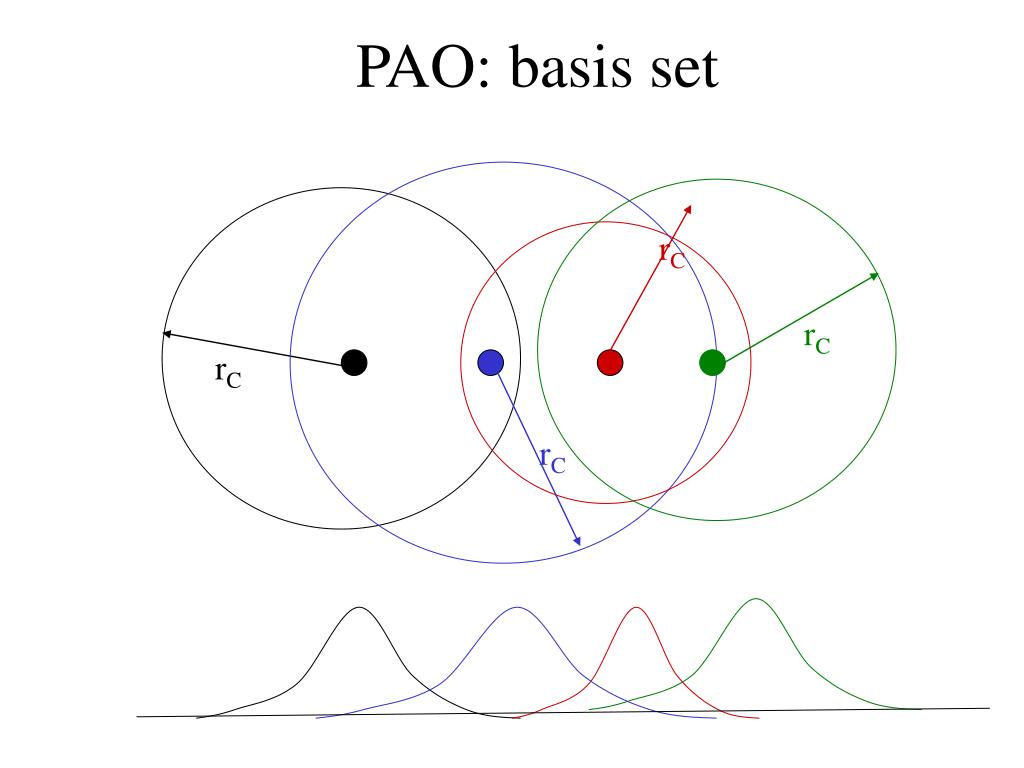

  3. PAO: basis set rC rC rC rC

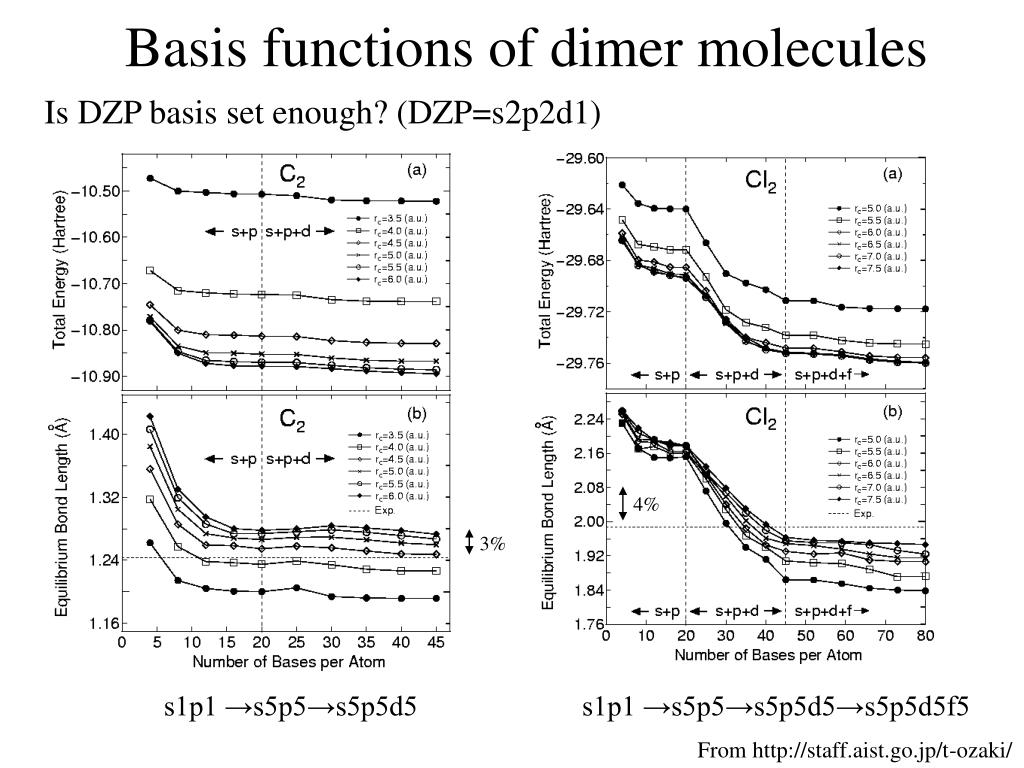

  4. Is DZP basis set enough? (DZP=s2p2d1) Basis functions of dimer molecules 4% 3% s1p1 →s5p5→s5p5d5 s1p1 →s5p5→s5p5d5→s5p5d5f5 From http://staff.aist.go.jp/t-ozaki/

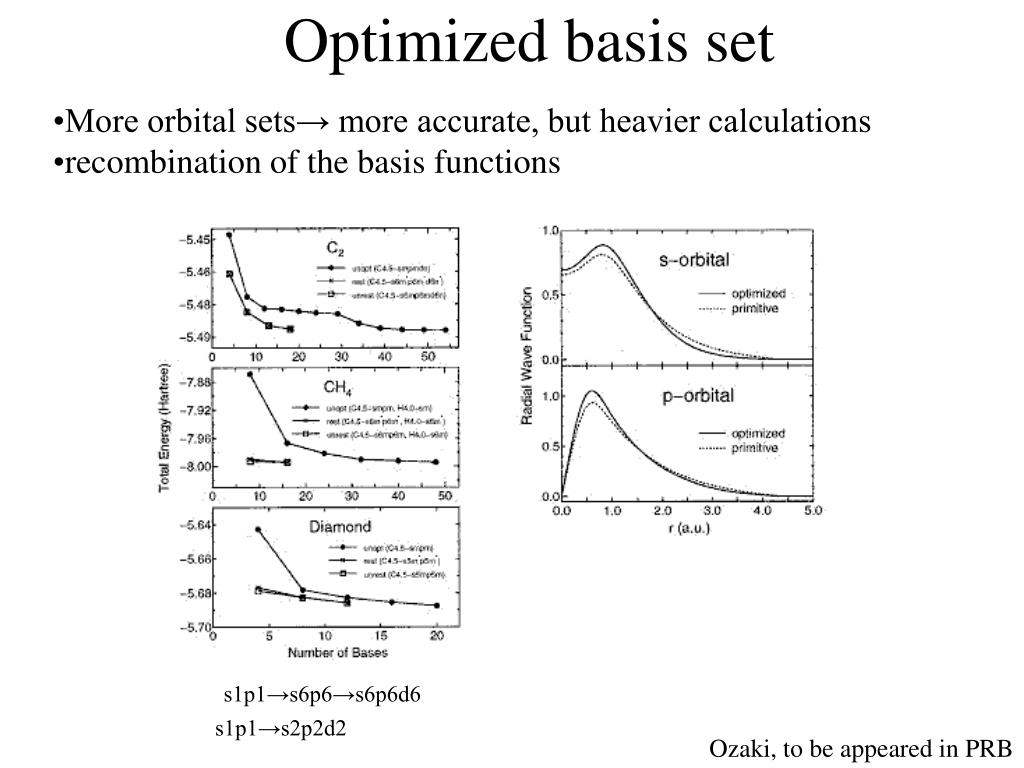

  5. More orbital sets→ more accurate, but heavier calculations • recombination of the basis functions Optimized basis set s1p1→s6p6→s6p6d6 s1p1→s2p2d2 Ozaki, to be appeared in PRB

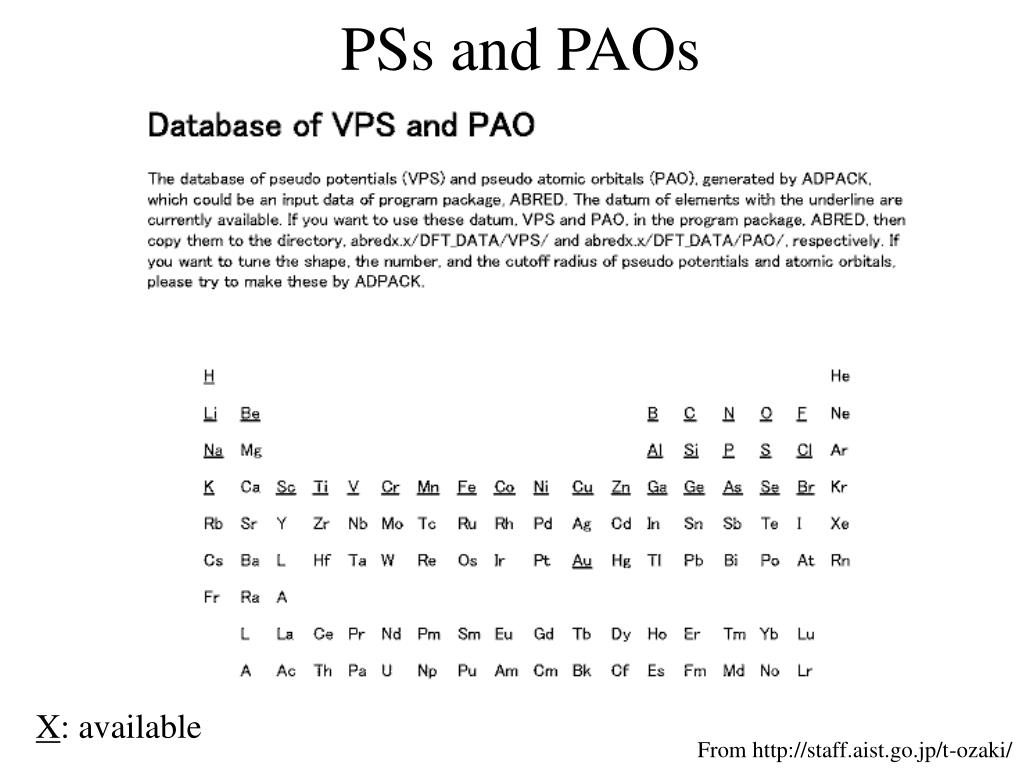

  6. PSs and PAOs X: available From http://staff.aist.go.jp/t-ozaki/

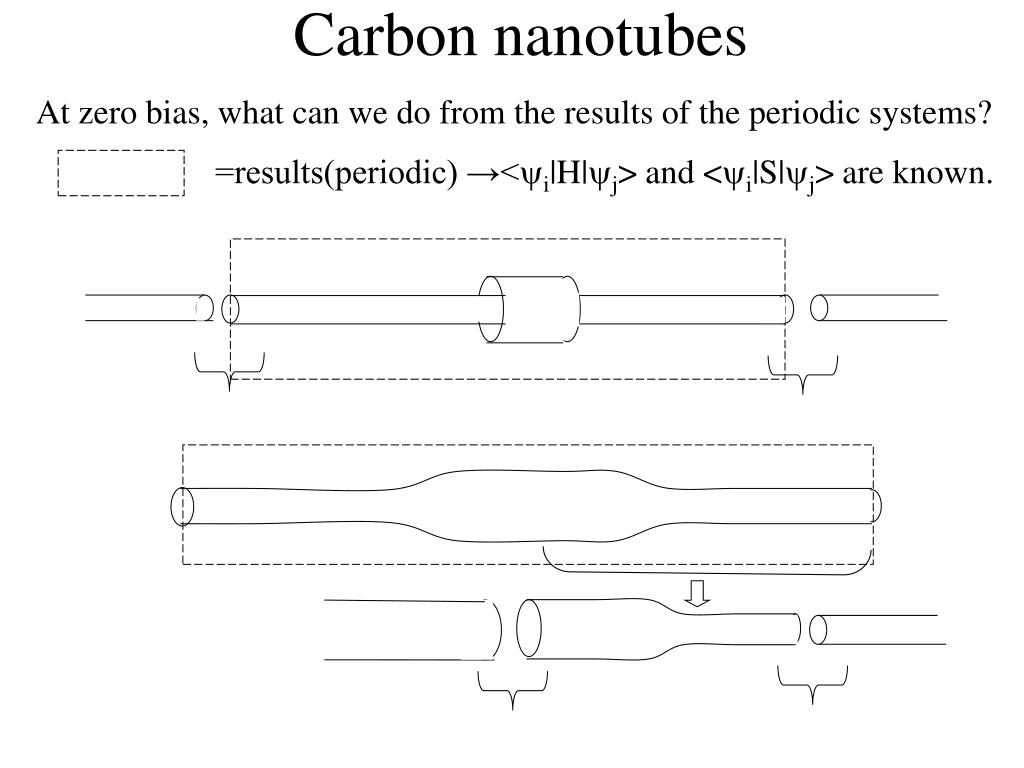

  7. At zero bias, what can we do from the results of the periodic systems? Carbon nanotubes =results(periodic) →<yi|H|yj> and <yi|S|yj> are known.
