  1. On the Relevance of Wire Load Models Kenneth D. Boese, Cadence Design Systems, San Jose Andrew B. Kahng, UCSD CSE and ECE Depts., La Jolla Stefanus Mantik, UCLA CS Dept., Los Angeles

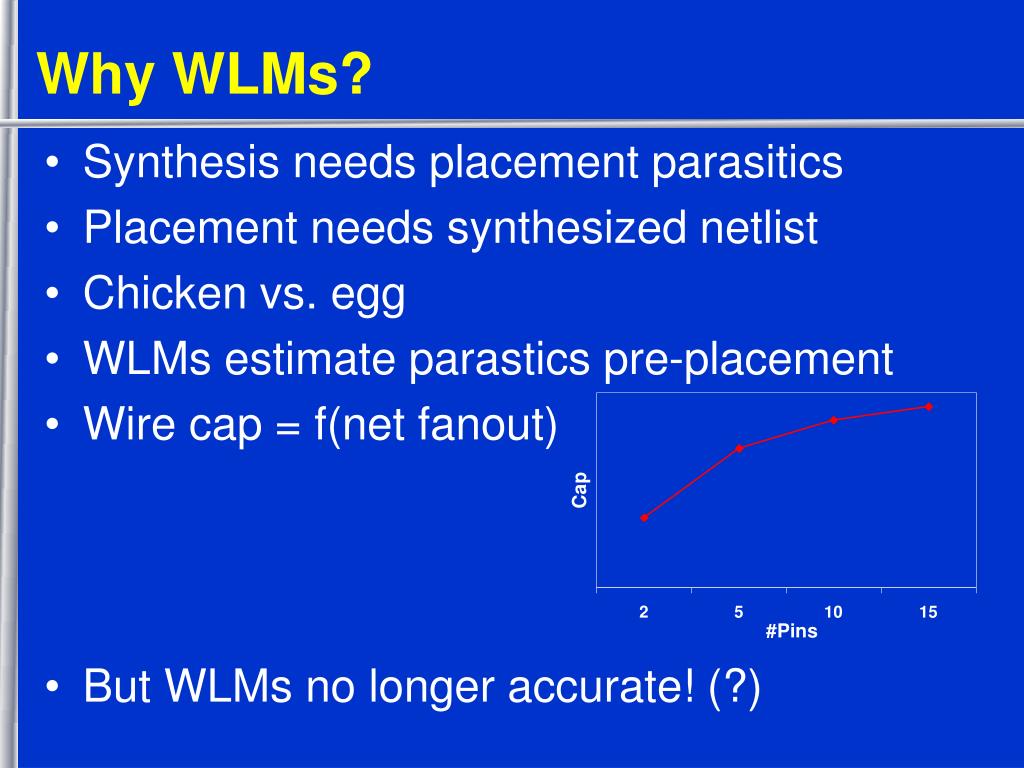

  2. Why WLMs? • Synthesis needs placement parasitics • Placement needs synthesized netlist • Chicken vs. egg • WLMs estimate parastics pre-placement • Wire cap = f(net fanout) • But WLMs no longer accurate! (?)

  3. Motivating Questions • How inaccurate are WLMs? • Are WLMs good for optimization? • Are WLMs good for estimation? • How use WLMs in optimization flow?

  4. Previous Works • “Bad” WLMs motivate post-placement synthesis • e.g., Lu et al. [7] • Need for constructive estimators • Scheffer and Nequist [8] • “law of small numbers” • Accuracy vs. fidelity • Boese et al. [1,2]

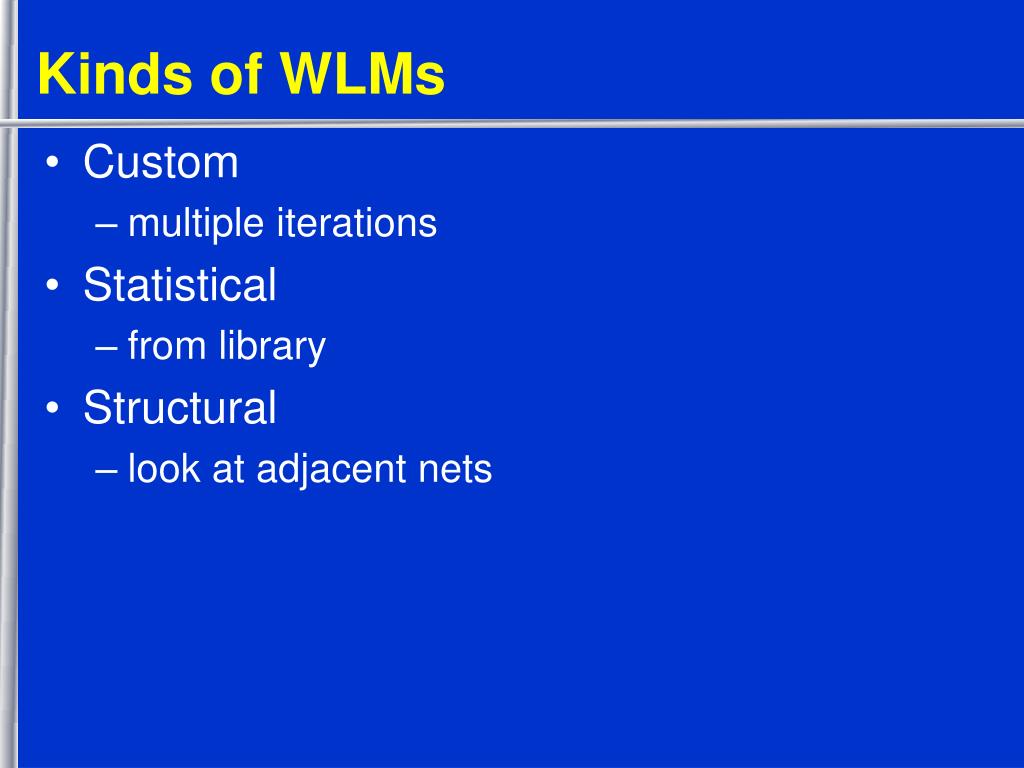

  5. Kinds of WLMs • Custom • multiple iterations • Statistical • from library • Structural • look at adjacent nets

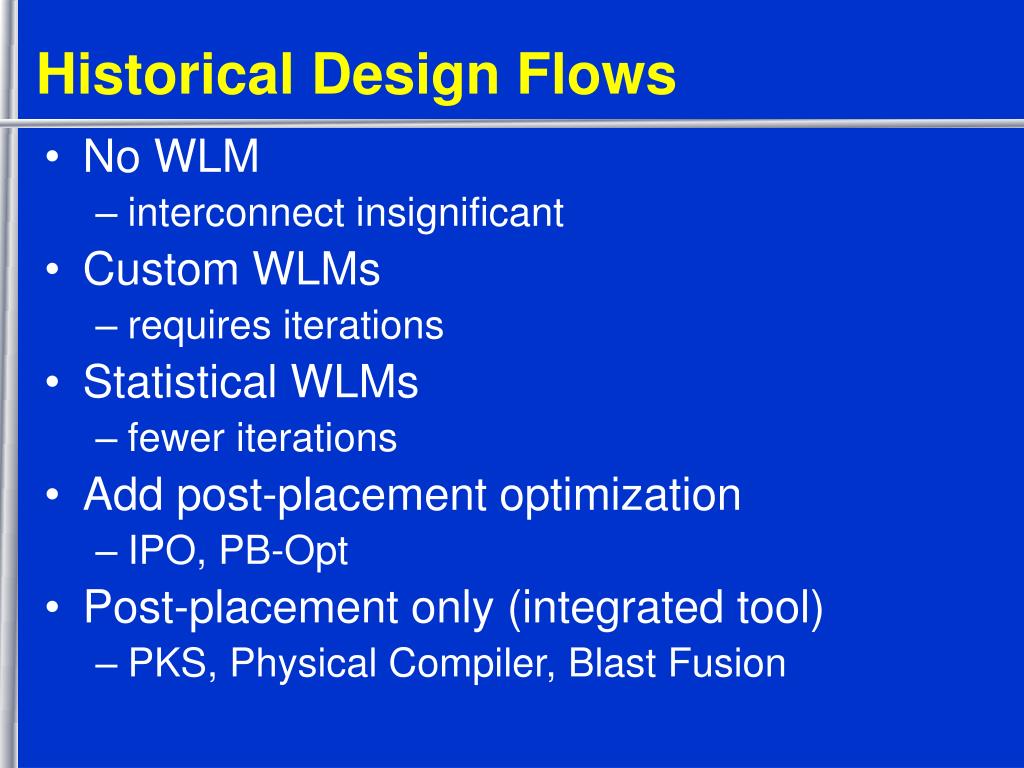

  6. Historical Design Flows • No WLM • interconnect insignificant • Custom WLMs • requires iterations • Statistical WLMs • fewer iterations • Add post-placement optimization • IPO, PB-Opt • Post-placement only (integrated tool) • PKS, Physical Compiler, Blast Fusion

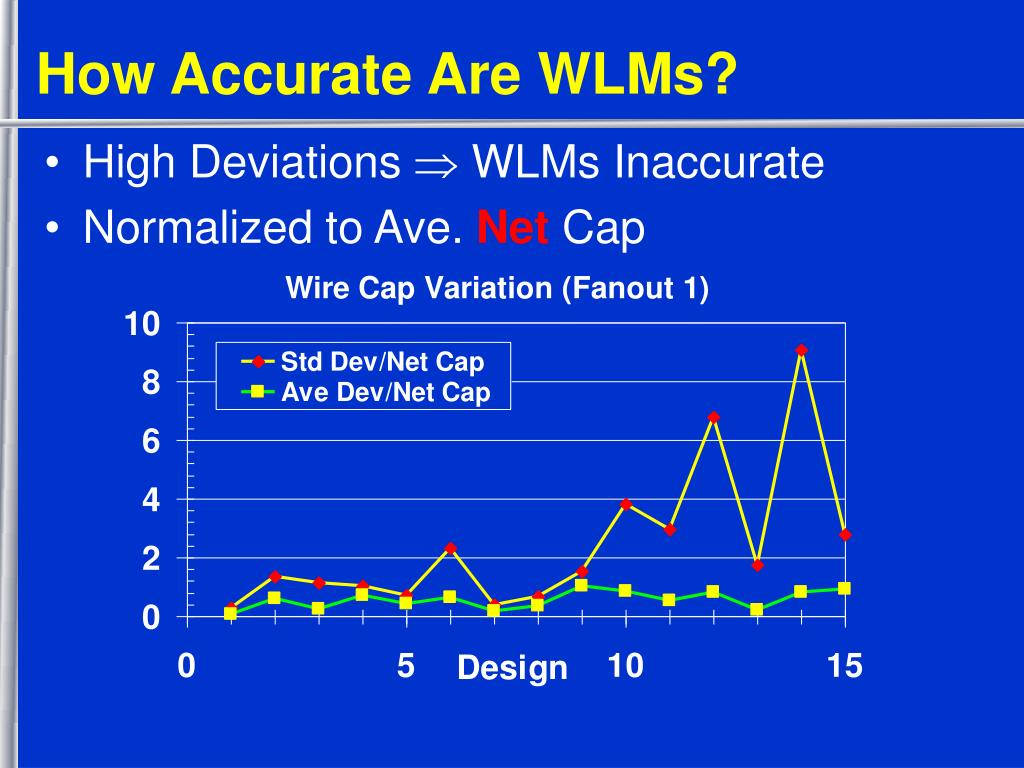

  7. How Accurate Are WLMs? • High Deviations  WLMs Inaccurate • Normalized to Ave. Net Cap

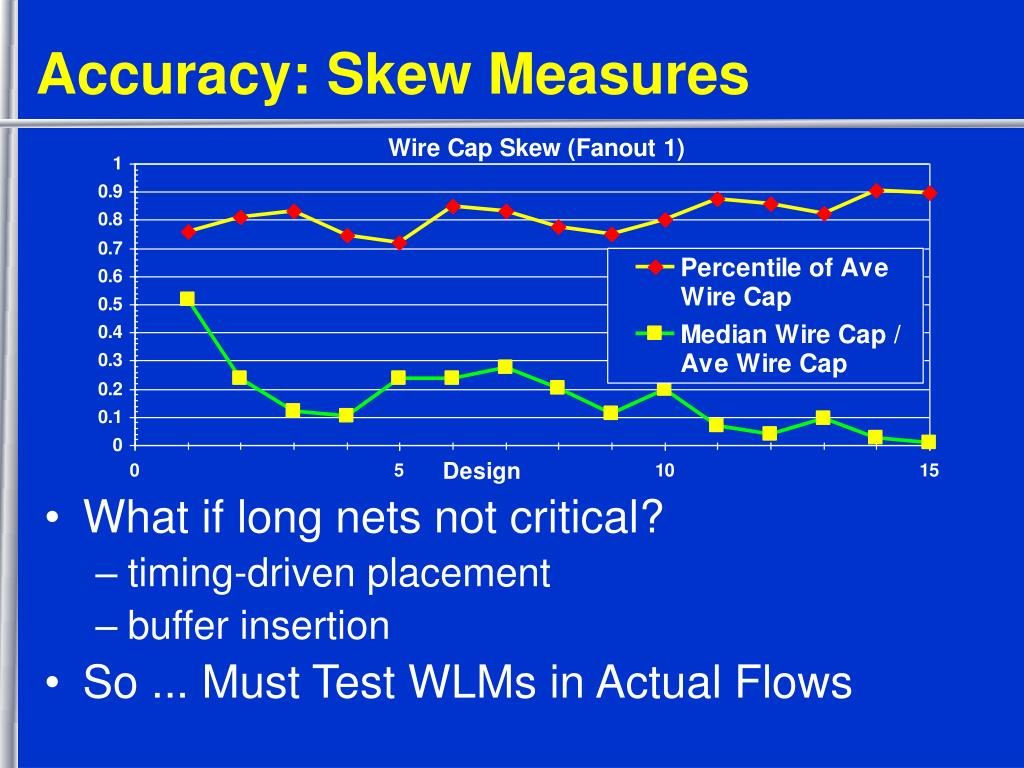

  8. Accuracy: Skew Measures • What if long nets not critical? • timing-driven placement • buffer insertion • So ... Must Test WLMs in Actual Flows

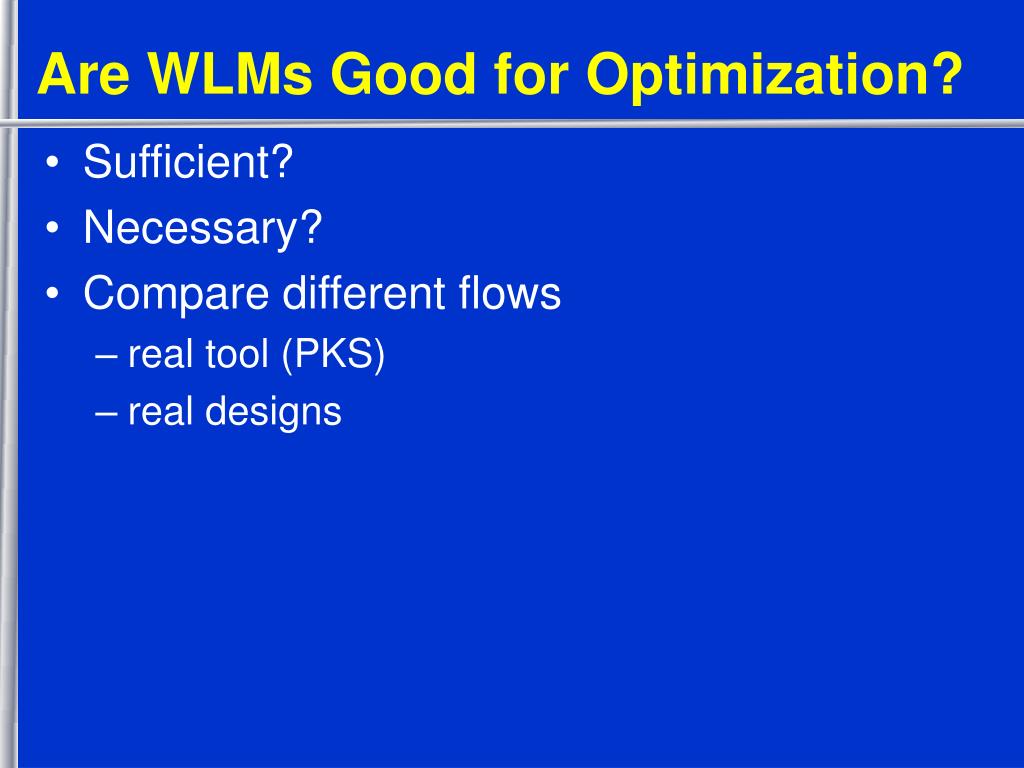

  9. Are WLMs Good for Optimization? • Sufficient? • Necessary? • Compare different flows • real tool (PKS) • real designs

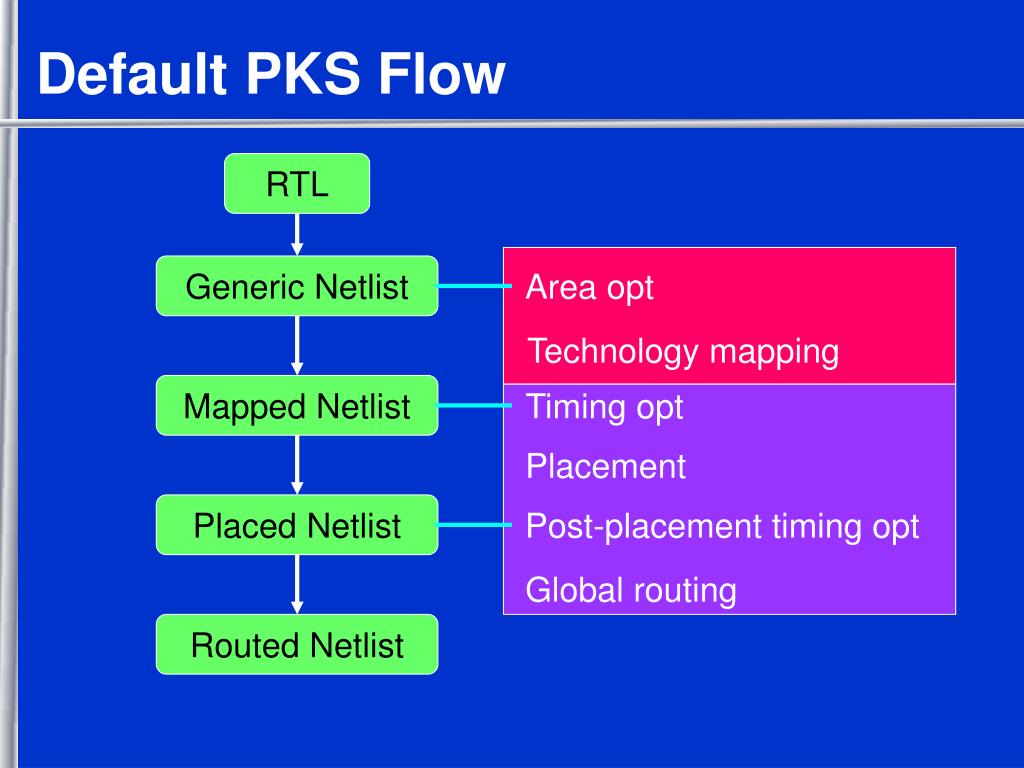

  10. Default PKS Flow RTL Generic Netlist Area opt Technology mapping Mapped Netlist Timing opt Placement Placed Netlist Post-placement timing opt Global routing Routed Netlist

  11. 1. Area opt 2. Technology mapping 3. Timing opt 4. Placement 5. Post-pl timing opt 6. Global routing Structural WLM Library WLM Custom WLM No WLM No Pre Pl Opt No Post Pl Logic Opt No Post Pl Opt 7 Flow Variations

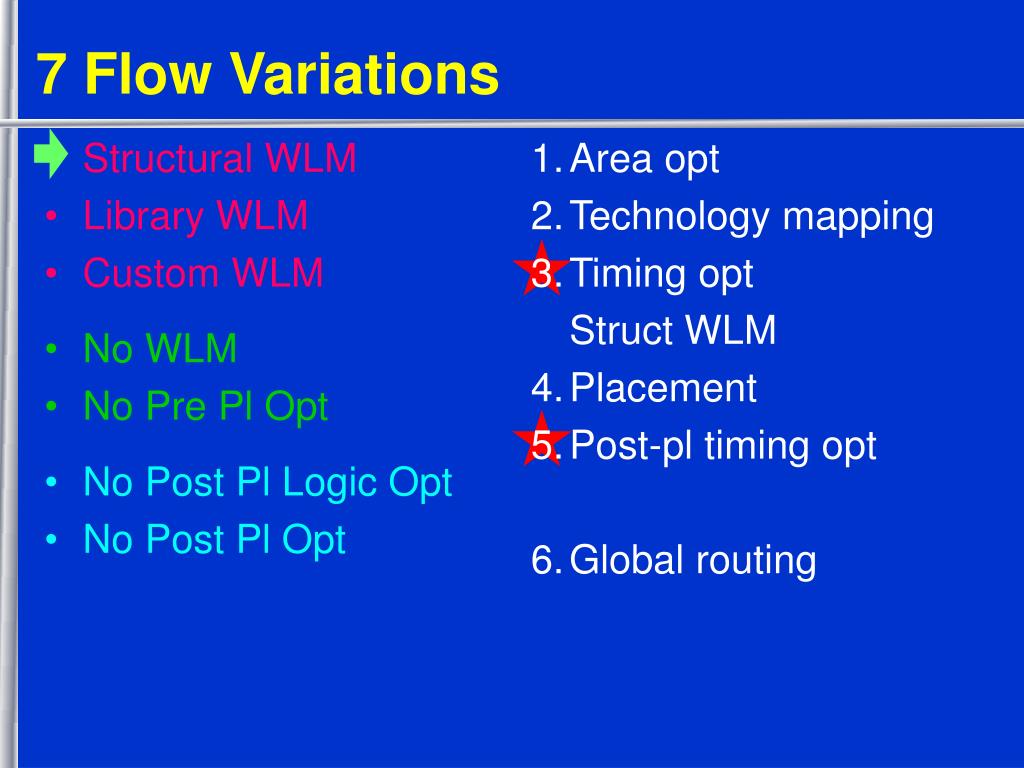

  12. 1. Area opt 2. Technology mapping 3. Timing opt Struct WLM 4. Placement 5. Post-pl timing opt 6. Global routing Structural WLM Library WLM Custom WLM No WLM No Pre Pl Opt No Post Pl Logic Opt No Post Pl Opt 7 Flow Variations

  13. 1. Area opt 2. Technology mapping 3. Timing opt Lib WLM 4. Placement 5. Post-pl timing opt 6. Global routing Structural WLM Library WLM Custom WLM No WLM No Pre Pl Opt No Post Pl Logic Opt No Post Pl Opt 7 Flow Variations

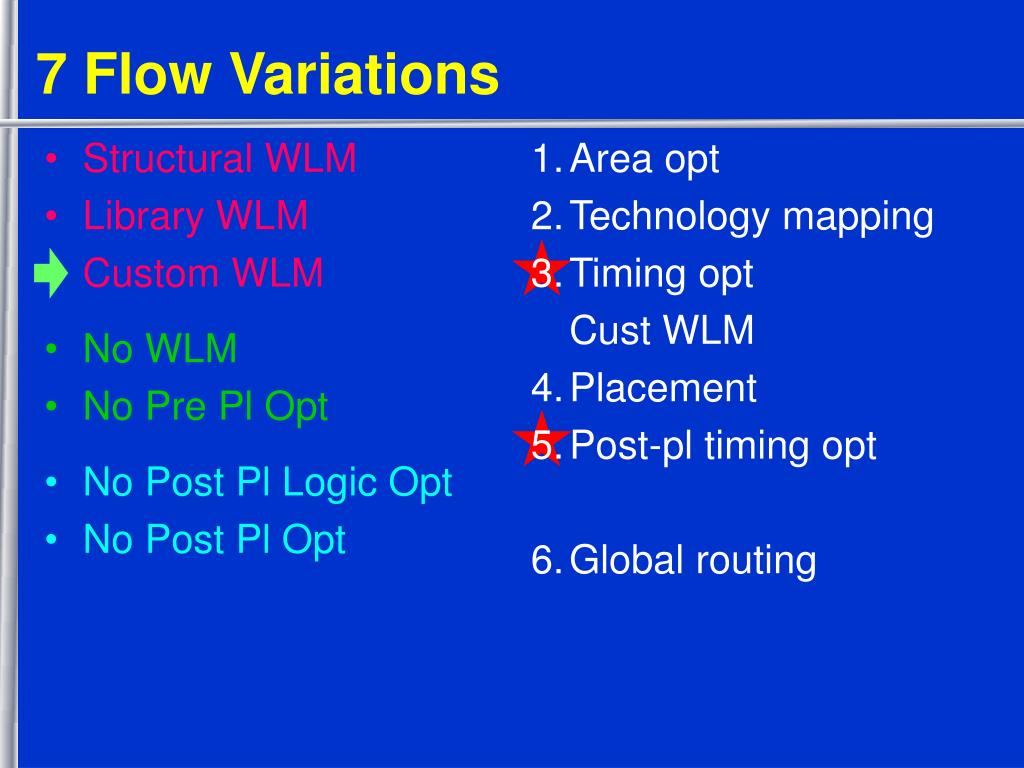

  14. 1. Area opt 2. Technology mapping 3. Timing opt Cust WLM 4. Placement 5. Post-pl timing opt 6. Global routing Structural WLM Library WLM Custom WLM No WLM No Pre Pl Opt No Post Pl Logic Opt No Post Pl Opt 7 Flow Variations

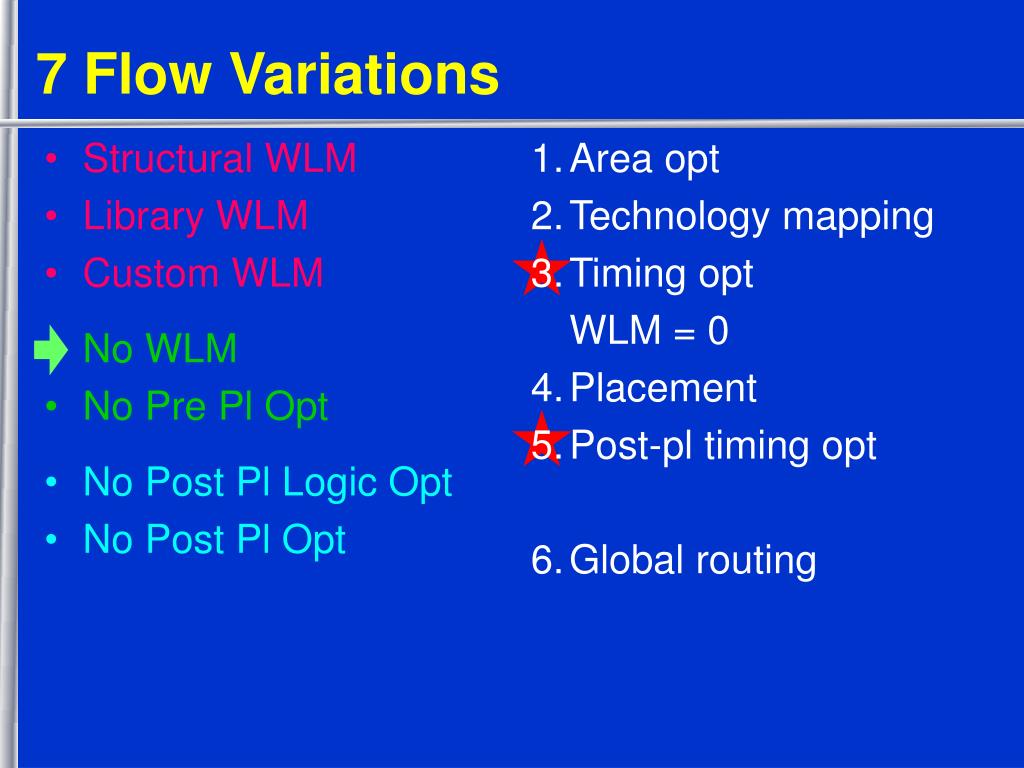

  15. 1. Area opt 2. Technology mapping 3. Timing opt WLM = 0 4. Placement 5. Post-pl timing opt 6. Global routing Structural WLM Library WLM Custom WLM No WLM No Pre Pl Opt No Post Pl Logic Opt No Post Pl Opt 7 Flow Variations

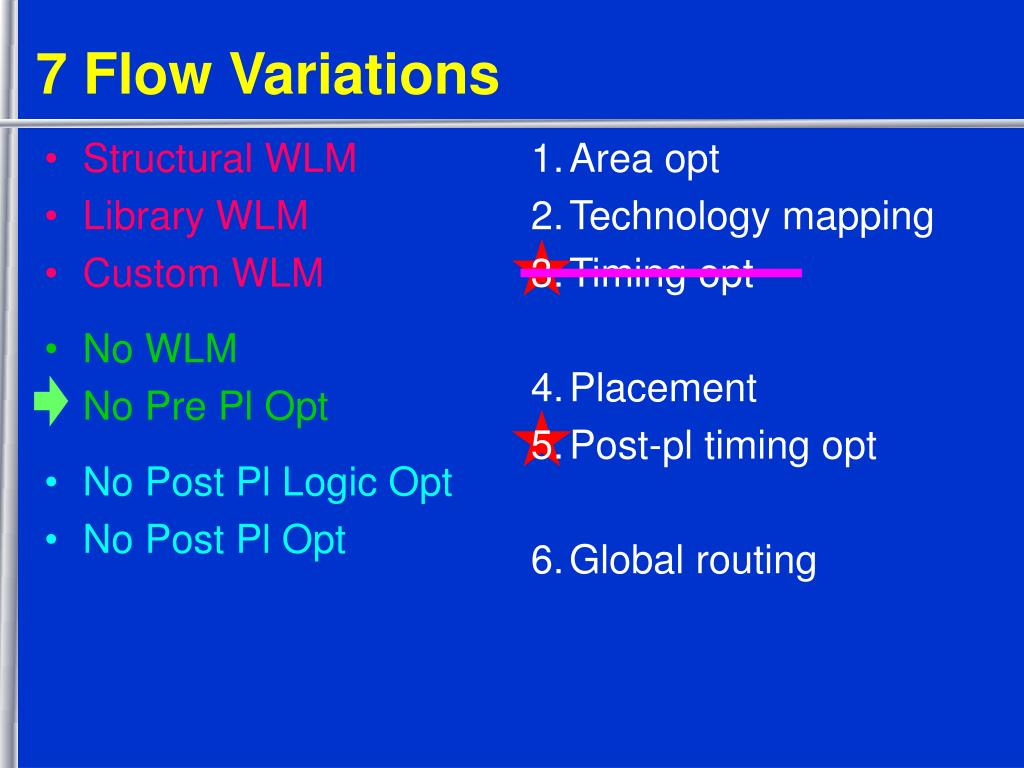

  16. 1. Area opt 2. Technology mapping 3. Timing opt 4. Placement 5. Post-pl timing opt 6. Global routing Structural WLM Library WLM Custom WLM No WLM No Pre Pl Opt No Post Pl Logic Opt No Post Pl Opt 7 Flow Variations

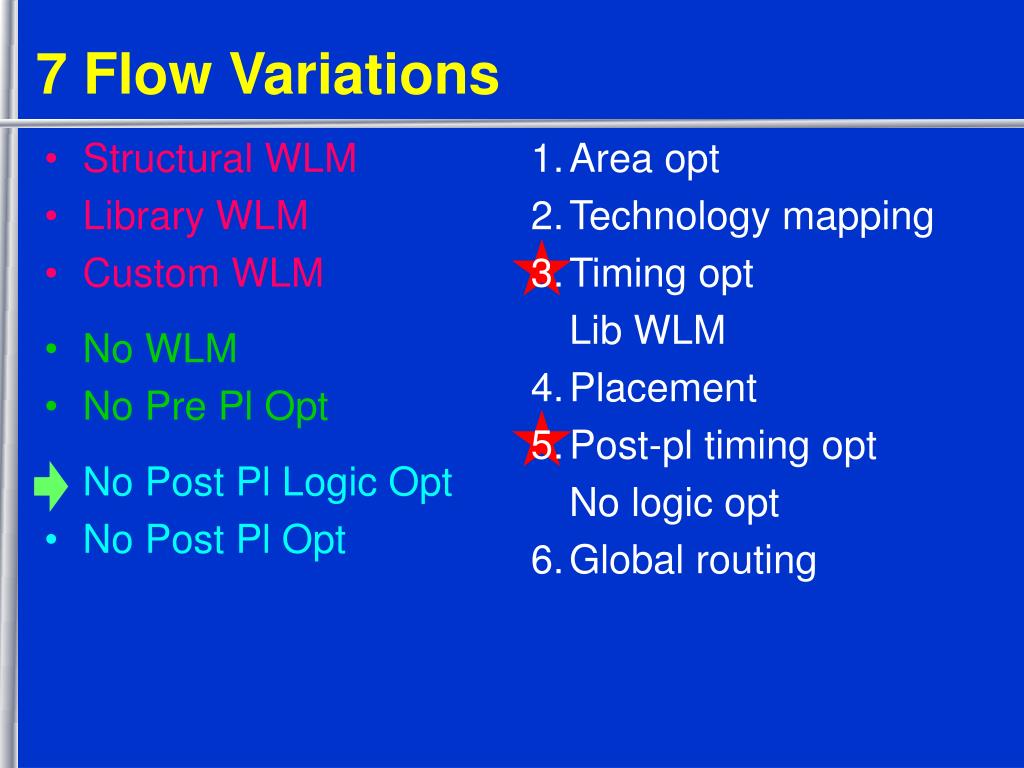

  17. 1. Area opt 2. Technology mapping 3. Timing opt Lib WLM 4. Placement 5. Post-pl timing opt No logic opt 6. Global routing Structural WLM Library WLM Custom WLM No WLM No Pre Pl Opt No Post Pl Logic Opt No Post Pl Opt 7 Flow Variations

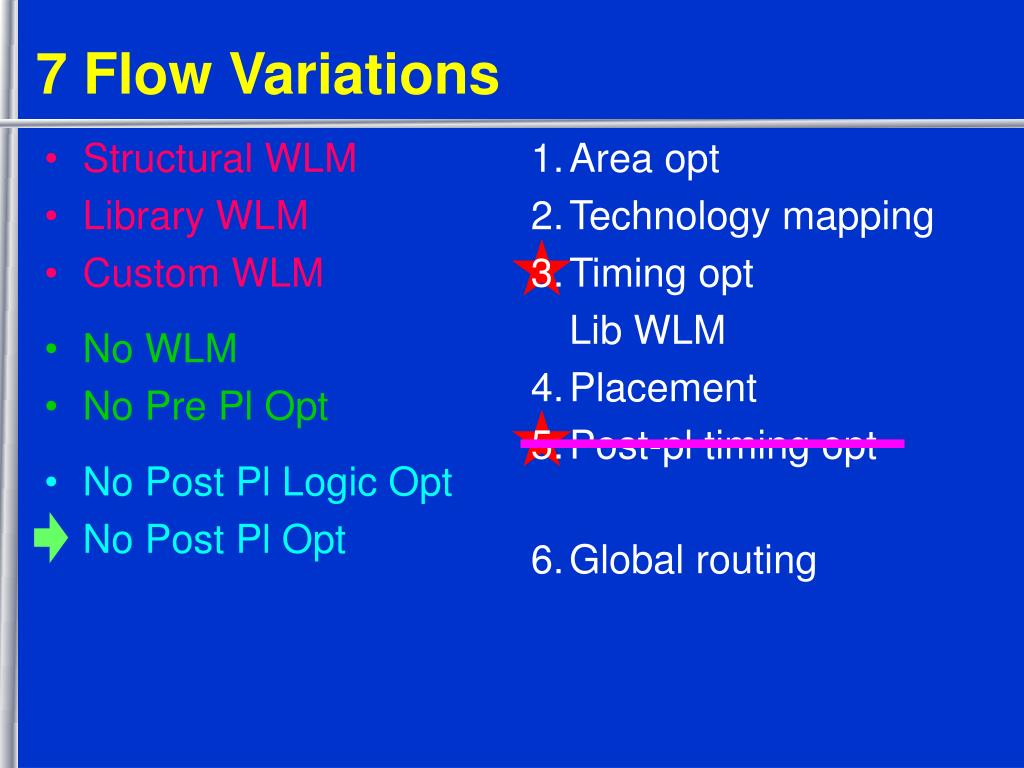

  18. 1. Area opt 2. Technology mapping 3. Timing opt Lib WLM 4. Placement 5. Post-pl timing opt 6. Global routing Structural WLM Library WLM Custom WLM No WLM No Pre Pl Opt No Post Pl Logic Opt No Post Pl Opt 7 Flow Variations

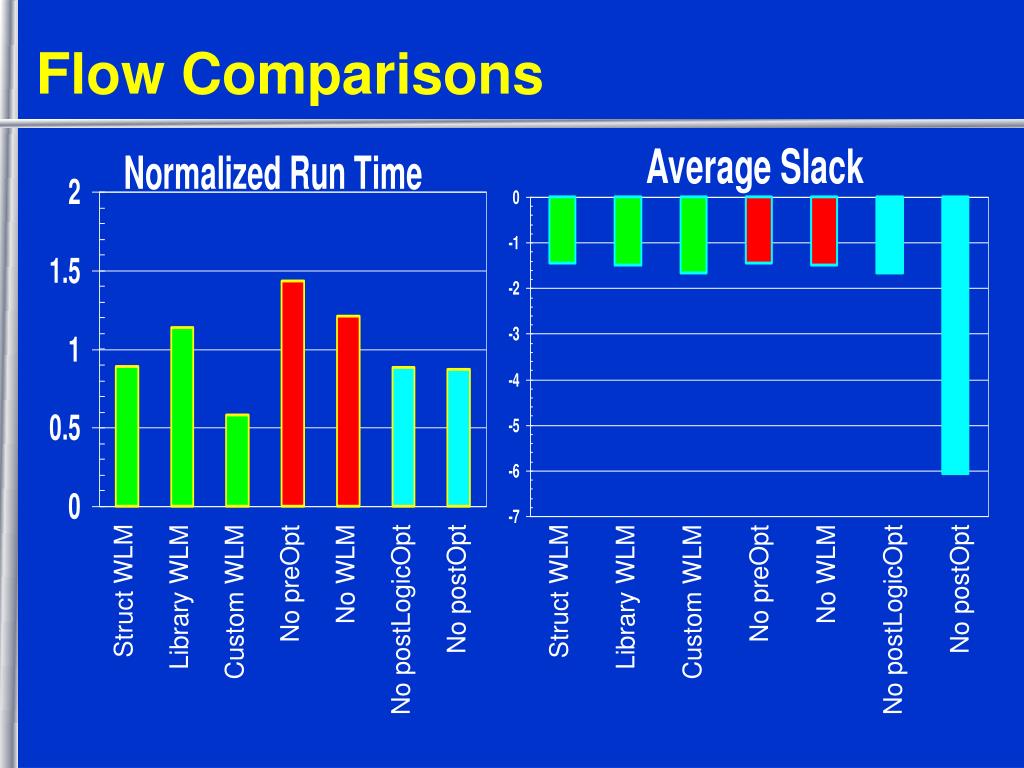

  19. No WLM No WLM No preOpt No preOpt No postOpt No postOpt Struct WLM Struct WLM Library WLM Library WLM Custom WLM Custom WLM No postLogicOpt No postLogicOpt Flow Comparisons

  20. Implications • WLMs not sufficient • post-place opt needed • WLMs not necessary for good slacks (?) • WLMs reduce running time • Some improvement from Post Place Logic Opts

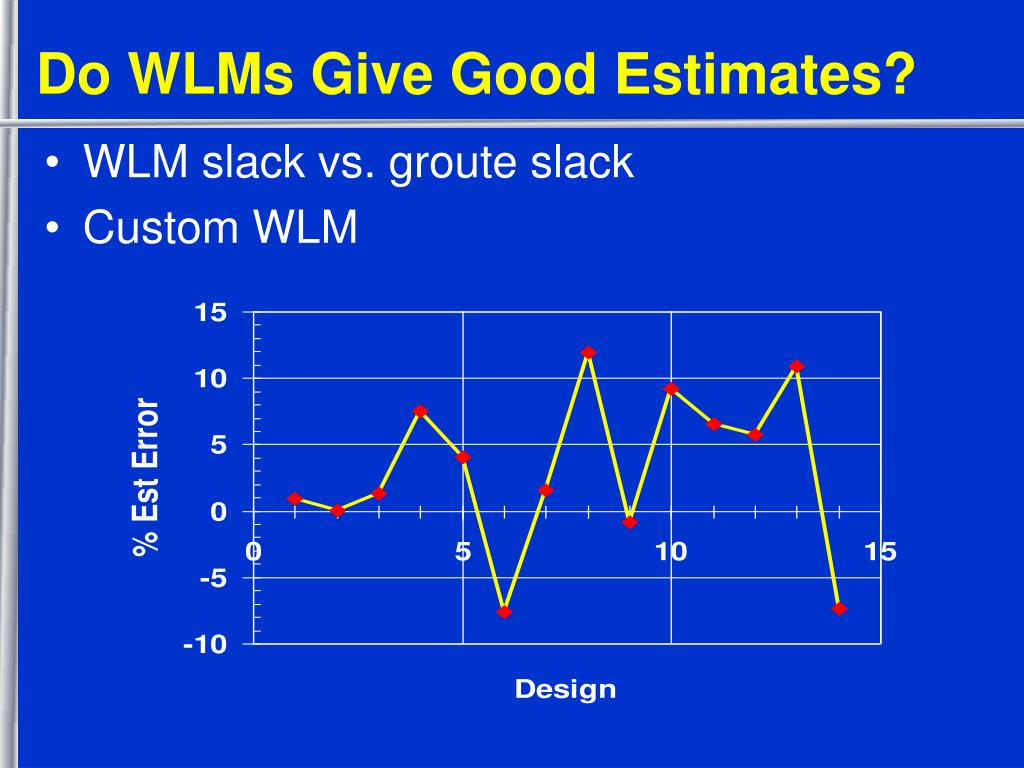

  21. Do WLMs Give Good Estimates? • WLM slack vs. groute slack • Custom WLM

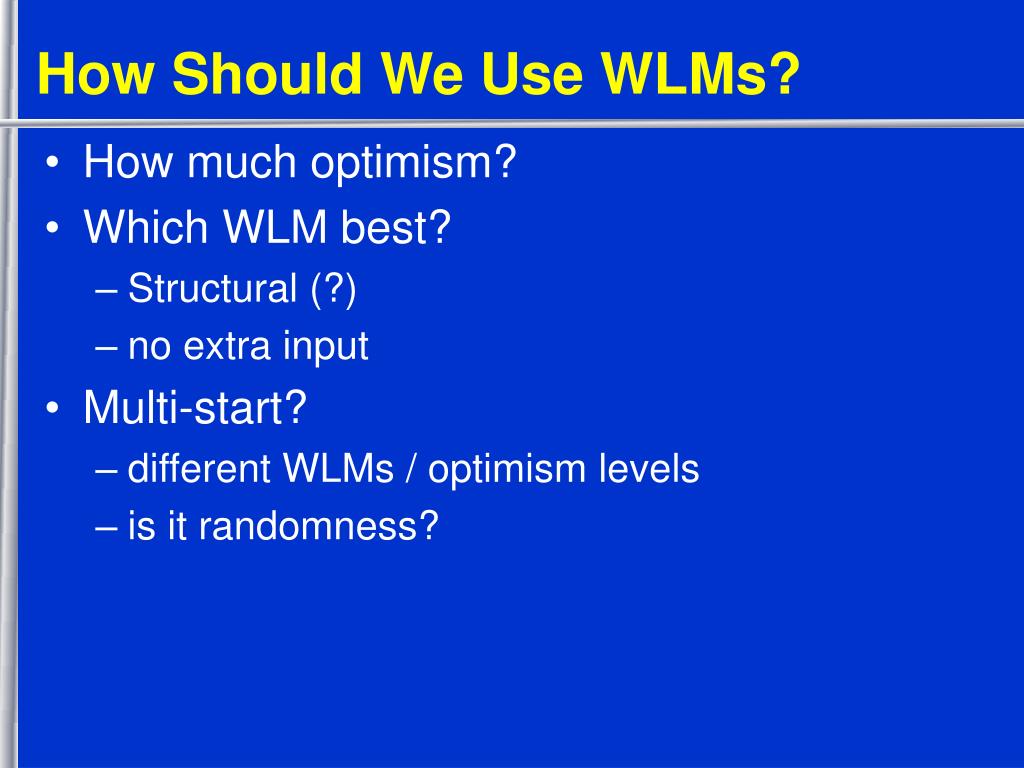

  22. How Should We Use WLMs? • How much optimism? • Which WLM best? • Structural (?) • no extra input • Multi-start? • different WLMs / optimism levels • is it randomness?

  23. Caveats • This tool, this version, these designs • Global not detailed or extracted routing • No clock tree • Routability ignored • detours, strict • Die size fixed • Some designs pre-optimized

  24. Conclusions / Future Work • Strict accuracy not right question • WLMs improve run time • NOT design quality (?) • WLMs may be ballpark estimators • Post-place opt indispensible • small gains from post-place logic opt • Sensitivity analysis of placement and post-place opt
