semantics based approach for defining complex event rules for real time algal bloom detection

Semantics-based approach for defining complex event rulesfor real-time algal bloom detection

Jonathan Yu, Kerry Taylor, Brad Sherman

24 August 2012

CSIRO LAND AND WATER

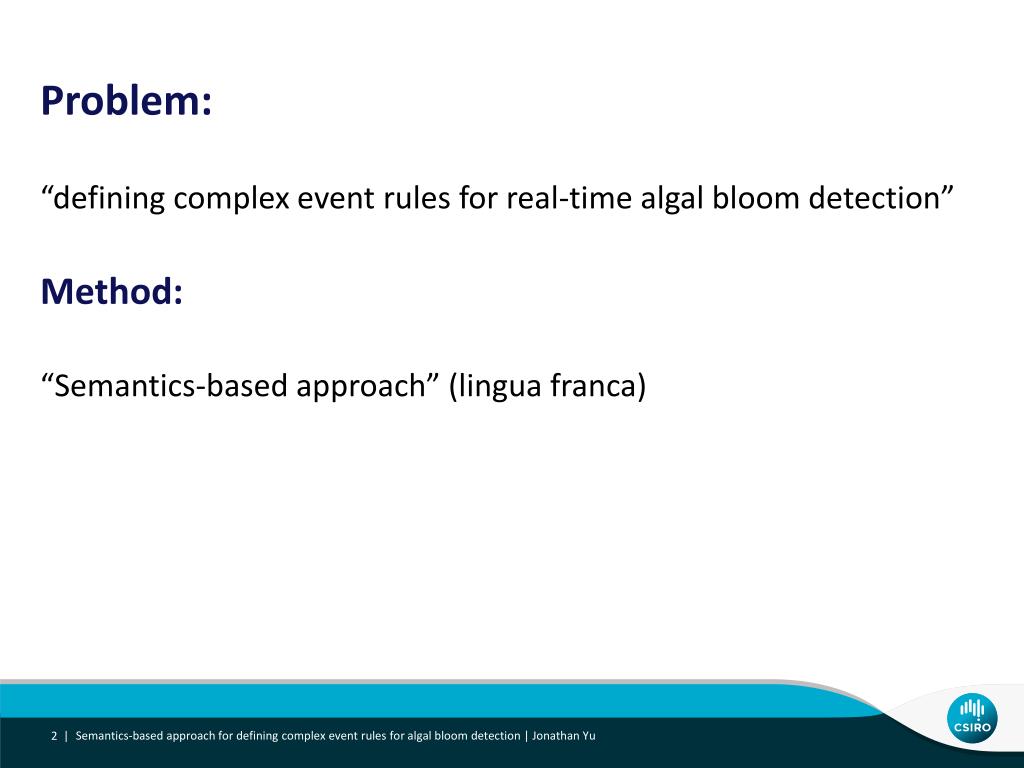

slide2

Problem:

“defining complex event rules for real-time algal bloom detection”

Method:

“Semantics-based approach” (lingua franca)

Semantics-based approach for defining complex event rules for algal bloom detection | Jonathan Yu

chaffey dam
Chaffey Dam

Photo credit: Brad Sherman

Semantics-based approach for defining complex event rules for algal bloom detection | Jonathan Yu

chaffey dam affected by algal blooms
Chaffey Dam affected by algal blooms
  • Need for understanding why algal blooms happen
    • Historical data analysis
    • Various “bloom hypotheses”
  • Improved process for monitoring and managing the risk of algal blooms
    • Exploring what is happening, what are the trends
  • Data sifting
    • Lots of effort and time spent in ‘curating’ the data – field trips, modelling, consolidating disparate datasets, bringing data up to scratch so that they are analysable

Photo credit: Brad Sherman

Semantics-based approach for defining complex event rules for algal bloom detection | Jonathan Yu

defining complex event rules for real time algal bloom detection
“... defining complex event rules for real-time algal bloom detection”

Sensor Network

WQ

Weather

Flow

  • Technological advances allow for real-time information to be published and shared through sensor networks
    • Mobile technology: increased capability for in-situ transmission
    • Platforms: OGC’s Sensor Observation Service (SOS), Global Sensor Network (GSN)
    • Ability to stream data from multiple sources
  • Enhanced monitoring capability
    • perform real-time analysis
  • Aid decision making
    • formulating timely and appropriate management responses

Semantics-based approach for defining complex event rules for algal bloom detection | Jonathan Yu

real time stream data processing using gsn

GSN

VSensors

Real-time stream data processing using GSN

End users

Programmers

Curation

Coding

Analysis, Monitoring, Management

Sensor Network

High level entry for an end user e.g. Scientists and managers

Knowledge hidden behind code or implicit in people’s heads

Possible barrier for reusability

Semantics-based approach for defining complex event rules for algal bloom detection | Jonathan Yu

data heterogeneity integration
Data heterogeneity, integration
  • Multiple datasets
    • Often multiple data schemas and formats
  • Example: The use of the observation property “Total Nitrogen”
    • TN
    • N_TOT
    • TOTAL_NITROGEN
  • Want to be able to have mechanism of translating and mapping differing fields, labels to something commonly understood
    • Enhance interoperability

Semantics-based approach for defining complex event rules for algal bloom detection | Jonathan Yu

semantics based approach

Ontologies

DomainOntology

SemanticSensor Net. Ontology

“Semantics-based approach”
  • Ontologies
    • Capture semantics
    • Lingua franca
    • Machine readable/processable
  • Vocabulary of things you care about in your data
    • E.g. Ability to refer to ‘Total Nitrogen’ concept, rather than N_TOT
  • We use ontologies for:
    • Providing translation between fields within sensors, datasets
    • Defining complex event rules
    • Generating code for actioning complex event rules on the sensors

Semantics-based approach for defining complex event rules for algal bloom detection | Jonathan Yu

slide9

Ontologies

GSN

DomainOntology

SSN Ontology

VSensors

Ontology-driven complex event system

1. Composes CE

Ontology-enabledUser Interface

8. Views alert

2. Submits CE definition

Users

Semantic Mediator

7.Updates UI withalert

captures CE definition

Reasoner

captures alerts

3. Deploys CE to GSN as VSensor via translation

6. Matching event alert generated

capture rule to Vsensor mapping

capture sensor / data sources mappings

5. Sensor streams data

Sensor Network

Semantics-based approach for defining complex event rules for algal bloom detection | Jonathan Yu

advantages of semantics based approach
Advantages of semantics-based approach

Curation

Coding

Analysis, Monitoring, Management

Curation

Coding

Analysis, Monitoring, Management

  • Transparent and transferrable
    • Rules, vocabularies, mappings are captured in the ontologies
    • Can deploy to other systems as long as they are mapped
  • Traceable
    • Alerts can attach metadata to describe triggers: what, why, when
  • End users can focus on exploring real-time datasets

Semantics-based approach for defining complex event rules for algal bloom detection | Jonathan Yu

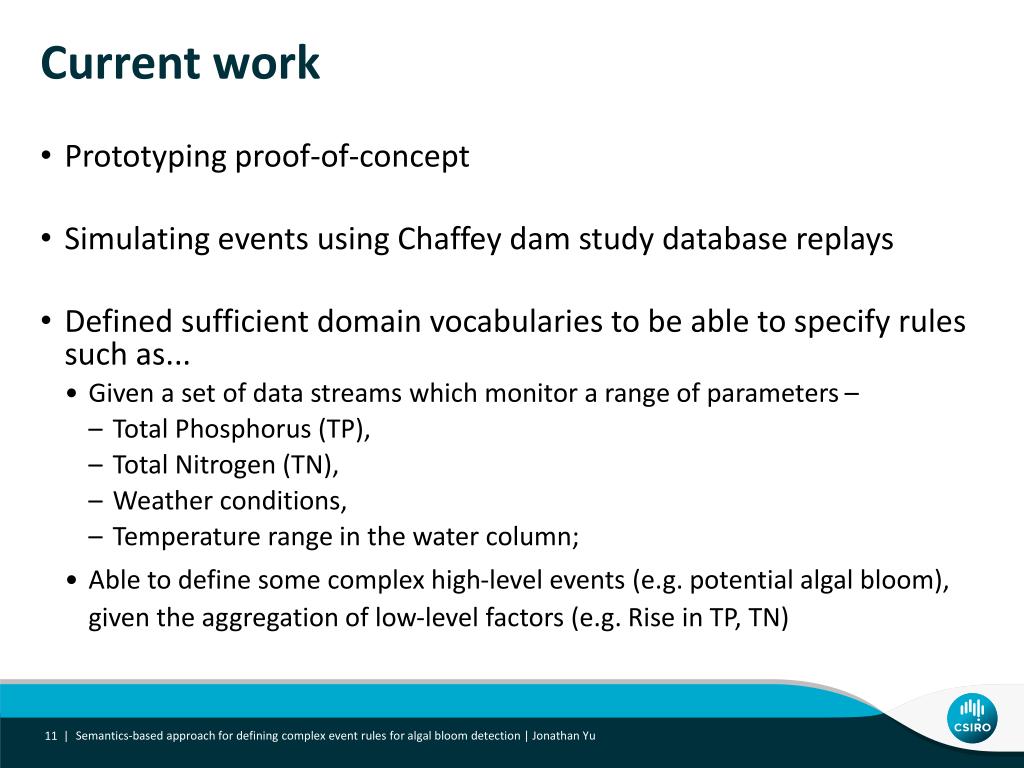

current work
Current work
  • Prototyping proof-of-concept
  • Simulating events using Chaffey dam study database replays
  • Defined sufficient domain vocabularies to be able to specify rules such as...
    • Given a set of data streams which monitor a range of parameters –
      • Total Phosphorus (TP),
      • Total Nitrogen (TN),
      • Weather conditions,
      • Temperature range in the water column;
    • Able to define some complex high-level events (e.g. potential algal bloom), given the aggregation of low-level factors (e.g. Rise in TP, TN)

Semantics-based approach for defining complex event rules for algal bloom detection | Jonathan Yu

summary and future work
Summary and future work
  • Presented an approach which allows event rules to be defined by end users such as research scientists
    • For applications such as, but not limited to, detection of algal bloom conditions
  • Discussed the semantics-based approach and benefits of using ontologies
    • Demonstrated use of ontologies for resolving data heterogeneity, ontology-driven generation of GSN Virtual Sensors and attaching metadata to alerts
  • Future work
    • Deploying on a live sensor network – interested in participating in a trial?
    • Application of this approach to other water quality monitoring challenges – contaminants detection, oxygen depletion

Semantics-based approach for defining complex event rules for algal bloom detection | Jonathan Yu

thank you
Thank you

Land and Water

Jonathan Yu

Software Engineer

t +61 3 9252 6440

e jonathan.yu@csiro.au

w www.csiro.au/clw

ICT Centre

Kerry Taylor

Principal Research Scientist

t +61  2 6216 7038

e kerry.taylor@csiro.au

w www.csiro.au/ict

Land and Water

Brad Sherman

Senior Research Scientist

t +61 2 6246 5579

e brad.sherman@csiro.au

w www.csiro.au/clw
