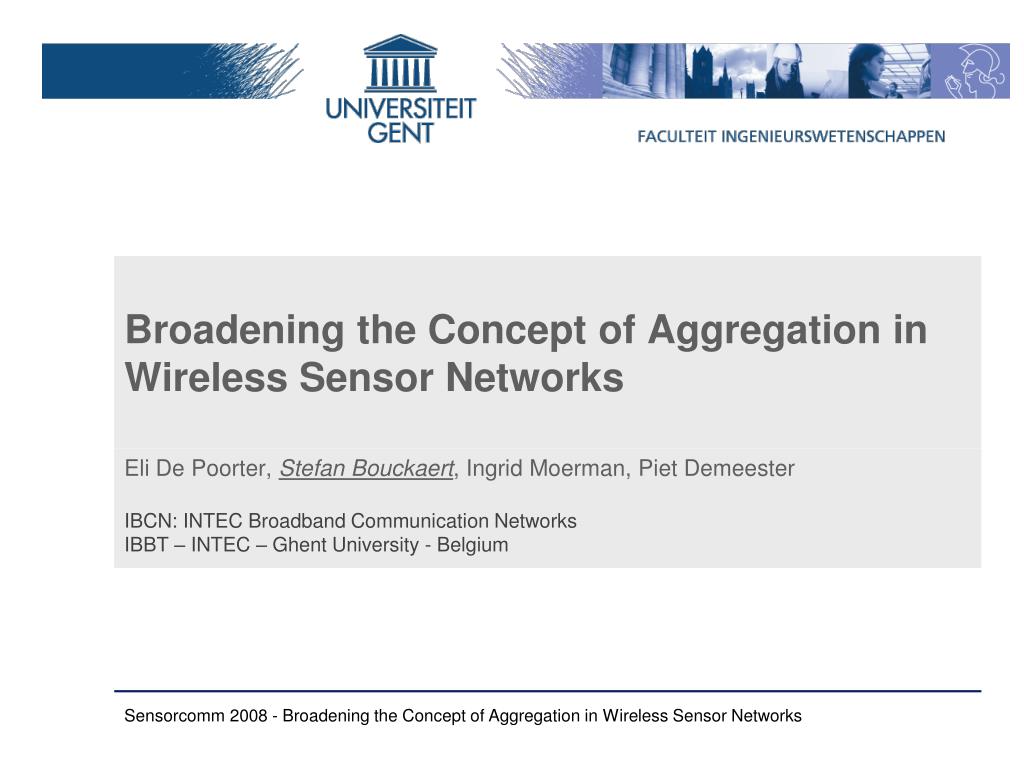

  1. Broadening the Concept of Aggregation in Wireless Sensor Networks Eli De Poorter, Stefan Bouckaert, Ingrid Moerman, Piet DemeesterIBCN: INTEC Broadband Communication NetworksIBBT – INTEC – Ghent University - Belgium Sensorcomm 2008 - Broadening the Concept of Aggregation in Wireless Sensor Networks

  2. Goals Sensorcomm 2008 - Broadening the Concept of Aggregation in Wireless Sensor Networks

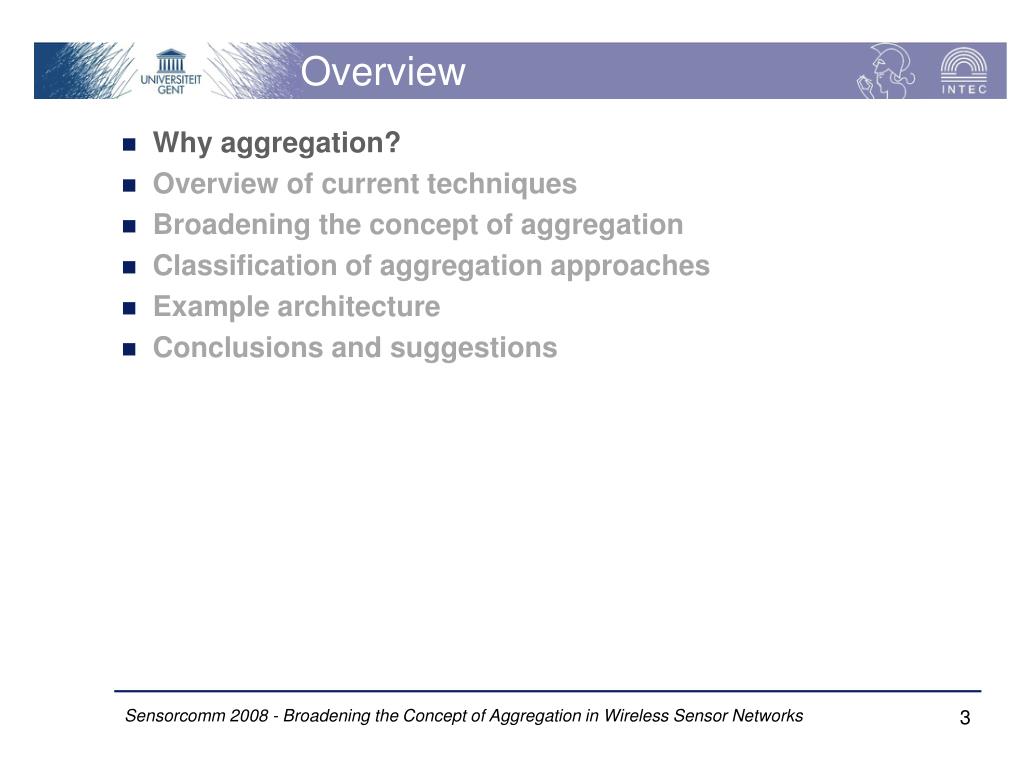

  3. Overview • Why aggregation? • Overview of current techniques • Broadening the concept of aggregation • Classification of aggregation approaches • Example architecture • Conclusions and suggestions Sensorcomm 2008 - Broadening the Concept of Aggregation in Wireless Sensor Networks

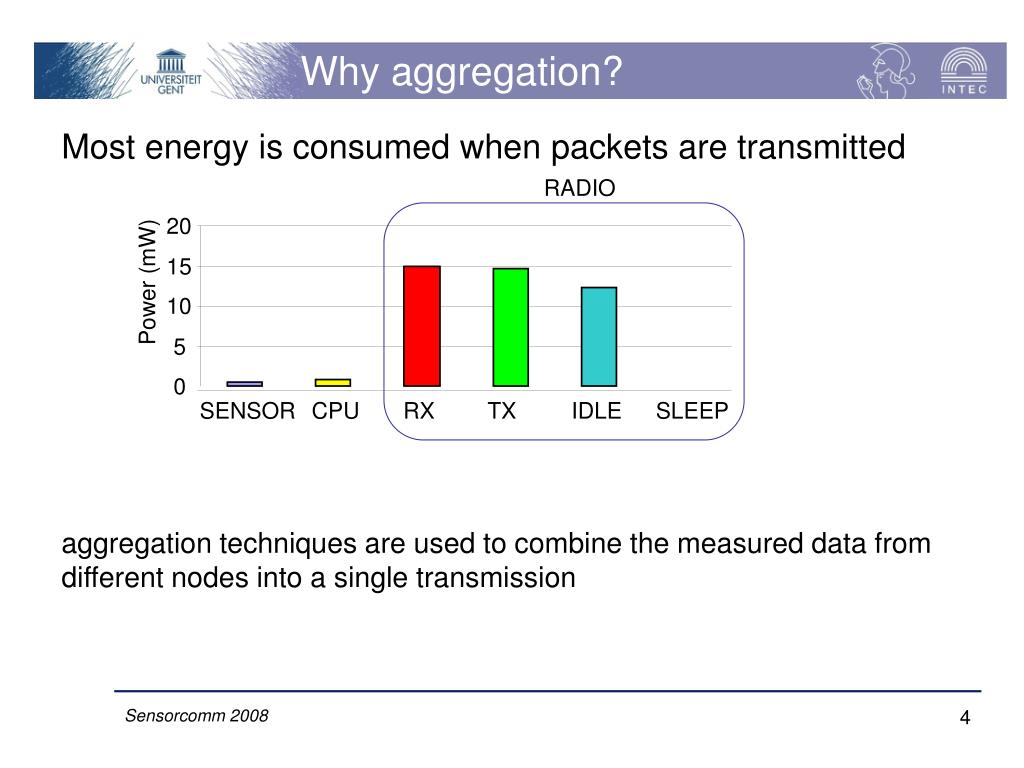

  4. Why aggregation? • Most energy is consumed when packets are transmitted RADIO 20 15 10 Power (mW) 5 0 SENSOR CPU RX TX IDLE SLEEP • aggregation techniques are used to combine the measured data from different nodes into a single transmission Sensorcomm 2008

  5. What aboutarchitectural support? Can we do more? Sensorcomm 2008

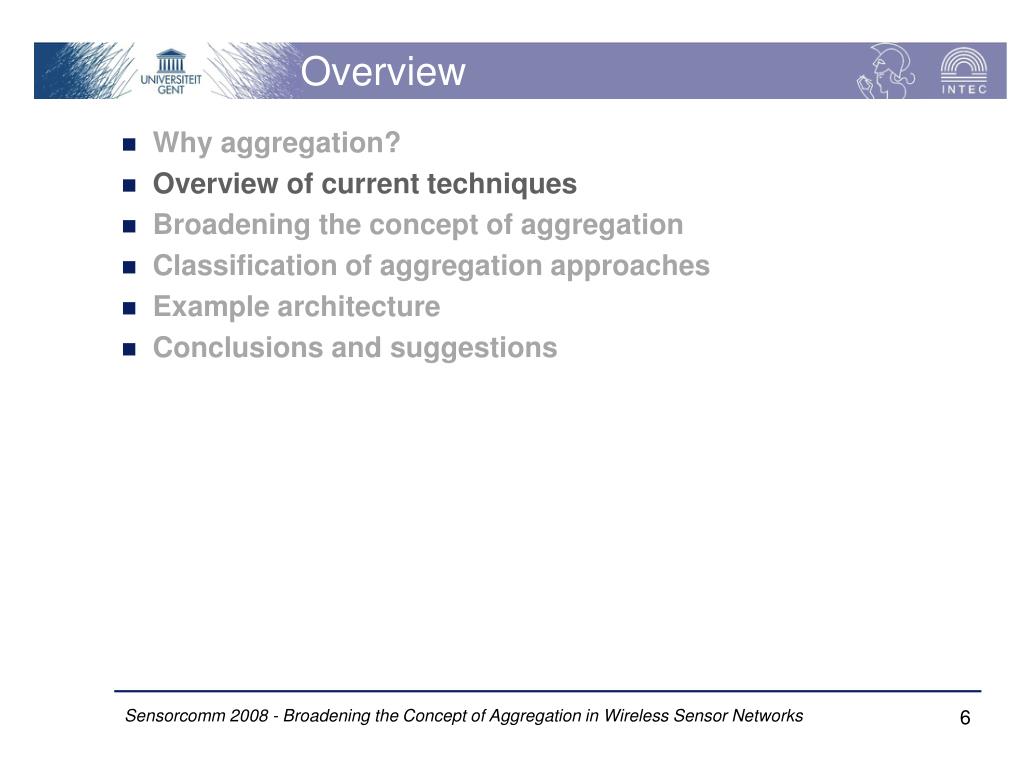

  6. Overview • Why aggregation? • Overview of current techniques • Broadening the concept of aggregation • Classification of aggregation approaches • Example architecture • Conclusions and suggestions Sensorcomm 2008 - Broadening the Concept of Aggregation in Wireless Sensor Networks

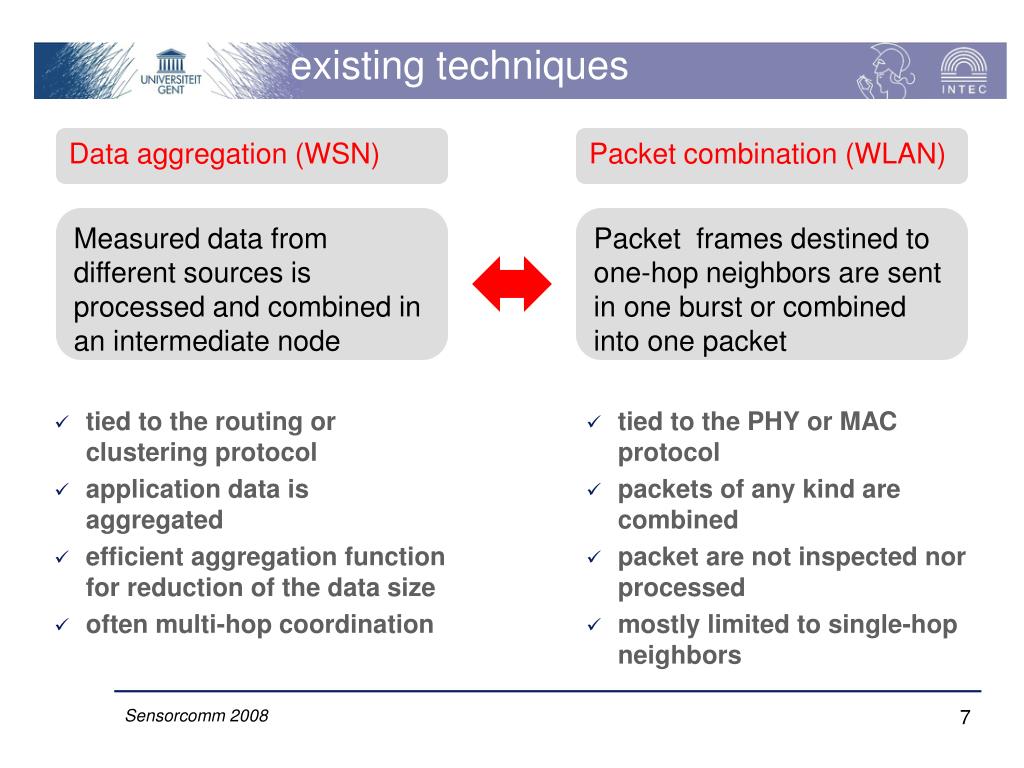

  7. existing techniques Data aggregation (WSN) Packet combination (WLAN) Measured data from different sources is processed and combined in an intermediate node Packet frames destined to one-hop neighbors are sent in one burst or combined into one packet • tied to the routing or clustering protocol • application data is aggregated • efficient aggregation function for reduction of the data size • often multi-hop coordination • tied to the PHY or MAC protocol • packets of any kind are combined • packet are not inspected nor processed • mostly limited to single-hop neighbors Sensorcomm 2008

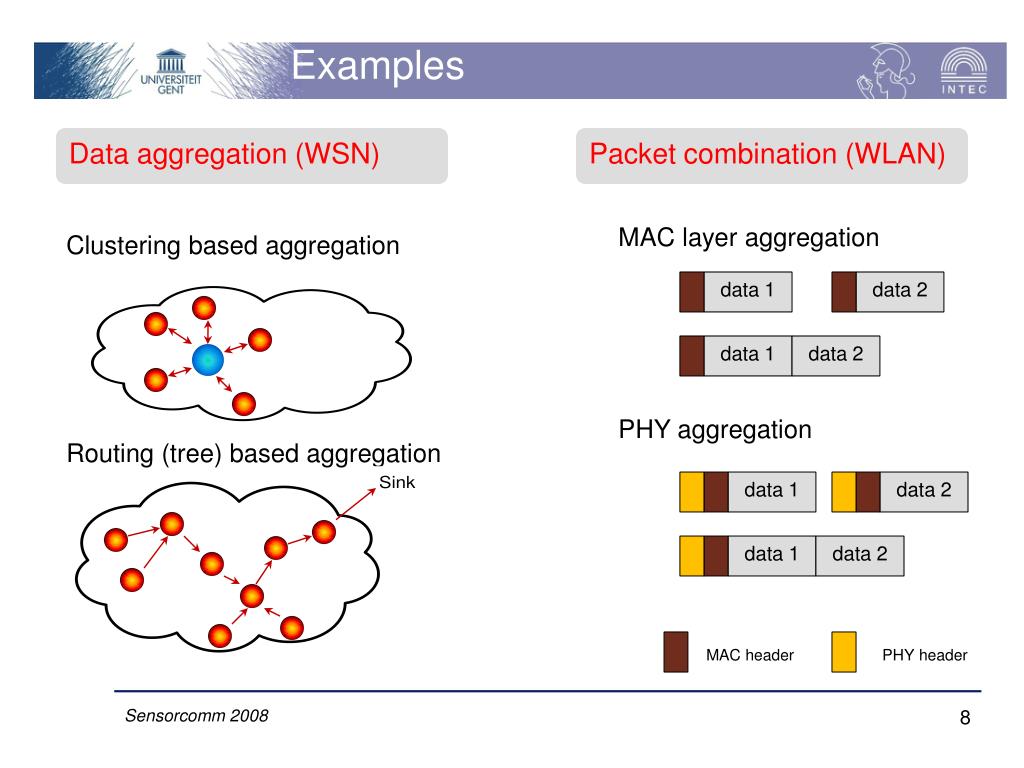

  8. Examples Data aggregation (WSN) Packet combination (WLAN) MAC layer aggregation Clustering based aggregation data 1 • data 2 • data 1 • data 2 PHY aggregation Routing (tree) based aggregation data 1 • data 2 • data 1 • data 2 MAC header PHY header Sensorcomm 2008

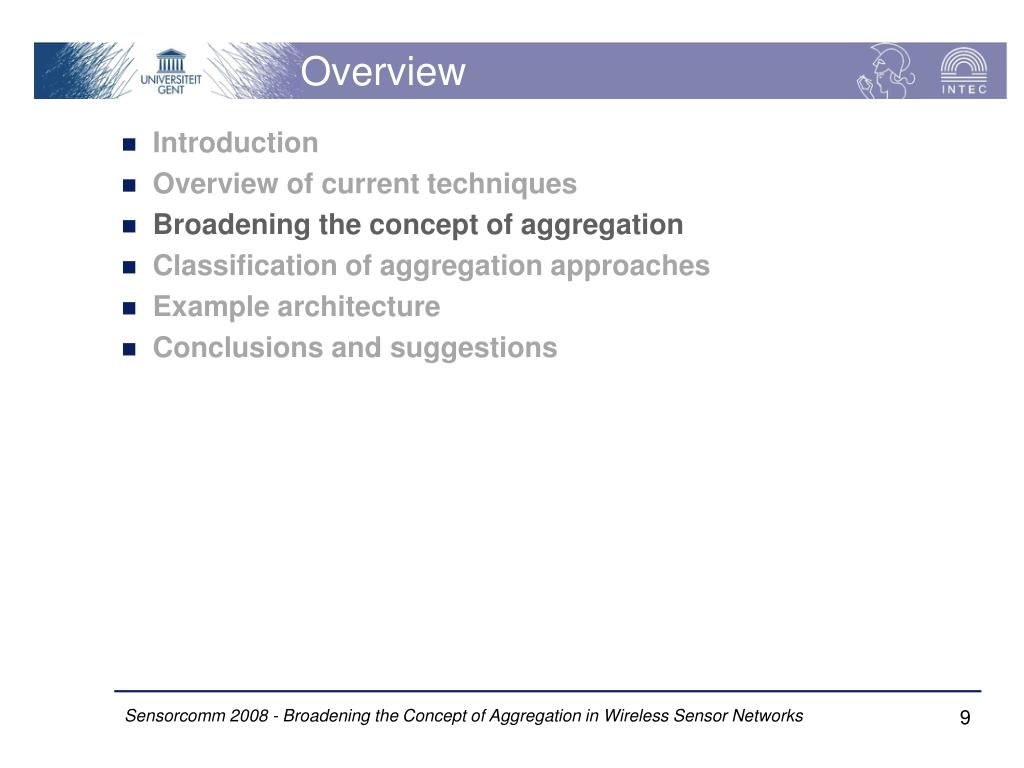

  9. Overview • Introduction • Overview of current techniques • Broadening the concept of aggregation • Classification of aggregation approaches • Example architecture • Conclusions and suggestions Sensorcomm 2008 - Broadening the Concept of Aggregation in Wireless Sensor Networks

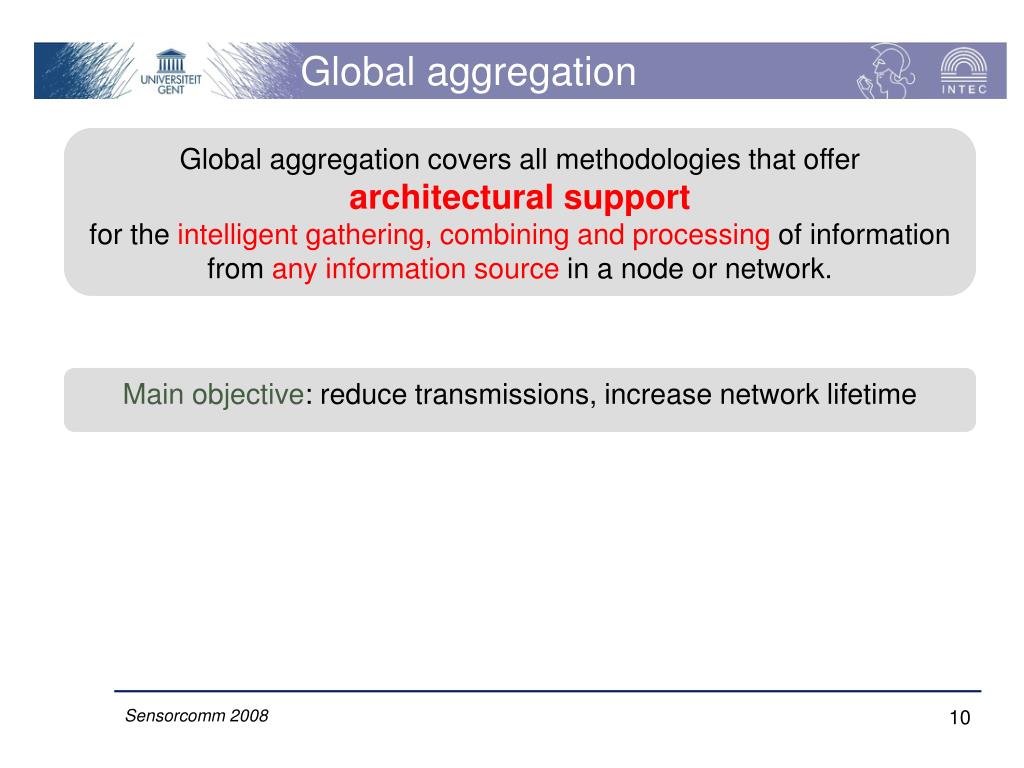

  10. Global aggregation Global aggregation covers all methodologies that offer architecturalsupportfor the intelligent gathering, combining and processing of information from any information source in a node or network. Main objective: reduce transmissions, increase network lifetime Sensorcomm 2008

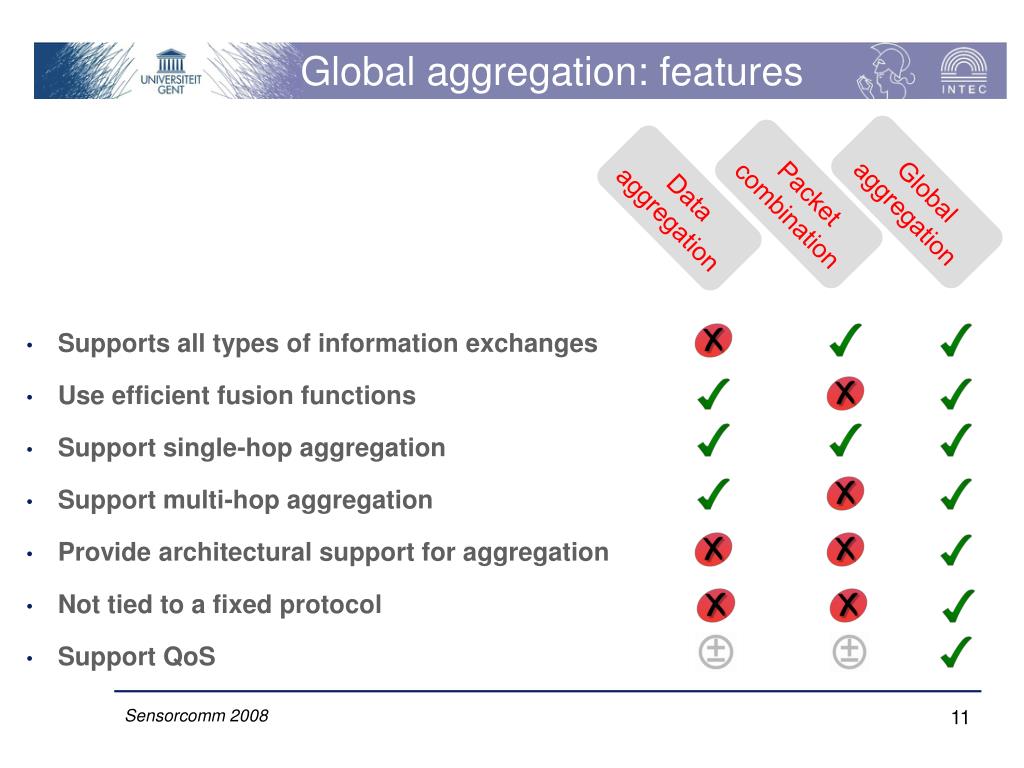

  11. Global aggregation: features Global aggregation Packet combination Data aggregation • Supports all types of information exchanges • Use efficient fusion functions • Support single-hop aggregation • Support multi-hop aggregation • Provide architectural support for aggregation • Not tied to a fixed protocol • Support QoS Sensorcomm 2008

  12. Overview • Why aggregation? • Overview of current techniques • Broadening the concept of aggregation • Classification of aggregation approaches • Example architecture • Conclusions and suggestions Sensorcomm 2008 - Broadening the Concept of Aggregation in Wireless Sensor Networks

  13. Classification • Based on the aggregation techniques • packet combination vs. packet fusion • information merging • duplicate sensitive vs. duplicate insensitive • deterministic vs. stochastic • Based on the networking type • single-hop aggregation • multi-hop aggregation • Standardization of information representation • e.g. signal quality, remaining energy, node role,… • fewer exchanges required • always up-to-date • more easy interworking between protocols Sensorcomm 2008

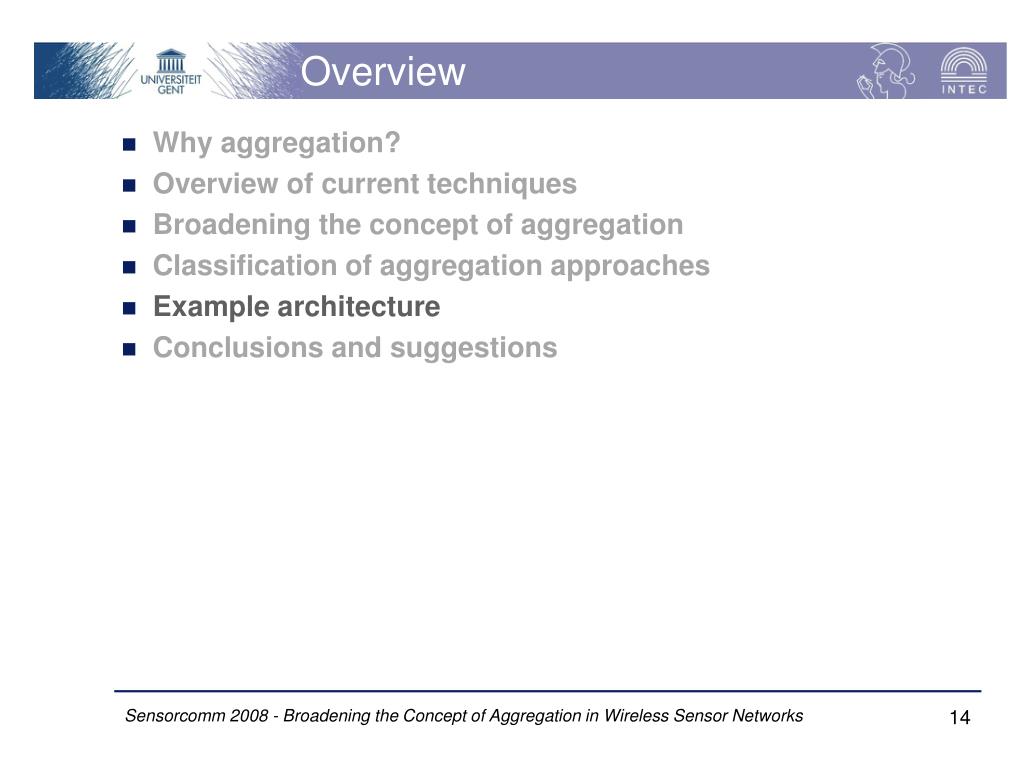

  14. Overview • Why aggregation? • Overview of current techniques • Broadening the concept of aggregation • Classification of aggregation approaches • Example architecture • Conclusions and suggestions Sensorcomm 2008 - Broadening the Concept of Aggregation in Wireless Sensor Networks

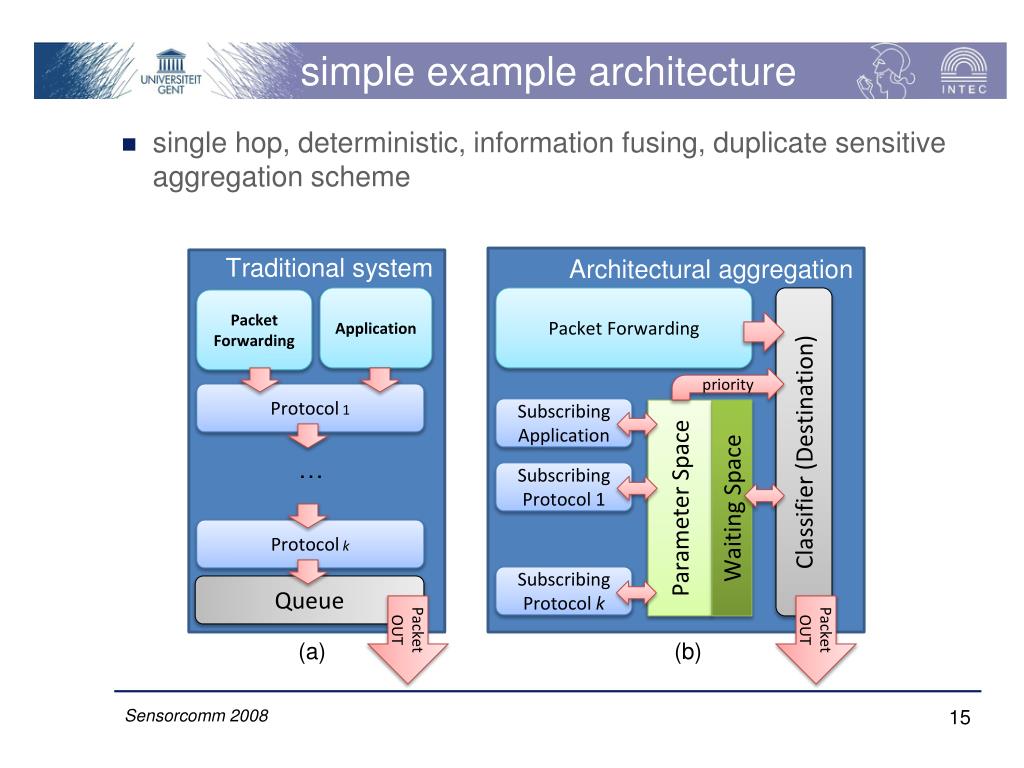

  15. simple example architecture • single hop, deterministic, information fusing, duplicate sensitive aggregation scheme enabled node Traditional system Architectural aggregation Application Packet Forwarding Classifier (Destination) Packet Forwarding priority Protocol 1 SubscribingApplication Parameter Space Waiting Space … Subscribing Protocol 1 Queue Protocolk Subscribing Protocol k PacketOUT PacketOUT (b) (a) Sensorcomm 2008

  16. Realistic scenario Without aggregation 0 60 120 180 0 75 225 150 4 MAC protocol packets are sent 4 routing protocol packets are sent Sensorcomm 2008

  17. Realistic scenario Using aggregation 0 60 120 180 30s 30s 30s 0 75 225 150 4 MAC protocol packets are sent 3 routing protocol packets are sent Sensorcomm 2008

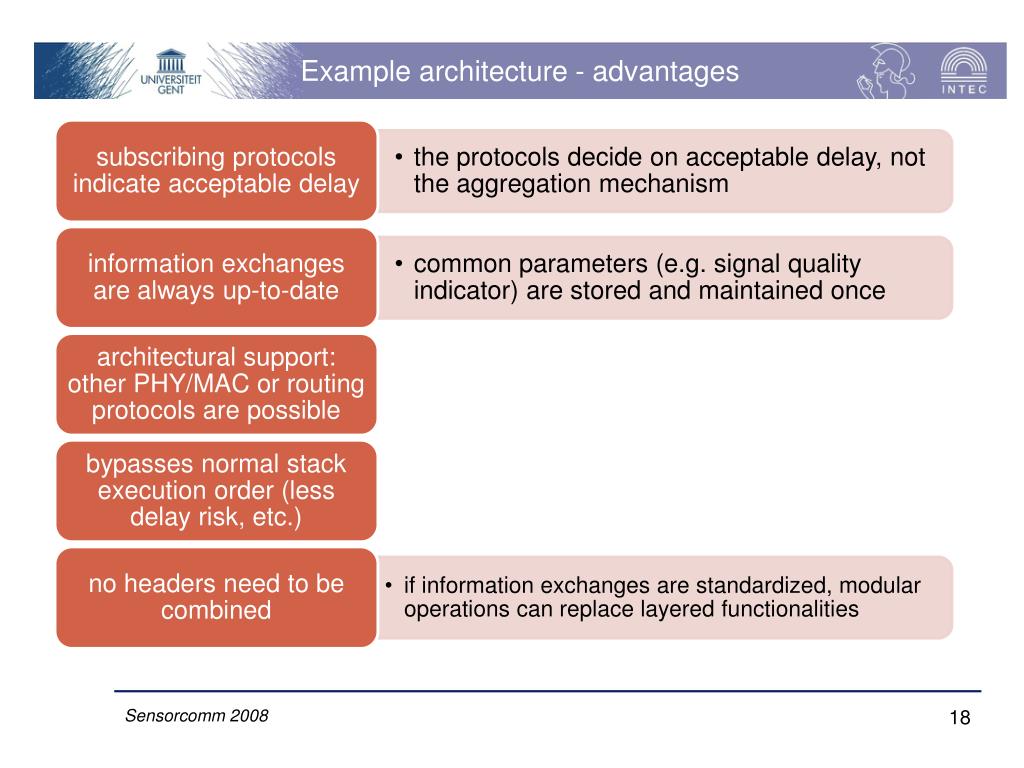

  18. Example architecture - advantages Sensorcomm 2008

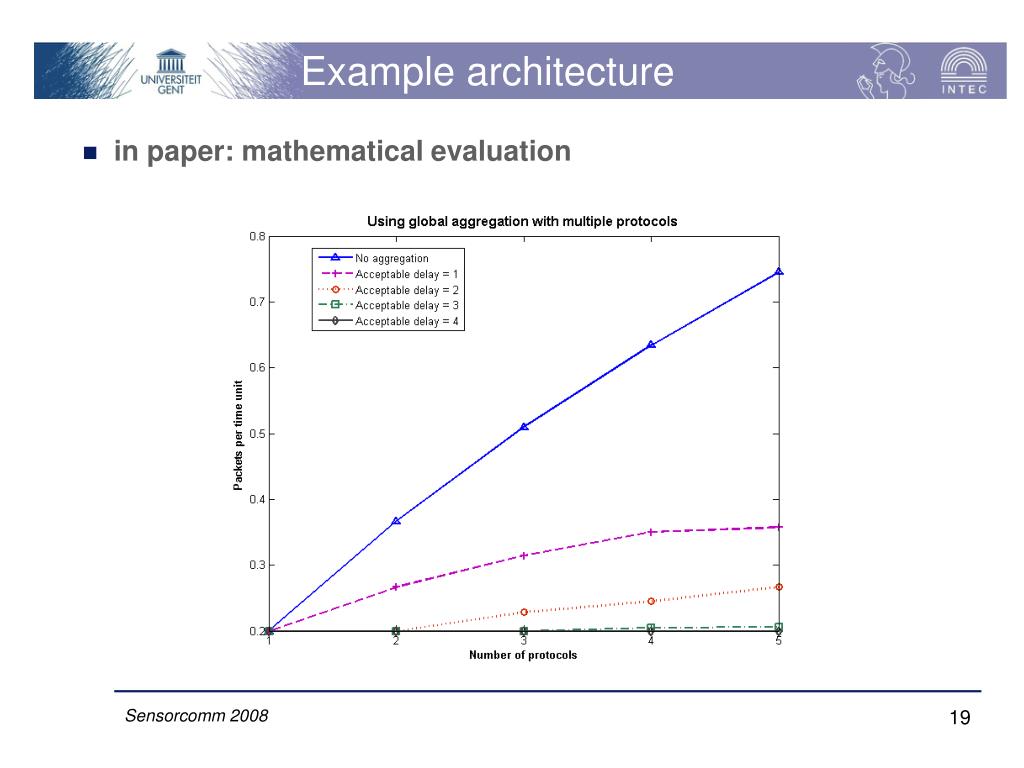

  19. Example architecture • in paper: mathematical evaluation Sensorcomm 2008

  20. Realistic scenario Sensorcomm 2008

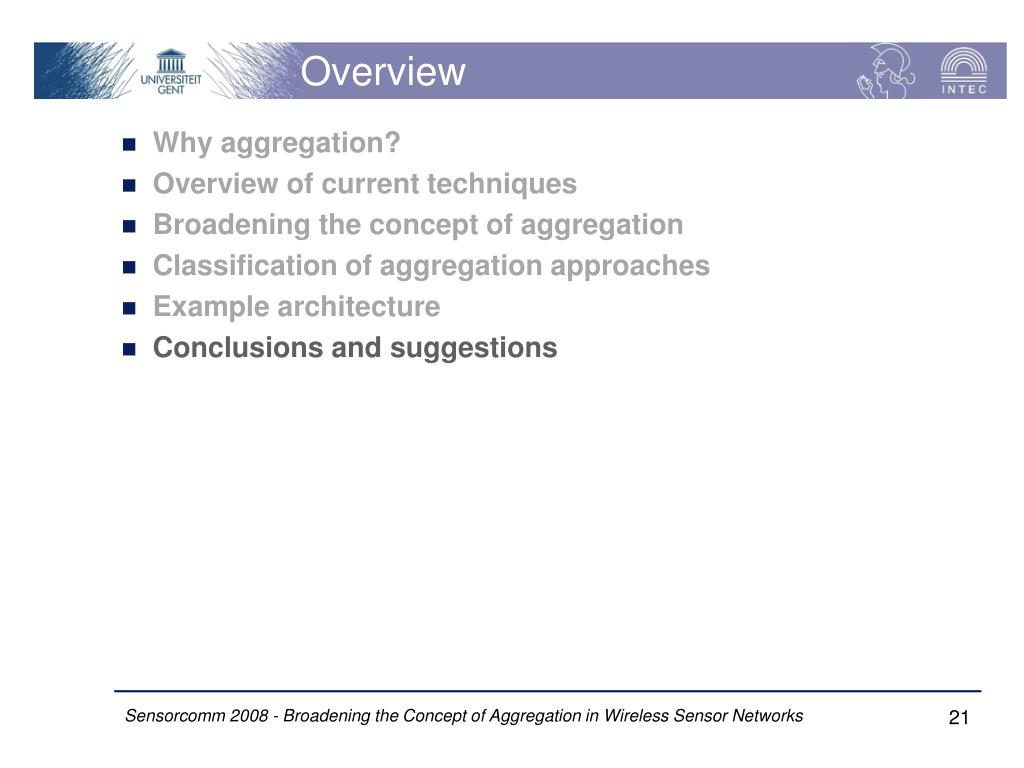

  21. Overview • Why aggregation? • Overview of current techniques • Broadening the concept of aggregation • Classification of aggregation approaches • Example architecture • Conclusions and suggestions Sensorcomm 2008 - Broadening the Concept of Aggregation in Wireless Sensor Networks

  22. Conclusions • By broadening the concept of aggregation, many transmissions can be saved • Global aggregation methods should include: • An architectural design to ensure protocol independence • Aggregation of both data and control messages • Standardization efforts for data representation • Several ideas in the paper, further research is necessary Sensorcomm 2008

  23. Interesting research approaches • multi-hop aggregation • using a separate control plane • using the available routing protocol • Adaptive aggregation approaches, based on the situation • Tree based vs. clustering • Calculation of optimal packet sizes • Aggregation with advanced QoS support • example: what if 2 streams with diferent QoS characteristics are aggregated? • Analysis of relation between packet savings and network lifetime • Influence of aggregation on existing network protocols Sensorcomm 2008

  24. Thank you! Eli.Depoorter@intec.ugent.bewww.ibcn.intec.ugent.bewww.IBBT.be Sensorcomm 2008
