  1. SMARTCITY SOLUTION PROVIDER TRANSFORMING SOCIETIES INDIA  UAE  APAC

  2. VALUE Established 2019 20+ Communities 10,000+ Users 10,000+ Devices Connected Over 40 Employees 10+ Solutions India, UAE, QATAR

  3. WHAT WE DO Design & Fabricatoin of IoT Sensors Utility Management-Water, Power, Cooling – Metering, Billing, & Collection IoT Gateways SMART Irrigation Management Zigbee, Bluetooth, LORA, WiFi SMART Light Management Cloud IoT Platform - EXOZEN SMART Water/Waste Management SMART Parking Management

  4. Section 3 OUR PRODUCTS

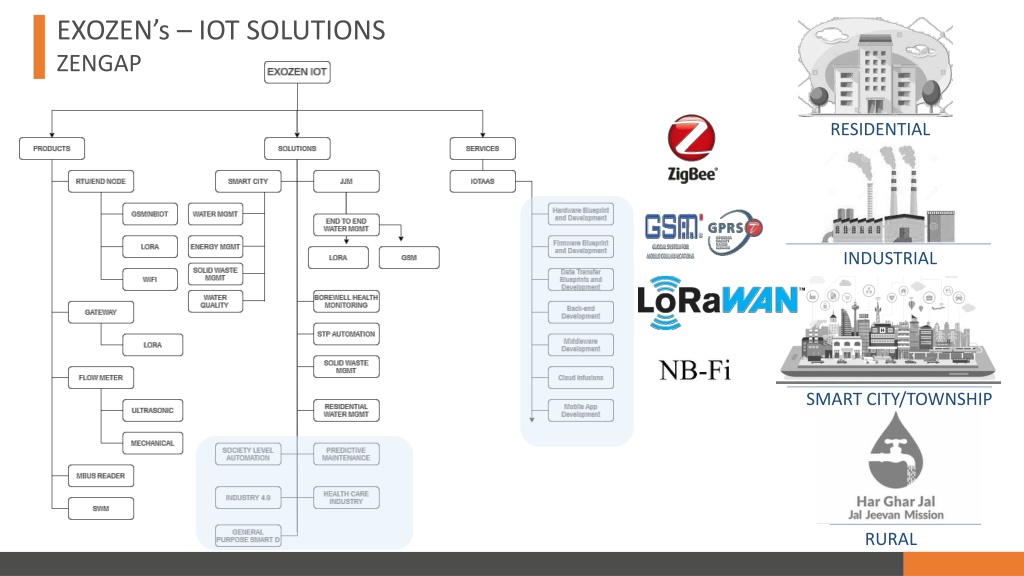

  5. EXOZEN’s – IOT SOLUTIONS ZENGAP RESIDENTIAL INDUSTRIAL SMART CITY/TOWNSHIP RURAL

  6. Our Partners

  7. Market Size

  8. Sensor Integration Architecture • For Different type of sensor integration to RTU Data Transfer to Server using GSM/3G/LTE or WiFi with additional ports for multiple sensors Water Quality Monitoring Mobile (Android/IoS) App EXOZEN IOT Layer Device Security Connection Secure Data Encryption Temperature Sensor RS232 4 to 20 ma Pressure Sensor RS485 Pulse O/P RS485 Admin Dashboard Flow Meter Cloud/DM Server Chlorine Sensor Energy Meter Sensor to RTU connection can be through RS232, RS485, USB, 4 to 20 ma, Pulse output etc. Smart & Real time Dashboards • Real Time parameter reports • Aggregate score calculation based analytics • Historic data monitoring • Alerts and Notifications Reports Sensors Aggregator

  9. RURAL WATER MANAGEMENT

  10. EXOZEN’s – Smart Rural Water Management Objective “ To develop a technology integrated mechanism to remotely plan and monitor on real-time basis to formulate an evidence based policy making by “ Jal Jeevan Mission” to assist, empower and facilitate the governing bodies for measuring mandatory elements like “

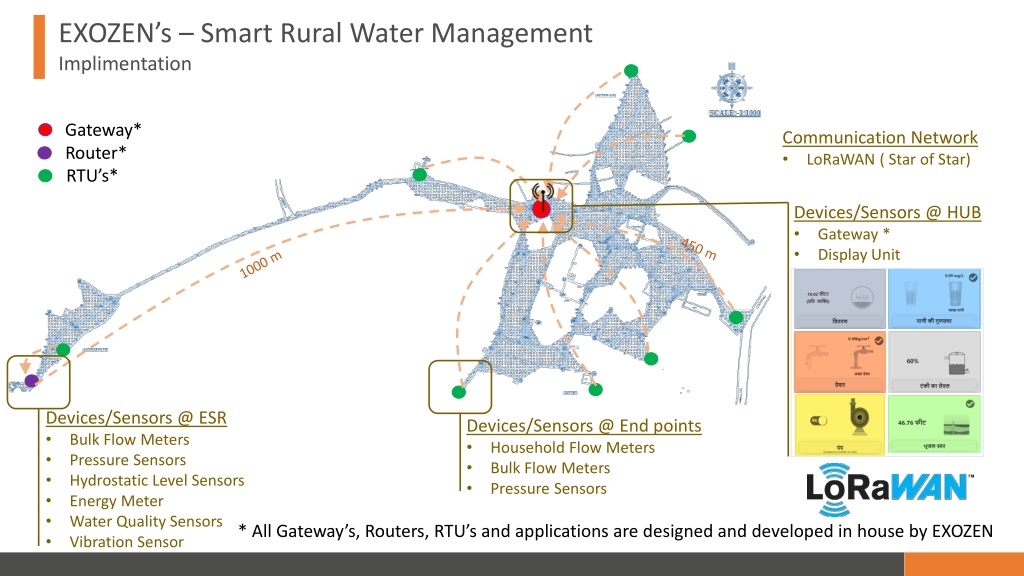

  11. EXOZEN’s – Smart Rural Water Management Implimentation Gateway* • Communication Network • LoRaWAN ( Star of Star) Router* RTU’s* • Devices/Sensors @ HUB • Gateway * • Display Unit 1000 m 450 m • Devices/Sensors @ ESR • Bulk Flow Meters • Pressure Sensors • Hydrostatic Level Sensors • Energy Meter • Water Quality Sensors • Vibration Sensor • Devices/Sensors @ End points • Household Flow Meters • Bulk Flow Meters • Pressure Sensors * All Gateway’s, Routers, RTU’s and applications are designed and developed in house by EXOZEN

  12. SMART CITIES TOWNSHIPS

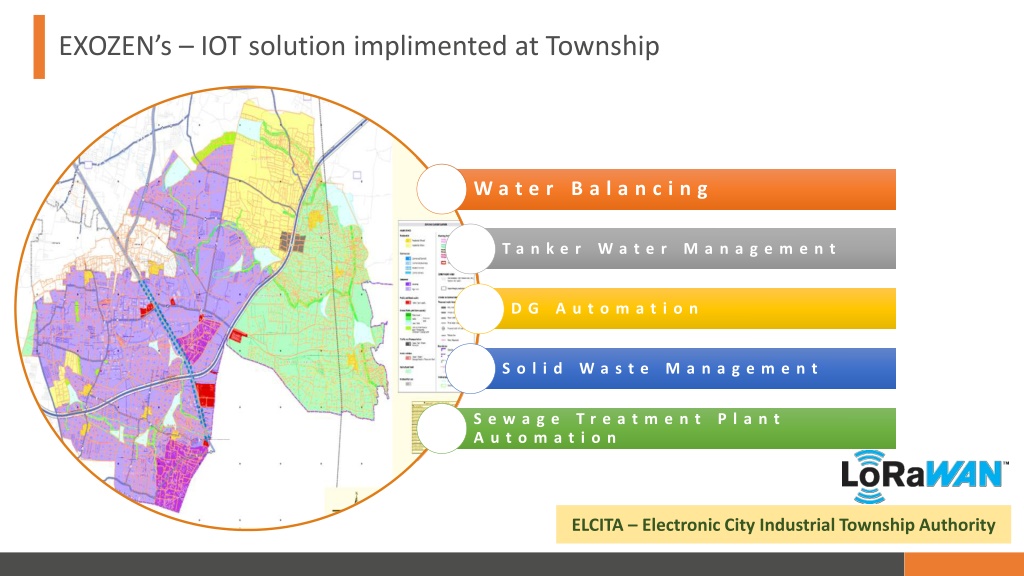

  13. EXOZEN’s – IOT solution implimented at Township ELCITA – Electronic City Industrial Township Authority

  14. RESIDENTIAL COMPLEX

  15. EXOZEN’s – Society Level Automation LORA ENABLED SMART SOCIETY 3 2 WATER/ENERGY SUBMETERING 1 BULK WATER METERING 2 1 CLUB HOUSE MONITORING 3 9 PERIMETER MONITORING 4 STREET LIGHTS 5 4 STP, WTP,DG SETS, WATER BODIES 6 SPRINKLER MANAGEMENT 7 VENDOR, VISITOR, STAFF MANAGEMET 8 5 SECURITY SYSTEM 9 6 7 8

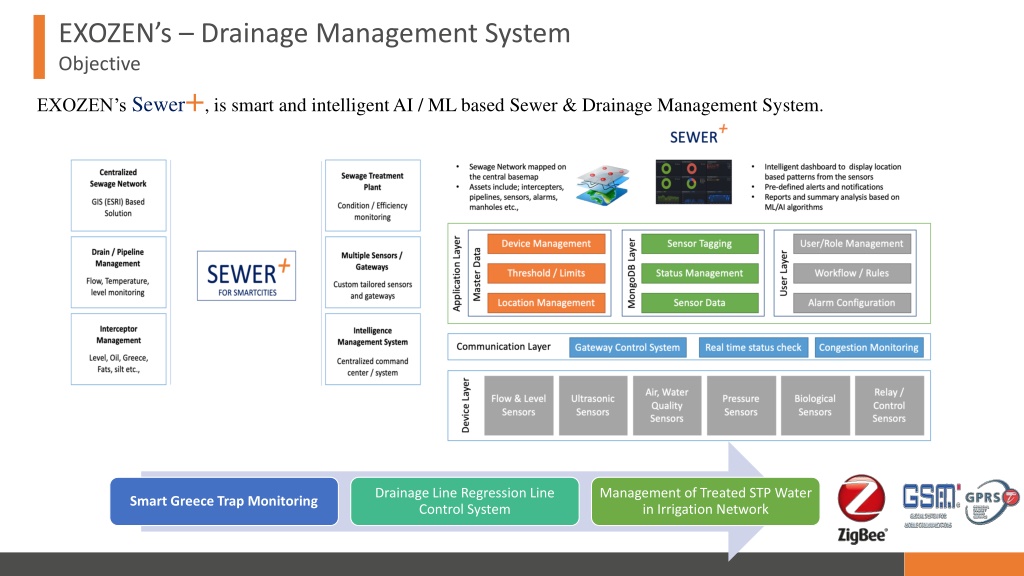

  16. EXOZEN’s – Drainage Management System Objective EXOZEN’s Sewer+, is smart and intelligent AI / ML based Sewer & Drainage Management System.

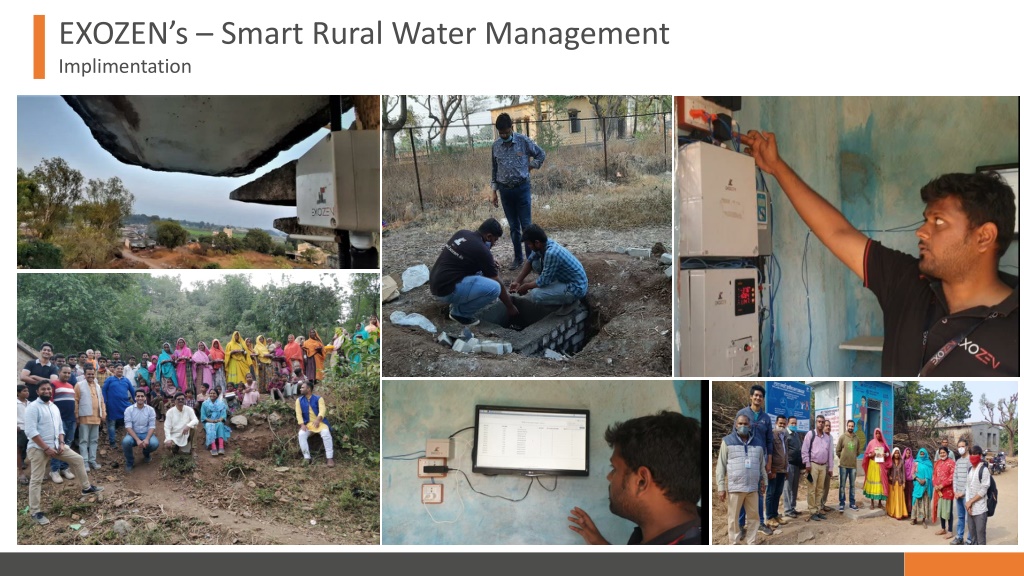

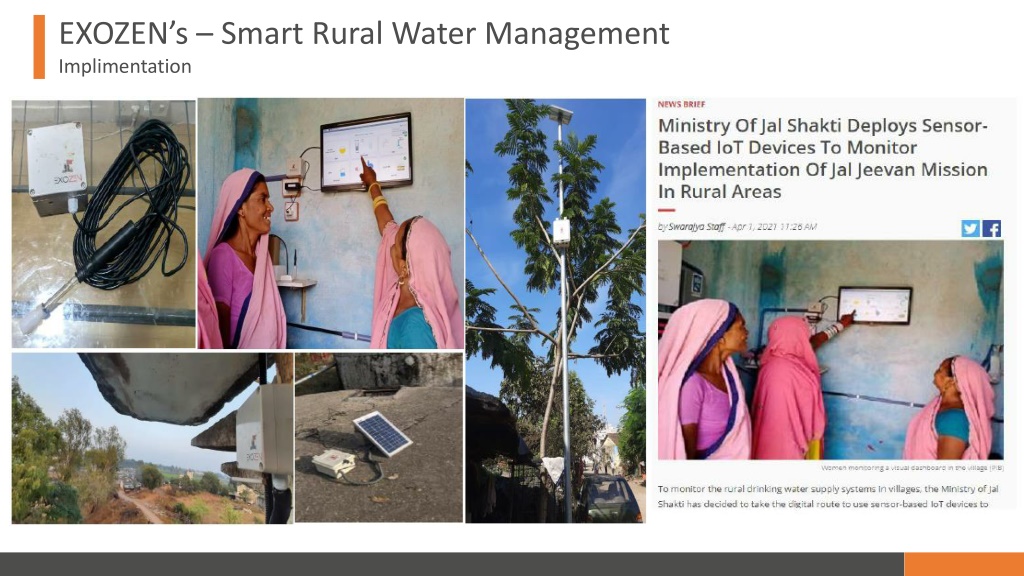

  17. EXOZEN’s – Smart Rural Water Management Implimentation

  18. EXOZEN’s – Smart Rural Water Management Implimentation

  19. APPENDIX

  20. EXOZEN’s – Smart Sub Metering ( Individual Flats Monitoring) ZENGAP CompactHelical Energy Meter UltrasonicFlowMeter • Historical data • Consumption trend • Forecasting • Leakage/over usage alert • Automatic bill generation • Remote shut off (Optional at extra cost) • Individual Flat wise Water/ Energy Consumption Billing • Leakage detection alert • Daily usage limit setting • Real time (from 60 sec) consumption matrix • Inlet wise consumption data

  21. EXOZEN’s – Smart Bulk Metering ZENGAP Woltman Mechanical Pulse Electromagnetic Ultrasonic

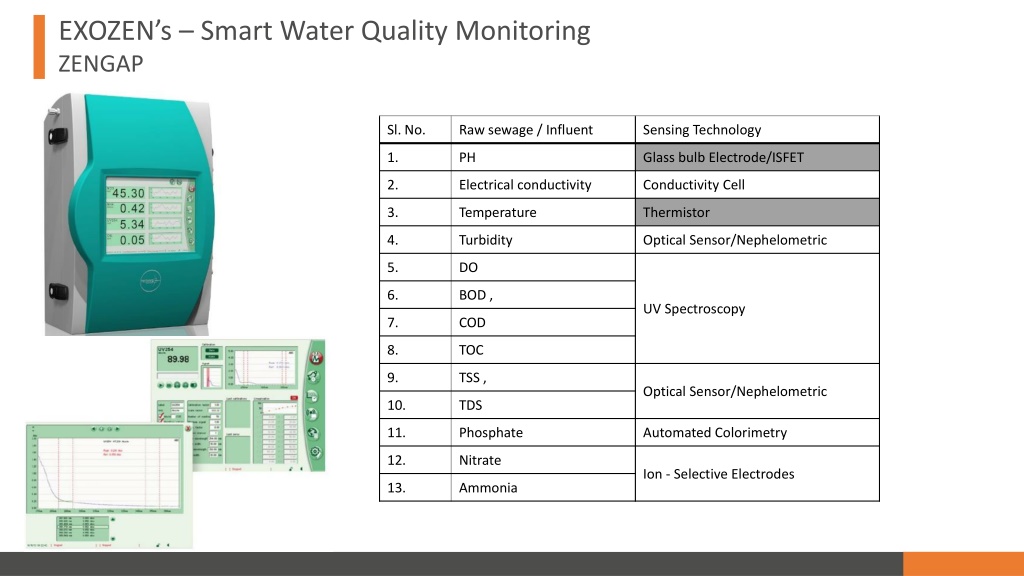

  22. EXOZEN’s – Smart Water Quality Monitoring ZENGAP

  23. EXOZEN’s – Borewell Health Monitoring ZENGAP A hydrostatic level sensor is a submersible pressure transmitter that has a pressure diaphragm where the inner side of the diaphragm is vented to atmospheric pressure through a vent tube in the cable and the outer side is in contact with the liquid and measuring the static pressure of the liquid column above the transmitter. This static pressure is basically caused by the weight of the fluid on top of the transmitter and is used to calculate the level of the liquid. Cloud Server Mobile and Web Application EXOZEN LORA RTU 4- 20 mA equivalent to 100 ft Water Column

  24. EXOZEN’s – Tank Level Monitoring ZENGAP The sensor measures the water level in the water tank. The device sends data to the cloud server. We convert data into powerful analytics. The app brings all of it to your phone

  25. EXOZEN’s – Utility IoT • ZENGAP- Metering, Billing, & Collection ZenGap ZenBus Concentrator Water Meter Energy Meter Water Meter Energy Meter Electricity Meter Heater & Chiller Meter Mobile & Web applications for data analytics and consumption matrix Community 2 Community 1 ZenBus Exozen can provide smart sub metering Exozen’s IoT device for data collection ZenGap

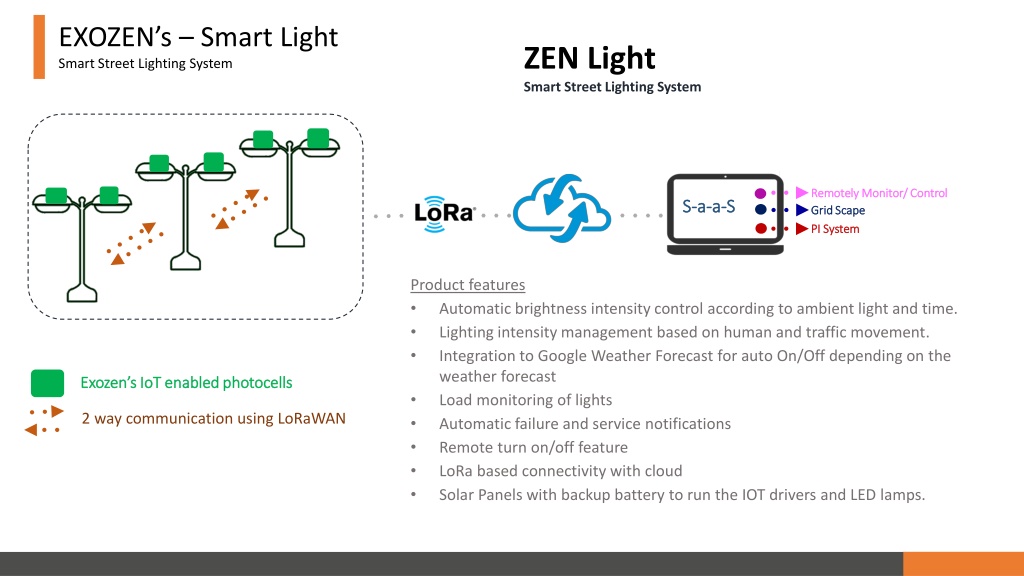

  26. EXOZEN’s – Smart Light • Smart Street Lighting System • ZEN Light • Smart Street Lighting System Remotely Monitor/ Control S-a-a-S Grid Scape PI System • Product features • Automatic brightness intensity control according to ambient light and time. • Lighting intensity management based on human and traffic movement. • Integration to Google Weather Forecast for auto On/Off depending on the weather forecast • Load monitoring of lights • Automatic failure and service notifications • Remote turn on/off feature • LoRa based connectivity with cloud • Solar Panels with backup battery to run the IOT drivers and LED lamps. Exozen’s IoT enabled photocells 2 way communication using LoRaWAN

  27. UK • UAE • INDIA • APAC EXOZEN • GET IN TOUCH • ADDRESS • PHONE & EMAIL • SOCIAL MEDIA • #3, Silver palms, Victoria Layout, Bangalore -47, India • INDIA | UK | UAE | APAC • hello@exozen.in • sales@exozen.me • +91 80 4165 1888 • +971 50 5419804
