Automatic (PDI) Lubricators - Sure Fire II Single Phase & Three Phase

Automatic (PDI) lubricators are precision lubrication systems designed to deliver controlled amounts of lubricant to machinery components at specific intervals. These systems ensure that machinery operates smoothly, reducing wear and extending equipment life. Exim Engineering is your go-to partner for high-quality lubrication solutions. As a leading supplier and distributor of Bijur Delimon Lubrication systems, we pride ourselves on innovation, quality, and customer satisfaction.<br>

eximeng07
Download Presentation

Automatic (PDI) Lubricators - Sure Fire II Single Phase & Three Phase

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

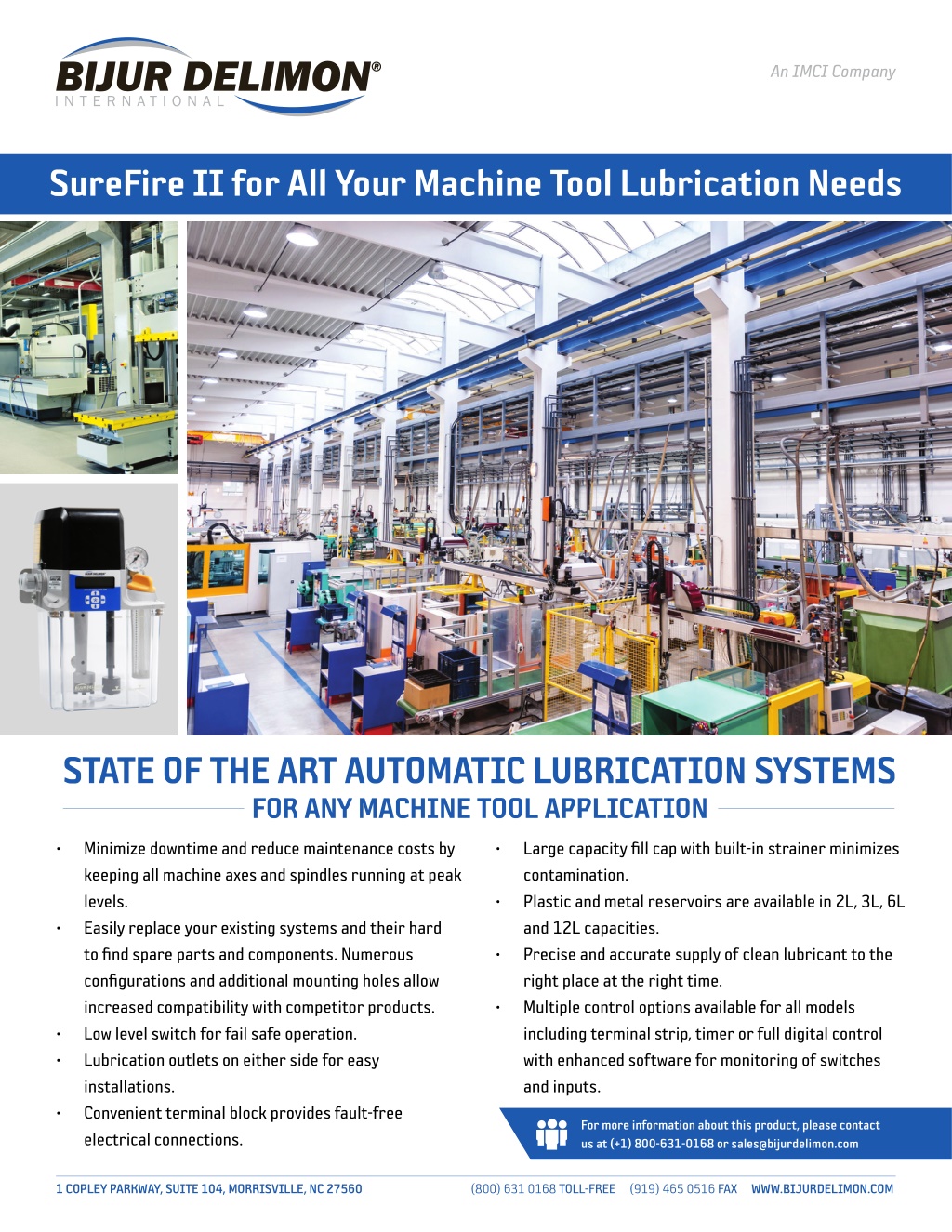

  1. An IMCI Company SureFire II for All Your Machine Tool Lubrication Needs STATE OF THE ART AUTOMATIC LUBRICATION SYSTEMS FOR ANY MACHINE TOOL APPLICATION • Minimize downtime and reduce maintenance costs by keeping all machine axes and spindles running at peak levels. Easily replace your existing systems and their hard to find spare parts and components. Numerous configurations and additional mounting holes allow increased compatibility with competitor products. Low level switch for fail safe operation. Lubrication outlets on either side for easy installations. Convenient terminal block provides fault-free electrical connections. • Large capacity fill cap with built-in strainer minimizes contamination. Plastic and metal reservoirs are available in 2L, 3L, 6L and 12L capacities. Precise and accurate supply of clean lubricant to the right place at the right time. Multiple control options available for all models including terminal strip, timer or full digital control with enhanced software for monitoring of switches and inputs. • • • • • • • For more information about this product, please contact us at (+1) 800-631-0168 or sales@bijurdelimon.com 1 COPLEY PARKWAY, SUITE 104, MORRISVILLE, NC 27560 (800) 631 0168 TOLL-FREE (919) 465 0516 FAXWWW.BIJURDELIMON.COM

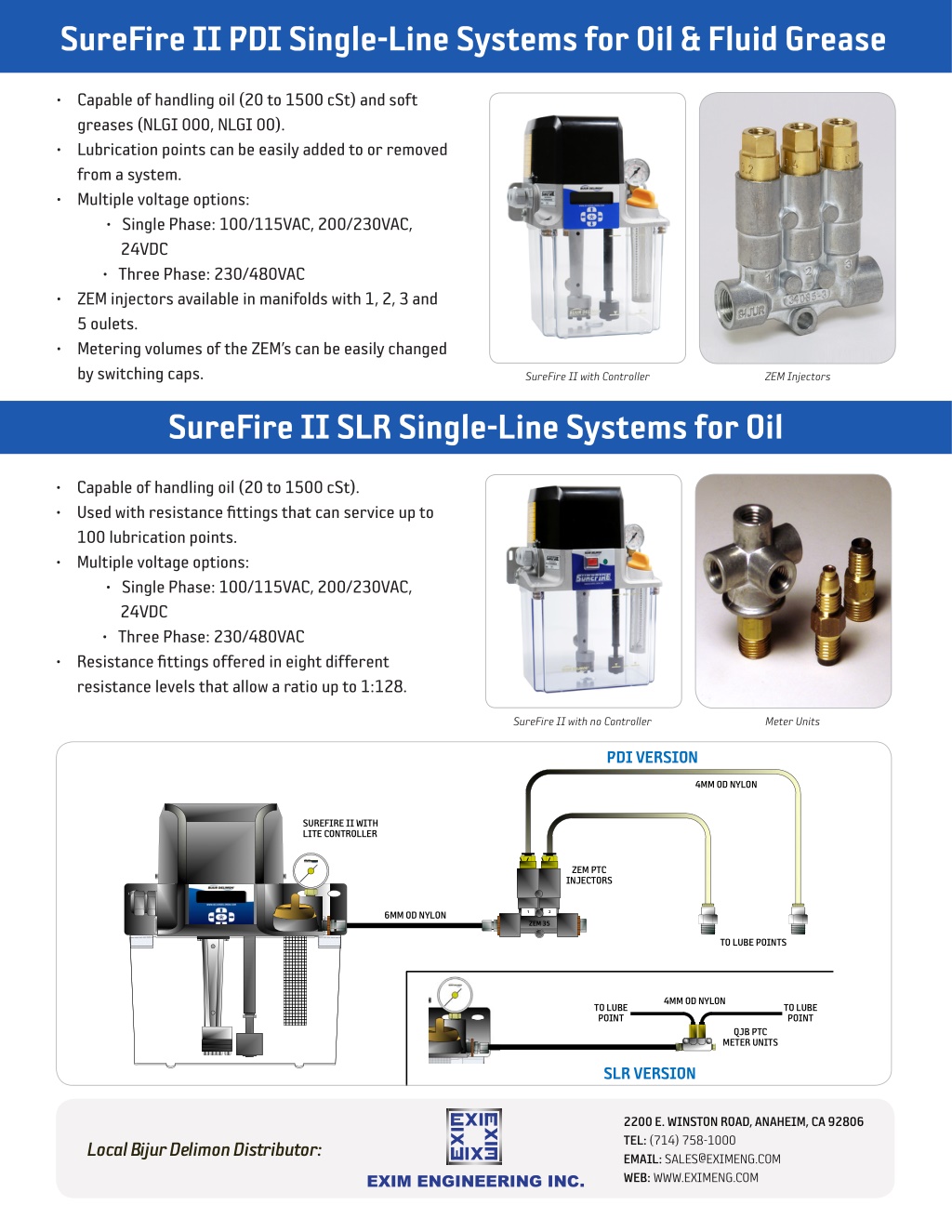

  2. SureFire II PDI Single-Line Systems for Oil & Fluid Grease • Capable of handling oil (20 to 1500 cSt) and soft greases (NLGI 000, NLGI 00). • Lubrication points can be easily added to or removed from a system. • Multiple voltage options: • Single Phase: 100/115VAC, 200/230VAC, 24VDC • Three Phase: 230/480VAC • ZEM injectors available in manifolds with 1, 2, 3 and 5 oulets. • Metering volumes of the ZEM’s can be easily changed by switching caps. SureFire II with Controller ZEM Injectors SureFire II SLR Single-Line Systems for Oil • Capable of handling oil (20 to 1500 cSt). • Used with resistance fittings that can service up to 100 lubrication points. • Multiple voltage options: • Single Phase: 100/115VAC, 200/230VAC, 24VDC • Three Phase: 230/480VAC • Resistance fittings offered in eight different resistance levels that allow a ratio up to 1:128. SureFire II with no Controller Meter Units PDI VERSION 4MM OD NYLON SUREFIRE II WITH LITE CONTROLLER ZEM PTC INJECTORS 6MM OD NYLON 1 2 ZEM 35 TO LUBE POINTS 4MM OD NYLON TO LUBE POINT TO LUBE POINT QJB PTC METER UNITS SLR VERSION 2200 E. WINSTON ROAD, ANAHEIM, CA 92806 TEL: (714) 758-1000 EMAIL: SALES@EXIMENG.COM WEB: WWW.EXIMENG.COM Local Bijur Delimon Distributor: EXIM ENGINEERING INC.
