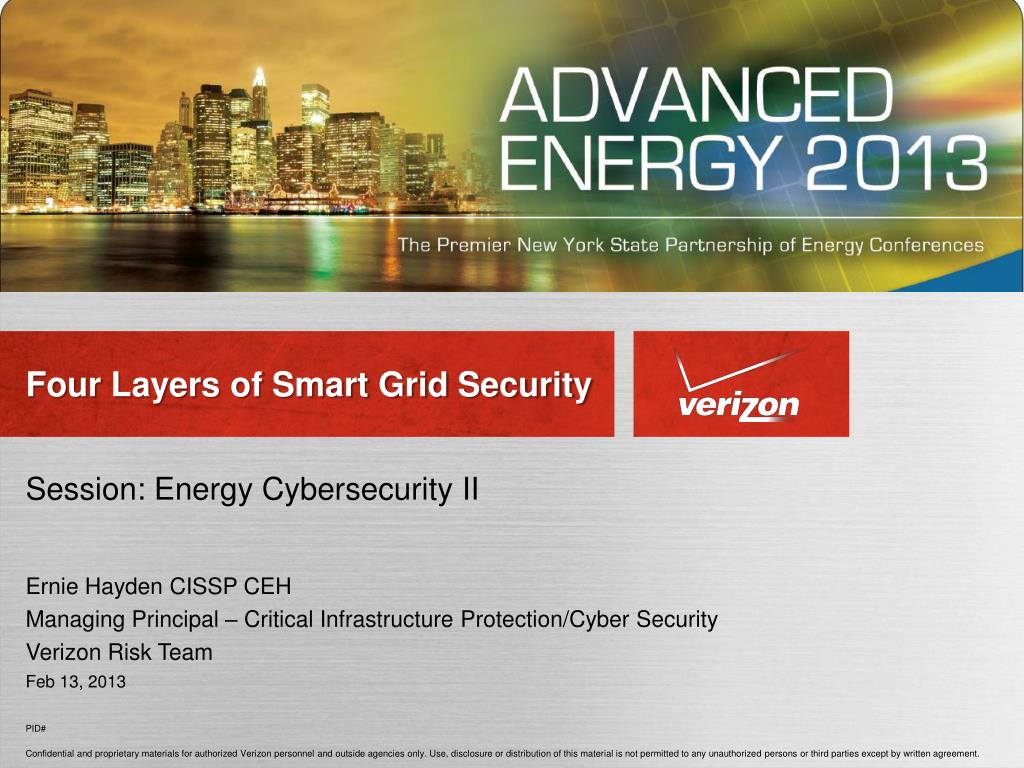

  1. Four Layers of Smart Grid Security Session: Energy Cybersecurity II Ernie Hayden CISSP CEH Managing Principal – Critical Infrastructure Protection/Cyber Security Verizon Risk Team Feb 13, 2013

  2. Today’s Agenda • Smart Grid Security: Who’s Worried and Why? • “Layers” of Concern • Physical Layer • Cyber Layer • Privacy Layer • Storage Layer • Just What To Do? • Question & Answer

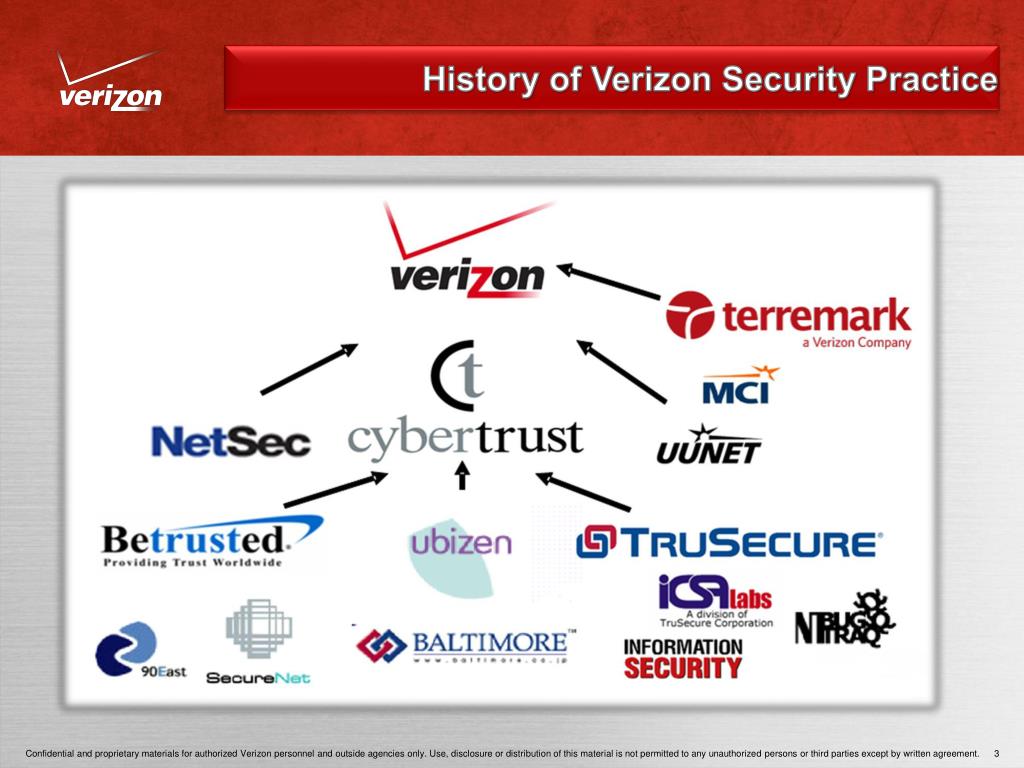

  3. History of Verizon Security Practice

  4. Who is Worried About Smart Grid Security?High-Level Security Concerns from Global Agencies • Acknowledged by: • European Network and Information Security Agency (ENISA) • National Institute of Standards and Technology (NIST) • North American Electric Reliability Corporation (NERC) • Department of Homeland Security (DHS) • Department of Energy (DOE) • Federal Energy Regulatory Commission (FERC) • Government Accountability Office (GAO) • Selected Nations and US State Public Utility Commissions

  5. DOE and NIST Concerns • Increasing Complexity of the Grid • Interconnected Networks Can Introduce Common Vulnerabilities • Increasing Vulnerabilities to Communications • Introduction of Malicious Software • Increased Number of Entry Points and Paths for Potential Adversaries to Exploit • Potential for Compromise of Data Confidentiality, Including Breach of Customer Privacy

  6. Who Said Anything About Complexity?

  7. “LAYERS” OF CONCERN

  8. Physical Layer Security • Natural Disasters • Snow Storms • Hurricanes • Solar Flares • Geomagnetic Storms • Earthquakes • Flooding • Volcanoes • Recognize that Location of the Smart Grid Components Can Be Affected by the Surrounding Environment • US Case – Overheating Meters

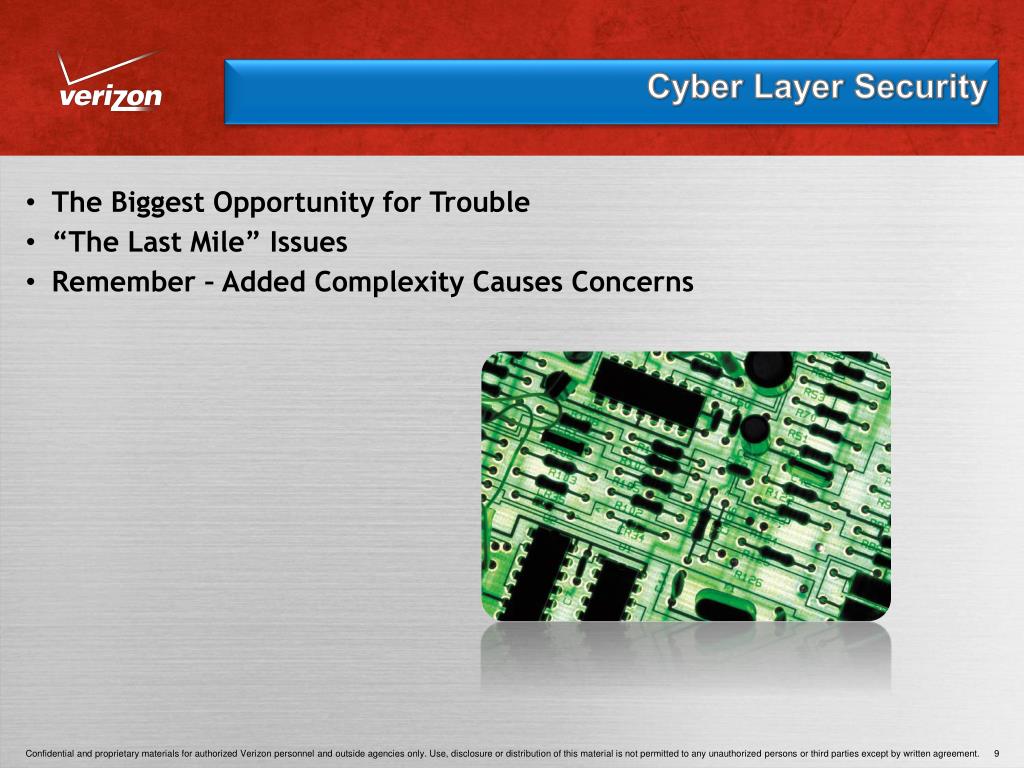

  9. Cyber Layer Security • The Biggest Opportunity for Trouble • “The Last Mile” Issues • Remember – Added Complexity Causes Concerns

  10. “Last Mile” • Broadband Power Line Systems • Power Line Carrier Systems • Public Switched Telephone Network (PSTN) • Cat5/6 Network Connection • Radio Frequency • WiMax • ZigBee • 6LoWPAN • 802.11x • Cellular (CDMA/EVDO, GSM, LTE)

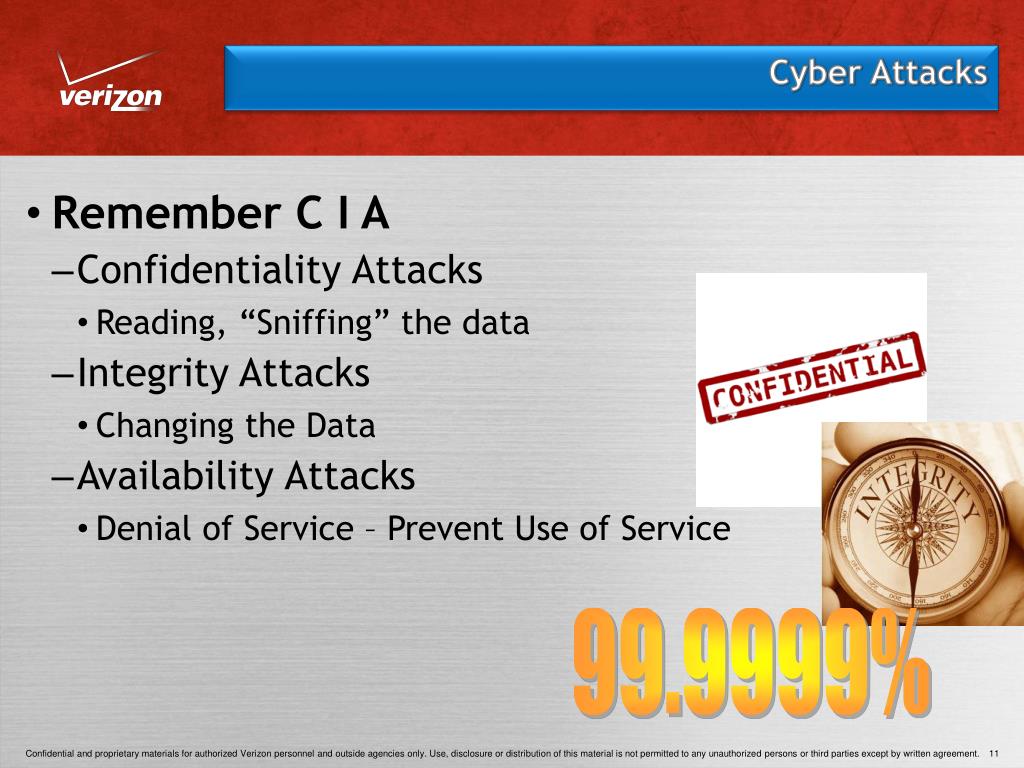

  11. 99.9999% Cyber Attacks • Remember C I A • Confidentiality Attacks • Reading, “Sniffing” the data • Integrity Attacks • Changing the Data • Availability Attacks • Denial of Service – Prevent Use of Service

  12. Privacy Attacks http://www.dora.state.co.us/puc/DocketsDecisions/DocketFilings/09I-593EG/09I-593EG_Spring2009Report-SmartGridPrivacy.pdf

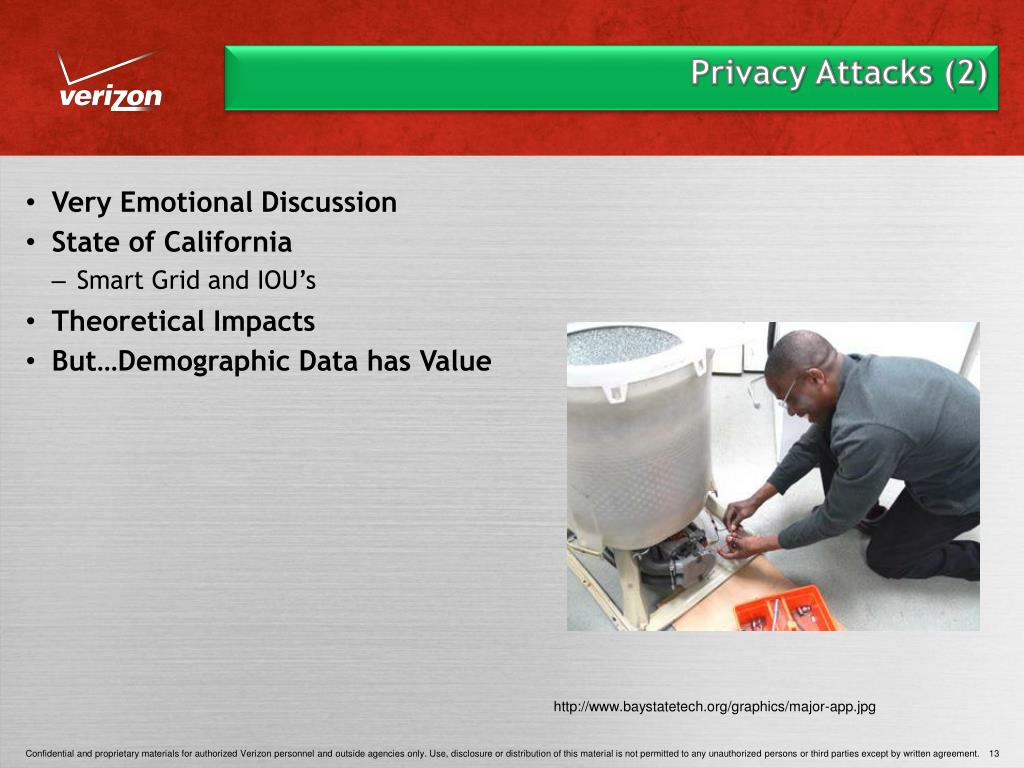

  13. Privacy Attacks (2) • Very Emotional Discussion • State of California • Smart Grid and IOU’s • Theoretical Impacts • But…Demographic Data has Value http://www.baystatetech.org/graphics/major-app.jpg

  14. Today’s Environment The Future Smart Grid Analog Meters or Simple Digital Meters Manually Read or Use “Drive By” Reading “Smart” Digital Meters & “Smart” Sensors Read Monthly (or Less Frequently) Automatic Reading Minimal Data Accumulation Read Every ~15 Minutes or More Frequently Simple Data Fields – KWH Used Since Last Reading “Data Avalanche!” – Numerous Data Fields and Classes Used with Permission – E N Hayden Microsoft Clip Art Online Microsoft Clip Art Online Microsoft Clip Art Online www.smartgridnews.com Storage

  15. Is it a Data Avalanche? Tsunami? • Lux Research: Utilities Manage 9x Current Data if Go to Smart Grid (Boston: Jan 26, 2011) • Types of Data from Smart Meters • Broadcast Data • Billing Interval Data • Detailed Consumption Data • Aggregate Statistical Data • Predictions • Prediction for U.S. by 2019  100M Meters  100 Petabytes generated during the next 10 years (West Coast Utility) • Utilities spent $356M on Smart Grid data analytics tools in 2010  $4.2B in 2015 (Pike Research) • 300 TB per year of meter data by 2012 (SoutheastU.S. Utility) (as of 2011) http://obiblog.files.wordpress.com/2008/08/data-pic.jpg 1 Petabyte is 1000 Terabytes!

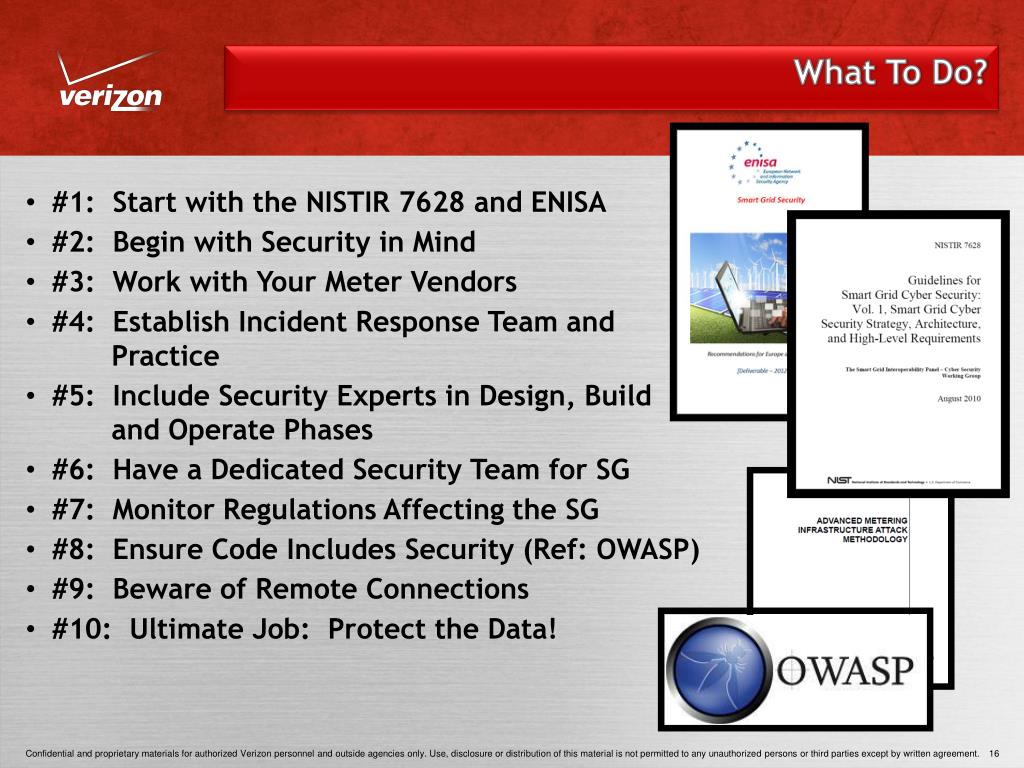

  16. What To Do? • #1: Start with the NISTIR 7628 and ENISA • #2: Begin with Security in Mind • #3: Work with Your Meter Vendors • #4: Establish Incident Response Team and Practice • #5: Include Security Experts in Design, Build and Operate Phases • #6: Have a Dedicated Security Team for SG • #7: Monitor Regulations Affecting the SG • #8: Ensure Code Includes Security (Ref: OWASP) • #9: Beware of Remote Connections • #10: Ultimate Job: Protect the Data!

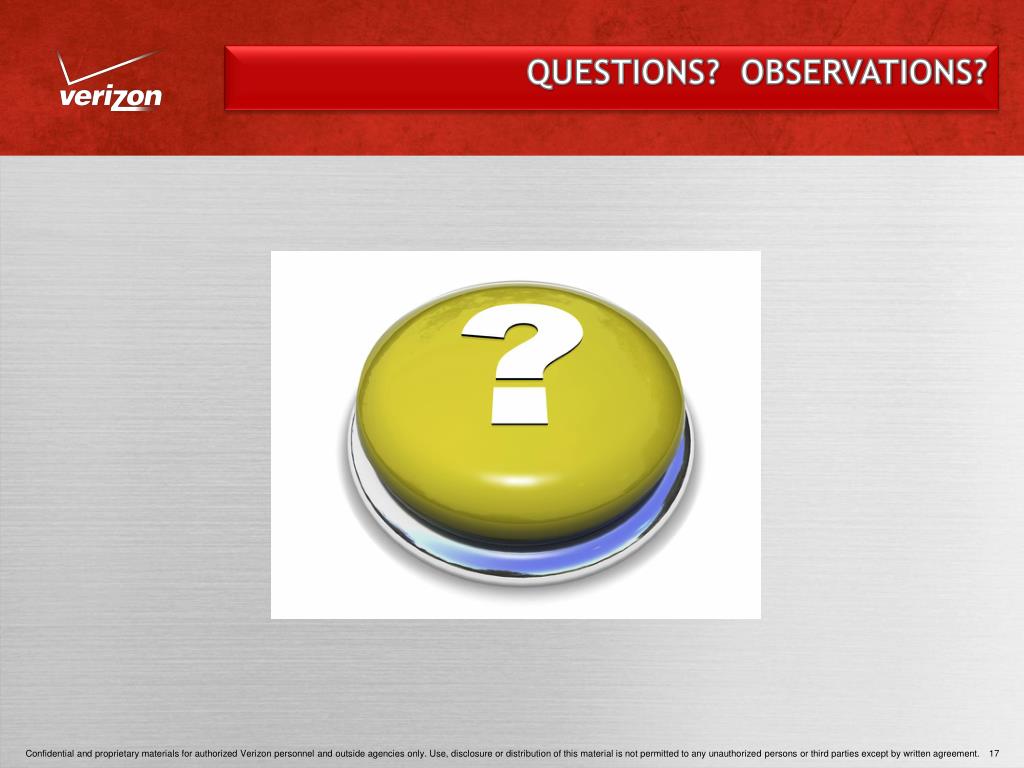

  17. QUESTIONS? OBSERVATIONS?
