  1. WinTV-USB Image-capture device

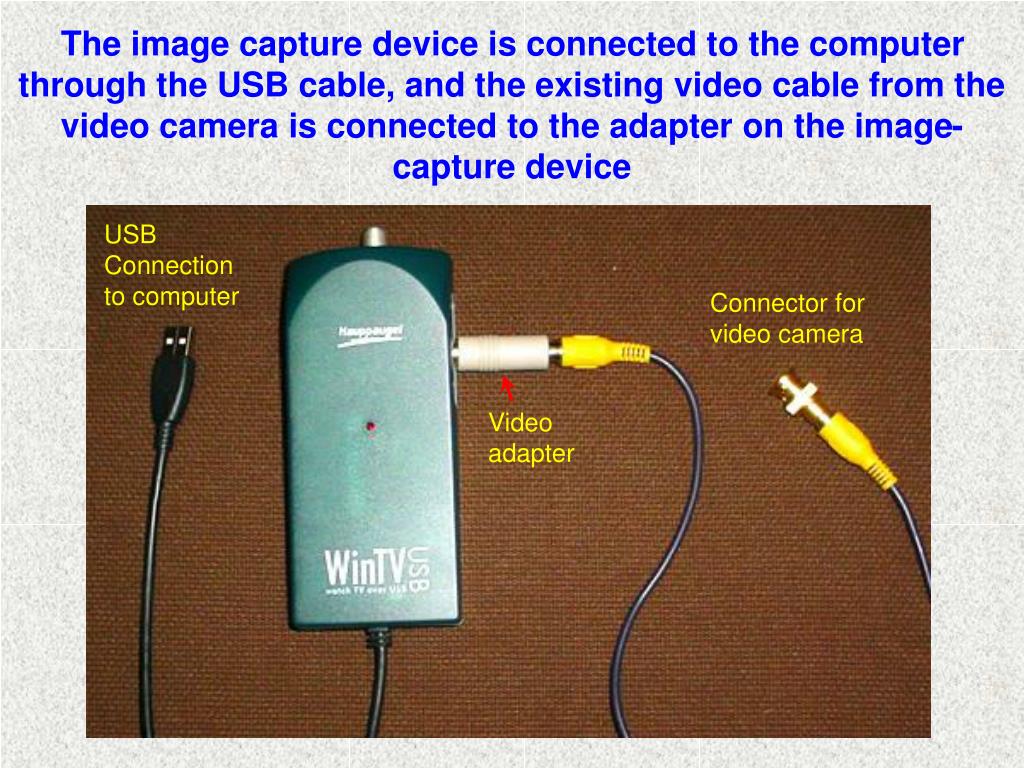

  2. USB Connection to computer Connector for video camera Video adapter The image capture device is connected to the computer through the USB cable, and the existing video cable from the video camera is connected to the adapter on the image-capture device

  3. The video cable connects to the image-capture device with the adapter, at the “S-video In” plug “Video-in” port on image-capture device

  4. Double click on the WinTV Icon on the desktop and the viewer will appear, displaying whatever the camera is seeing Desktop icon Image viewer

  5. Click on the “SNAP” button at the bottom left of the viewer, and a thumbnail view will appear on the left of the big image. Thumbnail view SNAP button

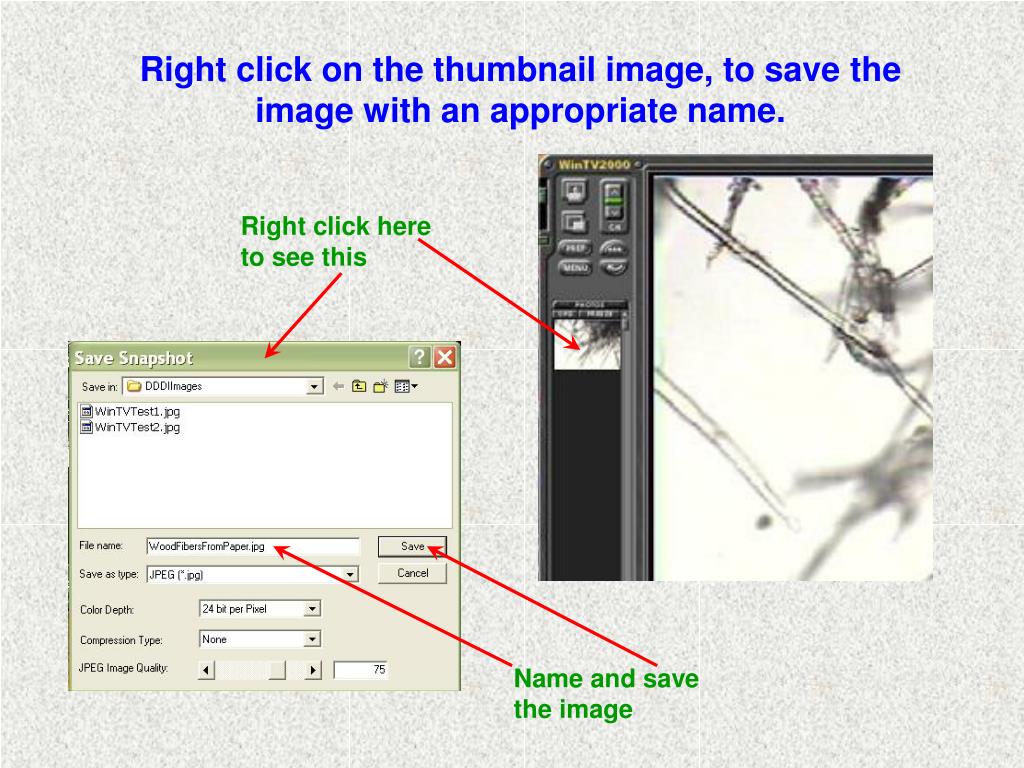

  6. Right click on the thumbnail image, to save the image with an appropriate name. Right click here to see this Name and save the image
