  1. 糖酵解、TCA 11级制药工程 刘世洋 2011207539 指导教师:乔建军

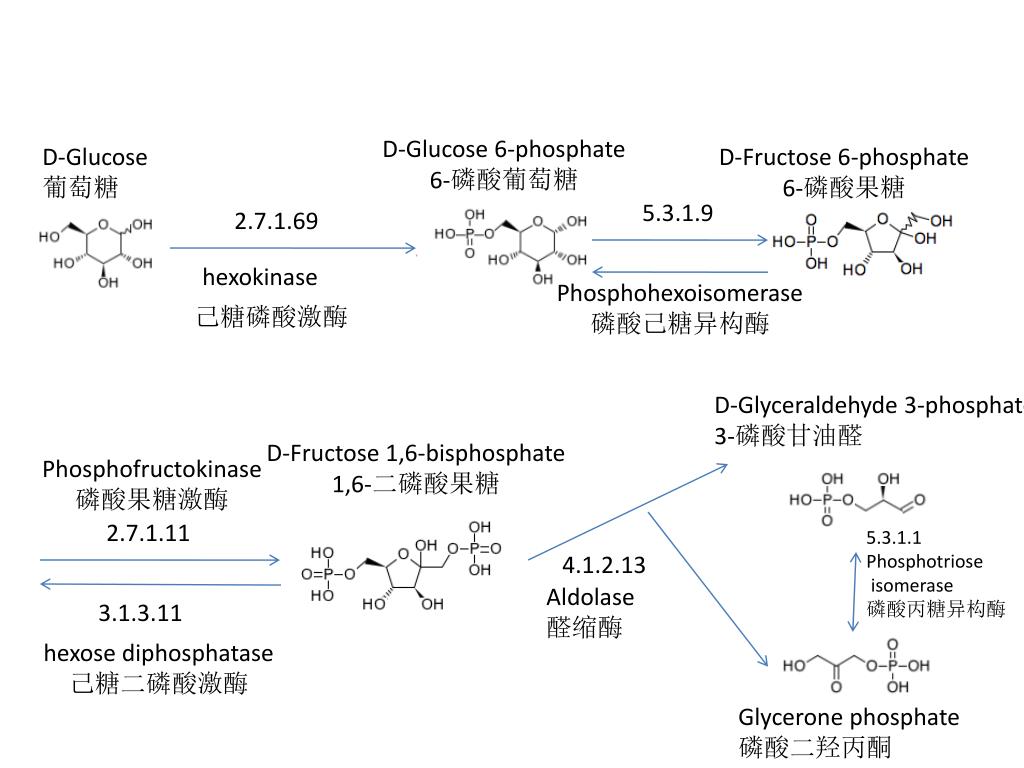

  2. D-Glucose 6-phosphate 6-磷酸葡萄糖 D-Glucose 葡萄糖 D-Fructose 6-phosphate6-磷酸果糖 5.3.1.9  2.7.1.69 hexokinase Phosphohexoisomerase 磷酸己糖异构酶 己糖磷酸激酶 D-Glyceraldehyde 3-phosphate 3-磷酸甘油醛 D-Fructose 1,6-bisphosphate 1,6-二磷酸果糖 Phosphofructokinase 磷酸果糖激酶 2.7.1.11  5.3.1.1 Phosphotriose isomerase 磷酸丙糖异构酶 4.1.2.13 Aldolase 醛缩酶 3.1.3.11 hexosediphosphatase 己糖二磷酸激酶 Glycerone phosphate 磷酸二羟丙酮

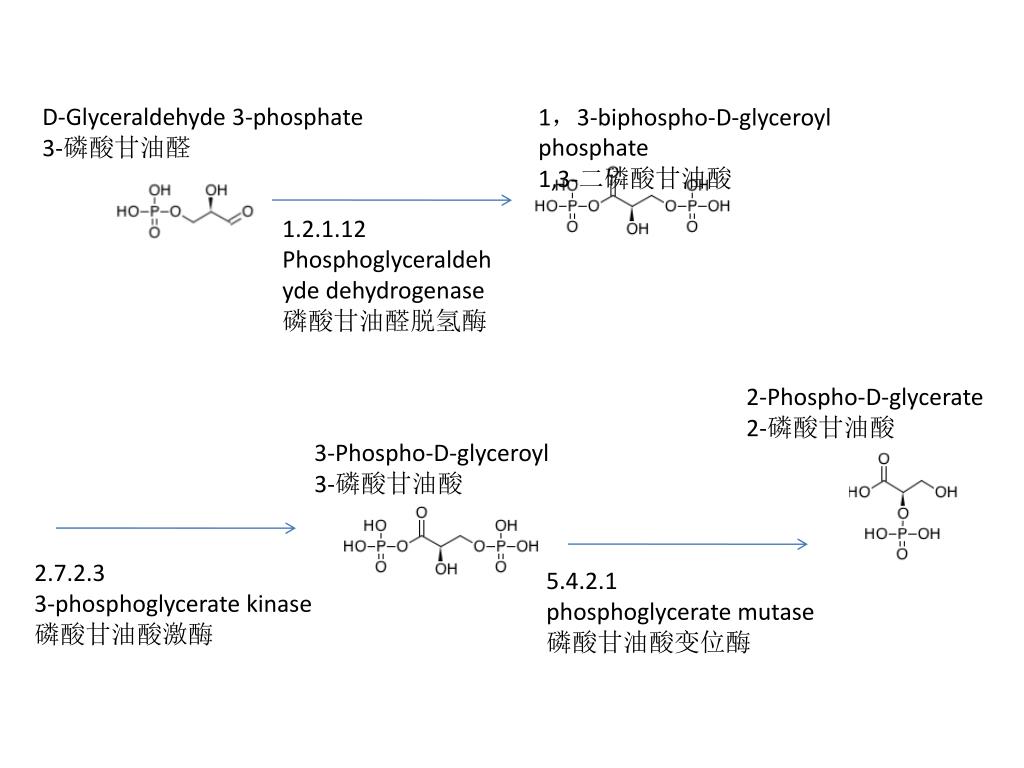

  3. 1,3-biphospho-D-glyceroyl phosphate 1,3-二磷酸甘油酸 1.2.1.12  Phosphoglyceraldehydedehydrogenase 磷酸甘油醛脱氢酶 2-Phospho-D-glycerate 2-磷酸甘油酸 D-Glyceraldehyde 3-phosphate 3-磷酸甘油醛 3-Phospho-D-glyceroyl 3-磷酸甘油酸 2.7.2.3 3-phosphoglycerate kinase 磷酸甘油酸激酶 5.4.2.1    phosphoglyceratemutase 磷酸甘油酸变位酶

  4. Phosphoenolpyruvate 磷酸烯醇式丙酮酸 4.2.1.11 Enolase 烯醇化酶 葡萄糖+2ATP+2ADP+2Pi+2NAD+ ——>2丙酮酸+4ATP+2NADH+2H++2H2O 反应前消耗掉2个ATP,反应后生成4个ATP,净生成2个ATP ,但是2个NADH通过电子传递链还可以产生6个ATP.总体来说最后应该是净生成8个ATP 葡萄糖+2Pi+2ADP2乳酸+2ATP+2H2O 葡萄糖+2Pi+2ADP2乙醇+2ATP+2H2O+2CO2 2-Phospho-D-glycerate 2-磷酸甘油酸 Pyruvate 丙酮酸 2.7.1.40 pyruvatekinase 丙酮酸激酶

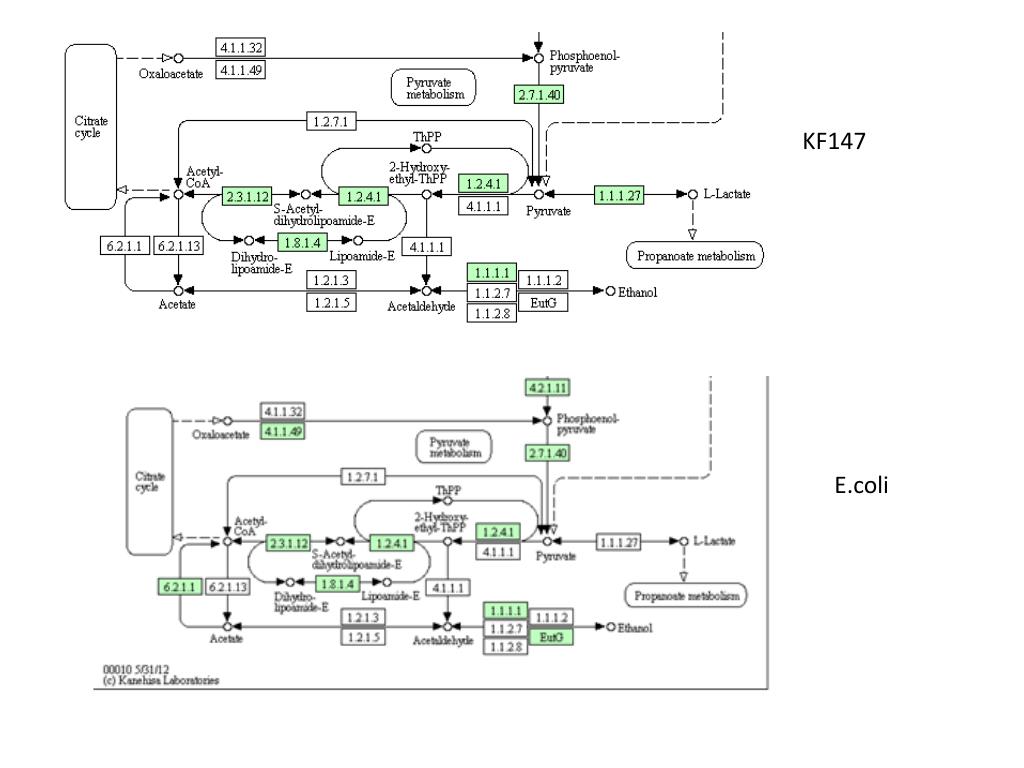

  5. KF147 E.coli

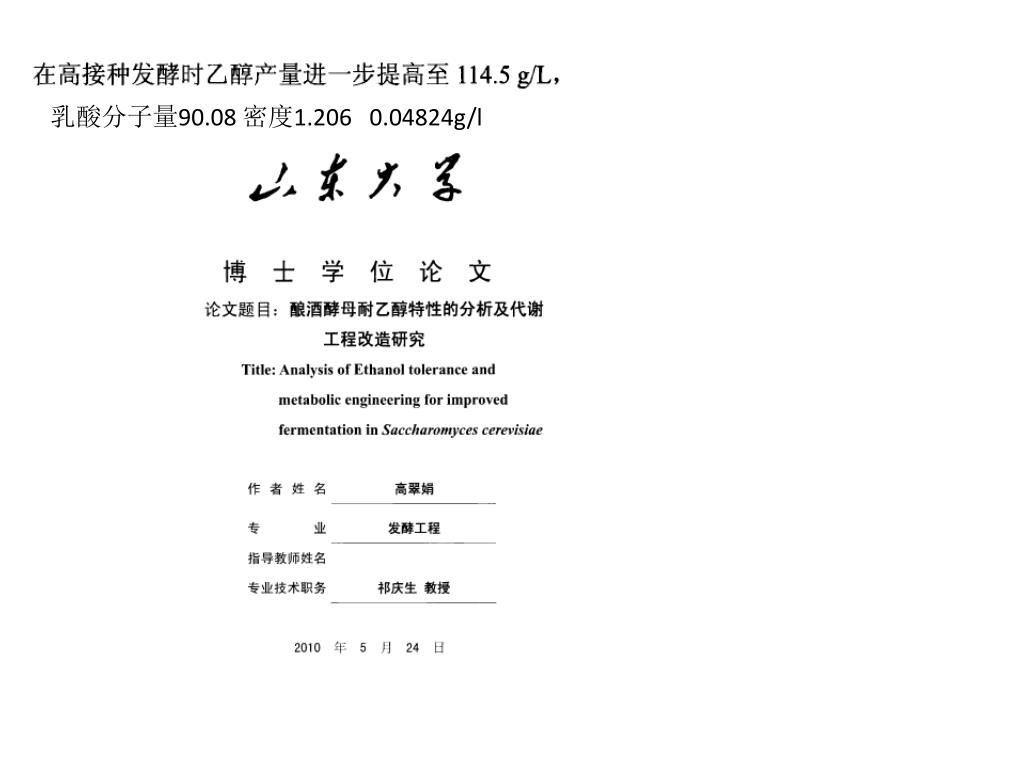

  6. 乳酸分子量90.08 密度1.206 0.04824g/l

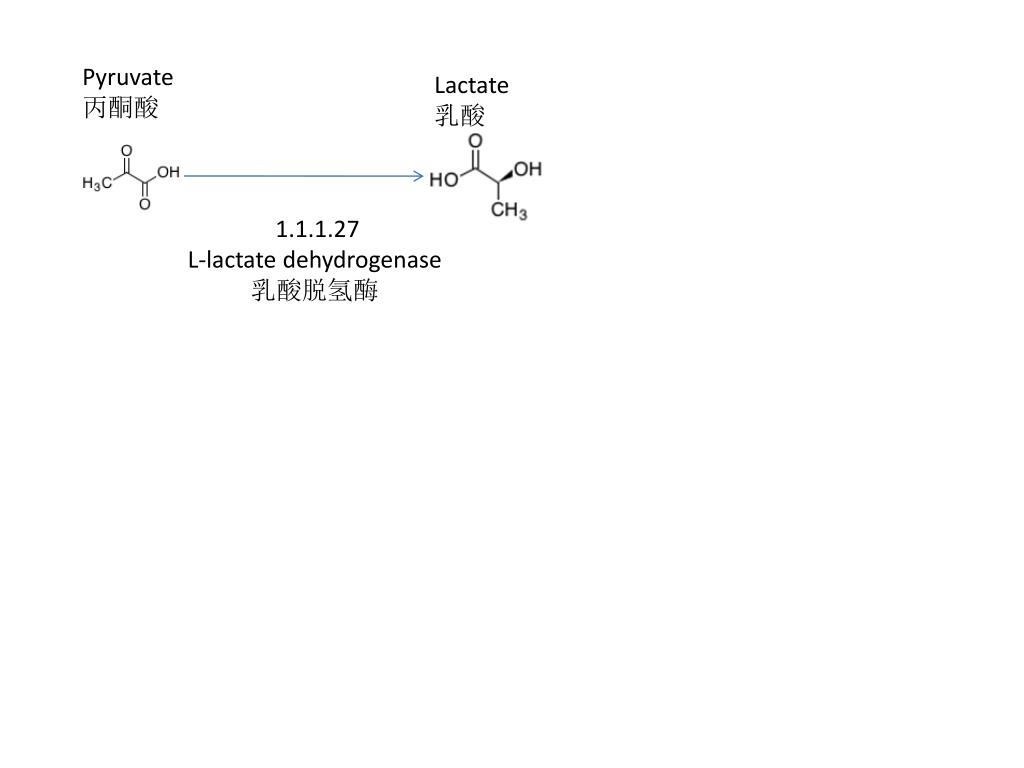

  7. Lactate 乳酸 1.1.1.27 L-lactate dehydrogenase 乳酸脱氢酶 Pyruvate 丙酮酸

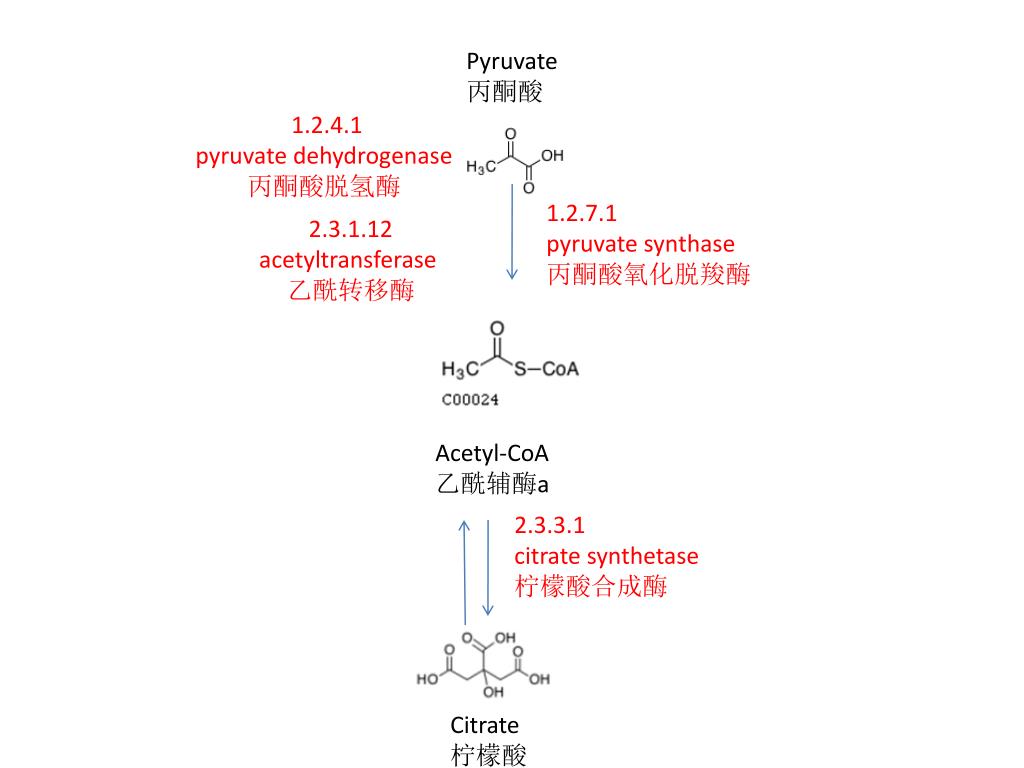

  8. 1.2.4.1 pyruvatedehydrogenase 丙酮酸脱氢酶 1.2.7.1  pyruvatesynthase 丙酮酸氧化脱羧酶 2.3.1.12 acetyltransferase 乙酰转移酶 Pyruvate 丙酮酸 Acetyl-CoA 乙酰辅酶a 2.3.3.1 citrate synthetase 柠檬酸合成酶 Citrate 柠檬酸

  9. 4.2.1.3 Aconitase 顺乌头酸酶 cis-Aconitate 顺乌头酸 4.2.1.3 Aconitase 顺乌头酸酶 Isocitrate 异柠檬酸 1.1.1.42 Isocitratedehydrogenase 异柠檬酸脱氢酶 1.1.1.42 Isocitratedehydrogenase 异柠檬酸脱氢酶 Oxalosuccinate 草酰琥珀酸 Citrate 柠檬酸 2-Oxoglutarate a-酮戊二酸

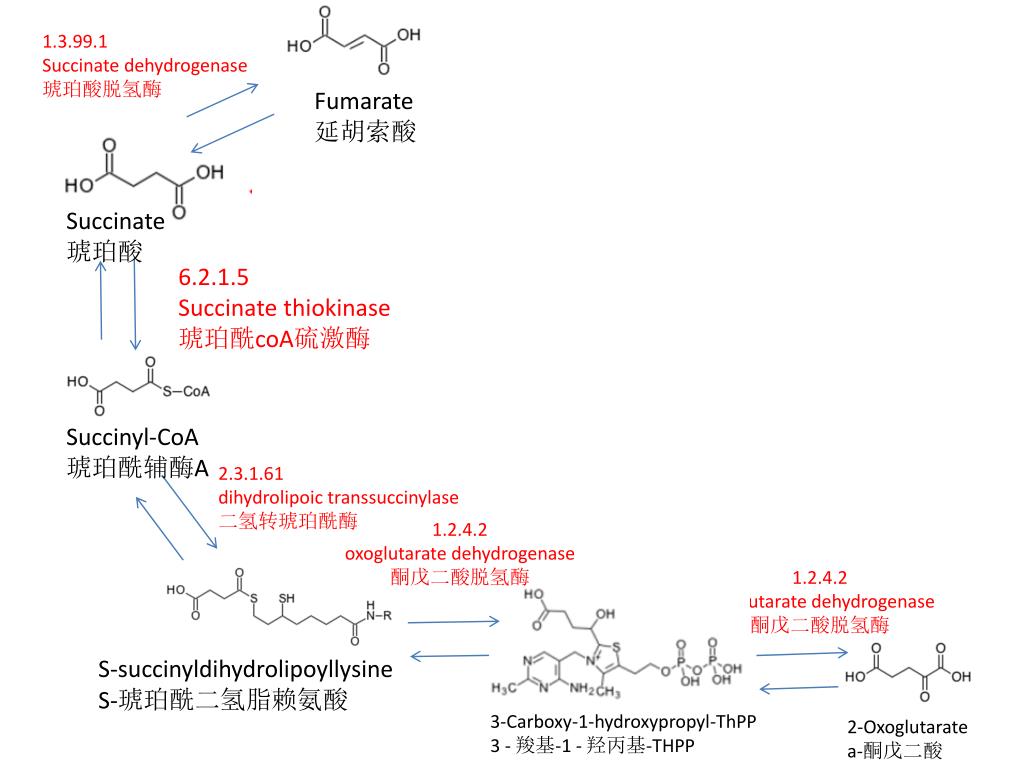

  10. 1.3.99.1 Succinatedehydrogenase 琥珀酸脱氢酶 Fumarate 延胡索酸 Succinate 琥珀酸 6.2.1.5 Succinatethiokinase 琥珀酰coA硫激酶 Succinyl-CoA 琥珀酰辅酶A 2.3.1.61 dihydrolipoictranssuccinylase 二氢转琥珀酰酶 1.2.4.2 oxoglutaratedehydrogenase 酮戊二酸脱氢酶 1.2.4.2 oxoglutaratedehydrogenase 酮戊二酸脱氢酶 S-succinyldihydrolipoyllysine S-琥珀酰二氢脂赖氨酸 3-Carboxy-1-hydroxypropyl-ThPP 3 - 羧基-1 - 羟丙基-THPP 2-Oxoglutarate a-酮戊二酸

  11. 4.1.3.6 Citratase 柠檬酸酶 Fumarate 延胡索酸 1.1.1.37 Malatedehydrogenase 苹果酸脱氢酶 Oxaloacetate 草酰乙酸 2.3.3.1 Citrate synthetase 柠檬酸合成酶 (S)-Malate 苹果酸 4.2.1.2 Fumarase 延胡索酸酶 Citrate 柠檬酸
