Presentation Transcript


  1. Go over the Test

  2. Types of Quadrilaterals(4-sided figures)

  3. Parallelograms A four sided figure with both pairs of opposite sides parallel

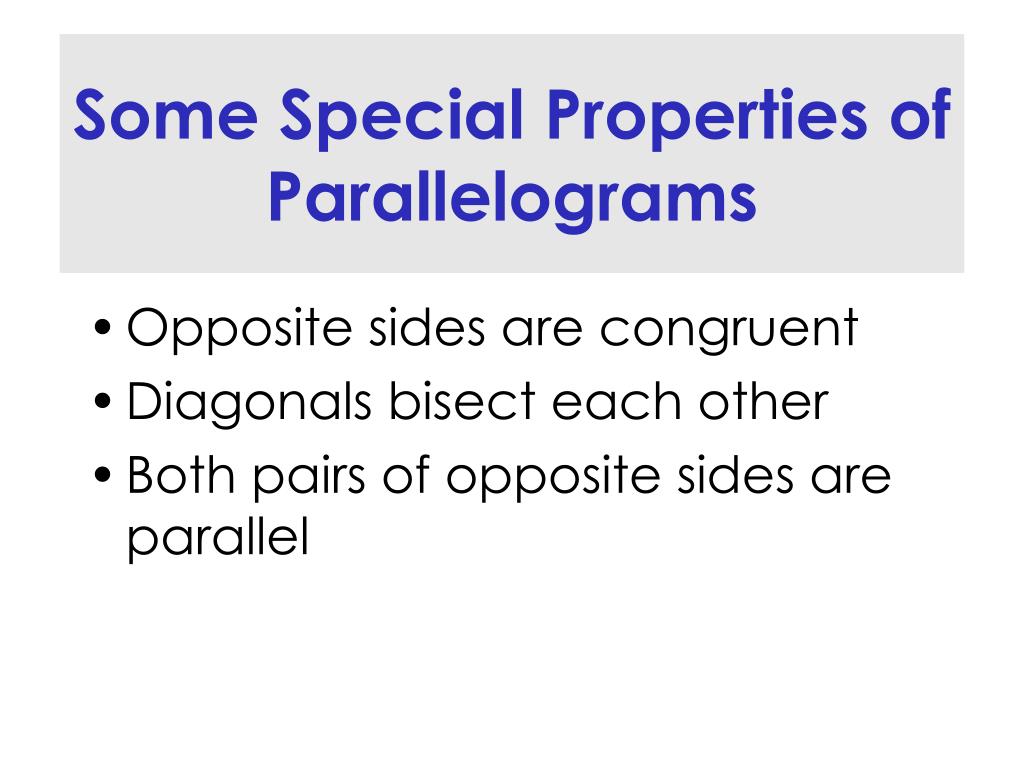

  4. Some Special Properties of Parallelograms • Opposite sides are congruent • Diagonals bisect each other • Both pairs of opposite sides are parallel

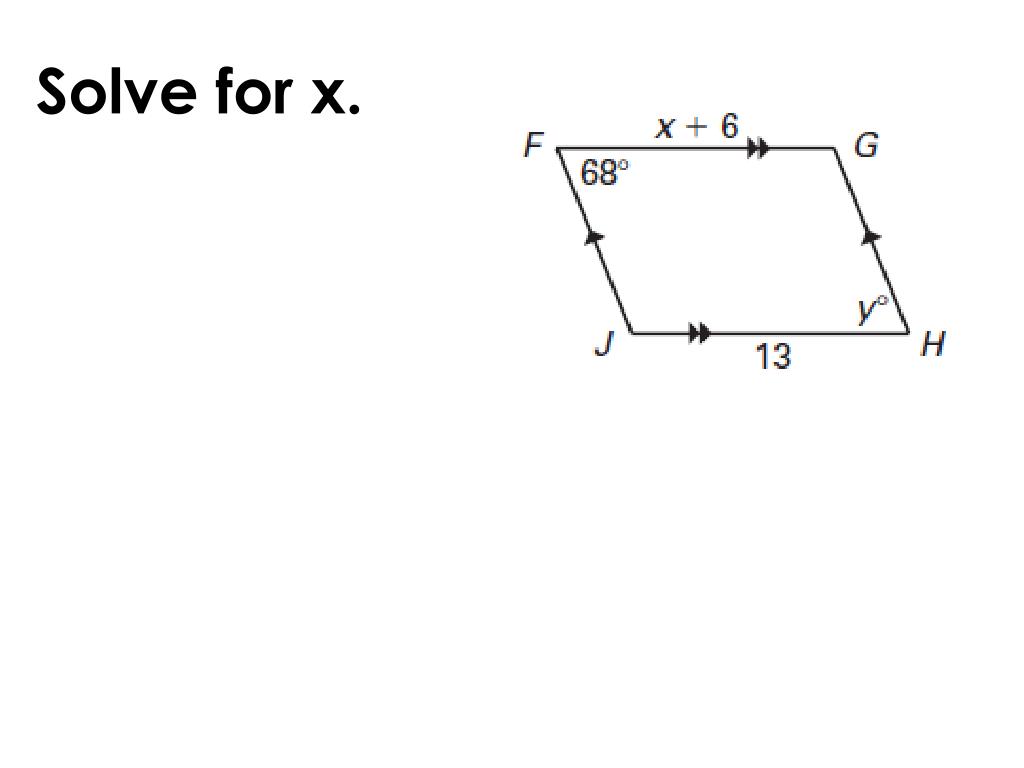

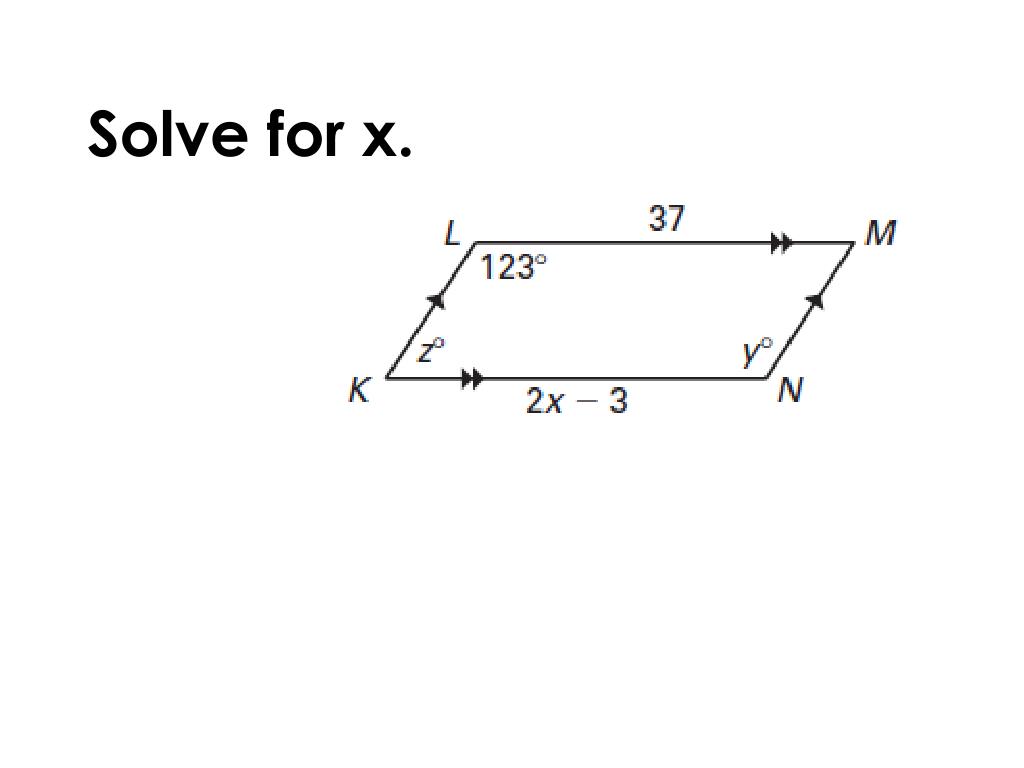

  5. Solve for x.

  6. Solve for x.

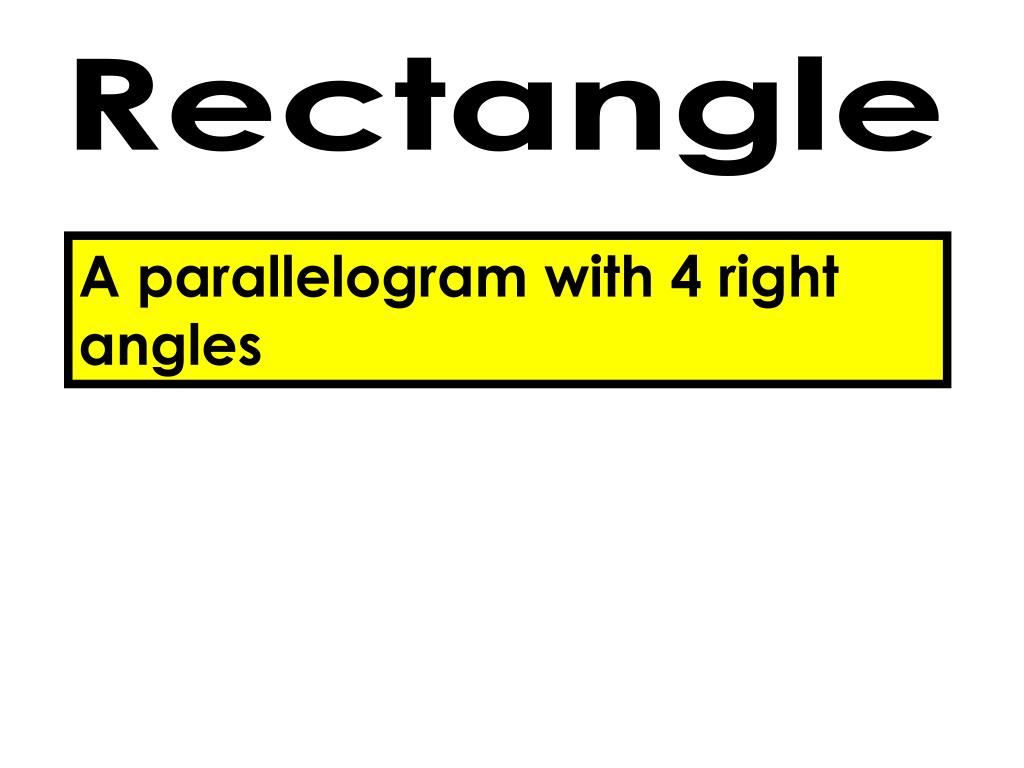

  7. Rectangle A parallelogram with 4 right angles

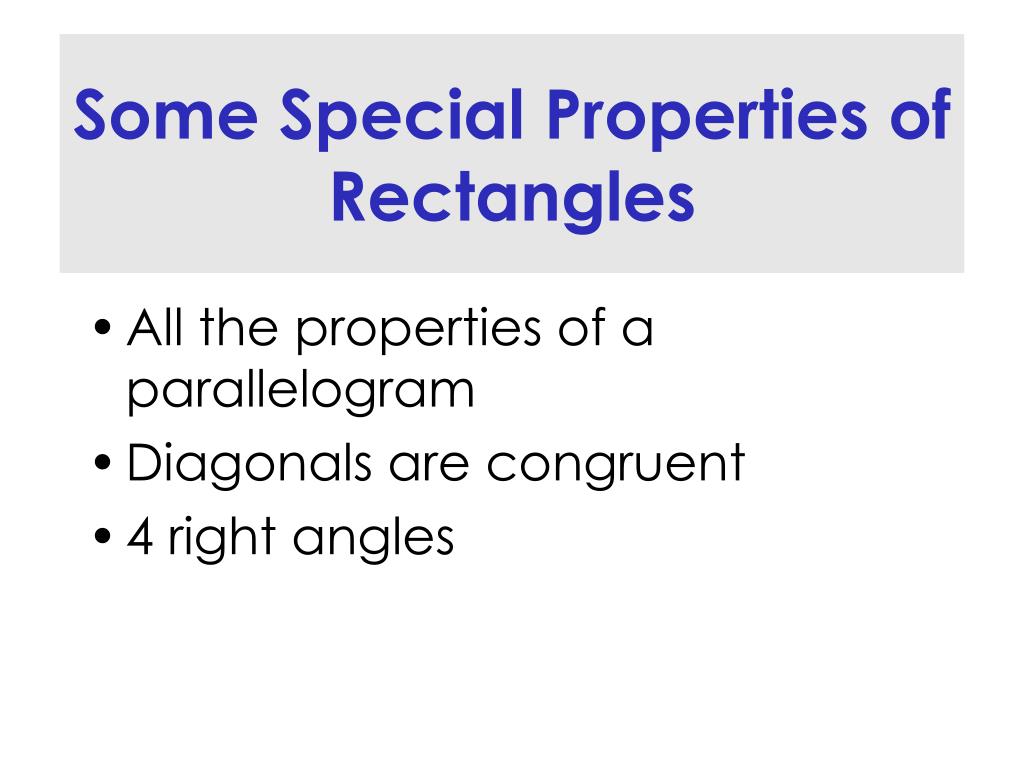

  8. Some Special Properties of Rectangles • All the properties of a parallelogram • Diagonals are congruent • 4 right angles

  9. Rhombus A parallelogram with 4 congruent sides

  10. Some Special Properties of Rhombus • All the properties of a parallelogram • Diagonals are perpendicular • 4 congruent sides

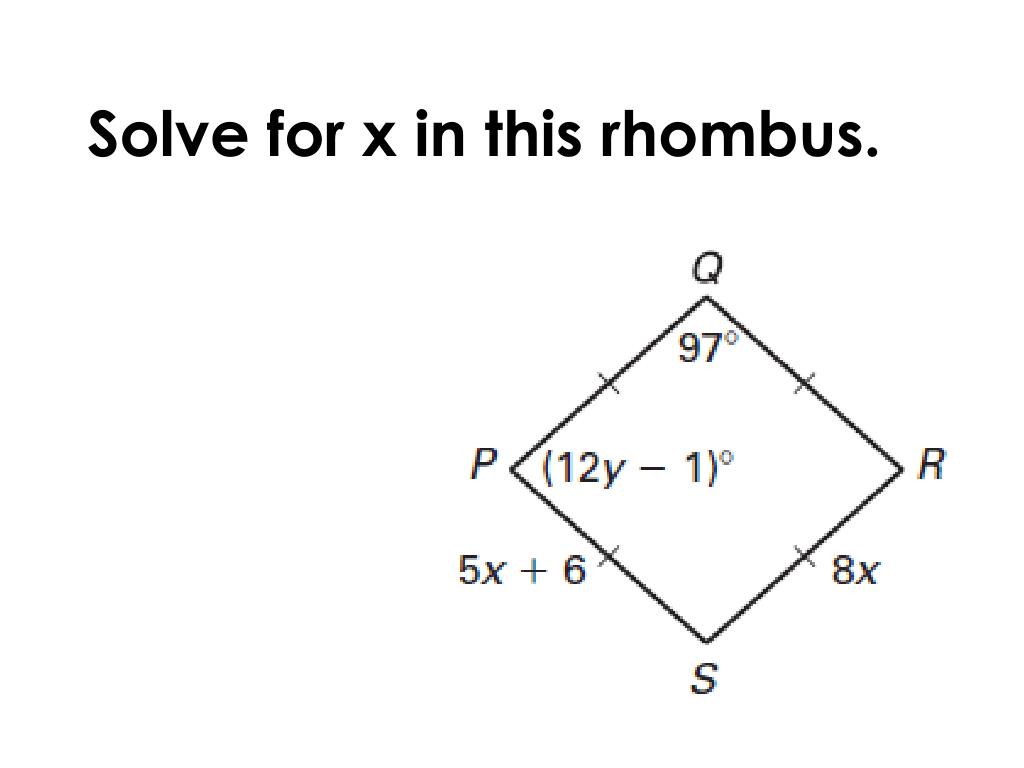

  11. Solve for x in this rhombus.

  12. Rhombus.1. VY =2. mZVY Z

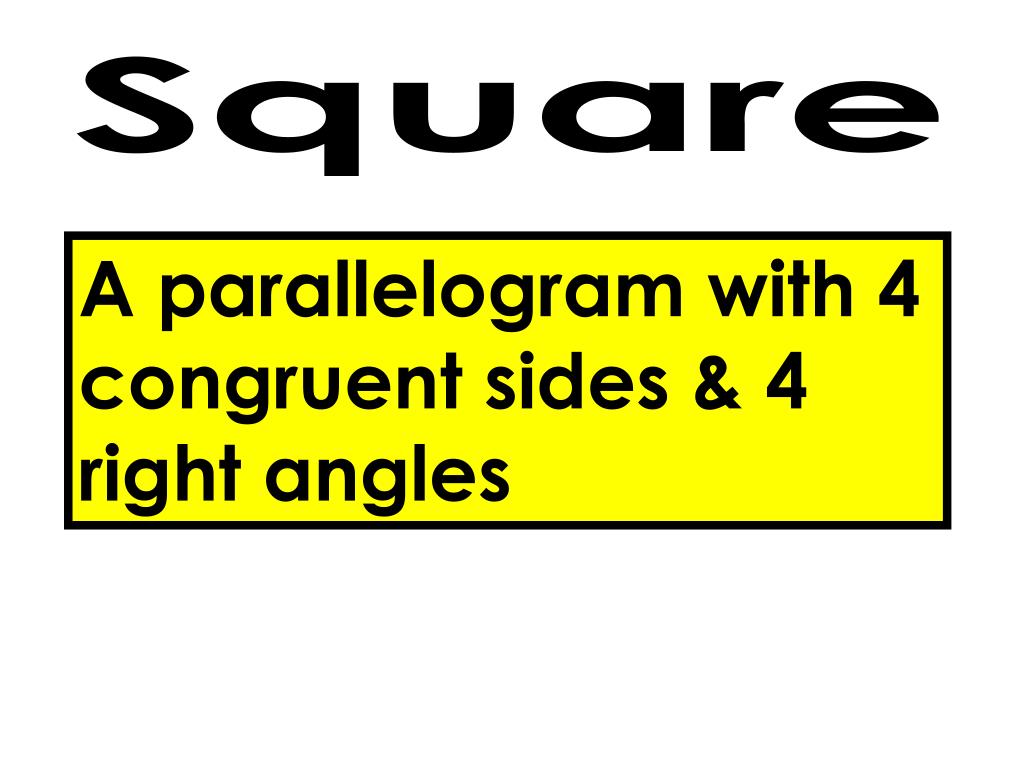

  13. Square A parallelogram with 4 congruent sides & 4 right angles

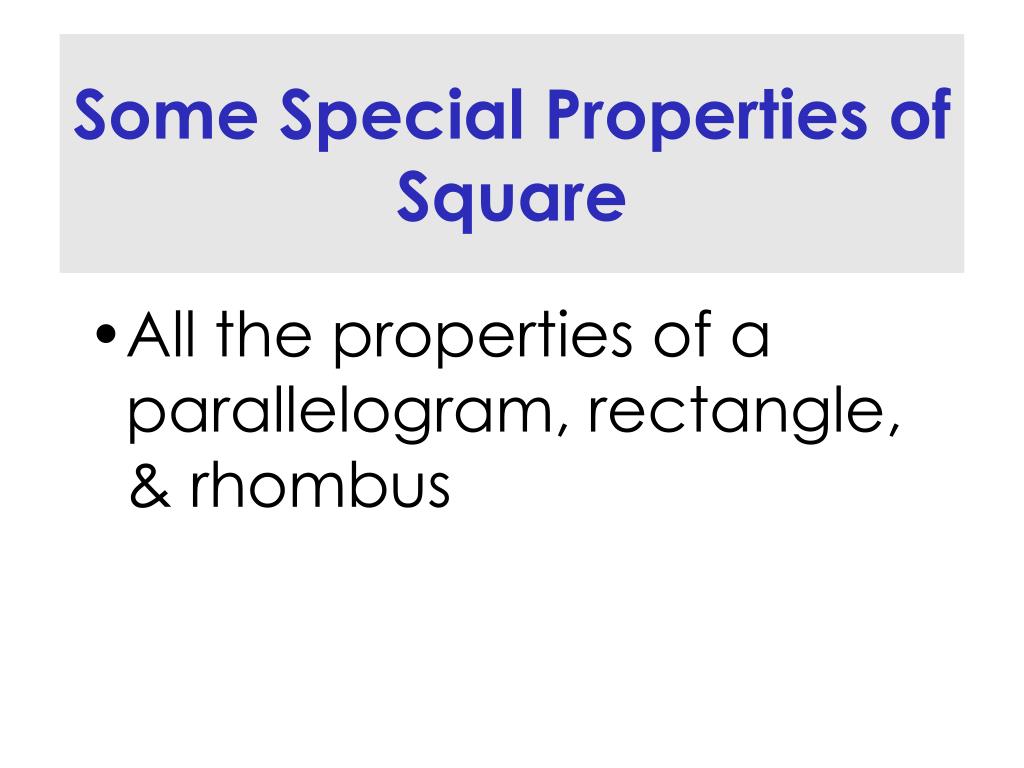

  14. Some Special Properties of Square • All the properties of a parallelogram, rectangle, & rhombus

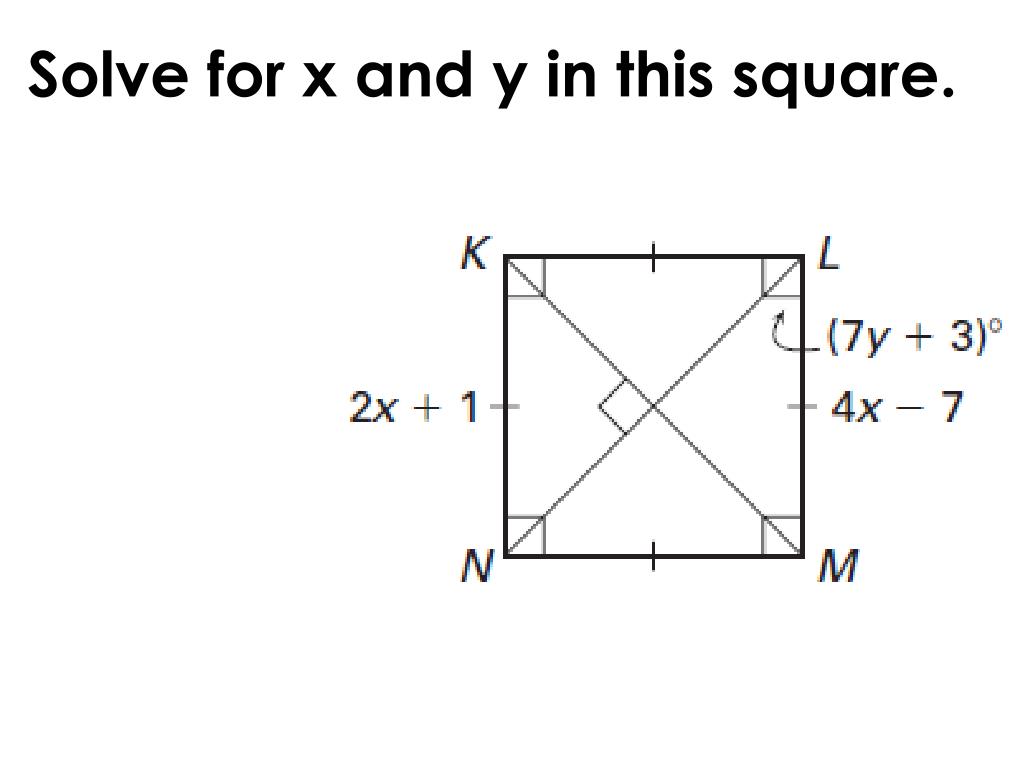

  15. Solve for x and y in this square.

  16. Square1. EJ = 2. HF =4. mEJF5. mHGF

  17. Kite A quadrilateral with 2 pairs of consecutive congruent sides, but opposites sides are NOT parallel

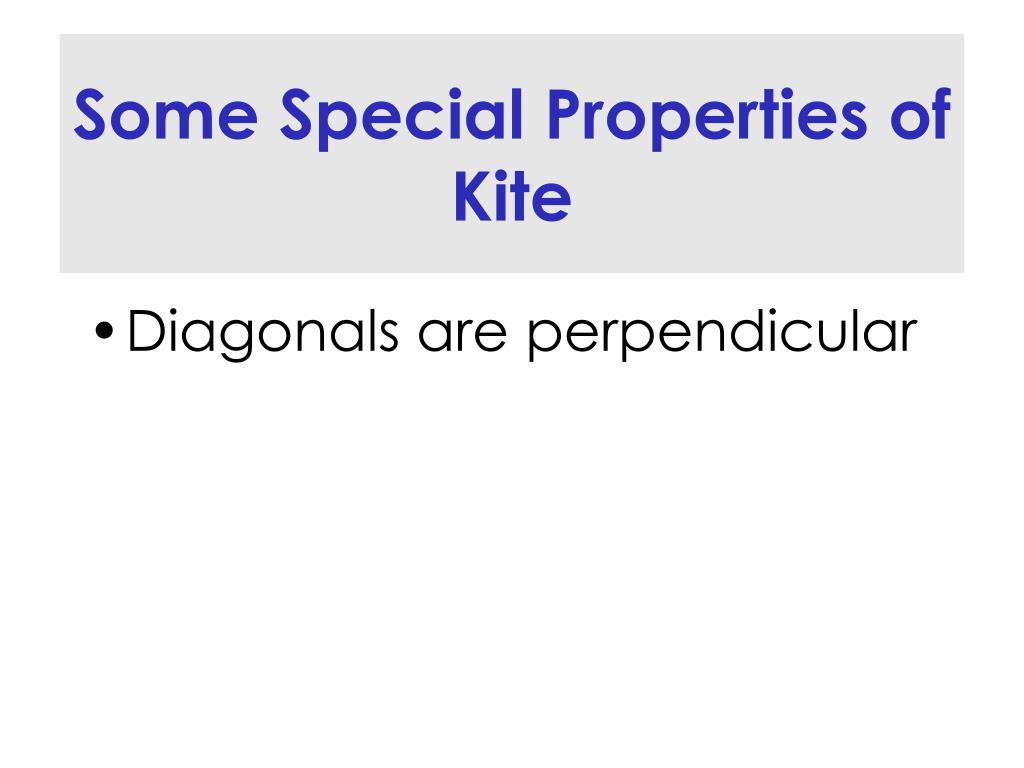

  18. Some Special Properties of Kite • Diagonals are perpendicular

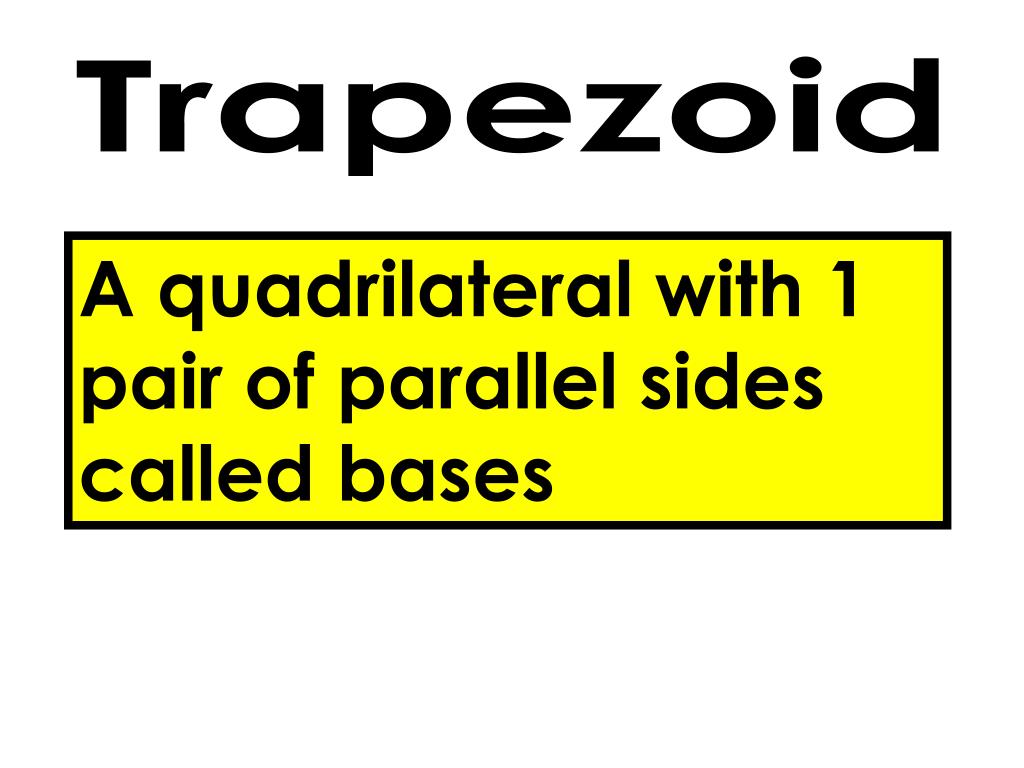

  19. Trapezoid A quadrilateral with 1 pair of parallel sides called bases

  20. base leg leg base Trapezoids Have only one pair of opposite sides that are parallel.

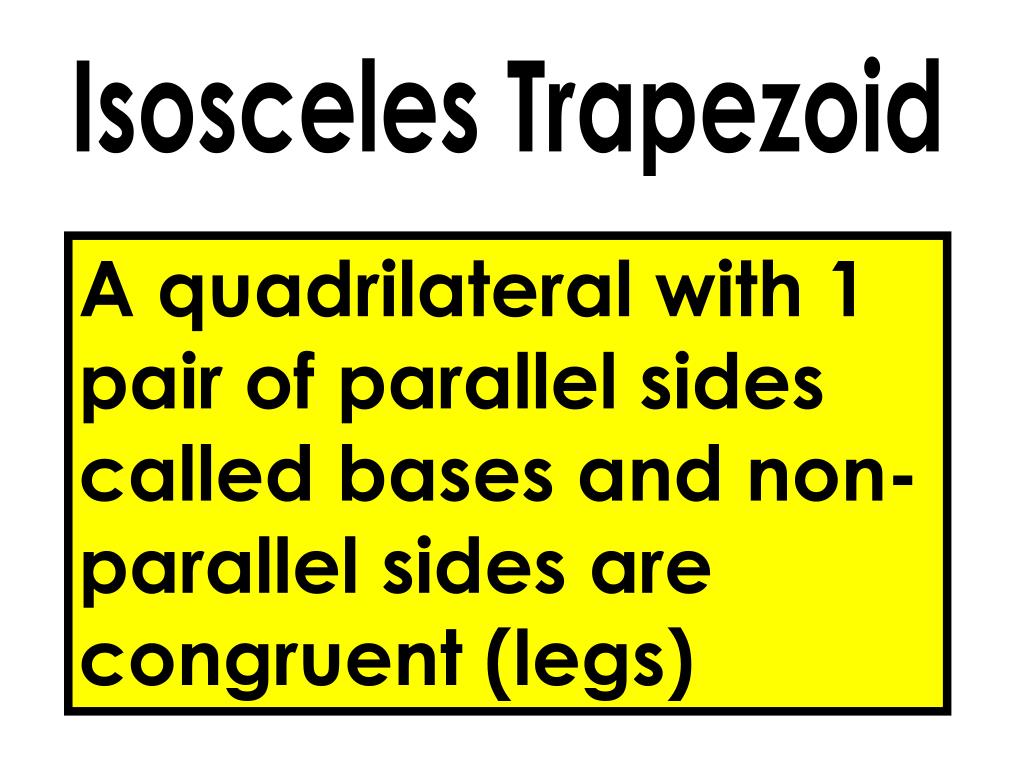

  21. Isosceles Trapezoid A quadrilateral with 1 pair of parallel sides called bases and non-parallel sides are congruent (legs)

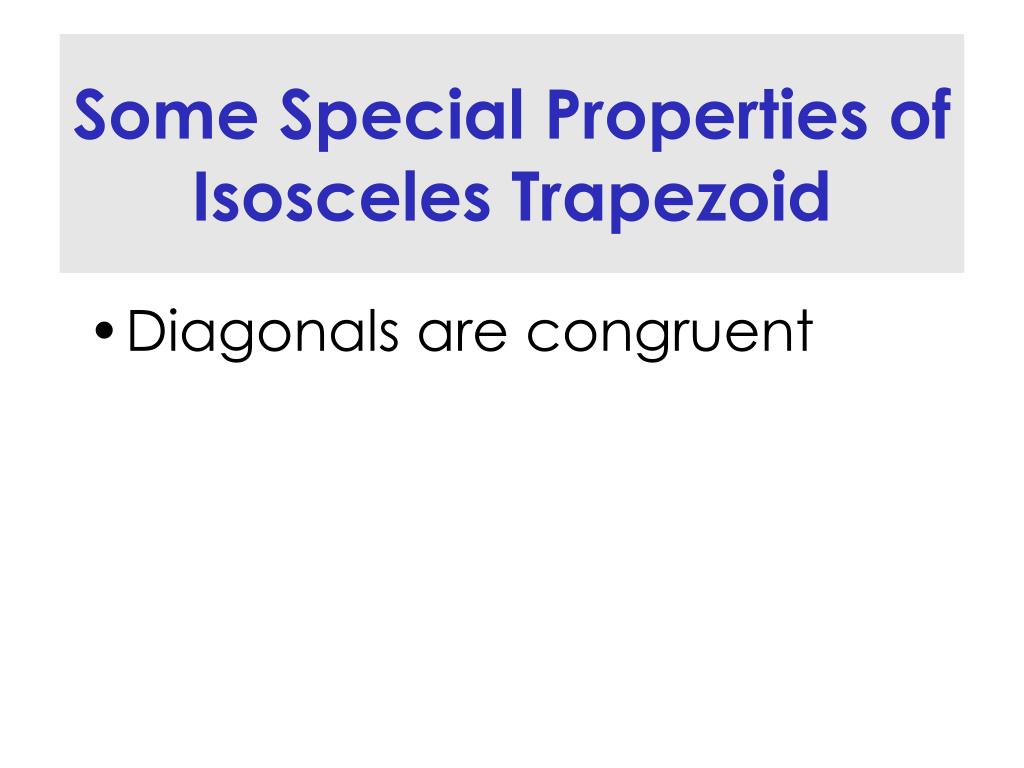

  22. Some Special Properties of Isosceles Trapezoid • Diagonals are congruent

  23. Classifying Trianglesby Sides • Equilateral – 3 congruent sides • Isosceles – 2 congruent sides • Scalene – No sides congruent

  24. Classwork Find the Missing Point Worksheet

  25. Homework Quadrilaterals and Parallelograms Homework Worksheet
