crimss edr offline qc report response to recent findings at noaa star

CrIMSS EDR offline QC Report Response to recent findings at NOAA STAR

Susan Kizer andXu Liu

NASA Langley Research Center

MurtyDivakarla, Mike Wilson, XiaozhenXiong, ChangyiTan, and Flavio IturbideIM Systems Group, Inc. at NOAA/STAR

DeguiGu, Denise Hagan, and Xia L Ma Northrop Grumman Aerospace Systems

Eric Maddy, Antonia Gambacorta, Nick Nalli, Bigyani Das

IM Systems Group, Inc. at NOAA/STAR

Chris Barnet&, Tony Reale*, and Mitch Goldberg$&Formerly with NOAA/STAR and currently with STC, Columbia, MD*NOAA/STAR

$JPSS/NOAA

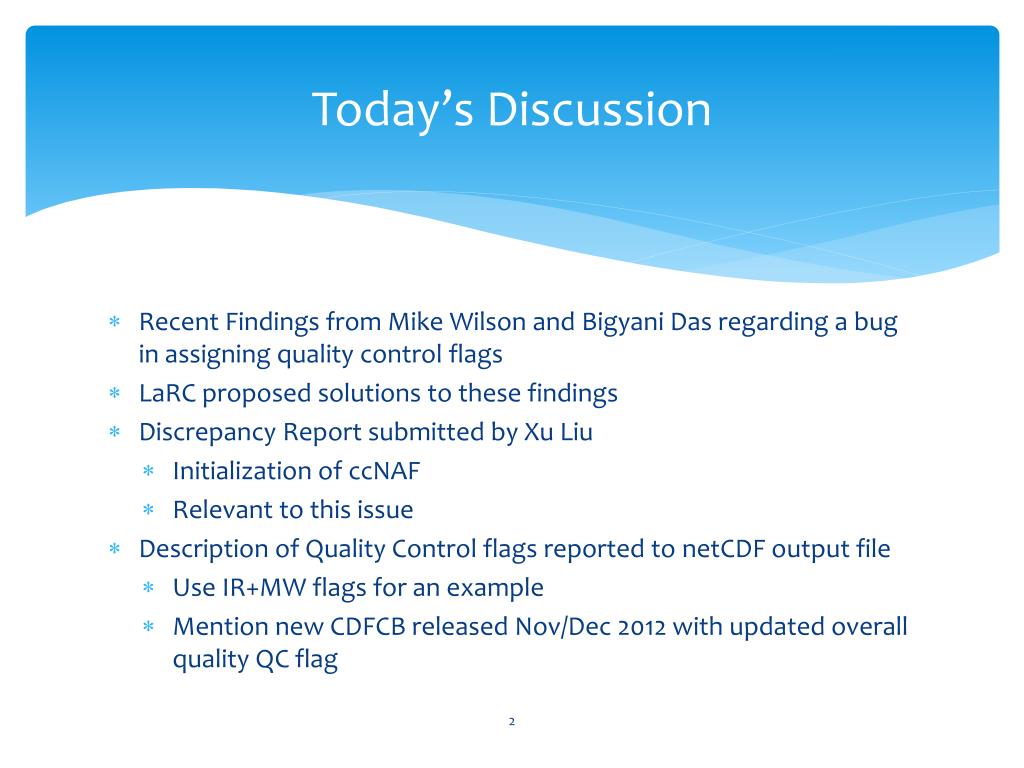

today s discussion
Today’s Discussion
  • Recent Findings from Mike Wilson and Bigyani Das regarding a bug in assigning quality control flags
  • LaRCproposed solutions to these findings
  • Discrepancy Report submitted by Xu Liu
    • Initialization of ccNAF
    • Relevant to this issue
  • Description of Quality Control flags reported to netCDF output file
    • Use IR+MW flags for an example
    • Mention new CDFCB released Nov/Dec 2012 with updated overall quality QC flag

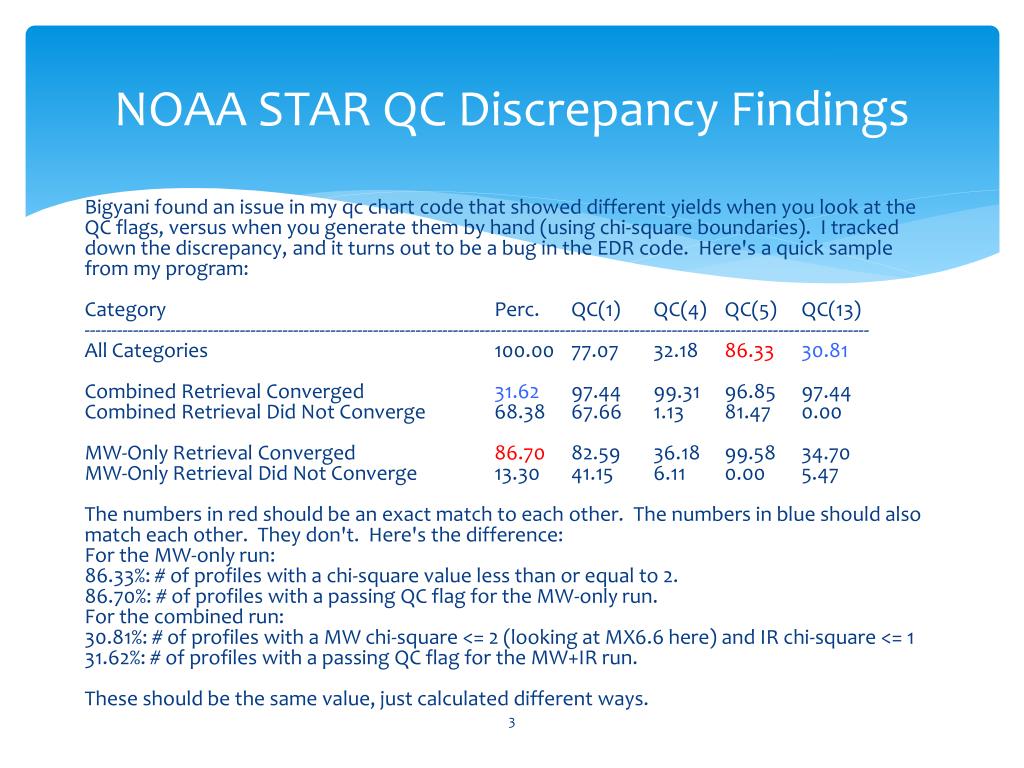

noaa star qc discrepancy findings
NOAA STAR QC Discrepancy Findings

Bigyani found an issue in my qc chart code that showed different yields when you look at the QC flags, versus when you generate them by hand (using chi-square boundaries).  I tracked down the discrepancy, and it turns out to be a bug in the EDR code.  Here's a quick sample from my program:Category Perc.  QC(1) QC(4)  QC(5) QC(13)---------------------------------------------------------------------------------------------------------------------------------------------------All Categories                                            100.00 77.07 32.1886.3330.81Combined Retrieval Converged                          31.62 97.44 99.31 96.85 97.44Combined Retrieval Did Not Converge              68.38 67.66 1.13 81.47 0.00MW-Only Retrieval Converged                            86.70 82.59 36.18 99.58 34.70MW-Only Retrieval Did Not Converge            13.30 41.15 6.11 0.00 5.47The numbers in red should be an exact match to each other.  The numbers in blue should also match each other.  They don't.  Here's the difference:For the MW-only run:86.33%: # of profiles with a chi-square value less than or equal to 2.86.70%: # of profiles with a passing QC flag for the MW-only run.For the combined run:30.81%: # of profiles with a MW chi-square <= 2 (looking at MX6.6 here) and IR chi-square <= 131.62%: # of profiles with a passing QC flag for the MW+IR run.These should be the same value, just calculated different ways.

slide4

Here's what's happening.In the calcCrimssProfiles.f code, you initialize three arrays with 999999 to hold chisq values:chisq_ir = CHISQ_INIT_VALUE

            chisq_mw1 = CHISQ_INIT_VALUE

            chisq_mw2 = CHISQ_INIT_VALUE

We don't actually use these when we're calculated chisq values.  Instead we have "working" values called chisq, chisqmw1, and chisqmw.  These values are inside the ir loop and have the chisq for the current iteration.  At the end of each ir+mw iteration, you write these values to chisq_ir(iter), chisq_mw1(iter), and chisq_mw2(iter) respectively.  When the loop is finished and you have a final answer, you call qc using chisq and chisqmw2.  That gets reported.In a few special cases, this falls apart.  When you have overcast skies, you have this code in calcCrimssProfiles.f:               ELSE

!                 xma (11/15/06) skip below part and write out MW retrievals

                  IF (writeDebug) THEN

CALL addLine('Overcast case, write out MW retrievals')

                  END IF

qcflag(1) = 1

qcflag(4) = 1

                  EXIT irLoop

It looks good.  But the call to qc is after the loop ends:CALL qc(chisq,chisqmw,chisqairs,nsurf,xgesg,xgesmwsav,plandavg, &qcflag, iflagqc)

We're not passing our initialized variables in.  Instead, we're sending in chisq and chisqmw which are likely left over from the last non-overcast profile.  Our values for qcflag(1) and qcflag(4) get overwritten by whatever happens in qc, and now the flags we set to 1 are often reset to 0.There's another case where this happens.  If ccNaf went too high, we have this bit in the code:               IF (( .NOT. clrflg(ic)) .AND. iter == maxIrIter .AND. &

sqrt(ccnaf)>5.) THEN

chisq_ir(iter) = 100000.0 + chisq_ir(iter)

                  EXIT irLoop

               END IF

Again, the call to qc is using chisq instead of chisq_ir(iter).  So the qc routine never sees the 100000 added on, and some values pass. In the case of the microwave-only product QC(5), I believe it's the same issue causing the reverse problem.  The mw-only QC pass/fail is set early, and that value seems right.  What happens later is this:            chisq_mw1 = CHISQ_INIT_VALUEThe final chisq value that determines QC(5) is stored in chisqmw1.  It then gets reassigned here:               chisq_mw1(iter) = chisqmw1

(This is also why we report the same chisq value up to 4 times when we look up the value of mw1 in the final product.  Different issue.)  In cases where we add the 100000, we're fine.   But when we have overcast skies, the line for chisq_mw1 is never reached.  So we leave chisq_mw1 as a 999999 and that gets reported.  But the QC may either pass or fail.One possible fix is to do this before qc?chisq = chisq_ir(iter)chisqmw = chisq_mw2(iter)                               chisq_mw1(iter)=chisqmw1

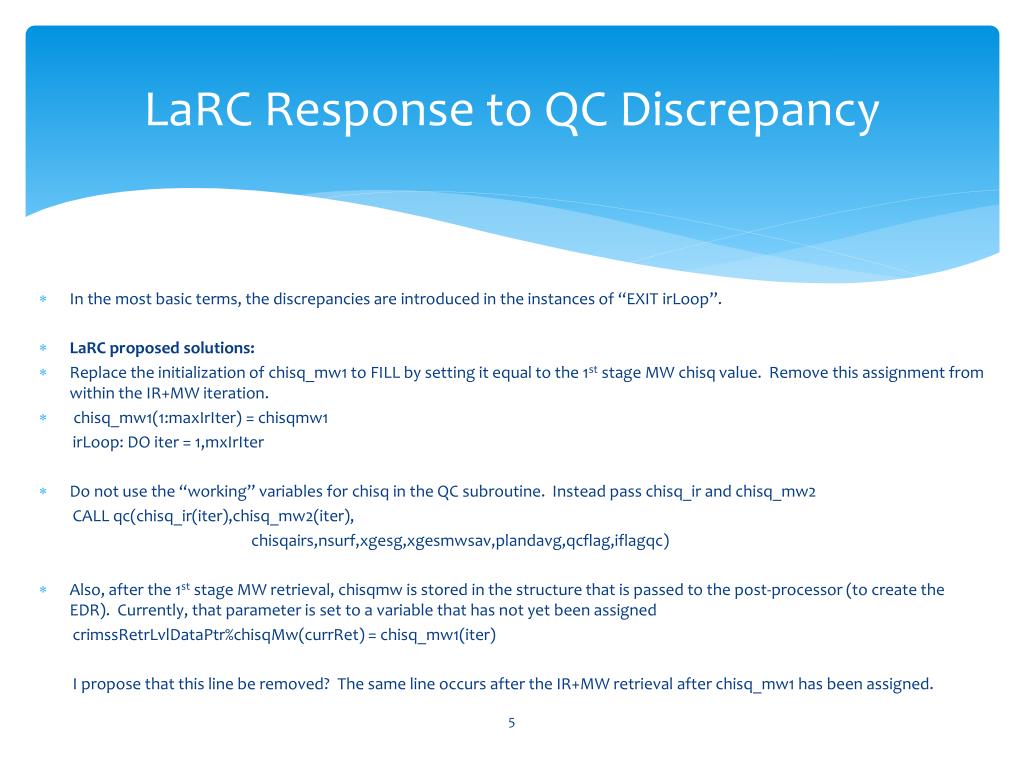

larc response to qc discrepancy
LaRC Response to QC Discrepancy
  • In the most basic terms, the discrepancies are introduced in the instances of “EXIT irLoop”.
  • LaRC proposed solutions:
  • Replace the initialization of chisq_mw1 to FILL by setting it equal to the 1st stage MW chisq value. Remove this assignment from within the IR+MW iteration.
  • chisq_mw1(1:maxIrIter) = chisqmw1

irLoop: DO iter = 1,mxIrIter

  • Do not use the “working” variables for chisq in the QC subroutine. Instead pass chisq_ir and chisq_mw2

CALL qc(chisq_ir(iter),chisq_mw2(iter),

chisqairs,nsurf,xgesg,xgesmwsav,plandavg,qcflag,iflagqc)

  • Also, after the 1st stage MW retrieval, chisqmw is stored in the structure that is passed to the post-processor (to create the EDR). Currently, that parameter is set to a variable that has not yet been assigned

crimssRetrLvlDataPtr%chisqMw(currRet) = chisq_mw1(iter)

I propose that this line be removed? The same line occurs after the IR+MW retrieval after chisq_mw1 has been assigned.

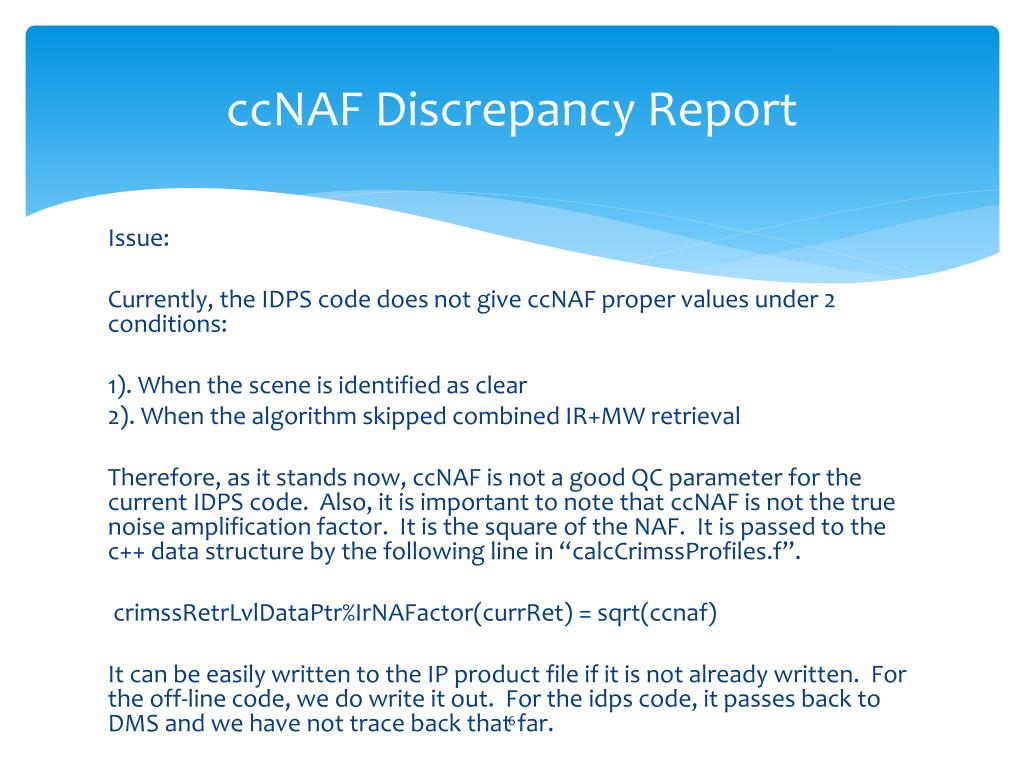

ccnaf discrepancy report
ccNAF Discrepancy Report

Issue:

Currently, the IDPS code does not give ccNAF proper values under 2 conditions:

1). When the scene is identified as clear

2). When the algorithm skipped combined IR+MW retrieval

Therefore, as it stands now, ccNAF is not a good QC parameter for the current IDPS code. Also, it is important to note that ccNAF is not the true noise amplification factor. It is the square of the NAF. It is passed to the c++ data structure by the following line in “calcCrimssProfiles.f”.

crimssRetrLvlDataPtr%IrNAFactor(currRet) = sqrt(ccnaf)

It can be easily written to the IP product file if it is not already written. For the off-line code, we do write it out. For the idps code, it passes back to DMS and we have not trace back that far.

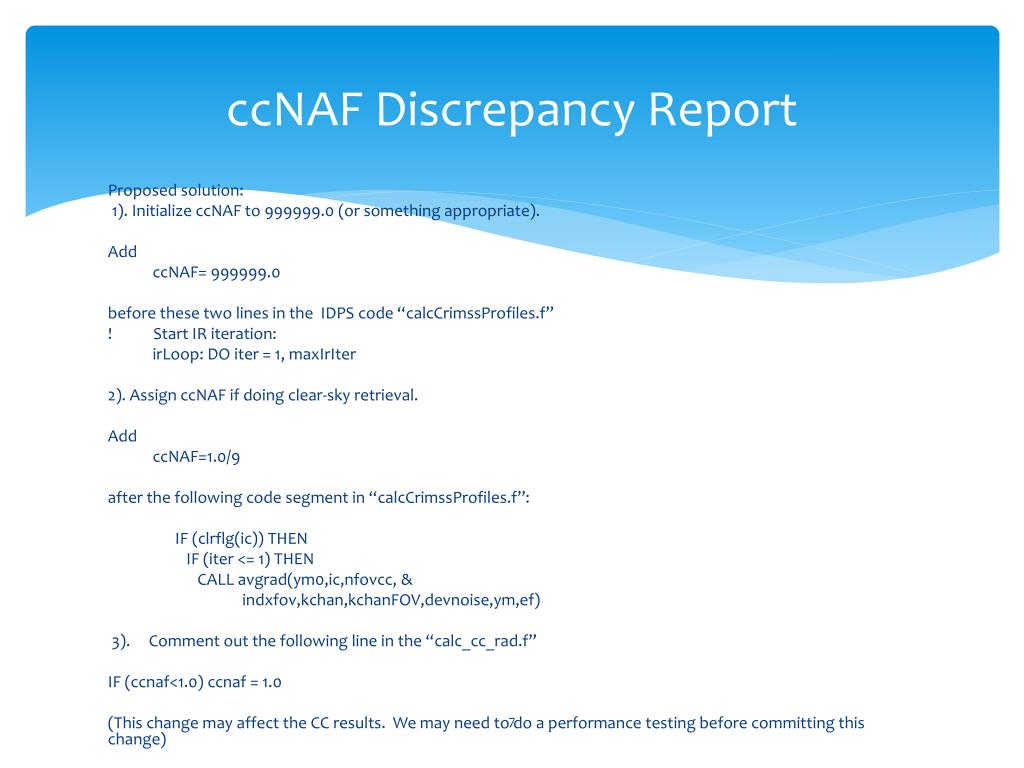

ccnaf discrepancy report1
ccNAF Discrepancy Report

Proposed solution:

1). Initialize ccNAF to 999999.0 (or something appropriate).

Add

ccNAF= 999999.0

before these two lines in the IDPS code “calcCrimssProfiles.f”

! Start IR iteration:

irLoop: DO iter = 1, maxIrIter

2). Assign ccNAF if doing clear-sky retrieval.

Add

ccNAF=1.0/9

after the following code segment in “calcCrimssProfiles.f”:

IF (clrflg(ic)) THEN

IF (iter <= 1) THEN

CALL avgrad(ym0,ic,nfovcc, &

indxfov,kchan,kchanFOV,devnoise,ym,ef)

3). Comment out the following line in the “calc_cc_rad.f”

IF (ccnaf<1.0) ccnaf = 1.0

(This change may affect the CC results. We may need to do a performance testing before committing this change)

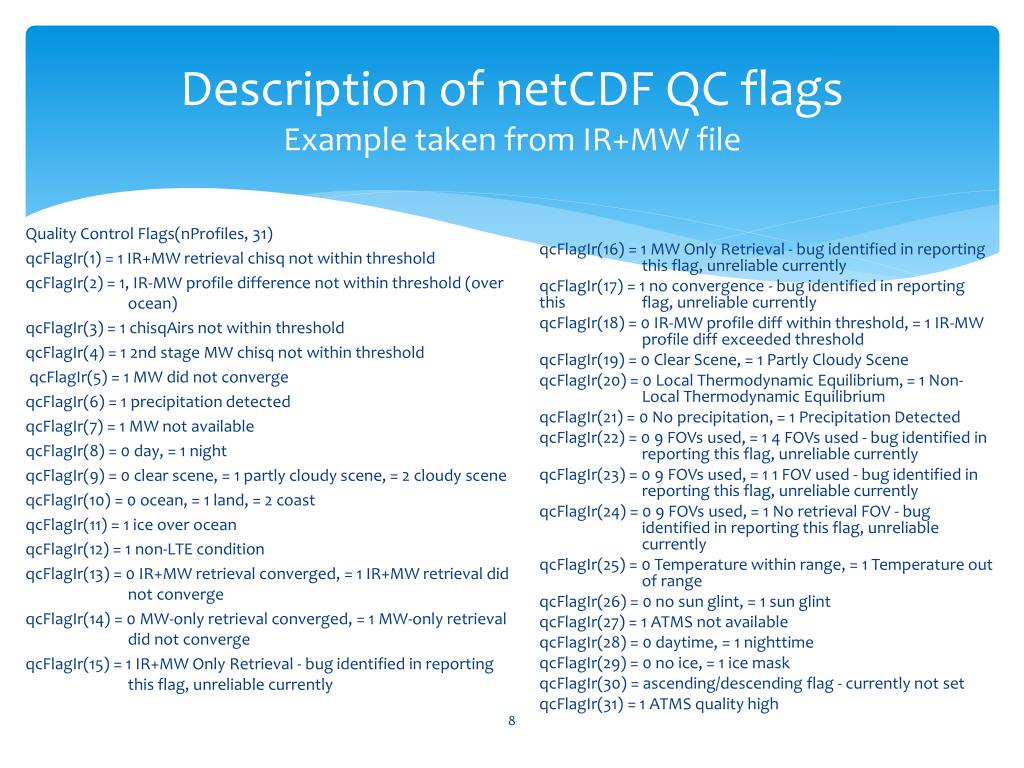

description of netcdf qc flags example taken from ir mw file
Description of netCDF QC flagsExample taken from IR+MW file

qcFlagIr(16) = 1 MW Only Retrieval - bug identified in reporting this flag, unreliable currently

qcFlagIr(17) = 1 no convergence - bug identified in reporting this flag, unreliable currently

qcFlagIr(18) = 0 IR-MW profile diff within threshold, = 1 IR-MW profile diff exceeded threshold

qcFlagIr(19) = 0 Clear Scene, = 1 Partly Cloudy Scene

qcFlagIr(20) = 0 Local Thermodynamic Equilibrium, = 1 Non- Local Thermodynamic Equilibrium

qcFlagIr(21) = 0 No precipitation, = 1 Precipitation Detected

qcFlagIr(22) = 0 9 FOVs used, = 1 4 FOVs used - bug identified in reporting this flag, unreliable currently

qcFlagIr(23) = 0 9 FOVs used, = 1 1 FOV used - bug identified in reporting this flag, unreliable currently

qcFlagIr(24) = 0 9 FOVs used, = 1 No retrieval FOV - bug identified in reporting this flag, unreliable currently

qcFlagIr(25) = 0 Temperature within range, = 1 Temperature out of range

qcFlagIr(26) = 0 no sun glint, = 1 sun glint

qcFlagIr(27) = 1 ATMS not available

qcFlagIr(28) = 0 daytime, = 1 nighttime

qcFlagIr(29) = 0 no ice, = 1 ice mask

qcFlagIr(30) = ascending/descending flag - currently not set

qcFlagIr(31) = 1 ATMS quality high

Quality Control Flags(nProfiles, 31)

qcFlagIr(1) = 1 IR+MW retrieval chisq not within threshold

qcFlagIr(2) = 1, IR-MW profile difference not within threshold (over ocean)

qcFlagIr(3) = 1 chisqAirs not within threshold

qcFlagIr(4) = 1 2nd stage MW chisq not within threshold

qcFlagIr(5) = 1 MW did not converge

qcFlagIr(6) = 1 precipitation detected

qcFlagIr(7) = 1 MW not available

qcFlagIr(8) = 0 day, = 1 night

qcFlagIr(9) = 0 clear scene, = 1 partly cloudy scene, = 2 cloudy scene

qcFlagIr(10) = 0 ocean, = 1 land, = 2 coast

qcFlagIr(11) = 1 ice over ocean

qcFlagIr(12) = 1 non-LTE condition

qcFlagIr(13) = 0 IR+MW retrieval converged, = 1 IR+MW retrieval did not converge

qcFlagIr(14) = 0 MW-only retrieval converged, = 1 MW-only retrieval did not converge

qcFlagIr(15) = 1 IR+MW Only Retrieval - bug identified in reporting this flag, unreliable currently

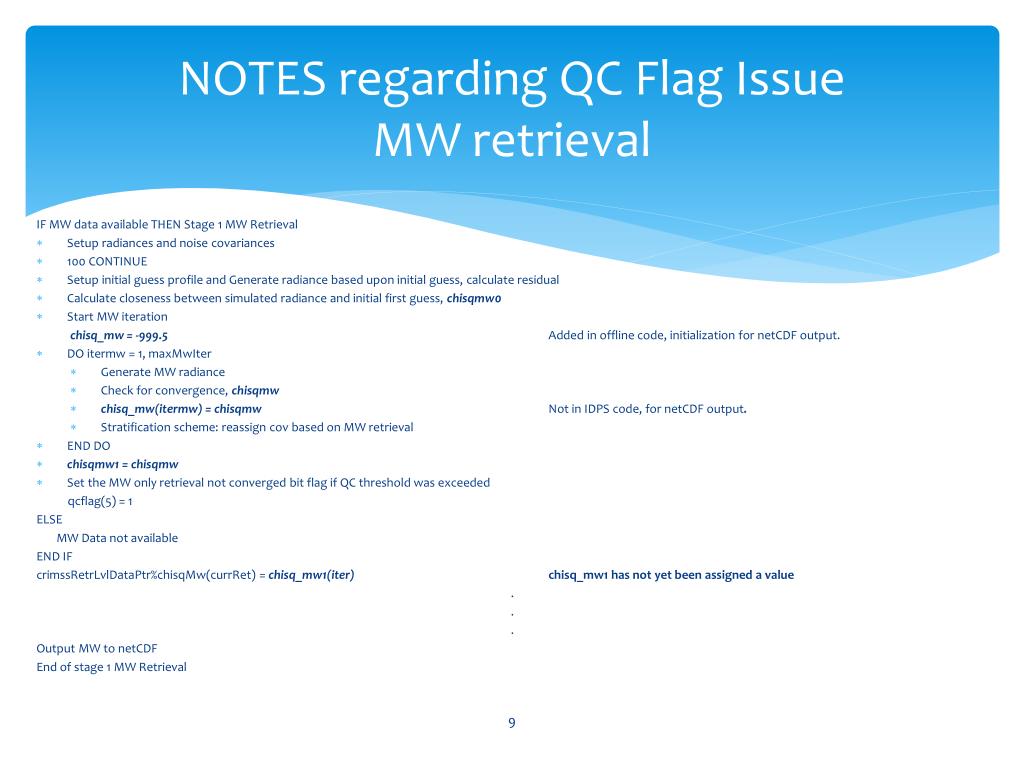

notes regarding qc flag issue mw retrieval
NOTES regarding QC Flag IssueMW retrieval

IF MW data available THEN Stage 1 MW Retrieval

  • Setup radiances and noise covariances
  • 100 CONTINUE
  • Setup initial guess profile and Generate radiance based upon initial guess, calculate residual
  • Calculate closeness between simulated radiance and initial first guess, chisqmw0
  • Start MW iteration

chisq_mw = -999.5 Added in offline code, initialization for netCDF output.

  • DO itermw = 1, maxMwIter
    • Generate MW radiance
    • Check for convergence, chisqmw
    • chisq_mw(itermw) = chisqmwNot in IDPS code, for netCDF output.
    • Stratification scheme: reassign cov based on MW retrieval
  • END DO
  • chisqmw1 = chisqmw
  • Set the MW only retrieval not converged bit flag if QC threshold was exceeded

qcflag(5) = 1

ELSE

MW Data not available

END IF

crimssRetrLvlDataPtr%chisqMw(currRet) = chisq_mw1(iter) chisq_mw1 has not yet been assigned a value

.

.

.

Output MW to netCDF

End of stage 1 MW Retrieval

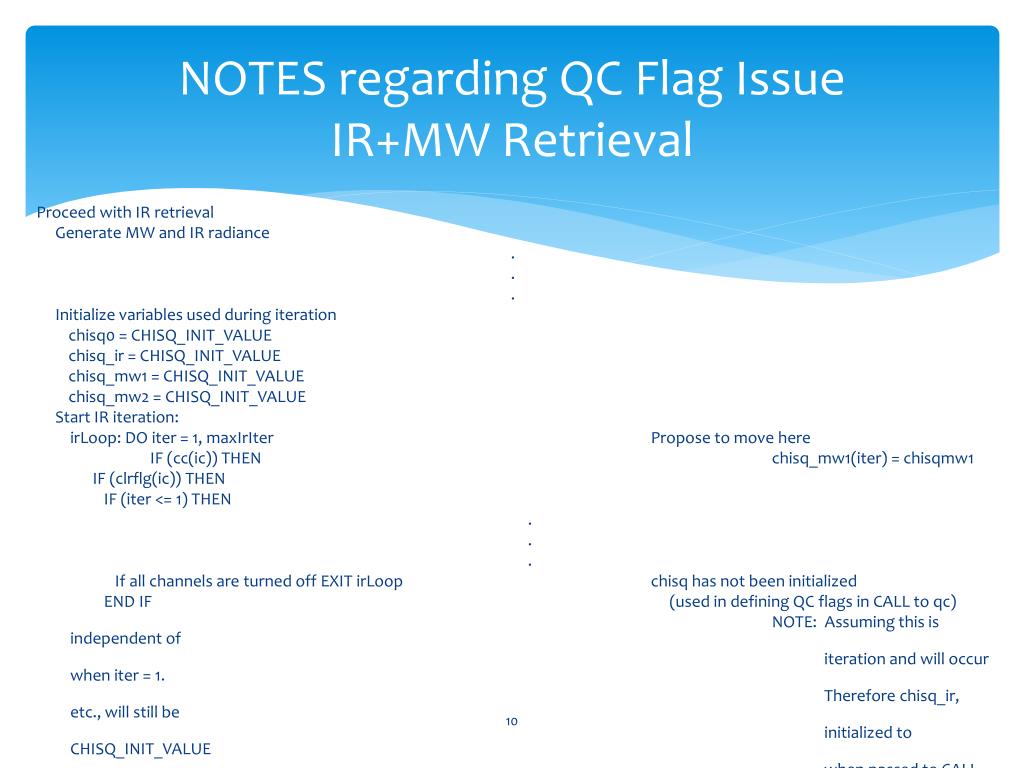

notes regarding qc flag issue ir mw retrieval
NOTES regarding QC Flag IssueIR+MW Retrieval

Proceed with IR retrieval

Generate MW and IR radiance

.

.

.

Initialize variables used during iteration

chisq0 = CHISQ_INIT_VALUE

chisq_ir = CHISQ_INIT_VALUE

chisq_mw1 = CHISQ_INIT_VALUE

chisq_mw2 = CHISQ_INIT_VALUE

Start IR iteration:

irLoop: DO iter = 1, maxIrIter Propose to move here

IF (cc(ic)) THEN chisq_mw1(iter) = chisqmw1

IF (clrflg(ic)) THEN

IF (iter <= 1) THEN

.

.

.

If all channels are turned off EXIT irLoopchisq has not been initialized

END IF (used in defining QC flags in CALL to qc)

NOTE: Assuming this is independent of

iteration and will occur when iter = 1.

Therefore chisq_ir, etc., will still be

initialized to CHISQ_INIT_VALUE

when passed to CALL qc.

chisq_mw1 not yet assigned a value so

it will be reported as FILL (999999).

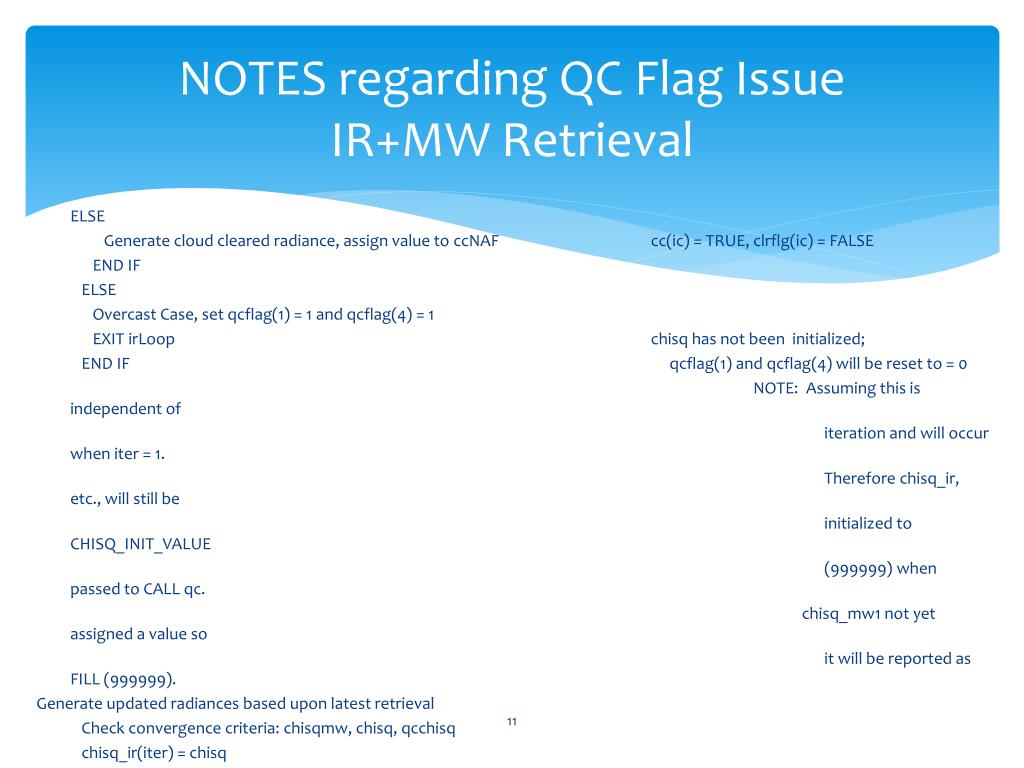

notes regarding qc flag issue ir mw retrieval1
NOTES regarding QC Flag IssueIR+MW Retrieval

ELSE

Generate cloud cleared radiance, assign value to ccNAF cc(ic) = TRUE, clrflg(ic) = FALSE

END IF

ELSE

Overcast Case, set qcflag(1) = 1 and qcflag(4) = 1

EXIT irLoopchisq has not been initialized;

END IF qcflag(1) and qcflag(4) will be reset to = 0

NOTE: Assuming this is independent of

iteration and will occur when iter = 1.

Therefore chisq_ir, etc., will still be

initialized to CHISQ_INIT_VALUE

(999999) when passed to CALL qc.

chisq_mw1 not yet assigned a value so

it will be reported as FILL (999999).

Generate updated radiances based upon latest retrieval

Check convergence criteria: chisqmw, chisq, qcchisq

chisq_ir(iter) = chisq

chisq_mw1(iter) = chisqmw1 Propose to move this line up to beginning of

chisq_mw2(iter) = chisqmwirLoop.

IF (.NOT. cc(ic)) THEN This will not be reached.

ccnaf = 0.0001

END IF

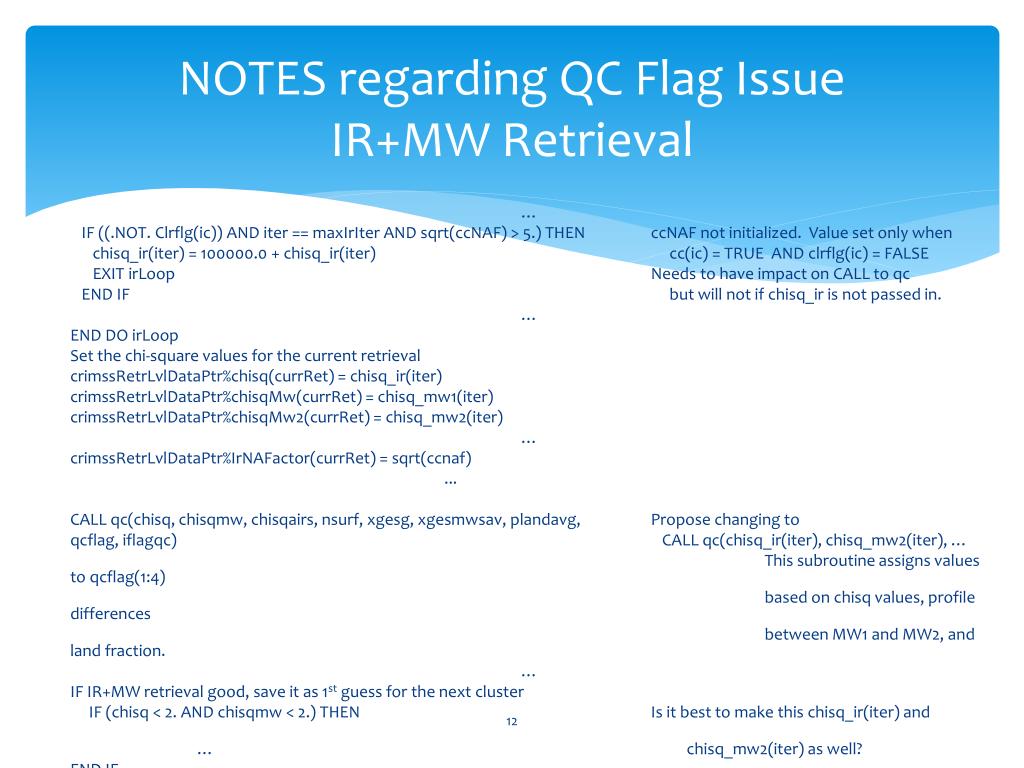

notes regarding qc flag issue ir mw retrieval2
NOTES regarding QC Flag IssueIR+MW Retrieval

IF ((.NOT. Clrflg(ic)) AND iter == maxIrIter AND sqrt(ccNAF) > 5.) THEN ccNAF not initialized. Value set only when

chisq_ir(iter) = 100000.0 + chisq_ir(iter) cc(ic) = TRUE AND clrflg(ic) = FALSE

EXIT irLoop Needs to have impact on CALL to qc

END IF but will not if chisq_ir is not passed in.

END DO irLoop

Set the chi-square values for the current retrieval

crimssRetrLvlDataPtr%chisq(currRet) = chisq_ir(iter)

crimssRetrLvlDataPtr%chisqMw(currRet) = chisq_mw1(iter)

crimssRetrLvlDataPtr%chisqMw2(currRet) = chisq_mw2(iter)

crimssRetrLvlDataPtr%IrNAFactor(currRet) = sqrt(ccnaf)

...

CALL qc(chisq, chisqmw, chisqairs, nsurf, xgesg, xgesmwsav, plandavg, Propose changing to

qcflag, iflagqc) CALL qc(chisq_ir(iter), chisq_mw2(iter), …

This subroutine assigns values to qcflag(1:4)

based on chisq values, profile differences

between MW1 and MW2, and land fraction.

IF IR+MW retrieval good, save it as 1st guess for the next cluster

IF (chisq < 2. AND chisqmw < 2.) THEN Is it best to make this chisq_ir(iter) and

… chisq_mw2(iter) as well?

END IF
