  1. Bearings Learning Intentions To understand what a bearing is To be able to work out and measure bearings

  2. Estimate = …………° Points = ……… Estimate = …………° Points = ……… Estimate = …………° Points = ……… Estimate = …………° Points = ……… Estimate = …………° Points = ……… Total Points __________

  3. Compass points

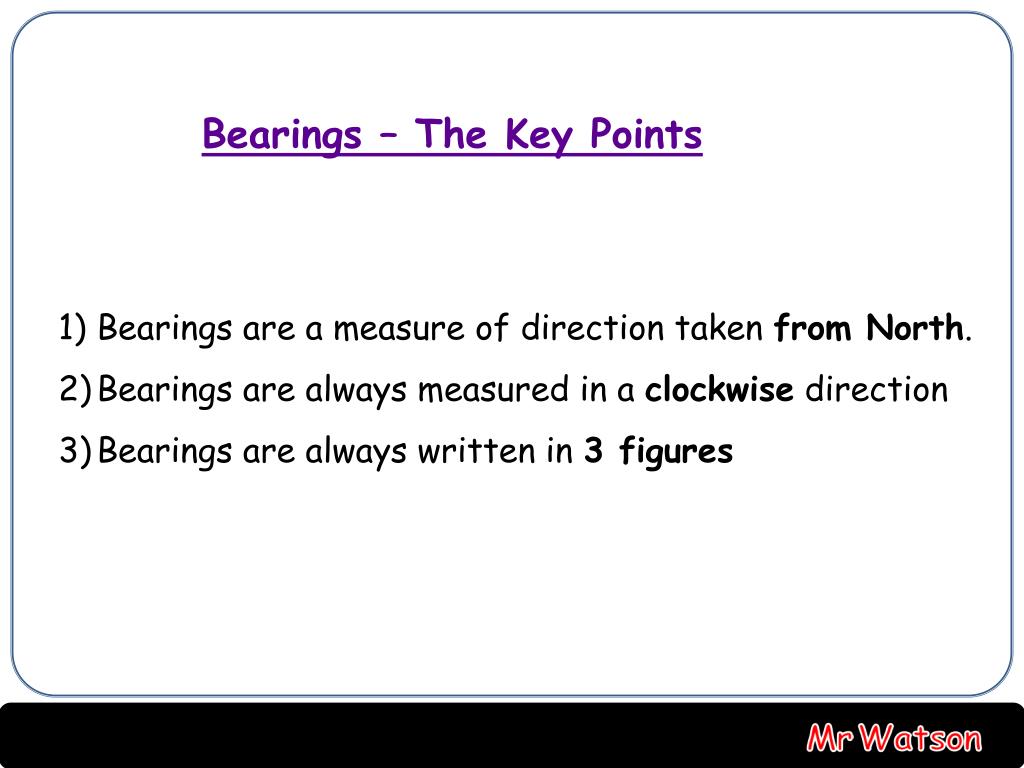

  4. Bearings – The Key Points Bearings are a measure of direction taken from North. Bearings are always measured in a clockwise direction Bearings are always written in 3 figures

  5. Example 1: What is the compass direction from Belfast to Omagh? ……………………What is the bearing from Belfast to Omagh? …………………… Omagh Belfast North

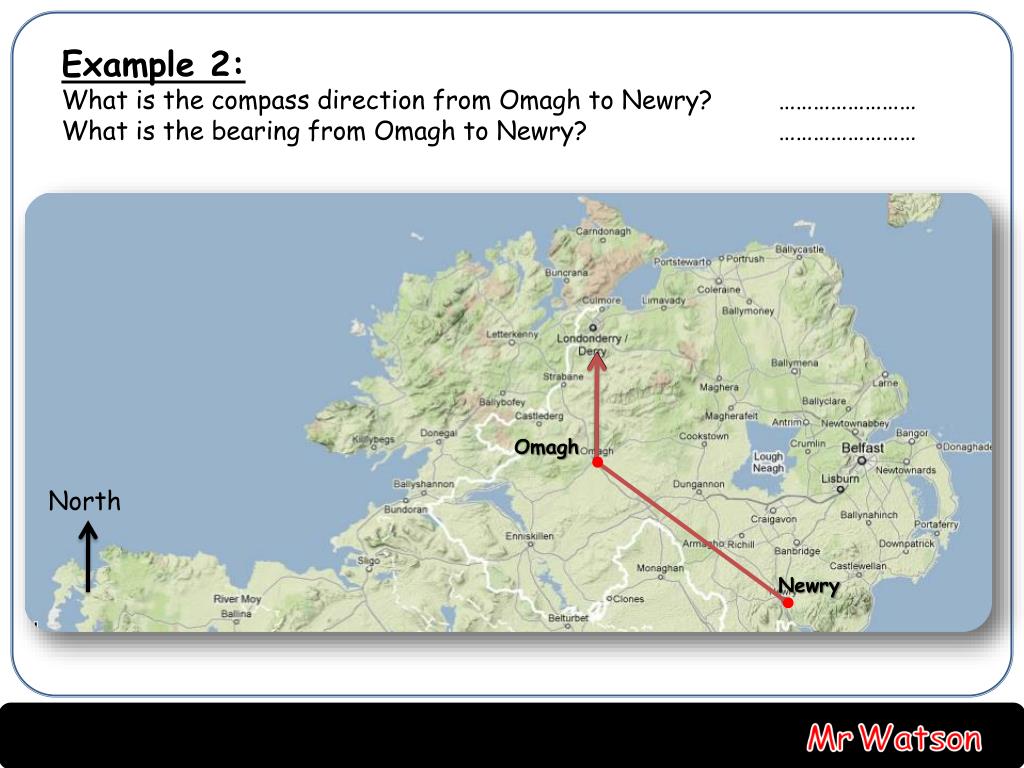

  6. Example 2: What is the compass direction from Omagh to Newry? ……………………What is the bearing from Omagh to Newry? …………………… Omagh North Newry

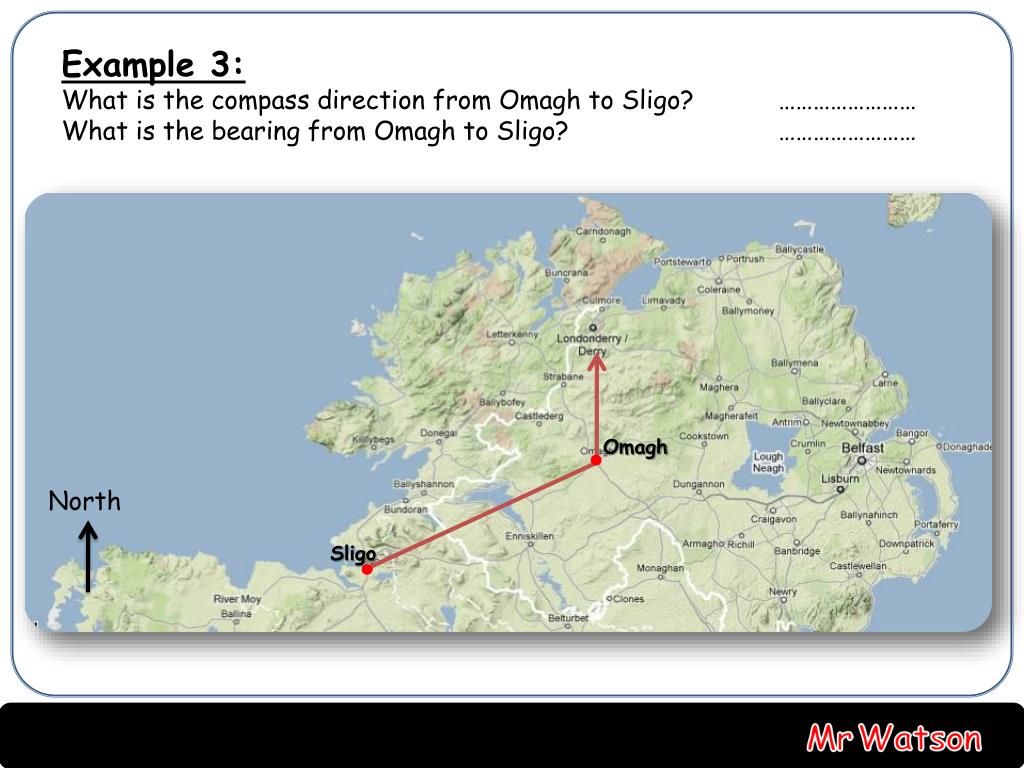

  7. Example 3: What is the compass direction from Omagh to Sligo? ……………………What is the bearing from Omagh to Sligo? …………………… Omagh North Sligo

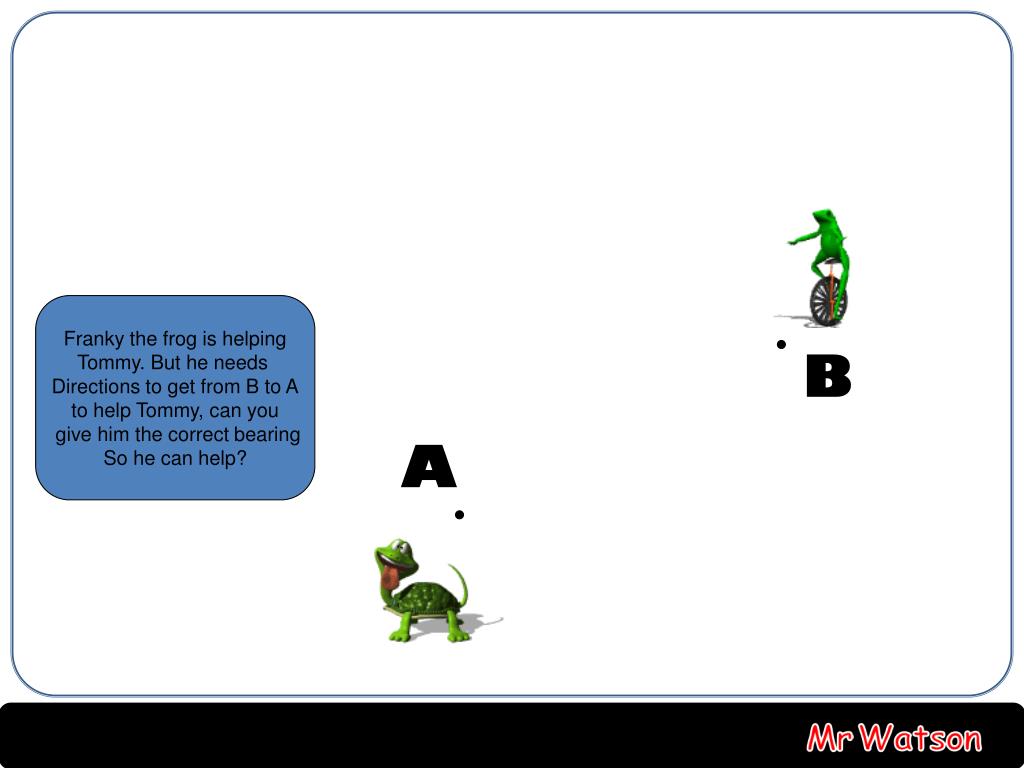

  8. Franky the frog is helping Tommy. But he needs Directions to get from B to A to help Tommy, can you give him the correct bearing So he can help? B A

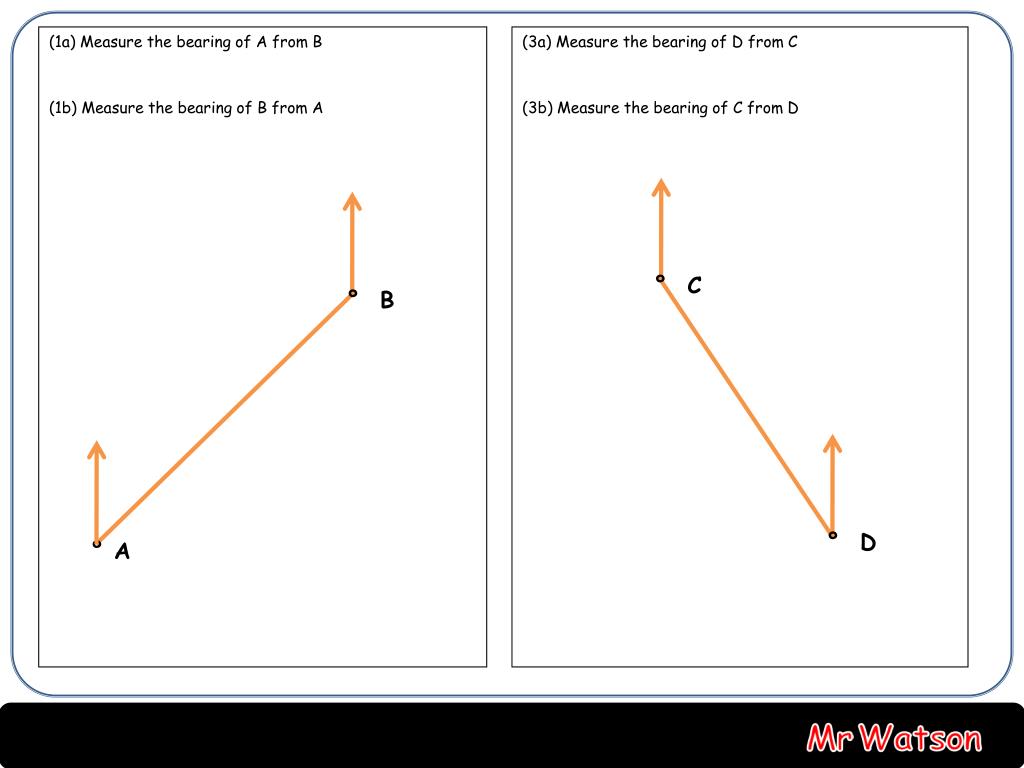

  9. (1a) Measure the bearing of A from B (1b) Measure the bearing of B from A (b) Measure the bearing of A from B (3a) Measure the bearing of D from C (3b) Measure the bearing of C from D (b) Measure the bearing of A from B ° C ° B ° D ° A

  10. Question 3 • Measure the bearing from Banbury to Catford = ……………..° • Measure the bearing from Catford to Art = ……………..° • Measure the bearing from Banbury to Art = ……………..° • Measure the bearing from Art to Banbury = ……………..° • (b) Measure the bearing of A from B ° Banbury ° Art ° Catford

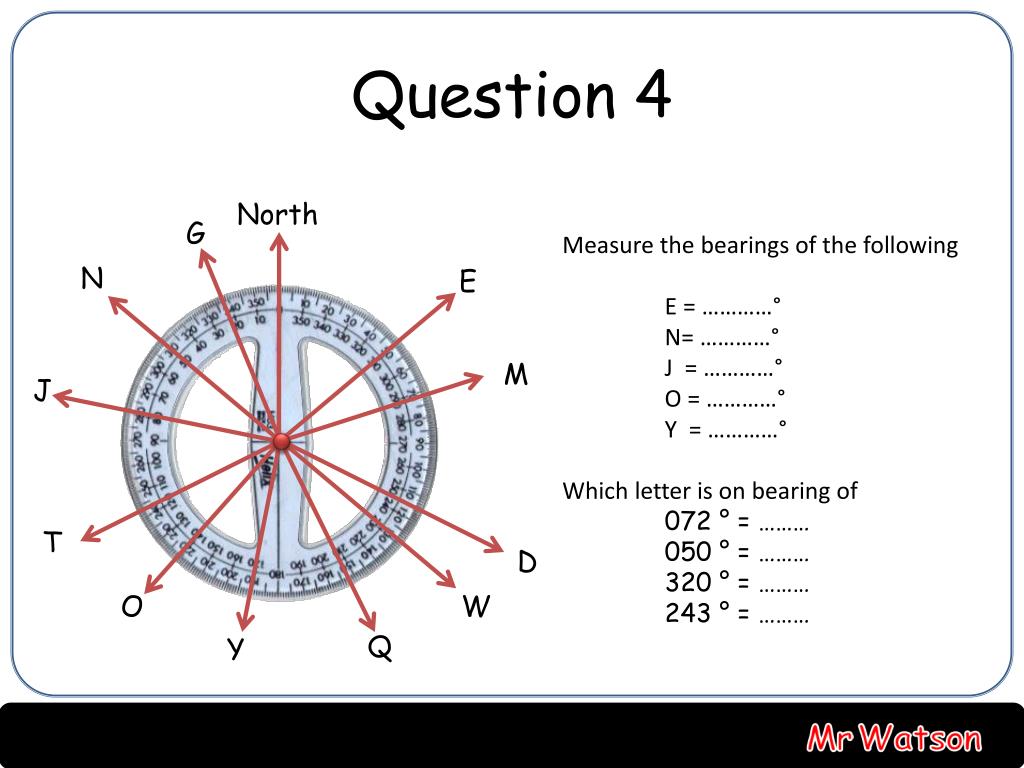

  11. Question 4 North G Measure the bearings of the following E = …………° N= …………° J = …………° O = …………° Y = …………° Which letter is on bearing of 072 ° = ……… 050 ° = ……… 320 ° = ……… 243 ° = ……… N E M J T D O W Q Y

  12. Exam Type Questions & Reading Scales

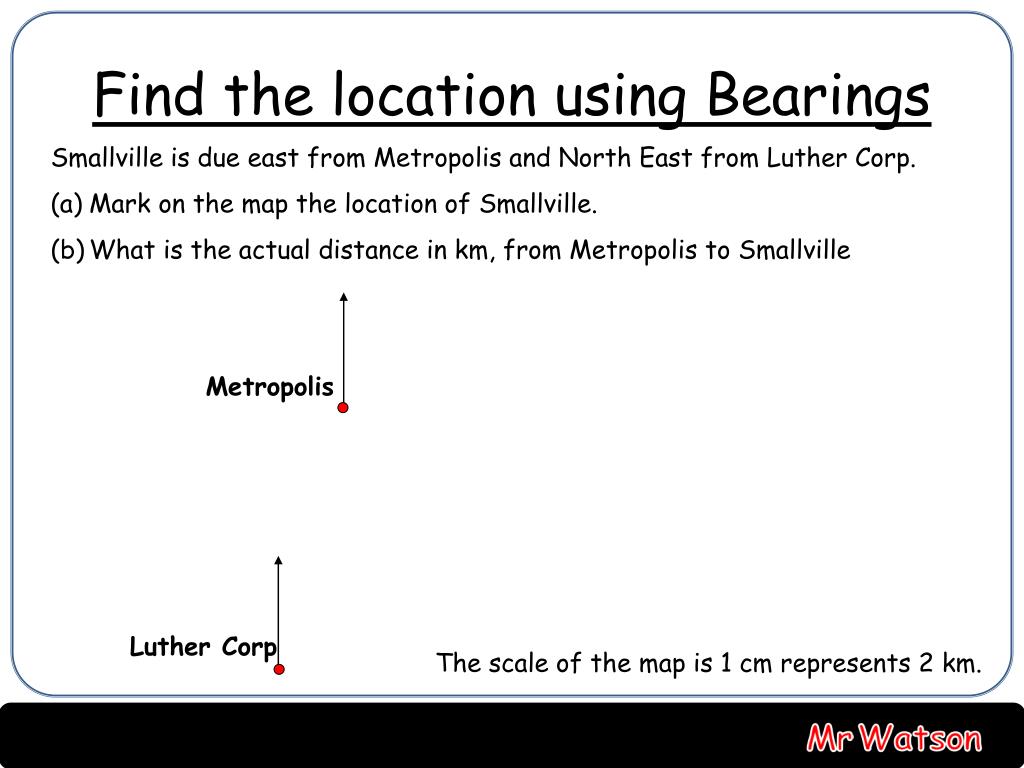

  13. Find the location using Bearings • Smallville is due east from Metropolis and North East from Luther Corp. • Mark on the map the location of Smallville. • What is the actual distance in km, from Metropolis to Smallville Metropolis Luther Corp The scale of the map is 1 cm represents 2 km.

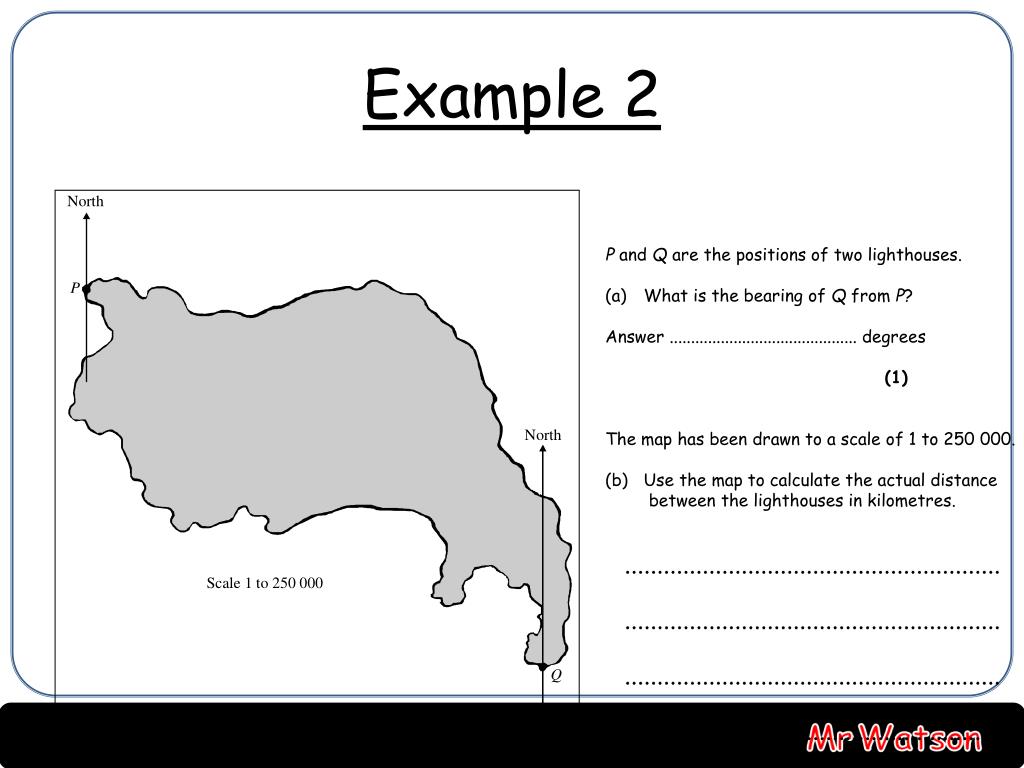

  14. Example 2 N o r t h P N o r t h S c a l e 1 t o 2 5 0 0 0 0 Q • P and Q are the positions of two lighthouses. • What is the bearing of Q from P? • Answer ............................................ degrees • (1) • The map has been drawn to a scale of 1 to 250 000. • Use the map to calculate the actual distance • between the lighthouses in kilometres.

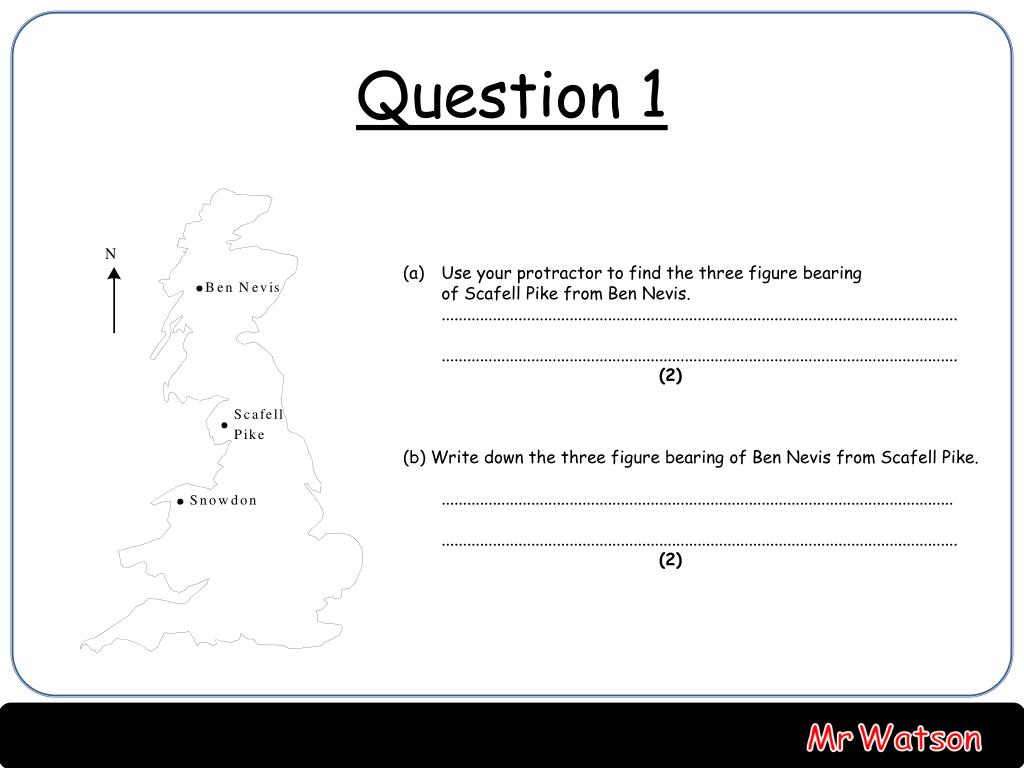

  15. Question 1 N B e n N e v i s S c a f e l l P i k e S n o w d o n • Use your protractor to find the three figure bearing • of Scafell Pike from Ben Nevis. • ......................................................................................................................... • ......................................................................................................................... • (2) • (b) Write down the three figure bearing of Ben Nevis from Scafell Pike. • ........................................................................................................................ • ......................................................................................................................... • (2)

  16. Question 2 N B a r t o n N C a n i o N A n l y • What is the actual distance, in • kilometres, from Anly to Barton? • ……………………………………………………………………………… • ……………………………………………………………………………… • (2) • What is the three figure bearing of Barton • from Anly? • ………………………..…………………………………………………… • (2) • Dore is due East of Canio and South West of • Barton. Mark on the map, the position of Dore. • (3)

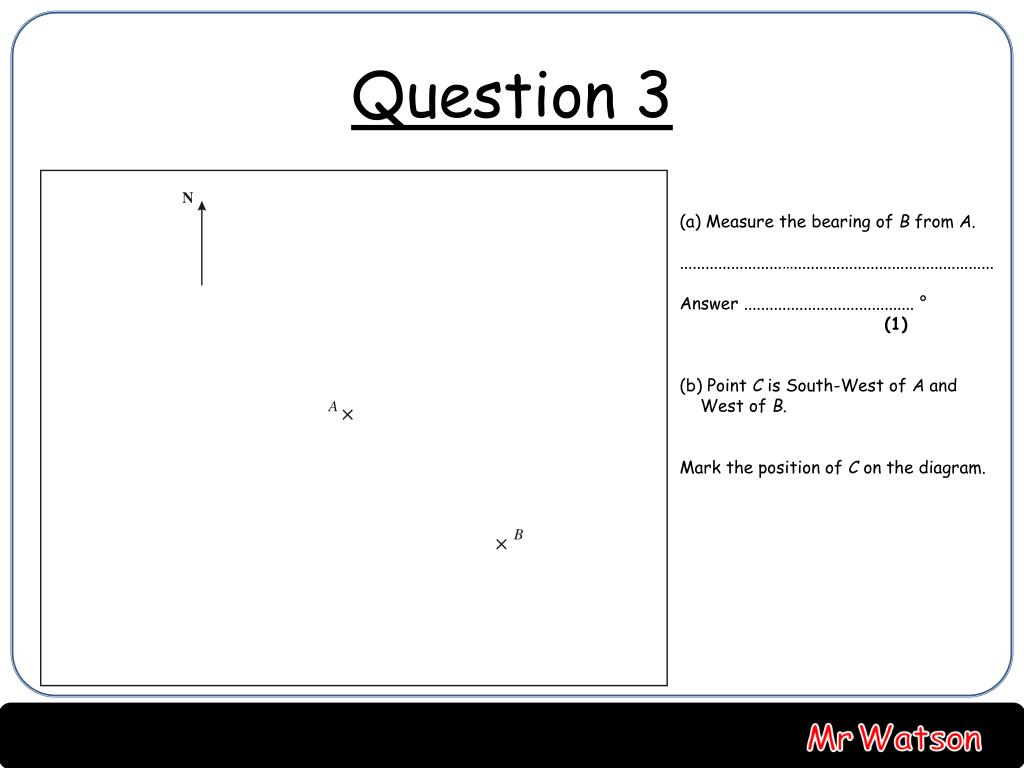

  17. Question 3 (a) Measure the bearing of B from A. ........................…............................................... Answer ........................................ ° (1) (b) Point C is South-West of A and West of B. Mark the position of C on the diagram.

  18. Question 4 a) (i) Which town is South-West of Aberdeen? ……………………………………………………………………………….. (1) (ii) Write the direction South-West as a 3-figure bearing. ……………………………………………………………………………….. (1) (b) Ullapool is 75 miles due North of Fort William. Mark the position of Ullapool on the map.

  19. Question 5 N o r t h A B N o t t o s c a l e C A is due north of C. Triangle ABC is equilateral. (i) Write down the three figure bearing of B from C. Answer ........................................... degrees (1) (ii) Write down the three figure bearing of A from B. ........................................................................................................................ Answer ........................................... degrees (1) 60° 60° + 180° 240°

  20. Question 6 (a) Calculate the bearing of F from H. . (1) (b) Calculate the bearing of L from H. (2) (c) Calculate the bearing of H from F. (2) North L F 75º 35º H

  21. PlenaryFlight EZY551 projected flight to Quebec is shown.But the flight hits problems with the volcanic ash from Iceland and is diverted to Prince Edward Island – what is the new bearing.

  22. Tick or TrashFlight EZY551 projected flight to Quebec is shown.But the flight hits problems with the volcanic ash from Iceland and is diverted to Prince Edward Island – what is the new bearing. Clockwise from the plane to Prince Edward Island I have measured the angle and it is 115° Bearing =115° Angle is marked on the diagram and is 245° Student B Student A TICK OR TRASH

  23. Learning Intentions

  24. North J Measure the bearings of the following E = …………° N= …………° J = …………° O = …………° Y = …………° Which letter is on bearing of N E M J T D O T N Y

  25. Plenary

  26. In each case, what is the bearing of A from B Bearing of A from B = ……..° 140º B 40 A

  27. The Questions • Question 1 • What is the bearing of P from Q? • …………………………….. • What is the bearing of Q from P? • …………………………….. North P North Q
