matrix methods in paraxial optics

Matrix methods in paraxial optics

Wednesday September 25, 2002

matrices in paraxial optics

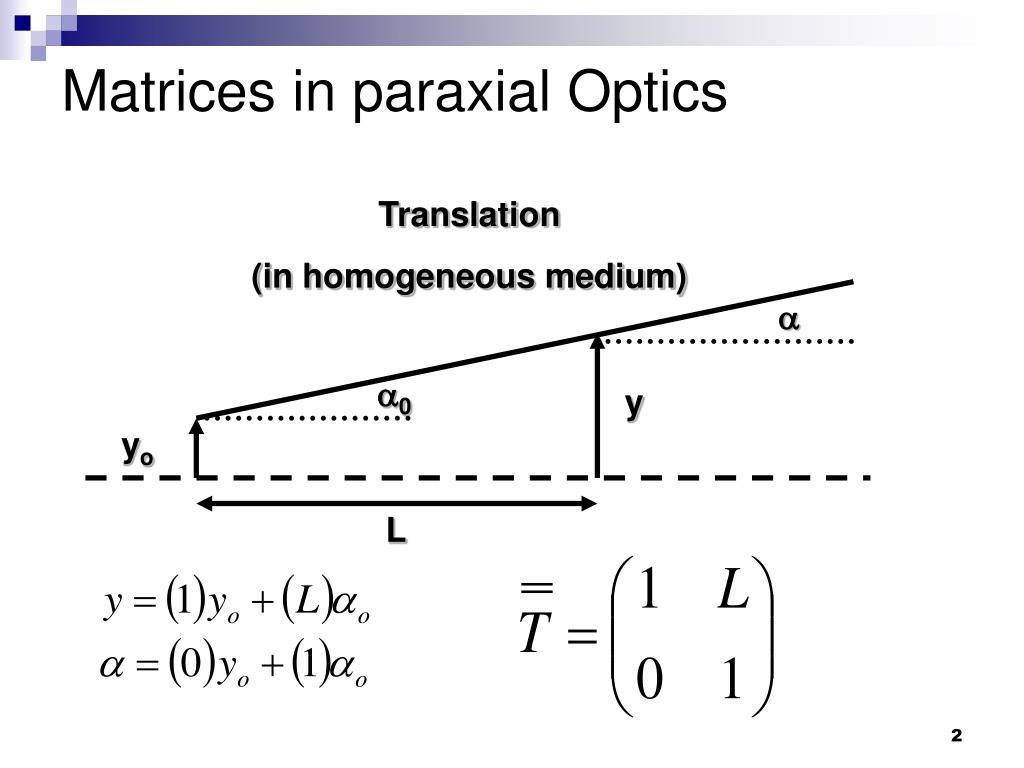

Matrices in paraxial Optics

Translation

(in homogeneous medium)

0

y

yo

L

matrix methods in paraxial optics1

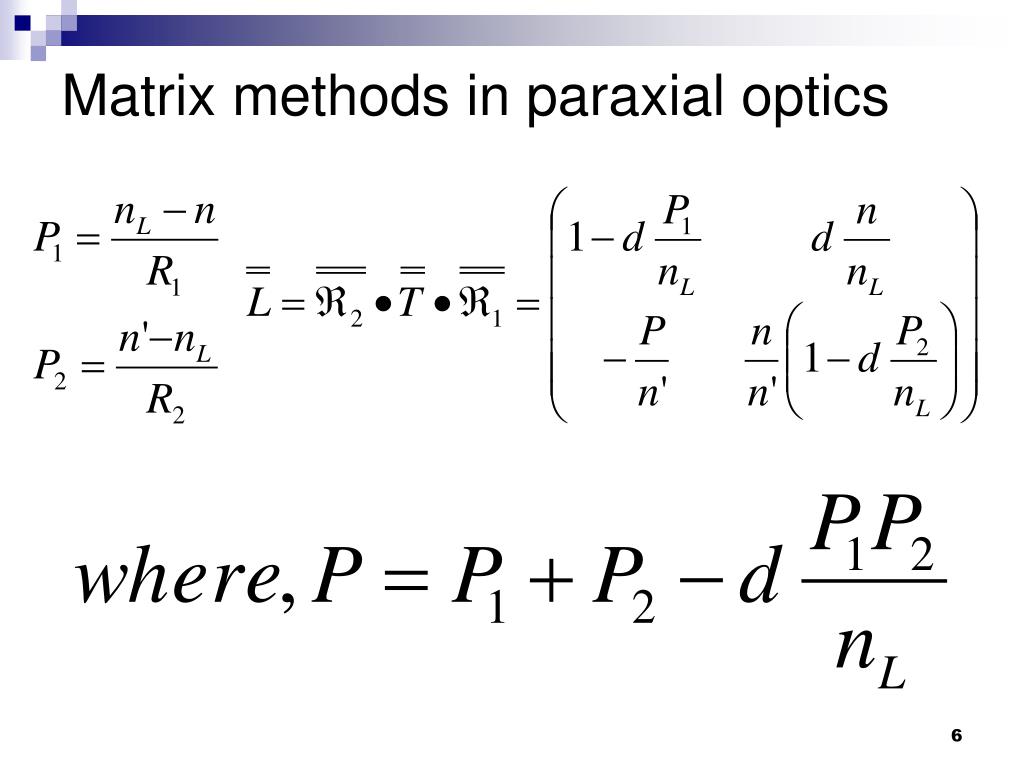

Matrix methods in paraxial optics

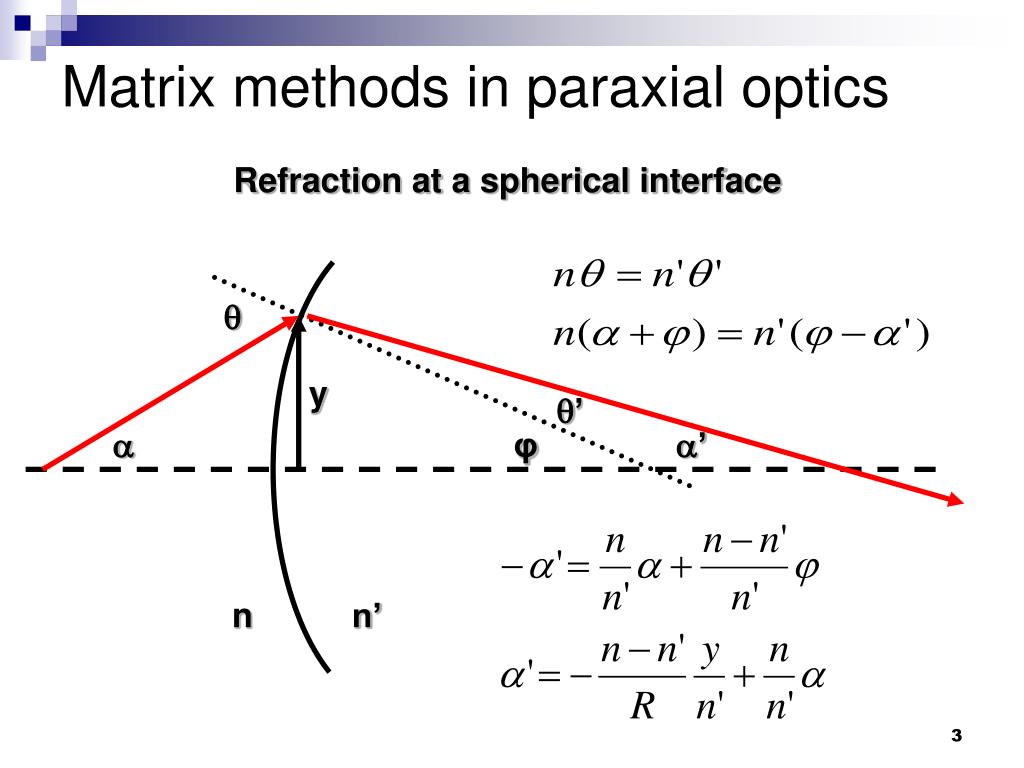

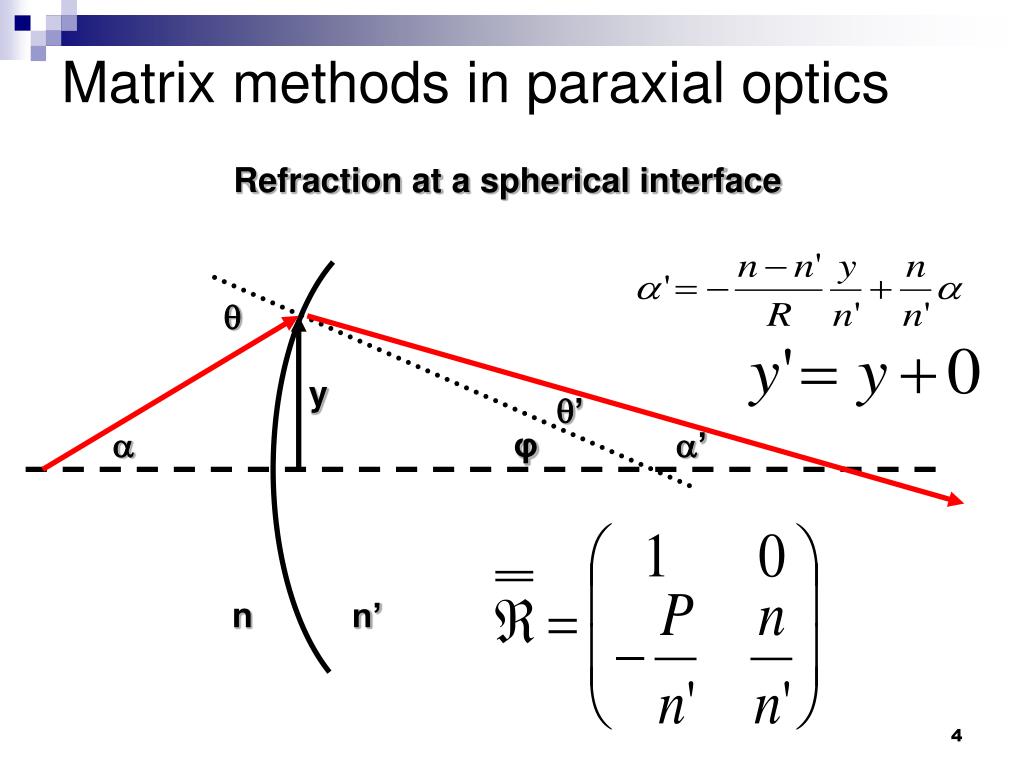

Refraction at a spherical interface

y

’

φ

’

n

n’

matrix methods in paraxial optics2
Matrix methods in paraxial optics

Refraction at a spherical interface

y

’

φ

’

n

n’

matrix methods in paraxial optics3
Matrix methods in paraxial optics

Lens matrix

n

nL

n’

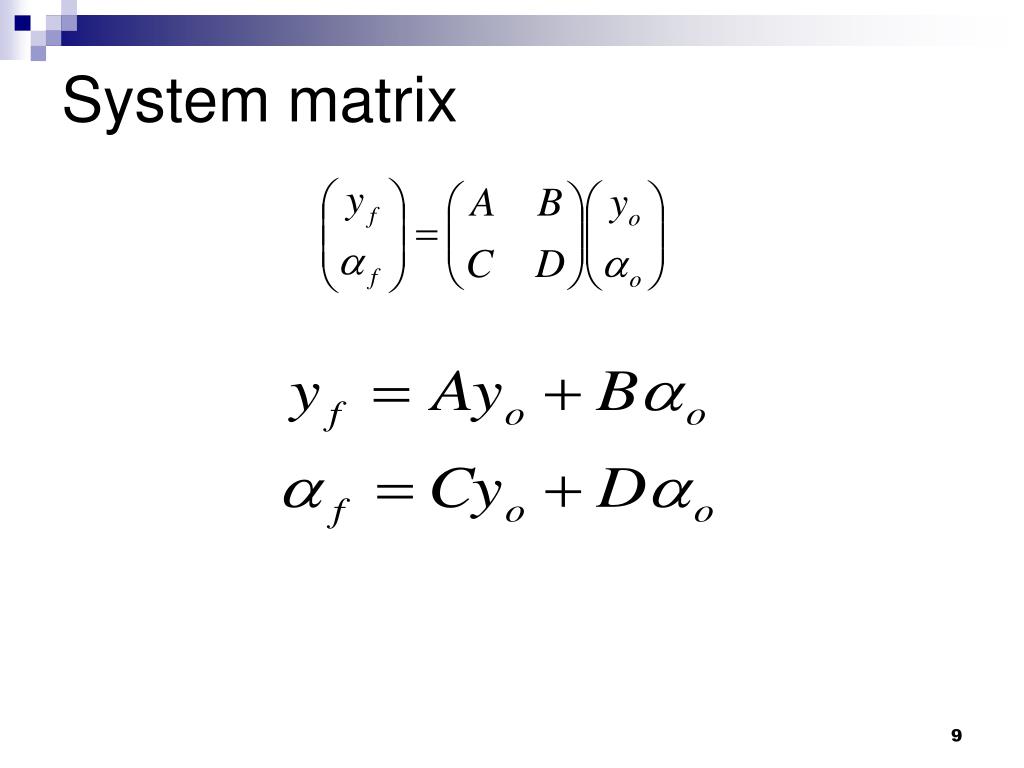

For the complete system

Note order – matrices do not, in general, commute.

matrices general properties
Matrices: General Properties

For system in air, n=n’=1

system matrix special cases
System matrix: Special Cases

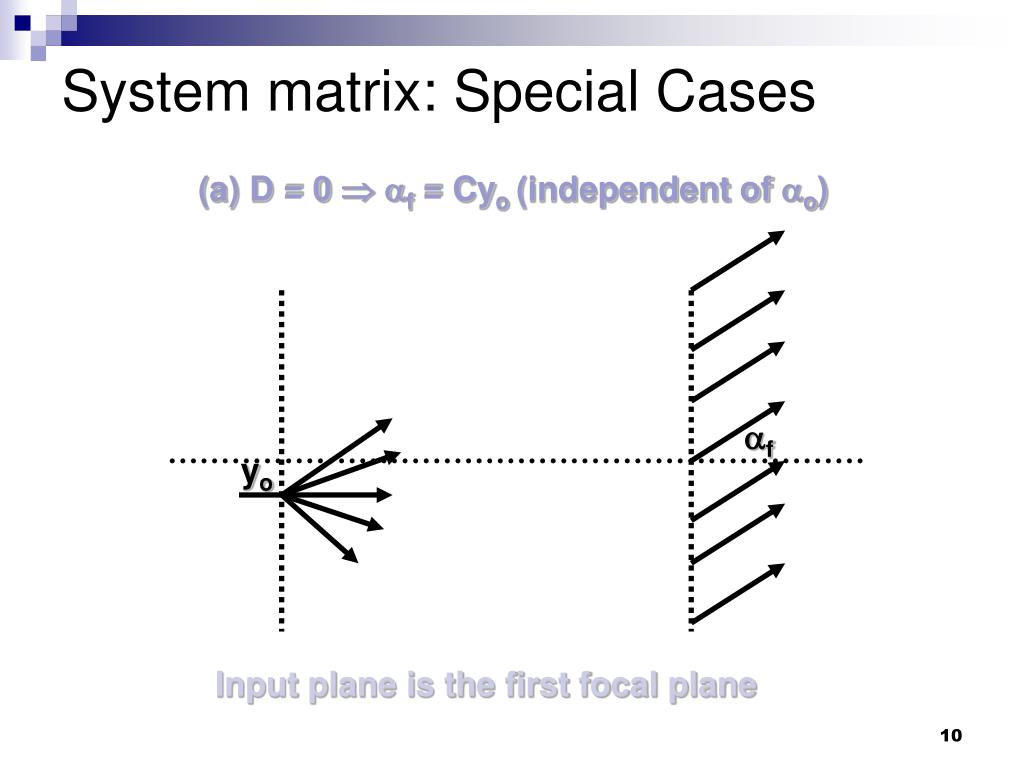

(a) D = 0  f = Cyo (independent of o)

f

yo

Input plane is the first focal plane

system matrix special cases1

yf

o

System matrix: Special Cases

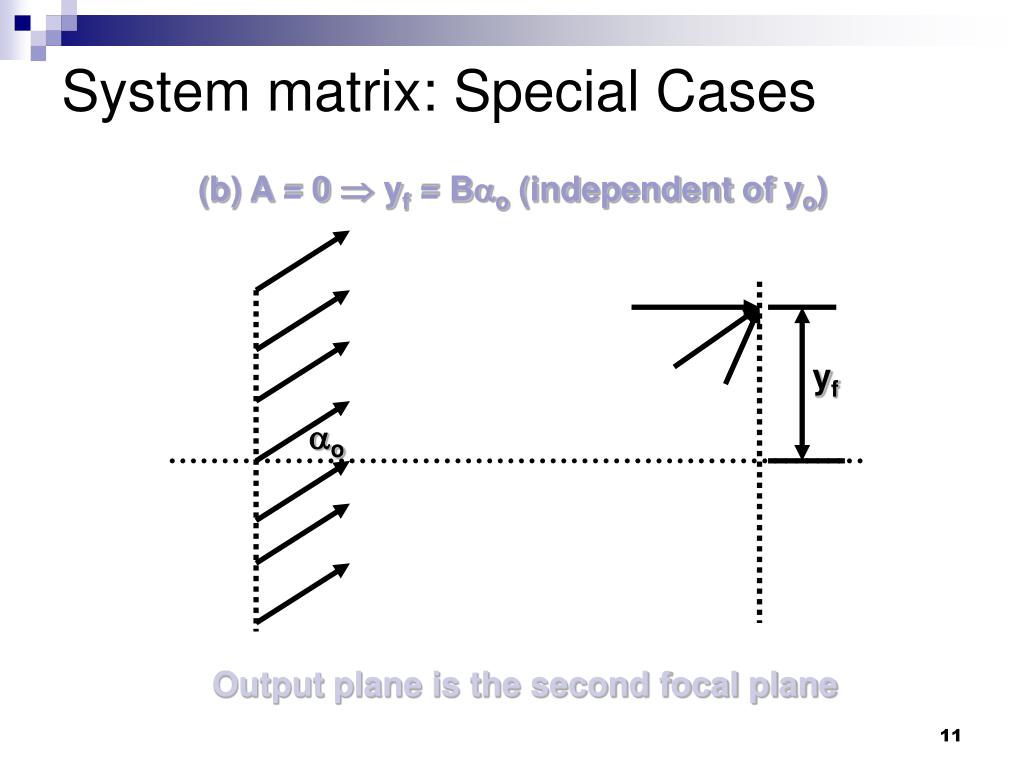

(b) A = 0  yf = Bo (independent of yo)

Output plane is the second focal plane

system matrix special cases2

yf

System matrix: Special Cases

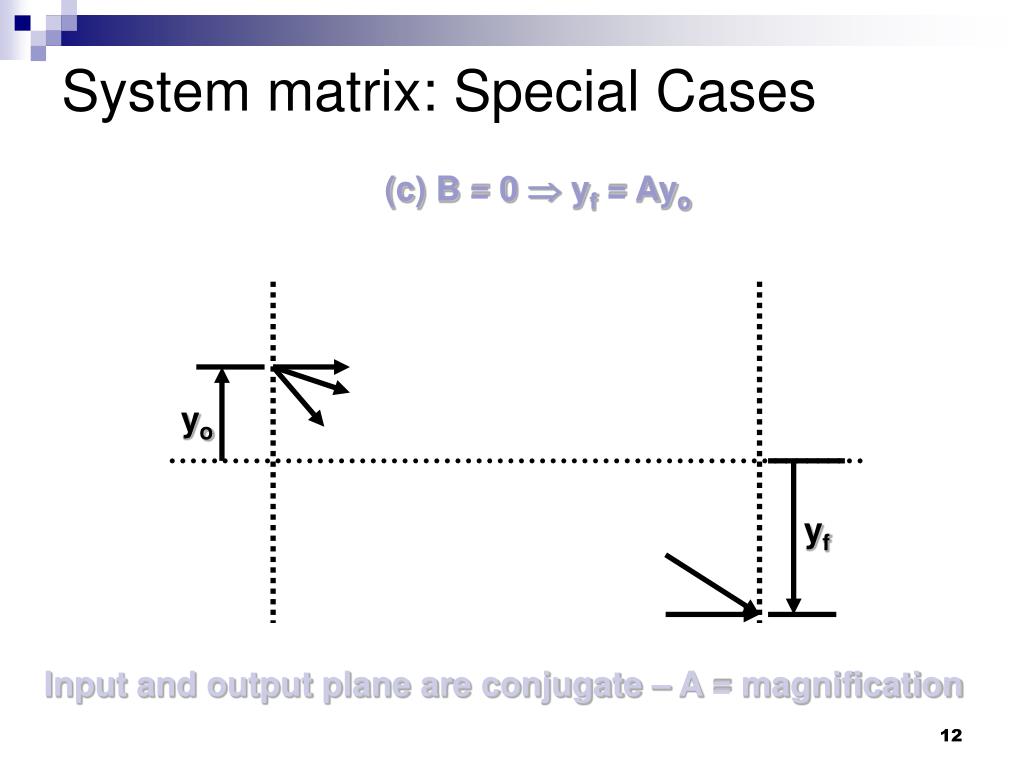

(c) B = 0  yf = Ayo

yo

Input and output plane are conjugate – A = magnification

system matrix special cases3

o

f

System matrix: Special Cases

(d) C = 0  f = Do (independent of yo)

Telescopic system – parallel rays in : parallel rays out

examples thin lens

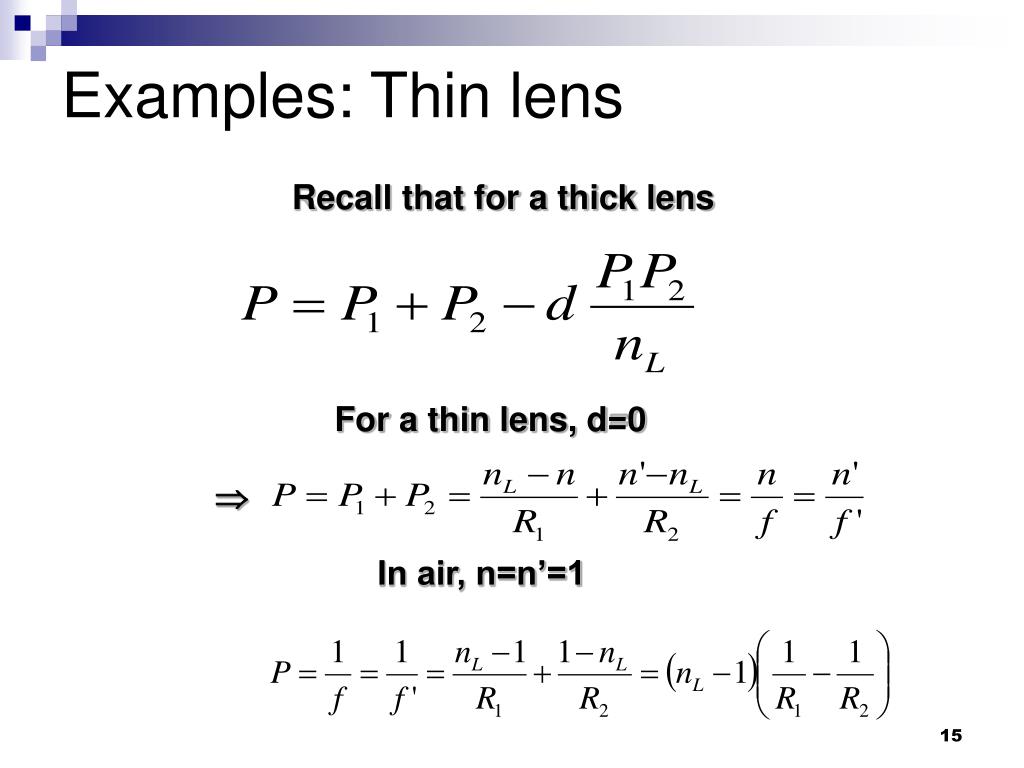

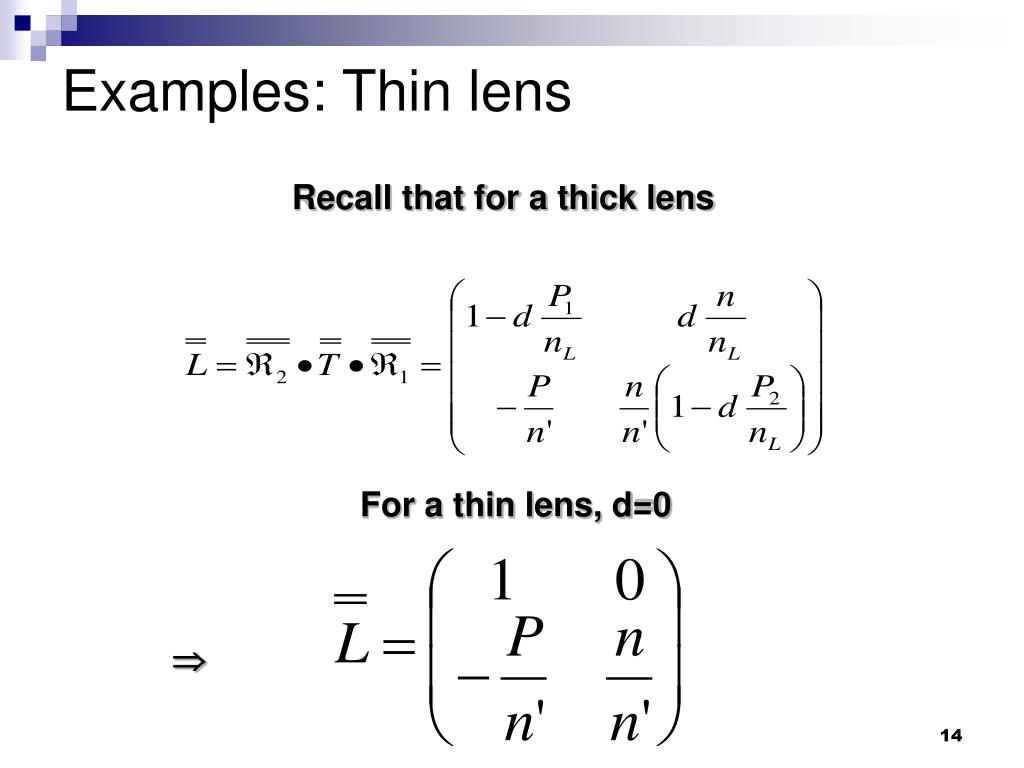

Examples: Thin lens

Recall that for a thick lens

For a thin lens, d=0

examples thin lens1
Examples: Thin lens

Recall that for a thick lens

For a thin lens, d=0

In air, n=n’=1

imaging with thin lens in air
Imaging with thin lens in air

’

o

yo

y’

Input

plane

Output plane

s

s’

imaging with thin lens in air1
Imaging with thin lens in air

For thin lens: A=1B=0D=1 C=-1/f

y’ = A’yo + B’o

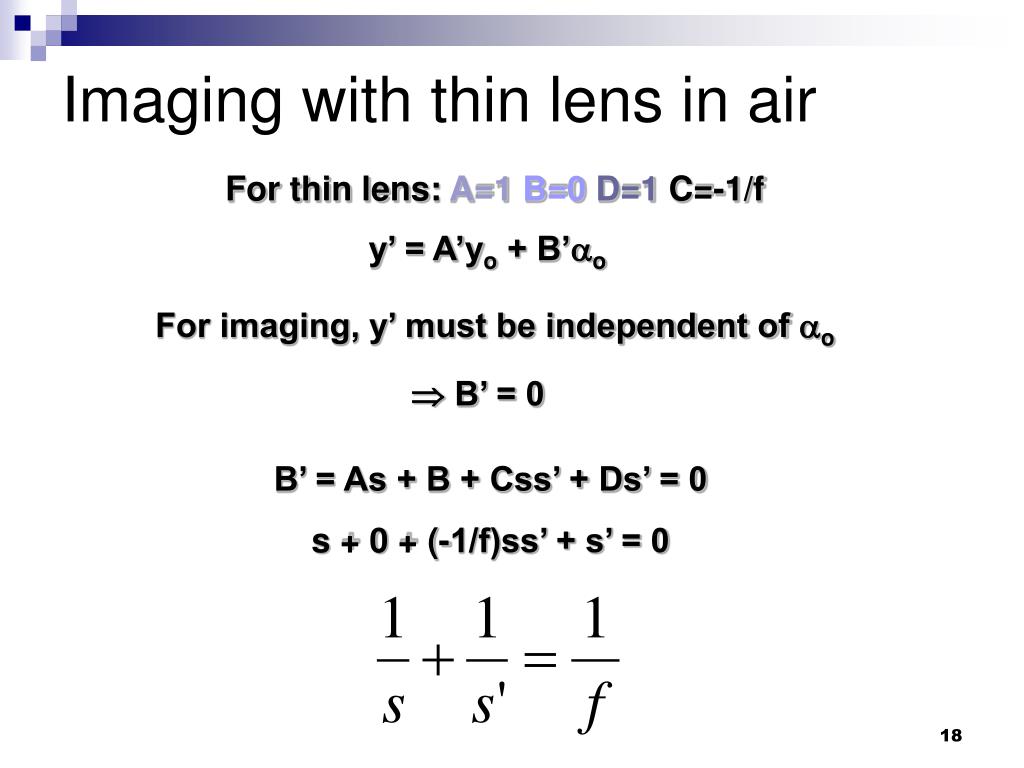

imaging with thin lens in air2
Imaging with thin lens in air

For thin lens: A=1B=0D=1 C=-1/f

y’ = A’yo + B’o

For imaging, y’ must be independent of o

 B’ = 0

B’ = As + B + Css’ + Ds’ = 0

s + 0 + (-1/f)ss’ + s’ = 0

examples thick lens

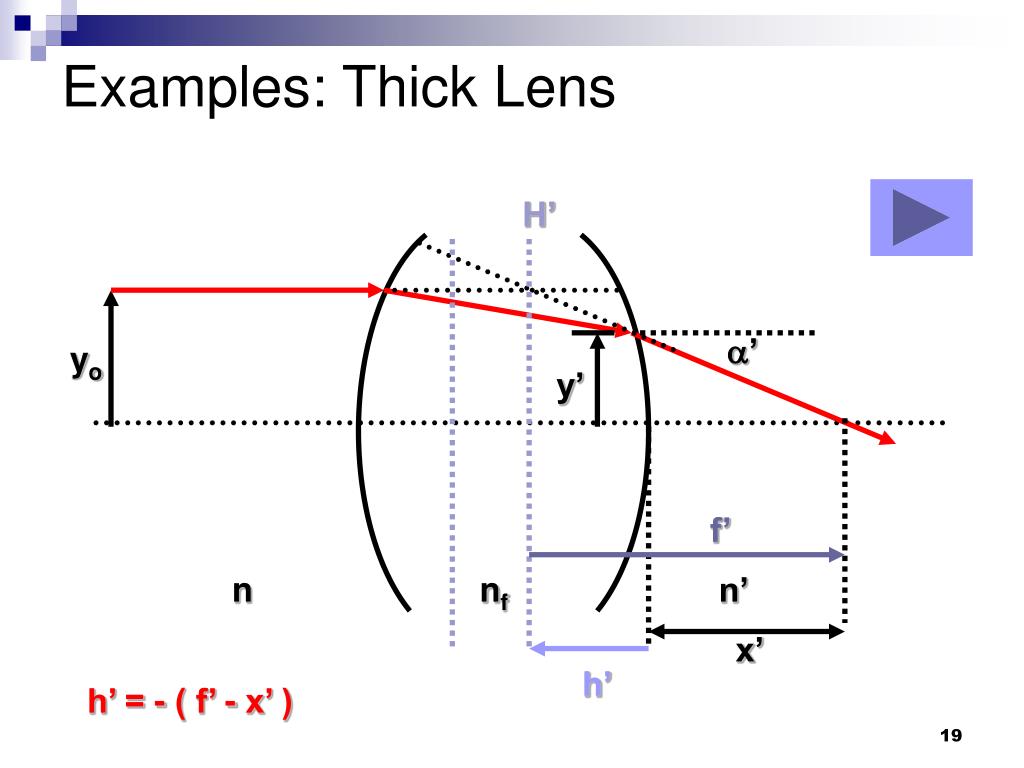

Examples: Thick Lens

H’

’

yo

y’

f’

n

nf

n’

x’

h’

h’ = - ( f’ - x’ )

cardinal points of a thick lens2

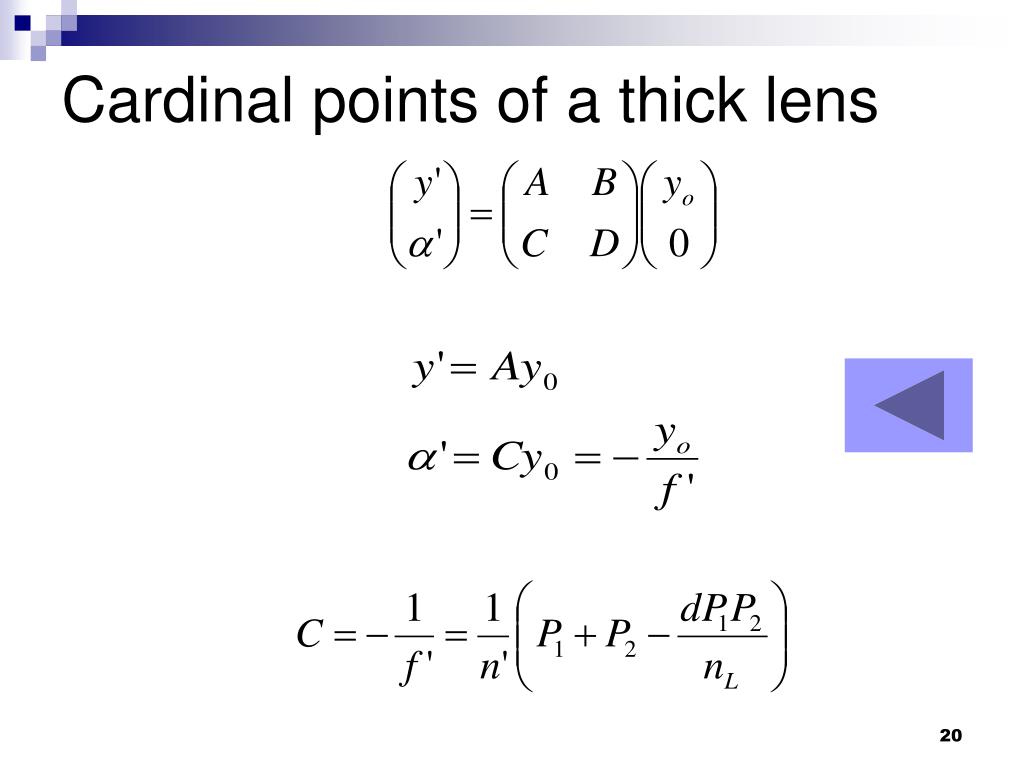

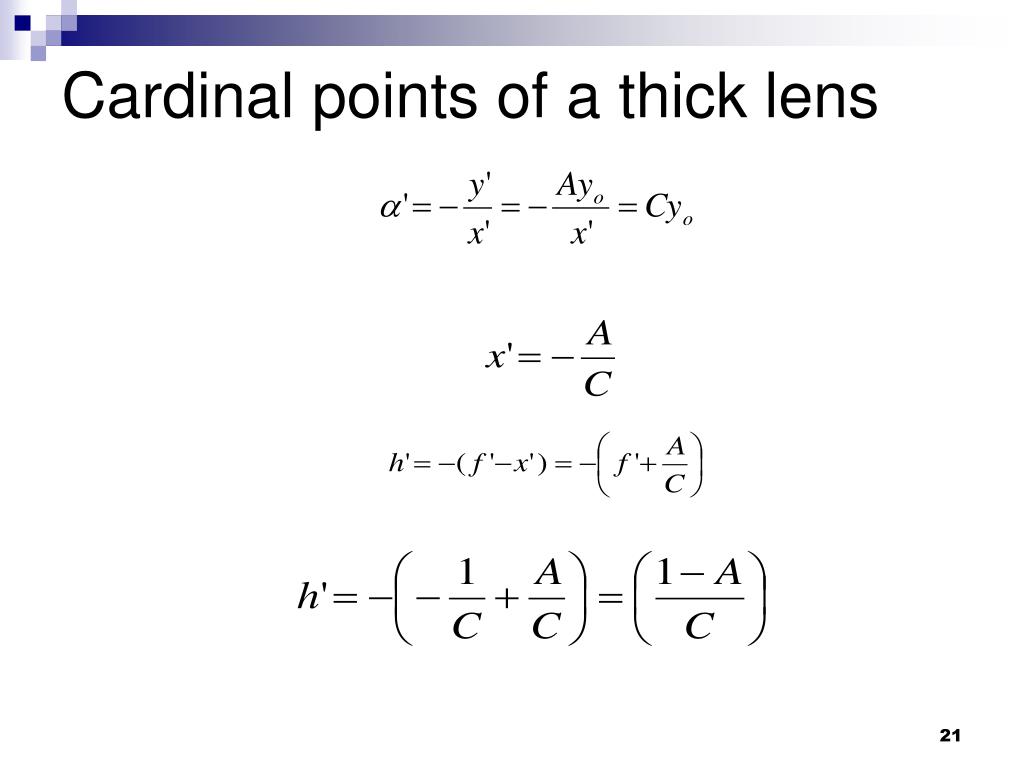

Cardinal points of a thick lens

Recall that for a thick lens

As we have found before

h can be recovered in a similar manner, along with other cardinal points
