Windows CE Object Store

  • Windows CE name for persistent storage

  • Provides storage for the

    • Registry

    • Databases

    • File System

  • In a non-volatile portion of RAM


Registry
Registry

  • To centralize applicationr, user and system settings

  • Consolidates what was done earlier with autoexec.bat, config.sys, etc.

  • Stored as a hierarchy, with each element termed a key.

  • Each key has a default value and several optional extra values

  • Four hierarchies

    • HKEY_LOCAL_MACHINE: char. of m/c

    • HKEY_USERS: default user config.

    • HKEY_CURRENT_USER: for current user

    • HKEY_CLASSES_ROOT: types and properties of supported documents


Registry contd
Registry (contd.)

  • RegCeateKeyEx() to create keys

  • RegSetValueEx() to update a value of a key

  • RegQueryValueEx() retrieves the associated type and data

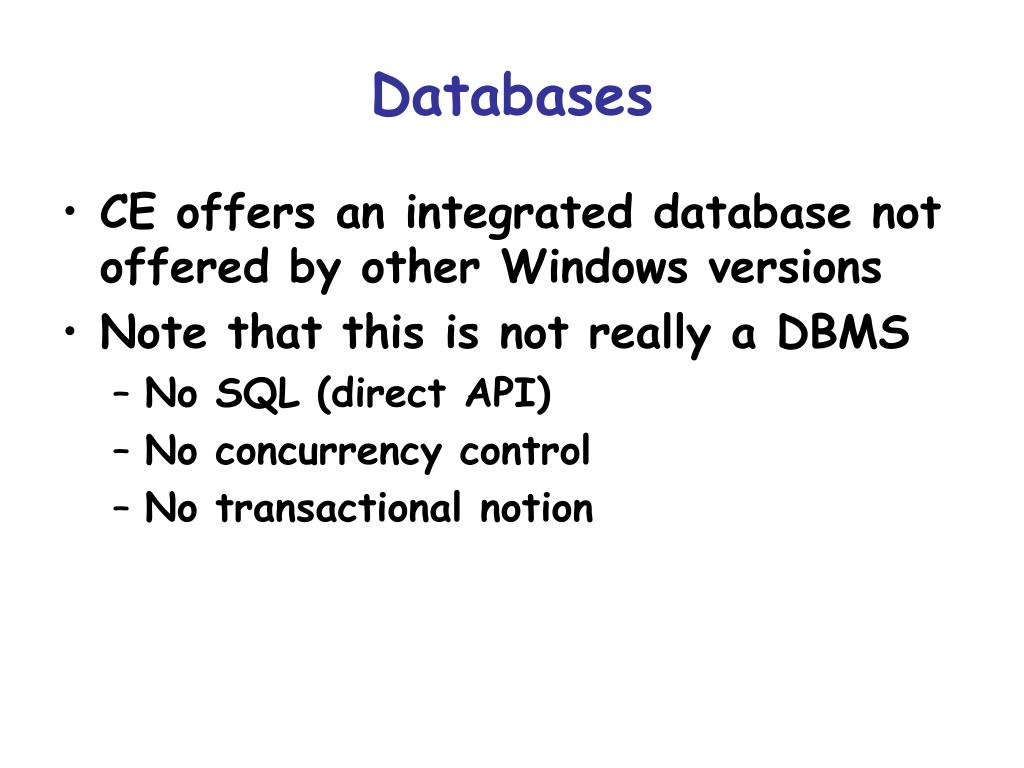

Databases
Databases

  • CE offers an integrated database not offered by other Windows versions

  • Note that this is not really a DBMS

    • No SQL (direct API)

    • No concurrency control

    • No transactional notion


Terminology
Terminology

  • Volume: A collection of tables

  • Database: One of these tables

  • Record: One row of table

  • Property: A column of the table

  • Sort Order: A method to quickly access rows

  • Each database can support upto 4 sort orders (specified at creation).


Windows ce object store

Databases are stored in a file (called volume).

First mount a volume using CeMountDBVol()

CeCreateDatabaseEx() to create a database

CeOpenDatabaseEx() to open an existing database – can ask to be notified if someone else modifies when in use.

CeWriteRecordProps() to create or update a record.

Each call to CeReadRecordProps() returns the next record in the specified sort order (at open)

CeSeekDatabase() to seek to a specific record – record id, matching a value, having the immediate previous value, etc.


File system
File System

  • Portion of object store where files reside (\Windows)

  • Differences from normal Windows:

    • No security/access permissions

    • No notion of drives (A:, C:, etc.) – everything is accessible from “\”

    • No concept of current directory, always need to specify from “\”

  • When inserting flash cards, they appear under the directory “\StorageCard1”, “\StorageCard2”, etc.

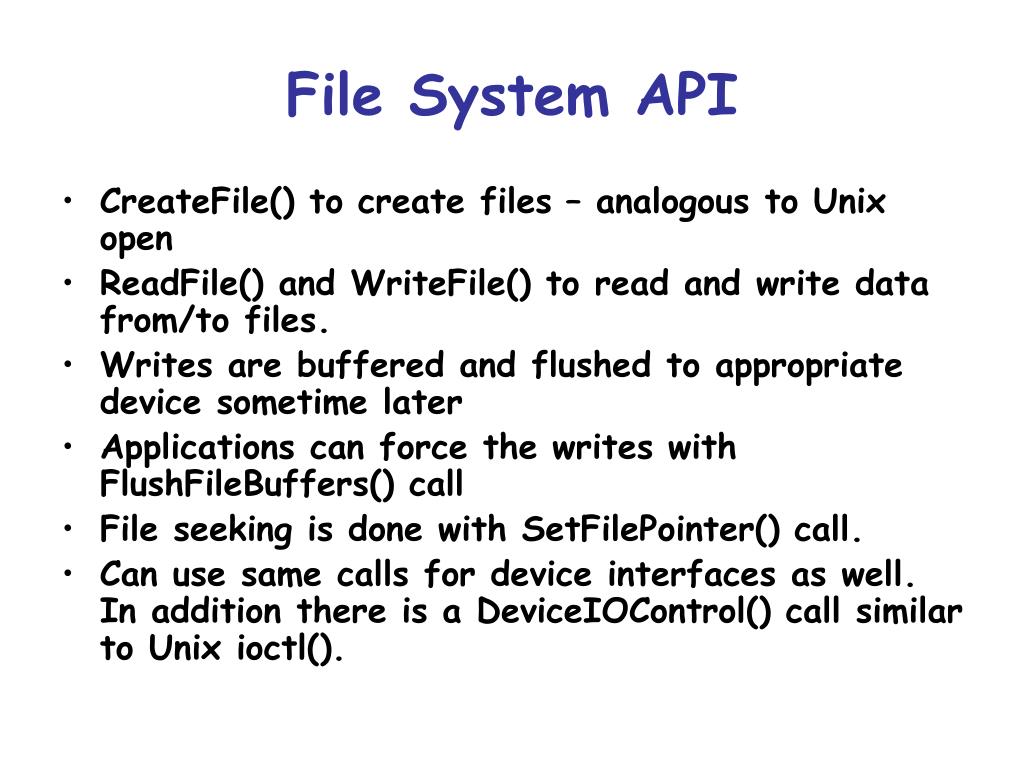

File system api
File System API

  • CreateFile() to create files – analogous to Unix open

  • ReadFile() and WriteFile() to read and write data from/to files.

  • Writes are buffered and flushed to appropriate device sometime later

  • Applications can force the writes with FlushFileBuffers() call

  • File seeking is done with SetFilePointer() call.

  • Can use same calls for device interfaces as well. In addition there is a DeviceIOControl() call similar to Unix ioctl().


Memory mapped files
Memory Mapped Files

  • Allows normal memory load/store interface to files

  • Also, allows creating shared memory

  • Different from traditional Unix in that it increases the virtual address space of process. E.g. a process (normally 32MB) mapping a 4MB file becomes 36MB, but not all of it is contiguous

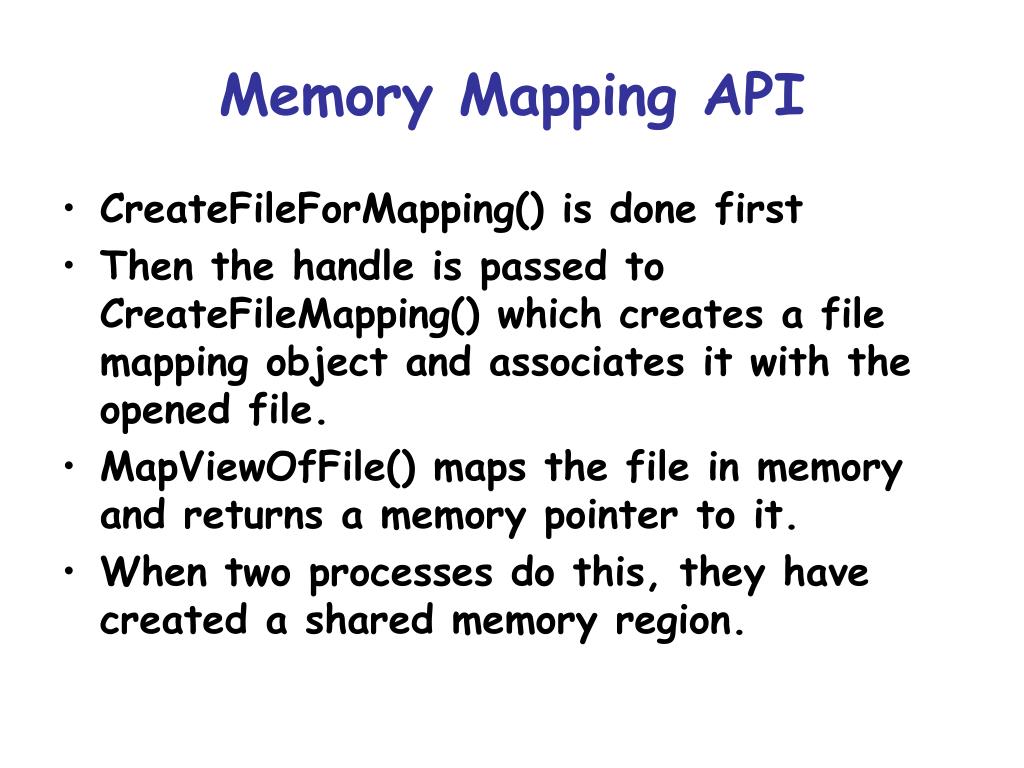

Memory mapping api
Memory Mapping API

  • CreateFileForMapping() is done first

  • Then the handle is passed to CreateFileMapping() which creates a file mapping object and associates it with the opened file.

  • MapViewOfFile() maps the file in memory and returns a memory pointer to it.

  • When two processes do this, they have created a shared memory region.


Device drivers
Device Drivers

  • Native drivers

    • Control low level devices built-in with the CE platform (audio, battery display, keyboards …)

    • They can have unique APIs

  • Stream drivers

    • They export the same API

    • They usually drive 3rd party devices (GPS receivers, printers, etc.)


Interface between kernel and native driver
Interface between Kernel and Native Driver

Kernel

Interrupt

Service

Handler (ISH)

Event

Handler

(EH)

6

Native Driver

4

Interrupt Service Thread

(IST)

OAL

2

3

1

7

5

Interrupt

Service

Routine (ISR)

Platform Dependent

Driver

HARDWARE


Windows ce object store

  • EH in kernel is first invoked.

  • EH disables all interrupts and invokes appropriate ISR in OAL

  • ISR performs some minimal processing and returns interrupt id to kernel

  • ISH re-enables all but this interrupt, uses the interrupt id to signal an event on which a IST of a native driver is waiting (Event Object).

  • IST may need to perform some hardware specific actions to process interrupt

  • IST then notifies kernel once it is done

  • ISH then re-enables this interrupt by calling some functions in OAL.


Stream drivers
Stream Drivers

  • Presents the device as being a special file

  • Standard API regardless of the device

  • Strict naming rules: 3 upper case letters (identifies function prefix) + single digit + colon

  • They can be loaded/unloaded by the Device Manager.


Loading drivers
Loading Drivers

  • At boot time, Device Manager loads all drivers listed under HKEY_LOCAL_MACHINE\Drivers\Builtin registry key.

  • When a device is connected, the Device Manager calls the native socket driver to obtain a Plug and Play id. This id is compared against registry entries in HKEY_LOCAL_MACHINE\Drivers\PCMCIA. If found, that driver is loaded. Else, it calls functions listed in ….\PCMCIA\Detect that are Stream Driver functions. If one of them says it can handle, then that driver is loaded.

  • If an application attempts to open a device without driver loaded, then the application can explicitly load the driver.

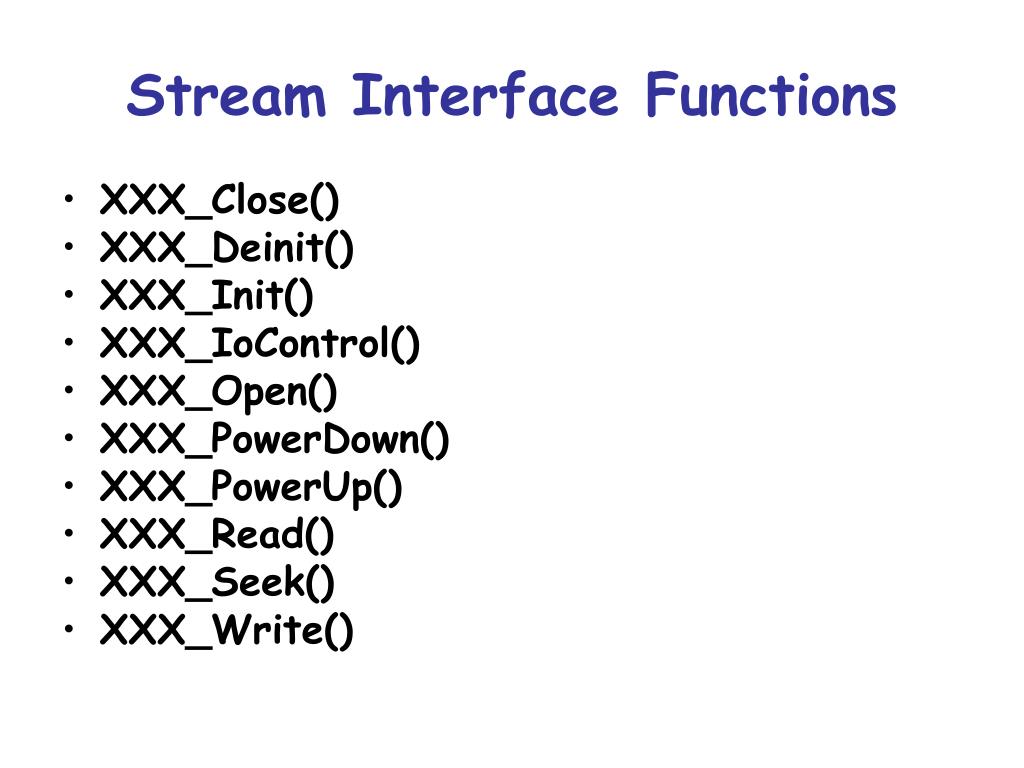

Stream interface functions
Stream Interface Functions

  • XXX_Close()

  • XXX_Deinit()

  • XXX_Init()

  • XXX_IoControl()

  • XXX_Open()

  • XXX_PowerDown()

  • XXX_PowerUp()

  • XXX_Read()

  • XXX_Seek()

  • XXX_Write()
