Presentation Transcript
Rpc production at gt status and plans l.jpg

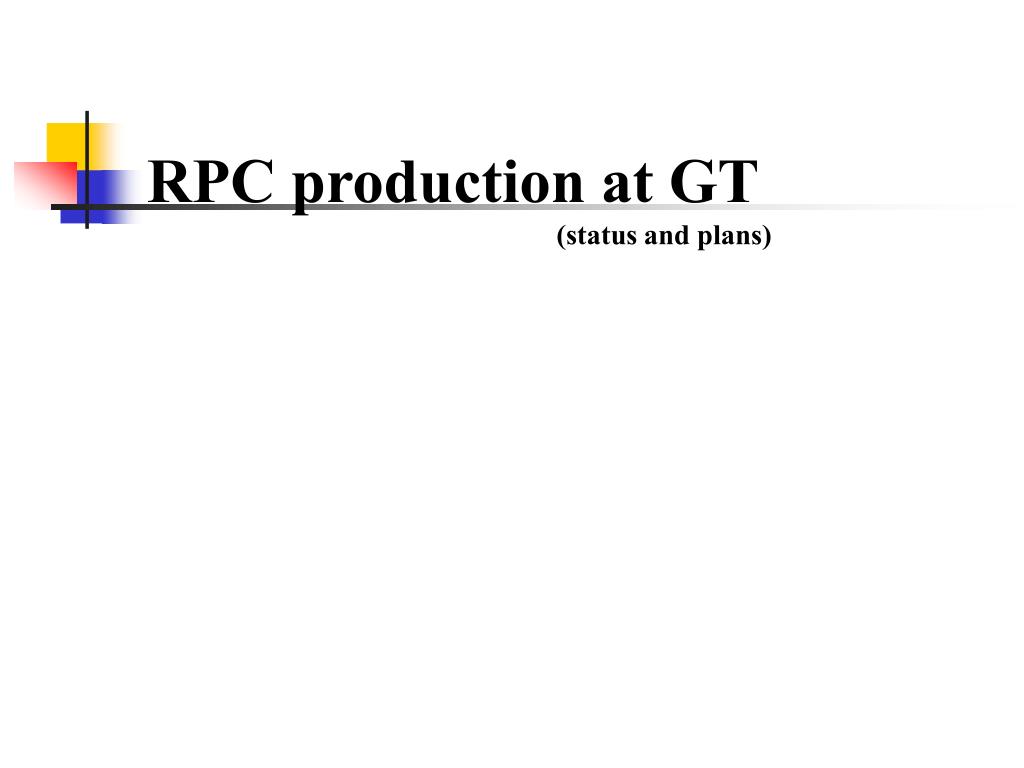

RPC production at GT(status and plans)


Status l.jpg
Status

  • After the IFR meeting in Rome a new version of the Production Plan have been proposed to GT

  • Main requirements currently included in the P.P. are :

    • Improvements of the infrastructure at GT

    • Improvements of the oiling process (new)

    • QA/QC procedures and tests during processing

    • pre-production test


Status cont l.jpg
Status (cont.)

Infrastructure at GT

  • Assembly shed

    • GT have modified the shed where bakelite plates are prepared and assembled to ensure an higher level of cleanness.

      • The assembly area have been isolated from the outside by means of a sliding door and a controlled entrance have been installed out of the shed.

      • All products used in this area will be controlled and certified (chemical, cloth, tools etc..)

      • All workers in this area must have clean and standard dress plus must wear gloves and hat

  • Test station area:

    • almost ready. All the infrastructures needed for the cosmic ray test are in place.


Status cont4 l.jpg

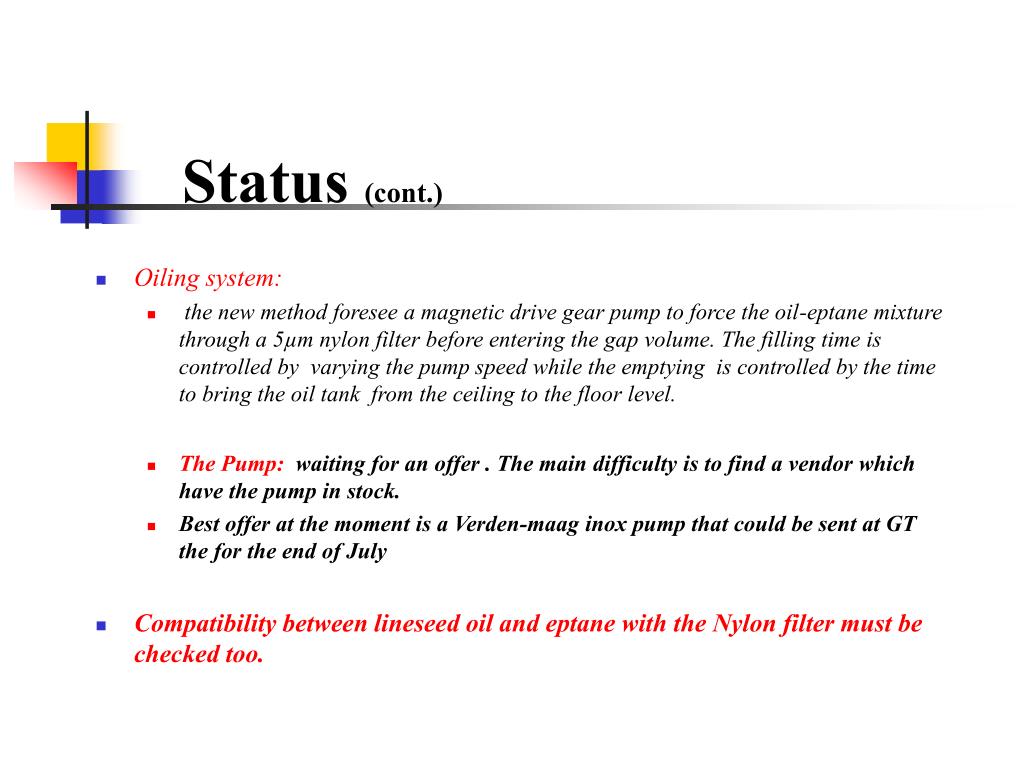

Status (cont.)

  • Oiling system:

    • the new method foresee a magnetic drive gear pump to force the oil-eptane mixture through a 5µm nylon filter before entering the gap volume. The filling time is controlled by varying the pump speed while the emptying is controlled by the time to bring the oil tank from the ceiling to the floor level.

    • The Pump: waiting for an offer . The main difficulty is to find a vendor which have the pump in stock.

    • Best offer at the moment is a Verden-maag inox pump that could be sent at GT the for the end of July

  • Compatibility between lineseed oil and eptane with the Nylon filter must be checked too.


Status the corner pieces l.jpg

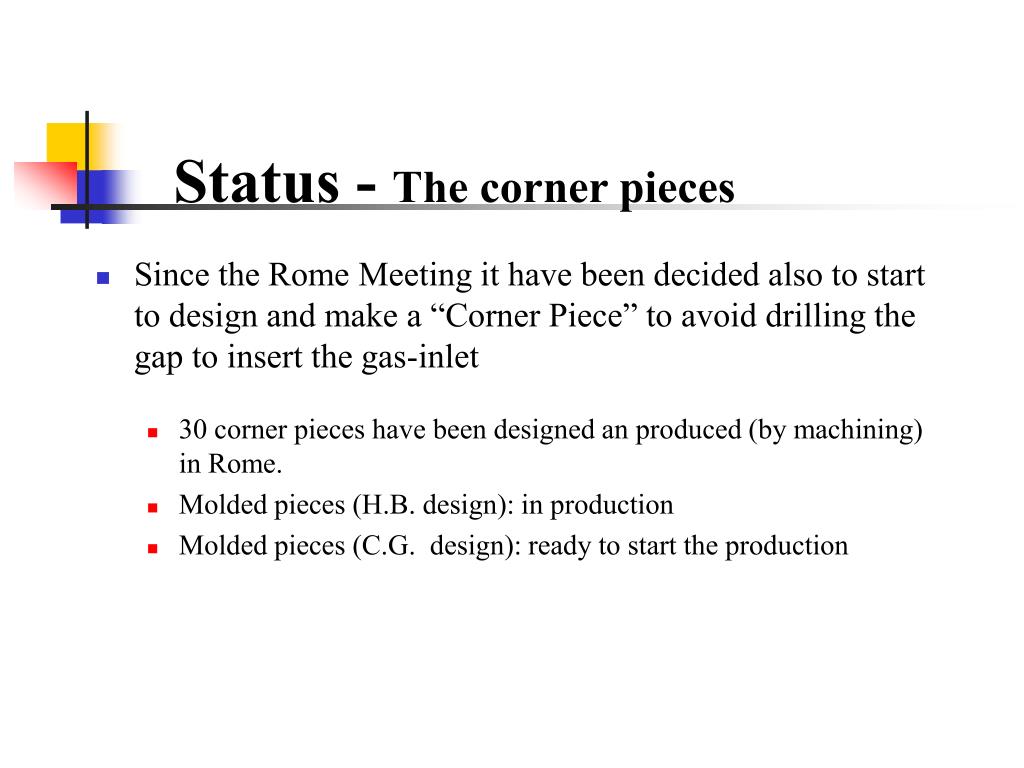

Status - The corner pieces

  • Since the Rome Meeting it have been decided also to start to design and make a “Corner Piece” to avoid drilling the gap to insert the gas-inlet

    • 30 corner pieces have been designed an produced (by machining) in Rome.

    • Molded pieces (H.B. design): in production

    • Molded pieces (C.G. design): ready to start the production


Machined corner pieces l.jpg
Machined Corner pieces

  • 45 degree only

  • Simple design of the piece (no guard ring)

  • 1.7mm thick , 4mm wide slot

  • Will be used to build five test gaps (FL02X shape)


Test gap w corner pieces l.jpg
Test -Gap w/corner pieces

  • These five gaps will be used to test:

    • gap assembly procedure with the Corner Pieces

    • effects of different polymerization times (2-3-4 days)

    • oil flow throughout the new gas inlet

    • gap cleaning procedures (before oiling) with eptane

    • electrical behavior of the Corner Pieces. (HV test)

  • In production now. Ready for testing and inspection next week


Other test gap w o corner pieces l.jpg

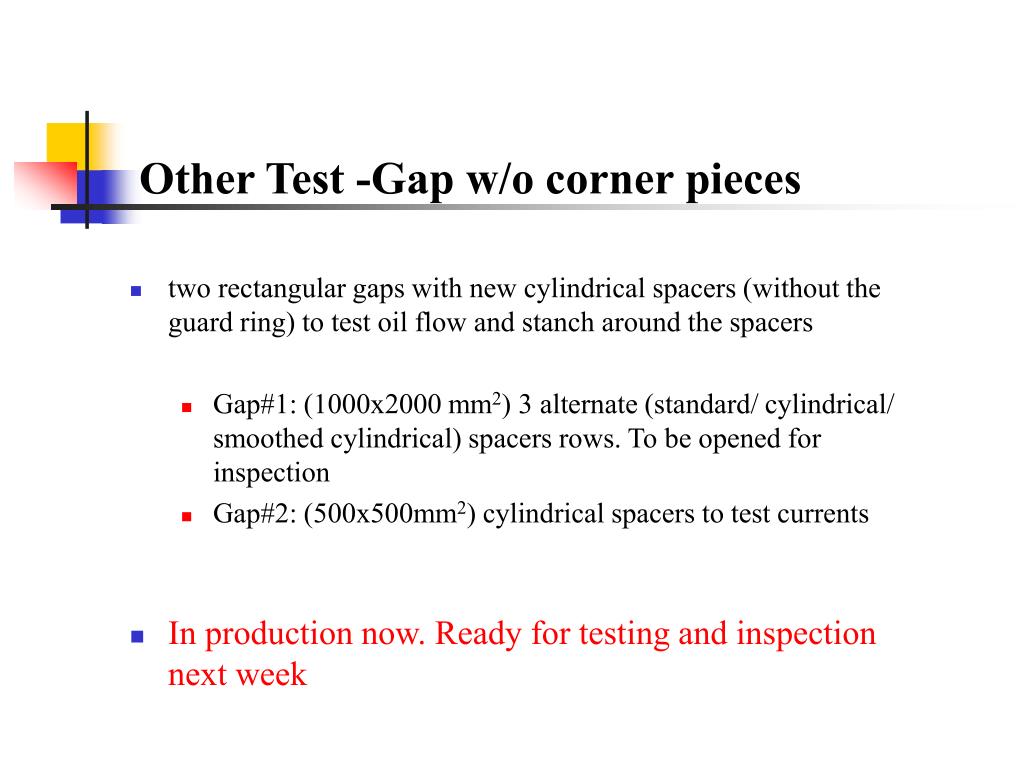

Other Test -Gap w/o corner pieces

  • two rectangular gaps with new cylindrical spacers (without the guard ring) to test oil flow and stanch around the spacers

    • Gap#1: (1000x2000 mm2) 3 alternate (standard/ cylindrical/ smoothed cylindrical) spacers rows. To be opened for inspection

    • Gap#2: (500x500mm2) cylindrical spacers to test currents

  • In production now. Ready for testing and inspection next week


Near future plan l.jpg
Near future plan

220 backelite plates are already at GT but production cannot start until the new oiling system have been installed and tested:

Current estimation is the end of July

  • June-July activities:

    • Complete the test on the gaps w and w/o the corner pieces: (done in the next two weeks)

    • Make and test few gaps with the H.B. molded corner pieces as soon as they are at GT

    • Go ahead with the C.G. molded corner pieces to be used as backup solution if HB pieces fails


Near future plan10 l.jpg
Near future plan

  • Two scenarios possible depending on the results of the test we are going to do in June/July:

    • H.B. molded pieces works fine (known by the middle of July) : official pre-production can start the first week of August.

    • H.B. molded pieces fails the test. C.G. pieces are ready for the end of July: official pre-production can start, after testing the new pieces, the last week of August (after the 2 weeks August stop of GT)


Construction schedule l.jpg

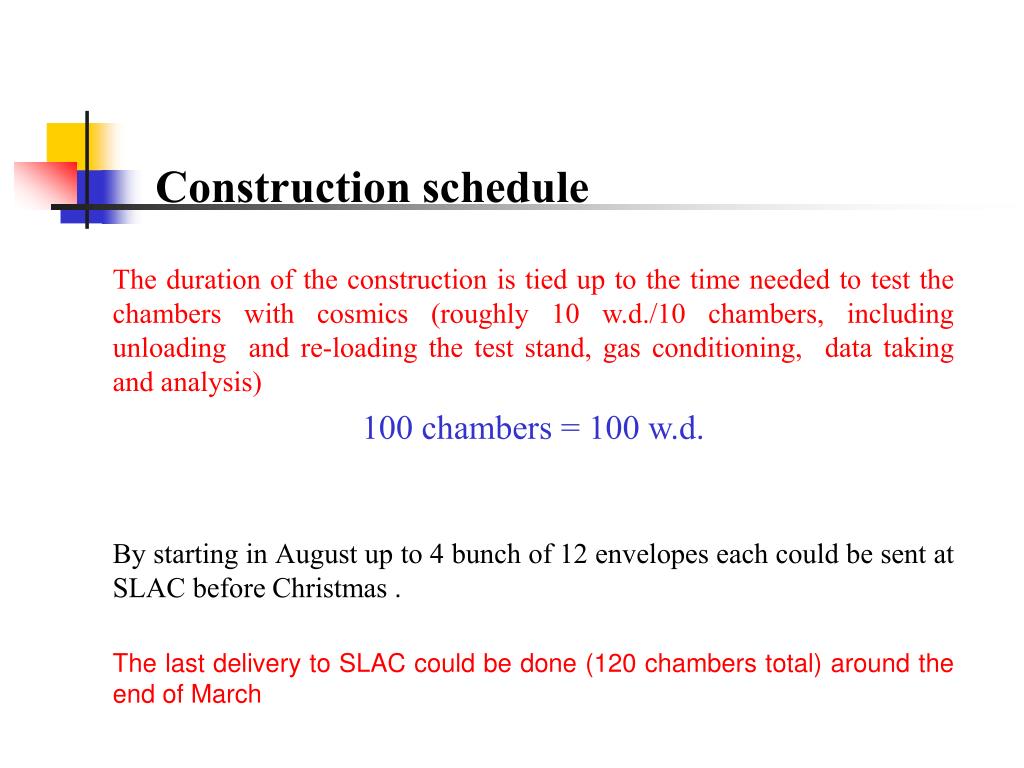

Construction schedule

The duration of the construction is tied up to the time needed to test the chambers with cosmics (roughly 10 w.d./10 chambers, including unloading and re-loading the test stand, gas conditioning, data taking and analysis)

100 chambers = 100 w.d.

By starting in August up to 4 bunch of 12 envelopes each could be sent at SLAC before Christmas .

The last delivery to SLAC could be done (120 chambers total) around the end of March
