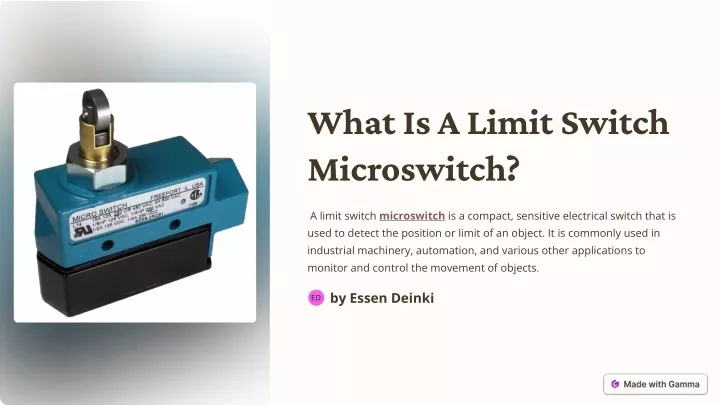

  1. What Is A Limit Switch Microswitch? A limit switch microswitch is a compact, sensitive electrical switch that is used to detect the position or limit of an object. It is commonly used in industrial machinery, automation, and various other applications to monitor and control the movement of objects. by Essen Deinki ED

  2. How Does a Limit Switch Microswitch Work? Activation 1 When an object comes into contact with the actuator of the limit switch, it triggers the internal mechanism, causing the switch to change its state. Signal Transmission 2 The change in switch state sends an electrical signal to the control system, indicating that the object has reached its desired position or limit. Deactivation 3 When the object moves away from the actuator, the switch returns to its original state, breaking the electrical signal and allowing the system to respond accordingly.

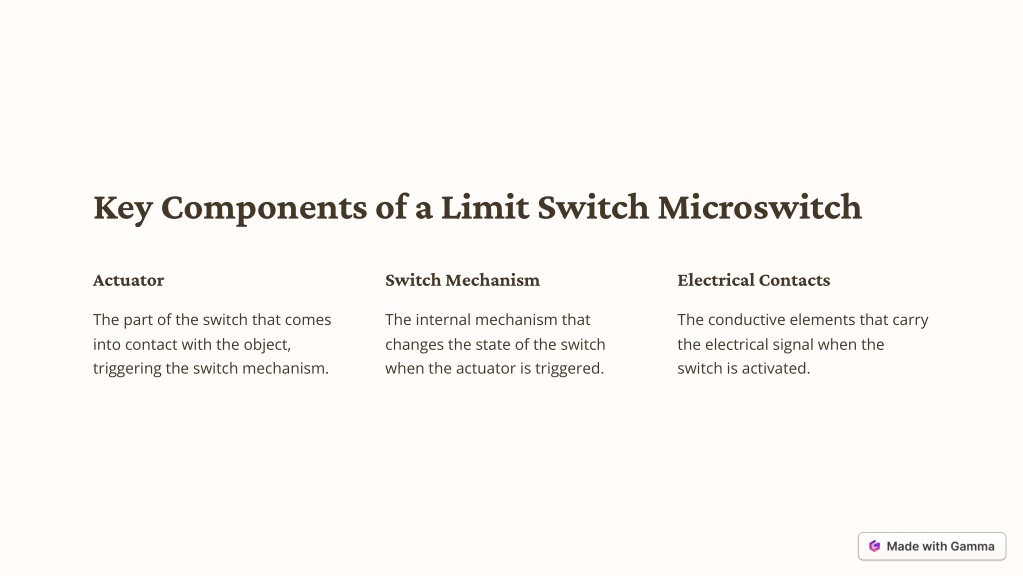

  3. Key Components of a Limit Switch Microswitch Actuator Switch Mechanism Electrical Contacts The part of the switch that comes into contact with the object, triggering the switch mechanism. The internal mechanism that changes the state of the switch when the actuator is triggered. The conductive elements that carry the electrical signal when the switch is activated.

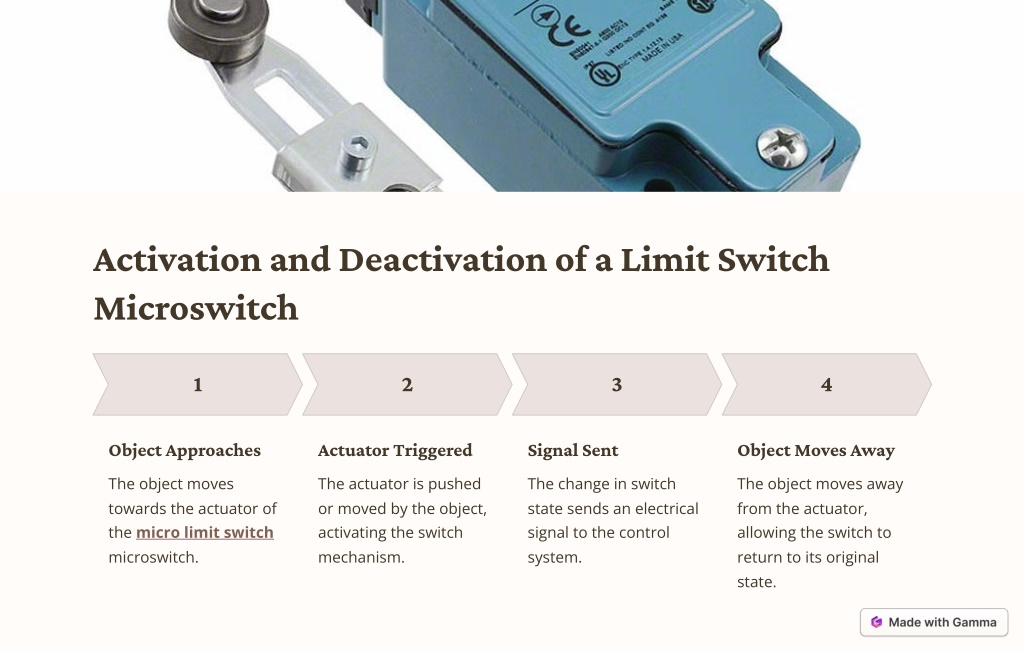

  4. Activation and Deactivation of a Limit Switch Microswitch 1 2 3 4 Object Approaches Actuator Triggered Signal Sent Object Moves Away The object moves towards the actuator of the micro limit switch microswitch. The actuator is pushed or moved by the object, activating the switch mechanism. The change in switch state sends an electrical signal to the control system. The object moves away from the actuator, allowing the switch to return to its original state.

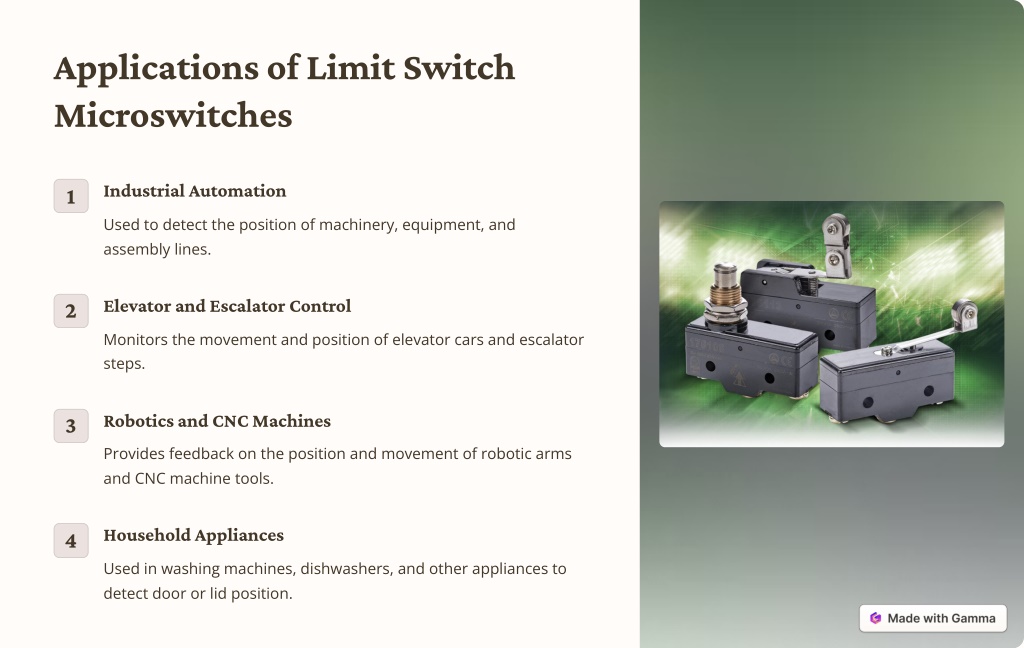

  5. Applications of Limit Switch Microswitches Industrial Automation 1 Used to detect the position of machinery, equipment, and assembly lines. Elevator and Escalator Control 2 Monitors the movement and position of elevator cars and escalator steps. Robotics and CNC Machines 3 Provides feedback on the position and movement of robotic arms and CNC machine tools. Household Appliances 4 Used in washing machines, dishwashers, and other appliances to detect door or lid position.

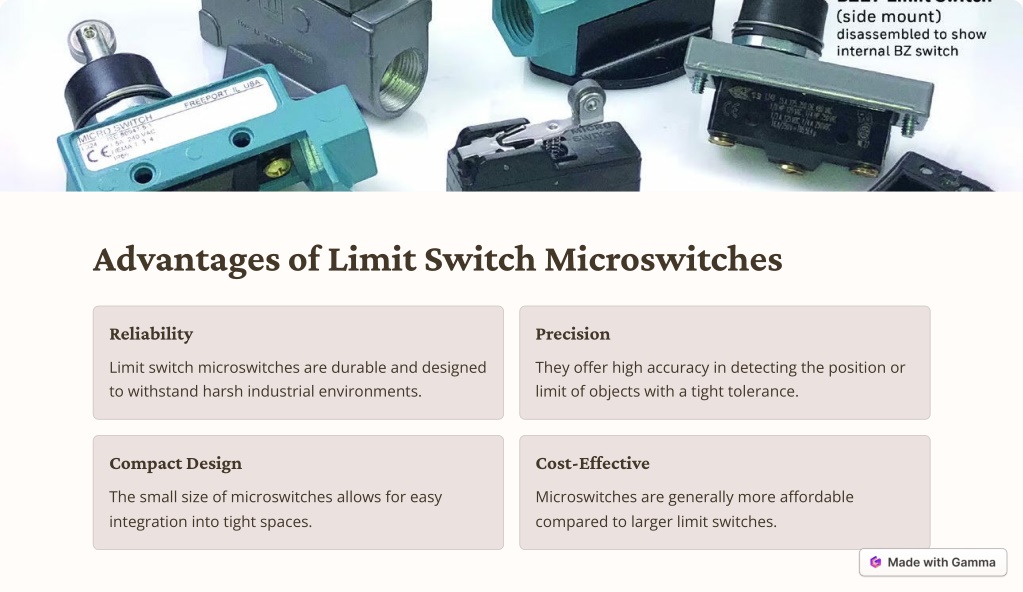

  6. Advantages of Limit Switch Microswitches Reliability Precision Limit switch microswitches are durable and designed to withstand harsh industrial environments. They offer high accuracy in detecting the position or limit of objects with a tight tolerance. Compact Design Cost-Effective The small size of microswitches allows for easy integration into tight spaces. Microswitches are generally more affordable compared to larger limit switches.

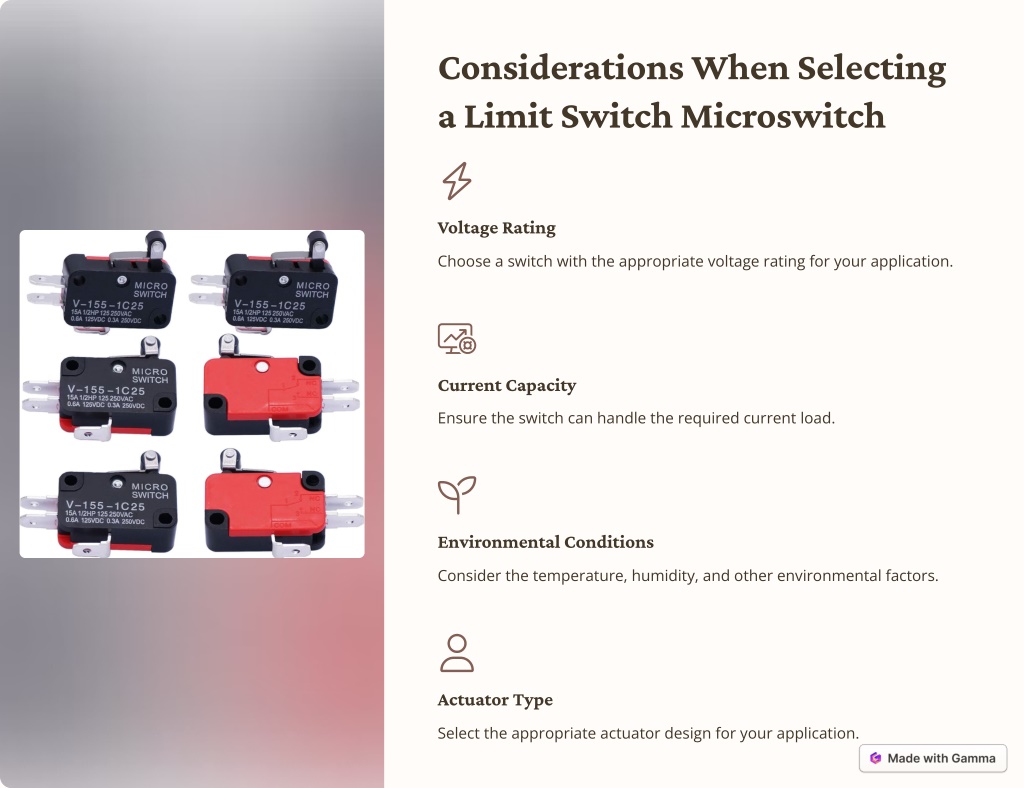

  7. Considerations When Selecting a Limit Switch Microswitch Voltage Rating Choose a switch with the appropriate voltage rating for your application. Current Capacity Ensure the switch can handle the required current load. Environmental Conditions Consider the temperature, humidity, and other environmental factors. Actuator Type Select the appropriate actuator design for your application.

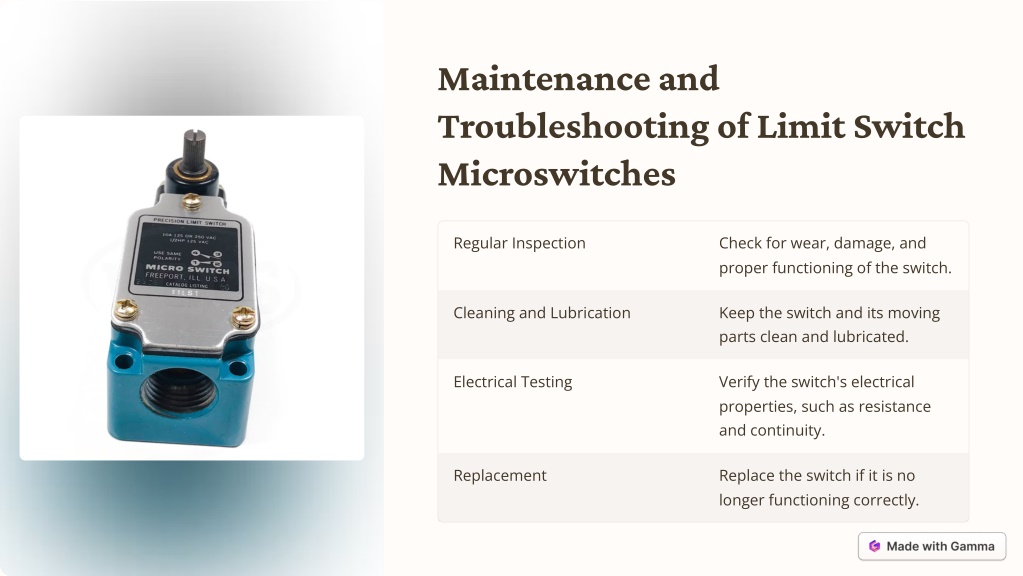

  8. Maintenance and Troubleshooting of Limit Switch Microswitches Regular Inspection Check for wear, damage, and proper functioning of the switch. Cleaning and Lubrication Keep the switch and its moving parts clean and lubricated. Electrical Testing Verify the switch's electrical properties, such as resistance and continuity. Replacement Replace the switch if it is no longer functioning correctly.

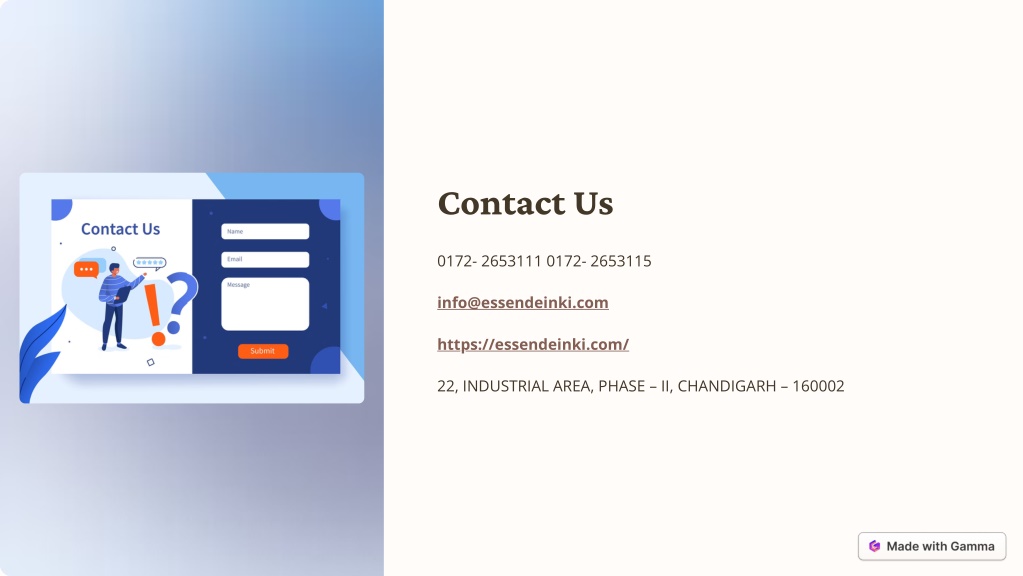

  9. Contact Us 0172- 2653111 0172- 2653115 info@essendeinki.com https://essendeinki.com/ 22, INDUSTRIAL AREA, PHASE – II, CHANDIGARH – 160002

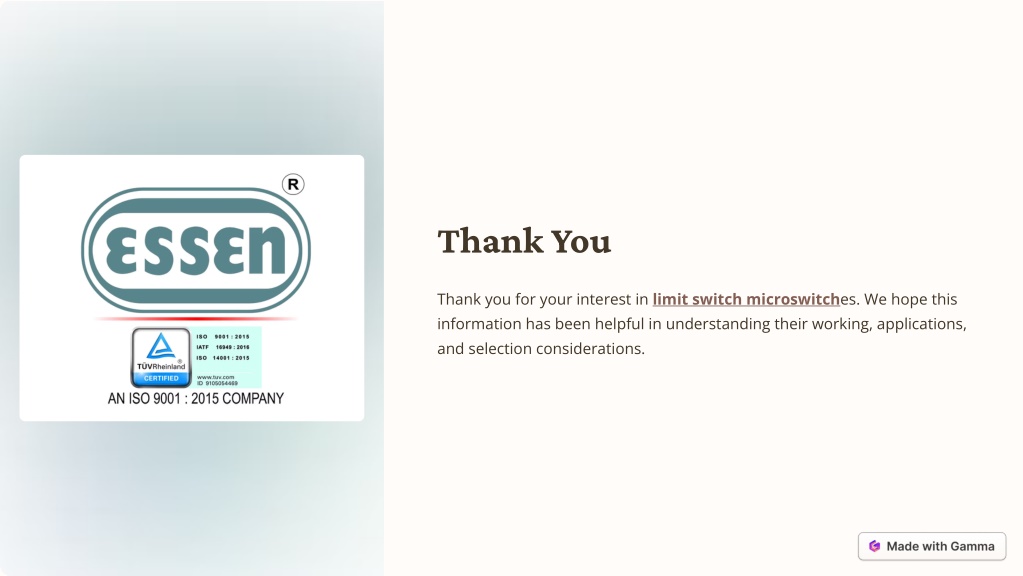

  10. Thank You Thank you for your interest in limit switch microswitches. We hope this information has been helpful in understanding their working, applications, and selection considerations.
