Push Button Switches A Comprehensive Guide

Push button switches are a fundamental component in various electrical and electronic systems, enabling users to control devices with a simple press. These switches are known for their reliability, durability, and ease of use.<br>

essendeniki
Download Presentation

Push Button Switches A Comprehensive Guide

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

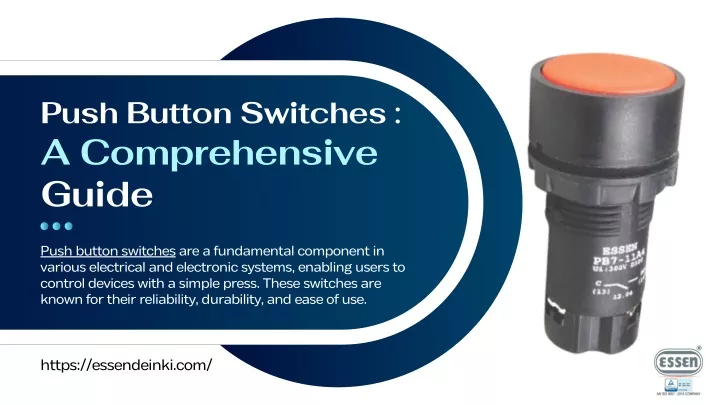

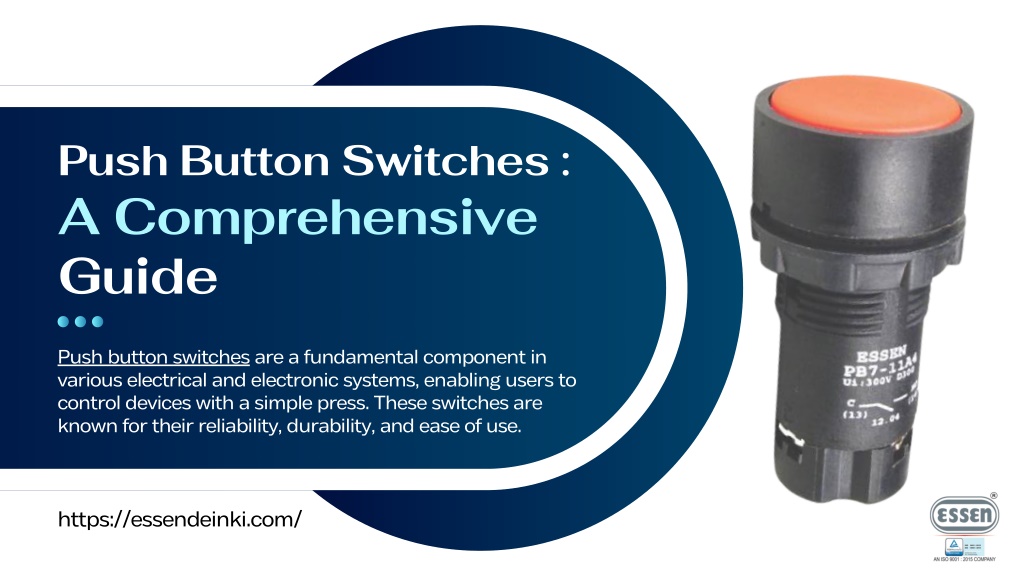

  1. Push Button Switches : A Comprehensive Guide Push button switches are a fundamental component in various electrical and electronic systems, enabling users to control devices with a simple press. These switches are known for their reliability, durability, and ease of use. https://essendeinki.com/

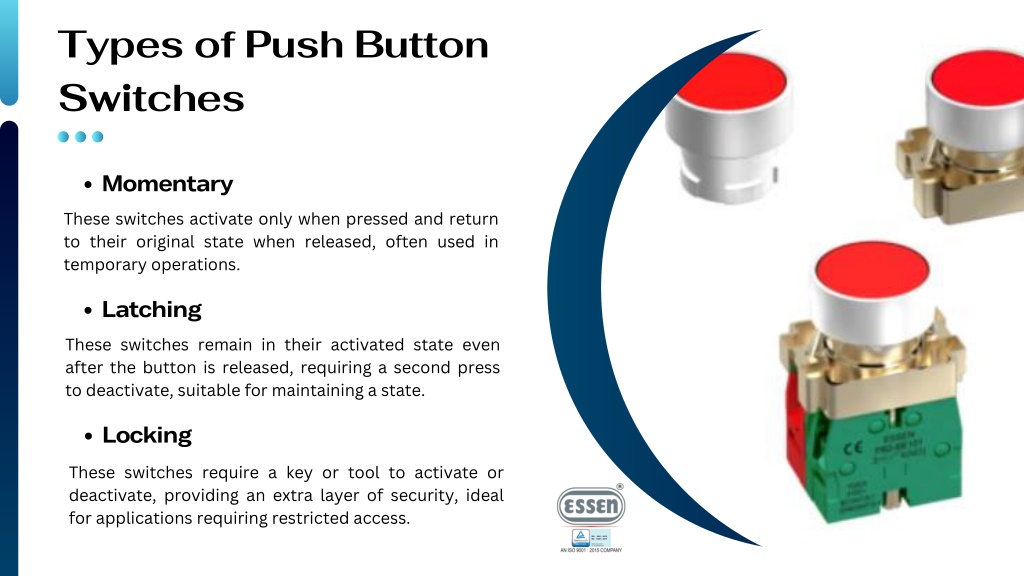

  2. Types of Push Button Switches Momentary These switches activate only when pressed and return to their original state when released, often used in temporary operations. Latching These switches remain in their activated state even after the button is released, requiring a second press to deactivate, suitable for maintaining a state. Locking These switches require a key or tool to activate or deactivate, providing an extra layer of security, ideal for applications requiring restricted access.

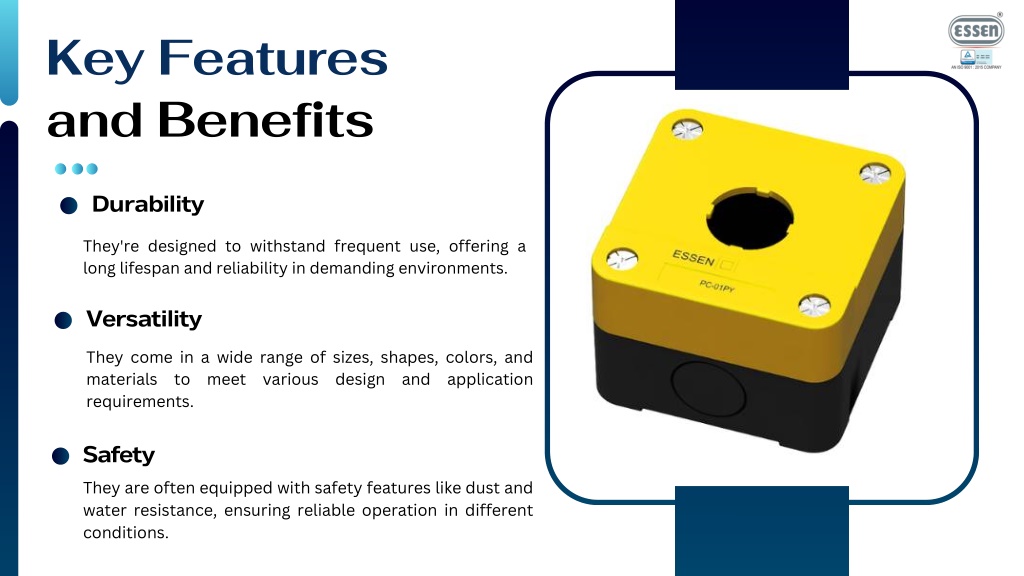

  3. Key Features and Benefits Durability They're designed to withstand frequent use, offering a long lifespan and reliability in demanding environments. Versatility They come in a wide range of sizes, shapes, colors, and materials to meet various design and application requirements. Safety They are often equipped with safety features like dust and water resistance, ensuring reliable operation in different conditions.

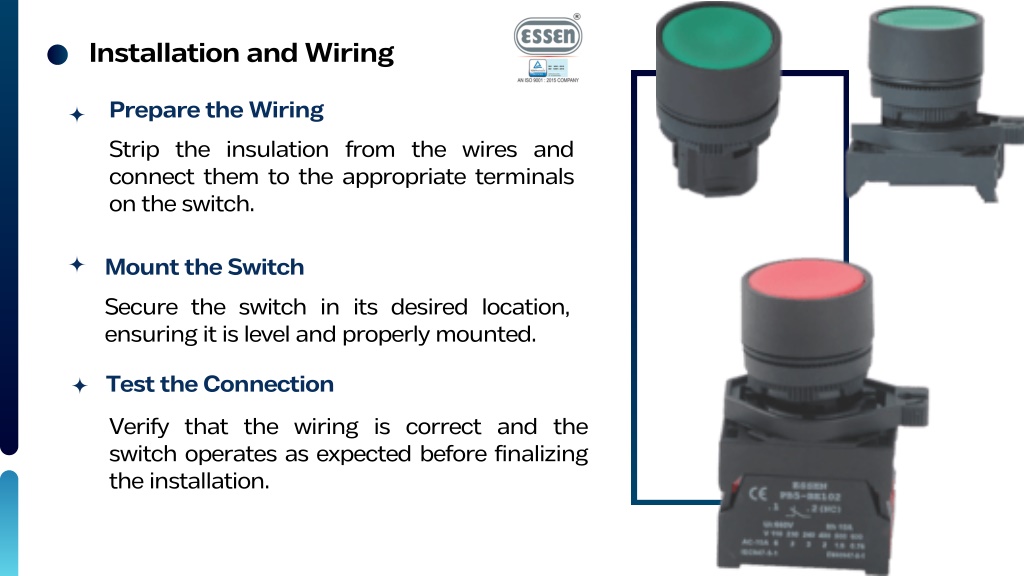

  4. Installation and Wiring Prepare the Wiring Strip the insulation from the wires and connect them to the appropriate terminals on the switch. Mount the Switch Secure the switch in its desired location, ensuring it is level and properly mounted. Test the Connection Verify that the wiring is correct and the switch operates as expected before finalizing the installation.

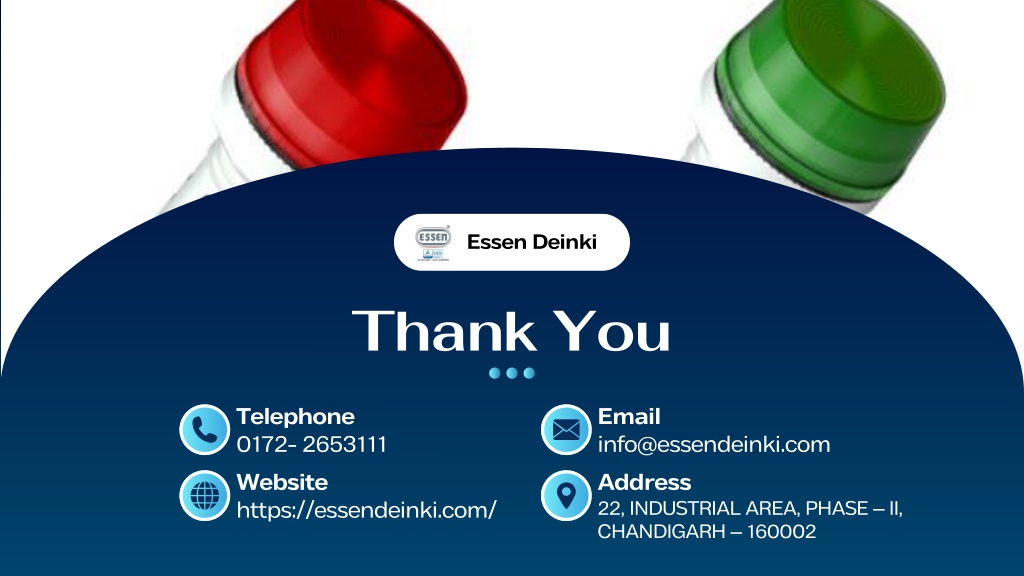

  5. Essen Deinki Thank You Telephone Email info@essendeinki.com Address 22, INDUSTRIAL AREA, PHASE – II, CHANDIGARH – 160002 0172- 2653111 Website https://essendeinki.com/
