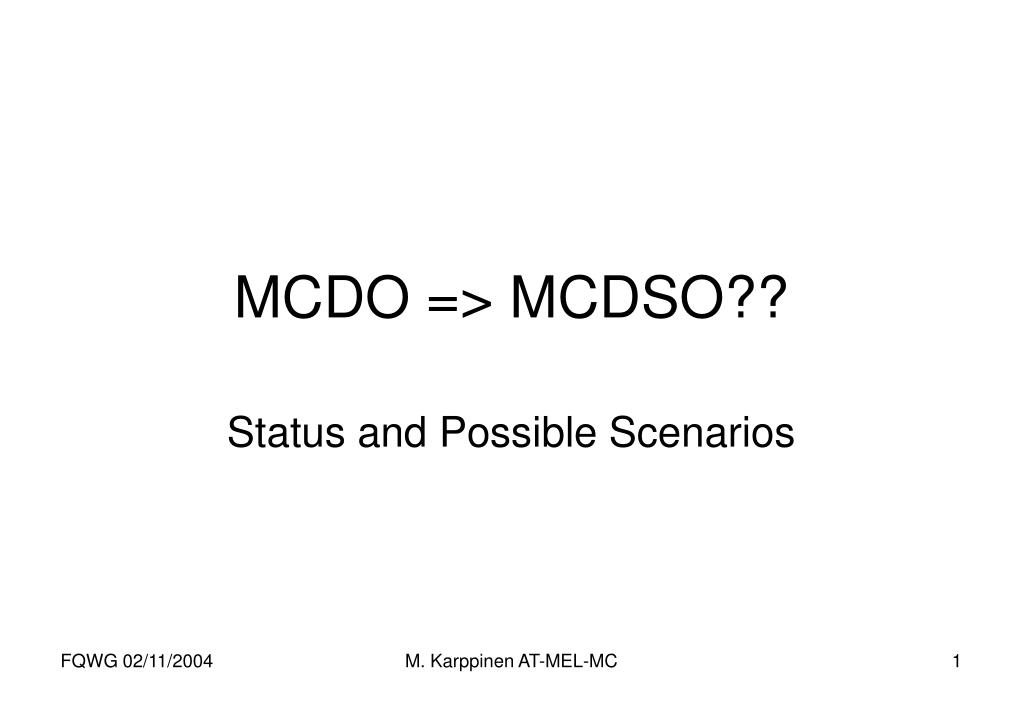

MCDO => MCDSO??

Status and Possible Scenarios

M. Karppinen AT-MEL-MC


Mcdo status

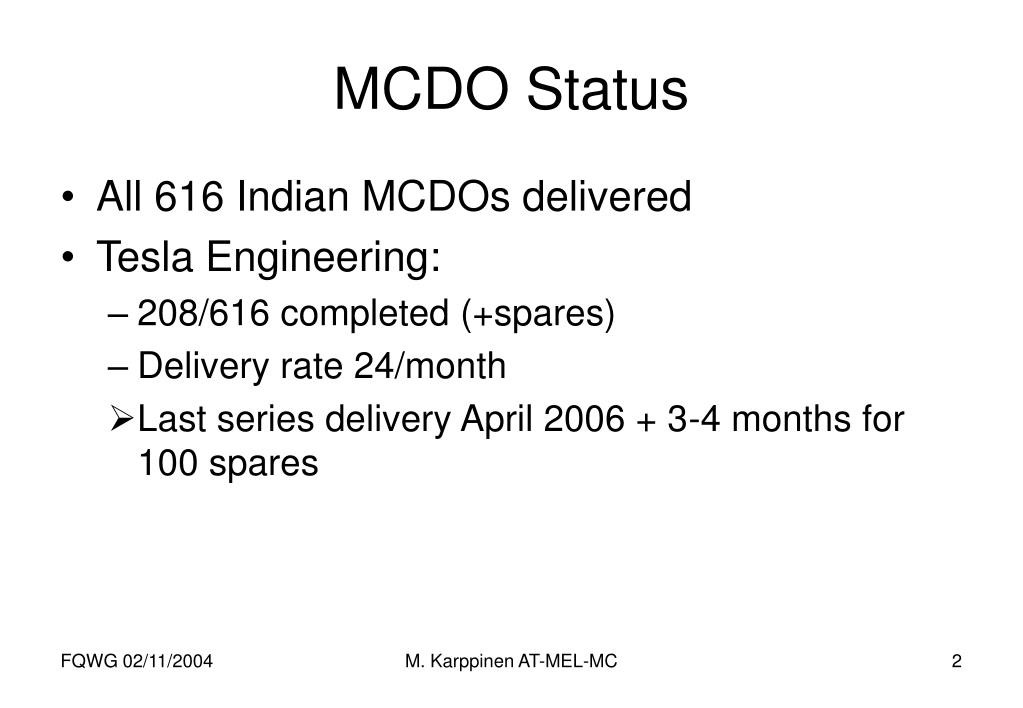

MCDO Status

  • All 616 Indian MCDOs delivered

  • Tesla Engineering:

    • 208/616 completed (+spares)

    • Delivery rate 24/month

    • Last series delivery April 2006 + 3-4 months for 100 spares

M. Karppinen AT-MEL-MC


Mcdso how many and by when

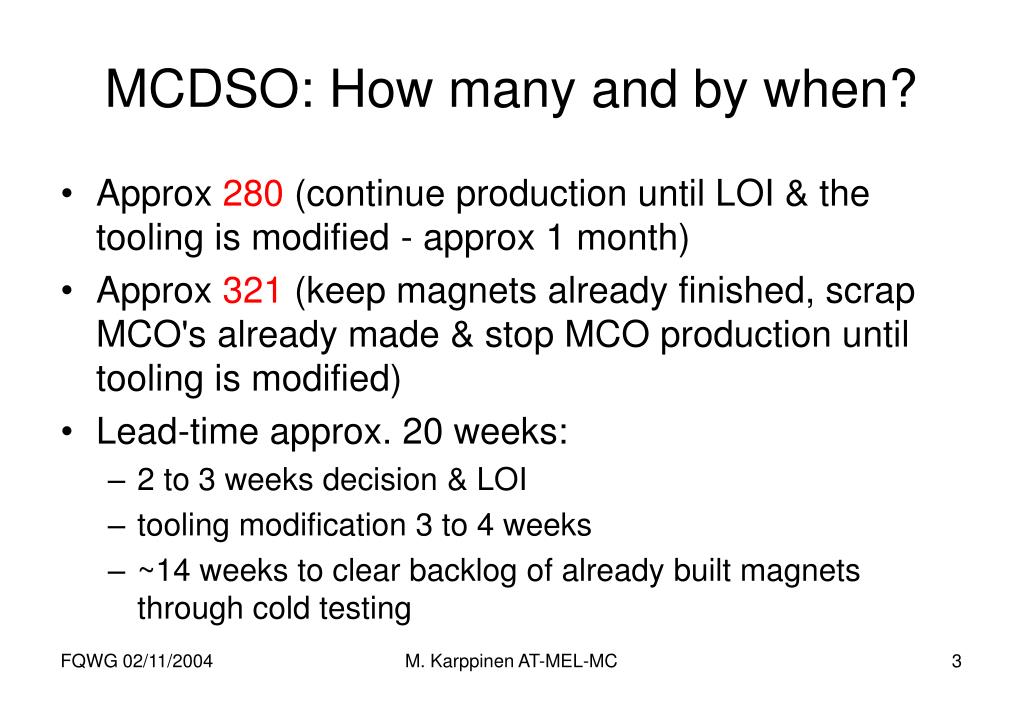

MCDSO: How many and by when?

  • Approx 280 (continue production until LOI & the tooling is modified - approx 1 month)

  • Approx 321 (keep magnets already finished, scrap MCO's already made & stop MCO production until tooling is modified)

  • Lead-time approx. 20 weeks:

    • 2 to 3 weeks decision & LOI

    • tooling modification 3 to 4 weeks

    • ~14 weeks to clear backlog of already built magnets through cold testing

M. Karppinen AT-MEL-MC


Mcdso cost

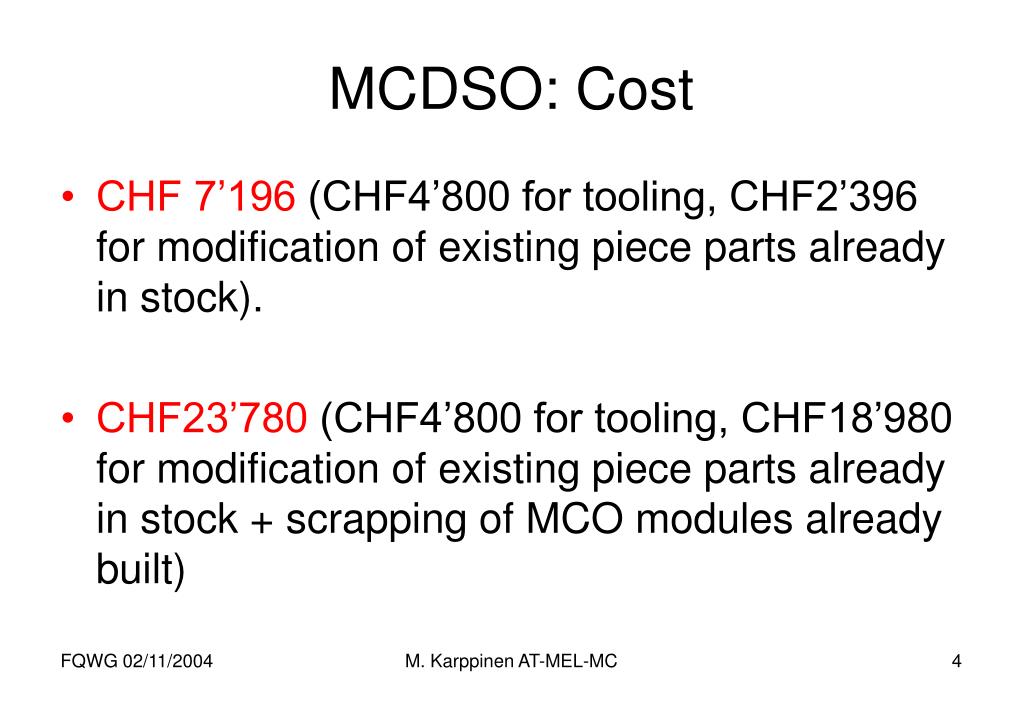

MCDSO: Cost

  • CHF 7’196 (CHF4’800 for tooling, CHF2’396 for modification of existing piece parts already in stock).

  • CHF23’780 (CHF4’800 for tooling, CHF18’980 for modification of existing piece parts already in stock + scrapping of MCO modules already built)

M. Karppinen AT-MEL-MC


But..

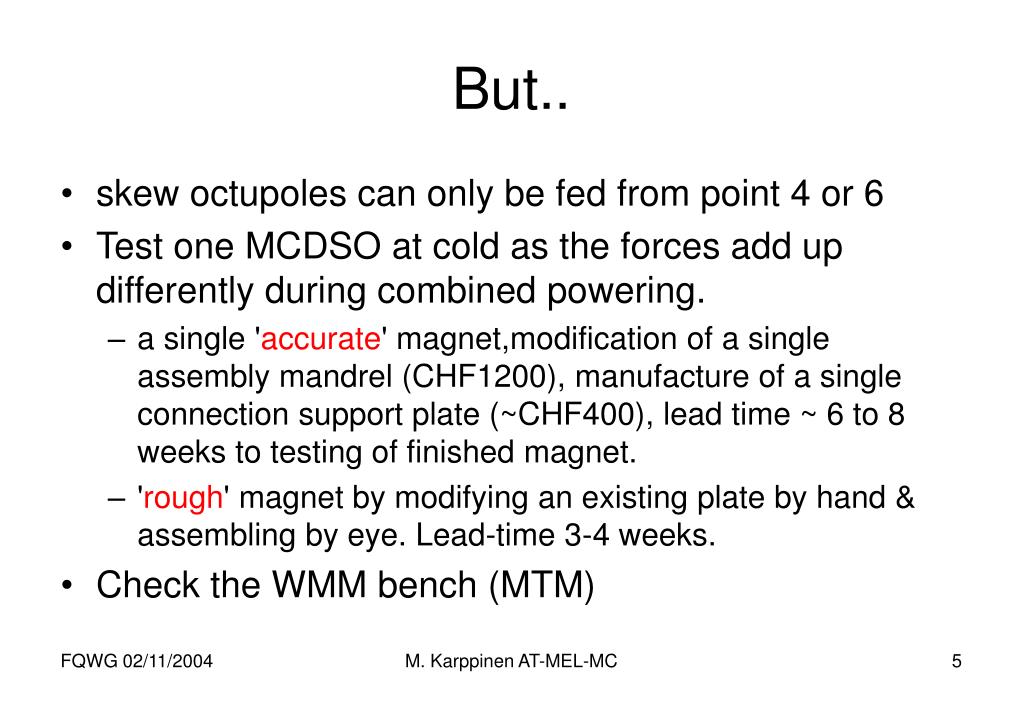

  • skew octupoles can only be fed from point 4 or 6

  • Test one MCDSO at cold as the forces add up differently during combined powering.

    • a single 'accurate' magnet,modification of a single assembly mandrel (CHF1200), manufacture of a single connection support plate (~CHF400), lead time ~ 6 to 8 weeks to testing of finished magnet.

    • 'rough' magnet by modifying an existing plate by hand & assembling by eye. Lead-time 3-4 weeks.

  • Check the WMM bench (MTM)

M. Karppinen AT-MEL-MC
