  1. .:: Hortilover ::. Training and Pruning Basics Objectives and Tools www.Hortilover.com/

  2. Balanced Renewal Strong Tree Framework Facilitate Management Harvest Sunlight Efficiently Maintain Productivity www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  3. What happens if you do not prune? • Faster growth • Earlier fruiting • Less light penetration • Poor spray coverage • More difficult to manage www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

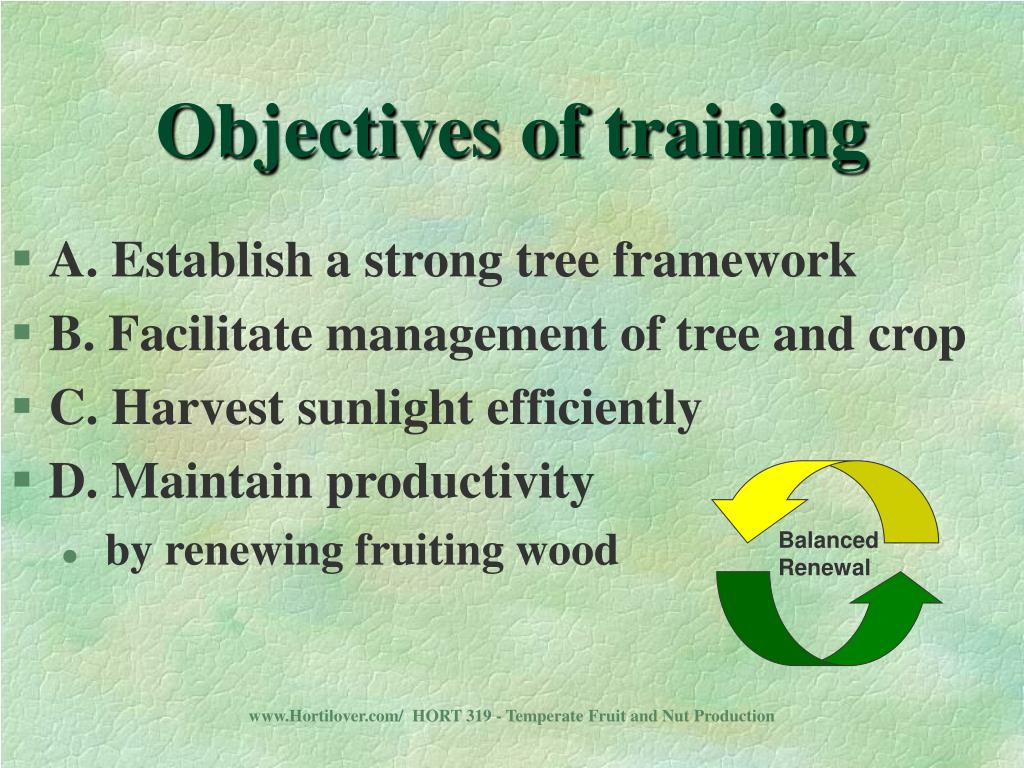

  4. Balanced Renewal Objectives of training • A. Establish a strong tree framework • B. Facilitate management of tree and crop • C. Harvest sunlight efficiently • D. Maintain productivity • by renewing fruiting wood www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  5. A. Establish a Strong Tree Framework Structural Wood • Upright vertical trunk • Well distributed scaffolds • Wide crotch angles www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

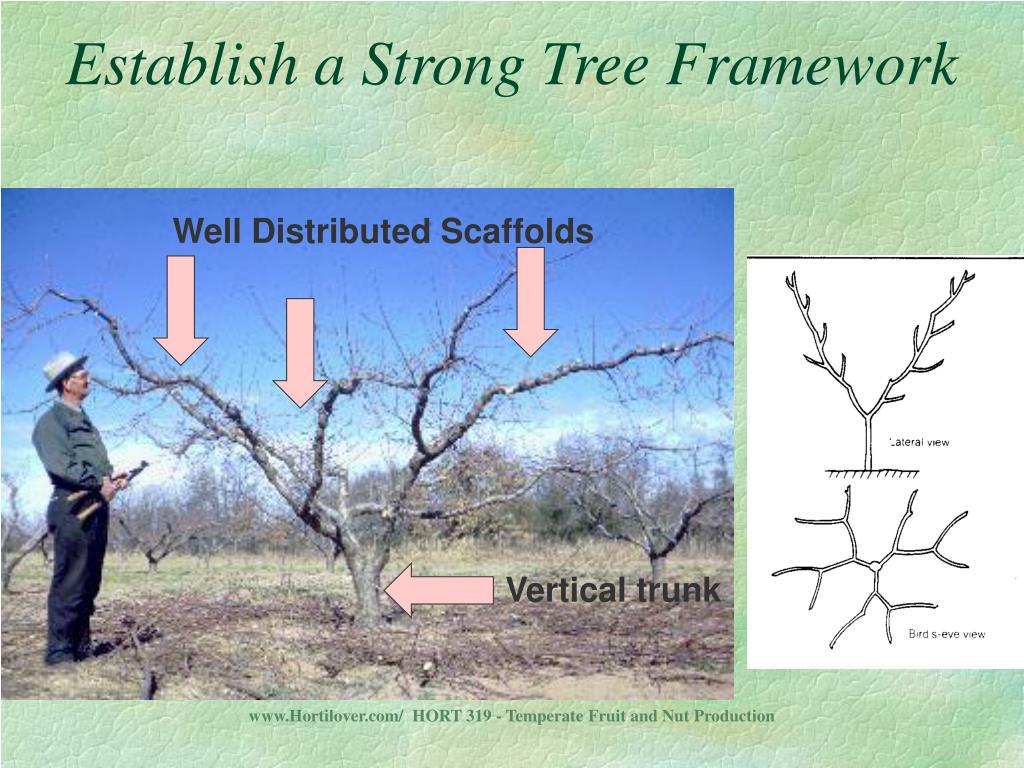

  6. Vertical trunk Establish a Strong Tree Framework Well Distributed Scaffolds www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

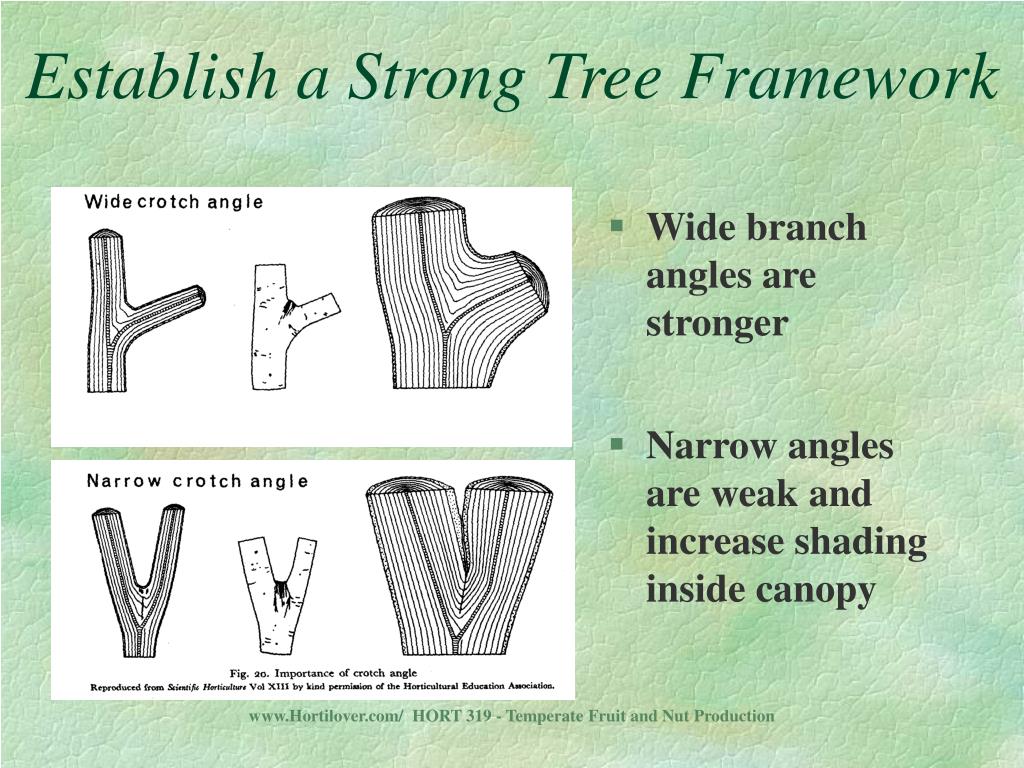

  7. Establish a Strong Tree Framework • Wide branch angles are stronger • Narrow angles are weak and increase shading inside canopy www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

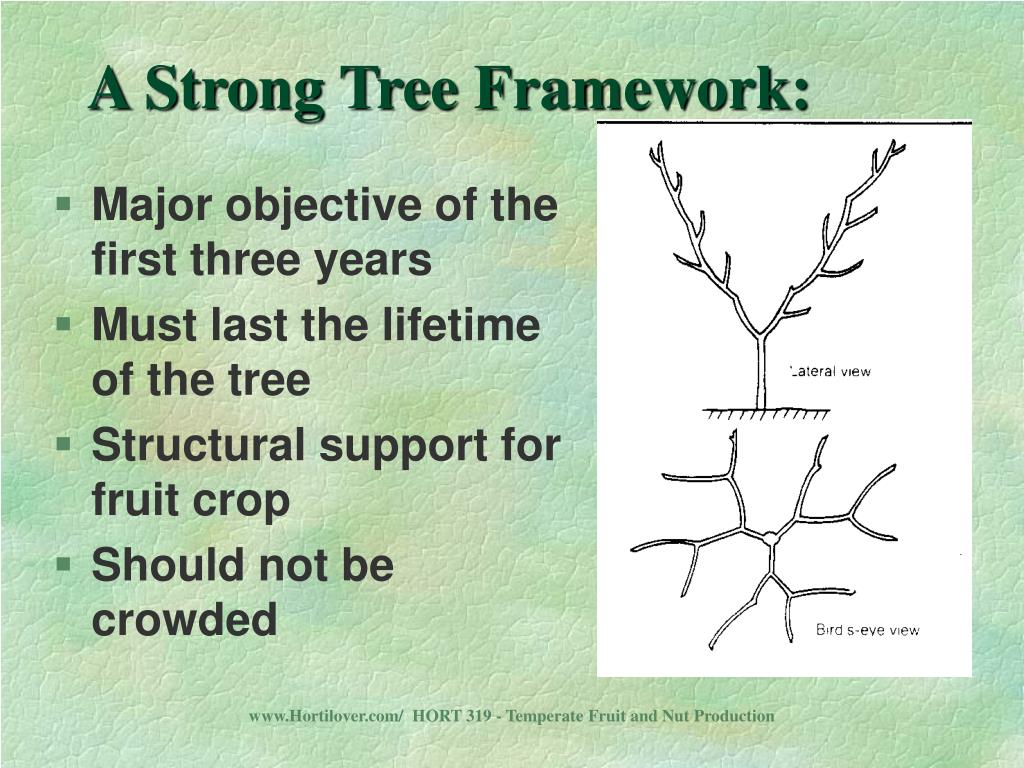

  8. A Strong Tree Framework: • Major objective of the first three years • Must last the lifetime of the tree • Structural support for fruit crop • Should not be crowded www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

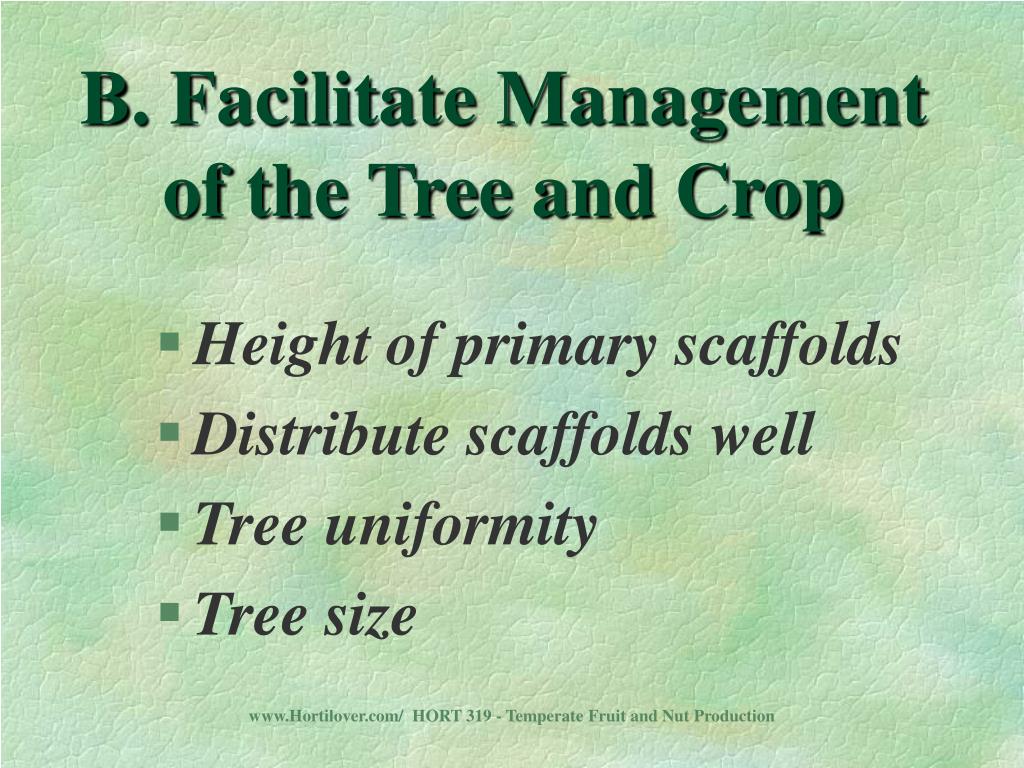

  9. B. Facilitate Management of the Tree and Crop • Height of primary scaffolds • Distribute scaffolds well • Tree uniformity • Tree size www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

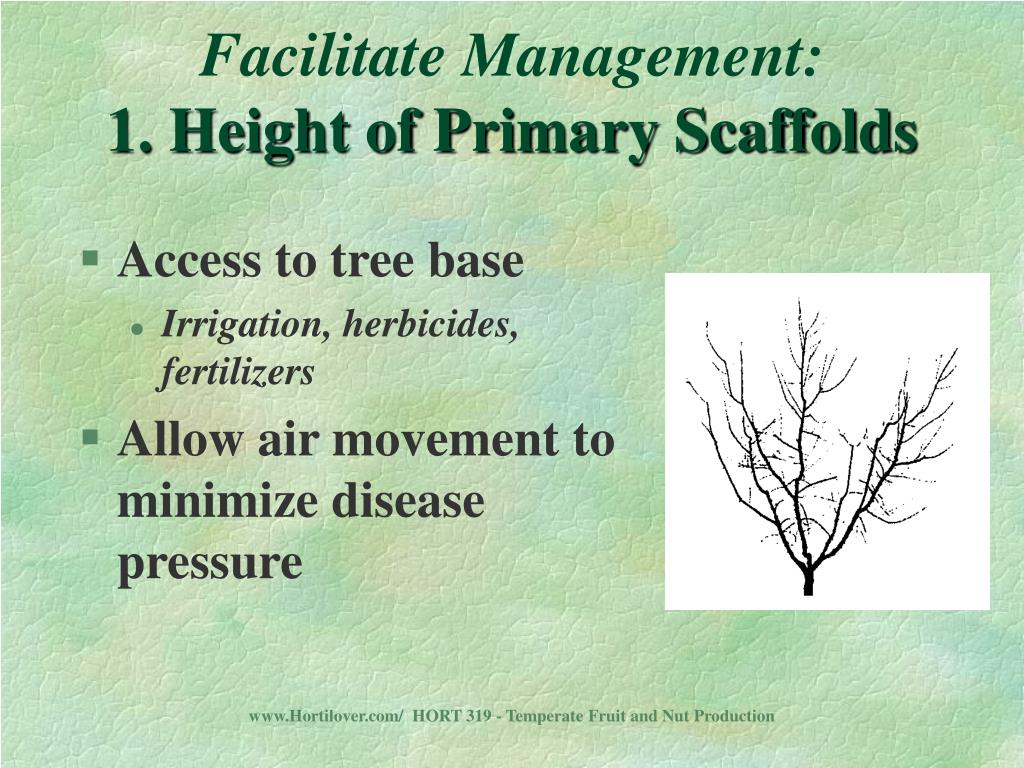

  10. Facilitate Management:1. Height of Primary Scaffolds • Access to tree base • Irrigation, herbicides, fertilizers • Allow air movement to minimize disease pressure www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

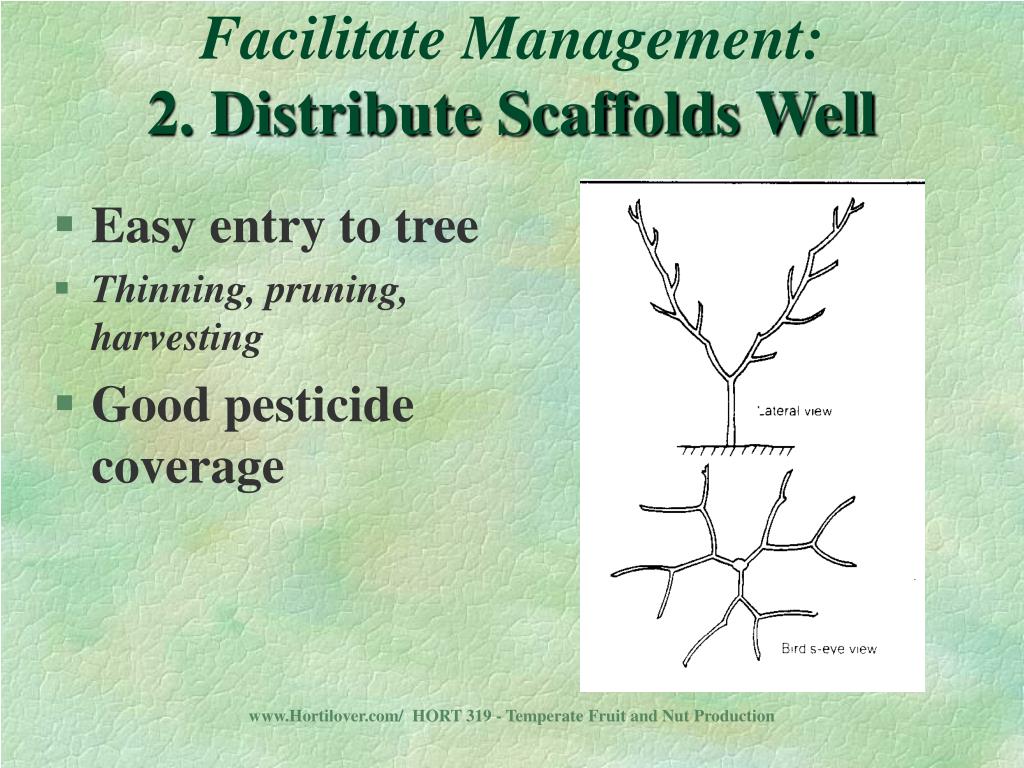

  11. Easy entry to tree Thinning, pruning, harvesting Good pesticide coverage Facilitate Management:2. Distribute Scaffolds Well www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  12. Facilitate Management:3. Tree Uniformity • Easier to train employees • Mechanization possible www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  13. Facilitate Management:4. Tree Size • Small trees are easier to work • No ladders needed • Easy to reach all parts of tree • Better spray penetration www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

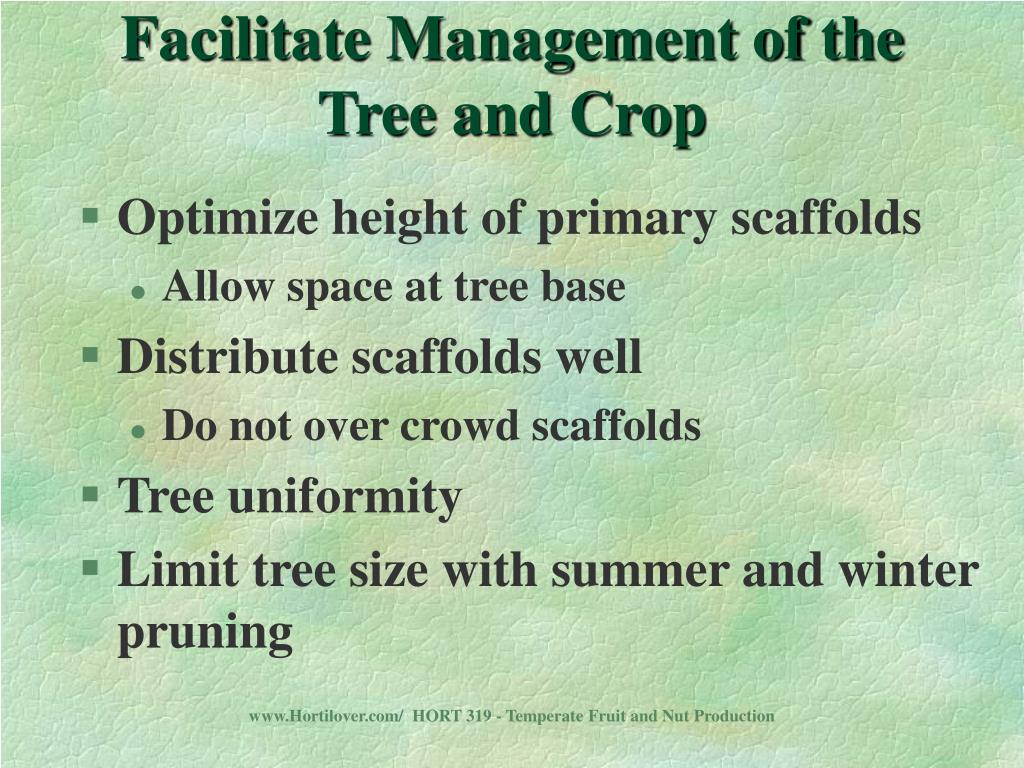

  14. Facilitate Management of the Tree and Crop • Optimize height of primary scaffolds • Allow space at tree base • Distribute scaffolds well • Do not over crowd scaffolds • Tree uniformity • Limit tree size with summer and winter pruning www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

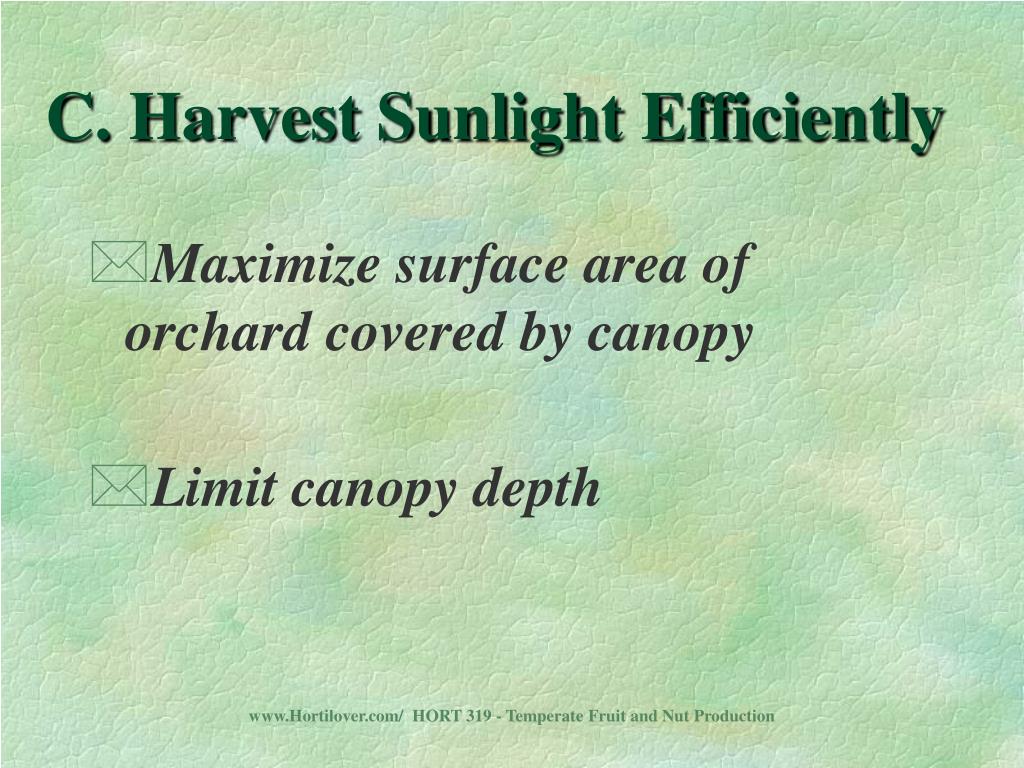

  15. C. Harvest Sunlight Efficiently • Maximize surface area of orchard covered by canopy • Limit canopy depth www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

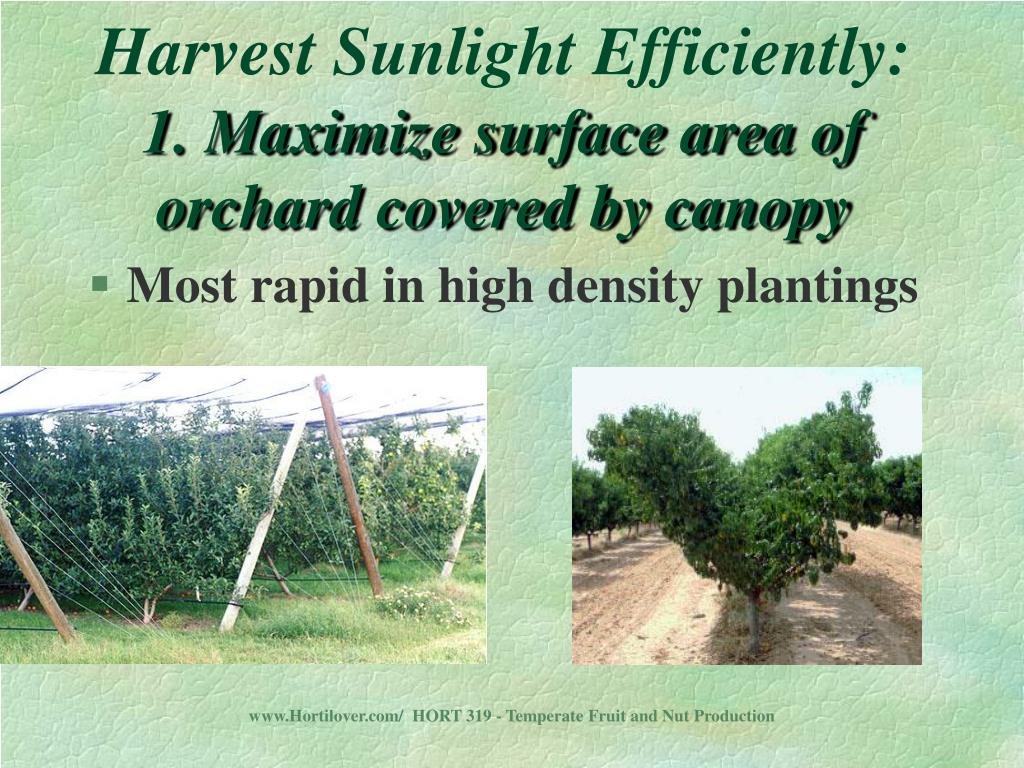

  16. Most rapid in high density plantings Harvest Sunlight Efficiently:1. Maximize surface area of orchard covered by canopy www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  17. 50% 30% Harvest Sunlight Efficiently:2. Limit Canopy Depth Light Intensity Decreases Within the Tree Canopy www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

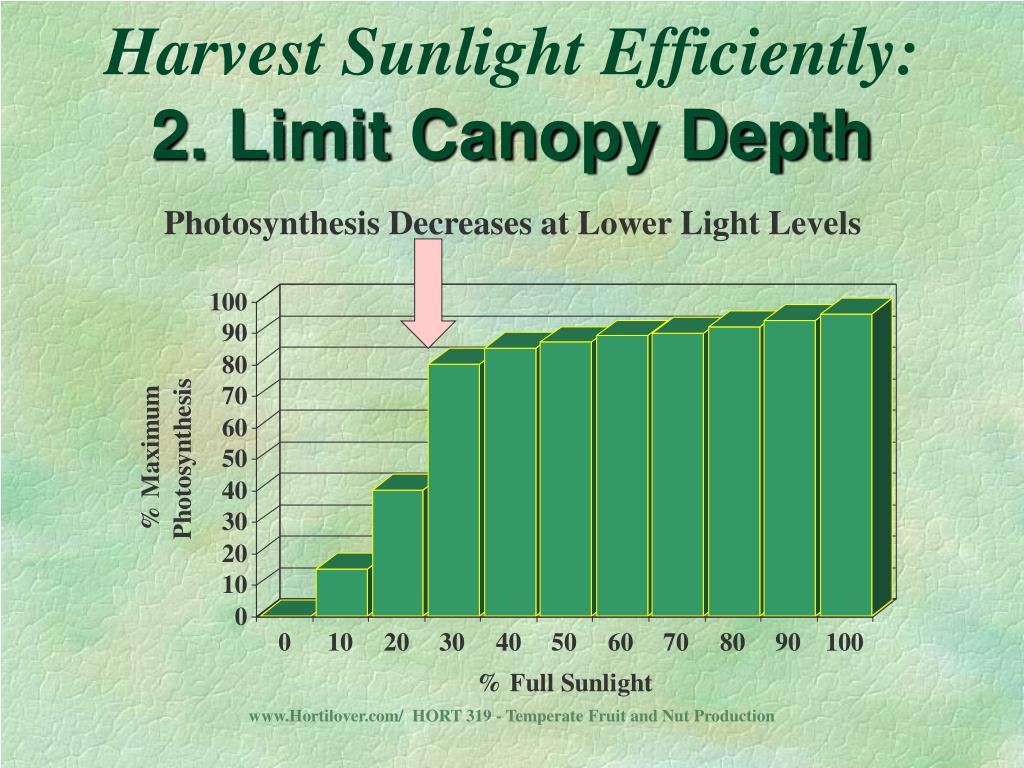

  18. Harvest Sunlight Efficiently:2. Limit Canopy Depth Photosynthesis Decreases at Lower Light Levels www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

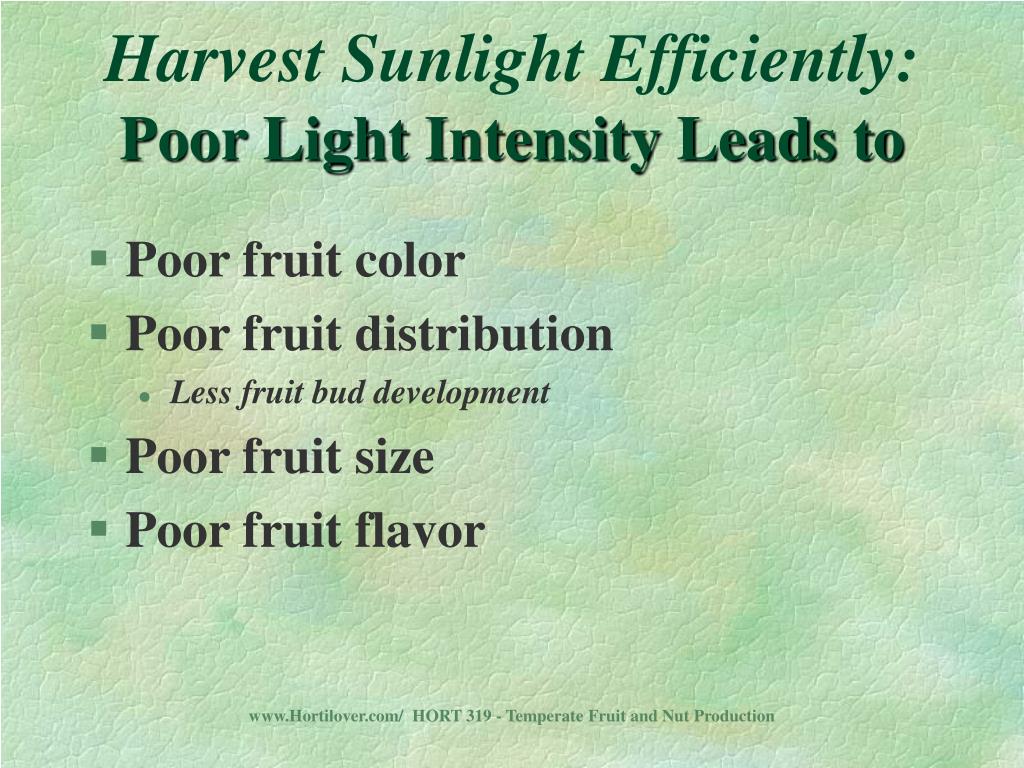

  19. Harvest Sunlight Efficiently:Poor Light Intensity Leads to • Poor fruit color • Poor fruit distribution • Less fruit bud development • Poor fruit size • Poor fruit flavor www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

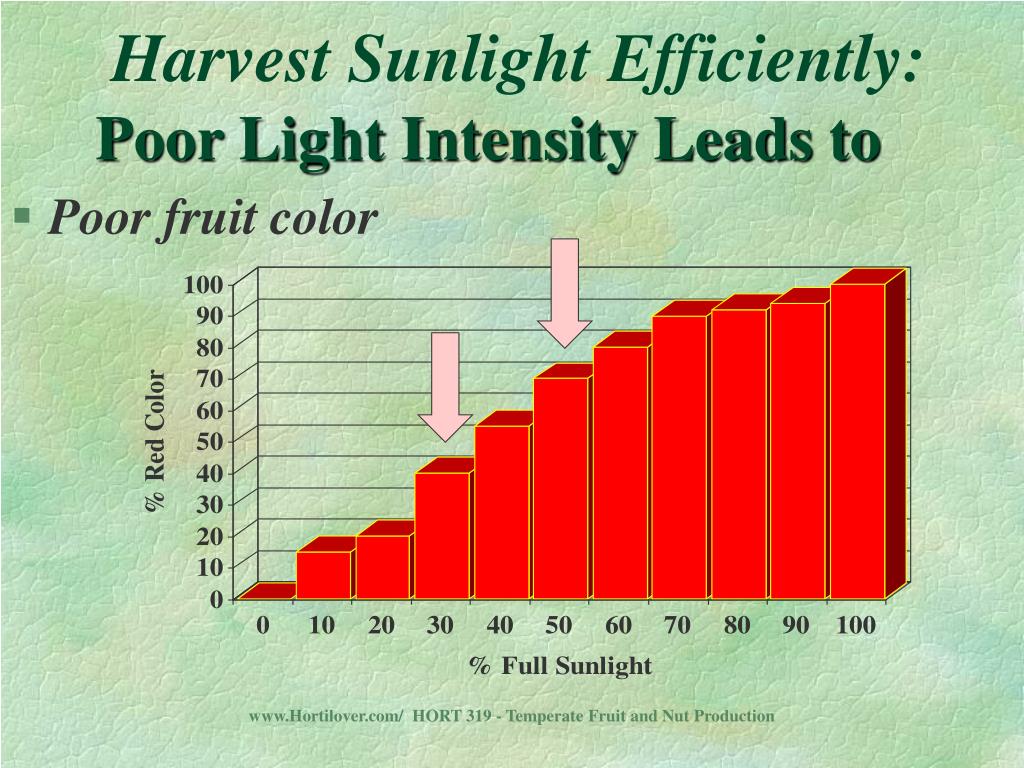

  20. Poor fruit color Harvest Sunlight Efficiently:Poor Light Intensity Leads to www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

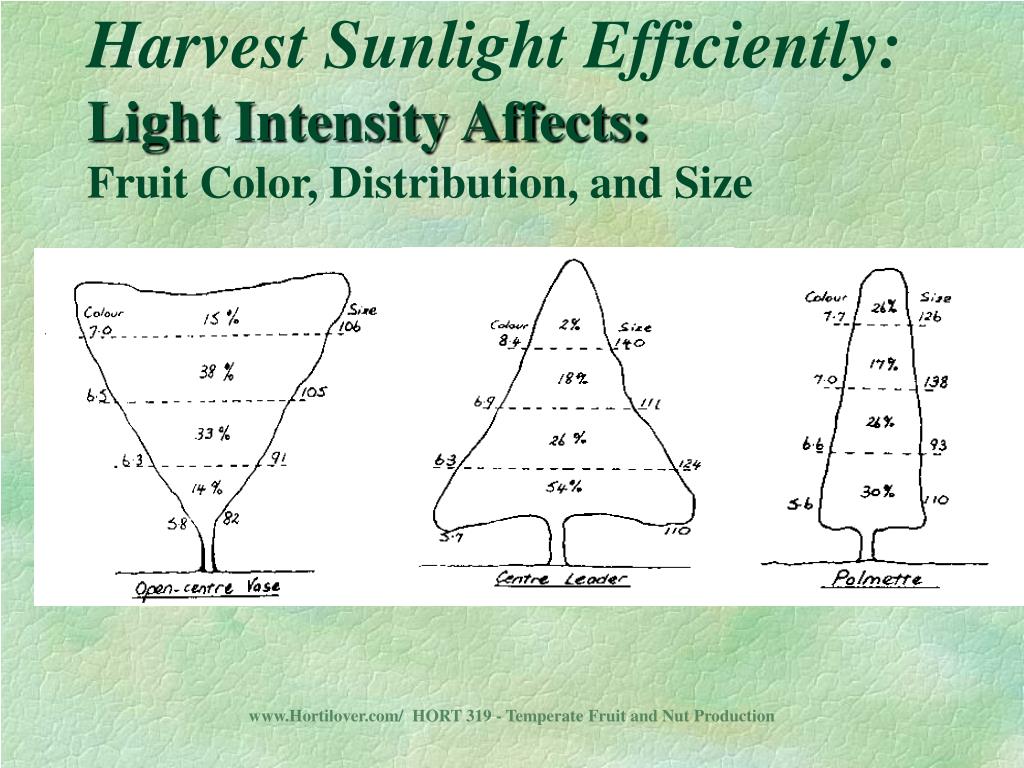

  21. Harvest Sunlight Efficiently:Light Intensity Affects:Fruit Color, Distribution, and Size www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  22. Harvest Sunlight Efficiently:Light Intensity Affects:Fruit Color, Distribution, and Size www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

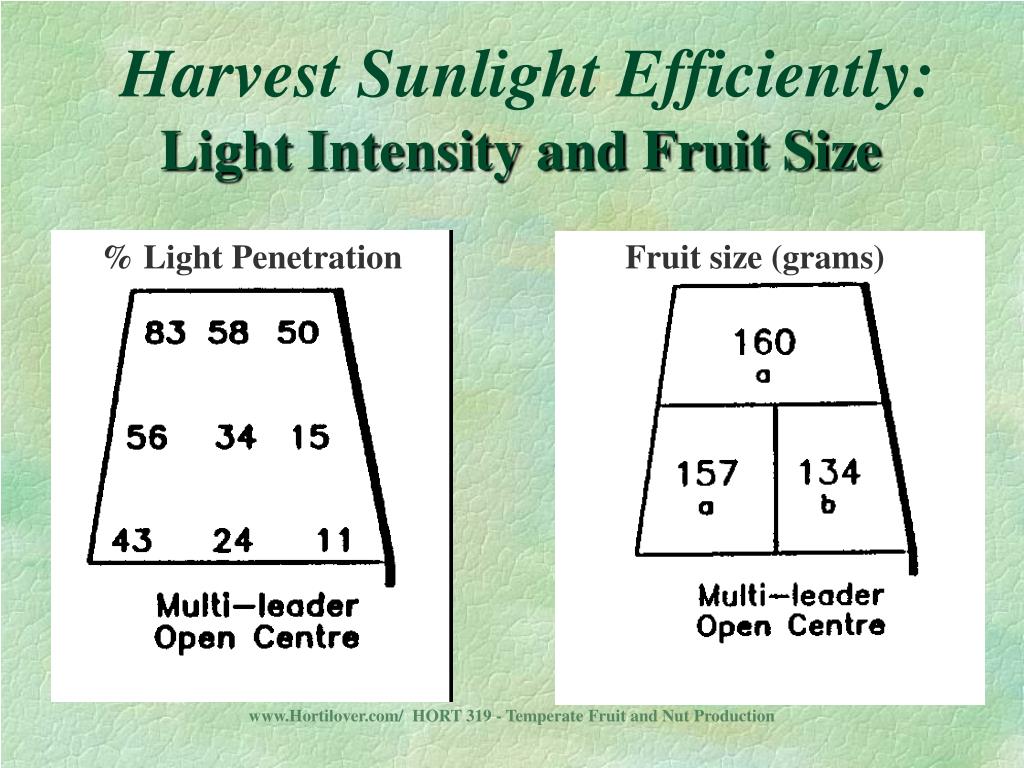

  23. Harvest Sunlight Efficiently:Light Intensity and Fruit Size % Light Penetration Fruit size (grams) www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

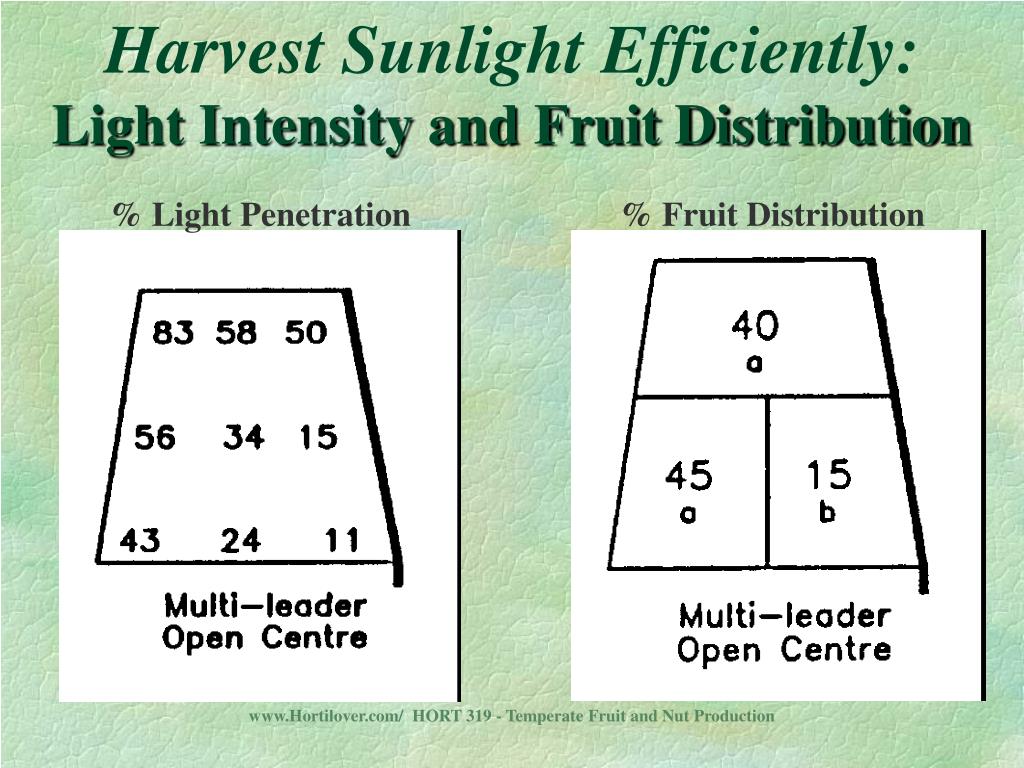

  24. Harvest Sunlight Efficiently:Light Intensity and Fruit Distribution % Light Penetration % Fruit Distribution www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  25. Harvest Sunlight Efficiently:Light Intensity and Fruit Flavor % Light Penetration % Soluble Solids www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  26. Harvest Sunlight Efficiently • Maximize Orchard Floor Covered with Canopy • Limit canopy depth to 3 feet • Expose all parts of the canopy with at least 50% sunlight www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

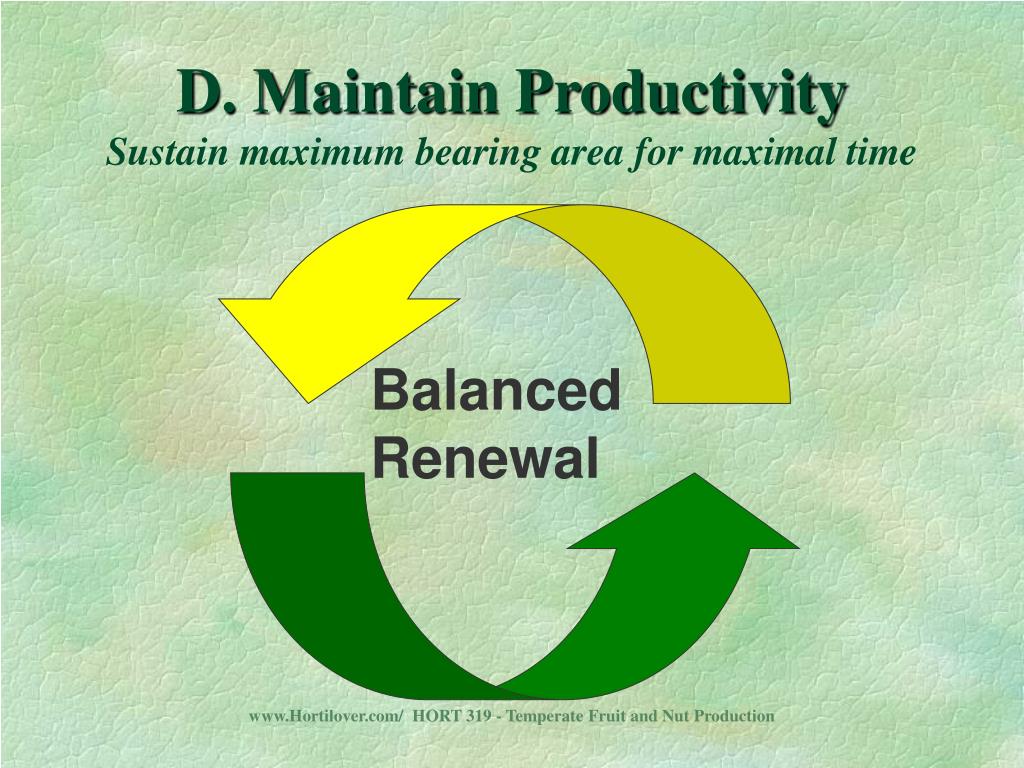

  27. Balanced Renewal D. Maintain ProductivitySustain maximum bearing area for maximal time www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

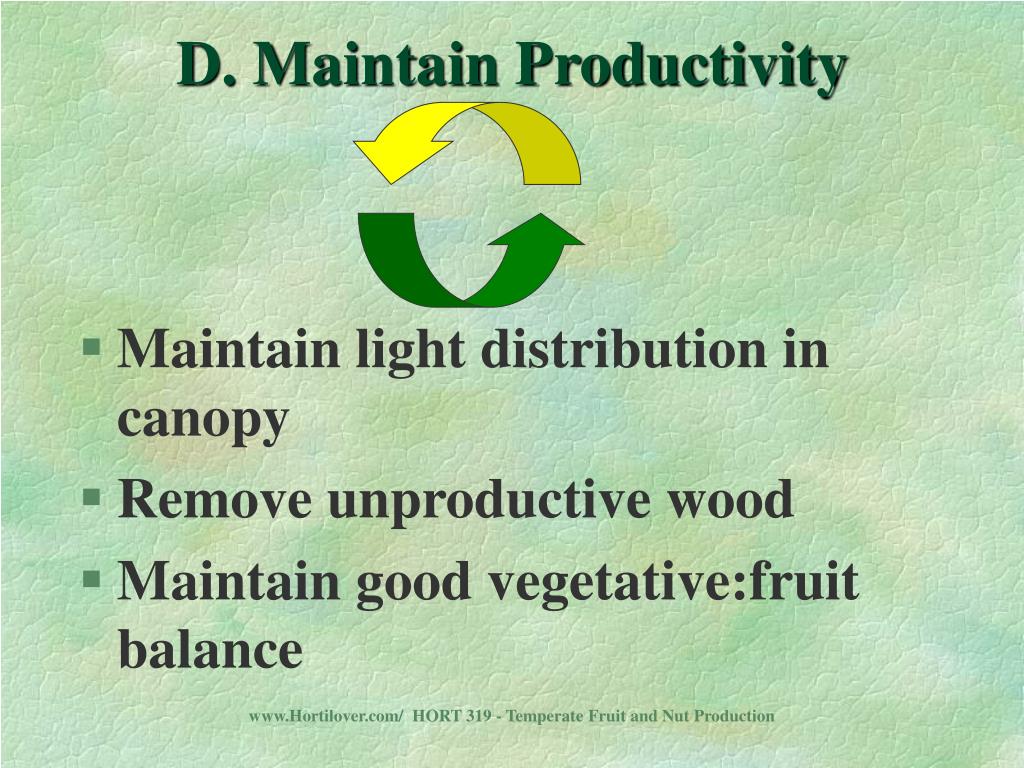

  28. D. Maintain Productivity • Maintain light distribution in canopy • Remove unproductive wood • Maintain good vegetative:fruit balance www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  29. Maintain Productivity:Maintain light distribution in canopy • Only sun-exposed areas produce quality fruit • Limit canopy depth to 3’ • Control tree size • Unless control tree size the fruit moves up every year • Lower part of tree will be shaded www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

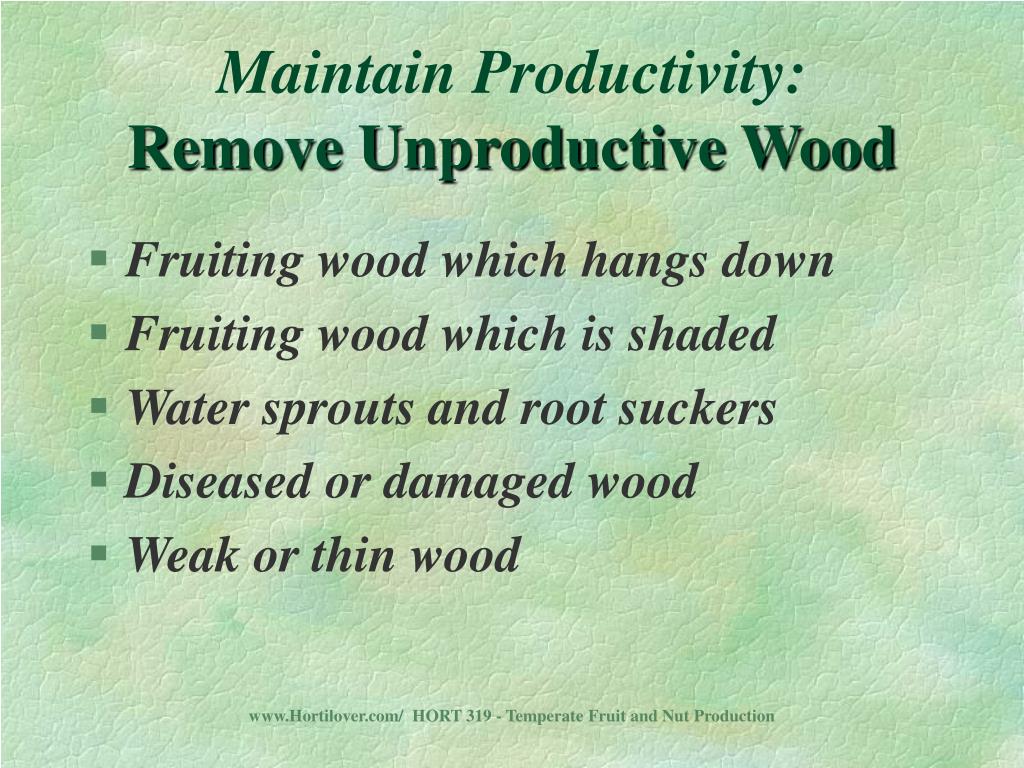

  30. Maintain Productivity:Remove Unproductive Wood • Fruiting wood which hangs down • Fruiting wood which is shaded • Water sprouts and root suckers • Diseased or damaged wood • Weak or thin wood www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

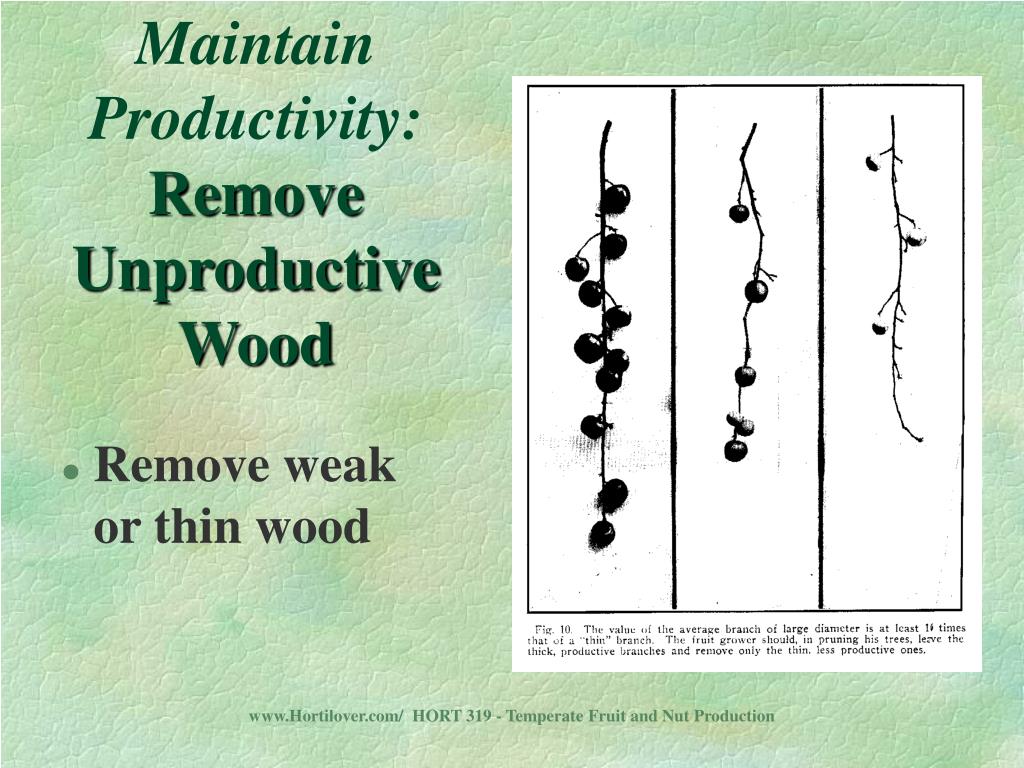

  31. Maintain Productivity:Remove Unproductive Wood • Remove weak or thin wood www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  32. Maintain Productivity:Remove Unproductive Wood • Remove weak or thin wood www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

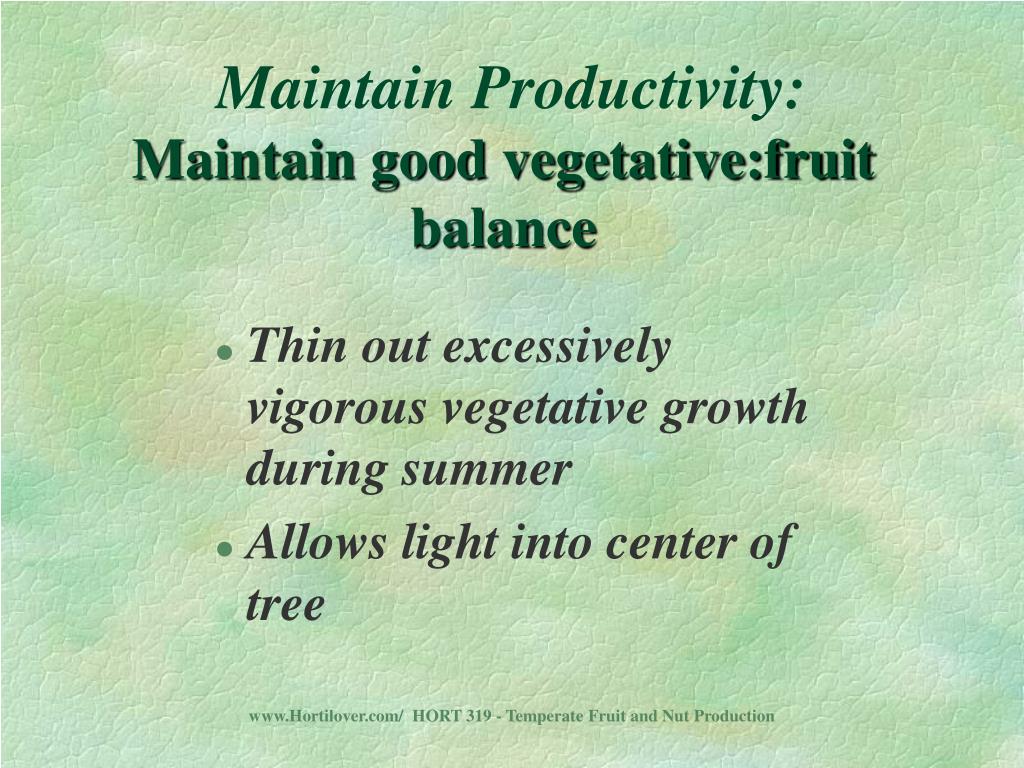

  33. Maintain Productivity:Maintain good vegetative:fruit balance • Thin out excessively vigorous vegetative growth during summer • Allows light into center of tree www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  34. Maintain Productivity:Maintain good vegetative:fruit balance • Remove excessive fruiting wood • In peaches - remove 40-60% of new fruiting wood each year www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

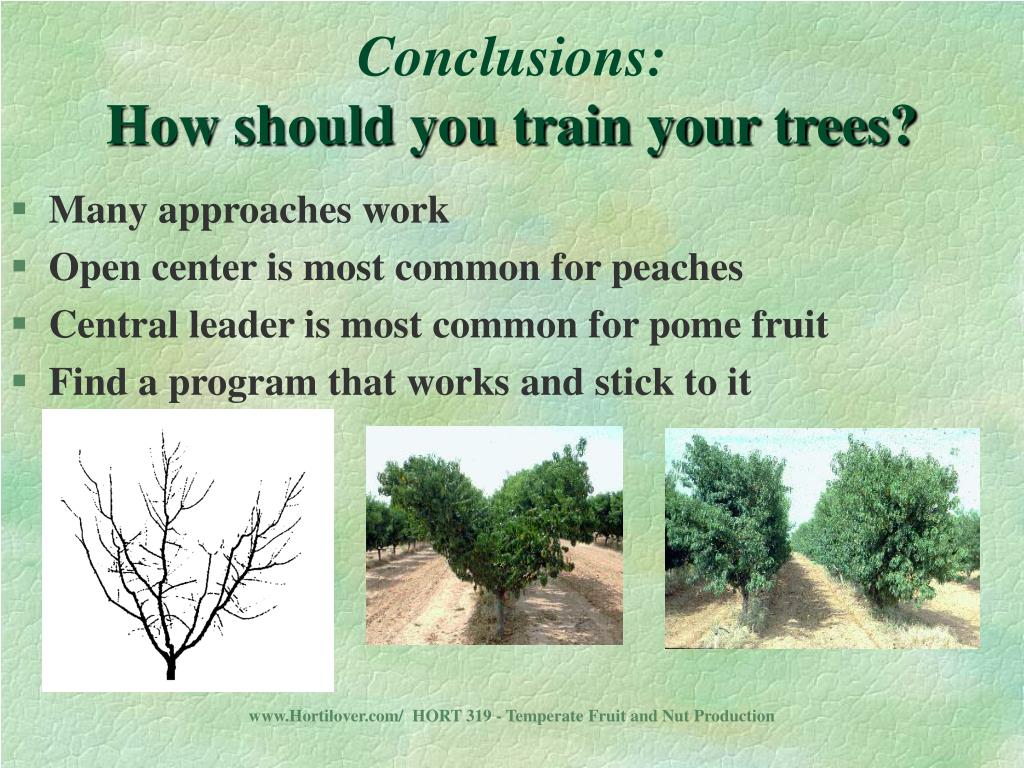

  35. Conclusions:How should you train your trees? • Many approaches work • Open center is most common for peaches • Central leader is most common for pome fruit • Find a program that works and stick to it www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  36. Conclusions:How should you train your trees? • Keep in mind the four objectives • Establish a strong tree framework • Facilitate management of tree and crop • Harvest sunlight efficiently • Maintain productivity by balanced renewal www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  37. What Tools Are Used in Tree Training? www.Hortilover.com/

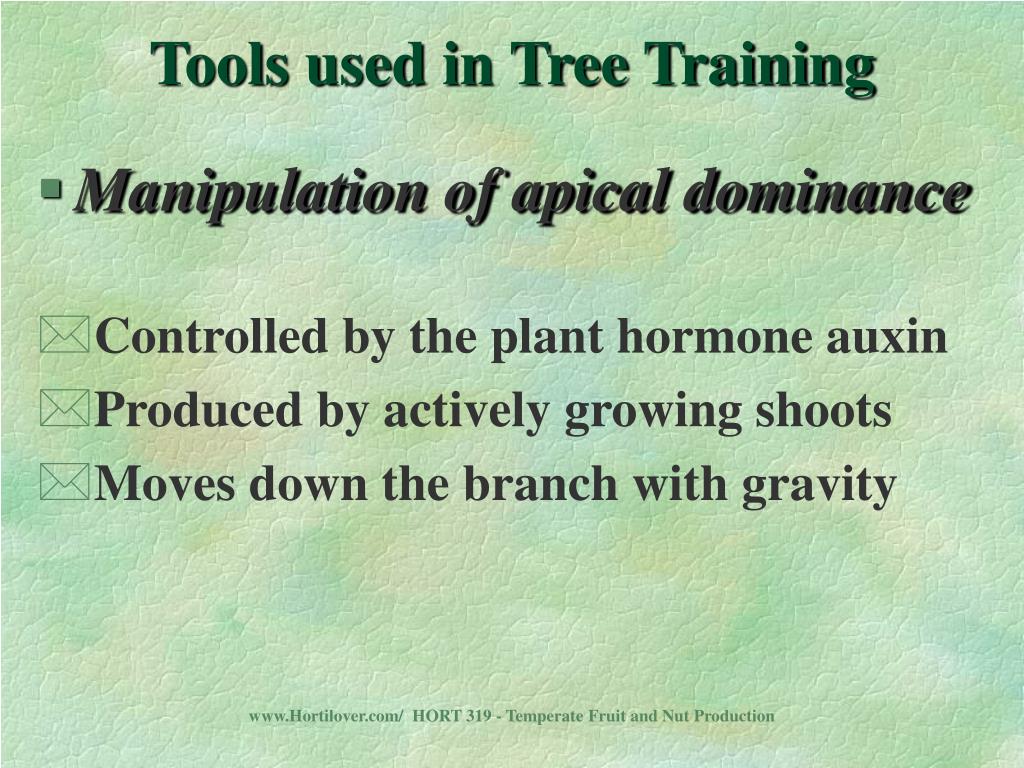

  38. Tools used in Tree Training • Manipulation of apical dominance • Controlled by the plant hormone auxin • Produced by actively growing shoots • Moves down the branch with gravity www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

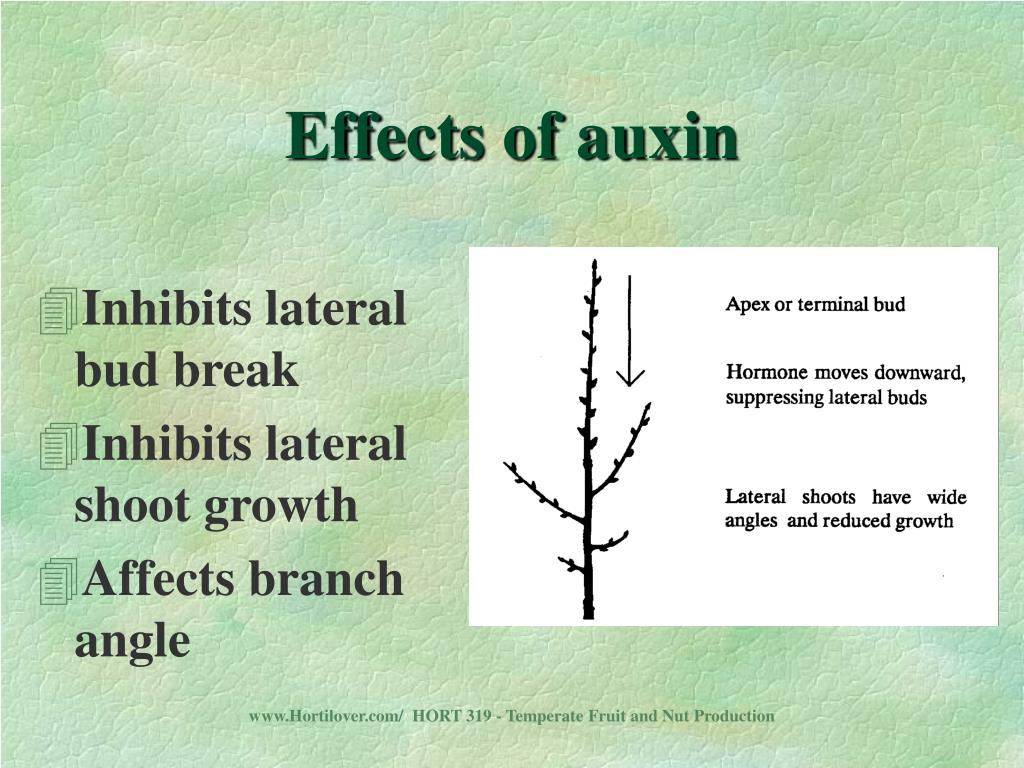

  39. Effects of auxin • Inhibits lateral bud break • Inhibits lateral shoot growth • Affects branch angle www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  40. Heading Cut Remove part of the branch Stimulate bud break near cut Stimulate localized branching PruningRemove the Source of Auxin www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  41. Hedging = Heading Cuts • Initially it opens up the canopy • Since heading cuts • Stimulate lateral bud break • Vigorous vegetative growth creates a dense canopy www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

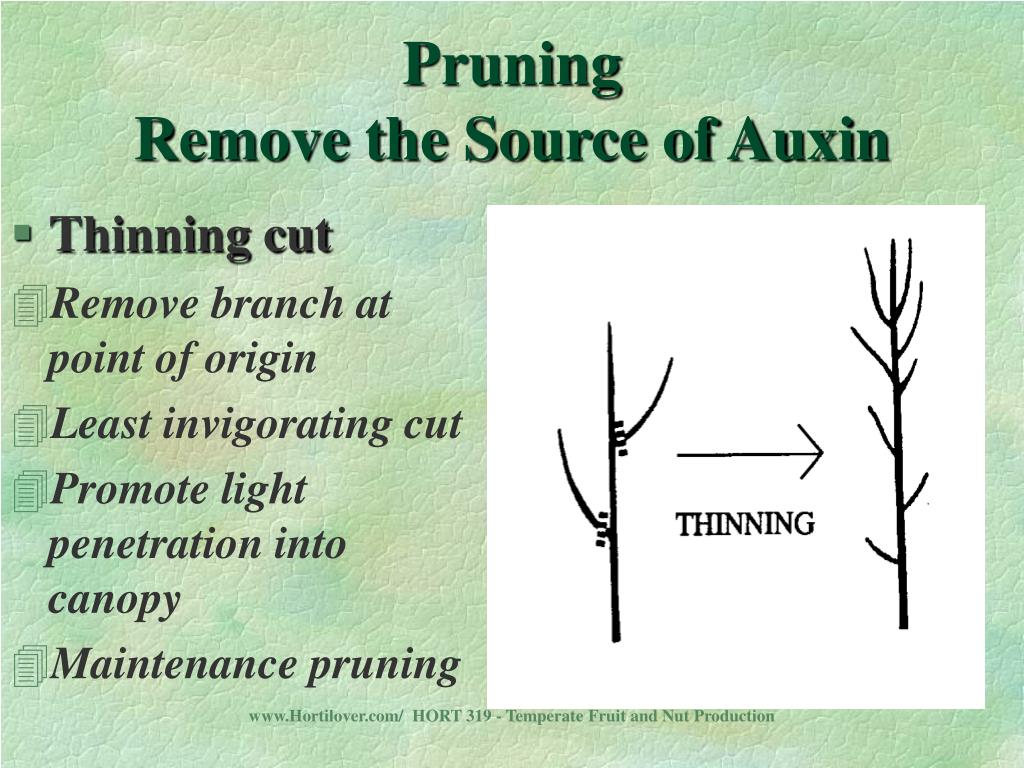

  42. PruningRemove the Source of Auxin • Thinning cut • Remove branch at point of origin • Least invigorating cut • Promote light penetration into canopy • Maintenance pruning www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

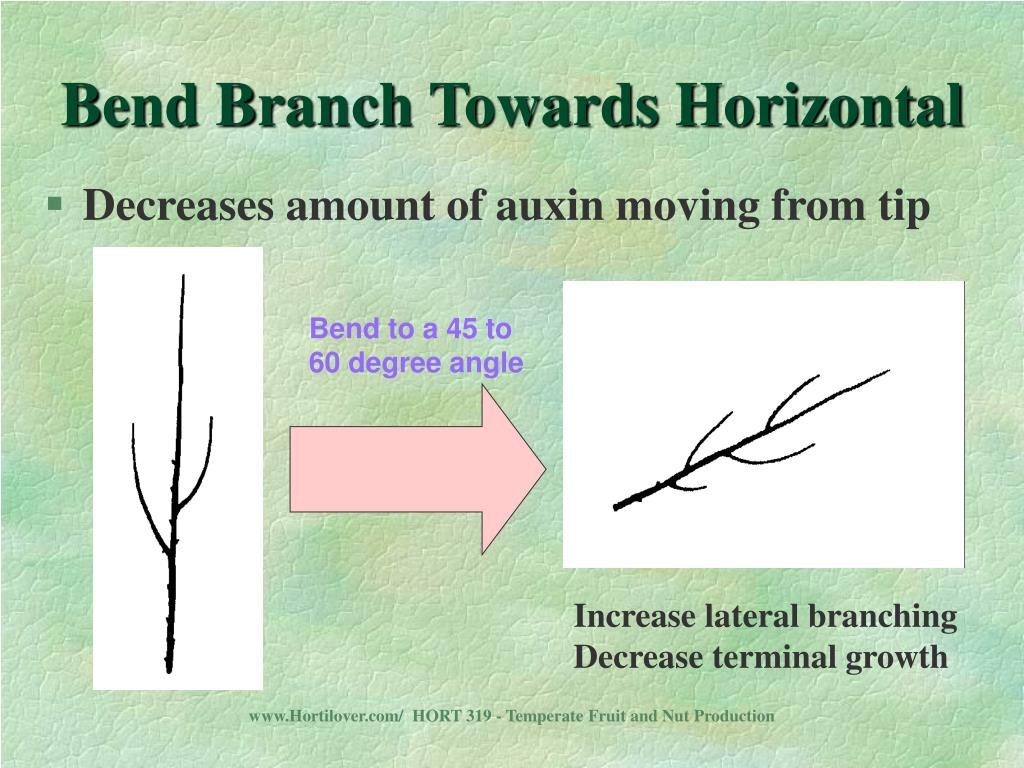

  43. Bend Branch Towards Horizontal • Decreases amount of auxin moving from tip Bend to a 45 to 60 degree angle • Increase lateral branching • Decrease terminal growth www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  44. Bend Branch Towards Horizontal • Decreases amount of auxin moving from tip Bend below the horizontal • Increase lateral branching • Buds at highest point break • Decrease terminal growth www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

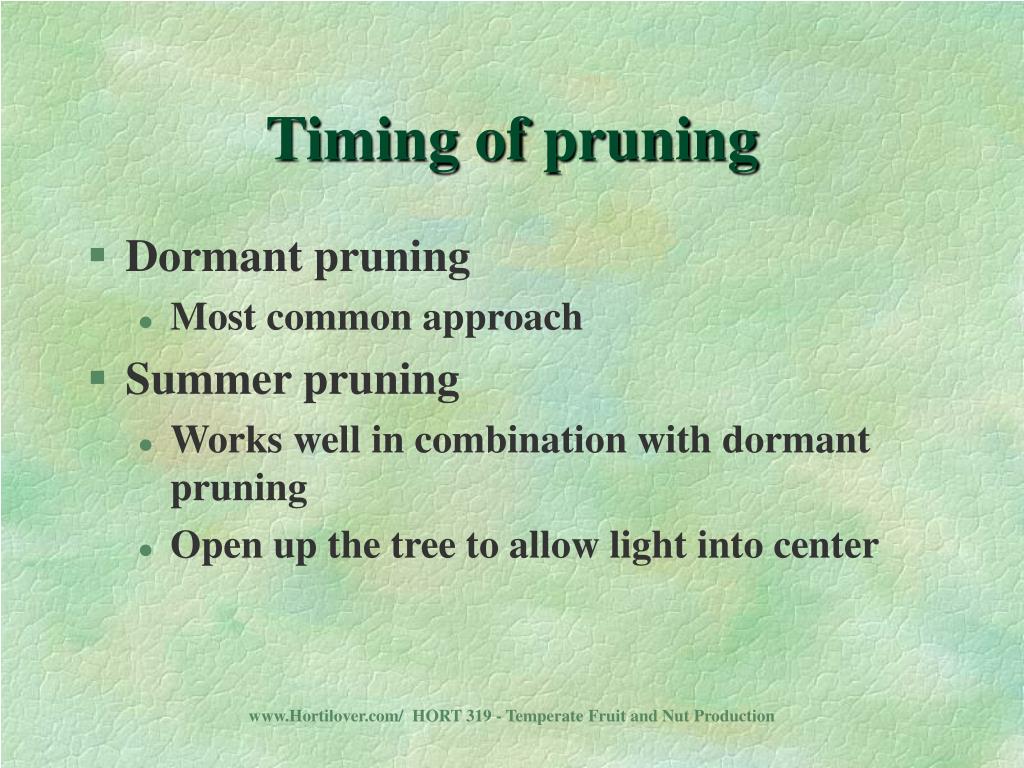

  45. Timing of pruning • Dormant pruning • Most common approach • Summer pruning • Works well in combination with dormant pruning • Open up the tree to allow light into center www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  46. Pruning Response Varies with Tree • Different varieties/crops grow differently • Spur types in apples • Vigor level of the tree • Age of the tree • Rootstock • Fertility/irrigation/soil constraints • Small fruited vs. large fruited crops www.Hortilover.com/ HORT 319 - Temperate Fruit and Nut Production

  47. Any Questions? Any Questions? Any Questions? Any Questions? Any Questions? www.Hortilover.com/
