  1. Simple approaches to difficult topics Measurement and Monitoring Dr Alan McLintic Middlemore Hospital

  2. Q: How do you measure Cardiac output using thermodilution?

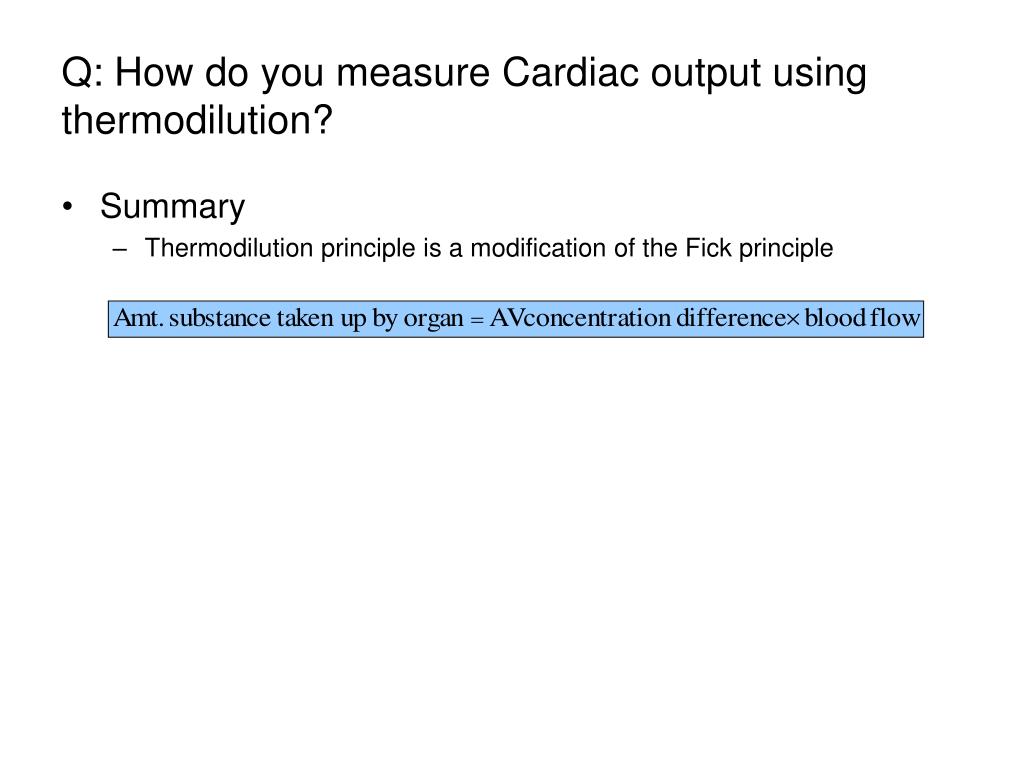

  3. Q: How do you measure Cardiac output using thermodilution? • Summary • Thermodilution principle is a modification of the Fick principle

  4. Q: How do you measure Cardiac output using thermodilution? • Summary • Thermodilution principle is a modification of the Fick principle

  5. Q: How do you measure Cardiac output using thermodilution? • Summary • Pulmonary artery catheter (‘Swan-Ganz’ catheter) Proximal lumen Thermistor Balloon Connection for thermistor Distal lumen

  6. Q: How do you measure Cardiac output using thermodilution? • Summary • Inserted through large neck vein

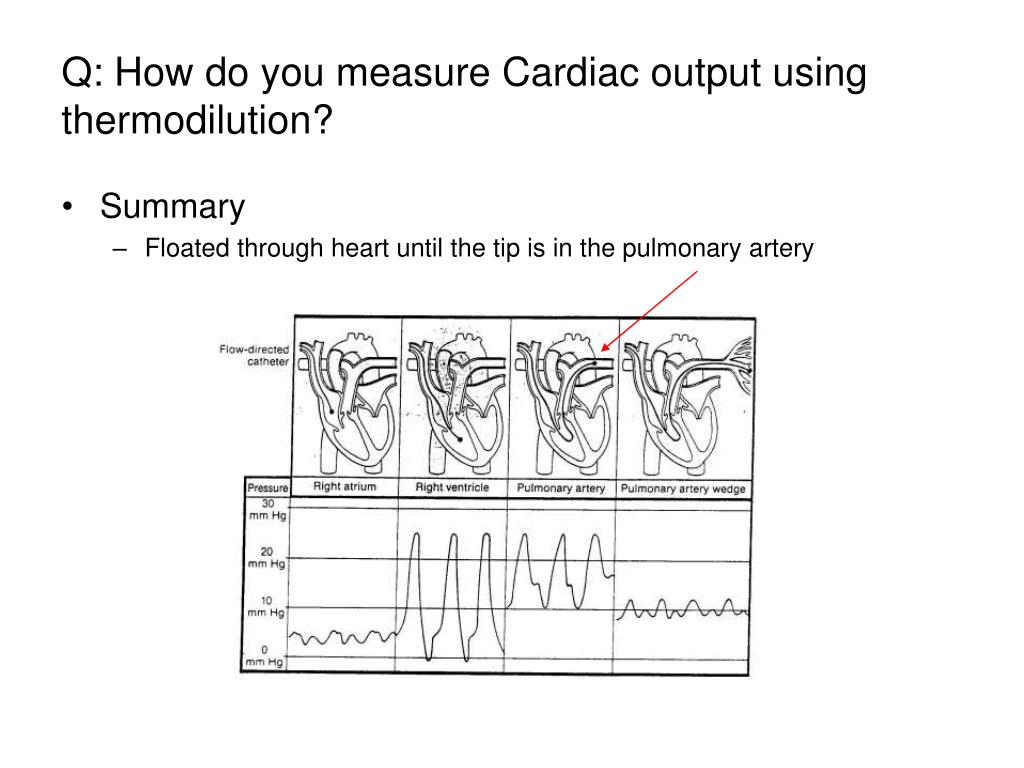

  7. Q: How do you measure Cardiac output using thermodilution? • Summary • Floated through heart until the tip is in the pulmonary artery

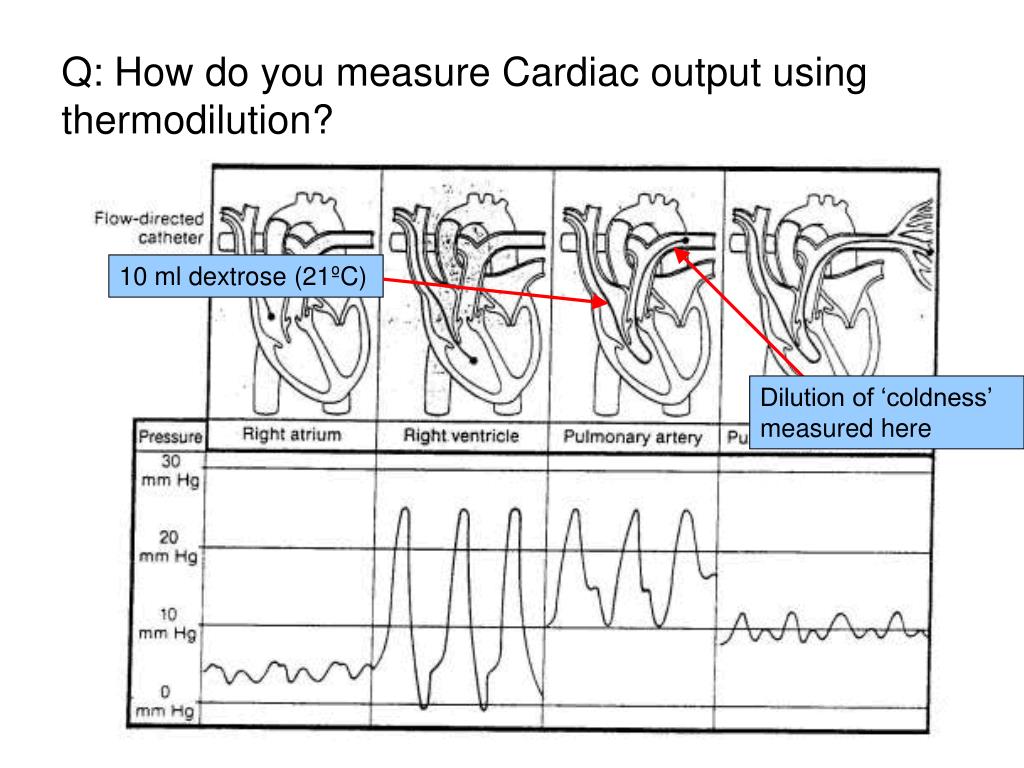

  8. Q: How do you measure Cardiac output using thermodilution? 10 ml dextrose (21ºC) Dilution of ‘coldness’ measured here

  9. Q: How do you measure Cardiac output using thermodilution? Recirculation Colder  Body temperature Time 

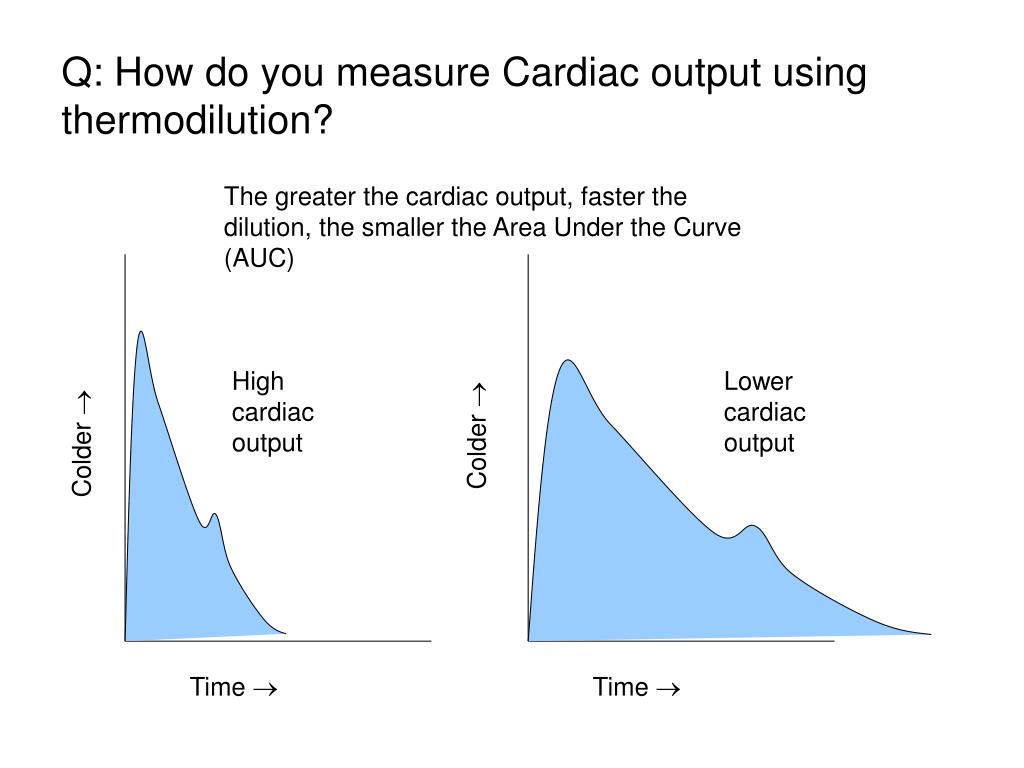

  10. Q: How do you measure Cardiac output using thermodilution? The greater the cardiac output, faster the dilution, the smaller the Area Under the Curve (AUC) High cardiac output Lower cardiac output Colder  Colder  Time  Time 

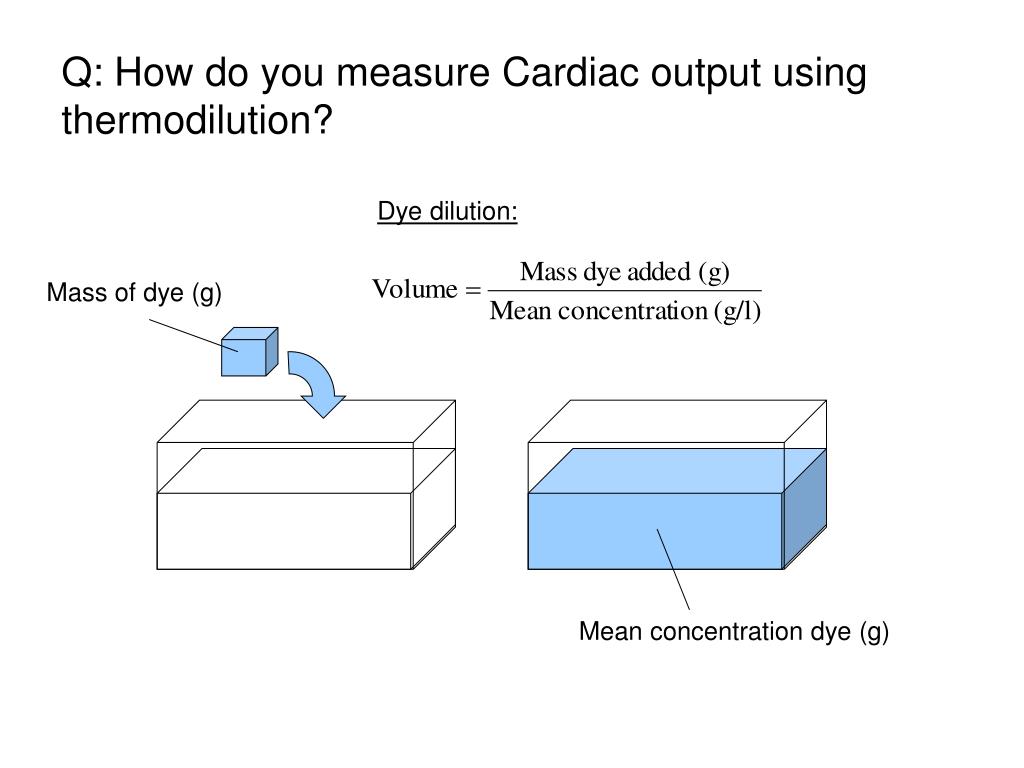

  11. Q: How do you measure Cardiac output using thermodilution? Dye dilution: Mass of dye (g) Mean concentration dye (g)

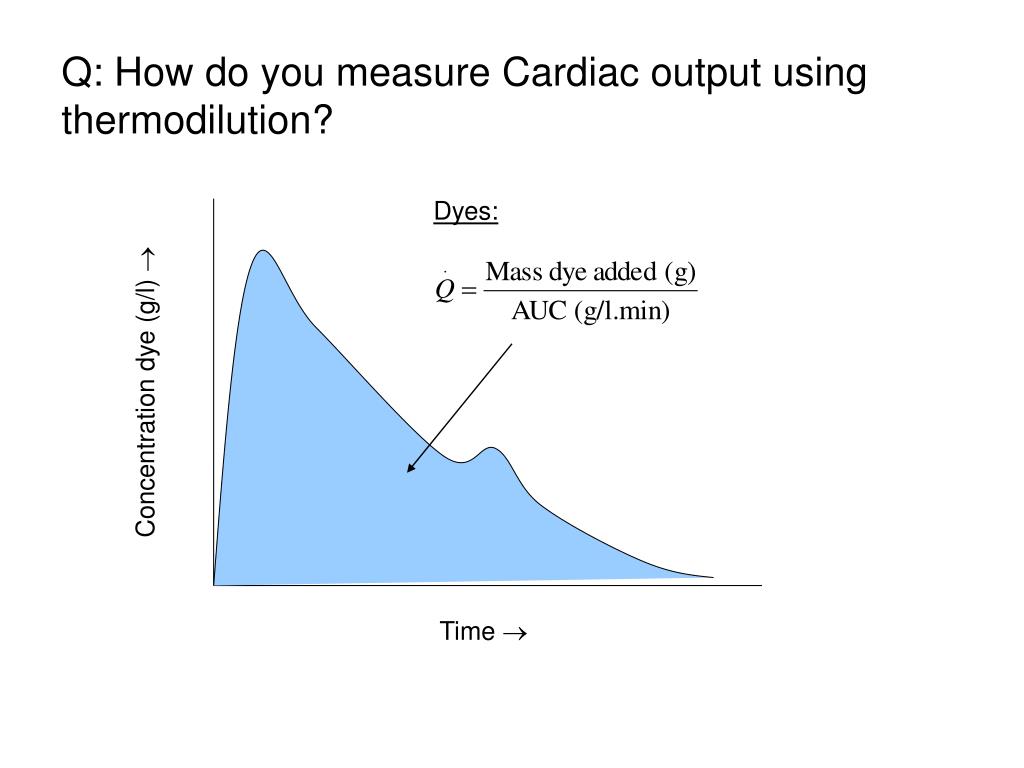

  12. Q: How do you measure Cardiac output using thermodilution? Dyes: Concentration dye (g/l)  Time 

  13. Q: How do you measure Cardiac output using thermodilution? Thermodilution Colder  Body temperature Time 

  14. Q: How do you measure Cardiac output using thermodilution? Thermodilution Colder  Body temperature Time 

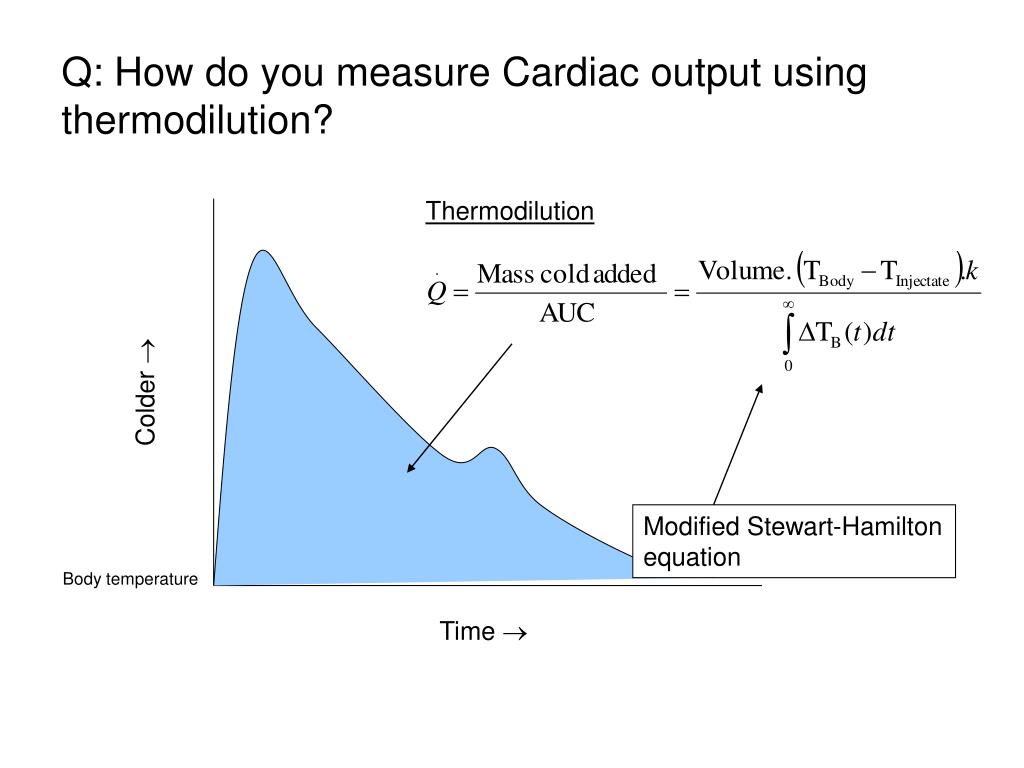

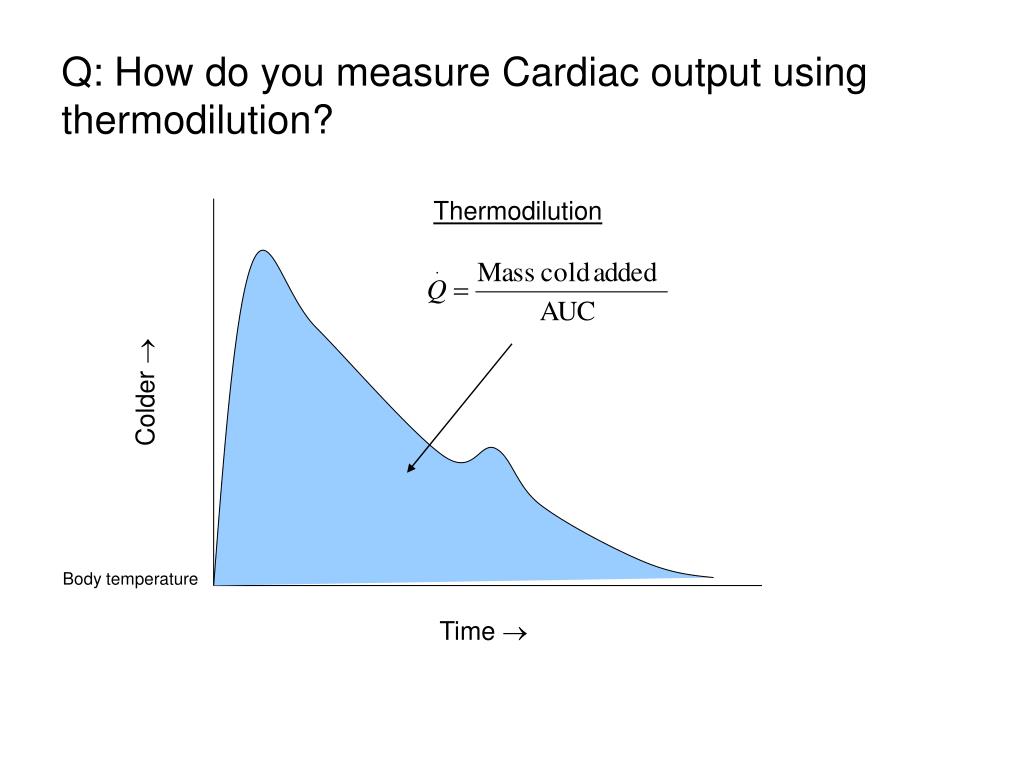

  15. Q: How do you measure Cardiac output using thermodilution? Thermodilution Colder  Modified Stewart-Hamilton equation Body temperature Time 

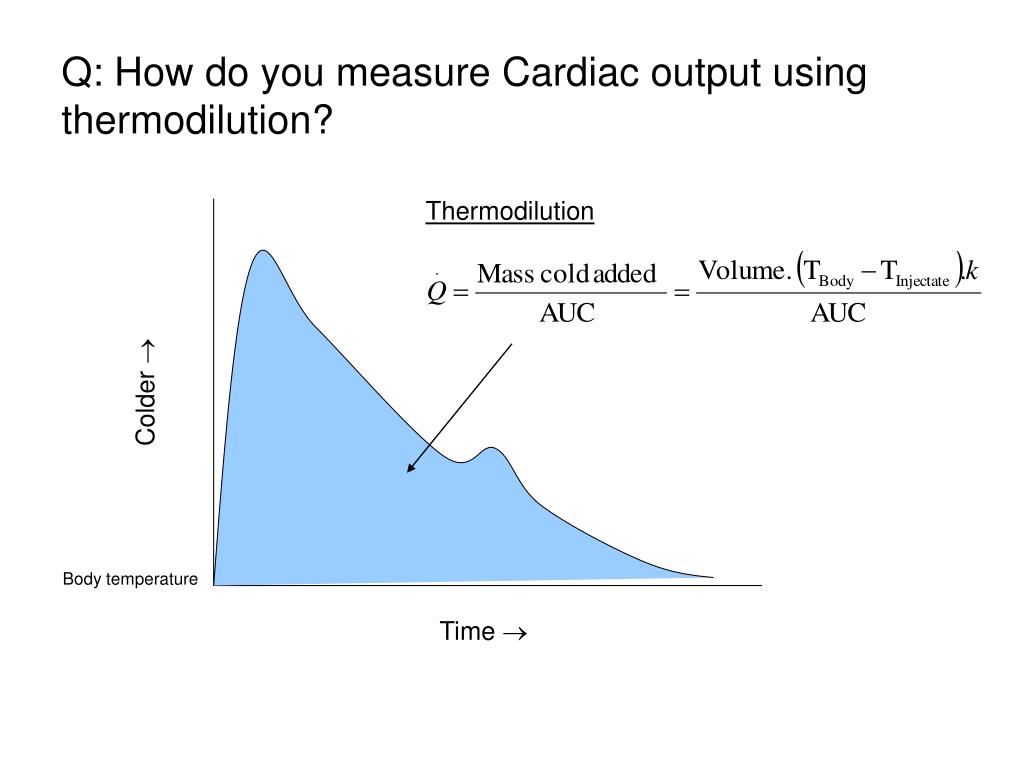

  16. Q: How do you measure Cardiac output using thermodilution? Thermodilution Colder  Body temperature Time 

  17. Q: How do you measure FRC using a Body Plethysmograph?

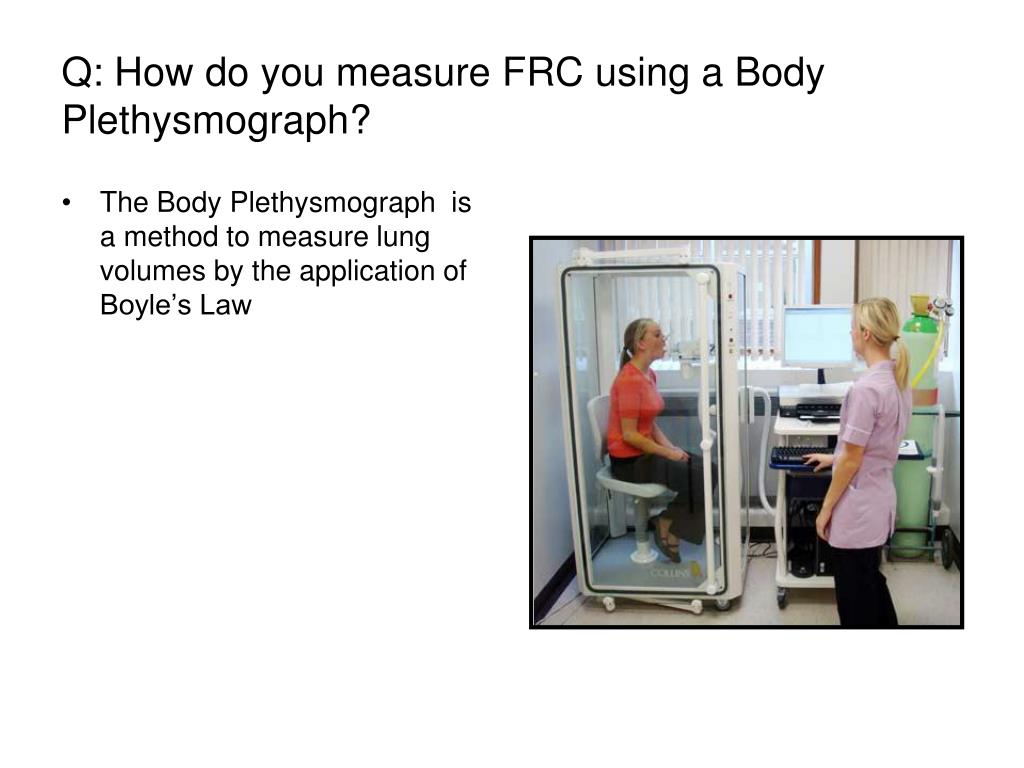

  18. Q: How do you measure FRC using a Body Plethysmograph? • The Body Plethysmograph is a method to measure lung volumes by the application of Boyle’s Law

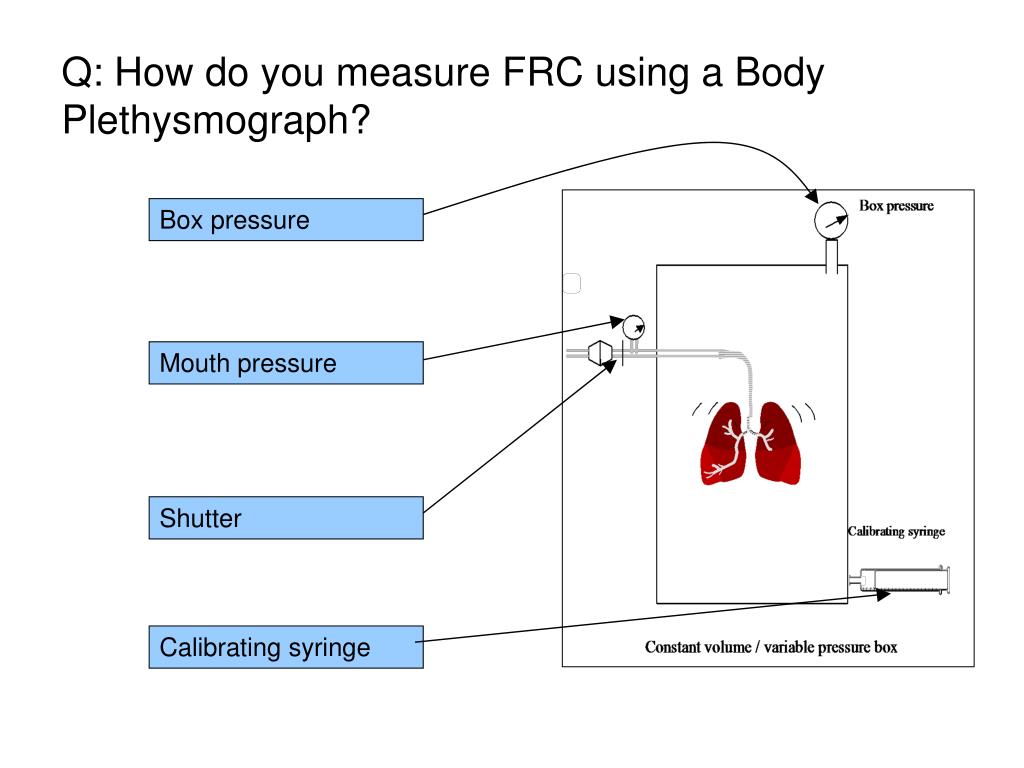

  19. Q: How do you measure FRC using a Body Plethysmograph? Box pressure Mouth pressure Shutter Calibrating syringe

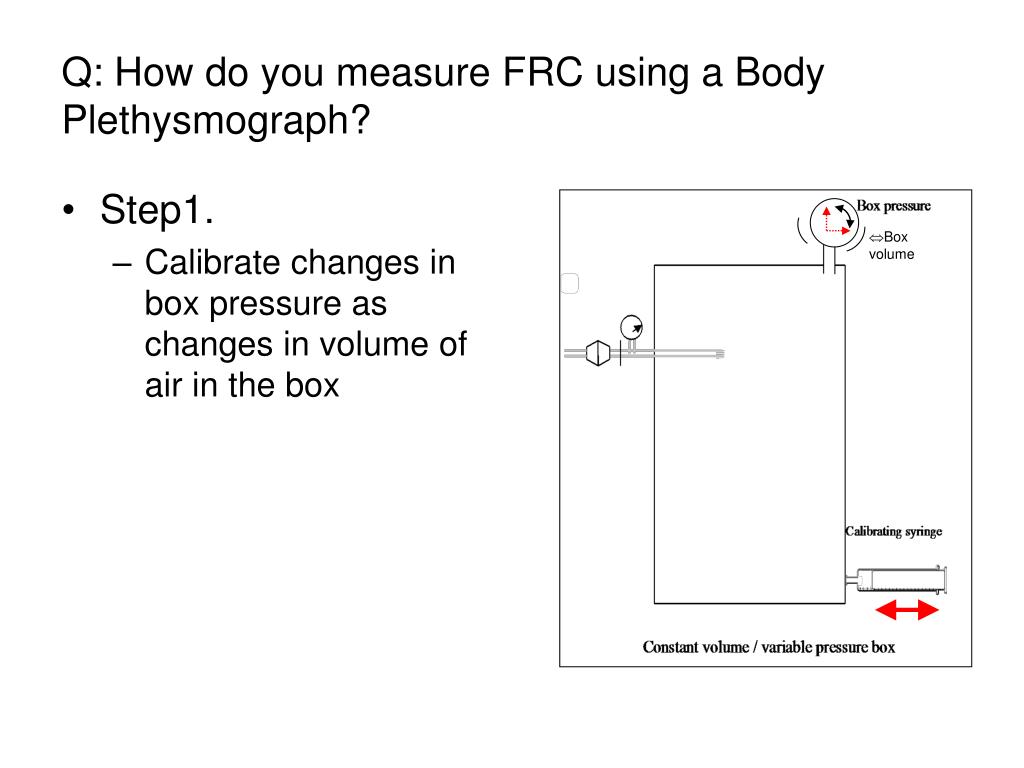

  20. Q: How do you measure FRC using a Body Plethysmograph? • Step1. • Calibrate changes in box pressure as changes in volume of air in the box Box volume

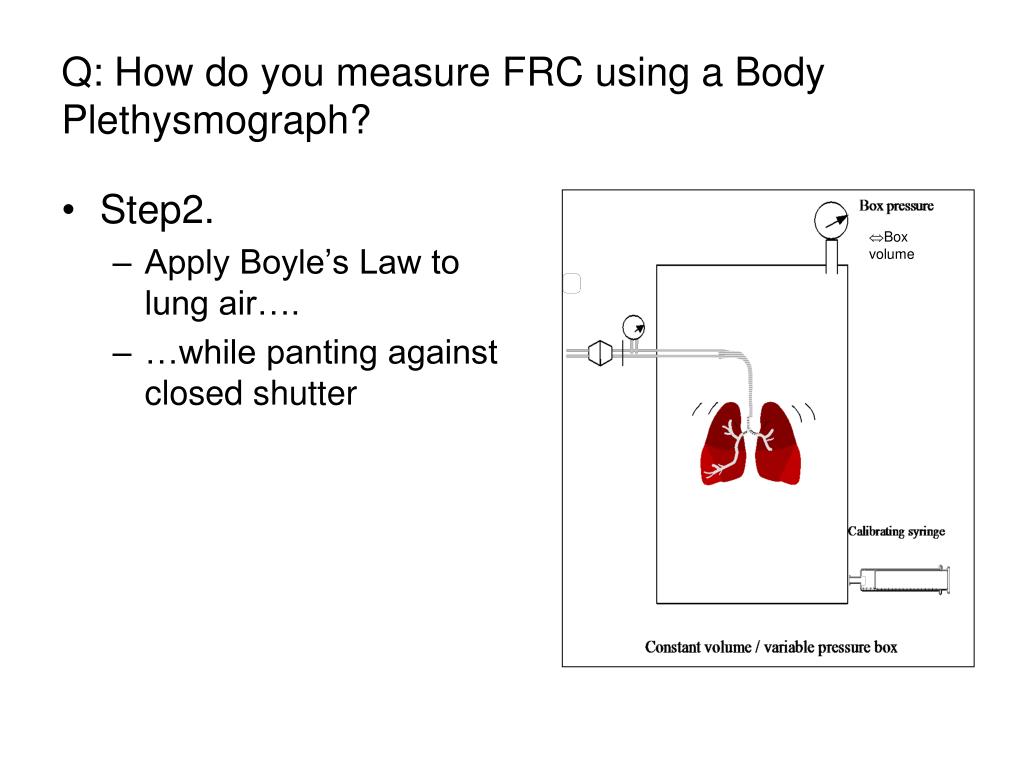

  21. Q: How do you measure FRC using a Body Plethysmograph? • Step2. • Apply Boyle’s Law to lung air…. • …while panting against closed shutter Box volume

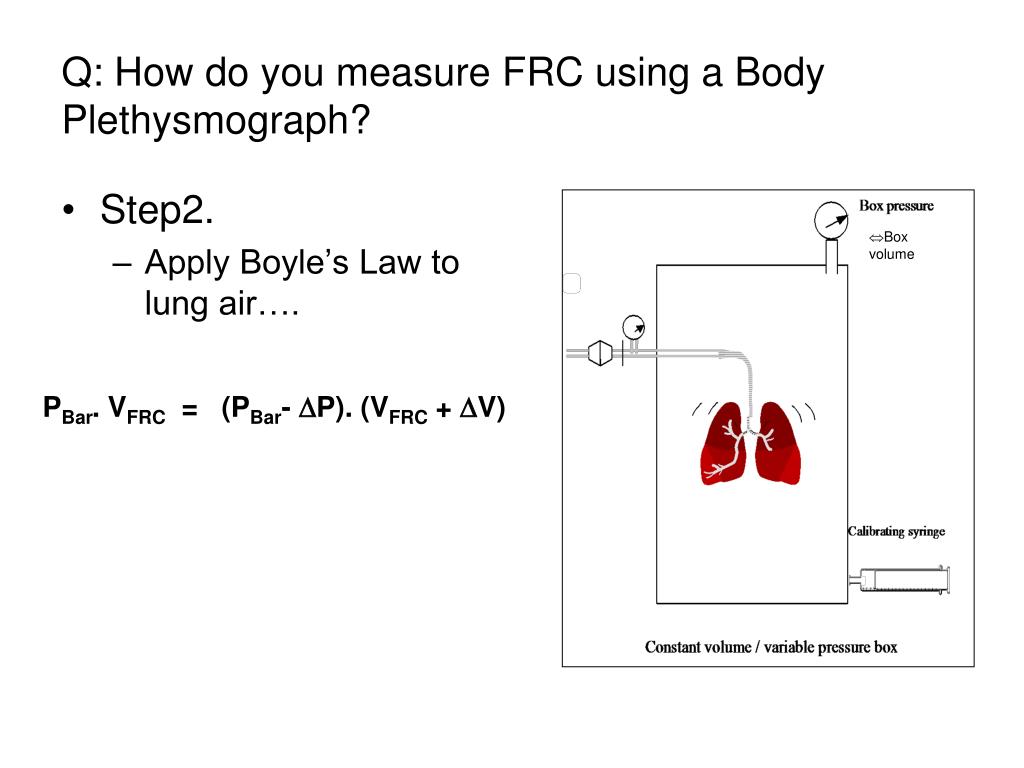

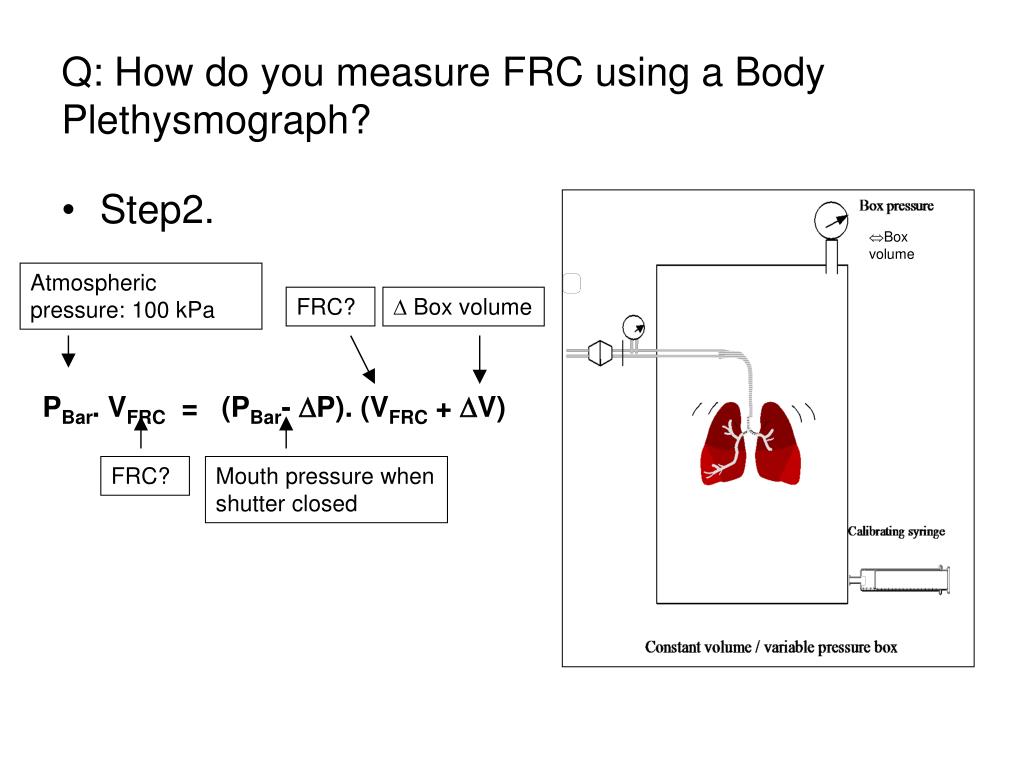

  22. Q: How do you measure FRC using a Body Plethysmograph? • Step2. • Apply Boyle’s Law to lung air…. Box volume PBar. VFRC = (PBar- P). (VFRC + V)

  23. Q: How do you measure FRC using a Body Plethysmograph? • Step2. Box volume Atmospheric pressure: 100 kPa FRC?  Box volume PBar. VFRC = (PBar- P). (VFRC + V) FRC? Mouth pressure when shutter closed

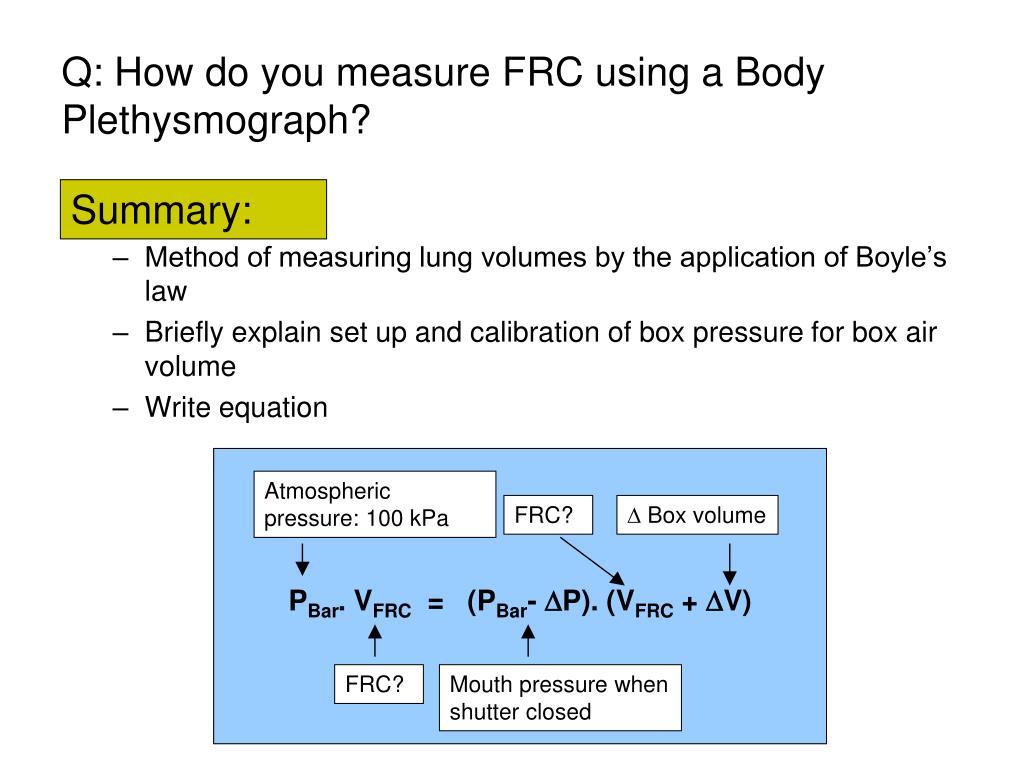

  24. Q: How do you measure FRC using a Body Plethysmograph? • Summary • Method of measuring lung volumes by the application of Boyle’s law • Briefly explain set up and calibration of box pressure for box air volume • Write equation Summary: Atmospheric pressure: 100 kPa FRC?  Box volume PBar. VFRC = (PBar- P). (VFRC + V) FRC? Mouth pressure when shutter closed

  25. Q: What are the important physical principles in the design of an invasive pressure monitoring system?

  26. Q: What are the important physical principles in the design of an invasive pressure monitoring system?

  27. Full answer regarding accuracy Practical aspects Prevention clot, kinking, choice of artery, cannulae Zeroing Static accuracy Dynamic accuracy Q: What are the important physical principles in the design of an invasive pressure monitoring system?

  28. Q: What are the important physical principles in the design of an invasive pressure monitoring system? Natural frequency (FN) Frequency at which a system oscillates most freely Tendency for a system to resist oscillation through friction Damping

  29. Q: What are the important physical principles in the design of an invasive pressure monitoring system? Natural frequency (FN) Frequency at which a system oscillates most freely The FN is the same frequency as the upstroke of trace  resonance and overshoot

  30. Q: What are the important physical principles in the design of an invasive pressure monitoring system? Prevents resonance from biological signals Natural frequency High as possible Short, stiff, short, wide tubing Small stiff transducer Low density fluid

  31. Q: What are the important physical principles in the design of an invasive pressure monitoring system? Prevents resonance from biological signals Natural frequency High as possible Optimal Damping 7% overshoot in fast flush test

  32. Q: What are the important physical principles in the design of an invasive pressure monitoring system? Prevents resonance from biological signals Natural frequency High as possible Optimal Damping Short, stiff, short, wide tubing Small stiff transducer High density fluid D = 0.64

  33. Q: What are the important physical principles in the design of an invasive pressure monitoring system? Prevents resonance from biological signals Natural frequency High as possible To produce flat frequency response Prevents amplitude distortion of high frequency waveforms Optimal Damping Prevent phase distortion All elements of the waveform are delayed by the same time interval

  34. To produce flat frequency response Arterial waveforms are made up of several different sine waves of different frequencies Fourier analysis

  35. To produce flat frequency response Very under-damped (0.1) Too big Amplitude relative to correct amplitude 1.0 Ideal Flat frequency response to 2/3 FN Too small Optimal damping (0.64) All but the very fastest waveforms will be reproduced without amplitude distortion FN Frequency of sine waves

  36. Q: What are the important physical principles in the design of an invasive pressure monitoring system?

  37. Q: What are the important physical principles in the design of an invasive pressure monitoring system? Prevents resonance from biological signals Natural frequency High as possible To produce flat frequency response Prevents amplitude distortion of high frequency waveforms Optimal Damping Prevent phase distortion All elements of the waveform are delayed by the same time interval

  38. Q: What are the important physical principles in the design of an invasive pressure monitoring system? Prevent phase distortion All elements of the waveform are delayed by the same time interval

  39. Q: What are the important physical principles in the design of an invasive pressure monitoring system? Prevents resonance from biological signals Natural frequency High as possible To produce flat frequency response Optimal Damping Prevent phase distortion D = 0.64

  40. Q: How does BIS analyse EEG?

  41. Q: How does BIS analyse EEG? How the algorithm was determined

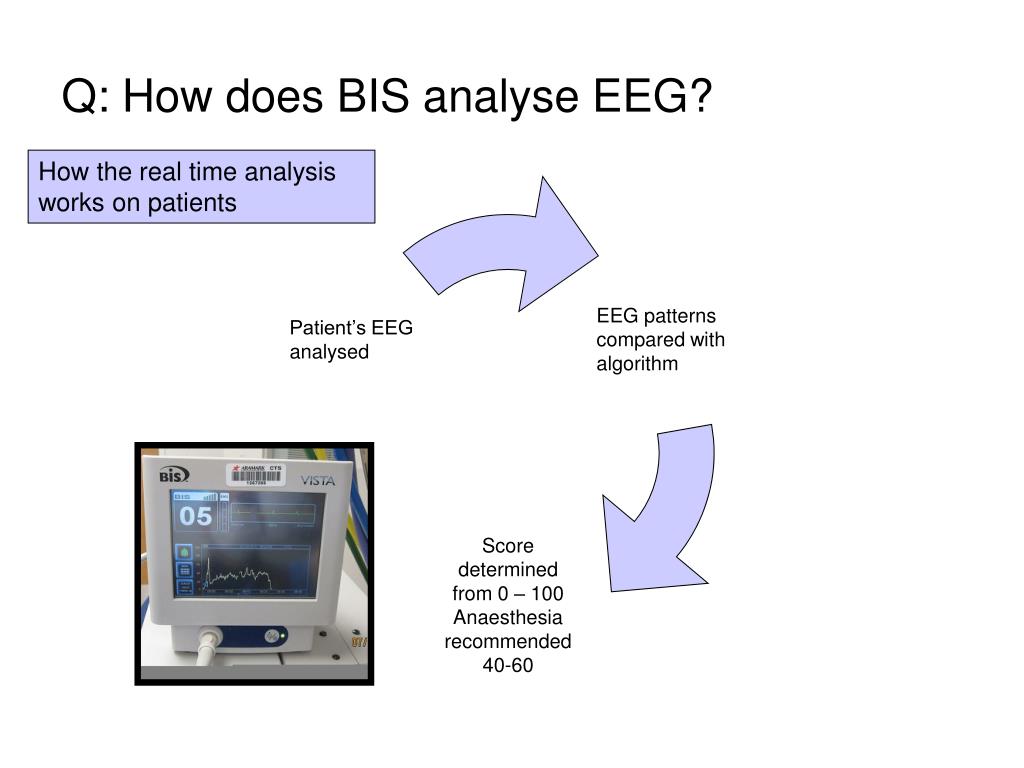

  42. Q: How does BIS analyse EEG? How the real time analysis works on patients

  43. Q: How does BIS analyse EEG? Bispectral: Phase coupling Bispectral: Degree of EEG synchronisation Power spectral analysis Burst suppression

  44. Q: How does BIS analyse EEG?

  45. Q: How does BIS analyse EEG?

  46. Q: How does BIS analyse EEG?
